RRC stub providing a testing S1 SAP user to be used with the EpcEnbApplication. More...

#include "lte-test-entities.h"

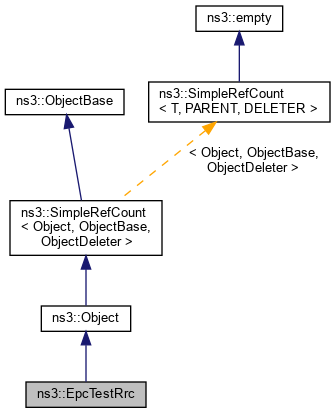

Inheritance diagram for ns3::EpcTestRrc:

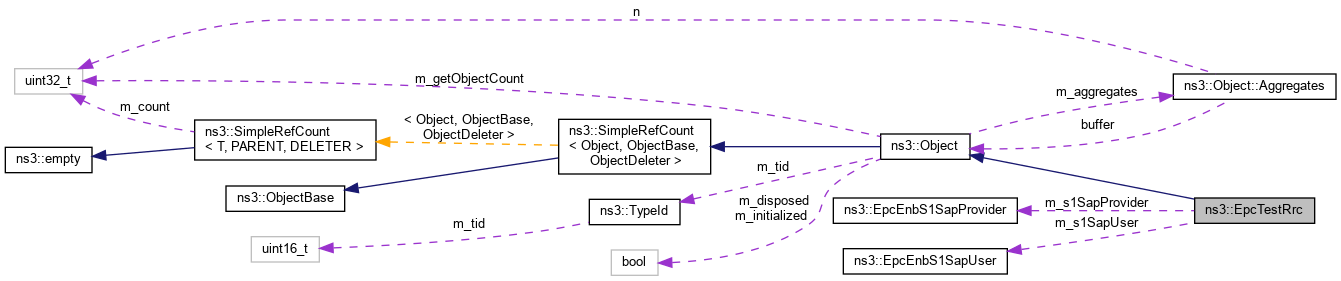

Collaboration diagram for ns3::EpcTestRrc:

Public Member Functions
	EpcTestRrc ()

virtual	~EpcTestRrc ()

virtual void	DoDispose (void)
	Destructor implementation. More...

EpcEnbS1SapUser *	GetS1SapUser ()

void	SetS1SapProvider (EpcEnbS1SapProvider *s)
	Set the S1 SAP Provider. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDataRadioBearerSetupRequest (EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params)
	Data radio bearer setup request. More...

void	DoInitialContextSetupRequest (EpcEnbS1SapUser::InitialContextSetupRequestParameters params)
	Initial context setup request. More...

void	DoPathSwitchRequestAcknowledge (EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params)
	Path switch request acknowledge function. More...

Private Attributes
EpcEnbS1SapProvider *	m_s1SapProvider
	S1 SAP provider. More...

EpcEnbS1SapUser *	m_s1SapUser
	S1 SAP user. More...

Friends
class	MemberEpcEnbS1SapUser< EpcTestRrc >
	allow MemberEpcEnbS1SapUser<EpcTestRrc> class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

RRC stub providing a testing S1 SAP user to be used with the EpcEnbApplication.

Definition at line 416 of file lte-test-entities.h.

Constructor & Destructor Documentation

◆ EpcTestRrc()

ns3::EpcTestRrc::EpcTestRrc ( )

Definition at line 684 of file lte-test-entities.cc.

References m_s1SapUser, MemberEpcEnbS1SapUser< EpcTestRrc >, and NS_LOG_FUNCTION.

◆ ~EpcTestRrc()

ns3::EpcTestRrc::~EpcTestRrc ( )

virtual

Definition at line 692 of file lte-test-entities.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDataRadioBearerSetupRequest()

void ns3::EpcTestRrc::DoDataRadioBearerSetupRequest ( EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params )

private

Data radio bearer setup request.

Parameters

params EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters

Definition at line 735 of file lte-test-entities.cc.

◆ DoDispose()

void ns3::EpcTestRrc::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 699 of file lte-test-entities.cc.

References m_s1SapUser, and NS_LOG_FUNCTION.

◆ DoInitialContextSetupRequest()

void ns3::EpcTestRrc::DoInitialContextSetupRequest ( EpcEnbS1SapUser::InitialContextSetupRequestParameters params )

private

Initial context setup request.

Parameters

params EpcEnbS1SapUser::InitialContextSetupRequestParameters

Definition at line 729 of file lte-test-entities.cc.

◆ DoPathSwitchRequestAcknowledge()

void ns3::EpcTestRrc::DoPathSwitchRequestAcknowledge ( EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params )

private

Path switch request acknowledge function.

Parameters

params EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters

Definition at line 741 of file lte-test-entities.cc.

◆ GetS1SapUser()

EpcEnbS1SapUser * ns3::EpcTestRrc::GetS1SapUser ( )

Returns: the S1 SAP user

Definition at line 723 of file lte-test-entities.cc.

References m_s1SapUser.

◆ GetTypeId()

TypeId ns3::EpcTestRrc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 706 of file lte-test-entities.cc.

References NS_LOG_FUNCTION, and ns3::TypeId::SetParent().

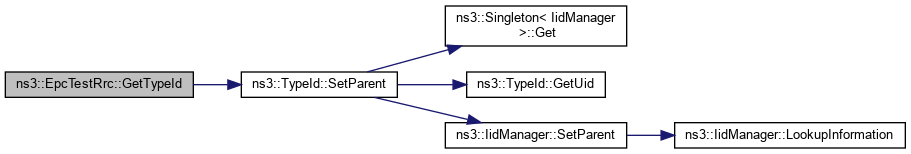

Here is the call graph for this function:

◆ SetS1SapProvider()

void ns3::EpcTestRrc::SetS1SapProvider ( EpcEnbS1SapProvider * s )

Set the S1 SAP Provider.

Parameters

s	the S1 SAP Provider

Definition at line 716 of file lte-test-entities.cc.

References m_s1SapProvider.

Friends And Related Function Documentation

◆ MemberEpcEnbS1SapUser< EpcTestRrc >

friend class MemberEpcEnbS1SapUser< EpcTestRrc >

friend

allow MemberEpcEnbS1SapUser<EpcTestRrc> class friend access

Definition at line 404 of file lte-test-entities.h.

Referenced by EpcTestRrc().

Member Data Documentation

◆ m_s1SapProvider

EpcEnbS1SapProvider* ns3::EpcTestRrc::m_s1SapProvider

private

S1 SAP provider.

Definition at line 465 of file lte-test-entities.h.

Referenced by SetS1SapProvider().

◆ m_s1SapUser

EpcEnbS1SapUser* ns3::EpcTestRrc::m_s1SapUser

private

S1 SAP user.

Definition at line 466 of file lte-test-entities.h.

Referenced by EpcTestRrc(), DoDispose(), and GetS1SapUser().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-entities.h
src/lte/test/lte-test-entities.cc
