LrWpanErrorDistanceTestCase Class Reference

LrWpan Error Vs Distance Test. More...

Inheritance diagram for LrWpanErrorDistanceTestCase:

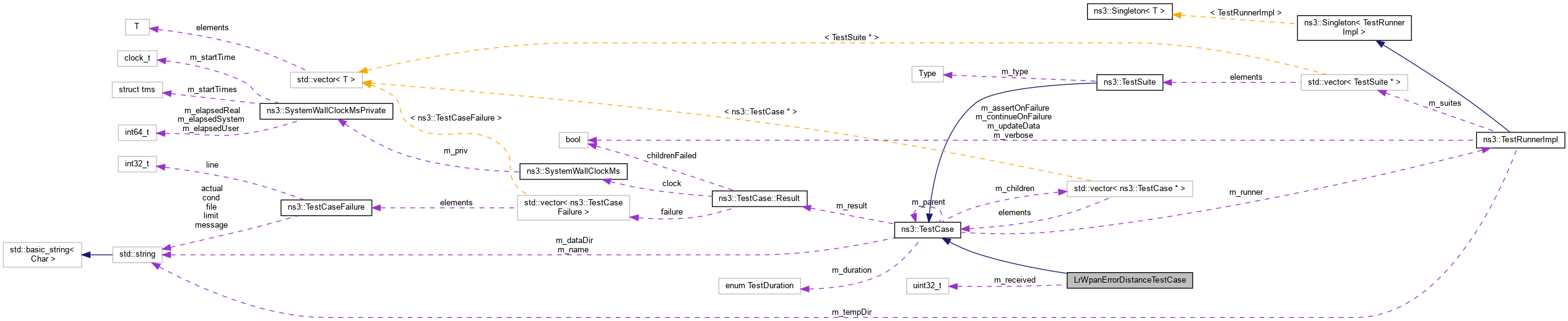

Collaboration diagram for LrWpanErrorDistanceTestCase:

Public Member Functions
	LrWpanErrorDistanceTestCase ()
virtual	~LrWpanErrorDistanceTestCase ()
uint32_t	GetReceived (void) const
	Get the number of received packets. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	Callback (McpsDataIndicationParams params, Ptr< Packet > p)
	Function to be called when a packet is received. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
uint32_t	m_received
	The number of received packets. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

LrWpan Error Vs Distance Test.

Definition at line 46 of file lr-wpan-error-model-test.cc.

Constructor & Destructor Documentation

LrWpanErrorDistanceTestCase()

LrWpanErrorDistanceTestCase::LrWpanErrorDistanceTestCase

(

)

Definition at line 89 of file lr-wpan-error-model-test.cc.

~LrWpanErrorDistanceTestCase()

LrWpanErrorDistanceTestCase::~LrWpanErrorDistanceTestCase ( )

virtual

Definition at line 95 of file lr-wpan-error-model-test.cc.

Member Function Documentation

Callback()

void LrWpanErrorDistanceTestCase::Callback ( McpsDataIndicationParams  params, Ptr< Packet >  p  )

private

Function to be called when a packet is received.

Parameters

params	MCPS params.
p	The packet.

Definition at line 100 of file lr-wpan-error-model-test.cc.

References m_received.

Referenced by DoRun().

Here is the caller graph for this function:

DoRun()

void LrWpanErrorDistanceTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 106 of file lr-wpan-error-model-test.cc.

References ns3::Node::AddDevice(), ns3::LrWpanNetDevice::AssignStreams(), Callback(), third::channel, ns3::LrWpanNetDevice::GetMac(), ns3::LrWpanNetDevice::GetPhy(), GetReceived(), ns3::McpsDataRequestParams::m_dstAddr, ns3::McpsDataRequestParams::m_dstAddrMode, ns3::McpsDataRequestParams::m_dstPanId, ns3::McpsDataRequestParams::m_msduHandle, ns3::McpsDataRequestParams::m_srcAddrMode, ns3::McpsDataRequestParams::m_txOptions, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::LrWpanNetDevice::SetAddress(), ns3::LrWpanNetDevice::SetChannel(), and ns3::SHORT_ADDR.

Here is the call graph for this function:

GetReceived()

uint32_t LrWpanErrorDistanceTestCase::GetReceived ( void  ) const

inline

Get the number of received packets.

Returns

The number of received packets.

Definition at line 56 of file lr-wpan-error-model-test.cc.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

m_received

uint32_t LrWpanErrorDistanceTestCase::m_received

private

The number of received packets.

Definition at line 70 of file lr-wpan-error-model-test.cc.

Referenced by Callback().

---

The documentation for this class was generated from the following file:

• src/lr-wpan/test/lr-wpan-error-model-test.cc
