Packet Buffering Case A. More...

Inheritance diagram for PacketBufferingCaseA:

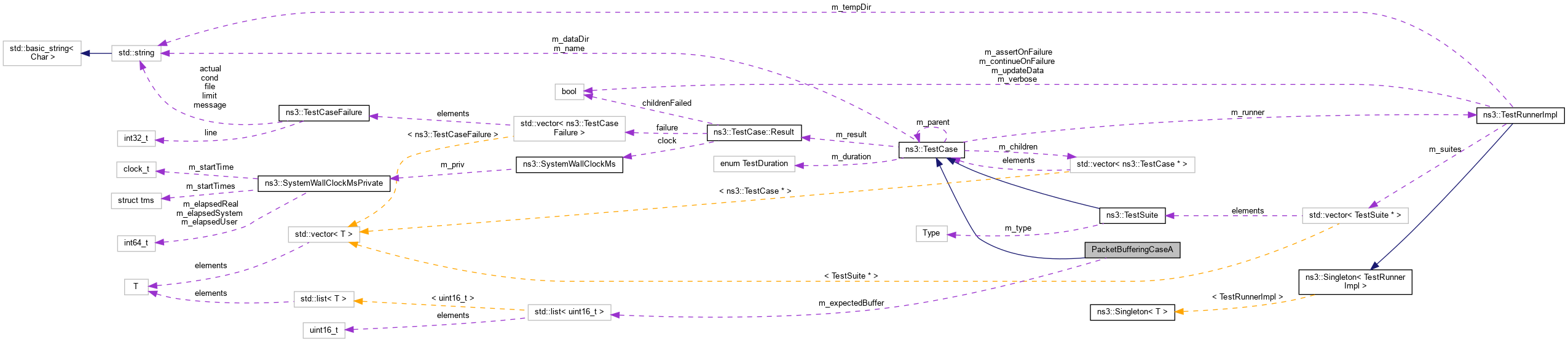

Collaboration diagram for PacketBufferingCaseA:

Public Member Functions
	PacketBufferingCaseA ()

virtual	~PacketBufferingCaseA ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun (void) override
	Implementation to actually run this TestCase. More...

Private Attributes
std::list< uint16_t >	m_expectedBuffer
	expected test buffer More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Packet Buffering Case A.

This simple test verifies the correctness of buffering for packets received under block ack. In order to completely understand this example is important to cite section 9.10.3 in IEEE802.11 standard:

"[...] The sequence number space is considered divided into two parts, one of which is “old” and one of which is “new” by means of a boundary created by adding half the sequence number range to the current start of receive window (modulo 2^12)."

Definition at line 84 of file block-ack-test-suite.cc.

Constructor & Destructor Documentation

◆ PacketBufferingCaseA()

PacketBufferingCaseA::PacketBufferingCaseA ( )

Definition at line 94 of file block-ack-test-suite.cc.

References m_expectedBuffer.

◆ ~PacketBufferingCaseA()

PacketBufferingCaseA::~PacketBufferingCaseA ( )

virtual

Definition at line 104 of file block-ack-test-suite.cc.

Member Function Documentation

◆ DoRun()

void PacketBufferingCaseA::DoRun ( void )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 109 of file block-ack-test-suite.cc.

References m_expectedBuffer, NS_TEST_EXPECT_MSG_EQ, and ns3::QosUtilsMapSeqControlToUniqueInteger().

Here is the call graph for this function:

Member Data Documentation

◆ m_expectedBuffer

std::list<uint16_t> PacketBufferingCaseA::m_expectedBuffer

private

expected test buffer

Definition at line 91 of file block-ack-test-suite.cc.

Referenced by PacketBufferingCaseA(), and DoRun().

The documentation for this class was generated from the following file:

src/wifi/test/block-ack-test-suite.cc
