PhyHeaderSectionsTest Class Reference

PHY header sections consistency test. More...

Inheritance diagram for PhyHeaderSectionsTest:

Collaboration diagram for PhyHeaderSectionsTest:

Public Member Functions
	PhyHeaderSectionsTest ()
virtual	~PhyHeaderSectionsTest ()
void	DoRun (void) override
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckPhyHeaderSections (PhyEntity::PhyHeaderSections obtained, PhyEntity::PhyHeaderSections expected)
	Check if map of PHY header sections returned by a given PHY entity corresponds to a known value. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

PHY header sections consistency test.

Definition at line 678 of file tx-duration-test.cc.

Constructor & Destructor Documentation

PhyHeaderSectionsTest()

PhyHeaderSectionsTest::PhyHeaderSectionsTest

(

)

Definition at line 698 of file tx-duration-test.cc.

~PhyHeaderSectionsTest()

PhyHeaderSectionsTest::~PhyHeaderSectionsTest ( )

virtual

Definition at line 703 of file tx-duration-test.cc.

Member Function Documentation

CheckPhyHeaderSections()

void PhyHeaderSectionsTest::CheckPhyHeaderSections ( PhyEntity::PhyHeaderSections  obtained, PhyEntity::PhyHeaderSections  expected  )

private

Check if map of PHY header sections returned by a given PHY entity corresponds to a known value.

Parameters

obtained	the map of PHY header sections to check
expected	the expected map of PHY header sections

Definition at line 708 of file tx-duration-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and visualizer.ipython_view::window.

Referenced by DoRun().

Here is the caller graph for this function:

DoRun()

void PhyHeaderSectionsTest::DoRun ( void  )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 735 of file tx-duration-test.cc.

References CheckPhyHeaderSections(), ns3::MicroSeconds(), ns3::OFDM_PHY_10_MHZ, ns3::OFDM_PHY_5_MHZ, ns3::OFDM_PHY_DEFAULT, ns3::Seconds(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WIFI_PPDU_FIELD_HT_SIG, ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, ns3::WIFI_PPDU_FIELD_SIG_A, ns3::WIFI_PPDU_FIELD_SIG_B, ns3::WIFI_PPDU_FIELD_TRAINING, ns3::WIFI_PREAMBLE_HE_ER_SU, ns3::WIFI_PREAMBLE_HE_MU, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HE_TB, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_PREAMBLE_SHORT, ns3::WIFI_PREAMBLE_VHT_MU, and ns3::WIFI_PREAMBLE_VHT_SU.

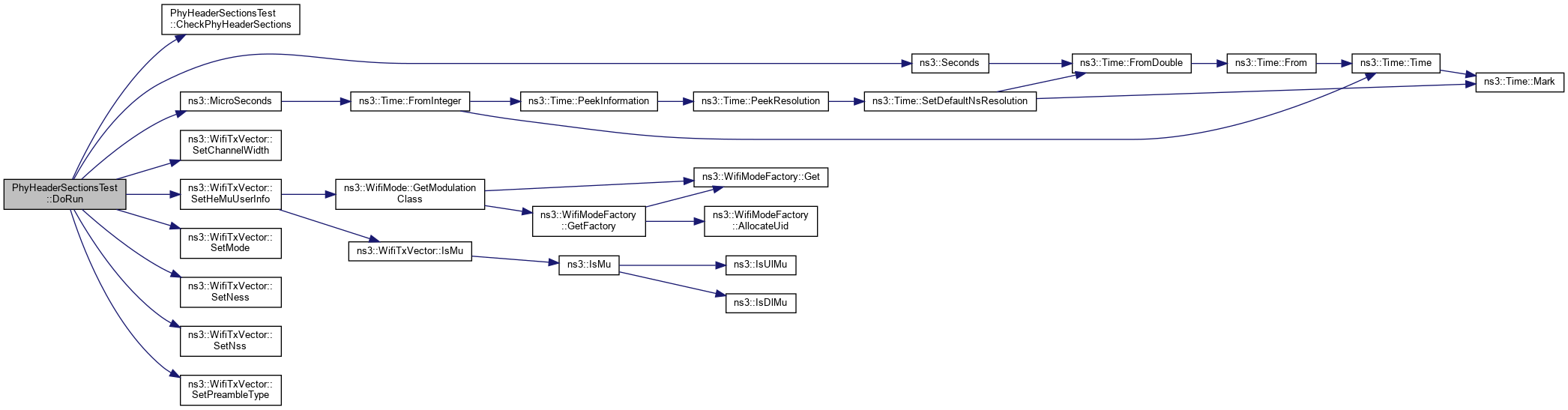

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/wifi/test/tx-duration-test.cc
