UL-OFDMA PPDU UID attribution test. More...

Inheritance diagram for TestUlOfdmaPpduUid:

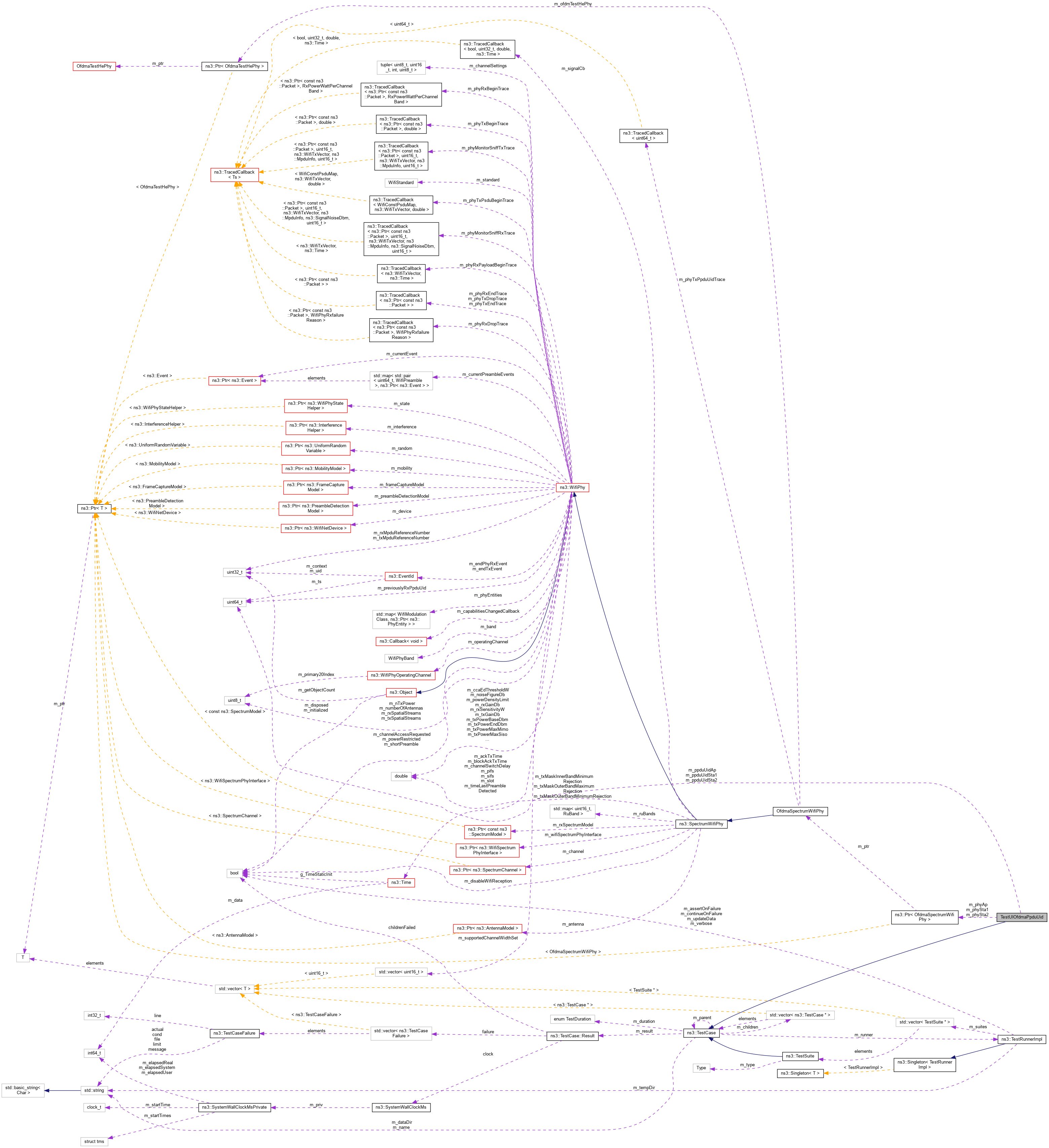

Collaboration diagram for TestUlOfdmaPpduUid:

Public Member Functions
	TestUlOfdmaPpduUid ()

virtual	~TestUlOfdmaPpduUid ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckUid (uint16_t staId, uint64_t expectedUid)
	Check the UID of the transmitted PPDU. More...

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

void	DoSetup (void) override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown (void) override
	Implementation to do any local setup required for this TestCase. More...

void	ResetPpduUid (void)
	Reset the global PPDU UID counter in WifiPhy. More...

void	SendMuPpdu (void)
	Send MU-PPDU toward both STAs. More...

void	SendSuPpdu (uint16_t txStaId)
	Send SU-PPDU function. More...

void	SendTbPpdu (void)
	Send TB-PPDU from both STAs. More...

void	TxPpduAp (uint64_t uid)
	Transmitted PPDU information function for AP. More...

void	TxPpduSta1 (uint64_t uid)
	Transmitted PPDU information function for STA 1. More...

void	TxPpduSta2 (uint64_t uid)
	Transmitted PPDU information function for STA 2. More...

Private Attributes
Ptr< OfdmaSpectrumWifiPhy >	m_phyAp
	PHY of AP. More...

Ptr< OfdmaSpectrumWifiPhy >	m_phySta1
	PHY of STA 1. More...

Ptr< OfdmaSpectrumWifiPhy >	m_phySta2
	PHY of STA 2. More...

uint64_t	m_ppduUidAp
	UID of PPDU transmitted by AP. More...

uint64_t	m_ppduUidSta1
	UID of PPDU transmitted by STA1. More...

uint64_t	m_ppduUidSta2
	UID of PPDU transmitted by STA2. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

UL-OFDMA PPDU UID attribution test.

Definition at line 971 of file wifi-phy-ofdma-test.cc.

Constructor & Destructor Documentation

◆ TestUlOfdmaPpduUid()

TestUlOfdmaPpduUid::TestUlOfdmaPpduUid ( )

Definition at line 1032 of file wifi-phy-ofdma-test.cc.

◆ ~TestUlOfdmaPpduUid()

TestUlOfdmaPpduUid::~TestUlOfdmaPpduUid ( )

virtual

Definition at line 1040 of file wifi-phy-ofdma-test.cc.

Member Function Documentation

◆ CheckUid()

void TestUlOfdmaPpduUid::CheckUid	(	uint16_t	staId,
		uint64_t	expectedUid
	)

private

Check the UID of the transmitted PPDU.

Parameters

staId	the STA-ID of the PHY (0 for AP)
expectedUid	the expected UID

Definition at line 1131 of file wifi-phy-ofdma-test.cc.

References m_ppduUidAp, m_ppduUidSta1, m_ppduUidSta2, ns3::Now(), NS_ABORT_MSG, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void TestUlOfdmaPpduUid::DoRun ( void )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1306 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPhy::AssignStreams(), CheckUid(), m_phyAp, m_phySta1, m_phySta2, ResetPpduUid(), ns3::Seconds(), SendMuPpdu(), SendSuPpdu(), and SendTbPpdu().

Here is the call graph for this function:

◆ DoSetup()

void TestUlOfdmaPpduUid::DoSetup ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 1045 of file wifi-phy-ofdma-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ns3::WifiPhy::ConfigureStandard(), ns3::SpectrumWifiPhy::CreateWifiSpectrumPhyInterface(), DEFAULT_CHANNEL_WIDTH, DEFAULT_FREQUENCY, m_phyAp, m_phySta1, m_phySta2, ns3::MakeCallback(), ns3::SpectrumWifiPhy::SetChannel(), ns3::WifiPhy::SetDevice(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetInterferenceHelper(), ns3::WifiPhy::SetMobility(), ns3::WifiPhy::SetOperatingChannel(), ns3::WifiNetDevice::SetPhy(), ns3::ObjectBase::TraceConnectWithoutContext(), TxPpduAp(), TxPpduSta1(), TxPpduSta2(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ DoTeardown()

void TestUlOfdmaPpduUid::DoTeardown ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 1120 of file wifi-phy-ofdma-test.cc.

References ns3::Object::Dispose(), m_phyAp, m_phySta1, and m_phySta2.

Here is the call graph for this function:

◆ ResetPpduUid()

void TestUlOfdmaPpduUid::ResetPpduUid ( void )

private

Reset the global PPDU UID counter in WifiPhy.

Definition at line 1177 of file wifi-phy-ofdma-test.cc.

References m_phyAp, NS_LOG_FUNCTION, and OfdmaSpectrumWifiPhy::SetPpduUid().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMuPpdu()

void TestUlOfdmaPpduUid::SendMuPpdu ( void )

private

Send MU-PPDU toward both STAs.

Definition at line 1185 of file wifi-phy-ofdma-test.cc.

References DEFAULT_CHANNEL_WIDTH, m_phyAp, ns3::WifiPhy::Send(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiTxVector::SetRu(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendSuPpdu()

void TestUlOfdmaPpduUid::SendSuPpdu ( uint16_t txStaId )

private

Send SU-PPDU function.

Parameters

txStaId the ID of the sending STA

Definition at line 1275 of file wifi-phy-ofdma-test.cc.

References DEFAULT_CHANNEL_WIDTH, m_phyAp, m_phySta1, m_phySta2, NS_ABORT_MSG, ns3::WifiPhy::Send(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::WifiMacHeader::SetType(), SU_STA_ID, ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_SU.

Referenced by DoRun().

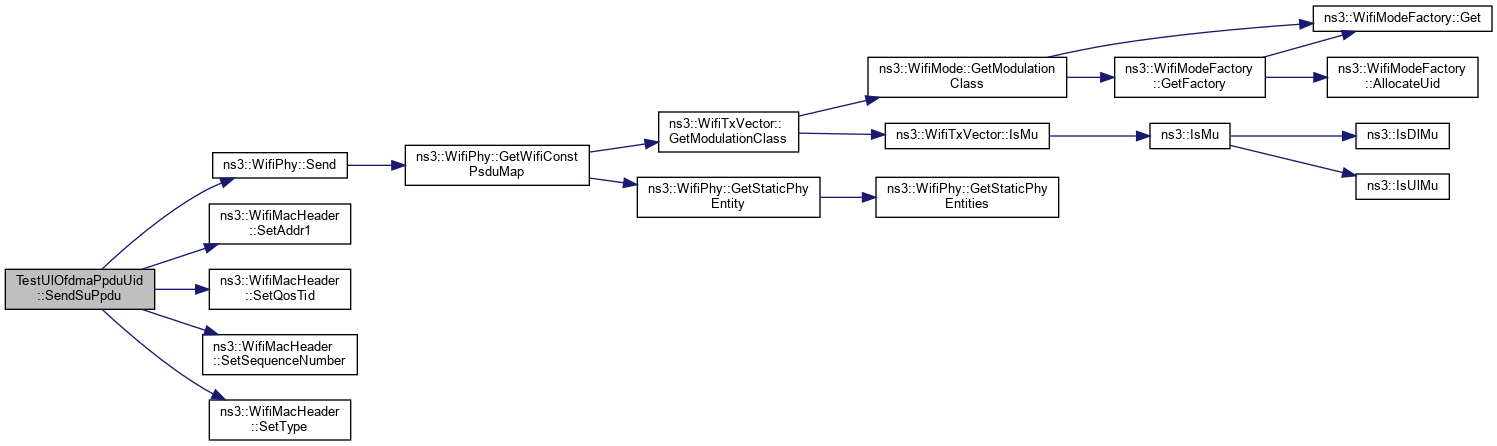

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendTbPpdu()

void TestUlOfdmaPpduUid::SendTbPpdu ( void )

private

Send TB-PPDU from both STAs.

Definition at line 1224 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), DEFAULT_CHANNEL_WIDTH, ns3::WifiPhy::GetPhyBand(), ns3::WifiPsdu::GetSize(), m_phySta1, m_phySta2, max, ns3::WifiPhy::Send(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiTxVector::SetLength(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiTxVector::SetRu(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TxPpduAp()

void TestUlOfdmaPpduUid::TxPpduAp ( uint64_t uid )

private

Transmitted PPDU information function for AP.

Parameters

uid	the UID of the transmitted PPDU

Definition at line 1156 of file wifi-phy-ofdma-test.cc.

References m_ppduUidAp, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the caller graph for this function:

◆ TxPpduSta1()

void TestUlOfdmaPpduUid::TxPpduSta1 ( uint64_t uid )

private

Transmitted PPDU information function for STA 1.

Parameters

uid	the UID of the transmitted PPDU

Definition at line 1163 of file wifi-phy-ofdma-test.cc.

References m_ppduUidSta1, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the caller graph for this function:

◆ TxPpduSta2()

void TestUlOfdmaPpduUid::TxPpduSta2 ( uint64_t uid )

private

Transmitted PPDU information function for STA 2.

Parameters

uid	the UID of the transmitted PPDU

Definition at line 1170 of file wifi-phy-ofdma-test.cc.

References m_ppduUidSta2, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the caller graph for this function:

Member Data Documentation

◆ m_phyAp

Ptr<OfdmaSpectrumWifiPhy> TestUlOfdmaPpduUid::m_phyAp

private

PHY of AP.

Definition at line 1023 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), DoSetup(), DoTeardown(), ResetPpduUid(), SendMuPpdu(), and SendSuPpdu().

◆ m_phySta1

Ptr<OfdmaSpectrumWifiPhy> TestUlOfdmaPpduUid::m_phySta1

private

PHY of STA 1.

Definition at line 1024 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), DoSetup(), DoTeardown(), SendSuPpdu(), and SendTbPpdu().

◆ m_phySta2

Ptr<OfdmaSpectrumWifiPhy> TestUlOfdmaPpduUid::m_phySta2

private

PHY of STA 2.

Definition at line 1025 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), DoSetup(), DoTeardown(), SendSuPpdu(), and SendTbPpdu().

◆ m_ppduUidAp

uint64_t TestUlOfdmaPpduUid::m_ppduUidAp

private

UID of PPDU transmitted by AP.

Definition at line 1027 of file wifi-phy-ofdma-test.cc.

Referenced by CheckUid(), and TxPpduAp().

◆ m_ppduUidSta1

uint64_t TestUlOfdmaPpduUid::m_ppduUidSta1

private

UID of PPDU transmitted by STA1.

Definition at line 1028 of file wifi-phy-ofdma-test.cc.

Referenced by CheckUid(), and TxPpduSta1().

◆ m_ppduUidSta2

uint64_t TestUlOfdmaPpduUid::m_ppduUidSta2

private

UID of PPDU transmitted by STA2.

Definition at line 1029 of file wifi-phy-ofdma-test.cc.

Referenced by CheckUid(), and TxPpduSta2().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-phy-ofdma-test.cc
