The BsmApplication class sends and receives the IEEE 1609 WAVE (Wireless Access in Vehicular Environments) Basic Safety Messages (BSMs) and uses the WaveBsmStats class to manage statistics about BSMs transmitted and received The BSM is a ~200-byte packet that is generally broadcast from every vehicle at a nominal rate of 10 Hz. More...

#include "bsm-application.h"

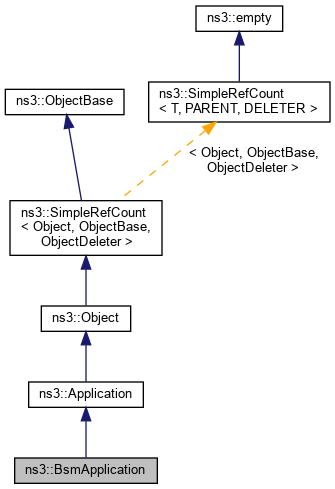

Inheritance diagram for ns3::BsmApplication:

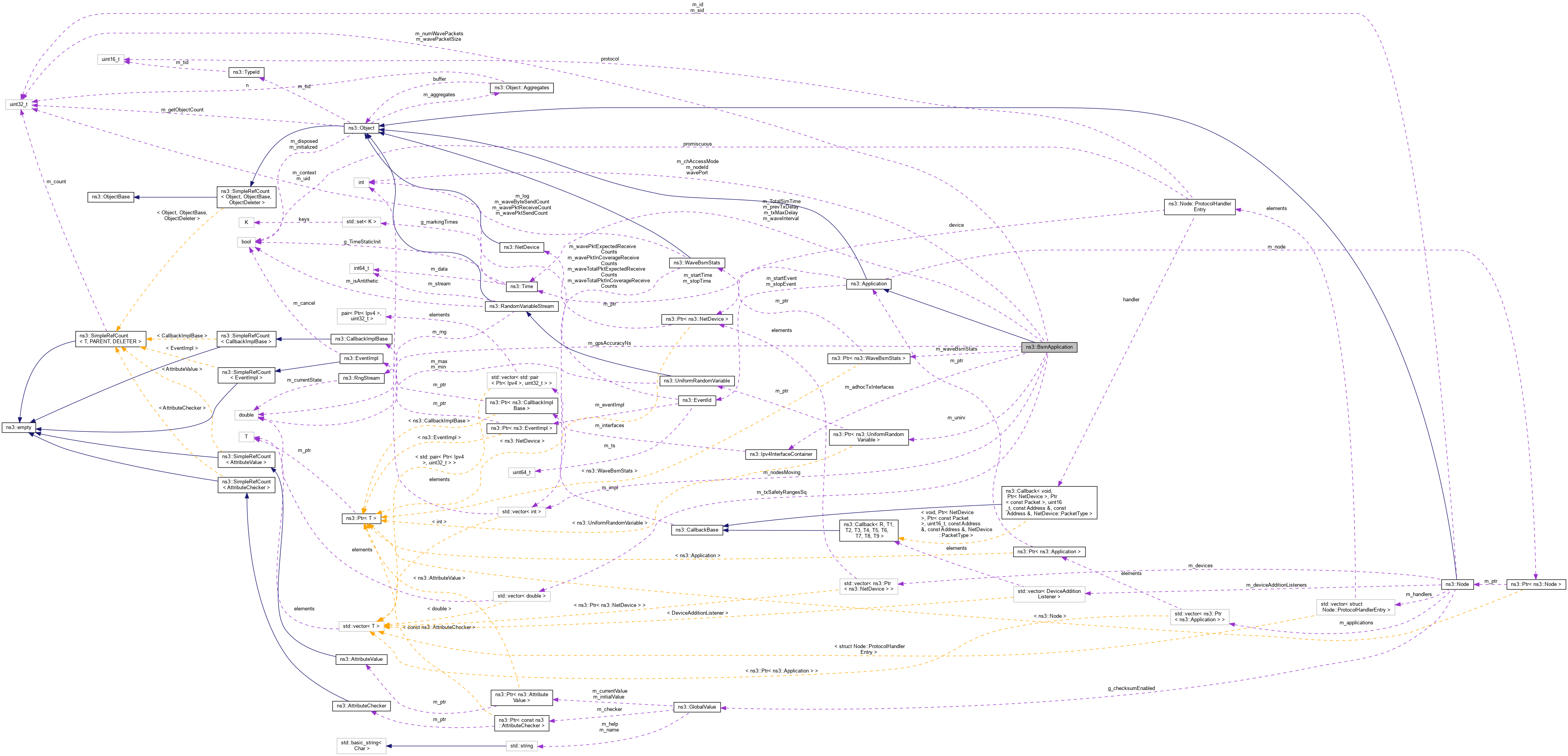

Collaboration diagram for ns3::BsmApplication:

Public Member Functions
	BsmApplication ()
	Constructor. More...

virtual	~BsmApplication ()

int64_t	AssignStreams (int64_t streamIndex)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Setup (Ipv4InterfaceContainer &i, int nodeId, Time totalTime, uint32_t wavePacketSize, Time waveInterval, double gpsAccuracyNs, std::vector< double > rangesSq, Ptr< WaveBsmStats > waveBsmStats, std::vector< int > *nodesMoving, int mode, Time txDelay)
	Setup BSM generation parameters for a node. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static int	wavePort = 9080
	(Arbitrary) port number that is used to create a socket for transmitting WAVE BSMs. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	GenerateWaveTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval, uint32_t sendingNodeId)
	Creates and transmits a WAVE BSM packet. More...

Ptr< NetDevice >	GetNetDevice (int id)
	Get the net device for the desired id. More...

Ptr< Node >	GetNode (int id)
	Get the node for the desired id. More...

void	HandleReceivedBsmPacket (Ptr< Node > txNode, Ptr< Node > rxNode)
	Handle the receipt of a WAVE BSM packet from sender to receiver. More...

void	ReceiveWavePacket (Ptr< Socket > socket)
	Receive a WAVE BSM packet. More...

virtual void	StartApplication (void)
	Called at time specified by Start. More...

virtual void	StopApplication (void)
	Called at time specified by Stop. More...

Private Attributes
Ipv4InterfaceContainer *	m_adhocTxInterfaces
	transmit interfaces More...

int	m_chAccessMode
	WAVE channel access mode. 0=continuous PHY; 1=channel-switching. More...

double	m_gpsAccuracyNs
	GPS accuracy. More...

int	m_nodeId
	node ID More...

std::vector< int > *	m_nodesMoving
	nodes moving More...

uint32_t	m_numWavePackets
	number of wave packets More...

Time	m_prevTxDelay
	previous transmit delay More...

Time	m_TotalSimTime
	total sim time More...

Time	m_txMaxDelay
	When transmitting at a default rate of 10 Hz, the subsystem shall transmit every 100 ms +/- a random value between 0 and 5 ms. More...

std::vector< double >	m_txSafetyRangesSq
	tx safety range squared, for optimization More...

Ptr< UniformRandomVariable >	m_unirv
	random variable More...

Ptr< WaveBsmStats >	m_waveBsmStats
	BSM stats. More...

Time	m_waveInterval
	wave interval More...

uint32_t	m_wavePacketSize
	bytes More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The BsmApplication class sends and receives the IEEE 1609 WAVE (Wireless Access in Vehicular Environments) Basic Safety Messages (BSMs) and uses the WaveBsmStats class to manage statistics about BSMs transmitted and received The BSM is a ~200-byte packet that is generally broadcast from every vehicle at a nominal rate of 10 Hz.

Config Paths

ns3::BsmApplication is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::BsmApplication"

No Attributes are defined for this type.

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 216 bytes (on a 64-bit architecture).

Definition at line 40 of file bsm-application.h.

Constructor & Destructor Documentation

◆ BsmApplication()

ns3::BsmApplication::BsmApplication ( )

Constructor.

Definition at line 50 of file bsm-application.cc.

References NS_LOG_FUNCTION.

◆ ~BsmApplication()

ns3::BsmApplication::~BsmApplication ( )

virtual

Definition at line 69 of file bsm-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::BsmApplication::AssignStreams ( int64_t streamIndex )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

streamIndex first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 376 of file bsm-application.cc.

References m_unirv, NS_ASSERT, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

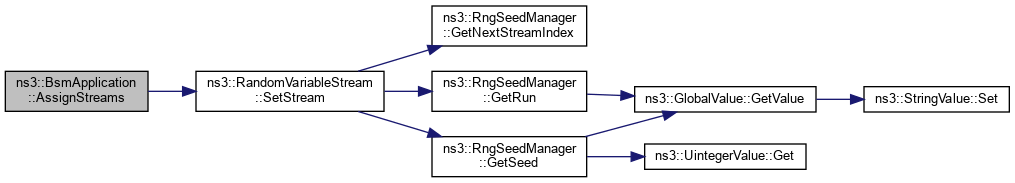

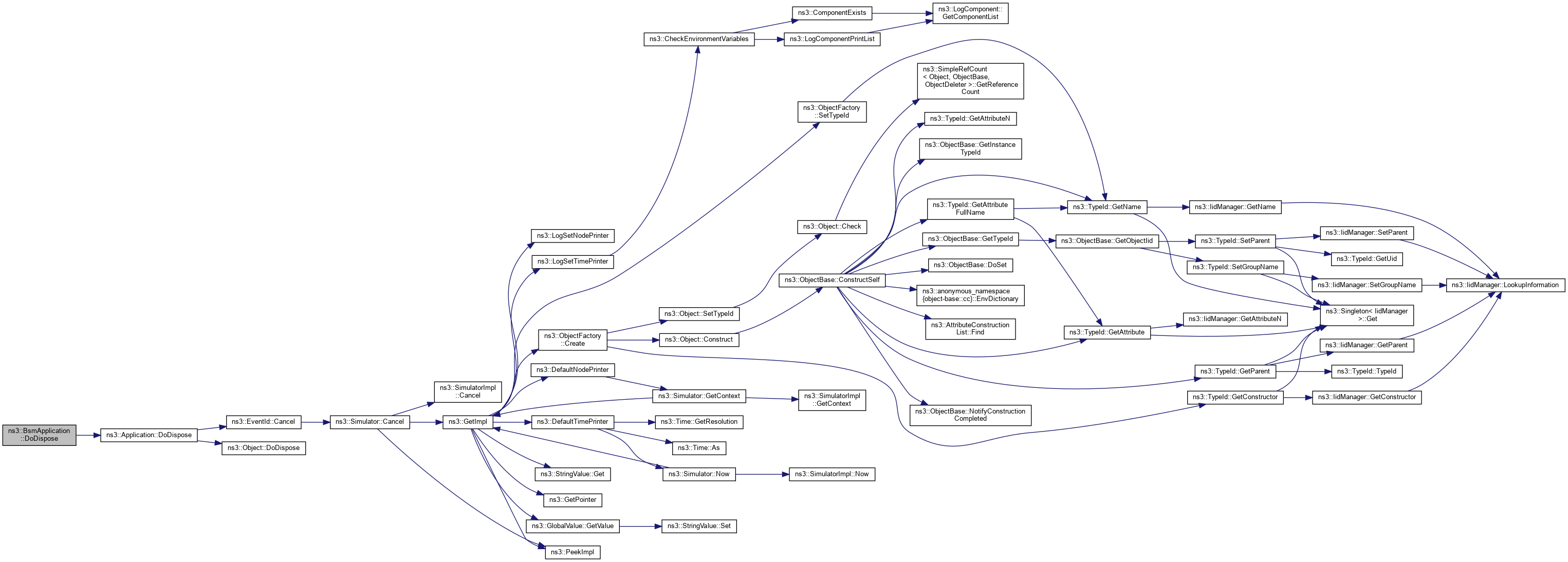

Here is the call graph for this function:

◆ DoDispose()

void ns3::BsmApplication::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 75 of file bsm-application.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GenerateWaveTraffic()

void ns3::BsmApplication::GenerateWaveTraffic	(	Ptr< Socket >	socket,
		uint32_t	pktSize,
		uint32_t	pktCount,
		Time	pktInterval,
		uint32_t	sendingNodeId
	)

private

Creates and transmits a WAVE BSM packet.

Parameters

socket	socket to use for transmission
pktSize	the size, in bytes, of the WAVE BSM packet
pktCount	the number of remaining WAVE BSM packets to be transmitted
pktInterval	the interval, in seconds, until the next packet should be transmitted
sendingNodeId

Definition at line 223 of file bsm-application.cc.

References ns3::Socket::Close(), ns3::MobilityHelper::GetDistanceSquaredBetween(), ns3::Node::GetId(), ns3::UniformRandomVariable::GetInteger(), ns3::Time::GetInteger(), ns3::Ipv4InterfaceContainer::GetN(), ns3::Application::GetNode(), ns3::Socket::GetNode(), ns3::Object::GetObject(), m_adhocTxInterfaces, m_nodesMoving, m_prevTxDelay, m_txMaxDelay, m_txSafetyRangesSq, m_unirv, m_waveBsmStats, ns3::NanoSeconds(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_UNCOND, pktSize, ns3::Simulator::ScheduleWithContext(), and ns3::Socket::Send().

Referenced by StartApplication().

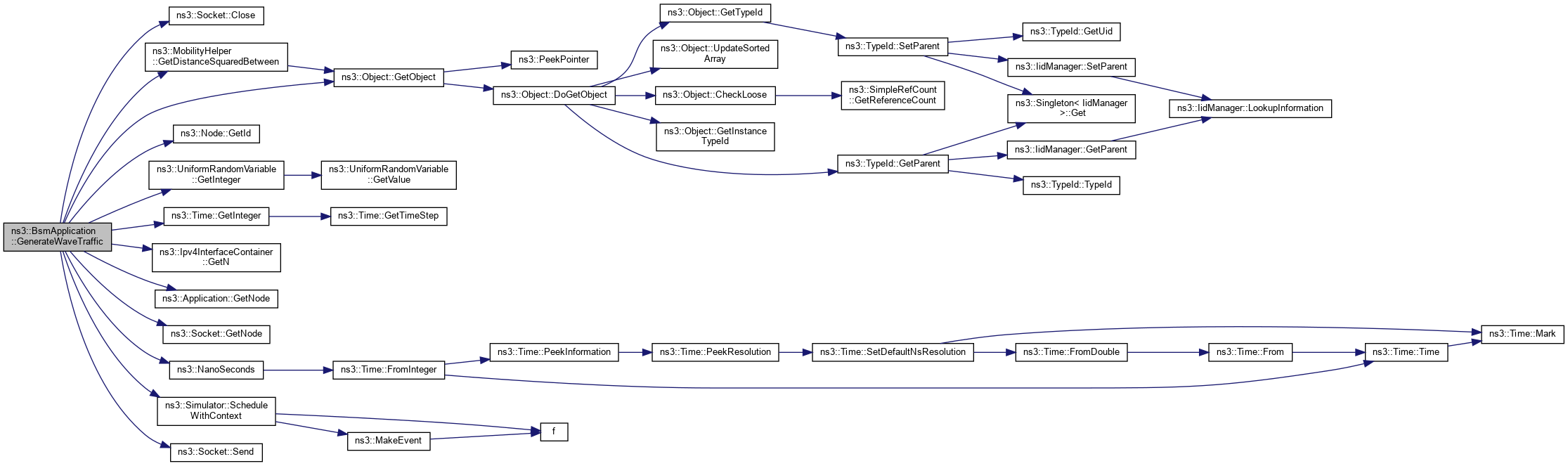

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNetDevice()

Ptr< NetDevice > ns3::BsmApplication::GetNetDevice ( int id )

private

Get the net device for the desired id.

Parameters

id	the id of the desired net device

Returns: ptr to the desired net device

Definition at line 399 of file bsm-application.cc.

References ns3::Object::GetObject(), m_adhocTxInterfaces, and NS_LOG_FUNCTION.

Referenced by StartApplication().

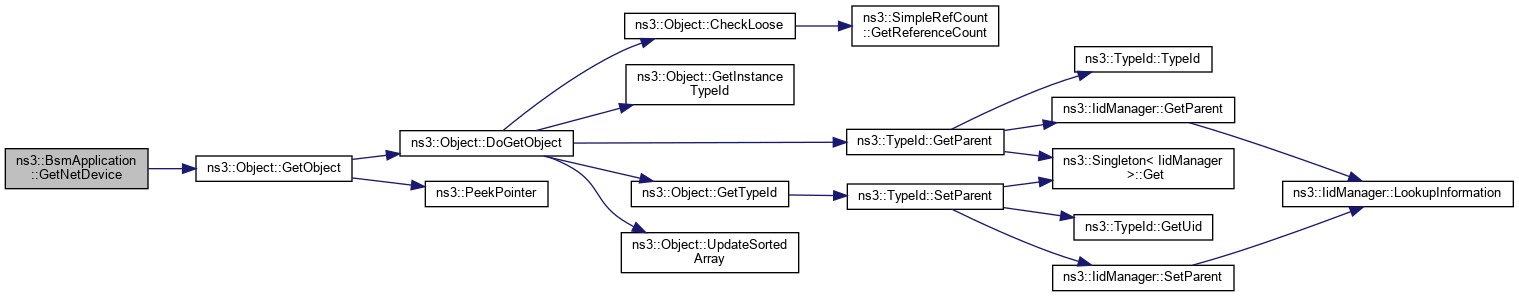

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNode()

Ptr< Node > ns3::BsmApplication::GetNode ( int id )

private

Get the node for the desired id.

Parameters

id	the id of the desired node

Returns: ptr to the desired node

Definition at line 387 of file bsm-application.cc.

References ns3::Object::GetObject(), m_adhocTxInterfaces, and NS_LOG_FUNCTION.

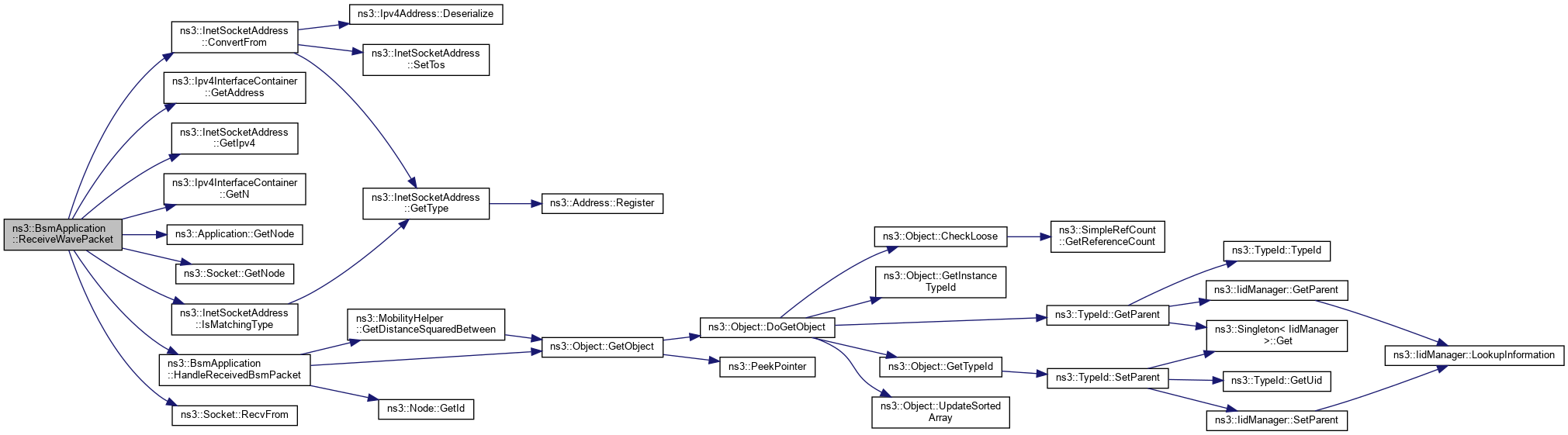

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::BsmApplication::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file bsm-application.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleReceivedBsmPacket()

void ns3::BsmApplication::HandleReceivedBsmPacket	(	Ptr< Node >	txNode,
		Ptr< Node >	rxNode
	)

private

Handle the receipt of a WAVE BSM packet from sender to receiver.

Parameters

txNode	the sending node
rxNode	the receiving node

Definition at line 343 of file bsm-application.cc.

References ns3::MobilityHelper::GetDistanceSquaredBetween(), ns3::Node::GetId(), ns3::Object::GetObject(), m_nodesMoving, m_txSafetyRangesSq, m_waveBsmStats, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ReceiveWavePacket().

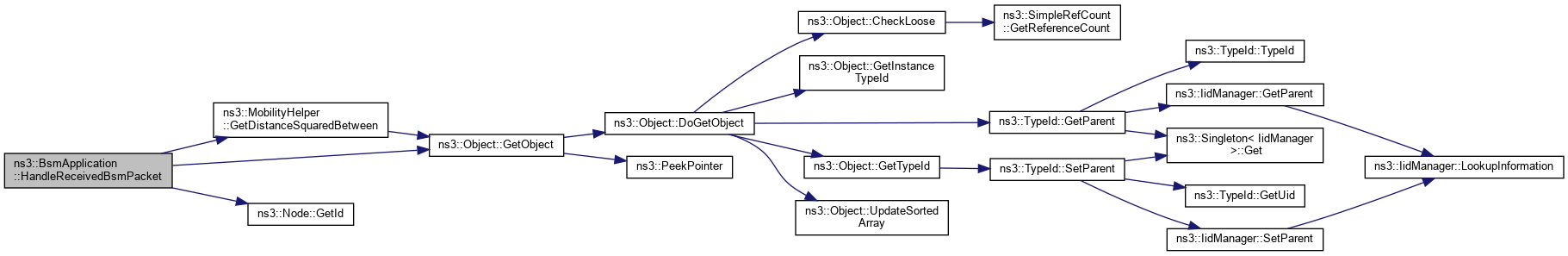

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveWavePacket()

void ns3::BsmApplication::ReceiveWavePacket ( Ptr< Socket > socket )

private

Receive a WAVE BSM packet.

Parameters

socket the receiving socket

Definition at line 317 of file bsm-application.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::InetSocketAddress::GetIpv4(), ns3::Ipv4InterfaceContainer::GetN(), ns3::Application::GetNode(), ns3::Socket::GetNode(), HandleReceivedBsmPacket(), ns3::InetSocketAddress::IsMatchingType(), m_adhocTxInterfaces, first::nodes, NS_LOG_FUNCTION, and ns3::Socket::RecvFrom().

Referenced by StartApplication().

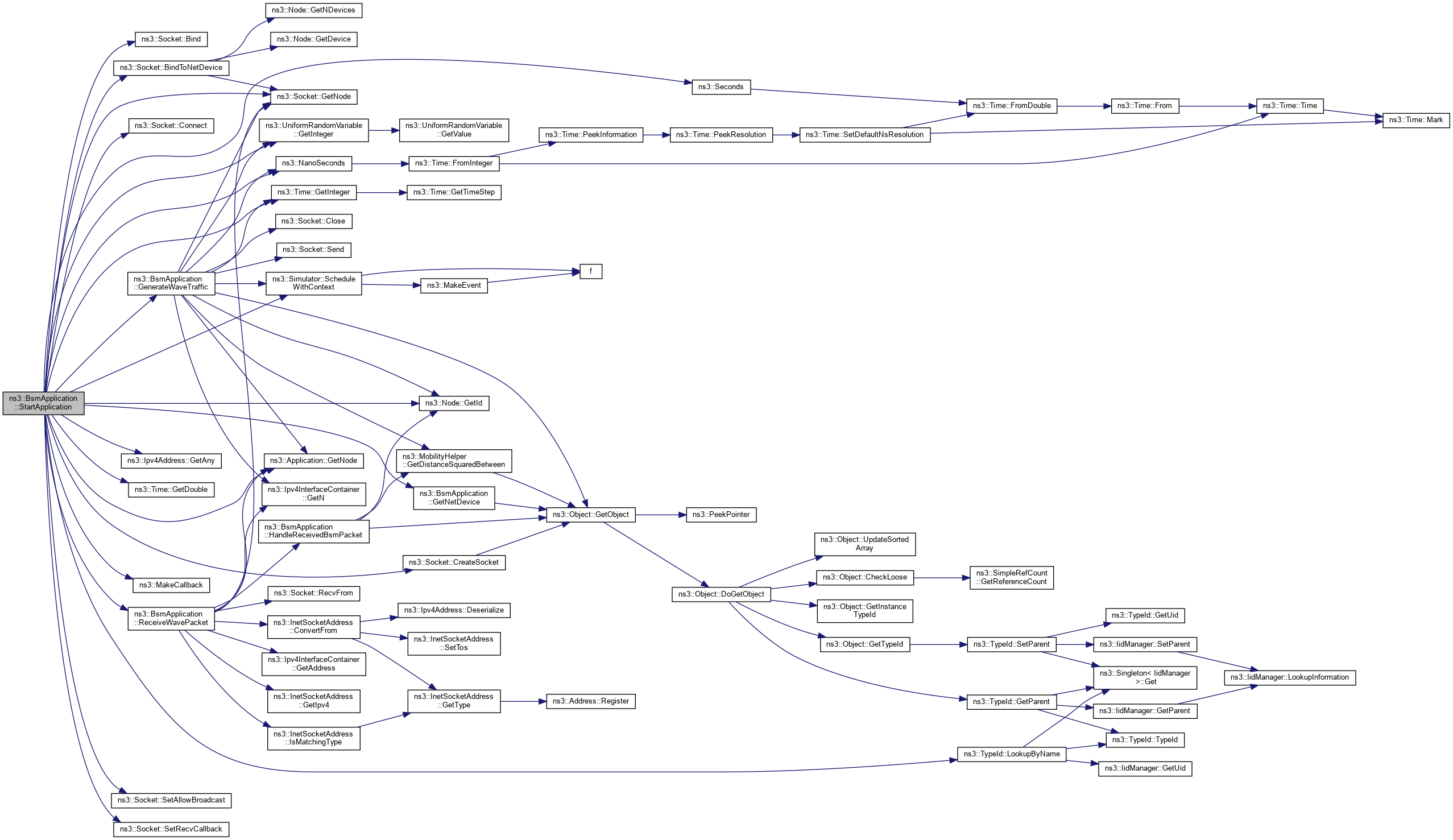

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Setup()

void ns3::BsmApplication::Setup	(	Ipv4InterfaceContainer &	i,
		int	nodeId,
		Time	totalTime,
		uint32_t	wavePacketSize,
		Time	waveInterval,
		double	gpsAccuracyNs,
		std::vector< double >	rangesSq,
		Ptr< WaveBsmStats >	waveBsmStats,
		std::vector< int > *	nodesMoving,
		int	mode,
		Time	txDelay
	)

Setup BSM generation parameters for a node.

Parameters

i	IPv4 interface container
nodeId	identifier of the node (index into container)
totalTime	total amount of time that BSM packets should be transmitted
wavePacketSize	the size, in bytes, of a WAVE BSM
waveInterval	the time, in seconds, between each WAVE BSM transmission, typically 10 Hz (0.1 second)
gpsAccuracyNs	the timing synchronization accuracy of GPS time, in nanoseconds. GPS time-sync is ~40-100 ns. Universally synchronized time among all vehicles will result in all vehicles transmitting safety messages simultaneously, leading to excessive wireless collisions.
rangesSq	the expected transmission range, in m ^ 2.
waveBsmStats	class for WAVE BSM statistics
nodesMoving	of whether or not node(s) are moving
mode
txDelay

Definition at line 184 of file bsm-application.cc.

References m_adhocTxInterfaces, m_chAccessMode, m_gpsAccuracyNs, m_nodeId, m_nodesMoving, m_TotalSimTime, m_txMaxDelay, m_txSafetyRangesSq, m_unirv, m_waveBsmStats, m_waveInterval, m_wavePacketSize, and NS_LOG_FUNCTION.

◆ StartApplication()

void ns3::BsmApplication::StartApplication ( void )

privatevirtual

Called at time specified by Start.

Reimplemented from ns3::Application.

Definition at line 84 of file bsm-application.cc.

References ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), GenerateWaveTraffic(), ns3::Ipv4Address::GetAny(), ns3::Time::GetDouble(), ns3::Node::GetId(), ns3::UniformRandomVariable::GetInteger(), ns3::Time::GetInteger(), GetNetDevice(), ns3::Application::GetNode(), ns3::Socket::GetNode(), ns3::TypeId::LookupByName(), m_gpsAccuracyNs, m_nodeId, m_numWavePackets, m_prevTxDelay, m_TotalSimTime, m_txMaxDelay, m_unirv, m_waveInterval, m_wavePacketSize, ns3::MakeCallback(), ns3::NanoSeconds(), NS_LOG_FUNCTION, ReceiveWavePacket(), ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetRecvCallback(), startTime, and wavePort.

Here is the call graph for this function:

◆ StopApplication()

void ns3::BsmApplication::StopApplication ( void )

privatevirtual

Called at time specified by Stop.

Reimplemented from ns3::Application.

Definition at line 178 of file bsm-application.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

◆ m_adhocTxInterfaces

Ipv4InterfaceContainer* ns3::BsmApplication::m_adhocTxInterfaces

private

transmit interfaces

Definition at line 158 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), GetNetDevice(), GetNode(), ReceiveWavePacket(), and Setup().

◆ m_chAccessMode

int ns3::BsmApplication::m_chAccessMode

private

WAVE channel access mode. 0=continuous PHY; 1=channel-switching.

Definition at line 163 of file bsm-application.h.

Referenced by Setup().

◆ m_gpsAccuracyNs

double ns3::BsmApplication::m_gpsAccuracyNs

private

GPS accuracy.

Definition at line 157 of file bsm-application.h.

Referenced by Setup(), and StartApplication().

◆ m_nodeId

int ns3::BsmApplication::m_nodeId

private

node ID

Definition at line 161 of file bsm-application.h.

Referenced by Setup(), and StartApplication().

◆ m_nodesMoving

std::vector<int>* ns3::BsmApplication::m_nodesMoving

private

nodes moving

Definition at line 159 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), HandleReceivedBsmPacket(), and Setup().

◆ m_numWavePackets

uint32_t ns3::BsmApplication::m_numWavePackets

private

number of wave packets

Definition at line 155 of file bsm-application.h.

Referenced by StartApplication().

◆ m_prevTxDelay

Time ns3::BsmApplication::m_prevTxDelay

private

previous transmit delay

Definition at line 173 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), and StartApplication().

◆ m_TotalSimTime

Time ns3::BsmApplication::m_TotalSimTime

private

total sim time

Definition at line 153 of file bsm-application.h.

Referenced by Setup(), and StartApplication().

◆ m_txMaxDelay

Time ns3::BsmApplication::m_txMaxDelay

private

When transmitting at a default rate of 10 Hz, the subsystem shall transmit every 100 ms +/- a random value between 0 and 5 ms.

[MPR-BSMTX-TXTIM-002] Source: CAMP Vehicle Safety Communications 4 Consortium On-board Minimum Performance Requirements for V2V Safety Systems Version 1.0, December 17, 2014 max transmit delay (default 10ms)

Definition at line 172 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), Setup(), and StartApplication().

◆ m_txSafetyRangesSq

std::vector<double> ns3::BsmApplication::m_txSafetyRangesSq

private

tx safety range squared, for optimization

Definition at line 152 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), HandleReceivedBsmPacket(), and Setup().

◆ m_unirv

Ptr<UniformRandomVariable> ns3::BsmApplication::m_unirv

private

random variable

Definition at line 160 of file bsm-application.h.

Referenced by AssignStreams(), GenerateWaveTraffic(), Setup(), and StartApplication().

◆ m_waveBsmStats

Ptr<WaveBsmStats> ns3::BsmApplication::m_waveBsmStats

private

BSM stats.

Definition at line 150 of file bsm-application.h.

Referenced by GenerateWaveTraffic(), HandleReceivedBsmPacket(), and Setup().

◆ m_waveInterval

Time ns3::BsmApplication::m_waveInterval

private

wave interval

Definition at line 156 of file bsm-application.h.

Referenced by Setup(), and StartApplication().

◆ m_wavePacketSize

uint32_t ns3::BsmApplication::m_wavePacketSize

private

bytes

Definition at line 154 of file bsm-application.h.

Referenced by Setup(), and StartApplication().

◆ wavePort

int ns3::BsmApplication::wavePort = 9080

static

(Arbitrary) port number that is used to create a socket for transmitting WAVE BSMs.

Definition at line 99 of file bsm-application.h.

Referenced by StartApplication().

The documentation for this class was generated from the following files:

src/wave/model/bsm-application.h
src/wave/model/bsm-application.cc

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes defined in parent class ns3::Application

Constructor & Destructor Documentation

◆ BsmApplication()

◆ ~BsmApplication()

Member Function Documentation

◆ AssignStreams()

◆ DoDispose()

◆ GenerateWaveTraffic()

◆ GetNetDevice()

◆ GetNode()

◆ GetTypeId()

◆ HandleReceivedBsmPacket()

◆ ReceiveWavePacket()

◆ Setup()

◆ StartApplication()

◆ StopApplication()

Member Data Documentation

◆ m_adhocTxInterfaces

◆ m_chAccessMode

◆ m_gpsAccuracyNs

◆ m_nodeId

◆ m_nodesMoving

◆ m_numWavePackets

◆ m_prevTxDelay

◆ m_TotalSimTime

◆ m_txMaxDelay

◆ m_txSafetyRangesSq

◆ m_unirv

◆ m_waveBsmStats

◆ m_waveInterval

◆ m_wavePacketSize

◆ wavePort
