Helper class to allow easy installation of 802.11s stack. More...

#include "dot11s-installer.h"

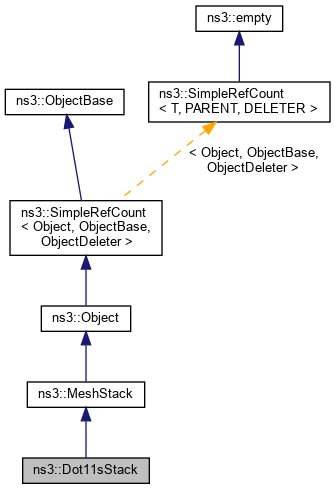

Inheritance diagram for ns3::Dot11sStack:

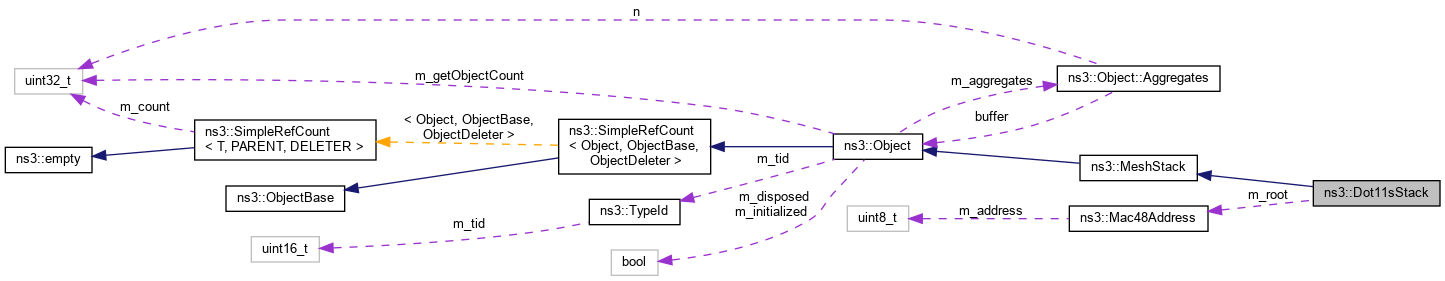

Collaboration diagram for ns3::Dot11sStack:

Public Member Functions
	Dot11sStack ()
	Create a Dot11sStack() installer helper. More...

	~Dot11sStack ()
	Destroy a Dot11sStack() installer helper. More...

void	DoDispose ()
	Break any reference cycles in the installer helper. More...

bool	InstallStack (Ptr< MeshPointDevice > mp)
	Install an 802.11s stack. More...

void	Report (const Ptr< MeshPointDevice > mp, std::ostream &)
	Iterate through the referenced devices and protocols and print their statistics. More...

void	ResetStats (const Ptr< MeshPointDevice > mp)
	Reset the statistics on the referenced devices and protocols. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MeshStack
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac48Address	m_root
	root More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Helper class to allow easy installation of 802.11s stack.

Introspection did not find any typical Config paths.

Attributes

Root: The MAC address of root mesh point.
- Set with class: Mac48AddressValue
- Underlying type: Mac48Address
- Initial value: ff:ff:ff:ff:ff:ff
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 32 of file dot11s-installer.h.

Constructor & Destructor Documentation

◆ Dot11sStack()

ns3::Dot11sStack::Dot11sStack ( )

Create a Dot11sStack() installer helper.

Definition at line 44 of file dot11s-installer.cc.

◆ ~Dot11sStack()

ns3::Dot11sStack::~Dot11sStack ( )

Destroy a Dot11sStack() installer helper.

Definition at line 48 of file dot11s-installer.cc.

Member Function Documentation

◆ DoDispose()

void ns3::Dot11sStack::DoDispose ( void )

virtual

Break any reference cycles in the installer helper.

Required for ns-3 Object support.

Reimplemented from ns3::Object.

Definition at line 52 of file dot11s-installer.cc.

◆ GetTypeId()

TypeId ns3::Dot11sStack::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 31 of file dot11s-installer.cc.

References m_root, ns3::MakeMac48AddressAccessor(), ns3::MakeMac48AddressChecker(), and ns3::TypeId::SetParent().

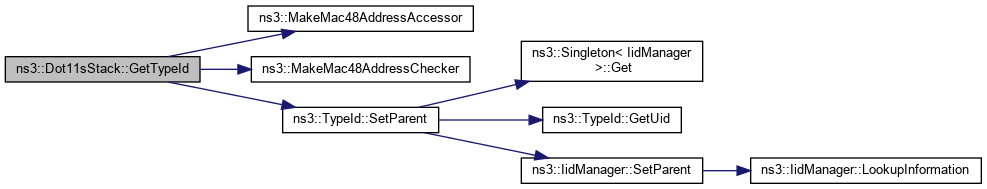

Here is the call graph for this function:

◆ InstallStack()

bool ns3::Dot11sStack::InstallStack ( Ptr< MeshPointDevice > mp )

virtual

Install an 802.11s stack.

Parameters

mp	The Ptr<MeshPointDevice> to use when setting up the PMP.

Returns: true if successful

Implements ns3::MeshStack.

Definition at line 56 of file dot11s-installer.cc.

References ns3::dot11s::PeerManagementProtocol::GetPeers(), m_root, ns3::MakeCallback(), ns3::PeekPointer(), and ns3::dot11s::HwmpProtocol::PeerLinkStatus().

Here is the call graph for this function:

◆ Report()

void ns3::Dot11sStack::Report	(	const Ptr< MeshPointDevice >	mp,
		std::ostream &	os
	)

virtual

Iterate through the referenced devices and protocols and print their statistics.

Parameters

mp	The Ptr<MeshPointDevice> to use when setting up the PMP.
os	The output stream

Implements ns3::MeshStack.

Definition at line 84 of file dot11s-installer.cc.

References ns3::WifiNetDevice::GetMac(), ns3::Object::GetObject(), third::mac, and NS_ASSERT.

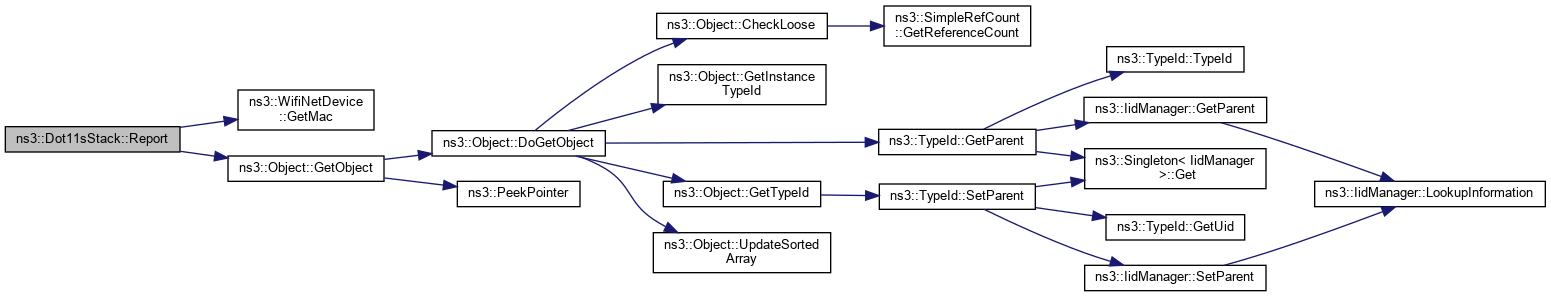

Here is the call graph for this function:

◆ ResetStats()

void ns3::Dot11sStack::ResetStats ( const Ptr< MeshPointDevice > mp )

virtual

Reset the statistics on the referenced devices and protocols.

Parameters

mp	The Ptr<MeshPointDevice> to use when setting up the PMP.

Implements ns3::MeshStack.

Definition at line 106 of file dot11s-installer.cc.

References ns3::WifiNetDevice::GetMac(), ns3::Object::GetObject(), third::mac, and NS_ASSERT.

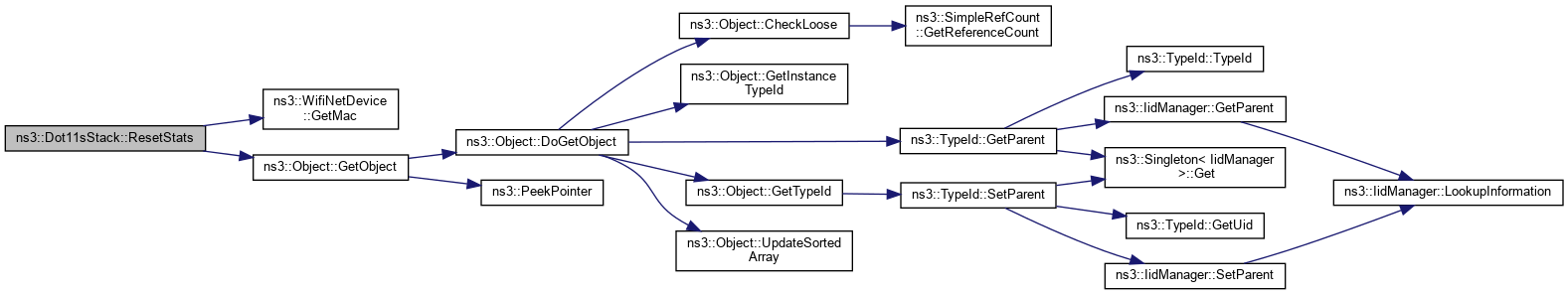

Here is the call graph for this function:

Member Data Documentation

◆ m_root

Mac48Address ns3::Dot11sStack::m_root

private

root

Definition at line 79 of file dot11s-installer.h.

Referenced by GetTypeId(), and InstallStack().

The documentation for this class was generated from the following files:

src/mesh/helper/dot11s/dot11s-installer.h
src/mesh/helper/dot11s/dot11s-installer.cc
