Prototype for class, which helps to install MAC-layer routing stack to ns3::MeshPointDevice. More...

#include "mesh-stack-installer.h"

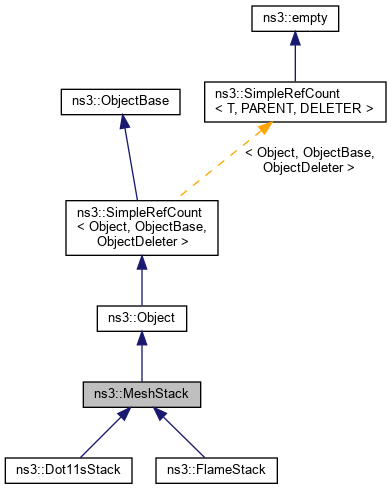

Inheritance diagram for ns3::MeshStack:

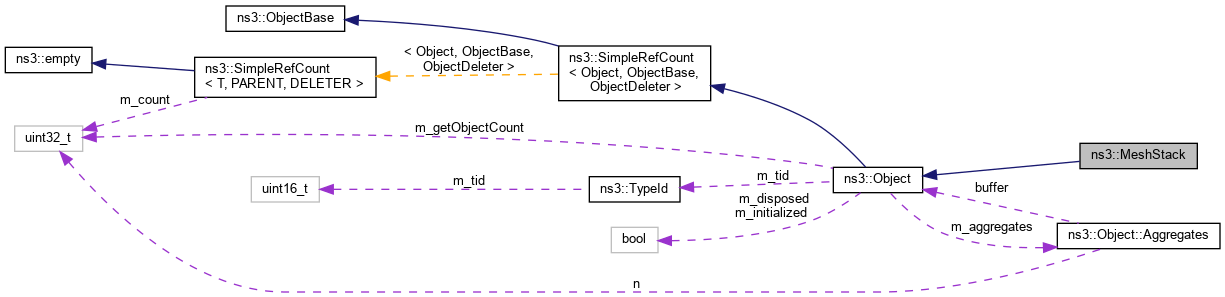

Collaboration diagram for ns3::MeshStack:

Public Member Functions
virtual bool	InstallStack (Ptr< MeshPointDevice > mp)=0
	Installs mesh stack. More...

virtual void	Report (const Ptr< MeshPointDevice > mp, std::ostream &os)=0
	Report statistics of a given mesh point. More...

virtual void	ResetStats (const Ptr< MeshPointDevice > mp)=0
	Reset statistics of a given mesh point. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Prototype for class, which helps to install MAC-layer routing stack to ns3::MeshPointDevice.

Introspection did not find any typical Config paths.

You need to create a MeshPointDevice and attach all interfaces to it, than call Install method

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 35 of file mesh-stack-installer.h.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::MeshStack::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 28 of file mesh-stack-installer.cc.

References ns3::TypeId::SetParent().

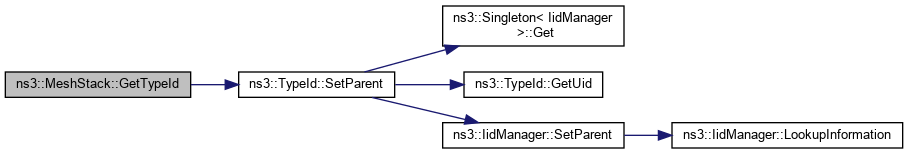

Here is the call graph for this function:

◆ InstallStack()

virtual bool ns3::MeshStack::InstallStack ( Ptr< MeshPointDevice > mp )

pure virtual

Installs mesh stack.

needed by helper only

Parameters

mp	the mesh point device

Returns: true if successful

Implemented in ns3::FlameStack, and ns3::Dot11sStack.

◆ Report()

virtual void ns3::MeshStack::Report	(	const Ptr< MeshPointDevice >	mp,
		std::ostream &	os
	)

pure virtual

Report statistics of a given mesh point.

Parameters

mp	the mesh point device
os	the output stream

Implemented in ns3::FlameStack, and ns3::Dot11sStack.

◆ ResetStats()

virtual void ns3::MeshStack::ResetStats ( const Ptr< MeshPointDevice > mp )

pure virtual

Reset statistics of a given mesh point.

Parameters

mp	the mesh point device

Implemented in ns3::FlameStack, and ns3::Dot11sStack.

The documentation for this class was generated from the following files:

src/mesh/helper/mesh-stack-installer.h
src/mesh/helper/mesh-stack-installer.cc
