#include "callback.h"

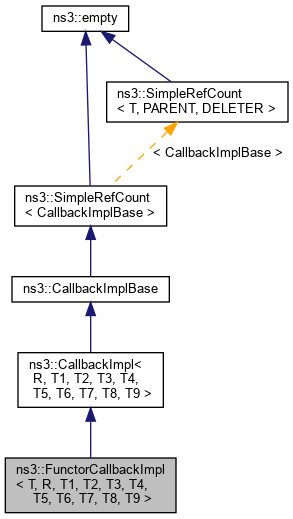

Inheritance diagram for ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

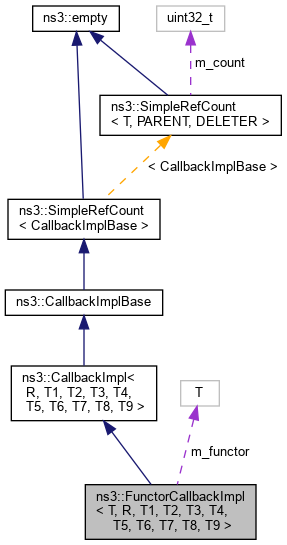

Collaboration diagram for ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

Public Member Functions
	FunctorCallbackImpl (T const &functor)
	Construct from a functor. More...

virtual	~FunctorCallbackImpl ()

virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const
	Equality test. More...


R	operator() (void)
	Functor with varying numbers of arguments. More...

R	operator() (T1 a1)

R	operator() (T1 a1, T2 a2)

R	operator() (T1 a1, T2 a2, T3 a3)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7, T8 a8)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7, T8 a8, T9 a9)

Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >
virtual	~CallbackImpl ()

virtual std::string	GetTypeid (void) const
	Get the name of this object type. More...

Public Member Functions inherited from ns3::CallbackImplBase
virtual	~CallbackImplBase ()
	Virtual destructor. More...

Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
T	m_functor
	the functor More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >
static std::string	DoGetTypeid (void)
	Get the name of this object type. More...

Static Protected Member Functions inherited from ns3::CallbackImplBase
static std::string	Demangle (const std::string &mangled)

template<typename T >
static std::string	GetCppTypeid (void)
	Helper to get the C++ typeid as a string. More...

Detailed Description

template<typename T, typename R, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6, typename T7, typename T8, typename T9>
class ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >

CallbackImpl with functors.

Template Parameters

T	[deduced] Function pointer type.

Definition at line 435 of file callback.h.

Constructor & Destructor Documentation

◆ FunctorCallbackImpl()

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::FunctorCallbackImpl ( T const & functor )

inline

Construct from a functor.

Parameters

[in] functor The functor

Definition at line 443 of file callback.h.

◆ ~FunctorCallbackImpl()

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::~FunctorCallbackImpl ( )

inlinevirtual

Definition at line 446 of file callback.h.

Member Function Documentation

◆ IsEqual()

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual bool ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsEqual ( Ptr< const CallbackImplBase > other ) const

inlinevirtual

Equality test.

Parameters

[in] other CallbackImpl Ptr

Returns: true if this and other have the same functor

Implements ns3::CallbackImplBase.

Definition at line 572 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor, and ns3::PeekPointer().

Here is the call graph for this function:

◆ operator()() [1/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1 a1 )

inline

Parameters

[in] a1 First argument

Returns: Callback value

Definition at line 461 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [2/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument

Returns: Callback value

Definition at line 470 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [3/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument

Returns: Callback value

Definition at line 480 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [4/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument

Returns: Callback value

Definition at line 491 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [5/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument

Returns: Callback value

Definition at line 503 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [6/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument

Returns: Callback value

Definition at line 516 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [7/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument

Returns: Callback value

Definition at line 530 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [8/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7,
		T8	a8
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument
[in]	a8	eighth argument

Returns: Callback value

Definition at line 545 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [9/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7,
		T8	a8,
		T9	a9
	)

inlinevirtual

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument
[in]	a8	eighth argument
[in]	a9	ninth argument

Returns: Callback value

Implements ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >.

Definition at line 561 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

◆ operator()() [10/10]

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( void )

inline

Functor with varying numbers of arguments.

Returns: Callback value

Definition at line 453 of file callback.h.

References ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor.

Member Data Documentation

◆ m_functor

template<typename T , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

T ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_functor

private

the functor

Definition at line 588 of file callback.h.

Referenced by ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsEqual(), and ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()().

The documentation for this class was generated from the following file:

src/core/model/callback.h
