ns3::CallbackImplBase Class Reference

Abstract base class for CallbackImpl Provides reference counting and equality test. More...

#include "callback.h"

Inheritance diagram for ns3::CallbackImplBase:

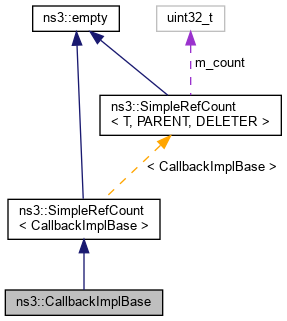

Collaboration diagram for ns3::CallbackImplBase:

Public Member Functions
virtual	~CallbackImplBase ()
	Virtual destructor. More...
virtual std::string	GetTypeid (void) const =0
	Get the name of this object type. More...
virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const =0
	Equality test. More...
Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Static Protected Member Functions
static std::string	Demangle (const std::string &mangled)
template<typename T >
static std::string	GetCppTypeid (void)
	Helper to get the C++ typeid as a string. More...

Detailed Description

Abstract base class for CallbackImpl Provides reference counting and equality test.

Definition at line 107 of file callback.h.

Constructor & Destructor Documentation

~CallbackImplBase()

virtual ns3::CallbackImplBase::~CallbackImplBase ( )

inlinevirtual

Virtual destructor.

Definition at line 111 of file callback.h.

Member Function Documentation

Demangle()

std::string ns3::CallbackImplBase::Demangle ( const std::string &  mangled )

staticprotected

Parameters

[in]

mangled

The mangled string

Returns

The demangled form of mangled

Definition at line 134 of file callback.cc.

References NS_LOG_FUNCTION.

Referenced by GetCppTypeid().

Here is the caller graph for this function:

GetCppTypeid()

template<typename T >

static std::string ns3::CallbackImplBase::GetCppTypeid ( void  )

inlinestaticprotected

Helper to get the C++ typeid as a string.

Template Parameters

T	[explicit] The type of the argument.

Returns

The result of applying typeid to the template type T.

Definition at line 139 of file callback.h.

References Demangle().

Here is the call graph for this function:

GetTypeid()

virtual std::string ns3::CallbackImplBase::GetTypeid ( void  ) const

pure virtual

Get the name of this object type.

Returns

The object type as a string.

Implemented in ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, empty >, ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, empty, empty >, ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, empty, empty, empty >, ns3::CallbackImpl< R, T1, T2, T3, T4, T5, empty, empty, empty, empty >, ns3::CallbackImpl< R, T1, T2, T3, T4, empty, empty, empty, empty, empty >, ns3::CallbackImpl< R, T1, T2, T3, empty, empty, empty, empty, empty, empty >, ns3::CallbackImpl< R, T1, T2, empty, empty, empty, empty, empty, empty, empty >, ns3::CallbackImpl< R, T1, empty, empty, empty, empty, empty, empty, empty, empty >, and ns3::CallbackImpl< R, empty, empty, empty, empty, empty, empty, empty, empty, empty >.

IsEqual()

virtual bool ns3::CallbackImplBase::IsEqual ( Ptr< const CallbackImplBase >  other ) const

pure virtual

Equality test.

Parameters

[in]

other

Callback Ptr

Returns

true if we are equal

Implemented in ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >, ns3::BoundFunctorCallbackImpl< T, R, TX, T1, T2, T3, T4, T5, T6, T7, T8 >, ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, and ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >.

---

The documentation for this class was generated from the following files:

• src/core/model/callback.h
• src/core/model/callback.cc
