ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 > Class Template Reference

CallbackImpl for pointer to member functions. More...

#include "callback.h"

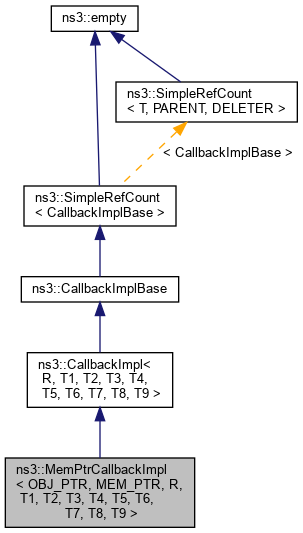

Inheritance diagram for ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

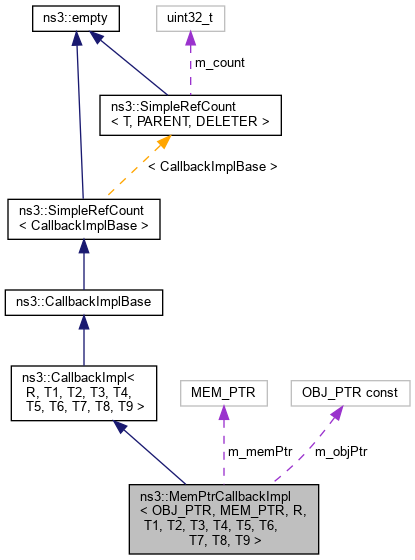

Collaboration diagram for ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

Public Member Functions
	MemPtrCallbackImpl (OBJ_PTR const &objPtr, MEM_PTR memPtr)
	Construct from an object pointer and member function pointer. More...
virtual	~MemPtrCallbackImpl ()
virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const
	Equality test. More...
R	operator() (void)
	Functor with varying numbers of arguments. More...
R	operator() (T1 a1)
R	operator() (T1 a1, T2 a2)
R	operator() (T1 a1, T2 a2, T3 a3)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7, T8 a8)
R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7, T8 a8, T9 a9)
Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >
virtual	~CallbackImpl ()
virtual std::string	GetTypeid (void) const
	Get the name of this object type. More...
Public Member Functions inherited from ns3::CallbackImplBase
virtual	~CallbackImplBase ()
	Virtual destructor. More...
Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
MEM_PTR	m_memPtr
	the member function pointer More...
OBJ_PTR const	m_objPtr
	the object pointer More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >
static std::string	DoGetTypeid (void)
	Get the name of this object type. More...
Static Protected Member Functions inherited from ns3::CallbackImplBase
static std::string	Demangle (const std::string &mangled)
template<typename T >
static std::string	GetCppTypeid (void)
	Helper to get the C++ typeid as a string. More...

Detailed Description

template<typename OBJ_PTR, typename MEM_PTR, typename R, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6, typename T7, typename T8, typename T9>
class ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >

CallbackImpl for pointer to member functions.

Template Parameters

OBJ_PTR	[deduced] Type of the target object, as a pointer.
MEM_PTR	[deduced] Type of the class member function.

Definition at line 598 of file callback.h.

Constructor & Destructor Documentation

MemPtrCallbackImpl()

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::MemPtrCallbackImpl ( OBJ_PTR const &  objPtr, MEM_PTR  memPtr  )

inline

Construct from an object pointer and member function pointer.

Parameters

[in]	objPtr	The object pointer
[in]	memPtr	The object class member function

Definition at line 607 of file callback.h.

~MemPtrCallbackImpl()

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::~MemPtrCallbackImpl ( )

inlinevirtual

Definition at line 610 of file callback.h.

Member Function Documentation

IsEqual()

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual bool ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsEqual ( Ptr< const CallbackImplBase >  other ) const

inlinevirtual

Equality test.

Parameters

[in]

other

Callback Ptr

Returns

true if we have the same object and member function

Implements ns3::CallbackImplBase.

Definition at line 736 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr, and ns3::PeekPointer().

Here is the call graph for this function:

operator()() [1/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1 )

inline

Parameters

[in]

a1

First argument

Returns

Callback value

Definition at line 625 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [2/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument

Returns

Callback value

Definition at line 634 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [3/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument

Returns

Callback value

Definition at line 644 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [4/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument

Returns

Callback value

Definition at line 655 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [5/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument

Returns

Callback value

Definition at line 667 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [6/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument

Returns

Callback value

Definition at line 680 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [7/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6, T7  a7  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument

Returns

Callback value

Definition at line 694 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [8/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6, T7  a7, T8  a8  )

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument
[in]	a8	Eighth argument

Returns

Callback value

Definition at line 709 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [9/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6, T7  a7, T8  a8, T9  a9  )

inlinevirtual

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument
[in]	a8	Eighth argument
[in]	a9	Ninth argument

Returns

Callback value

Implements ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >.

Definition at line 725 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

operator()() [10/10]

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

R ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( void  )

inline

Functor with varying numbers of arguments.

Returns

Callback value

Definition at line 617 of file callback.h.

References ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr, and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr.

Member Data Documentation

m_memPtr

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

MEM_PTR ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_memPtr

private

the member function pointer

Definition at line 754 of file callback.h.

Referenced by ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsEqual(), and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()().

m_objPtr

template<typename OBJ_PTR , typename MEM_PTR , typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

OBJ_PTR const ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::m_objPtr

private

the object pointer

Definition at line 753 of file callback.h.

Referenced by ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsEqual(), and ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator()().

---

The documentation for this class was generated from the following file:

• src/core/model/callback.h
