ns3::GtsFields Class Reference

Represent the GTS information fields. More...

#include "lr-wpan-fields.h"

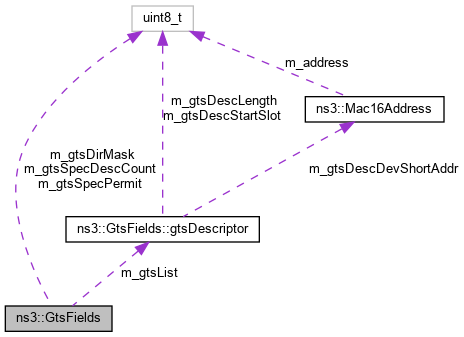

Collaboration diagram for ns3::GtsFields:

Classes
struct	gtsDescriptor
	GTS Descriptor. More...

Public Member Functions
	GtsFields ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize the entire GTS fields. More...
uint8_t	GetGtsDirectionField (void) const
	Get the GTS Direction Field from the GTS Fields. More...
uint8_t	GetGtsSpecField (void) const
	Get the GTS Specification Field from the GTS Fields. More...
uint32_t	GetSerializedSize (void) const
	Get the size of the serialized GTS fields. More...
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize the entire GTS fields. More...
void	SetGtsDirectionField (uint8_t gtsDir)
	Set the GTS direction field to the GTS Fields. More...
void	SetGtsSpecField (uint8_t gtsSpec)
	Set the GTS Specification Field to the GTS Fields. More...

Private Attributes
uint8_t	m_gtsDirMask
	GTS Direction field Directions Mask (Bit 0-6) More...
gtsDescriptor	m_gtsList [7]
	GTS List field (maximum descriptors stored == 7) More...
uint8_t	m_gtsSpecDescCount
	GTS specification field Descriptor Count (Bit 0-2) More...
uint8_t	m_gtsSpecPermit
	GTS specification field GTS Permit (Bit 7) More...

Detailed Description

Represent the GTS information fields.

See IEEE 802.15.4-2011 Section 5.2.2 Figure 39

Definition at line 175 of file lr-wpan-fields.h.

Constructor & Destructor Documentation

GtsFields()

ns3::GtsFields::GtsFields

(

)

Definition at line 198 of file lr-wpan-fields.cc.

References m_gtsDirMask, m_gtsSpecDescCount, and m_gtsSpecPermit.

Member Function Documentation

Deserialize()

Buffer::Iterator ns3::GtsFields::Deserialize

(

Buffer::Iterator

i

)

Deserialize the entire GTS fields.

Parameters

i	an iterator which points to where the superframe specification field should be read.

Returns

an iterator.

Definition at line 283 of file lr-wpan-fields.cc.

References ns3::GtsFields::gtsDescriptor::m_gtsDescLength, ns3::GtsFields::gtsDescriptor::m_gtsDescStartSlot, m_gtsList, m_gtsSpecDescCount, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), SetGtsDirectionField(), and SetGtsSpecField().

Referenced by ns3::BeaconPayloadHeader::Deserialize().

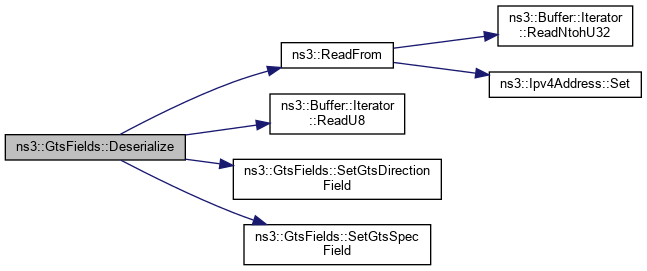

Here is the call graph for this function:

Here is the caller graph for this function:

GetGtsDirectionField()

uint8_t ns3::GtsFields::GetGtsDirectionField

(

void

)

const

Get the GTS Direction Field from the GTS Fields.

Returns

The GTS Direction Field

Definition at line 220 of file lr-wpan-fields.cc.

References m_gtsDirMask.

Referenced by ns3::operator<<(), and Serialize().

Here is the caller graph for this function:

GetGtsSpecField()

uint8_t ns3::GtsFields::GetGtsSpecField

(

void

)

const

Get the GTS Specification Field from the GTS Fields.

Returns

The GTS Spcecification Field

Definition at line 208 of file lr-wpan-fields.cc.

References m_gtsSpecDescCount, and m_gtsSpecPermit.

Referenced by ns3::operator<<(), ns3::BeaconPayloadHeader::Print(), and Serialize().

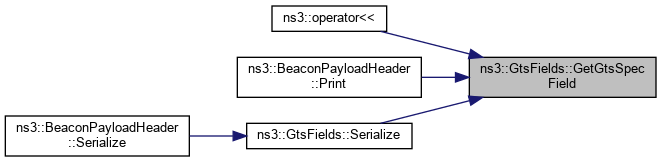

Here is the caller graph for this function:

GetSerializedSize()

uint32_t ns3::GtsFields::GetSerializedSize

(

void

)

const

Get the size of the serialized GTS fields.

Returns

the size of the serialized fields.

Definition at line 245 of file lr-wpan-fields.cc.

References m_gtsSpecDescCount.

Referenced by ns3::BeaconPayloadHeader::GetSerializedSize().

Here is the caller graph for this function:

Serialize()

Buffer::Iterator ns3::GtsFields::Serialize

(

Buffer::Iterator

i

)

const

Serialize the entire GTS fields.

Parameters

i	an iterator which points to where the superframe specification field should be written.

Returns

an iterator.

Definition at line 260 of file lr-wpan-fields.cc.

References GetGtsDirectionField(), GetGtsSpecField(), ns3::GtsFields::gtsDescriptor::m_gtsDescLength, ns3::GtsFields::gtsDescriptor::m_gtsDescStartSlot, m_gtsList, m_gtsSpecDescCount, ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::BeaconPayloadHeader::Serialize().

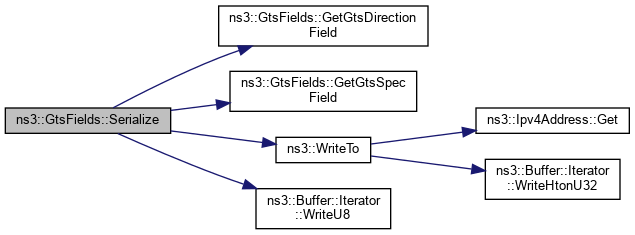

Here is the call graph for this function:

Here is the caller graph for this function:

SetGtsDirectionField()

void ns3::GtsFields::SetGtsDirectionField

(

uint8_t

gtsDir

)

Set the GTS direction field to the GTS Fields.

Parameters

gtsDir

The GTS Direction Field to set

Definition at line 238 of file lr-wpan-fields.cc.

References m_gtsDirMask.

Referenced by Deserialize().

Here is the caller graph for this function:

SetGtsSpecField()

void ns3::GtsFields::SetGtsSpecField

(

uint8_t

gtsSpec

)

Set the GTS Specification Field to the GTS Fields.

Parameters

gtsSpec

The GTS Specification Field to set.

Definition at line 230 of file lr-wpan-fields.cc.

References m_gtsSpecDescCount, and m_gtsSpecPermit.

Referenced by Deserialize().

Here is the caller graph for this function:

Member Data Documentation

m_gtsDirMask

uint8_t ns3::GtsFields::m_gtsDirMask

private

GTS Direction field Directions Mask (Bit 0-6)

Definition at line 234 of file lr-wpan-fields.h.

Referenced by GtsFields(), GetGtsDirectionField(), and SetGtsDirectionField().

m_gtsList

gtsDescriptor ns3::GtsFields::m_gtsList[7]

private

GTS List field (maximum descriptors stored == 7)

Definition at line 237 of file lr-wpan-fields.h.

Referenced by Deserialize(), and Serialize().

m_gtsSpecDescCount

uint8_t ns3::GtsFields::m_gtsSpecDescCount

private

GTS specification field Descriptor Count (Bit 0-2)

Definition at line 230 of file lr-wpan-fields.h.

Referenced by GtsFields(), Deserialize(), GetGtsSpecField(), GetSerializedSize(), Serialize(), and SetGtsSpecField().

m_gtsSpecPermit

uint8_t ns3::GtsFields::m_gtsSpecPermit

private

GTS specification field GTS Permit (Bit 7)

Definition at line 232 of file lr-wpan-fields.h.

Referenced by GtsFields(), GetGtsSpecField(), and SetGtsSpecField().

---

The documentation for this class was generated from the following files:

• src/lr-wpan/model/lr-wpan-fields.h
• src/lr-wpan/model/lr-wpan-fields.cc
