ns3::GtsFields::gtsDescriptor Struct Reference

GTS Descriptor. More...

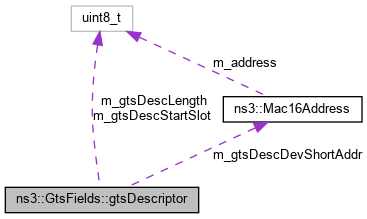

Collaboration diagram for ns3::GtsFields::gtsDescriptor:

Public Attributes
Mac16Address	m_gtsDescDevShortAddr
	GTS Descriptor Device Short Address (Bit 0-15) More...
uint8_t	m_gtsDescLength
	GTS Descriptor GTS Length (Bit 20-23) More...
uint8_t	m_gtsDescStartSlot
	GTS Descriptor GTS Starting Slot(Bit 16-19) More...

Detailed Description

GTS Descriptor.

Definition at line 222 of file lr-wpan-fields.h.

Member Data Documentation

m_gtsDescDevShortAddr

Mac16Address ns3::GtsFields::gtsDescriptor::m_gtsDescDevShortAddr

GTS Descriptor Device Short Address (Bit 0-15)

Definition at line 224 of file lr-wpan-fields.h.

m_gtsDescLength

uint8_t ns3::GtsFields::gtsDescriptor::m_gtsDescLength

GTS Descriptor GTS Length (Bit 20-23)

Definition at line 226 of file lr-wpan-fields.h.

Referenced by ns3::GtsFields::Deserialize(), and ns3::GtsFields::Serialize().

m_gtsDescStartSlot

uint8_t ns3::GtsFields::gtsDescriptor::m_gtsDescStartSlot

GTS Descriptor GTS Starting Slot(Bit 16-19)

Definition at line 225 of file lr-wpan-fields.h.

Referenced by ns3::GtsFields::Deserialize(), and ns3::GtsFields::Serialize().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-fields.h
