Hold list of Ipv6RoutingProtocol objects. More...

#include "ipv6-list-routing.h"

Inheritance diagram for ns3::Ipv6ListRouting:

Collaboration diagram for ns3::Ipv6ListRouting:

Public Member Functions
	Ipv6ListRouting ()
	Constructor. More...

virtual	~Ipv6ListRouting ()
	Destructor. More...

virtual void	AddRoutingProtocol (Ptr< Ipv6RoutingProtocol > routingProtocol, int16_t priority)
	Register a new routing protocol to be used in this IPv4 stack. More...

virtual uint32_t	GetNRoutingProtocols (void) const
	Get the number of routing protocols. More...

virtual Ptr< Ipv6RoutingProtocol >	GetRoutingProtocol (uint32_t index, int16_t &priority) const
	Get pointer to routing protocol stored at index,. More...

virtual void	NotifyAddAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address. More...

virtual void	NotifyAddRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify a new route. More...

virtual void	NotifyInterfaceDown (uint32_t interface)
	Notify when specified interface goes DOWN. More...

virtual void	NotifyInterfaceUp (uint32_t interface)
	Notify when specified interface goes UP. More...

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address. More...

virtual void	NotifyRemoveRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify route removing. More...

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const
	Print the Routing Table entries. More...

virtual bool	RouteInput (Ptr< const Packet > p, const Ipv6Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

virtual Ptr< Ipv6Route >	RouteOutput (Ptr< Packet > p, const Ipv6Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

virtual void	SetIpv6 (Ptr< Ipv6 > ipv6)
	Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID of this class. More...

Static Public Member Functions inherited from ns3::Ipv6RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::pair< int16_t, Ptr< Ipv6RoutingProtocol > >	Ipv6RoutingProtocolEntry
	Container identifying an IPv6 Routing Protocol entry in the list. More...

typedef std::list< Ipv6RoutingProtocolEntry >	Ipv6RoutingProtocolList
	Container of the IPv6 Routing Protocols. More...

Static Private Member Functions
static bool	Compare (const Ipv6RoutingProtocolEntry &a, const Ipv6RoutingProtocolEntry &b)
	Compare two routing protocols. More...

Private Attributes
Ptr< Ipv6 >	m_ipv6
	Ipv6 this protocol is associated with. More...

Ipv6RoutingProtocolList	m_routingProtocols
	List of routing protocols. More...

Additional Inherited Members
Public Types inherited from ns3::Ipv6RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv6Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv6Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< const NetDevice >, Ptr< Ipv6MulticastRoute >, Ptr< const Packet >, const Ipv6Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< const NetDevice >, Ptr< Ipv6Route >, Ptr< const Packet >, const Ipv6Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Hold list of Ipv6RoutingProtocol objects.

Introspection did not find any typical Config paths.

This class is a specialization of Ipv6RoutingProtocol that allows other instances of Ipv6RoutingProtocol to be inserted in a prioritized list. Routing protocols in the list are consulted one by one, from highest to lowest priority, until a routing protocol is found that will take the packet (this corresponds to a non-zero return value to RouteOutput, or a return value of true to RouteInput). The order by which routing protocols with the same priority value are consulted is undefined.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 42 of file ipv6-list-routing.h.

Member Typedef Documentation

◆ Ipv6RoutingProtocolEntry

typedef std::pair<int16_t, Ptr<Ipv6RoutingProtocol> > ns3::Ipv6ListRouting::Ipv6RoutingProtocolEntry

private

Container identifying an IPv6 Routing Protocol entry in the list.

Definition at line 113 of file ipv6-list-routing.h.

◆ Ipv6RoutingProtocolList

typedef std::list<Ipv6RoutingProtocolEntry> ns3::Ipv6ListRouting::Ipv6RoutingProtocolList

private

Container of the IPv6 Routing Protocols.

Definition at line 118 of file ipv6-list-routing.h.

Constructor & Destructor Documentation

◆ Ipv6ListRouting()

ns3::Ipv6ListRouting::Ipv6ListRouting ( )

Constructor.

Definition at line 46 of file ipv6-list-routing.cc.

References NS_LOG_FUNCTION.

◆ ~Ipv6ListRouting()

ns3::Ipv6ListRouting::~Ipv6ListRouting ( )

virtual

Destructor.

Definition at line 52 of file ipv6-list-routing.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddRoutingProtocol()

void ns3::Ipv6ListRouting::AddRoutingProtocol	(	Ptr< Ipv6RoutingProtocol >	routingProtocol,
		int16_t	priority
	)

virtual

Register a new routing protocol to be used in this IPv4 stack.

Parameters

routingProtocol	new routing protocol implementation object
priority	priority to give to this routing protocol. Values may range between -32768 and +32767.

Definition at line 245 of file ipv6-list-routing.cc.

References Compare(), m_ipv6, m_routingProtocols, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Compare()

bool ns3::Ipv6ListRouting::Compare	(	const Ipv6RoutingProtocolEntry &	a,
		const Ipv6RoutingProtocolEntry &	b
	)

staticprivate

Compare two routing protocols.

Parameters

a	first object to compare
b	second object to compare

Returns: true if they are the same, false otherwise

Definition at line 285 of file ipv6-list-routing.cc.

Referenced by AddRoutingProtocol().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::Ipv6ListRouting::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 58 of file ipv6-list-routing.cc.

References m_ipv6, m_routingProtocols, and NS_LOG_FUNCTION.

◆ GetNRoutingProtocols()

uint32_t ns3::Ipv6ListRouting::GetNRoutingProtocols ( void ) const

virtual

Get the number of routing protocols.

Returns: number of routing protocols in the list

Definition at line 257 of file ipv6-list-routing.cc.

References m_routingProtocols, and NS_LOG_FUNCTION.

◆ GetRoutingProtocol()

Ptr< Ipv6RoutingProtocol > ns3::Ipv6ListRouting::GetRoutingProtocol	(	uint32_t	index,
		int16_t &	priority
	)		const

virtual

Get pointer to routing protocol stored at index,.

The first protocol (index 0) the highest priority, the next one (index 1) the second highest priority, and so on. The priority parameter is an output parameter and it returns the integer priority of the protocol.

Parameters

index	index of protocol to return
priority	output parameter, set to the priority of the protocol being returned

Returns: pointer to routing protocol indexed by

Definition at line 264 of file ipv6-list-routing.cc.

References m_routingProtocols, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::Ipv6ListRouting::GetTypeId ( void )

static

Get the type ID of this class.

Returns: type ID

Definition at line 35 of file ipv6-list-routing.cc.

References ns3::TypeId::SetParent().

Referenced by RouteOutput().

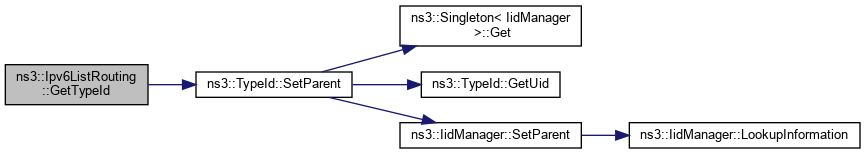

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAddAddress()

void ns3::Ipv6ListRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 164 of file ipv6-list-routing.cc.

References first::address, m_routingProtocols, and NS_LOG_FUNCTION.

◆ NotifyAddRoute()

void ns3::Ipv6ListRouting::NotifyAddRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify a new route.

Typically this is used to add another route from IPv6 stack (i.e. ICMPv6 redirect case, ...).

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 188 of file ipv6-list-routing.cc.

References m_routingProtocols, and NS_LOG_FUNCTION.

◆ NotifyInterfaceDown()

void ns3::Ipv6ListRouting::NotifyInterfaceDown ( uint32_t interface )

virtual

Notify when specified interface goes DOWN.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 152 of file ipv6-list-routing.cc.

References m_routingProtocols, and NS_LOG_FUNCTION.

◆ NotifyInterfaceUp()

void ns3::Ipv6ListRouting::NotifyInterfaceUp ( uint32_t interface )

virtual

Notify when specified interface goes UP.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 140 of file ipv6-list-routing.cc.

References m_routingProtocols, and NS_LOG_FUNCTION.

◆ NotifyRemoveAddress()

void ns3::Ipv6ListRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 176 of file ipv6-list-routing.cc.

References first::address, m_routingProtocols, and NS_LOG_FUNCTION.

◆ NotifyRemoveRoute()

void ns3::Ipv6ListRouting::NotifyRemoveRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify route removing.

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 200 of file ipv6-list-routing.cc.

References m_routingProtocols, and NS_LOG_FUNCTION.

◆ PrintRoutingTable()

void ns3::Ipv6ListRouting::PrintRoutingTable	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

virtual

Print the Routing Table entries.

Parameters

stream	The ostream the Routing table is printed to
unit	The time unit to be used in the report

Implements ns3::Ipv6RoutingProtocol.

Definition at line 213 of file ipv6-list-routing.cc.

References ns3::Time::As(), ns3::OutputStreamWrapper::GetStream(), m_ipv6, m_routingProtocols, ns3::Now(), and NS_LOG_FUNCTION.

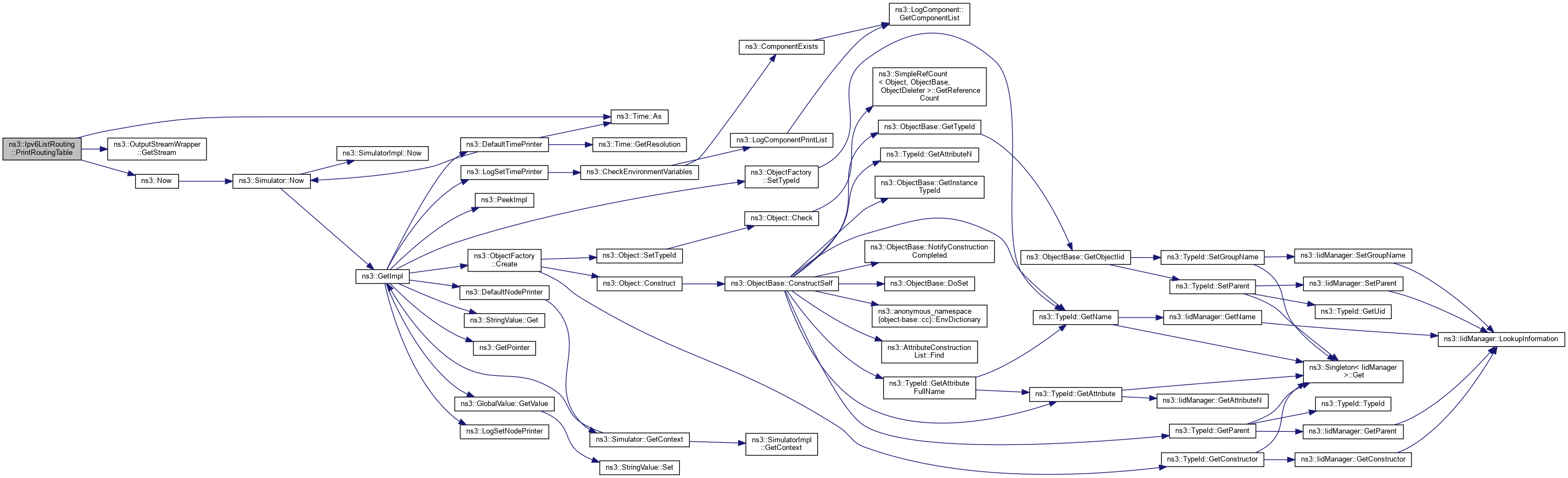

Here is the call graph for this function:

◆ RouteInput()

bool ns3::Ipv6ListRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv6Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv6RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input (). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv6RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv6RoutingProtocol.

Definition at line 100 of file ipv6-list-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv6Header::GetDestination(), ns3::Node::GetId(), m_ipv6, m_routingProtocols, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ RouteOutput()

Ptr< Ipv6Route > ns3::Ipv6ListRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output ()

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface device. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implements ns3::Ipv6RoutingProtocol.

Definition at line 74 of file ipv6-list-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv6Header::GetDestination(), ns3::Ipv6Header::GetSource(), GetTypeId(), m_routingProtocols, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

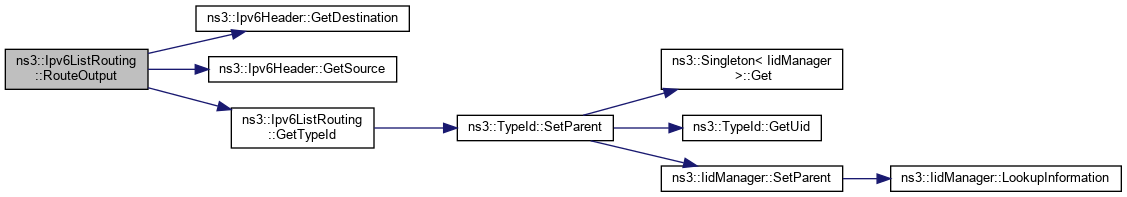

Here is the call graph for this function:

◆ SetIpv6()

void ns3::Ipv6ListRouting::SetIpv6 ( Ptr< Ipv6 > ipv6 )

virtual

Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol.

Parameters

ipv6	the ipv6 object this routing protocol is being associated with

Implements ns3::Ipv6RoutingProtocol.

Definition at line 230 of file ipv6-list-routing.cc.

References m_ipv6, m_routingProtocols, NS_ASSERT, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_ipv6

Ptr<Ipv6> ns3::Ipv6ListRouting::m_ipv6

private

Ipv6 this protocol is associated with.

Definition at line 129 of file ipv6-list-routing.h.

Referenced by AddRoutingProtocol(), DoDispose(), PrintRoutingTable(), RouteInput(), and SetIpv6().

◆ m_routingProtocols

Ipv6RoutingProtocolList ns3::Ipv6ListRouting::m_routingProtocols

private

List of routing protocols.

Definition at line 128 of file ipv6-list-routing.h.

Referenced by AddRoutingProtocol(), DoDispose(), GetNRoutingProtocols(), GetRoutingProtocol(), NotifyAddAddress(), NotifyAddRoute(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), NotifyRemoveRoute(), PrintRoutingTable(), RouteInput(), RouteOutput(), and SetIpv6().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-list-routing.h
src/internet/model/ipv6-list-routing.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ipv6RoutingProtocolEntry

◆ Ipv6RoutingProtocolList

Constructor & Destructor Documentation

◆ Ipv6ListRouting()

◆ ~Ipv6ListRouting()

Member Function Documentation

◆ AddRoutingProtocol()

◆ Compare()

◆ DoDispose()

◆ GetNRoutingProtocols()

◆ GetRoutingProtocol()

◆ GetTypeId()

◆ NotifyAddAddress()

◆ NotifyAddRoute()

◆ NotifyInterfaceDown()

◆ NotifyInterfaceUp()

◆ NotifyRemoveAddress()

◆ NotifyRemoveRoute()

◆ PrintRoutingTable()

◆ RouteInput()

◆ RouteOutput()

◆ SetIpv6()

Member Data Documentation

◆ m_ipv6

◆ m_routingProtocols
