ns3::LteEnbComponentCarrierManager Class Referenceabstract

The class implements Component Carrier Manager (CCM) that operates using the Component Carrier Manager SAP interfaces. More...

#include "lte-enb-component-carrier-manager.h"

+ Inheritance diagram for ns3::LteEnbComponentCarrierManager:
+ Collaboration diagram for ns3::LteEnbComponentCarrierManager:

Classes

struct  UeInfo
 Structure to represent UE info. More...


Public Member Functions

 LteEnbComponentCarrierManager ()

virtual ~LteEnbComponentCarrierManager ()

virtual LteCcmMacSapUserGetLteCcmMacSapUser ()
 This function returns a pointer to the LteCcmMacSapUser interface, which is used by MAC to communicate to CCM when e.g. More...

virtual LteCcmRrcSapProviderGetLteCcmRrcSapProvider ()
 Export the "provider" part of the ComponentCarrier Management SAP interface. More...

virtual LteMacSapProviderGetLteMacSapProvider ()
 Returns the pointer to the LteMacSapProvider interface, the provider of MAC, which is this new architecture served by LteEnbComponentCarrierManager object which will behave as a proxy, and will forward calls between to MAC objects of component carriers based on the logic implemented in the specific component carrier manager. More...

virtual bool SetCcmMacSapProviders (uint8_t componentCarrierId, LteCcmMacSapProvider *sap)
 Set LteCcmMacSapProvider interface for the MAC object of the specified component carrier. More...

virtual void SetLteCcmRrcSapUser (LteCcmRrcSapUser *s)
 Set the "user" part of the ComponentCarrier Management SAP interface that this ComponentCarrier algorithm instance will interact with. More...

virtual bool SetMacSapProvider (uint8_t componentCarrierId, LteMacSapProvider *sap)
 Set LteMacSapProvider interface for the MAC object of the specified component carrier. More...

virtual void SetNumberOfComponentCarriers (uint16_t noOfComponentCarriers)
 Sets the total number of component carriers. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)=0
 Implementation of ReportUeMeas. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Protected Attributes

std::map< uint8_t, LteCcmMacSapProvider * > m_ccmMacSapProviderMap
 A map of pointers to the SAP interfaces of CCM instance that provides the CCM specific functionalities to MAC, i.e. More...

LteCcmMacSapUserm_ccmMacSapUser
 LteCcmMacSapUser is extended version of LteMacSapUser interface. More...

LteCcmRrcSapProviderm_ccmRrcSapProvider
 A pointer to the SAP interface of the CCM instance to receive API calls from the eNodeB RRC instance. More...

LteCcmRrcSapUserm_ccmRrcSapUser
 A pointer to SAP interface of RRC instance, i.e. More...

LteMacSapProviderm_macSapProvider
 A pointer to main SAP interface of the MAC instance, which is in this case handled by CCM. More...

std::map< uint8_t, LteMacSapProvider * > m_macSapProvidersMap
 A map of pointers to real SAP interfaces of MAC instances. More...

uint16_t m_noOfComponentCarriers
 The number component of carriers that are supported by this eNb. More...

Ptr< LteEnbRrcm_rrc
 A pointer to the RRC instance of this eNb. More...

std::map< uint16_t, UeInfom_ueInfo
 The map from RNTI to UE information. More...


Additional Inherited Members

Detailed Description

The class implements Component Carrier Manager (CCM) that operates using the Component Carrier Manager SAP interfaces.

CCM receives measurement reports from an eNode RRC instance and is forwarding calls from RLC to MAC layer, and from MAC to RLC.

This class is an abstract class intended to be inherited by subclasses that will implement its virtual methods. The subclasses are compatible with the LteEnbNetDevice class, and are accessible using namespace-based access through ns-3 Config subsystem, and can be installed and configured by LteHelper class.

The communication with the eNodeB RRC instance is done through the Component Carrier Manager SAP interface. The LteEnbComponentCarrierManager instance corresponds to the "provider" part of this interface, while the eNodeB RRC instance takes the role of the "user" part. The following code skeleton establishes the connection between both instances:

Ptr<LteEnbRrc> rrc = ...; Ptr<LteComponentCarrierManager> ccmEnb = ...; rrc->SetLteCcmRrcSapProvider (ccmEnb->GetLteCcmRrcSapProvider ()); ccmEnb->SetLteCcmRrcSapUser (rrc->GetLteCcmRrcSapUser ())

Similarly, LteEnbComponentCarrierManager instance communicates with MAC, and it takes the role of the "user".

However, user rarely needs to use the above code, since it has already been taken care by LteHelper::InstallEnbDevice.

See also
LteCcmRrcSapUser, LteCcmRrcSapProvider, LteCcmMacSapUser, LteCcmMacSapProvider

Config Paths

ns3::LteEnbComponentCarrierManager is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 224 bytes (on a 64-bit architecture).

Definition at line 78 of file lte-enb-component-carrier-manager.h.

Constructor & Destructor Documentation

◆ LteEnbComponentCarrierManager()

ns3::LteEnbComponentCarrierManager::LteEnbComponentCarrierManager ( )

Definition at line 31 of file lte-enb-component-carrier-manager.cc.

◆ ~LteEnbComponentCarrierManager()

ns3::LteEnbComponentCarrierManager::~LteEnbComponentCarrierManager ( )
virtual

Definition at line 36 of file lte-enb-component-carrier-manager.cc.

Member Function Documentation

◆ DoDispose()

void ns3::LteEnbComponentCarrierManager::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::NoOpComponentCarrierManager.

Definition at line 51 of file lte-enb-component-carrier-manager.cc.

◆ DoReportUeMeas()

virtual void ns3::LteEnbComponentCarrierManager::DoReportUeMeas ( uint16_t  rnti,
LteRrcSap::MeasResults  measResults
)
protectedpure virtual

Implementation of ReportUeMeas.

Parameters
rntiRadio Network Temporary Identity, an integer identifying the UE where the report originates from
measResultsa single report of one measurement identity

Implemented in ns3::NoOpComponentCarrierManager.

◆ GetLteCcmMacSapUser()

LteCcmMacSapUser * ns3::LteEnbComponentCarrierManager::GetLteCcmMacSapUser ( )
virtual

This function returns a pointer to the LteCcmMacSapUser interface, which is used by MAC to communicate to CCM when e.g.

UL buffer status report is received, or to notify CCM about PRB occupancy, and similar. Functions that are specific for the communication between MAC and CCM.

Returns
LteCcmMacSapUser*

Definition at line 77 of file lte-enb-component-carrier-manager.cc.

References m_ccmMacSapUser, and NS_LOG_FUNCTION.

◆ GetLteCcmRrcSapProvider()

LteCcmRrcSapProvider * ns3::LteEnbComponentCarrierManager::GetLteCcmRrcSapProvider ( )
virtual

Export the "provider" part of the ComponentCarrier Management SAP interface.

Returns
the reference to the "provider" part of the interface, typically to be kept by an LteEnbRlc instance

Definition at line 63 of file lte-enb-component-carrier-manager.cc.

References m_ccmRrcSapProvider, and NS_LOG_FUNCTION.

◆ GetLteMacSapProvider()

LteMacSapProvider * ns3::LteEnbComponentCarrierManager::GetLteMacSapProvider ( )
virtual

Returns the pointer to the LteMacSapProvider interface, the provider of MAC, which is this new architecture served by LteEnbComponentCarrierManager object which will behave as a proxy, and will forward calls between to MAC objects of component carriers based on the logic implemented in the specific component carrier manager.

Returns
LteMacSapProvider*

Definition at line 70 of file lte-enb-component-carrier-manager.cc.

References m_macSapProvider, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::LteEnbComponentCarrierManager::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 41 of file lte-enb-component-carrier-manager.cc.

References ns3::TypeId::SetParent().

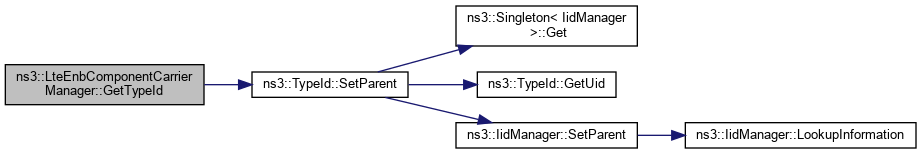

+ Here is the call graph for this function:

◆ SetCcmMacSapProviders()

bool ns3::LteEnbComponentCarrierManager::SetCcmMacSapProviders ( uint8_t  componentCarrierId,
LteCcmMacSapProvider sap
)
virtual

Set LteCcmMacSapProvider interface for the MAC object of the specified component carrier.

Through this interface CCM communicates with MAC, e.g. it notifies MAC of the specific carrier when to scheduler UL BSR.

Parameters
componentCarrierIdcomponent carrier ID
sapthe MAC SAP provider
Returns
true if successful

Definition at line 107 of file lte-enb-component-carrier-manager.cc.

References m_ccmMacSapProviderMap, and NS_LOG_FUNCTION.

◆ SetLteCcmRrcSapUser()

void ns3::LteEnbComponentCarrierManager::SetLteCcmRrcSapUser ( LteCcmRrcSapUser s)
virtual

Set the "user" part of the ComponentCarrier Management SAP interface that this ComponentCarrier algorithm instance will interact with.

Parameters
sa reference to the "user" part of the interface, typically a member of an LteEnbRrc instance

Definition at line 56 of file lte-enb-component-carrier-manager.cc.

References m_ccmRrcSapUser, and NS_LOG_FUNCTION.

◆ SetMacSapProvider()

bool ns3::LteEnbComponentCarrierManager::SetMacSapProvider ( uint8_t  componentCarrierId,
LteMacSapProvider sap
)
virtual

Set LteMacSapProvider interface for the MAC object of the specified component carrier.

Parameters
componentCarrierIdcomponent carrier ID
sapthe MAC SAP provider
Returns
true if successful

Definition at line 84 of file lte-enb-component-carrier-manager.cc.

References m_macSapProvidersMap, m_noOfComponentCarriers, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ SetNumberOfComponentCarriers()

void ns3::LteEnbComponentCarrierManager::SetNumberOfComponentCarriers ( uint16_t  noOfComponentCarriers)
virtual

Sets the total number of component carriers.

Parameters
noOfComponentCarriersnumber of component carriers

Definition at line 124 of file lte-enb-component-carrier-manager.cc.

References m_ccmRrcSapUser, m_noOfComponentCarriers, MAX_NO_CC, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and ns3::LteCcmRrcSapUser::SetNumberOfComponentCarriers().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_ccmMacSapProviderMap

std::map< uint8_t, LteCcmMacSapProvider*> ns3::LteEnbComponentCarrierManager::m_ccmMacSapProviderMap
protected

A map of pointers to the SAP interfaces of CCM instance that provides the CCM specific functionalities to MAC, i.e.

ReportMacCeToScheduler.

Definition at line 207 of file lte-enb-component-carrier-manager.h.

Referenced by ns3::NoOpComponentCarrierManager::DoUlReceiveMacCe(), ns3::RrComponentCarrierManager::DoUlReceiveMacCe(), ns3::NoOpComponentCarrierManager::DoUlReceiveSr(), ns3::RrComponentCarrierManager::DoUlReceiveSr(), and SetCcmMacSapProviders().

◆ m_ccmMacSapUser

LteCcmMacSapUser* ns3::LteEnbComponentCarrierManager::m_ccmMacSapUser
protected

◆ m_ccmRrcSapProvider

LteCcmRrcSapProvider* ns3::LteEnbComponentCarrierManager::m_ccmRrcSapProvider
protected

A pointer to the SAP interface of the CCM instance to receive API calls from the eNodeB RRC instance.

Definition at line 210 of file lte-enb-component-carrier-manager.h.

Referenced by ns3::NoOpComponentCarrierManager::NoOpComponentCarrierManager(), ns3::NoOpComponentCarrierManager::DoDispose(), and GetLteCcmRrcSapProvider().

◆ m_ccmRrcSapUser

LteCcmRrcSapUser* ns3::LteEnbComponentCarrierManager::m_ccmRrcSapUser
protected

◆ m_macSapProvider

LteMacSapProvider* ns3::LteEnbComponentCarrierManager::m_macSapProvider
protected

A pointer to main SAP interface of the MAC instance, which is in this case handled by CCM.

Definition at line 195 of file lte-enb-component-carrier-manager.h.

Referenced by ns3::NoOpComponentCarrierManager::NoOpComponentCarrierManager(), ns3::NoOpComponentCarrierManager::DoDispose(), and GetLteMacSapProvider().

◆ m_macSapProvidersMap

std::map<uint8_t, LteMacSapProvider*> ns3::LteEnbComponentCarrierManager::m_macSapProvidersMap
protected

◆ m_noOfComponentCarriers

uint16_t ns3::LteEnbComponentCarrierManager::m_noOfComponentCarriers
protected

The number component of carriers that are supported by this eNb.

Definition at line 179 of file lte-enb-component-carrier-manager.h.

Referenced by ns3::NoOpComponentCarrierManager::DoSetupDataRadioBearer(), SetMacSapProvider(), and SetNumberOfComponentCarriers().

◆ m_rrc

Ptr<LteEnbRrc> ns3::LteEnbComponentCarrierManager::m_rrc
protected

A pointer to the RRC instance of this eNb.

Definition at line 182 of file lte-enb-component-carrier-manager.h.

◆ m_ueInfo


The documentation for this class was generated from the following files:
