Part of the RRC protocol. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::LteEnbRrcSapProvider:

Collaboration diagram for ns3::LteEnbRrcSapProvider:

Classes
struct	CompleteSetupUeParameters
	CompleteSetupUeParameters structure. More...

Public Member Functions
virtual void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params)=0
	Complete setup UE function. More...

virtual void	RecvIdealUeContextRemoveRequest (uint16_t rnti)=0
	Receive ideal UE context remove request from the UE RRC. More...

virtual void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg)=0
	Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg)=0
	Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg)=0
	Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg)=0
	Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg)=0
	Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg)=0
	Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used to let the eNB RRC receive a message from a UE RRC. Each method defined in this class corresponds to the reception of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 1200 of file lte-rrc-sap.h.

Member Function Documentation

◆ CompleteSetupUe()

virtual void ns3::LteEnbRrcSapProvider::CompleteSetupUe	(	uint16_t	rnti,
		CompleteSetupUeParameters	params
	)

pure virtual

Complete setup UE function.

Parameters

rnti	the RNTI of UE which sent the message
params	CompleteSetupUeParameters

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoSetupUe().

Here is the caller graph for this function:

◆ RecvIdealUeContextRemoveRequest()

virtual void ns3::LteEnbRrcSapProvider::RecvIdealUeContextRemoveRequest ( uint16_t rnti )

pure virtual

Receive ideal UE context remove request from the UE RRC.

Receive the notification from UE to remove the UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented.

Parameters

rnti	the C-RNTI of the UE

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolIdeal::DoSendIdealUeContextRemoveRequest(), and ns3::LteUeRrcProtocolReal::DoSendIdealUeContextRemoveRequest().

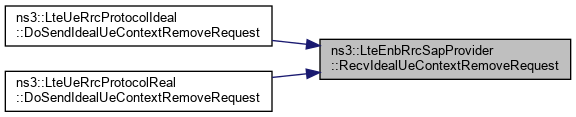

Here is the caller graph for this function:

◆ RecvMeasurementReport()

virtual void ns3::LteEnbRrcSapProvider::RecvMeasurementReport	(	uint16_t	rnti,
		MeasurementReport	msg
	)

pure virtual

Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport().

Here is the caller graph for this function:

◆ RecvRrcConnectionReconfigurationCompleted()

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		RrcConnectionReconfigurationCompleted	msg
	)

pure virtual

Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted().

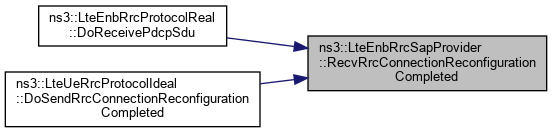

Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishmentComplete()

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		RrcConnectionReestablishmentComplete	msg
	)

pure virtual

Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete().

Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishmentRequest()

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		RrcConnectionReestablishmentRequest	msg
	)

pure virtual

Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest().

Here is the caller graph for this function:

◆ RecvRrcConnectionRequest()

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionRequest	(	uint16_t	rnti,
		RrcConnectionRequest	msg
	)

pure virtual

Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest().

Here is the caller graph for this function:

◆ RecvRrcConnectionSetupCompleted()

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		RrcConnectionSetupCompleted	msg
	)

pure virtual

Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted().

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
