Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::MemberLteEnbRrcSapProvider< C >:

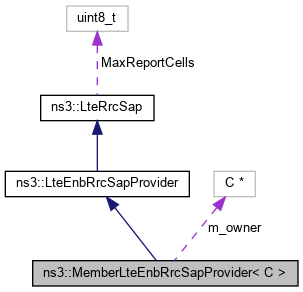

Collaboration diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Public Member Functions
	MemberLteEnbRrcSapProvider (C *owner)
	Constructor. More...

virtual void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params)
	Complete setup UE function. More...

virtual void	RecvIdealUeContextRemoveRequest (uint16_t rnti)
	Receive ideal UE context remove request from the UE RRC. More...

virtual void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg)
	Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg)
	Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg)
	Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg)
	Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg)
	Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg)
	Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteEnbRrcSapProvider ()

Private Attributes
C *	m_owner
	the owner class More...

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

template<class C>
class ns3::MemberLteEnbRrcSapProvider< C >

Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1642 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteEnbRrcSapProvider() [1/2]

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( C * owner )

Constructor.

Parameters

owner

Definition at line 1669 of file lte-rrc-sap.h.

◆ MemberLteEnbRrcSapProvider() [2/2]

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider

private

Definition at line 1675 of file lte-rrc-sap.h.

Member Function Documentation

◆ CompleteSetupUe()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::CompleteSetupUe	(	uint16_t	rnti,
		CompleteSetupUeParameters	params
	)

virtual

Complete setup UE function.

Parameters

rnti	the RNTI of UE which sent the message
params	CompleteSetupUeParameters

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1681 of file lte-rrc-sap.h.

◆ RecvIdealUeContextRemoveRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvIdealUeContextRemoveRequest ( uint16_t rnti )

virtual

Receive ideal UE context remove request from the UE RRC.

Receive the notification from UE to remove the UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented.

Parameters

rnti	the C-RNTI of the UE

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1729 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

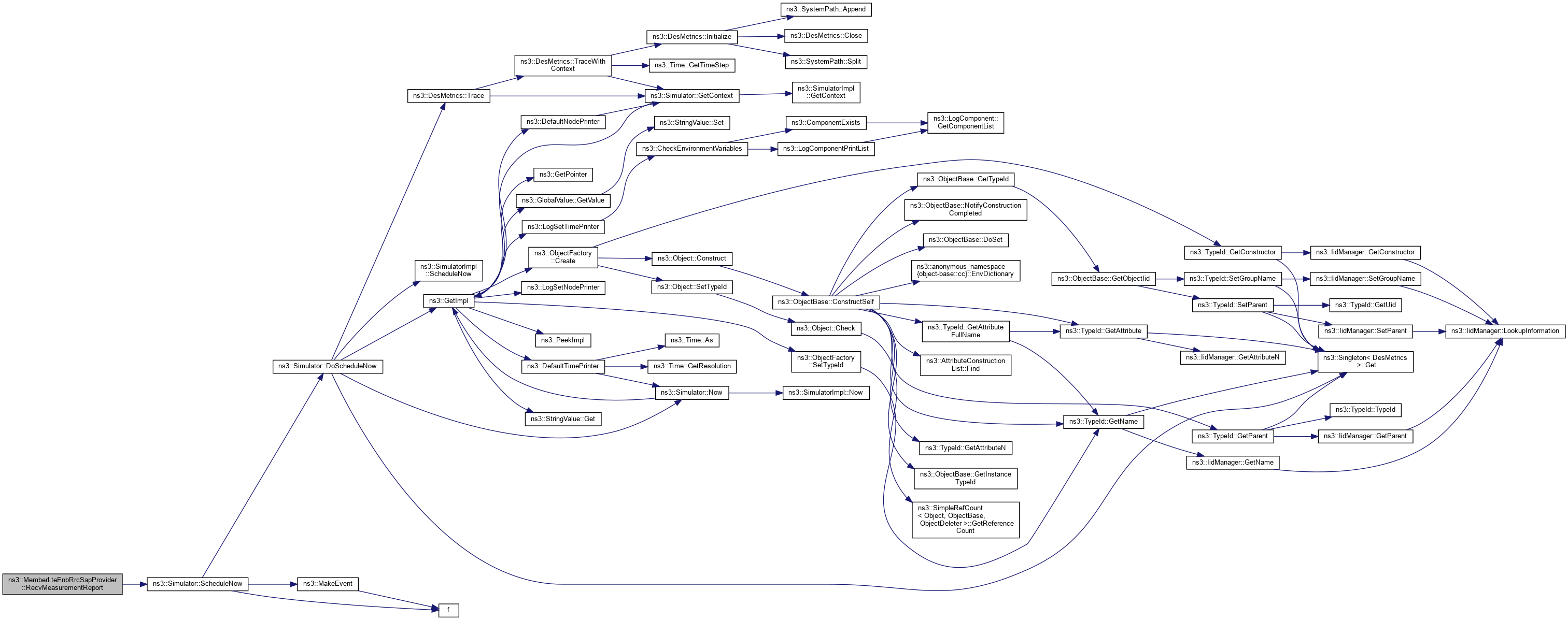

Here is the call graph for this function:

◆ RecvMeasurementReport()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport	(	uint16_t	rnti,
		MeasurementReport	msg
	)

virtual

Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1723 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

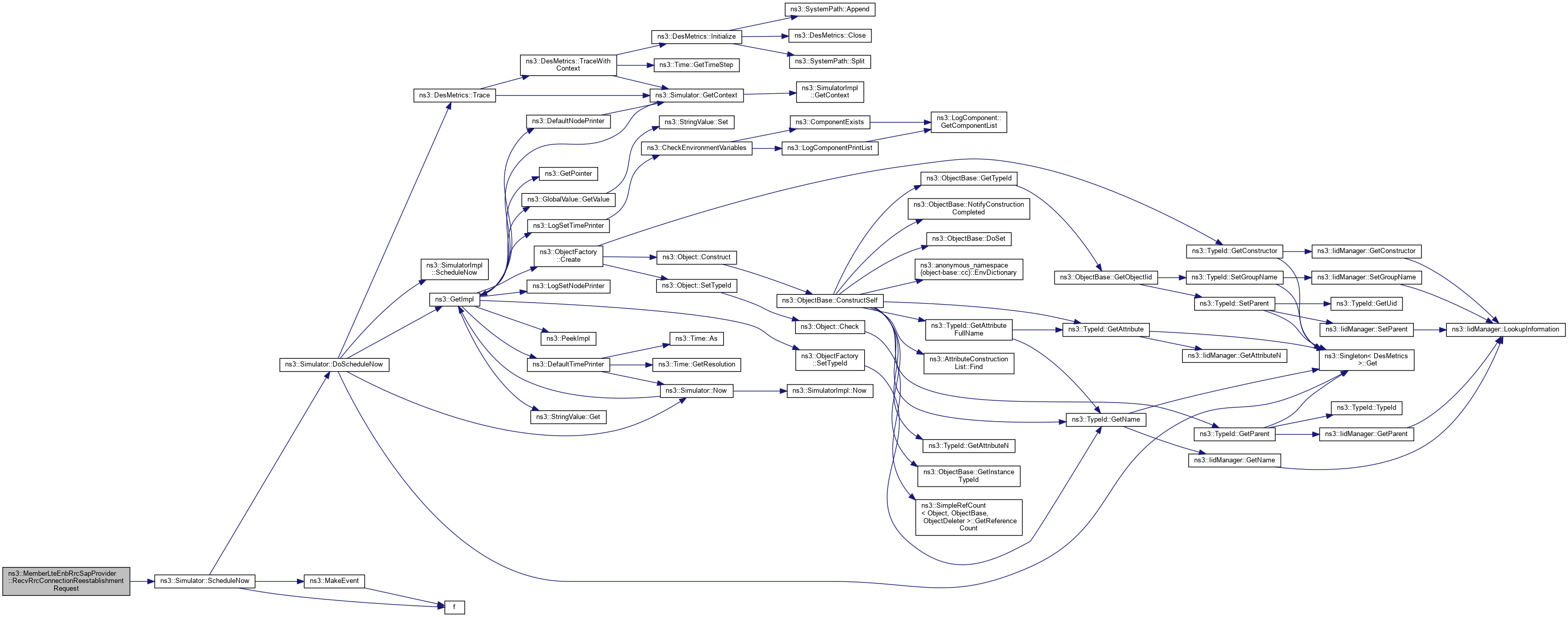

Here is the call graph for this function:

◆ RecvRrcConnectionReconfigurationCompleted()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		RrcConnectionReconfigurationCompleted	msg
	)

virtual

Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1702 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

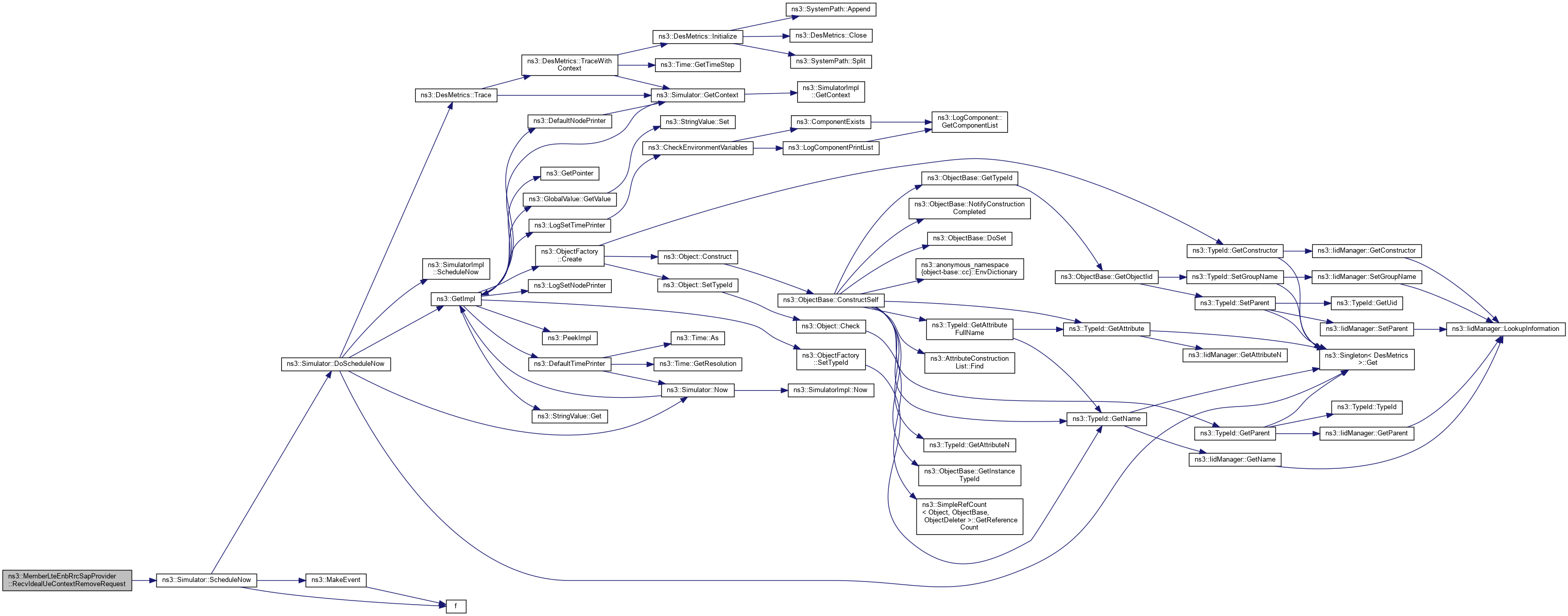

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentComplete()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		RrcConnectionReestablishmentComplete	msg
	)

virtual

Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1716 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		RrcConnectionReestablishmentRequest	msg
	)

virtual

Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1709 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest	(	uint16_t	rnti,
		RrcConnectionRequest	msg
	)

virtual

Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1688 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionSetupCompleted()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		RrcConnectionSetupCompleted	msg
	)

virtual

Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1695 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

◆ m_owner

template<class C >

C* ns3::MemberLteEnbRrcSapProvider< C >::m_owner

private

the owner class

Definition at line 1665 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
