Part of the RRC protocol. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::LteEnbRrcSapUser:

Collaboration diagram for ns3::LteEnbRrcSapUser:

Classes
struct	SetupUeParameters
	SetupUeParameters structure. More...

Public Member Functions
virtual RrcConnectionReconfiguration	DecodeHandoverCommand (Ptr< Packet > p)=0
	Decode handover command. More...

virtual HandoverPreparationInfo	DecodeHandoverPreparationInformation (Ptr< Packet > p)=0
	Decode handover prepration information. More...

virtual Ptr< Packet >	EncodeHandoverCommand (RrcConnectionReconfiguration msg)=0
	Encode handover command. More...

virtual Ptr< Packet >	EncodeHandoverPreparationInformation (HandoverPreparationInfo msg)=0
	Encode handover prepration information. More...

virtual void	RemoveUe (uint16_t rnti)=0
	Remove UE function. More...

virtual void	SendRrcConnectionReconfiguration (uint16_t rnti, RrcConnectionReconfiguration msg)=0
	Send an RRCConnectionReconfiguration message to a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishment (uint16_t rnti, RrcConnectionReestablishment msg)=0
	Send an RRCConnectionReestablishment message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishmentReject (uint16_t rnti, RrcConnectionReestablishmentReject msg)=0
	Send an RRCConnectionReestablishmentReject message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionReject (uint16_t rnti, RrcConnectionReject msg)=0
	Send an RRCConnectionReject message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	SendRrcConnectionRelease (uint16_t rnti, RrcConnectionRelease msg)=0
	Send an RRCConnectionRelease message to a UE during an RRC connection release procedure (Section 5.3.8 of TS 36.331). More...

virtual void	SendRrcConnectionSetup (uint16_t rnti, RrcConnectionSetup msg)=0
	Send an RRCConnectionSetup message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	SendSystemInformation (uint16_t cellId, SystemInformation msg)=0
	Send a SystemInformation message to all attached UEs during a system information acquisition procedure (Section 5.2.2 of TS 36.331). More...

virtual void	SetupUe (uint16_t rnti, SetupUeParameters params)=0
	Setup UE function. More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used by the eNB RRC to send messages to the UE RRC. Each method defined in this class corresponds to the transmission of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 1081 of file lte-rrc-sap.h.

Member Function Documentation

◆ DecodeHandoverCommand()

virtual RrcConnectionReconfiguration ns3::LteEnbRrcSapUser::DecodeHandoverCommand ( Ptr< Packet > p )

pure virtual

Decode handover command.

Parameters

p	the packet

Returns: RrcConnectionReconfiguration

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ DecodeHandoverPreparationInformation()

virtual HandoverPreparationInfo ns3::LteEnbRrcSapUser::DecodeHandoverPreparationInformation ( Ptr< Packet > p )

pure virtual

Decode handover prepration information.

Parameters

p	the packet

Returns: HandoverPreparationInfo

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ EncodeHandoverCommand()

virtual Ptr<Packet> ns3::LteEnbRrcSapUser::EncodeHandoverCommand ( RrcConnectionReconfiguration msg )

pure virtual

Encode handover command.

Parameters

msg	RrcConnectionReconfiguration

Returns: the packet

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

◆ EncodeHandoverPreparationInformation()

virtual Ptr<Packet> ns3::LteEnbRrcSapUser::EncodeHandoverPreparationInformation ( HandoverPreparationInfo msg )

pure virtual

Encode handover prepration information.

Parameters

msg	HandoverPreparationInfo

Returns: the packet

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ RemoveUe()

virtual void ns3::LteEnbRrcSapUser::RemoveUe ( uint16_t rnti )

pure virtual

Remove UE function.

Parameters

rnti the RNTI

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::LteEnbRrc::RemoveUe().

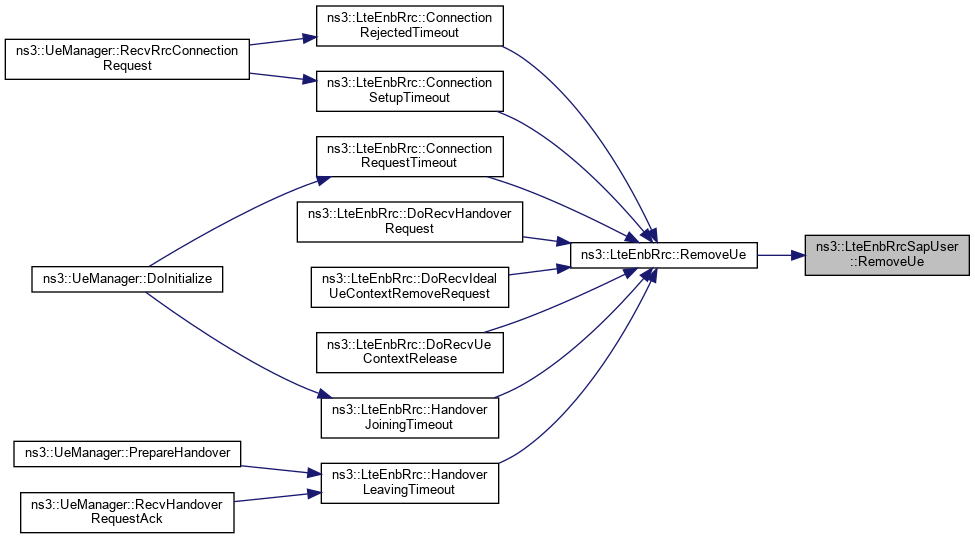

Here is the caller graph for this function:

◆ SendRrcConnectionReconfiguration()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReconfiguration	(	uint16_t	rnti,
		RrcConnectionReconfiguration	msg
	)

pure virtual

Send an RRCConnectionReconfiguration message to a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendRrcConnectionReestablishment()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReestablishment	(	uint16_t	rnti,
		RrcConnectionReestablishment	msg
	)

pure virtual

Send an RRCConnectionReestablishment message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendRrcConnectionReestablishmentReject()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReestablishmentReject	(	uint16_t	rnti,
		RrcConnectionReestablishmentReject	msg
	)

pure virtual

Send an RRCConnectionReestablishmentReject message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendRrcConnectionReject()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReject	(	uint16_t	rnti,
		RrcConnectionReject	msg
	)

pure virtual

Send an RRCConnectionReject message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendRrcConnectionRelease()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionRelease	(	uint16_t	rnti,
		RrcConnectionRelease	msg
	)

pure virtual

Send an RRCConnectionRelease message to a UE during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendRrcConnectionSetup()

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionSetup	(	uint16_t	rnti,
		RrcConnectionSetup	msg
	)

pure virtual

Send an RRCConnectionSetup message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

◆ SendSystemInformation()

virtual void ns3::LteEnbRrcSapUser::SendSystemInformation	(	uint16_t	cellId,
		SystemInformation	msg
	)

pure virtual

Send a SystemInformation message to all attached UEs during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

Parameters

cellId	cell ID
msg	the message

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::LteEnbRrc::SendSystemInformation().

Here is the caller graph for this function:

◆ SetupUe()

virtual void ns3::LteEnbRrcSapUser::SetupUe	(	uint16_t	rnti,
		SetupUeParameters	params
	)

pure virtual

Setup UE function.

Parameters

rnti	the RNTI
params	the setup UE parameters

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
