Template for the implementation of the LteEnbRrcSapUser as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::MemberLteEnbRrcSapUser< C >:

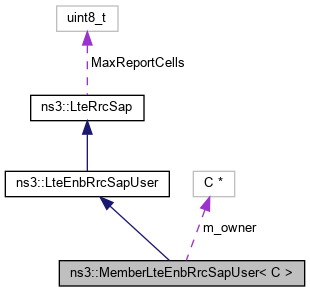

Collaboration diagram for ns3::MemberLteEnbRrcSapUser< C >:

Public Member Functions
	MemberLteEnbRrcSapUser (C *owner)
	Constructor. More...

virtual RrcConnectionReconfiguration	DecodeHandoverCommand (Ptr< Packet > p)
	Decode handover command. More...

virtual HandoverPreparationInfo	DecodeHandoverPreparationInformation (Ptr< Packet > p)
	Decode handover prepration information. More...

virtual Ptr< Packet >	EncodeHandoverCommand (RrcConnectionReconfiguration msg)
	Encode handover command. More...

virtual Ptr< Packet >	EncodeHandoverPreparationInformation (HandoverPreparationInfo msg)
	Encode handover prepration information. More...

virtual void	RemoveUe (uint16_t rnti)
	Remove UE function. More...

virtual void	SendRrcConnectionReconfiguration (uint16_t rnti, RrcConnectionReconfiguration msg)
	Send an RRCConnectionReconfiguration message to a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishment (uint16_t rnti, RrcConnectionReestablishment msg)
	Send an RRCConnectionReestablishment message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishmentReject (uint16_t rnti, RrcConnectionReestablishmentReject msg)
	Send an RRCConnectionReestablishmentReject message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionReject (uint16_t rnti, RrcConnectionReject msg)
	Send an RRCConnectionReject message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	SendRrcConnectionRelease (uint16_t rnti, RrcConnectionRelease msg)
	Send an RRCConnectionRelease message to a UE during an RRC connection release procedure (Section 5.3.8 of TS 36.331). More...

virtual void	SendRrcConnectionSetup (uint16_t rnti, RrcConnectionSetup msg)
	Send an RRCConnectionSetup message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	SendSystemInformation (uint16_t cellId, SystemInformation msg)
	Send a SystemInformation message to all attached UEs during a system information acquisition procedure (Section 5.2.2 of TS 36.331). More...

virtual void	SetupUe (uint16_t rnti, SetupUeParameters params)
	Setup UE function. More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteEnbRrcSapUser ()

Private Attributes
C *	m_owner
	the owner class More...

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

template<class C>
class ns3::MemberLteEnbRrcSapUser< C >

Template for the implementation of the LteEnbRrcSapUser as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1502 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteEnbRrcSapUser() [1/2]

template<class C >

ns3::MemberLteEnbRrcSapUser< C >::MemberLteEnbRrcSapUser ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 1534 of file lte-rrc-sap.h.

◆ MemberLteEnbRrcSapUser() [2/2]

template<class C >

ns3::MemberLteEnbRrcSapUser< C >::MemberLteEnbRrcSapUser

private

Definition at line 1540 of file lte-rrc-sap.h.

Member Function Documentation

◆ DecodeHandoverCommand()

template<class C >

LteRrcSap::RrcConnectionReconfiguration ns3::MemberLteEnbRrcSapUser< C >::DecodeHandoverCommand ( Ptr< Packet > p )

virtual

Decode handover command.

Parameters

p	the packet

Returns: RrcConnectionReconfiguration

Implements ns3::LteEnbRrcSapUser.

Definition at line 1631 of file lte-rrc-sap.h.

◆ DecodeHandoverPreparationInformation()

template<class C >

LteRrcSap::HandoverPreparationInfo ns3::MemberLteEnbRrcSapUser< C >::DecodeHandoverPreparationInformation ( Ptr< Packet > p )

virtual

Decode handover prepration information.

Parameters

p	the packet

Returns: HandoverPreparationInfo

Implements ns3::LteEnbRrcSapUser.

Definition at line 1616 of file lte-rrc-sap.h.

◆ EncodeHandoverCommand()

template<class C >

Ptr< Packet > ns3::MemberLteEnbRrcSapUser< C >::EncodeHandoverCommand ( RrcConnectionReconfiguration msg )

virtual

Encode handover command.

Parameters

msg	RrcConnectionReconfiguration

Returns: the packet

Implements ns3::LteEnbRrcSapUser.

Definition at line 1624 of file lte-rrc-sap.h.

◆ EncodeHandoverPreparationInformation()

template<class C >

Ptr< Packet > ns3::MemberLteEnbRrcSapUser< C >::EncodeHandoverPreparationInformation ( HandoverPreparationInfo msg )

virtual

Encode handover prepration information.

Parameters

msg	HandoverPreparationInfo

Returns: the packet

Implements ns3::LteEnbRrcSapUser.

Definition at line 1609 of file lte-rrc-sap.h.

◆ RemoveUe()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::RemoveUe ( uint16_t rnti )

virtual

Remove UE function.

Parameters

rnti the RNTI

Implements ns3::LteEnbRrcSapUser.

Definition at line 1553 of file lte-rrc-sap.h.

◆ SendRrcConnectionReconfiguration()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionReconfiguration	(	uint16_t	rnti,
		RrcConnectionReconfiguration	msg
	)

virtual

Send an RRCConnectionReconfiguration message to a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1574 of file lte-rrc-sap.h.

◆ SendRrcConnectionReestablishment()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionReestablishment	(	uint16_t	rnti,
		RrcConnectionReestablishment	msg
	)

virtual

Send an RRCConnectionReestablishment message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1581 of file lte-rrc-sap.h.

◆ SendRrcConnectionReestablishmentReject()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionReestablishmentReject	(	uint16_t	rnti,
		RrcConnectionReestablishmentReject	msg
	)

virtual

Send an RRCConnectionReestablishmentReject message to a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1588 of file lte-rrc-sap.h.

◆ SendRrcConnectionReject()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionReject	(	uint16_t	rnti,
		RrcConnectionReject	msg
	)

virtual

Send an RRCConnectionReject message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1602 of file lte-rrc-sap.h.

◆ SendRrcConnectionRelease()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionRelease	(	uint16_t	rnti,
		RrcConnectionRelease	msg
	)

virtual

Send an RRCConnectionRelease message to a UE during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1595 of file lte-rrc-sap.h.

◆ SendRrcConnectionSetup()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendRrcConnectionSetup	(	uint16_t	rnti,
		RrcConnectionSetup	msg
	)

virtual

Send an RRCConnectionSetup message to a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of the destination UE
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1567 of file lte-rrc-sap.h.

◆ SendSystemInformation()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SendSystemInformation	(	uint16_t	cellId,
		SystemInformation	msg
	)

virtual

Send a SystemInformation message to all attached UEs during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

Parameters

cellId	cell ID
msg	the message

Implements ns3::LteEnbRrcSapUser.

Definition at line 1560 of file lte-rrc-sap.h.

◆ SetupUe()

template<class C >

void ns3::MemberLteEnbRrcSapUser< C >::SetupUe	(	uint16_t	rnti,
		SetupUeParameters	params
	)

virtual

Setup UE function.

Parameters

rnti	the RNTI
params	the setup UE parameters

Implements ns3::LteEnbRrcSapUser.

Definition at line 1546 of file lte-rrc-sap.h.

Member Data Documentation

◆ m_owner

template<class C >

C* ns3::MemberLteEnbRrcSapUser< C >::m_owner

private

the owner class

Definition at line 1530 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
