A ping6 application. More...

#include "ping6.h"

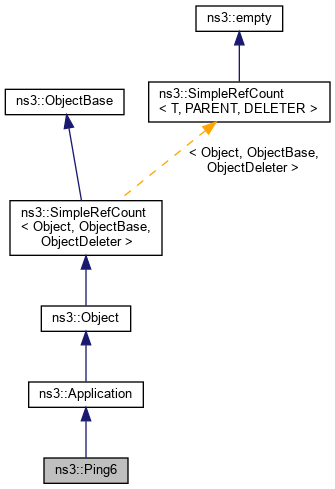

Inheritance diagram for ns3::Ping6:

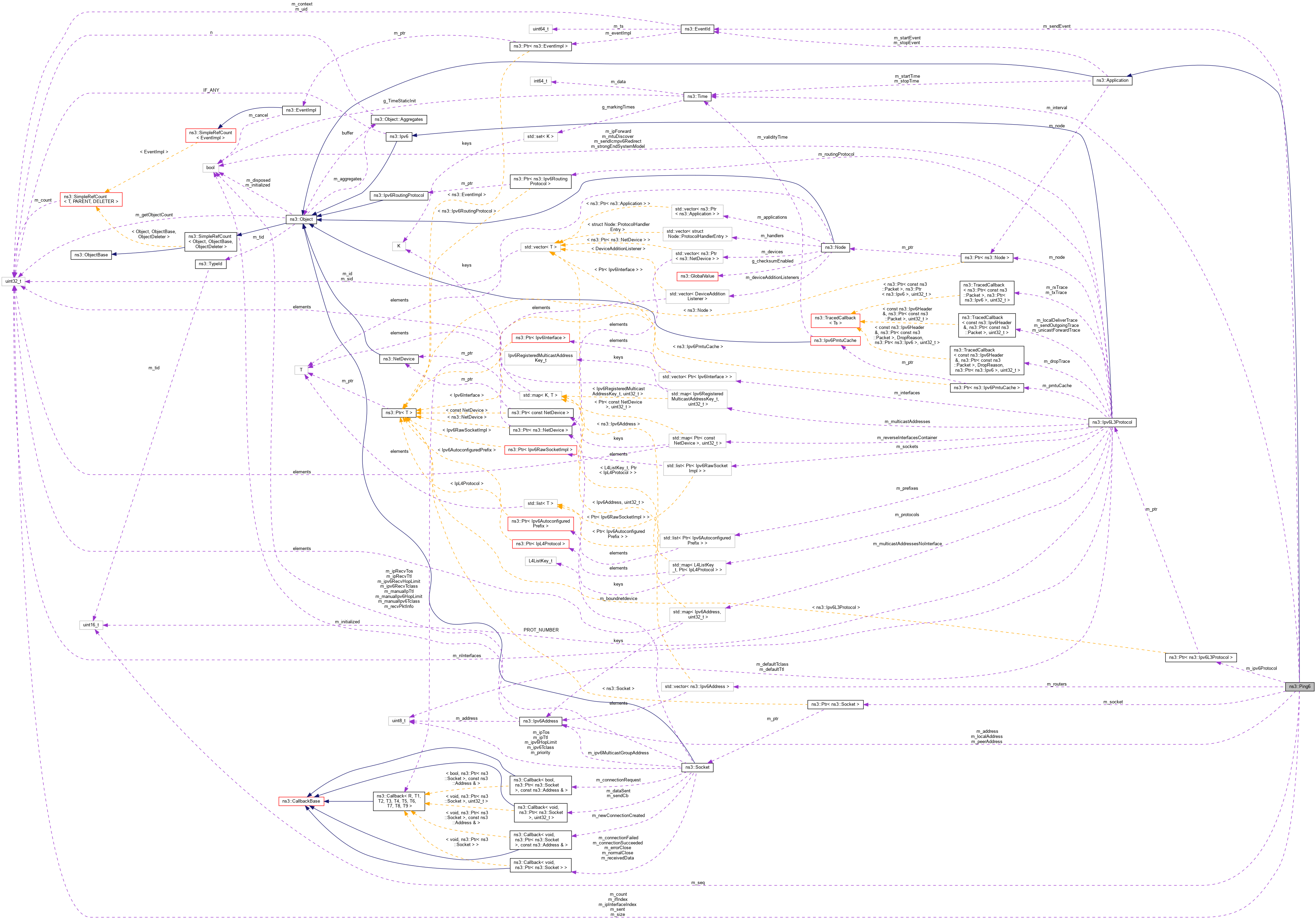

Collaboration diagram for ns3::Ping6:

Public Member Functions
	Ping6 ()
	Constructor. More...

virtual	~Ping6 ()
	Destructor. More...

void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. More...

void	SetLocal (Ipv6Address ipv6)
	Set the local address. More...

void	SetRemote (Ipv6Address ipv6)
	Set the remote peer. More...

void	SetRouters (std::vector< Ipv6Address > routers)
	Set routers for routing type 0 (loose routing). More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object;. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
	Receive method. More...

void	ScheduleTransmit (Time dt)
	Schedule sending a packet. More...

void	Send ()
	Send a packet. More...

virtual void	StartApplication ()
	Start the application. More...

virtual void	StopApplication ()
	Stop the application. More...

Private Attributes
Ipv6Address	m_address
	Peer IPv6 address. More...

uint32_t	m_count
	Number of "Echo request" packets that will be sent. More...

uint32_t	m_ifIndex
	Out interface (i.e. More...

Time	m_interval
	Interval between packets sent. More...

uint32_t	m_ipInterfaceIndex
	IP interface index relative to the local address. More...

Ptr< Ipv6L3Protocol >	m_ipv6Protocol
	IP interface index relative to the local address. More...

Ipv6Address	m_localAddress
	Local address. More...

Ipv6Address	m_peerAddress
	Peer address. More...

std::vector< Ipv6Address >	m_routers
	Routers addresses for routing type 0. More...

EventId	m_sendEvent
	Event ID. More...

uint32_t	m_sent
	Number of packets sent. More...

uint16_t	m_seq
	Sequence number. More...

uint32_t	m_size
	Size of the packet. More...

Ptr< Socket >	m_socket
	Local socket. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A ping6 application.

Config Paths

ns3::Ping6 is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::Ping6"

Attributes

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +1e+09ns
- Flags: construct write read
RemoteIpv6: The Ipv6Address of the outbound packets
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: ::
- Flags: construct write read
LocalIpv6: Local Ipv6Address of the sender
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: ::
- Flags: construct write read
PacketSize: Size of packets generated
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 43 of file ping6.h.

Constructor & Destructor Documentation

◆ Ping6()

ns3::Ping6::Ping6 ( )

Constructor.

Definition at line 78 of file ping6.cc.

References m_ifIndex, m_ipInterfaceIndex, m_sendEvent, m_sent, m_seq, m_socket, and NS_LOG_FUNCTION.

◆ ~Ping6()

ns3::Ping6::~Ping6 ( )

virtual

Destructor.

Definition at line 89 of file ping6.cc.

References m_socket, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::Ping6::DoDispose ( void )

protectedvirtual

Dispose this object;.

Reimplemented from ns3::Application.

Definition at line 95 of file ping6.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

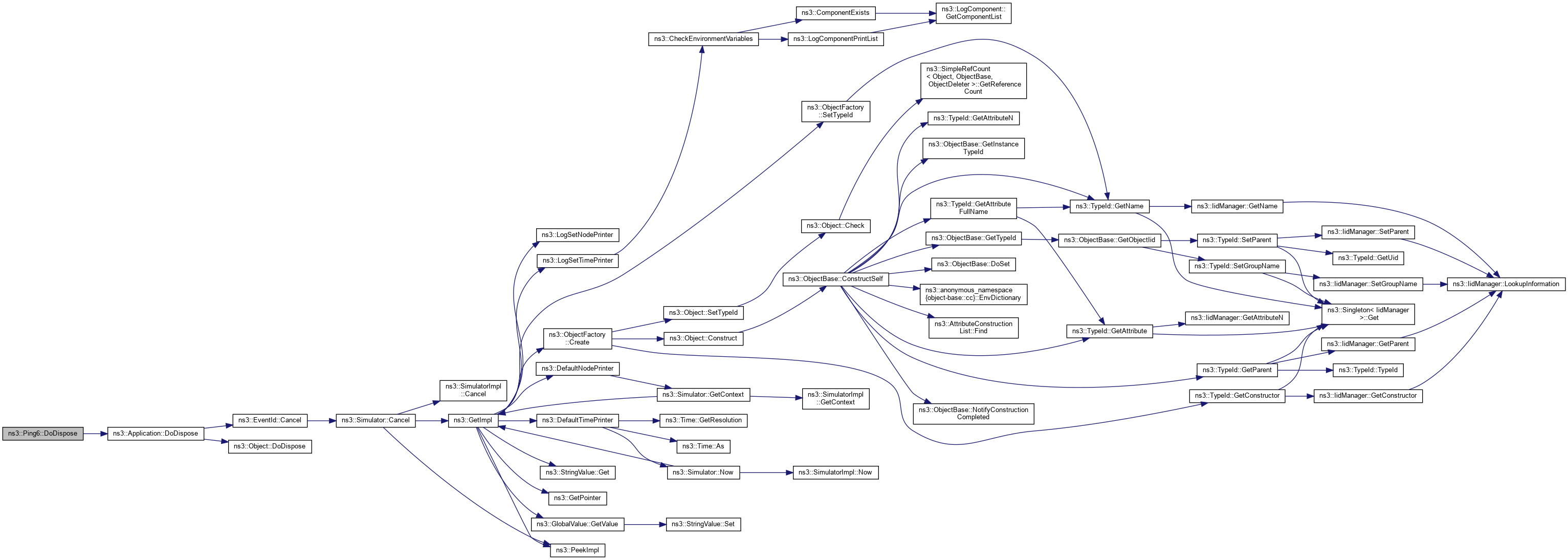

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::Ping6::GetTypeId ( void )

static

Get the type ID.

Returns: type ID

Definition at line 43 of file ping6.cc.

References m_count, m_interval, m_localAddress, m_peerAddress, m_size, ns3::MakeIpv6AddressAccessor(), ns3::MakeIpv6AddressChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

Referenced by ns3::Ping6Helper::Ping6Helper().

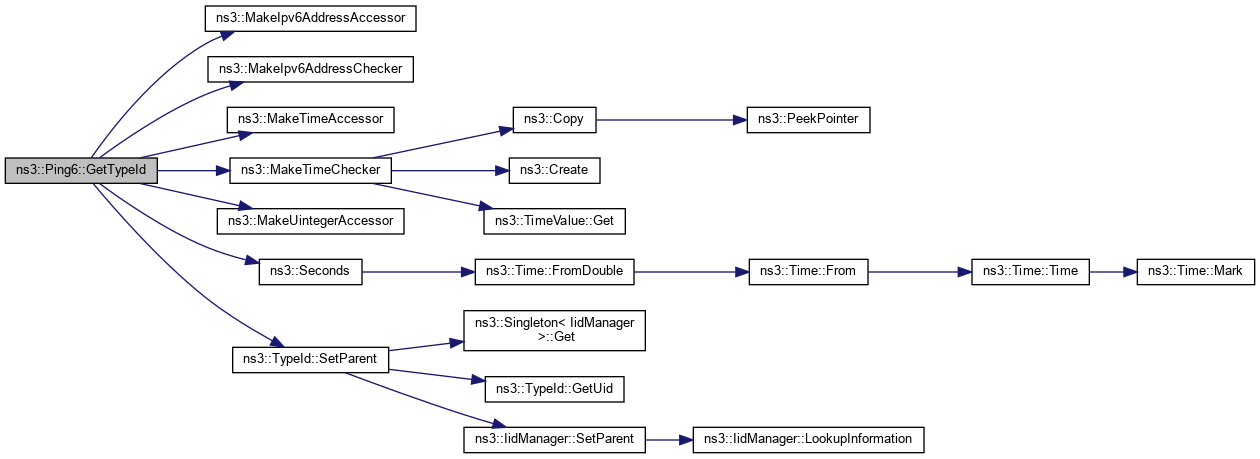

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleRead()

void ns3::Ping6::HandleRead ( Ptr< Socket > socket )

private

Receive method.

Parameters

socket socket that receive a packet

Definition at line 249 of file ping6.cc.

References first::address, ns3::Inet6SocketAddress::ConvertFrom(), ns3::Packet::CopyData(), ns3::Ipv6Header::GetHopLimit(), ns3::Icmpv6Echo::GetId(), ns3::Icmpv6Echo::GetSeq(), ns3::Packet::GetSize(), ns3::Icmpv6Header::ICMPV6_ECHO_REPLY, ns3::Icmpv6Header::ICMPV6_ERROR_DESTINATION_UNREACHABLE, ns3::Icmpv6Header::ICMPV6_ERROR_TIME_EXCEEDED, ns3::Inet6SocketAddress::IsMatchingType(), m_ifIndex, m_ipInterfaceIndex, m_ipv6Protocol, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Socket::RecvFrom(), and ns3::Packet::RemoveHeader().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleTransmit()

void ns3::Ping6::ScheduleTransmit ( Time dt )

private

Schedule sending a packet.

Parameters

dt	interval between packet

Definition at line 155 of file ping6.cc.

References m_sendEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

Referenced by Send(), and StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

void ns3::Ping6::Send ( void )

private

Send a packet.

Definition at line 166 of file ping6.cc.

References ns3::Packet::AddHeader(), ns3::Socket::Bind(), data, ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Application::GetNode(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::Ipv6Header::IPV6_EXT_ROUTING, ns3::Ipv6Header::IPV6_ICMPV6, ns3::EventId::IsExpired(), ns3::Ipv6InterfaceAddress::IsInSameSubnet(), m_count, m_ifIndex, m_interval, m_localAddress, m_peerAddress, m_routers, m_sendEvent, m_sent, m_seq, m_size, m_socket, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, ScheduleTransmit(), ns3::Socket::SendTo(), ns3::ObjectBase::SetAttribute(), ns3::Icmpv6Echo::SetId(), ns3::Ipv6ExtensionHeader::SetNextHeader(), ns3::Ipv6ExtensionLooseRoutingHeader::SetRoutersAddress(), ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft(), ns3::Icmpv6Echo::SetSeq(), and ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting().

Referenced by ScheduleTransmit().

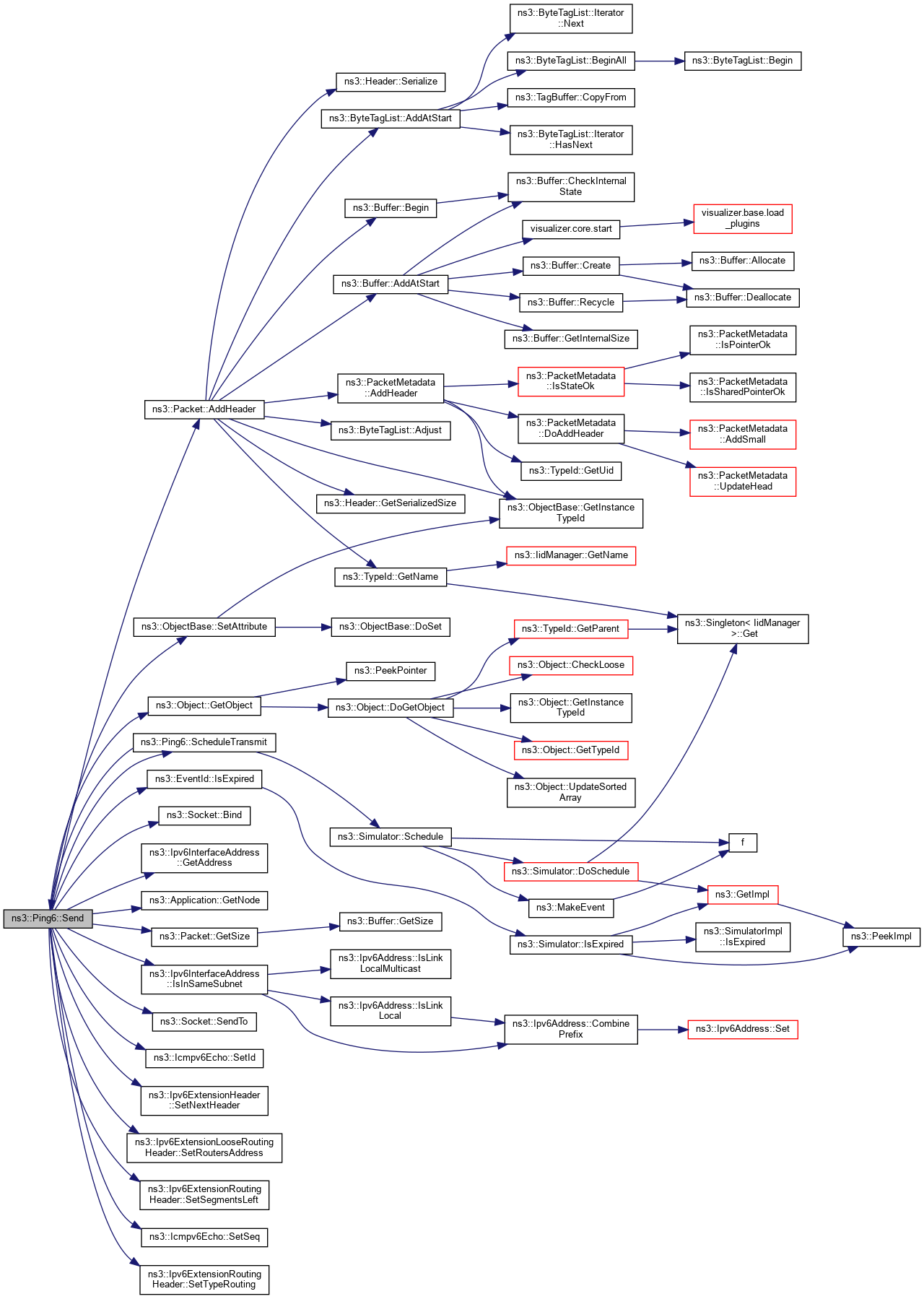

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIfIndex()

void ns3::Ping6::SetIfIndex ( uint32_t ifIndex )

Set the out interface index.

This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters

ifIndex interface index

Definition at line 150 of file ping6.cc.

References m_ifIndex.

◆ SetLocal()

void ns3::Ping6::SetLocal ( Ipv6Address ipv6 )

Set the local address.

Parameters

ipv6	the local IPv6 address

Definition at line 126 of file ping6.cc.

References m_localAddress, and NS_LOG_FUNCTION.

◆ SetRemote()

void ns3::Ping6::SetRemote ( Ipv6Address ipv6 )

Set the remote peer.

Parameters

ipv6	IPv6 address of the peer

Definition at line 132 of file ping6.cc.

References m_peerAddress, and NS_LOG_FUNCTION.

◆ SetRouters()

void ns3::Ping6::SetRouters ( std::vector< Ipv6Address > routers )

Set routers for routing type 0 (loose routing).

Parameters

routers routers addresses

Definition at line 161 of file ping6.cc.

References m_routers.

◆ StartApplication()

void ns3::Ping6::StartApplication ( void )

privatevirtual

Start the application.

Reimplemented from ns3::Application.

Definition at line 101 of file ping6.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Application::GetNode(), ns3::Object::GetObject(), HandleRead(), ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Address::IsAny(), ns3::TypeId::LookupByName(), m_ipInterfaceIndex, m_ipv6Protocol, m_localAddress, ns3::Application::m_node, m_socket, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ScheduleTransmit(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

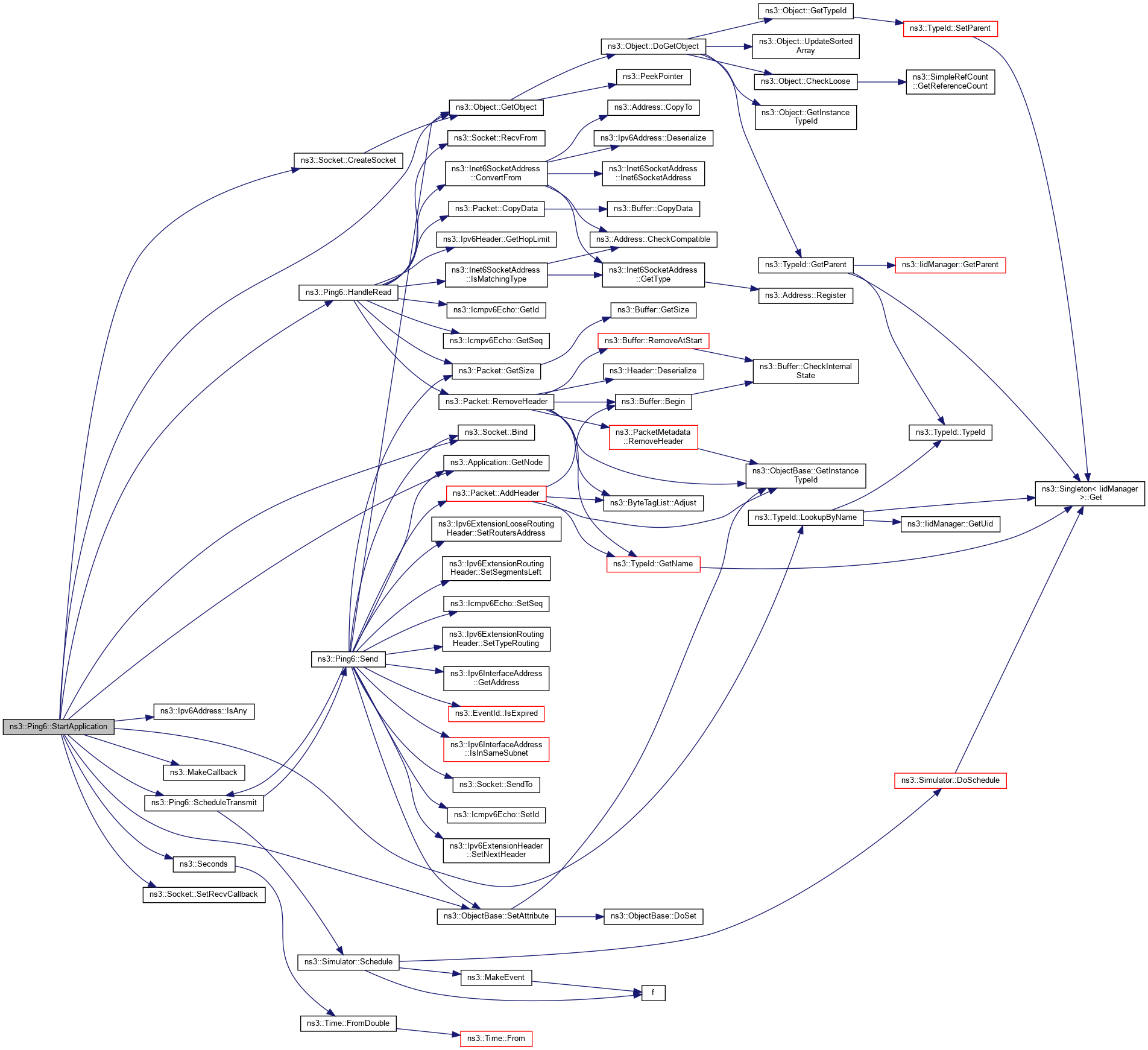

Here is the call graph for this function:

◆ StopApplication()

void ns3::Ping6::StopApplication ( void )

privatevirtual

Stop the application.

Reimplemented from ns3::Application.

Definition at line 138 of file ping6.cc.

References ns3::Simulator::Cancel(), m_sendEvent, m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

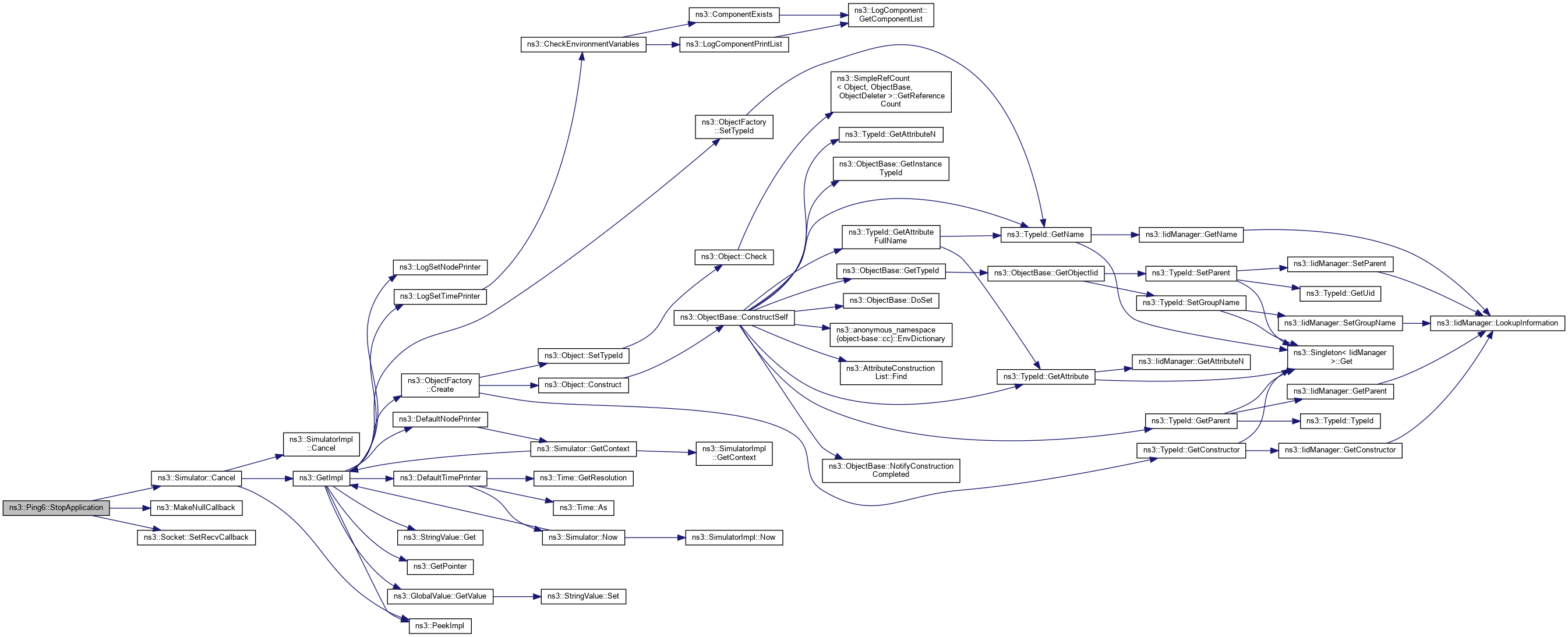

Here is the call graph for this function:

Member Data Documentation

◆ m_address

Ipv6Address ns3::Ping6::m_address

private

Peer IPv6 address.

Definition at line 125 of file ping6.h.

◆ m_count

uint32_t ns3::Ping6::m_count

private

Number of "Echo request" packets that will be sent.

Definition at line 130 of file ping6.h.

Referenced by GetTypeId(), and Send().

◆ m_ifIndex

uint32_t ns3::Ping6::m_ifIndex

private

Out interface (i.e.

for link-local communication).

Definition at line 185 of file ping6.h.

Referenced by Ping6(), HandleRead(), Send(), and SetIfIndex().

◆ m_interval

Time ns3::Ping6::m_interval

private

Interval between packets sent.

Definition at line 145 of file ping6.h.

Referenced by GetTypeId(), and Send().

◆ m_ipInterfaceIndex

uint32_t ns3::Ping6::m_ipInterfaceIndex

private

IP interface index relative to the local address.

Definition at line 155 of file ping6.h.

Referenced by Ping6(), HandleRead(), and StartApplication().

◆ m_ipv6Protocol

Ptr<Ipv6L3Protocol> ns3::Ping6::m_ipv6Protocol

private

IP interface index relative to the local address.

Definition at line 160 of file ping6.h.

Referenced by HandleRead(), and StartApplication().

◆ m_localAddress

Ipv6Address ns3::Ping6::m_localAddress

private

Local address.

Definition at line 150 of file ping6.h.

Referenced by GetTypeId(), Send(), SetLocal(), and StartApplication().

◆ m_peerAddress

Ipv6Address ns3::Ping6::m_peerAddress

private

Peer address.

Definition at line 165 of file ping6.h.

Referenced by GetTypeId(), Send(), and SetRemote().

◆ m_routers

std::vector<Ipv6Address> ns3::Ping6::m_routers

private

Routers addresses for routing type 0.

Definition at line 190 of file ping6.h.

Referenced by Send(), and SetRouters().

◆ m_sendEvent

EventId ns3::Ping6::m_sendEvent

private

Event ID.

Definition at line 180 of file ping6.h.

Referenced by Ping6(), ScheduleTransmit(), Send(), and StopApplication().

◆ m_sent

uint32_t ns3::Ping6::m_sent

private

Number of packets sent.

Definition at line 135 of file ping6.h.

Referenced by Ping6(), and Send().

◆ m_seq

uint16_t ns3::Ping6::m_seq

private

Sequence number.

Definition at line 175 of file ping6.h.

Referenced by Ping6(), and Send().

◆ m_size

uint32_t ns3::Ping6::m_size

private

Size of the packet.

Definition at line 140 of file ping6.h.

Referenced by GetTypeId(), and Send().

◆ m_socket

Ptr<Socket> ns3::Ping6::m_socket

private

Local socket.

Definition at line 170 of file ping6.h.

Referenced by Ping6(), ~Ping6(), Send(), StartApplication(), and StopApplication().

The documentation for this class was generated from the following files:

src/internet-apps/model/ping6.h
src/internet-apps/model/ping6.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Application

Constructor & Destructor Documentation

◆ Ping6()

◆ ~Ping6()

Member Function Documentation

◆ DoDispose()

◆ GetTypeId()

◆ HandleRead()

◆ ScheduleTransmit()

◆ Send()

◆ SetIfIndex()

◆ SetLocal()

◆ SetRemote()

◆ SetRouters()

◆ StartApplication()

◆ StopApplication()

Member Data Documentation

◆ m_address

◆ m_count

◆ m_ifIndex

◆ m_interval

◆ m_ipInterfaceIndex

◆ m_ipv6Protocol

◆ m_localAddress

◆ m_peerAddress

◆ m_routers

◆ m_sendEvent

◆ m_sent

◆ m_seq

◆ m_size

◆ m_socket
