Establish secure communication on application lavel to use the key and test LKSM. More...

#include "qkd-app-014.h"

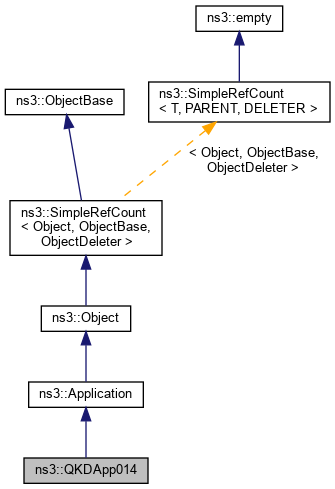

Inheritance diagram for ns3::QKDApp014:

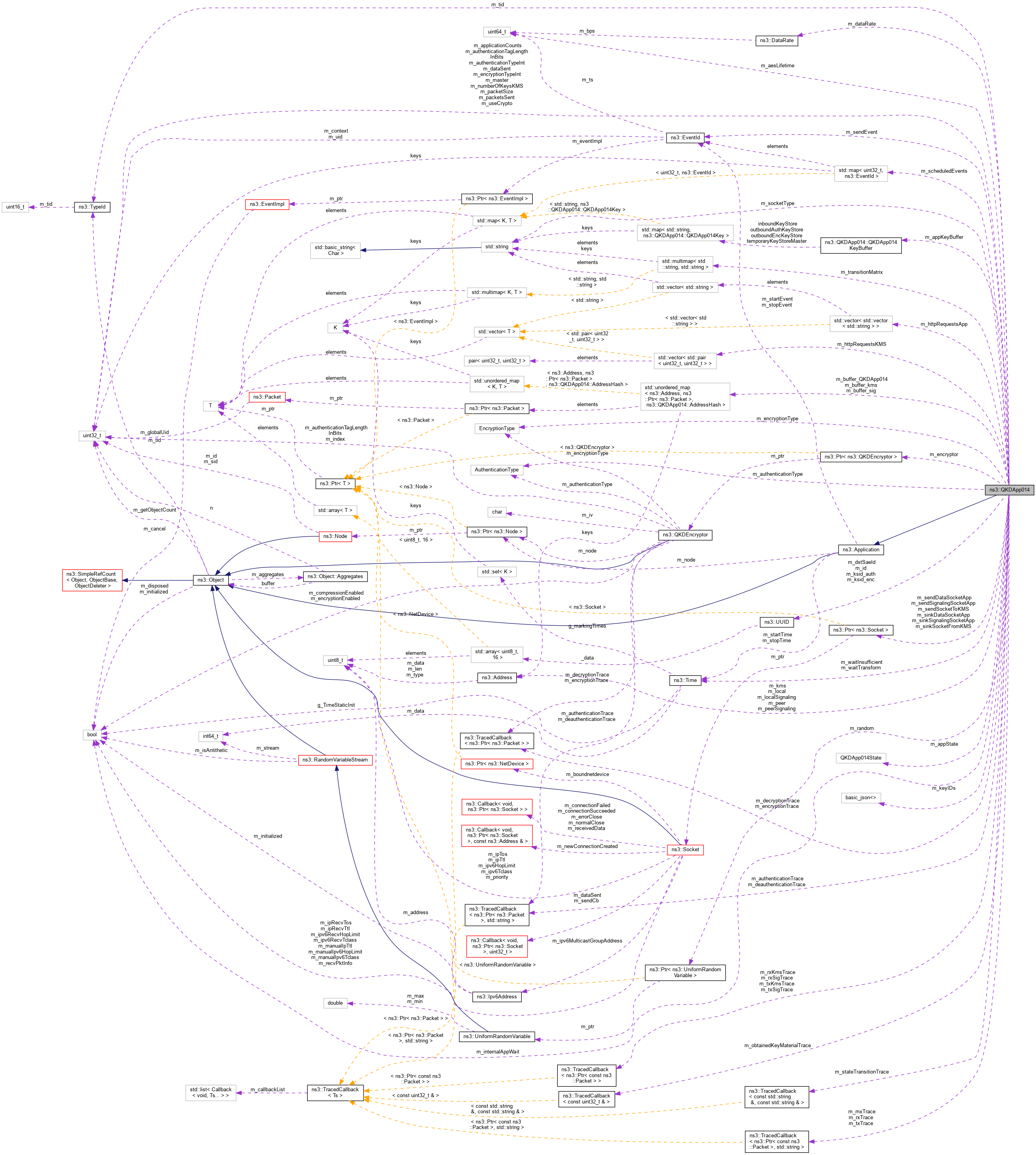

Collaboration diagram for ns3::QKDApp014:

Classes
struct	AddressHash
	Hashing for the Address class. More...

struct	QKDApp014Key
	The cryptographic key at the application layer. More...

struct	QKDApp014KeyBuffer
	The key buffer at the application layer. More...

Public Types
enum	QKDApp014State { NOT_STARTED , INITIALIZED , READY , WAIT , SEND_DATA , DECRYPT_DATA , STOPPED }
	The application states. More...

Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Public Member Functions
	QKDApp014 ()
	Constructor. More...

virtual	~QKDApp014 ()
	Destructor. More...

void	AddAuthKeyInKeyStore (QKDApp014::QKDApp014Key &key)
	Add a new key to the authentication key store. More...

void	AddEncKeyInKeyStore (QKDApp014::QKDApp014Key &key)
	Add a new key to the encryption key store. More...

void	AddKeyInInboundKeyStore (QKDApp014::QKDApp014Key &key)
	Add a new key to the inbound key store. More...

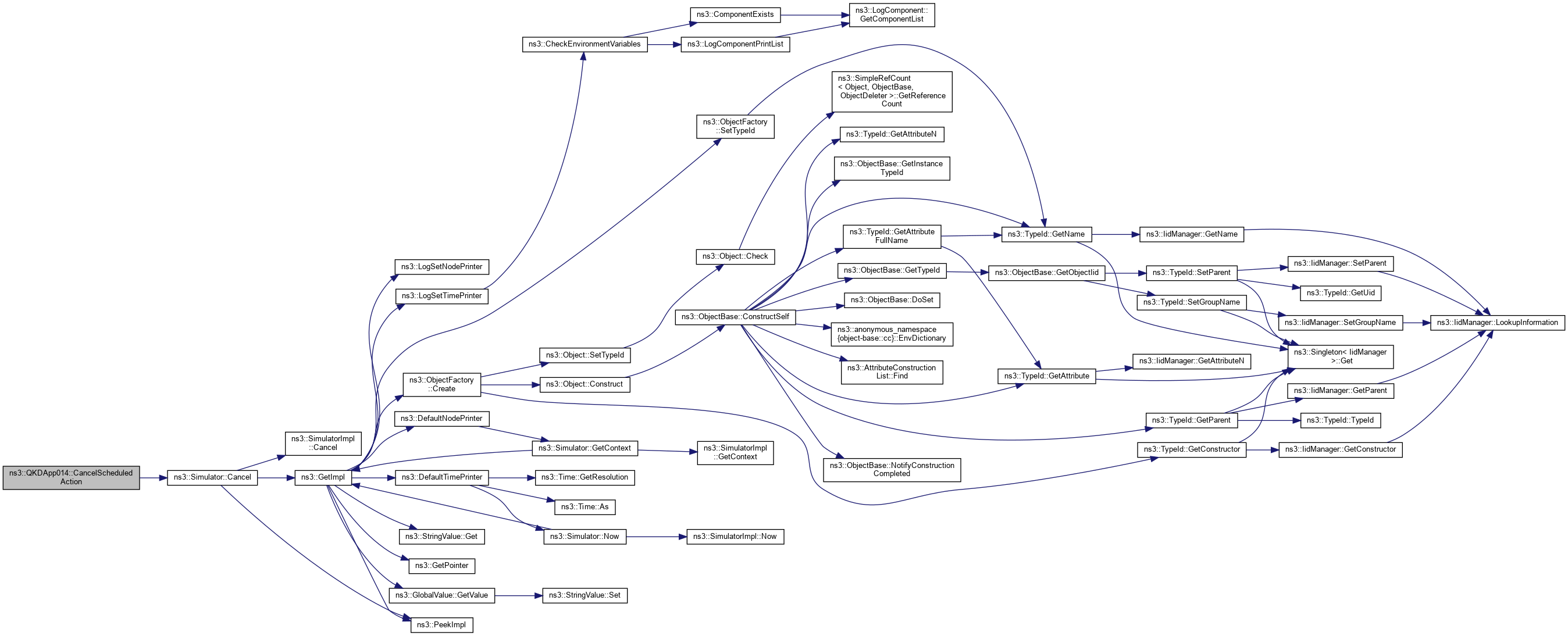

void	CancelScheduledAction (uint32_t eventId)
	Cancel the scheduled event/action. More...

void	CheckAppBufferState ()
	Check the state of the application key buffer. More...

void	CheckAppState ()
	Check the conditions to change the application state. More...

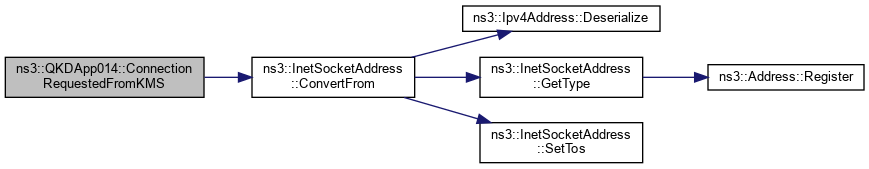

bool	ConnectionRequestedFromKMS (Ptr< Socket > socket, const Address &address)
	Callback function after the connection response from the KMS has been received. More...

void	ConnectionSignalingToAppFailed (Ptr< Socket > socket)
	Callback function after the signaling connection to the APP has failed. More...

void	ConnectionSignalingToAppSucceeded (Ptr< Socket > socket)
	Callback function after the signaling connection to the APP is complete. More...

void	ConnectionToAppFailed (Ptr< Socket > socket)
	Callback function after the connection to the APP has failed. More...

void	ConnectionToAppSucceeded (Ptr< Socket > socket)
	Callback function after the connection to the APP is complete. More...

void	ConnectionToKMSFailed (Ptr< Socket > socket)
	Callback function after the connection to the KMS has failed. More...

void	ConnectionToKMSSucceeded (Ptr< Socket > socket)
	Callback function after the connection to the KMS is complete. More...

void	DataPacketReceivedFromApp (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Check for the TCP segmentation of the data packets received from the peer QKD application. More...

void	DataToKMSSend (Ptr< Socket >, uint32_t)
	Callback function to notify that data to KMS has been sent. More...

QKDApp014State	GetAppState () const
	Get the current state of the application. More...

std::string	GetAppStateString () const
	Get the current state of the application in the string format. More...

uint32_t	GetAuthenticationKeySize ()
	Get required key size for the choosen authentication algorithm. More...

uint32_t	GetEncryptionKeySize ()
	Get required key size for the choosen encryption algorithm. More...

UUID	GetId (void)
	Get the application identifier. More...

QKDApp014::QKDApp014Key	GetKeyFromAppKeyBuffer (std::string keyId, std::string keyType)
	Get the key from the application key buffer. More...

QKDApp014::QKDApp014Key	GetKeyFromAppKeyBuffer (uint32_t keyType)
	Get the key from the application key buffer. More...

void	GetKeysFromKMS (uint32_t keyType)
	Request keys from the KMS (ETSI QKD 014 - Get key method). More...

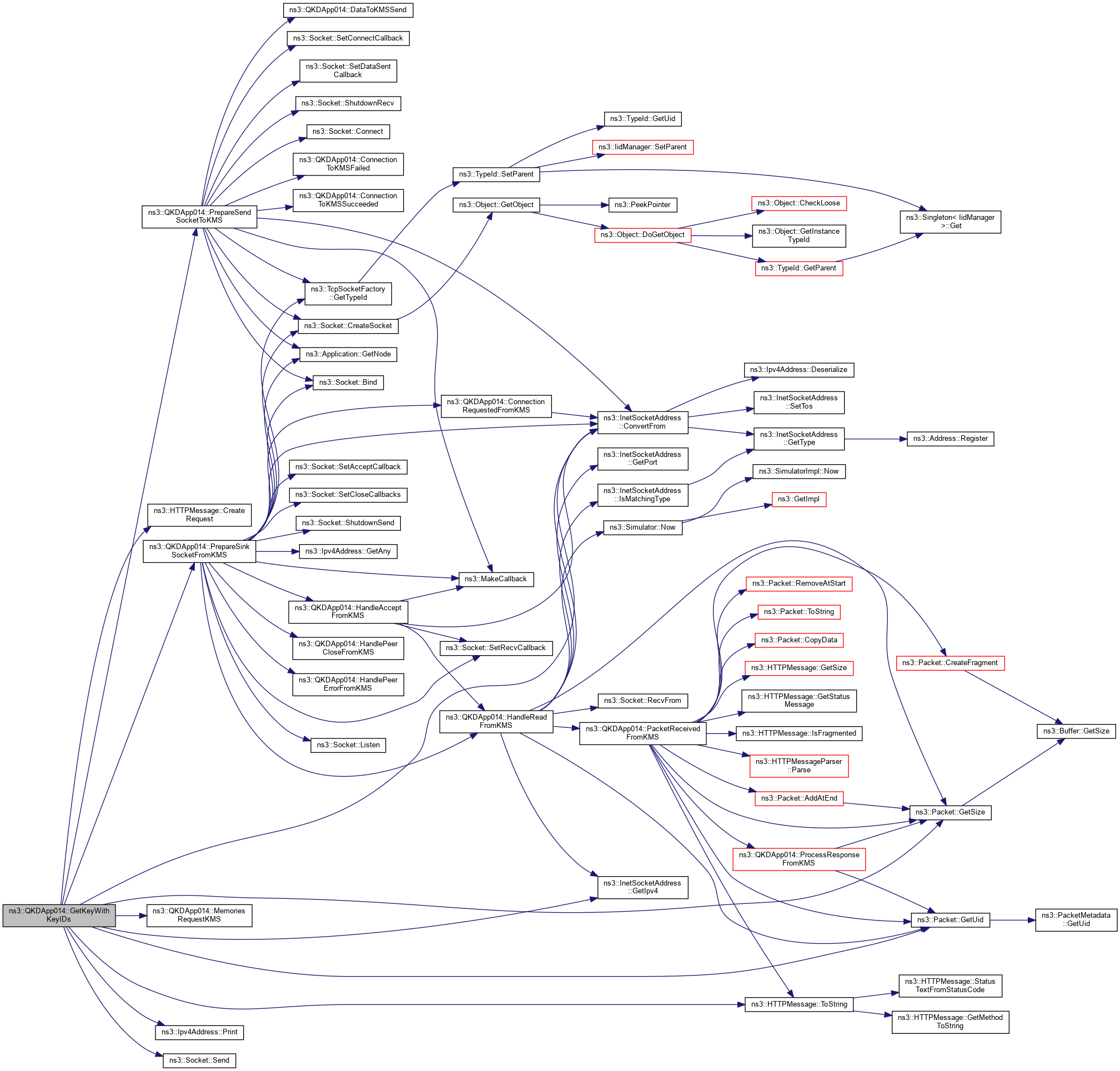

void	GetKeyWithKeyIDs ()
	Requests keys with given identifiers from the KMS (ETSI QKD 014 - Get key with key IDs method). More...

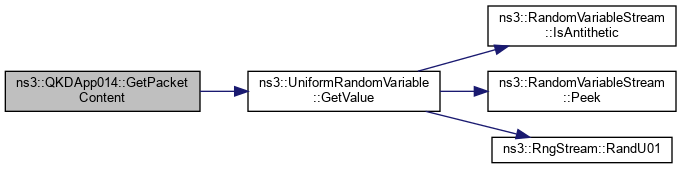

std::string	GetPacketContent (uint32_t msgLength=0)
	Generate a random packet (message) of a given size. More...

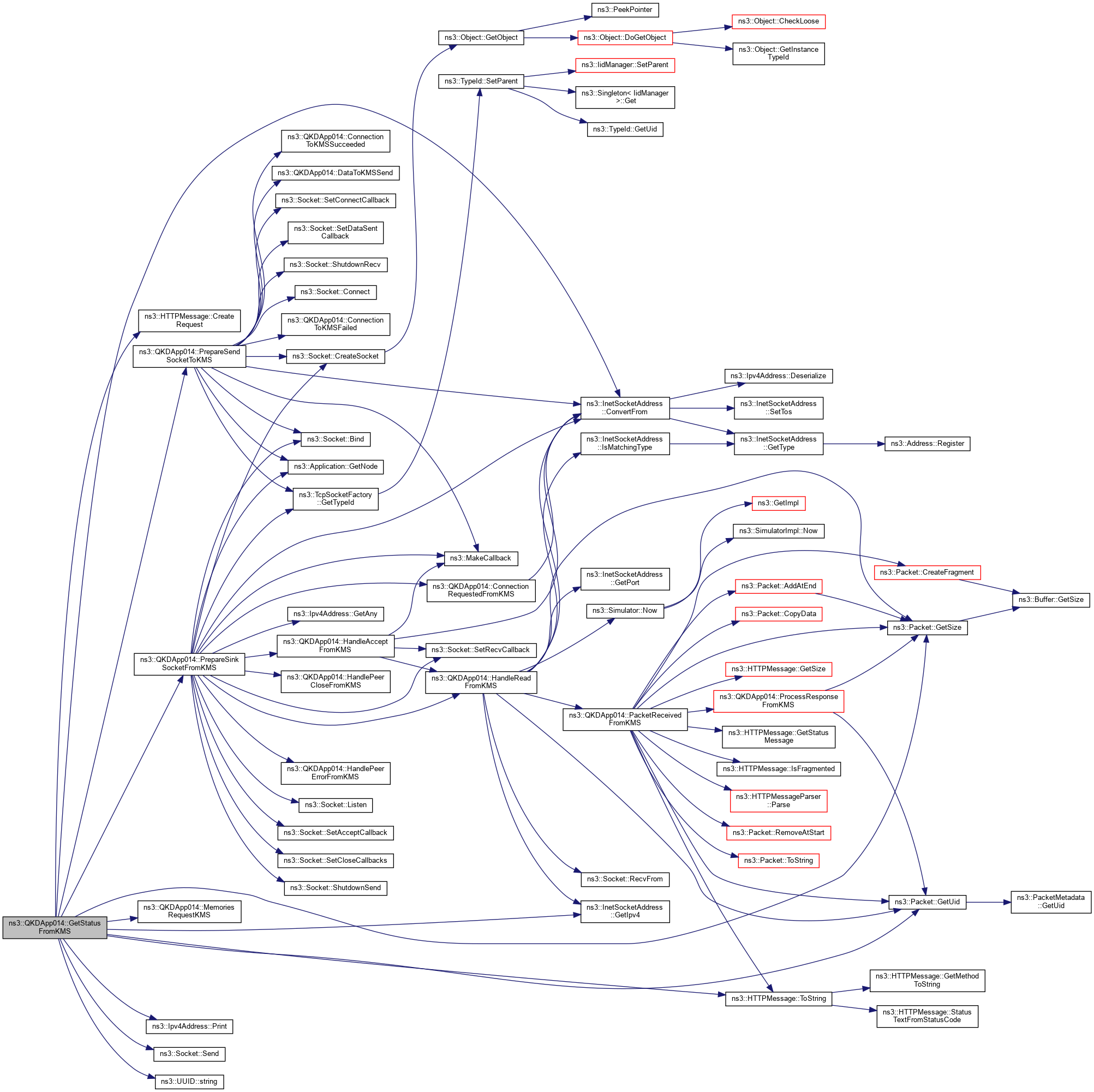

void	GetStatusFromKMS (uint32_t keyType)
	Request status information from the KMS (ETSI QKD 014 - Get status method). More...

void	HandleAcceptFromApp (Ptr< Socket > s, const Address &from)
	Handle an incoming connection from the peer QKD application. More...

void	HandleAcceptFromKMS (Ptr< Socket > s, const Address &from)
	Handle an incoming connection from the KMS. More...

void	HandleAcceptSignalingFromApp (Ptr< Socket > s, const Address &from)
	Handle a signaling incoming connection from the peer QKD application. More...

void	HandlePeerCloseFromApp (Ptr< Socket > socket)
	Handle a connection close from the peer QKD application. More...

void	HandlePeerCloseFromKMS (Ptr< Socket > socket)
	Handle a connection close from the KMS. More...

void	HandlePeerCloseSignalingFromApp (Ptr< Socket > socket)
	Handle a signaling connection close from the peer QKD application. More...

void	HandlePeerErrorFromApp (Ptr< Socket > socket)
	Handle a connection error from the peer QKD application. More...

void	HandlePeerErrorFromKMS (Ptr< Socket > socket)
	Handle a connection error from the KMS. More...

void	HandlePeerErrorSignalingFromApp (Ptr< Socket > socket)
	Handle a signaling connection error from the peer QKD application. More...

void	HandleReadFromApp (Ptr< Socket > socket)
	Handle a packet received from the peer QKD application. More...

void	HandleReadFromKMS (Ptr< Socket > socket)
	Handle a packet received from the KMS application. More...

void	HandleReadSignalingFromApp (Ptr< Socket > socket)
	Handle a signaling packet received from the peer QKD application. More...

void	InitializeAppKeyBuffer ()
	Initialize the application key buffer. More...

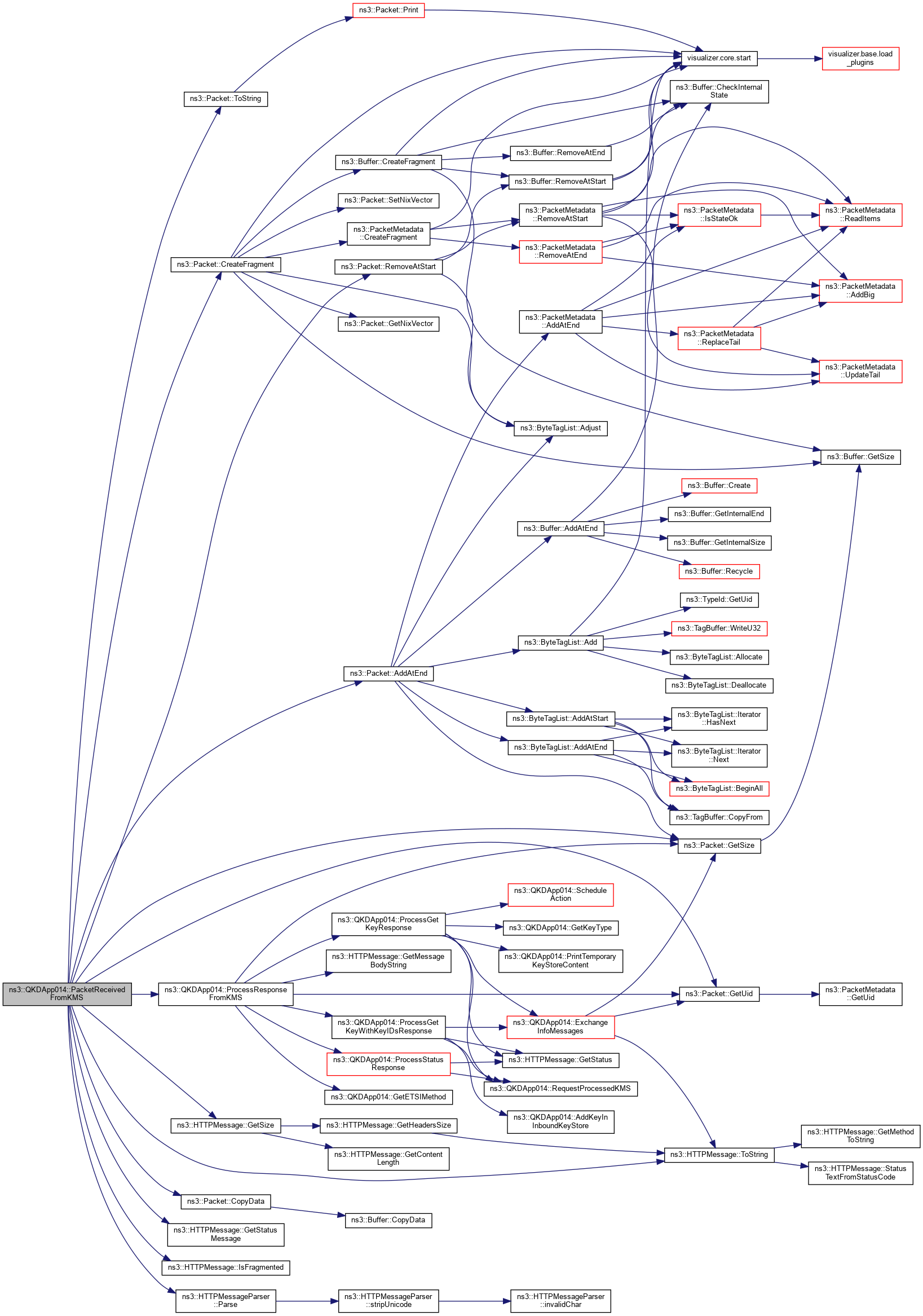

void	PacketReceivedFromKMS (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Check for the TCP segmentation of the packets received from the KMS. More...

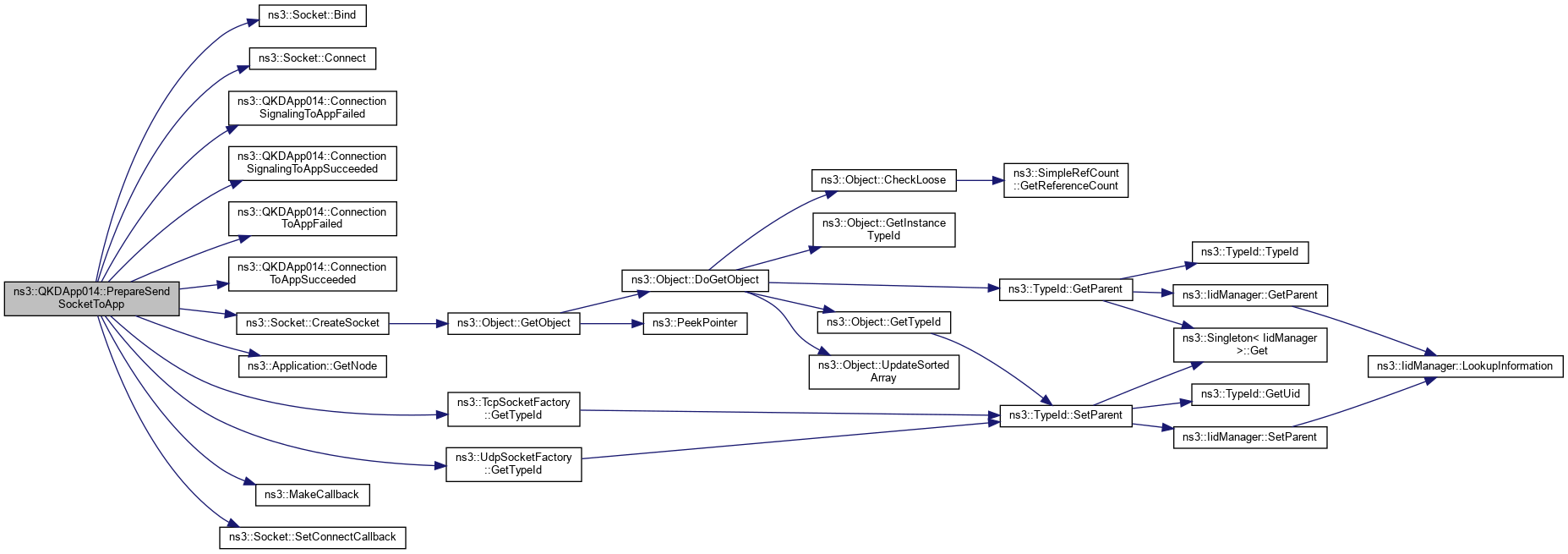

void	PrepareSendSocketToApp ()
	Prepare the send socket to communicate with the peer QKD Application. More...

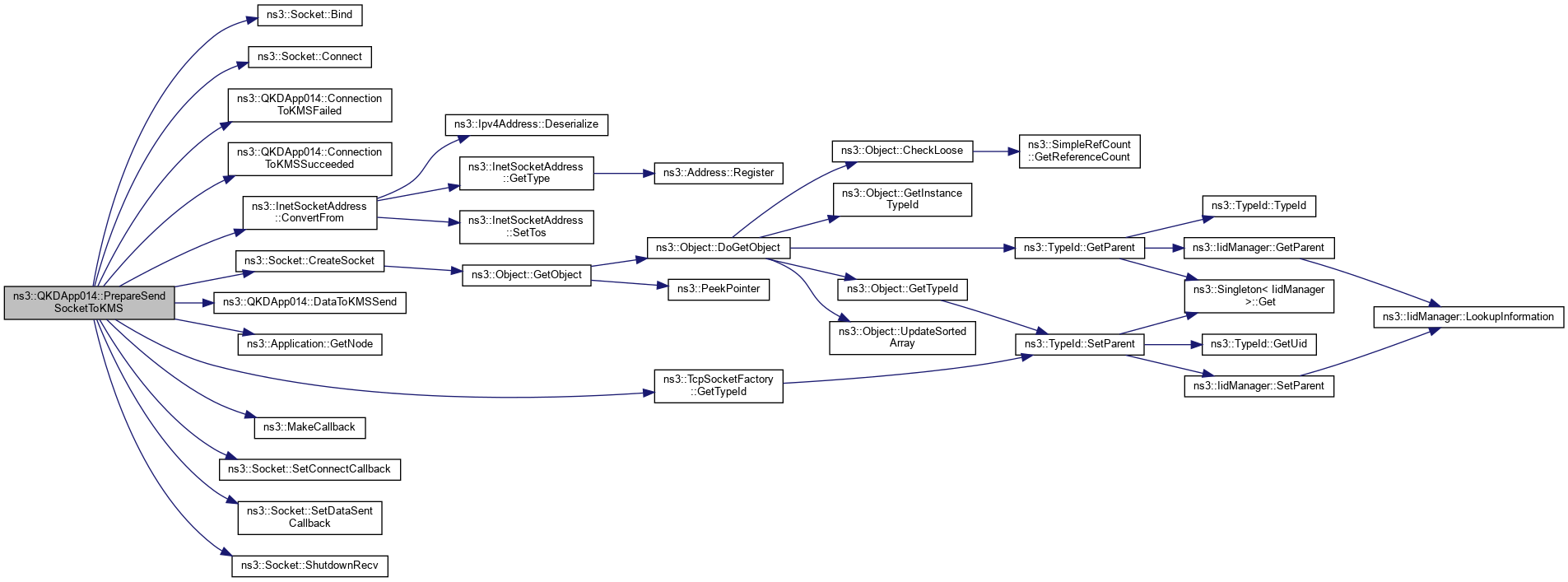

void	PrepareSendSocketToKMS ()
	Prepare the send socket to communicate with the KMS Application. More...

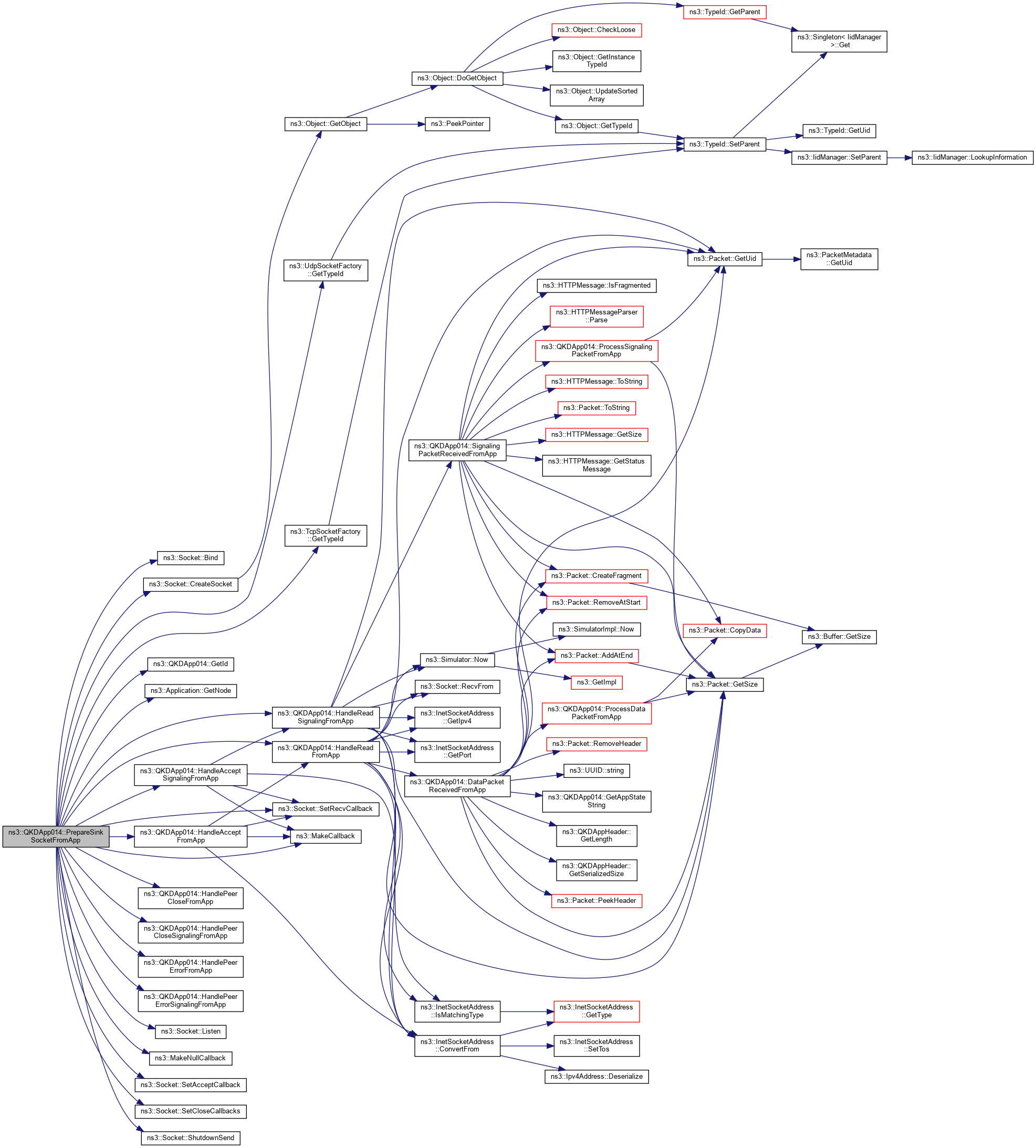

void	PrepareSinkSocketFromApp ()
	Prepare the sink socket to listen from the peer QKD Application. More...

void	PrepareSinkSocketFromKMS ()
	Prepare the sink socket to listen from the KMS Application. More...

void	PrintAppBufferStatusInformation ()
	Print the status information on the application key buffer. More...

void	PrintTemporaryKeyStoreContent ()
	Print the content of the temporary key store. More...

void	ProcessDataPacketFromApp (QKDAppHeader header, Ptr< Packet > packet, Ptr< Socket > socket)
	Process the data packets from the peer QKD application. More...

void	ProcessGetKeyResponse (HTTPMessage &header, nlohmann::json jGetKeyResponse)
	Process the GET_KEY response from the KMS. More...

void	ProcessGetKeyWithKeyIDsResponse (HTTPMessage &header, nlohmann::json jGetKeyWithKeyIDsResponse)
	Process the Get Key with Key IDs response from the KMS. More...

void	ProcessResponseFromKMS (HTTPMessage &header, Ptr< Packet > packet, Ptr< Socket > socket)
	Process the response from the KMS application. More...

void	ProcessSignalingPacketFromApp (HTTPMessage &header, Ptr< Packet > packet, Ptr< Socket > socket)
	Process the signaling packets received from the peer QKD application. More...

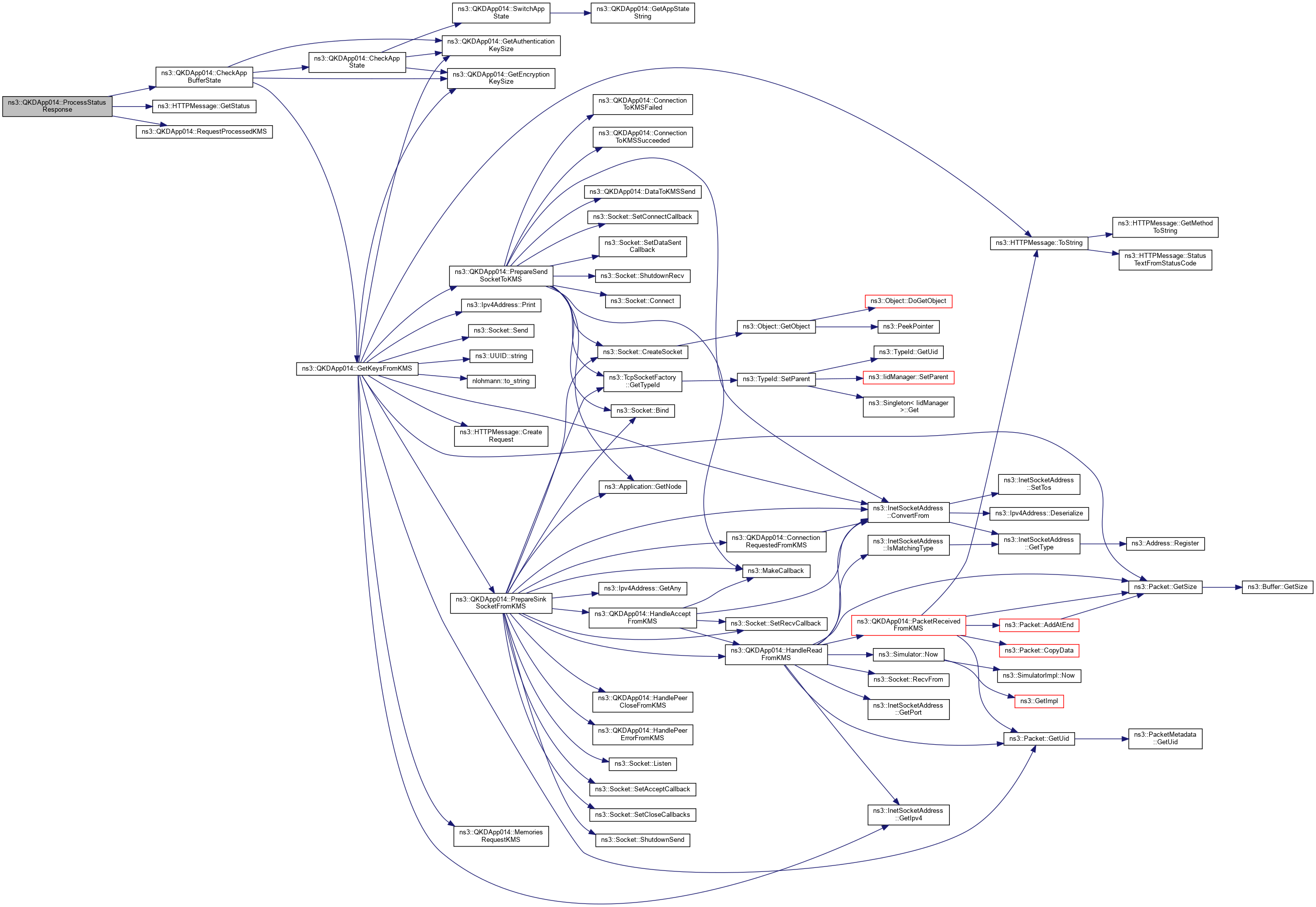

void	ProcessStatusResponse (HTTPMessage &header, nlohmann::json jstatusResponse)
	Process the status response from the KMS. More...

void	RemoveKeysFromTemporaryKeyStore (std::vector< std::string > keyIds)
	Remove keys from the temporary key store. More...

uint32_t	ScheduleAction (Time t, std::string action)
	Schedule the action. More...

void	SetEncryptionAndAuthenticationSettings (uint32_t encryptionType, uint32_t authenticationType, uint32_t authenticationTagLengthInBits)
	Set the encryption and the authentication algorithms. More...

void	SetKsidAuthentication (UUID val)
	Set the authentication identifier. More...

void	SetKsidEncryption (UUID val)
	Set the encryption identifier. More...

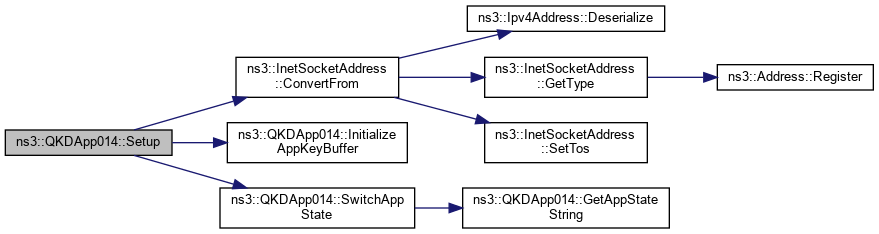

void	Setup (std::string socketType, Address src, Address dst, Address kms, UUID dstSaeId, std::string type)
	Configure the application. More...

void	Setup (std::string socketType, Address src, Address dst, Address kms, UUID dstSaeId, uint32_t packetSize, uint32_t nPackets, DataRate dataRate, std::string type)
	Configure the application. More...

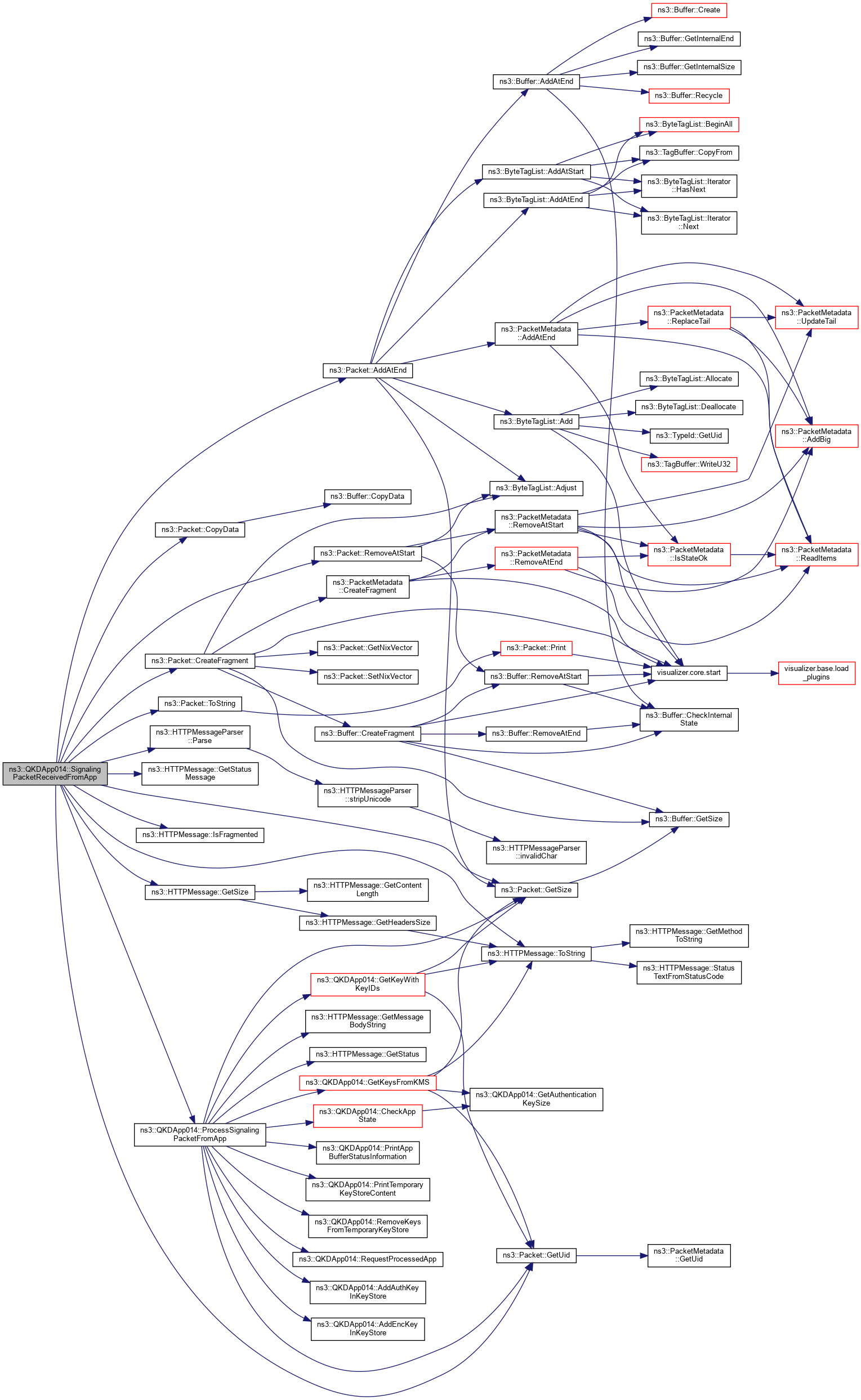

void	SignalingPacketReceivedFromApp (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Check for the TCP segmentation of the signaling packets received from the peer QKD application. More...

void	SwitchAppState (QKDApp014State state)
	Change the state of the application. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static std::string	GetAppStateString (QKDApp014State state)
	Convert application state to the string format. More...

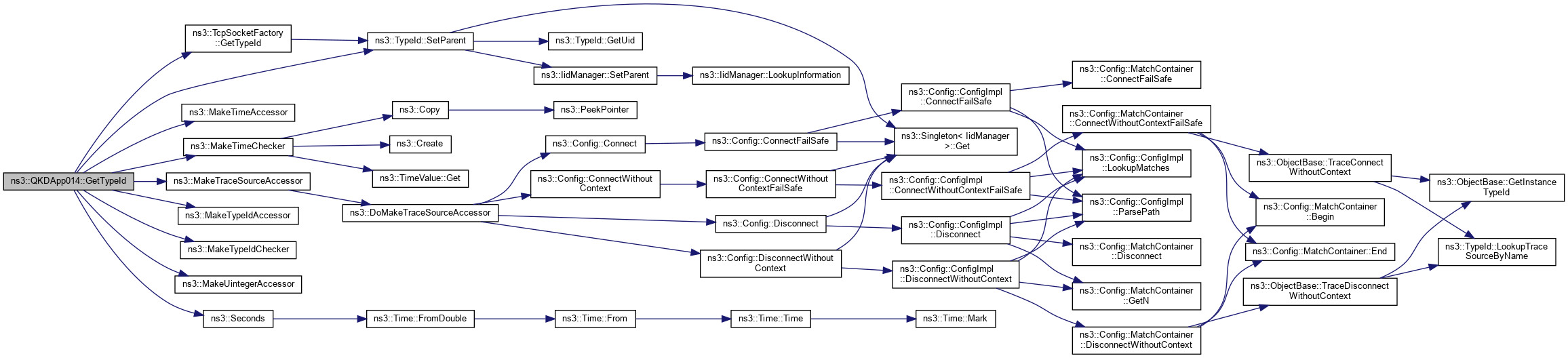

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
TracedCallback< Ptr< const Packet >, std::string >	m_mxTrace
	A trace for the missed time slots to send data packets. More...

TracedCallback< Ptr< const Packet > >	m_rxKmsTrace
	A trace for received packets from the KMS. More...

TracedCallback< Ptr< const Packet > >	m_rxSigTrace
	A trace for received signaling packets. More...

TracedCallback< Ptr< const Packet >, std::string >	m_rxTrace
	A trace for received data packets. More...

ns3::TracedCallback< const std::string &, const std::string & >	m_stateTransitionTrace
	The posible application state transitions. More...

TracedCallback< Ptr< const Packet > >	m_txKmsTrace
	A trace for transmitted packets to the KMS. More...

TracedCallback< Ptr< const Packet > >	m_txSigTrace
	A trace for transmitted signaling packets. More...

TracedCallback< Ptr< const Packet >, std::string >	m_txTrace
	A trace for transmitted data packets. More...

Private Member Functions
void	AppTransitionTree (void)
	Transition through a tree of the application states and trigger actions. More...

std::string	CreateKeyIdField (std::string keyId)
	Adjust the encryption key identifier for the QKDApp header. More...

void	ExchangeInfoMessages (std::string ksid, std::vector< std::string > keyIds, HTTPMessage::HttpStatus statusCode=HTTPMessage::Ok)
	Exchange key identifiers between sending and receiving application. More...

uint32_t	GetETSIMethod (void)
	Map the HTTP response and obtrain the request method. More...

uint32_t	GetKeyType (void)
	Map the HTTP response and obtain the key type. More...

void	MemoriesRequestApp (std::vector< std::string > keyIds)
	Memories the HTTP request made to the peer QKD application. More...

void	MemoriesRequestKMS (uint32_t methodType, uint32_t keyType=0)
	Memories the HTTP request made to the local KMS. More...

std::string	ReadKeyIdField (std::string keyId)
	Rebuild the key identifier for the QKDApp header. More...

void	RequestProcessedApp (void)
	Remove request from the HTTP requests store (once the response from the peer application has been processed). More...

void	RequestProcessedKMS (void)
	Remove the request from the HTTP requests store (once the response from the KMS has been processed). More...

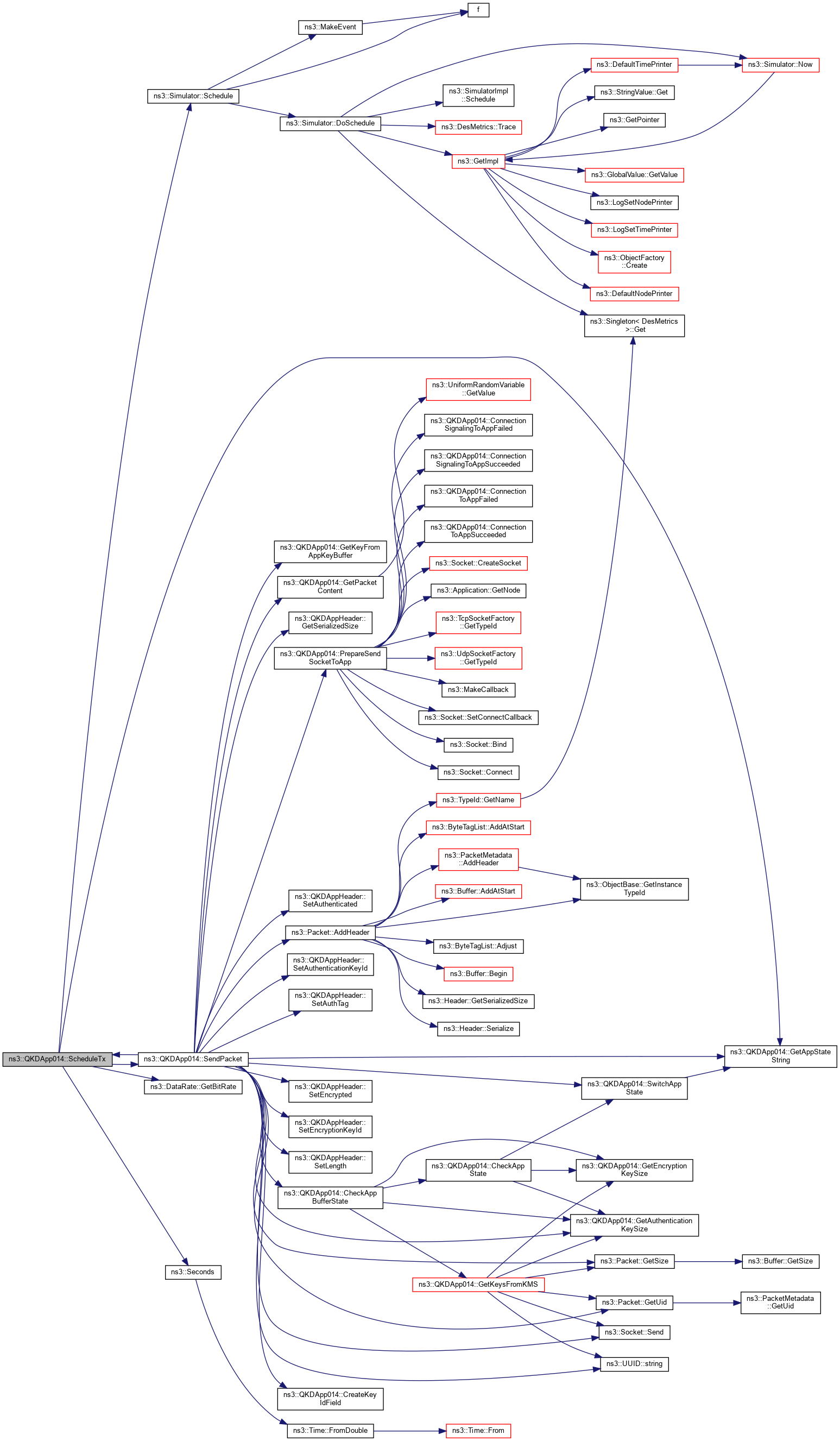

void	ScheduleTx (void)
	Schedule the time slot to send the data packets. More...

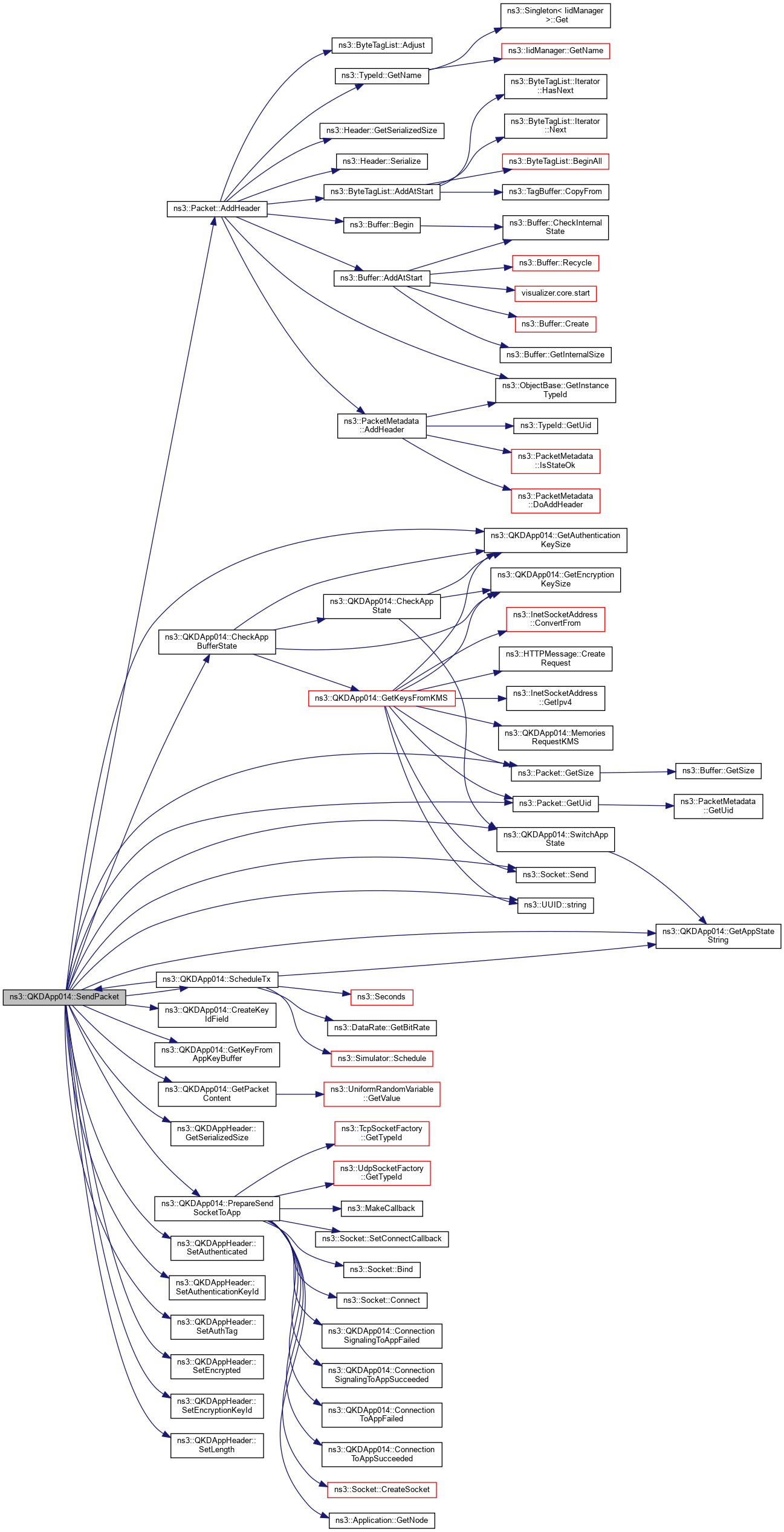

void	SendPacket (void)
	Send the application packet (includes the generation of a random message and optional encryption or/and authentication on the message). More...

virtual void	StartApplication (void)

virtual void	StopApplication (void)
	Application specific shutdown code. More...

Private Attributes
uint64_t	m_aesLifetime
	The AES key lifetime. More...

QKDApp014KeyBuffer	m_appKeyBuffer
	The application key buffer. More...

QKDApp014State	m_appState
	The application state. More...

uint32_t	m_authenticationTagLengthInBits
	The size of the authentication tag in bits (32 by default). More...

TracedCallback< Ptr< Packet >, std::string >	m_authenticationTrace
	A trace callback for the authentication event. More...

QKDEncryptor::AuthenticationType	m_authenticationType
	The authentication algorithm. More...

uint32_t	m_authenticationTypeInt
	The authentication algorithm. More...

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_buffer_kms
	The buffer for the received packets from the KMS (fragmentation). More...

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_buffer_QKDApp014
	The buffer for received data packets (fragmentation). More...

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_buffer_sig
	The buffer for the received signaling packets (fragmentation). More...

DataRate	m_dataRate
	The application data rate. More...

uint32_t	m_dataSent
	The amount of the sent data. More...

TracedCallback< Ptr< Packet >, std::string >	m_deauthenticationTrace
	A trace callback for the authentication check event. More...

TracedCallback< Ptr< Packet > >	m_decryptionTrace
	A trace callback for the decryption event. More...

UUID	m_dstSaeId
	The peer application identifier. More...

TracedCallback< Ptr< Packet > >	m_encryptionTrace
	A trace callback for the encryption event. More...

QKDEncryptor::EncryptionType	m_encryptionType
	The encryption algorithm. More...

uint32_t	m_encryptionTypeInt
	The encryption algorithm. More...

Ptr< QKDEncryptor >	m_encryptor
	The QKD encryptor. More...

std::vector< std::vector< std::string > >	m_httpRequestsApp
	A vector of HTTP requests sent to the peer application. More...

std::vector< std::pair< uint32_t, uint32_t > >	m_httpRequestsKMS
	A vector of HTTP requests set to the KMS. More...

UUID	m_id
	The application identifier. More...

bool	m_internalAppWait
	The indicator for the longer wait (used after the GetKey error!). More...

nlohmann::json	m_keyIDs
	The latest received key identifiers from the sender application. More...

Address	m_kms
	The local KMS address. More...

UUID	m_ksid_auth
	The authentication key stream identifier. More...

UUID	m_ksid_enc
	The encryption key stream identifier. More...

Address	m_local
	The local address for the data transmission. More...

Address	m_localSignaling
	The local address for the signaling data transmission. More...

uint32_t	m_master
	Is a master (sender/primary) application? More...

uint32_t	m_numberOfKeysKMS
	The number of keys to fetch per request. More...

TracedCallback< const uint32_t & >	m_obtainedKeyMaterialTrace
	A trace callback for the obtained key material. More...

uint32_t	m_packetSize
	The data packet size. More...

uint32_t	m_packetsSent
	The number of sent data packets. More...

Address	m_peer
	The address of the peer for the data transmission. More...

Address	m_peerSignaling
	The address of the peer for the signaling data transmission. More...

Ptr< UniformRandomVariable >	m_random
	The uniform random variable. More...

std::map< uint32_t, EventId >	m_scheduledEvents
	The map of scheduled events. More...

Ptr< Socket >	m_sendDataSocketApp
	The sending socket for the data. More...

EventId	m_sendEvent
	The data transmission event. More...

Ptr< Socket >	m_sendSignalingSocketApp
	The sending socket for the signaling messages. More...

Ptr< Socket >	m_sendSocketToKMS
	The sending socket to the KMS. More...

Ptr< Socket >	m_sinkDataSocketApp
	The receiving socket for the data. More...

Ptr< Socket >	m_sinkSignalingSocketApp
	The receiving socket for the signaling messages. More...

Ptr< Socket >	m_sinkSocketFromKMS
	The receiving socket from the KMS. More...

std::string	m_socketType
	The sockets type. More...

TypeId	m_tid
	The type identifier. More...

std::multimap< std::string, std::string >	m_transitionMatrix
	The map of the possible state transitions. More...

uint32_t	m_useCrypto
	Execute actual cryptographic algorithms? More...

Time	m_waitInsufficient
	The amount of time spent waiting before issuing a new GET_KEY request when the previous one resulted in an error "inssuficient amount of keys". More...

Time	m_waitTransform
	The amount of time spent waiting before issuing a new GET_KEY request when the previous one resulted in an error "keys are being transformed". More...

Static Private Attributes
static uint32_t	m_applicationCounts = 0
	The number of running applications. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Application
virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Establish secure communication on application lavel to use the key and test LKSM.

This application was written to complement simple application to consume keys so a generic QKDApp014 name was selected. The application (Alice) implements sockets for connection with counter-party application (Bob) and implements sockets for communication with local key management system. At the moment, application follows ETSI QKD 014 standardization exchanging HTTP requests/responses to obtain details about the key from its local key management system. Obtained keys from Get key response are stored in temporary memory on master QKDApp014 (Alice) in JSON data structure, from where they are moved to an application key buffer when confirmation of keys from peer application (Bob) is recieved. Keys obtained from Get key with key IDs are directly stored to the application key buffer and confirmation message for keys is sent to its peer application (Alice). Application (Alice) use keys from the application key buffer to apply security services on its data. QKD application header is then added to the protected data and sent to peer application. Slave QKD application (Bob) will process recieved protected packet based on information in QKD header and keys from the application key buffer. Communication between peers needed to negotiate keys was not included in ETSI014, and this application use HTTP messages for this purpose.

Config Paths

ns3::QKDApp014 is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::QKDApp014"

Attributes

Protocol: The type of protocol to use.
- Set with class: TypeIdValue
- Underlying type: TypeId
- Initial value: ns3::TcpSocketFactory
- Flags: construct write read
NumberOfKeyToFetchFromKMS: The total number of keys per request to LKMS (ESTI QKD 014)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read
LengthOfAuthenticationTag: The default length of the authentication tag
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 256
- Flags: construct write read
EncryptionType: The type of encryption to be used (0-unencrypted, 1-OTP, 2-AES)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
AuthenticationType: The type of authentication to be used (0-unauthenticated, 1-VMAC, 2-MD5, 3-SHA1)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
AESLifetime: Lifetime of AES key expressed in bytes
- Set with class: ns3::UintegerValue
- Underlying type: uint64_t 0:18446744073709551615
- Initial value: 1
- Flags: construct write read
UseCrypto: Should crypto functions be performed (0-No, 1-Yes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
WaitInsufficient: Penalty time (in seconds) when there is insufficient amount of key
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +3e+08ns
- Flags: construct write read
WaitTransform: Penalty time (in seconds) when keys are being transformed
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+07ns
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

TraceSources

Tx: A new packet is created and is sent
Callback signature: ns3::Packet::TracedCallback
TxSig: A new signaling packet is created and is sent
Callback signature: ns3::Packet::TracedCallback
TxKMS: A new packet is created and is sent to local KMS
Callback signature: ns3::Packet::TracedCallback
Rx: A new packet is received
Callback signature: ns3::Packet::TracedCallback
RxSig: A new signaling packet is received
Callback signature: ns3::Packet::TracedCallback
RxKMS: A new packet is received from local KMS
Callback signature: ns3::Packet::TracedCallback
StateTransition: Trace fired upon every QKDApp014 state transition.
Callback signature: ns3::Application::StateTransitionCallback
PacketEncrypted: The change trance for currenly ecrypted packet
Callback signature: ns3::QKDCrypto::PacketEncrypted
PacketDecrypted: The change trance for currenly decrypted packet
Callback signature: ns3::QKDCrypto::PacketDecrypted
PacketAuthenticated: The change trance for currenly authenticated packet
Callback signature: ns3::QKDCrypto::PacketAuthenticated
PacketDeAuthenticated: The change trance for currenly deauthenticated packet
Callback signature: ns3::QKDCrypto::PacketDeAuthenticated
Mx: Missed send packet call
Callback signature: ns3::Packet::TracedCallback
KeyObtained: Trace amount of obtained key material
Callback signature: ns3::QKDApp014::KeyObtained

Size of this type is 1336 bytes (on a 64-bit architecture).

Definition at line 81 of file qkd-app-014.h.

Member Enumeration Documentation

◆ QKDApp014State

enum ns3::QKDApp014::QKDApp014State

The application states.

Enumerator
NOT_STARTED
INITIALIZED
READY
WAIT
SEND_DATA
DECRYPT_DATA
STOPPED

Definition at line 143 of file qkd-app-014.h.

Constructor & Destructor Documentation

◆ QKDApp014()

ns3::QKDApp014::QKDApp014 ( )

Constructor.

   SETUP

Definition at line 153 of file qkd-app-014.cc.

References m_applicationCounts, m_id, m_random, m_transitionMatrix, and ns3::UUID::Random().

Here is the call graph for this function:

◆ ~QKDApp014()

ns3::QKDApp014::~QKDApp014 ( )

virtual

Destructor.

Definition at line 190 of file qkd-app-014.cc.

References m_sendDataSocketApp, m_sendSignalingSocketApp, m_sendSocketToKMS, m_sinkDataSocketApp, m_sinkSignalingSocketApp, and m_sinkSocketFromKMS.

Member Function Documentation

◆ AddAuthKeyInKeyStore()

void ns3::QKDApp014::AddAuthKeyInKeyStore ( QKDApp014::QKDApp014Key & key )

Add a new key to the authentication key store.

Parameters

key	The application authentication key.

Definition at line 777 of file qkd-app-014.cc.

References m_appKeyBuffer, NS_LOG_FUNCTION, and ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore.

Referenced by ProcessSignalingPacketFromApp().

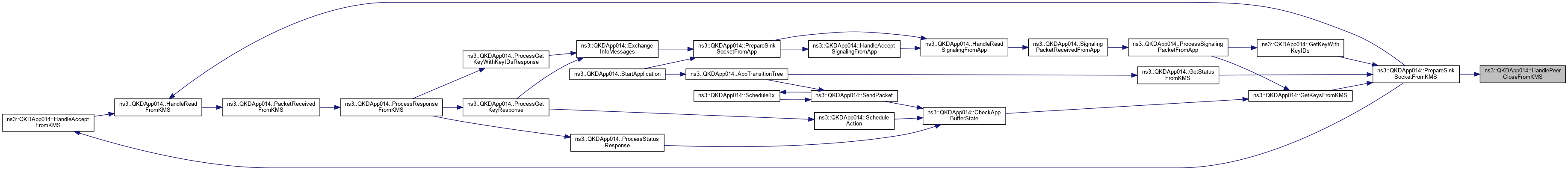

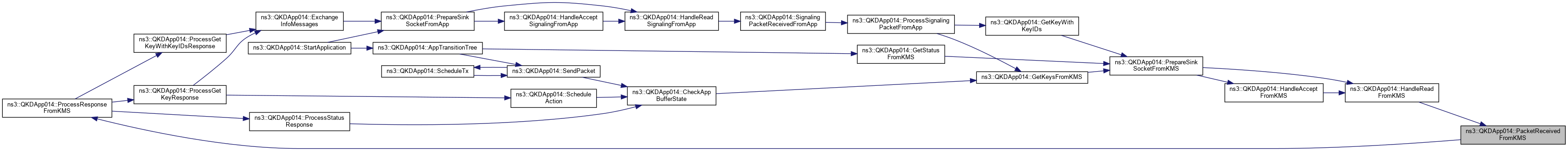

Here is the caller graph for this function:

◆ AddEncKeyInKeyStore()

void ns3::QKDApp014::AddEncKeyInKeyStore ( QKDApp014::QKDApp014Key & key )

Add a new key to the encryption key store.

Parameters

key	The application encryption key.

Definition at line 770 of file qkd-app-014.cc.

References m_appKeyBuffer, NS_LOG_FUNCTION, and ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore.

Referenced by ProcessSignalingPacketFromApp().

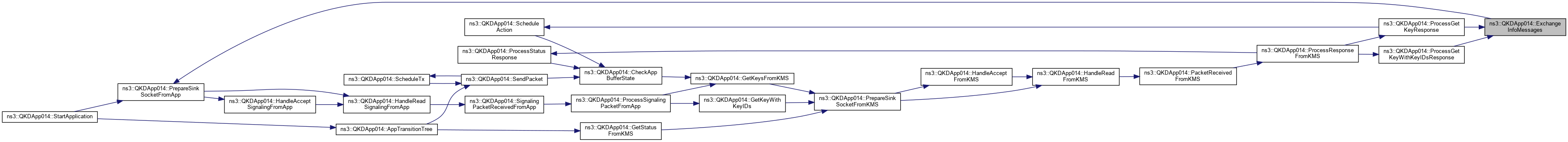

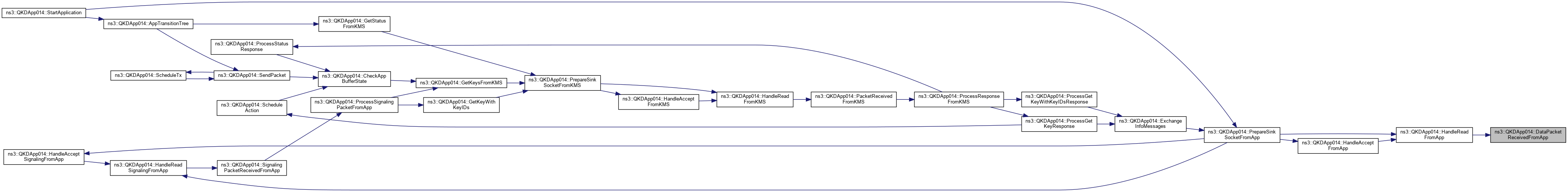

Here is the caller graph for this function:

◆ AddKeyInInboundKeyStore()

void ns3::QKDApp014::AddKeyInInboundKeyStore ( QKDApp014::QKDApp014Key & key )

Add a new key to the inbound key store.

Parameters

key	The application key.

Definition at line 763 of file qkd-app-014.cc.

References ns3::QKDApp014::QKDApp014KeyBuffer::inboundKeyStore, m_appKeyBuffer, and NS_LOG_FUNCTION.

Referenced by ProcessGetKeyWithKeyIDsResponse().

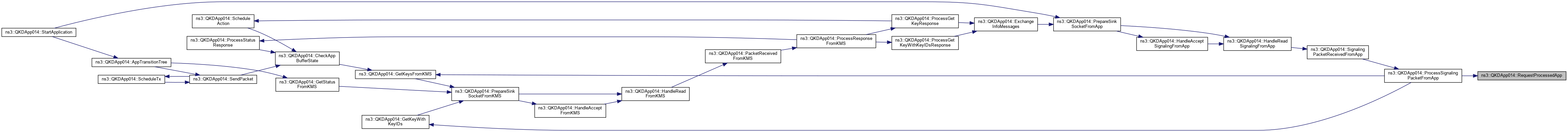

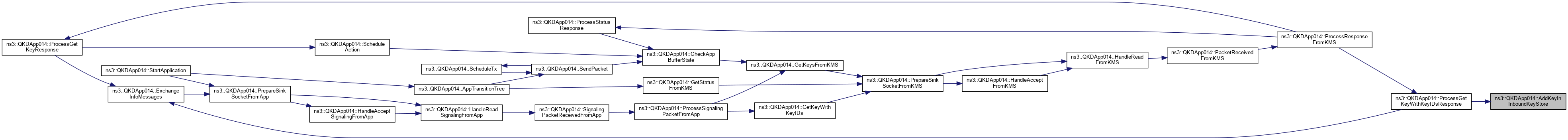

Here is the caller graph for this function:

◆ AppTransitionTree()

void ns3::QKDApp014::AppTransitionTree ( void )

private

Transition through a tree of the application states and trigger actions.

   STATE functions

Definition at line 1974 of file qkd-app-014.cc.

References GetAuthenticationKeySize(), GetEncryptionKeySize(), GetStatusFromKMS(), INITIALIZED, m_appState, m_master, NS_FATAL_ERROR, NS_LOG_FUNCTION, PrepareSendSocketToApp(), PrepareSendSocketToKMS(), READY, SendPacket(), SwitchAppState(), and WAIT.

Referenced by StartApplication().

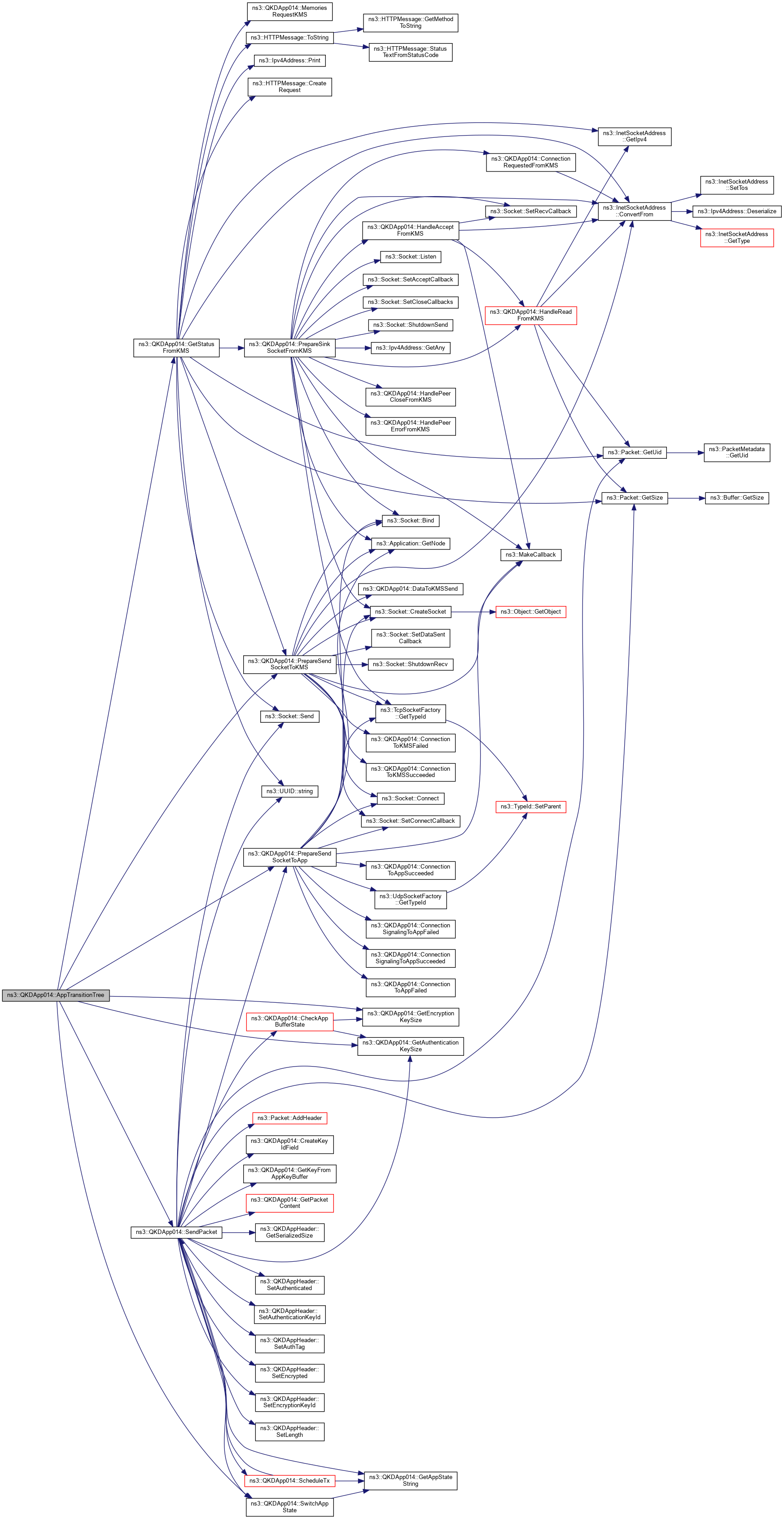

Here is the call graph for this function:

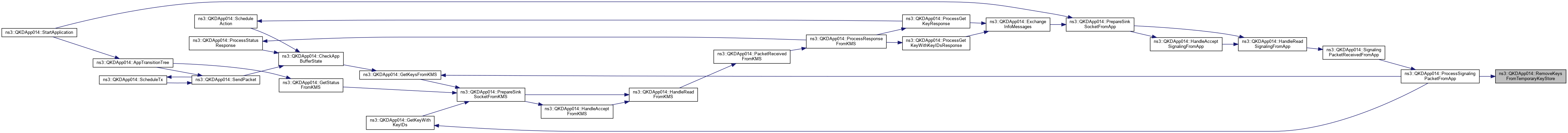

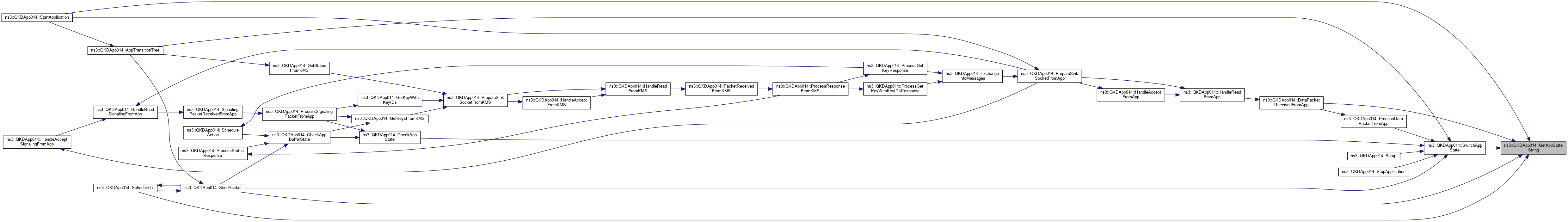

Here is the caller graph for this function:

◆ CancelScheduledAction()

void ns3::QKDApp014::CancelScheduledAction ( uint32_t eventId )

Cancel the scheduled event/action.

Parameters

eventId The identifier of the scheduled action.

Definition at line 318 of file qkd-app-014.cc.

References ns3::Simulator::Cancel(), m_scheduledEvents, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CheckAppBufferState()

void ns3::QKDApp014::CheckAppBufferState ( )

Check the state of the application key buffer.

This function checks the state of the application key buffer and submits a new GET_KEY request if neccessary.

Definition at line 802 of file qkd-app-014.cc.

References CheckAppState(), GetAuthenticationKeySize(), GetEncryptionKeySize(), GetKeysFromKMS(), m_appKeyBuffer, m_internalAppWait, m_master, NS_LOG_FUNCTION, ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore, and ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore.

Referenced by ProcessStatusResponse(), ScheduleAction(), and SendPacket().

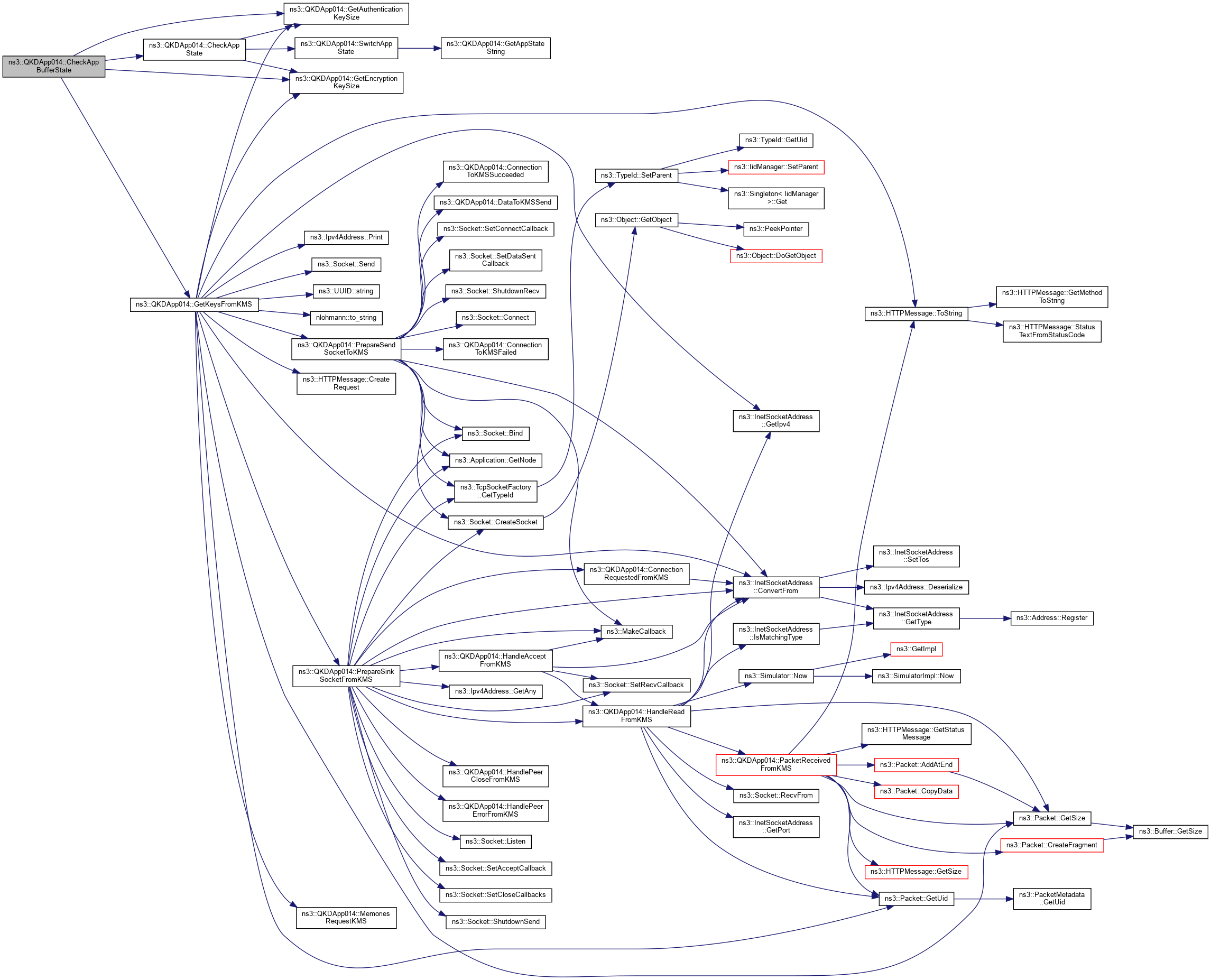

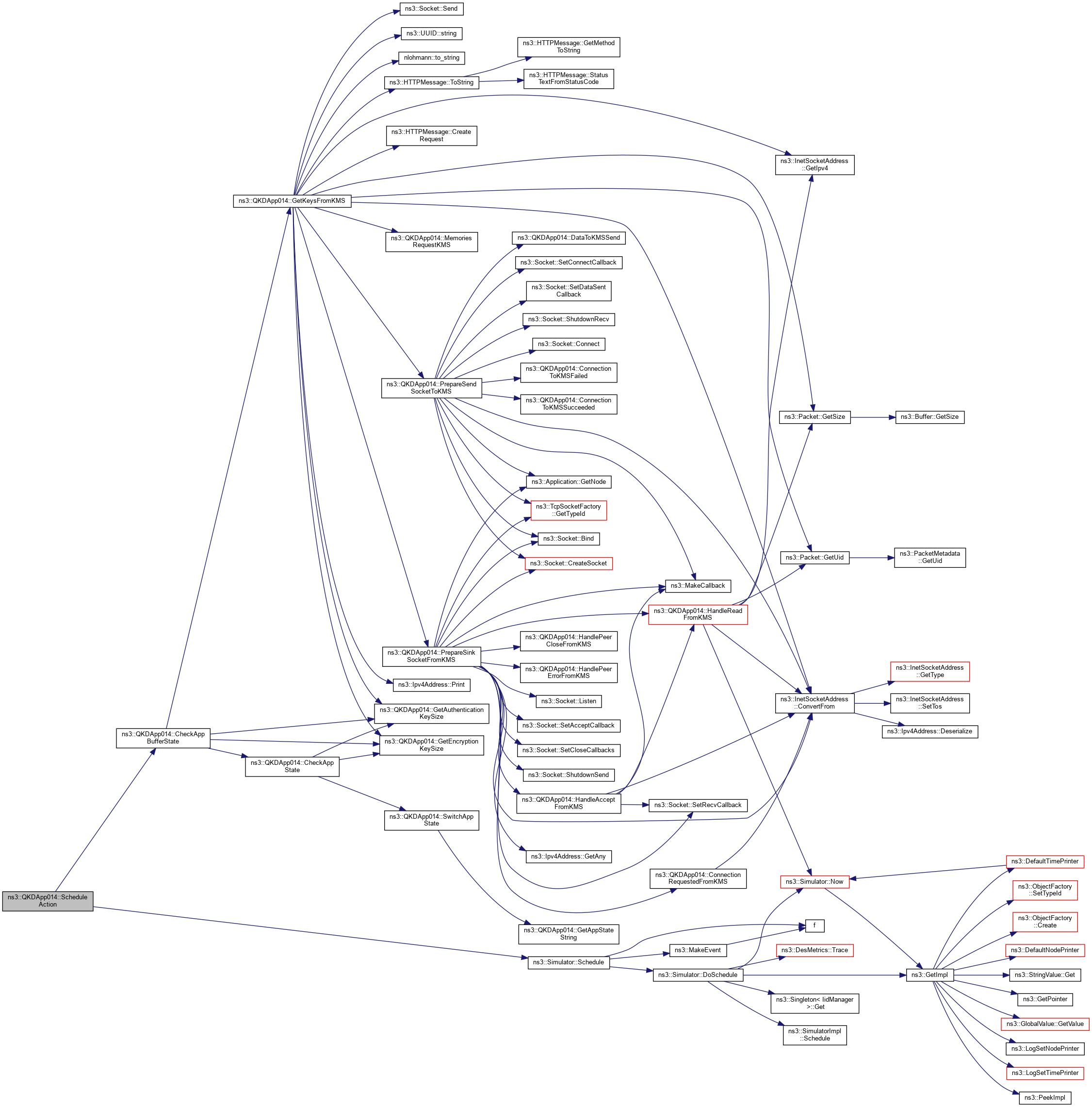

Here is the call graph for this function:

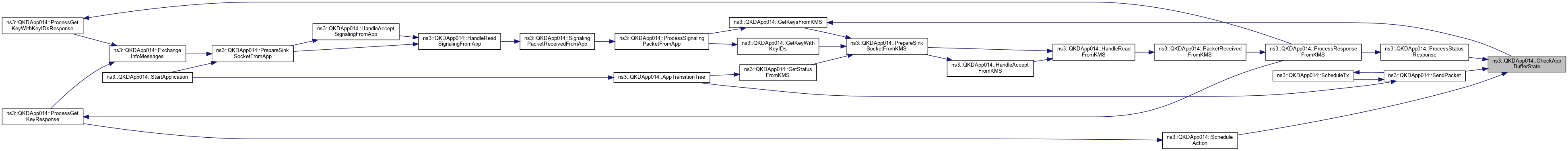

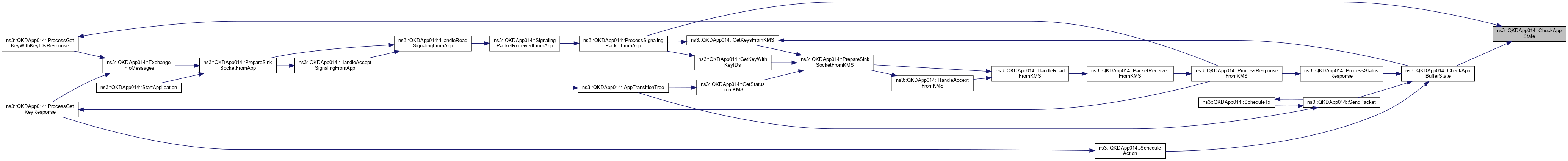

Here is the caller graph for this function:

◆ CheckAppState()

void ns3::QKDApp014::CheckAppState ( )

Check the conditions to change the application state.

Based on the state of the application key buffer, the application changes the state between READY and WAIT.

Definition at line 817 of file qkd-app-014.cc.

References GetAuthenticationKeySize(), GetEncryptionKeySize(), m_appKeyBuffer, m_appState, NS_LOG_FUNCTION, ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore, ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore, READY, SwitchAppState(), and WAIT.

Referenced by CheckAppBufferState(), and ProcessSignalingPacketFromApp().

Here is the call graph for this function:

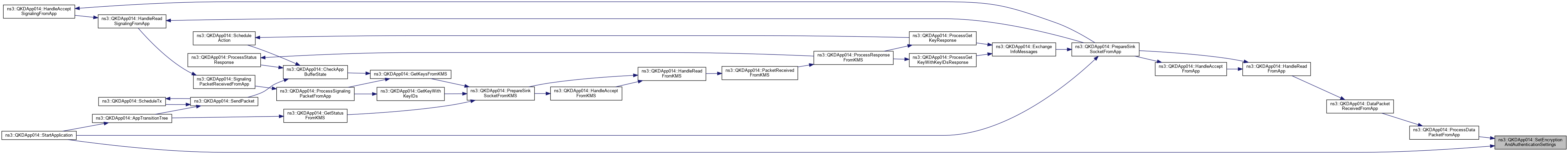

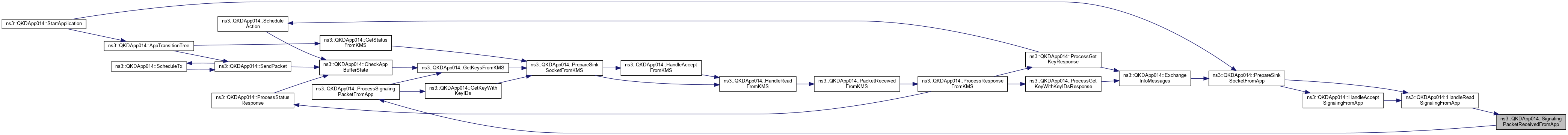

Here is the caller graph for this function:

◆ ConnectionRequestedFromKMS()

bool ns3::QKDApp014::ConnectionRequestedFromKMS	(	Ptr< Socket >	socket,
		const Address &	address
	)

Callback function after the connection response from the KMS has been received.

Parameters

socket	The connected socket.
address	The address of the KMS.

Definition at line 506 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), and NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromKMS().

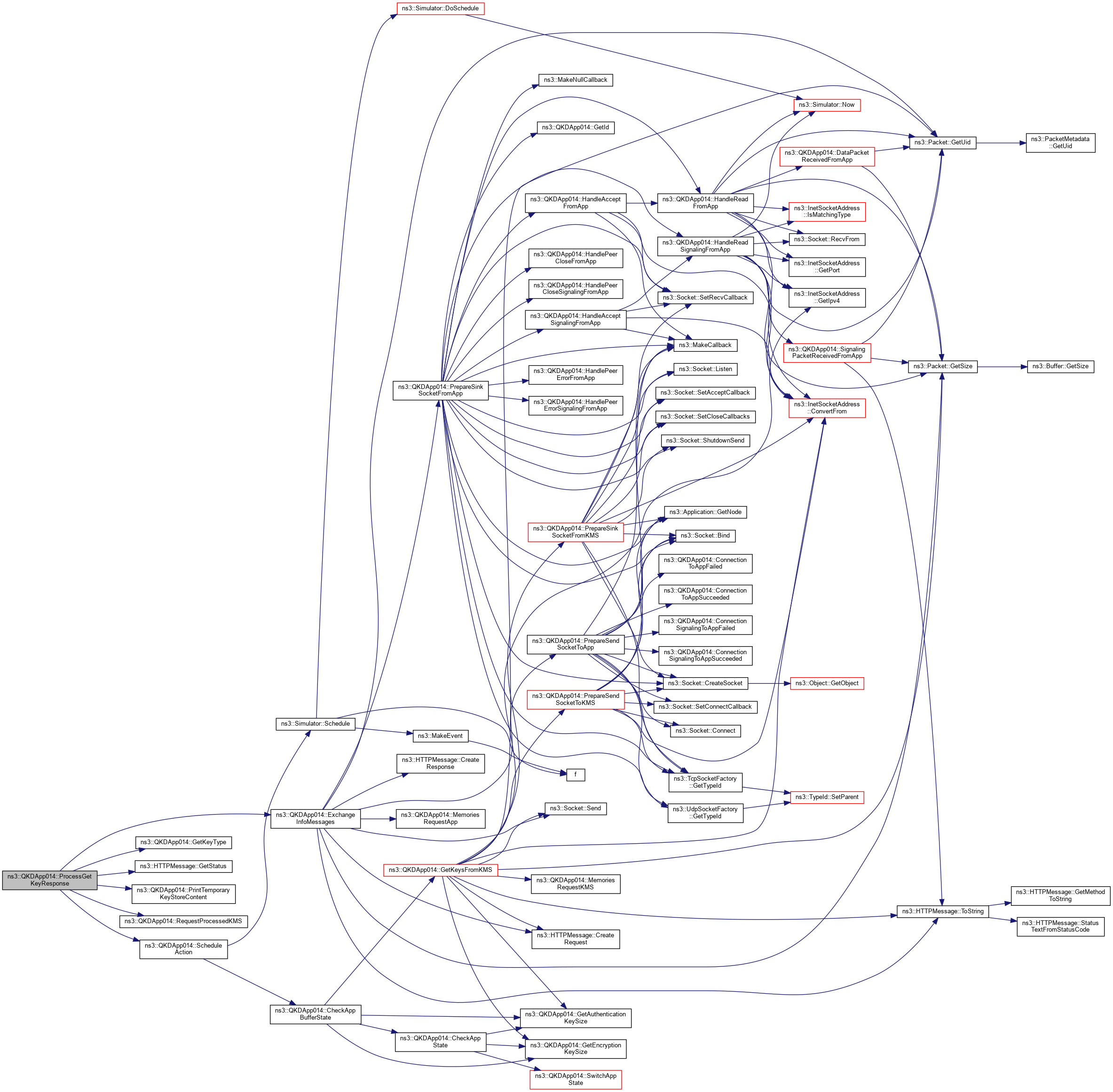

Here is the call graph for this function:

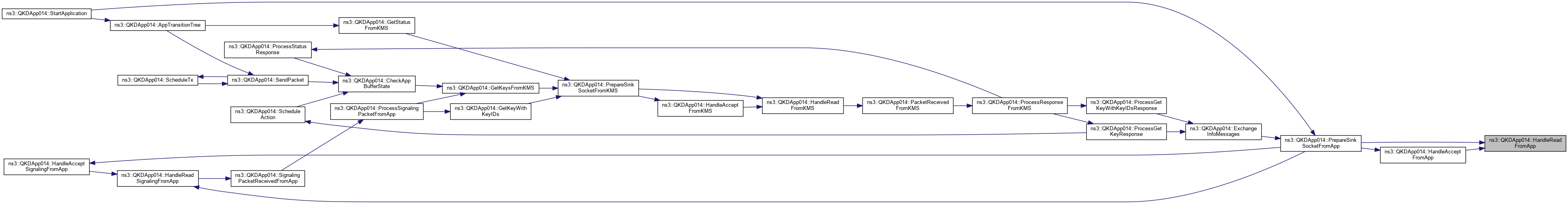

Here is the caller graph for this function:

◆ ConnectionSignalingToAppFailed()

void ns3::QKDApp014::ConnectionSignalingToAppFailed ( Ptr< Socket > socket )

Callback function after the signaling connection to the APP has failed.

Parameters

socket The connected socket.

Definition at line 584 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToApp().

Here is the caller graph for this function:

◆ ConnectionSignalingToAppSucceeded()

void ns3::QKDApp014::ConnectionSignalingToAppSucceeded ( Ptr< Socket > socket )

Callback function after the signaling connection to the APP is complete.

Parameters

socket The connected socket.

Definition at line 578 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToApp().

Here is the caller graph for this function:

◆ ConnectionToAppFailed()

void ns3::QKDApp014::ConnectionToAppFailed ( Ptr< Socket > socket )

Callback function after the connection to the APP has failed.

Parameters

socket The connected socket.

Definition at line 572 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToApp().

Here is the caller graph for this function:

◆ ConnectionToAppSucceeded()

void ns3::QKDApp014::ConnectionToAppSucceeded ( Ptr< Socket > socket )

Callback function after the connection to the APP is complete.

Parameters

socket The connected socket.

Definition at line 566 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToApp().

Here is the caller graph for this function:

◆ ConnectionToKMSFailed()

void ns3::QKDApp014::ConnectionToKMSFailed ( Ptr< Socket > socket )

Callback function after the connection to the KMS has failed.

Parameters

socket The connected socket.

Definition at line 560 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToKMS().

Here is the caller graph for this function:

◆ ConnectionToKMSSucceeded()

void ns3::QKDApp014::ConnectionToKMSSucceeded ( Ptr< Socket > socket )

Callback function after the connection to the KMS is complete.

Parameters

socket The connected socket.

Definition at line 554 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToKMS().

Here is the caller graph for this function:

◆ CreateKeyIdField()

std::string ns3::QKDApp014::CreateKeyIdField ( std::string keyId )

private

Adjust the encryption key identifier for the QKDApp header.

Parameters

keyId The key identifier.

Returns: The adjusted key identifier.

This function only removes '-' symbols from the key identifier which is in UUID format.

Definition at line 2175 of file qkd-app-014.cc.

Referenced by SendPacket().

Here is the caller graph for this function:

◆ DataPacketReceivedFromApp()

void ns3::QKDApp014::DataPacketReceivedFromApp	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

Check for the TCP segmentation of the data packets received from the peer QKD application.

Parameters

p	The received data packet.
from	The address of the peer application.
socket	The connected socket.

Definition at line 1118 of file qkd-app-014.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CreateFragment(), GetAppStateString(), ns3::QKDAppHeader::GetLength(), ns3::QKDAppHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_appState, m_buffer_QKDApp014, m_dstSaeId, m_master, m_rxTrace, NS_ABORT_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), ProcessDataPacketFromApp(), READY, ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), and ns3::UUID::string().

Referenced by HandleReadFromApp().

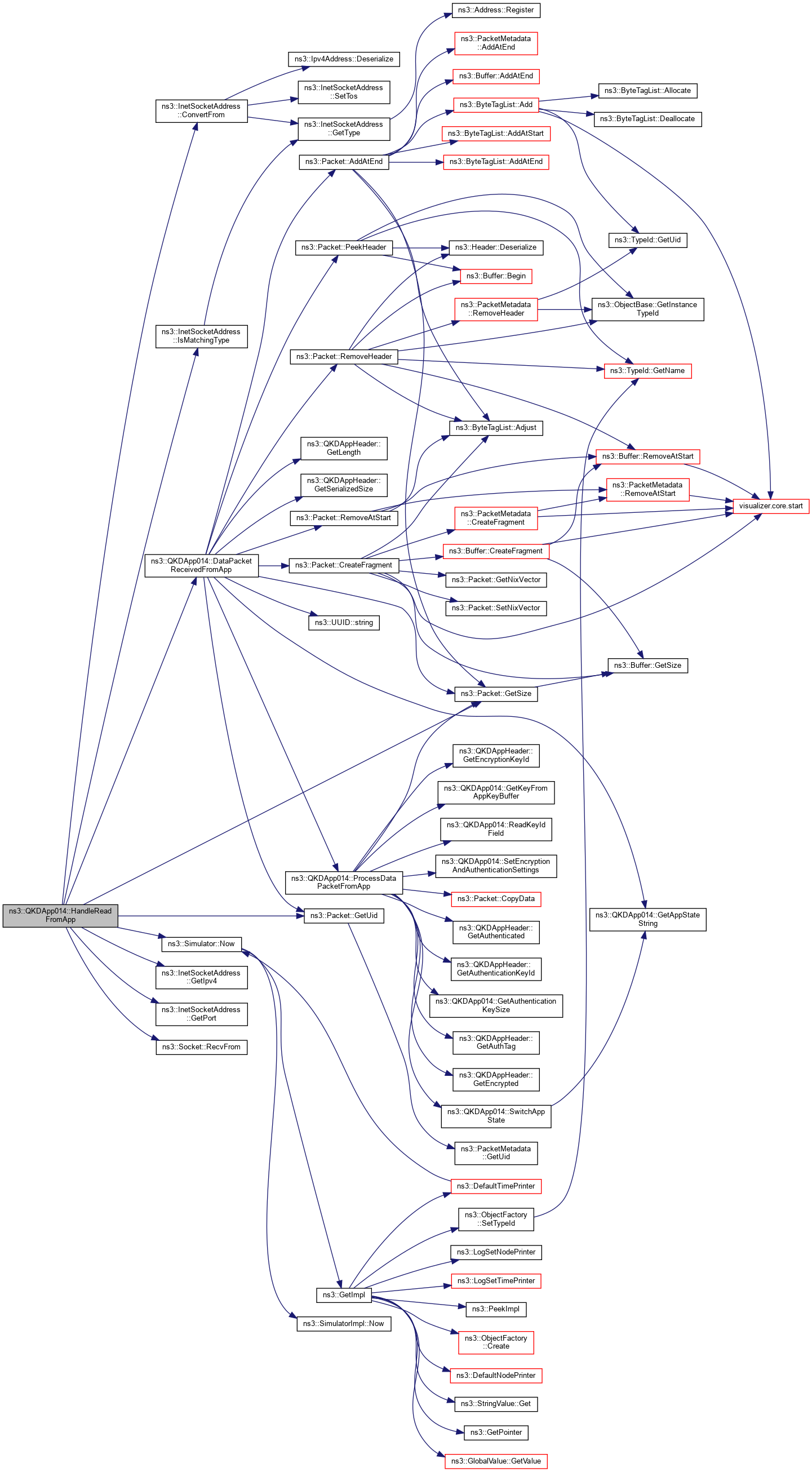

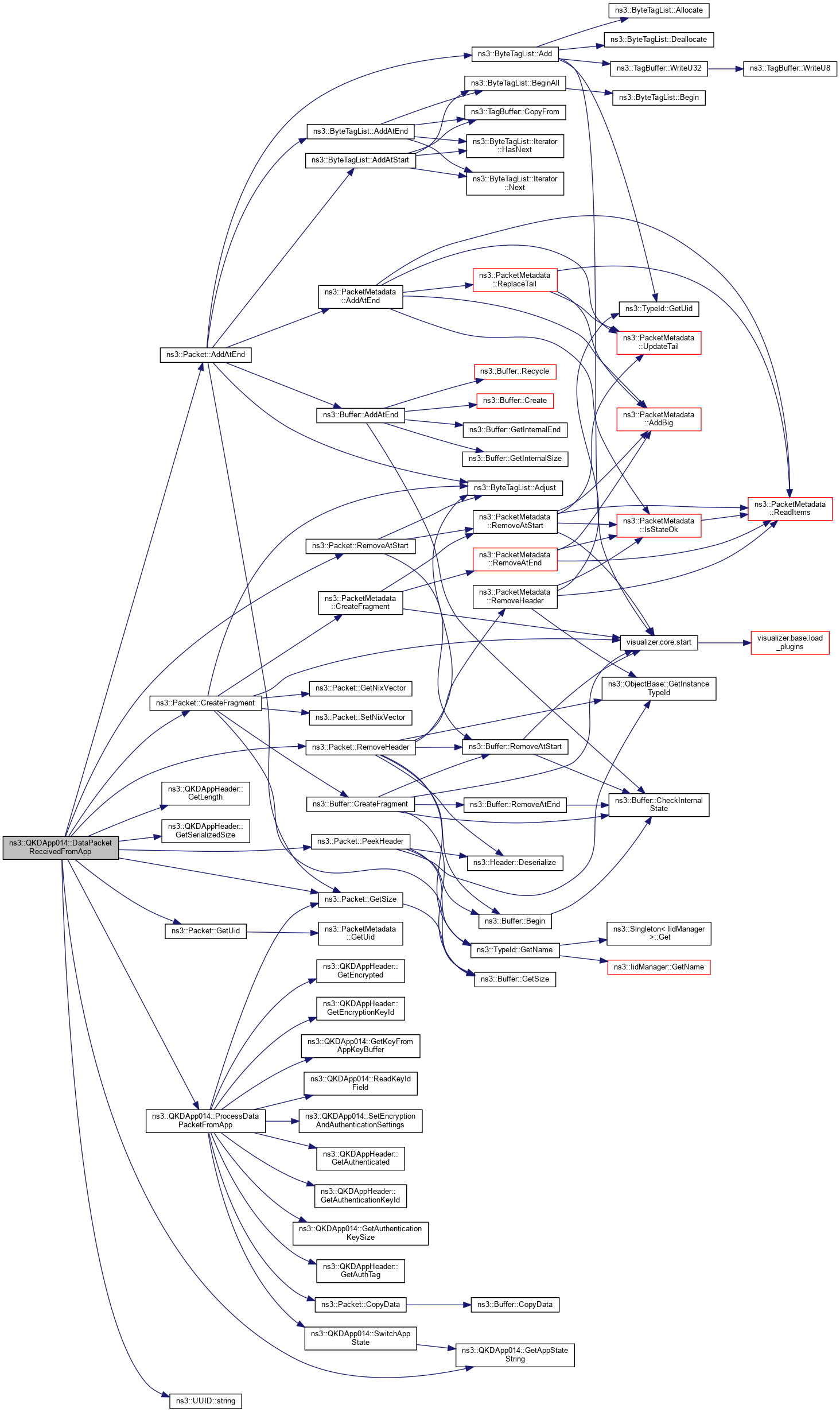

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DataToKMSSend()

void ns3::QKDApp014::DataToKMSSend	(	Ptr< Socket >	socket,
		uint32_t
	)

Callback function to notify that data to KMS has been sent.

Parameters

The	connected socket.
The	amount of data.

Definition at line 722 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSendSocketToKMS().

Here is the caller graph for this function:

◆ ExchangeInfoMessages()

void ns3::QKDApp014::ExchangeInfoMessages	(	std::string	ksid,
		std::vector< std::string >	keyIds,
		HTTPMessage::HttpStatus	statusCode = `HTTPMessage::Ok`
	)

private

Exchange key identifiers between sending and receiving application.

Parameters

ksid	The key stream identifier.
keyIds	The vector cointaning key identifiers to negotiate.
statusCode	The HTTP status code of the response (the default status is 200:Ok).

Primary (sender) application sends vector of key identifiers previously obtained from the KMS. Replica (receiver) application obtains the keys from the KMS using received identifiers. The success of this operation is reported to the primary application.

Definition at line 1904 of file qkd-app-014.cc.

References ns3::HTTPMessage::CreateRequest(), ns3::HTTPMessage::CreateResponse(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_dataSent, m_master, m_packetsSent, m_sendSignalingSocketApp, m_sinkSignalingSocketApp, m_txSigTrace, MemoriesRequestApp(), NS_ASSERT, NS_LOG_FUNCTION, PrepareSendSocketToApp(), PrepareSinkSocketFromApp(), ns3::Socket::Send(), and ns3::HTTPMessage::ToString().

Referenced by ProcessGetKeyResponse(), and ProcessGetKeyWithKeyIDsResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAppState()

QKDApp014::QKDApp014State ns3::QKDApp014::GetAppState ( ) const

Get the current state of the application.

Returns: The current state of the application.

Definition at line 2016 of file qkd-app-014.cc.

References m_appState.

◆ GetAppStateString() [1/2]

std::string ns3::QKDApp014::GetAppStateString ( ) const

Get the current state of the application in the string format.

Returns: The current state of the application in the string format.

Definition at line 2056 of file qkd-app-014.cc.

References m_appState.

Referenced by DataPacketReceivedFromApp(), ScheduleTx(), SendPacket(), StartApplication(), and SwitchAppState().

Here is the caller graph for this function:

◆ GetAppStateString() [2/2]

std::string ns3::QKDApp014::GetAppStateString ( QKDApp014::QKDApp014State state )

static

Convert application state to the string format.

Parameters

state The state.

Returns: The state in the string format.

Definition at line 2022 of file qkd-app-014.cc.

References DECRYPT_DATA, INITIALIZED, NOT_STARTED, NS_FATAL_ERROR, READY, SEND_DATA, STOPPED, and WAIT.

◆ GetAuthenticationKeySize()

uint32_t ns3::QKDApp014::GetAuthenticationKeySize ( )

Get required key size for the choosen authentication algorithm.

Returns: The key size.

Definition at line 2217 of file qkd-app-014.cc.

References m_authenticationType, ns3::QKDEncryptor::QKDCRYPTO_AUTH_MD5, ns3::QKDEncryptor::QKDCRYPTO_AUTH_SHA1, ns3::QKDEncryptor::QKDCRYPTO_AUTH_VMAC, and ns3::QKDEncryptor::UNAUTHENTICATED.

Referenced by AppTransitionTree(), CheckAppBufferState(), CheckAppState(), GetKeysFromKMS(), ProcessDataPacketFromApp(), and SendPacket().

Here is the caller graph for this function:

◆ GetEncryptionKeySize()

uint32_t ns3::QKDApp014::GetEncryptionKeySize ( )

Get required key size for the choosen encryption algorithm.

Returns: The key size.

Definition at line 2194 of file qkd-app-014.cc.

References m_encryptionType, m_packetSize, NS_LOG_FUNCTION, ns3::QKDEncryptor::QKDCRYPTO_AES, ns3::QKDEncryptor::QKDCRYPTO_OTP, and ns3::QKDEncryptor::UNENCRYPTED.

Referenced by AppTransitionTree(), CheckAppBufferState(), CheckAppState(), and GetKeysFromKMS().

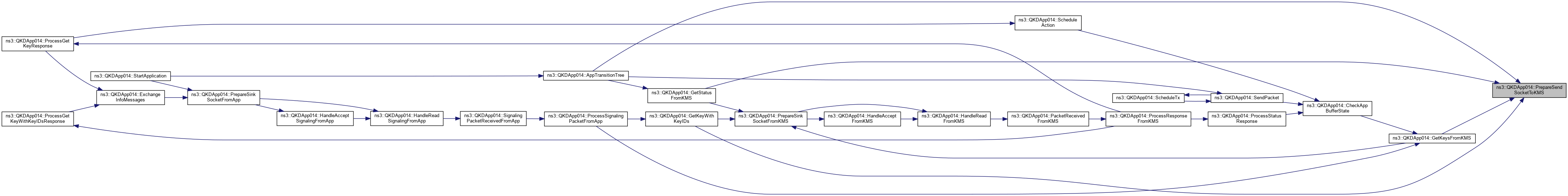

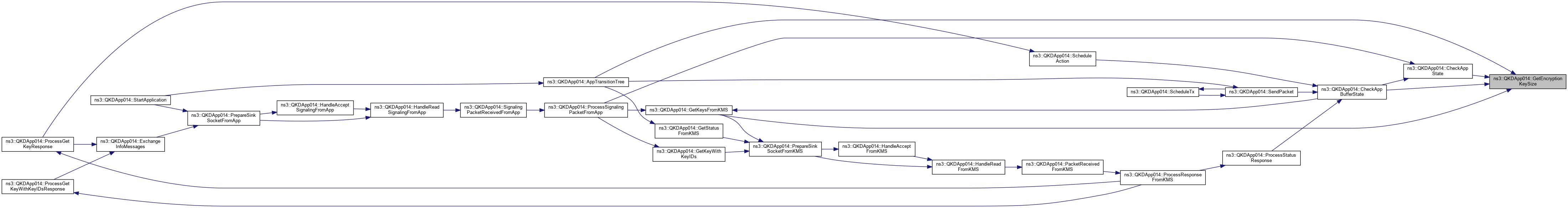

Here is the caller graph for this function:

◆ GetETSIMethod()

uint32_t ns3::QKDApp014::GetETSIMethod ( void )

private

Map the HTTP response and obtrain the request method.

Returns: The request method.

Definition at line 933 of file qkd-app-014.cc.

References m_httpRequestsKMS.

Referenced by ProcessResponseFromKMS().

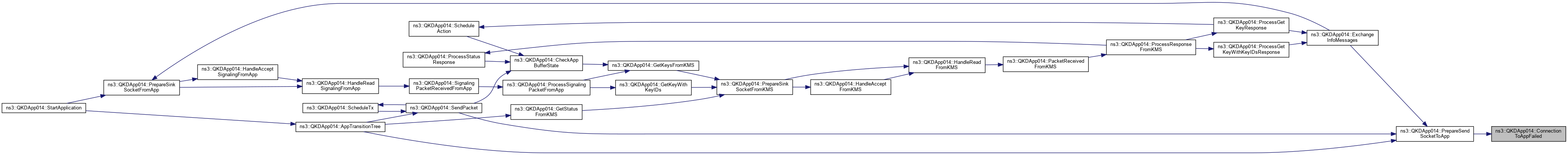

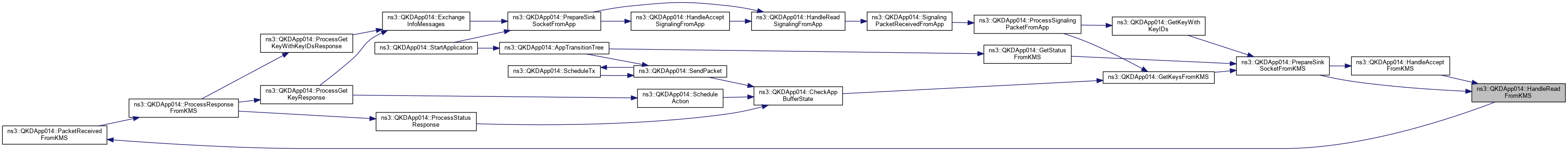

Here is the caller graph for this function:

◆ GetId()

UUID ns3::QKDApp014::GetId ( void )

inline

Get the application identifier.

Returns: The application identifier.

Definition at line 561 of file qkd-app-014.h.

References m_id.

Referenced by PrepareSinkSocketFromApp().

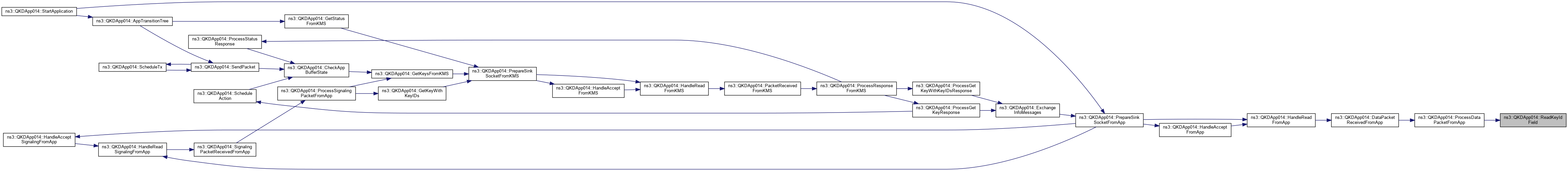

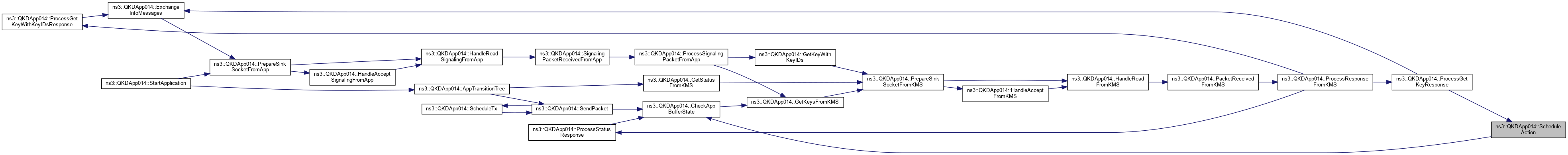

Here is the caller graph for this function:

◆ GetKeyFromAppKeyBuffer() [1/2]

QKDApp014::QKDApp014Key ns3::QKDApp014::GetKeyFromAppKeyBuffer	(	std::string	keyId,
		std::string	keyType
	)

Get the key from the application key buffer.

Parameters

keyId	The key identifier.
keyType	The key type.

Returns: The application key.

Definition at line 870 of file qkd-app-014.cc.

References ns3::QKDApp014::QKDApp014KeyBuffer::inboundKeyStore, m_appKeyBuffer, m_encryptionTypeInt, m_packetSize, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetKeyFromAppKeyBuffer() [2/2]

QKDApp014::QKDApp014Key ns3::QKDApp014::GetKeyFromAppKeyBuffer ( uint32_t keyType )

Get the key from the application key buffer.

Parameters

keyType The type of the key to obtain: 0-encryption key, 1-authentication key.

Returns: The application key.

Definition at line 833 of file qkd-app-014.cc.

References m_appKeyBuffer, m_packetSize, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore, and ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore.

Referenced by ProcessDataPacketFromApp(), and SendPacket().

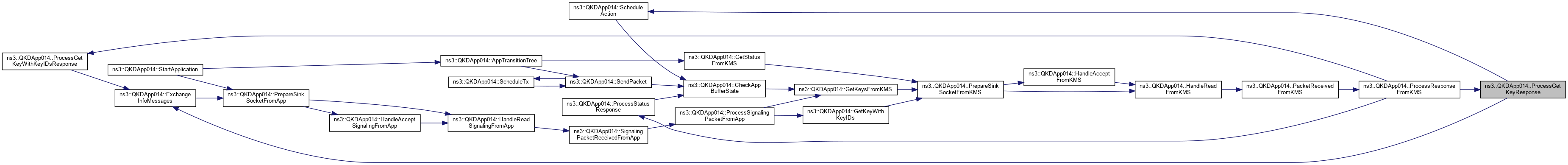

Here is the caller graph for this function:

◆ GetKeysFromKMS()

void ns3::QKDApp014::GetKeysFromKMS ( uint32_t keyType )

Request keys from the KMS (ETSI QKD 014 - Get key method).

Parameters

keyType The key type (encryption or authentication).

Definition at line 1325 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::HTTPMessage::CreateRequest(), GetAuthenticationKeySize(), GetEncryptionKeySize(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_kms, m_ksid_auth, m_ksid_enc, m_master, m_numberOfKeysKMS, m_sendSocketToKMS, m_sinkSocketFromKMS, m_txKmsTrace, MemoriesRequestKMS(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, PrepareSendSocketToKMS(), PrepareSinkSocketFromKMS(), ns3::Ipv4Address::Print(), ns3::Socket::Send(), ns3::UUID::string(), nlohmann::to_string(), and ns3::HTTPMessage::ToString().

Referenced by CheckAppBufferState(), and ProcessSignalingPacketFromApp().

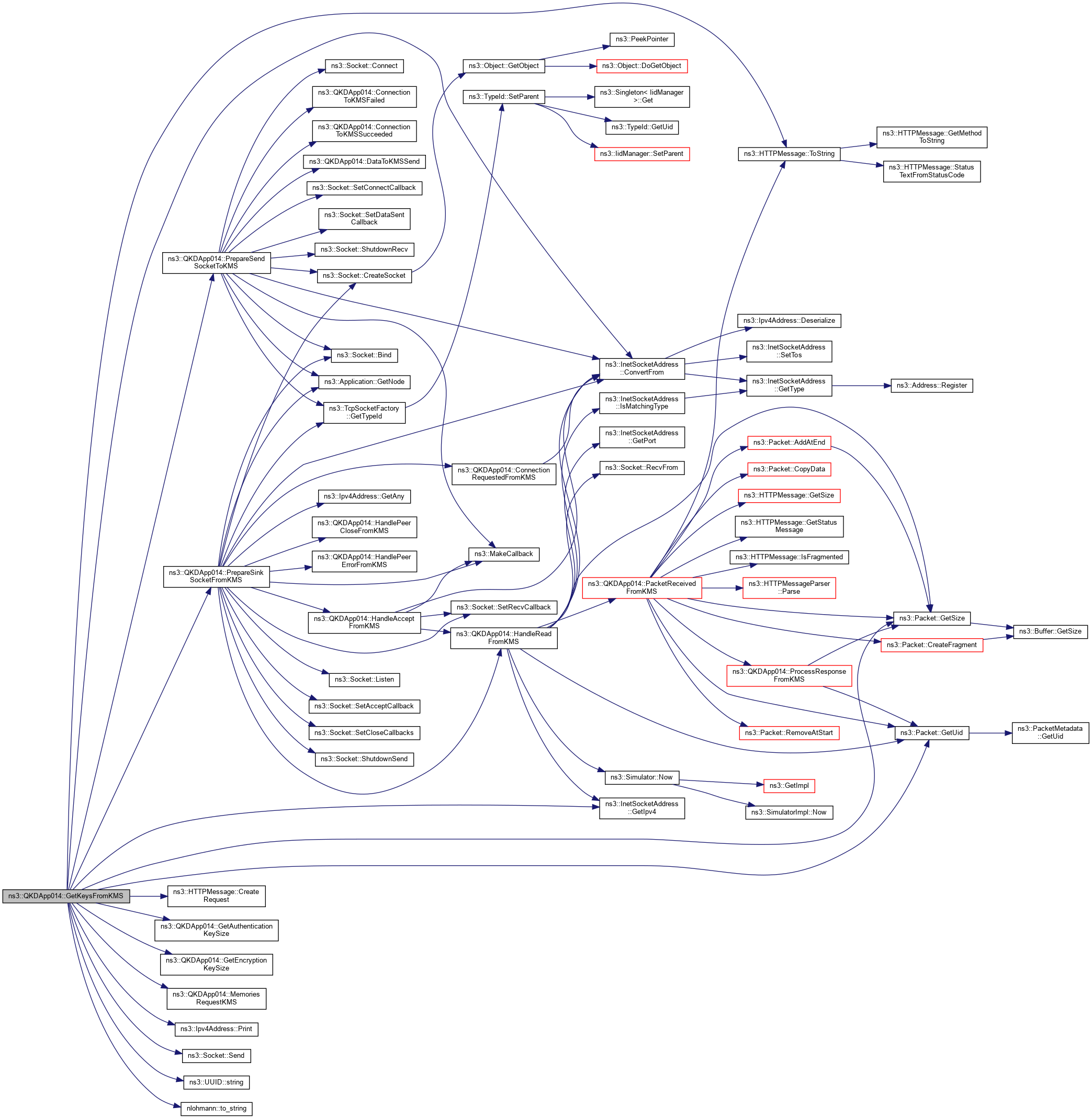

Here is the call graph for this function:

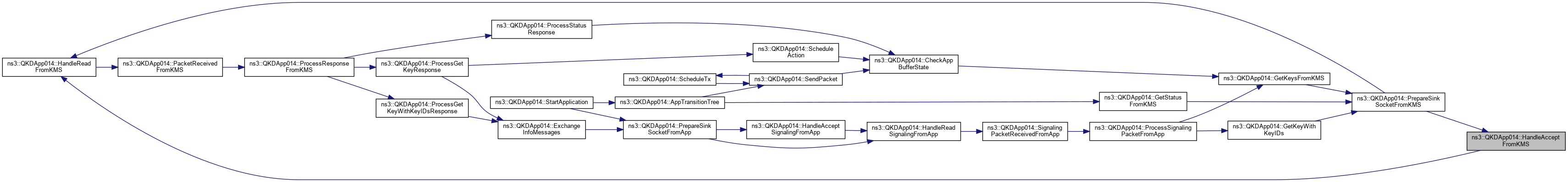

Here is the caller graph for this function:

◆ GetKeyType()

uint32_t ns3::QKDApp014::GetKeyType ( void )

private

Map the HTTP response and obtain the key type.

Returns: The key type.

Definition at line 939 of file qkd-app-014.cc.

References m_httpRequestsKMS.

Referenced by ProcessGetKeyResponse().

Here is the caller graph for this function:

◆ GetKeyWithKeyIDs()

void ns3::QKDApp014::GetKeyWithKeyIDs ( )

Requests keys with given identifiers from the KMS (ETSI QKD 014 - Get key with key IDs method).

The key identifiers are locally stored at the application, and that's why the input to this function is void.

Definition at line 1472 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::HTTPMessage::CreateRequest(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_keyIDs, m_kms, m_master, m_sendSocketToKMS, m_sinkSocketFromKMS, m_txKmsTrace, MemoriesRequestKMS(), NS_ASSERT, NS_LOG_FUNCTION, PrepareSendSocketToKMS(), PrepareSinkSocketFromKMS(), ns3::Ipv4Address::Print(), ns3::Socket::Send(), and ns3::HTTPMessage::ToString().

Referenced by ProcessSignalingPacketFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPacketContent()

std::string ns3::QKDApp014::GetPacketContent ( uint32_t msgLength = 0 )

Generate a random packet (message) of a given size.

Parameters

msgLength The message size.

Returns: The random message.

Definition at line 2150 of file qkd-app-014.cc.

References ns3::UniformRandomVariable::GetValue(), m_packetSize, m_random, and NS_LOG_FUNCTION.

Referenced by SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStatusFromKMS()

void ns3::QKDApp014::GetStatusFromKMS ( uint32_t keyType )

Request status information from the KMS (ETSI QKD 014 - Get status method).

Parameters

keyType The key type (encryption or authentication).

   KEY MANAGEMENT functions

Definition at line 1280 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::HTTPMessage::CreateRequest(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_kms, m_ksid_auth, m_ksid_enc, m_sendSocketToKMS, m_sinkSocketFromKMS, m_txKmsTrace, MemoriesRequestKMS(), NS_ASSERT, NS_LOG_FUNCTION, PrepareSendSocketToKMS(), PrepareSinkSocketFromKMS(), ns3::Ipv4Address::Print(), ns3::Socket::Send(), ns3::UUID::string(), and ns3::HTTPMessage::ToString().

Referenced by AppTransitionTree().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::QKDApp014::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 44 of file qkd-app-014.cc.

References ns3::TcpSocketFactory::GetTypeId(), m_aesLifetime, m_authenticationTagLengthInBits, m_authenticationTrace, m_authenticationTypeInt, m_deauthenticationTrace, m_decryptionTrace, m_encryptionTrace, m_encryptionTypeInt, m_mxTrace, m_numberOfKeysKMS, m_obtainedKeyMaterialTrace, m_rxKmsTrace, m_rxSigTrace, m_rxTrace, m_stateTransitionTrace, m_tid, m_txKmsTrace, m_txSigTrace, m_txTrace, m_useCrypto, m_waitInsufficient, m_waitTransform, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeTypeIdAccessor(), ns3::MakeTypeIdChecker(), ns3::MakeUintegerAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleAcceptFromApp()

void ns3::QKDApp014::HandleAcceptFromApp	(	Ptr< Socket >	s,
		const Address &	from
	)

Handle an incoming connection from the peer QKD application.

Parameters

s	The incoming connection socket.
from	The address the connection is from.

Definition at line 530 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), HandleReadFromApp(), ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Referenced by PrepareSinkSocketFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleAcceptFromKMS()

void ns3::QKDApp014::HandleAcceptFromKMS	(	Ptr< Socket >	s,
		const Address &	from
	)

Handle an incoming connection from the KMS.

Parameters

s	The incoming connection socket.
from	The address the connection is from.

Definition at line 518 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), HandleReadFromKMS(), ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Referenced by PrepareSinkSocketFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleAcceptSignalingFromApp()

void ns3::QKDApp014::HandleAcceptSignalingFromApp	(	Ptr< Socket >	s,
		const Address &	from
	)

Handle a signaling incoming connection from the peer QKD application.

Parameters

s	The incoming connection socket.
from	The address the connection is from.

Definition at line 542 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), HandleReadSignalingFromApp(), ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Referenced by PrepareSinkSocketFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandlePeerCloseFromApp()

void ns3::QKDApp014::HandlePeerCloseFromApp ( Ptr< Socket > socket )

Handle a connection close from the peer QKD application.

Parameters

socket The connected socket.

Definition at line 602 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromApp().

Here is the caller graph for this function:

◆ HandlePeerCloseFromKMS()

void ns3::QKDApp014::HandlePeerCloseFromKMS ( Ptr< Socket > socket )

Handle a connection close from the KMS.

Parameters

socket The connected socket.

Definition at line 590 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromKMS().

Here is the caller graph for this function:

◆ HandlePeerCloseSignalingFromApp()

void ns3::QKDApp014::HandlePeerCloseSignalingFromApp ( Ptr< Socket > socket )

Handle a signaling connection close from the peer QKD application.

Parameters

socket The connected socket.

Definition at line 613 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromApp().

Here is the caller graph for this function:

◆ HandlePeerErrorFromApp()

void ns3::QKDApp014::HandlePeerErrorFromApp ( Ptr< Socket > socket )

Handle a connection error from the peer QKD application.

Parameters

socket The connected socket.

Definition at line 607 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromApp().

Here is the caller graph for this function:

◆ HandlePeerErrorFromKMS()

void ns3::QKDApp014::HandlePeerErrorFromKMS ( Ptr< Socket > socket )

Handle a connection error from the KMS.

Parameters

socket The connected socket.

Definition at line 596 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromKMS().

Here is the caller graph for this function:

◆ HandlePeerErrorSignalingFromApp()

void ns3::QKDApp014::HandlePeerErrorSignalingFromApp ( Ptr< Socket > socket )

Handle a signaling connection error from the peer QKD application.

Parameters

socket the connected socket.

Definition at line 619 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocketFromApp().

Here is the caller graph for this function:

◆ HandleReadFromApp()

void ns3::QKDApp014::HandleReadFromApp ( Ptr< Socket > socket )

Handle a packet received from the peer QKD application.

Parameters

socket The receiving socket.

Definition at line 658 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), DataPacketReceivedFromApp(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::InetSocketAddress::IsMatchingType(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Socket::RecvFrom().

Referenced by HandleAcceptFromApp(), and PrepareSinkSocketFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleReadFromKMS()

void ns3::QKDApp014::HandleReadFromKMS ( Ptr< Socket > socket )

Handle a packet received from the KMS application.

Parameters

socket The receiving socket.

Definition at line 625 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::InetSocketAddress::IsMatchingType(), ns3::Simulator::Now(), NS_LOG_FUNCTION, PacketReceivedFromKMS(), and ns3::Socket::RecvFrom().

Referenced by HandleAcceptFromKMS(), and PrepareSinkSocketFromKMS().

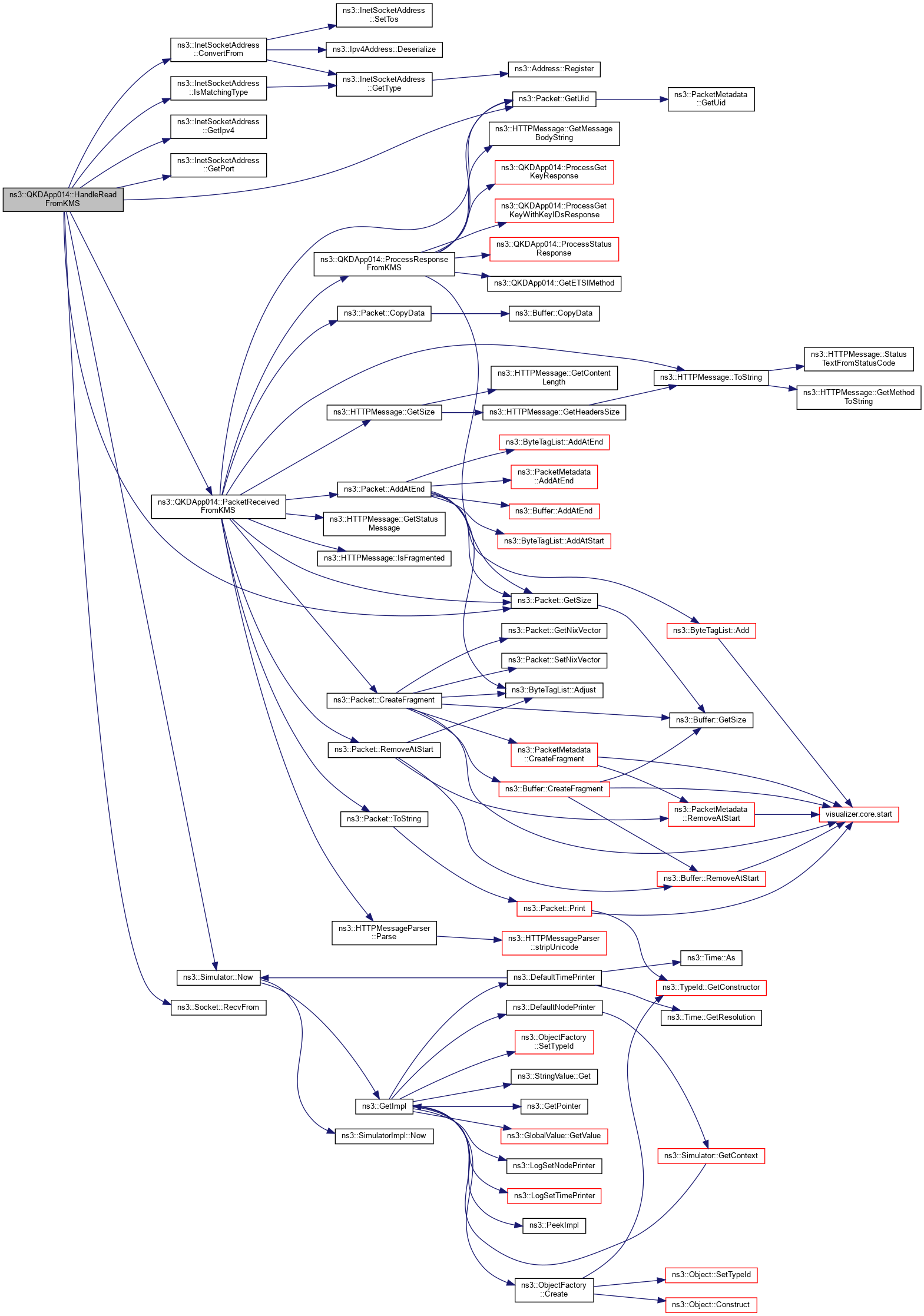

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleReadSignalingFromApp()

void ns3::QKDApp014::HandleReadSignalingFromApp ( Ptr< Socket > socket )

Handle a signaling packet received from the peer QKD application.

Parameters

socket The receiving socket.

Definition at line 690 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::InetSocketAddress::IsMatchingType(), ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Socket::RecvFrom(), and SignalingPacketReceivedFromApp().

Referenced by HandleAcceptSignalingFromApp(), and PrepareSinkSocketFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitializeAppKeyBuffer()

void ns3::QKDApp014::InitializeAppKeyBuffer ( )

Initialize the application key buffer.

   KEY BUFFER functions

Definition at line 736 of file qkd-app-014.cc.

References ns3::QKDApp014::QKDApp014KeyBuffer::inboundKeyStore, m_appKeyBuffer, NS_LOG_FUNCTION, ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore, ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore, and ns3::QKDApp014::QKDApp014KeyBuffer::temporaryKeyStoreMaster.

Referenced by Setup(), and StopApplication().

Here is the caller graph for this function:

◆ MemoriesRequestApp()

void ns3::QKDApp014::MemoriesRequestApp ( std::vector< std::string > keyIds )

private

Memories the HTTP request made to the peer QKD application.

Parameters

keyIds The vector of key identifiers.

Definition at line 915 of file qkd-app-014.cc.

References m_httpRequestsApp.

Referenced by ExchangeInfoMessages().

Here is the caller graph for this function:

◆ MemoriesRequestKMS()

void ns3::QKDApp014::MemoriesRequestKMS	(	uint32_t	methodType,
		uint32_t	keyType = `0`
	)

private

Memories the HTTP request made to the local KMS.

Parameters

methodType	The request method.
keyType	The key type.

HTTP requests are memorised in a vector in order to map the responses.

   HTTP mapping

Definition at line 909 of file qkd-app-014.cc.

References m_httpRequestsKMS.

Referenced by GetKeysFromKMS(), GetKeyWithKeyIDs(), and GetStatusFromKMS().

Here is the caller graph for this function:

◆ PacketReceivedFromKMS()

void ns3::QKDApp014::PacketReceivedFromKMS	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

Check for the TCP segmentation of the packets received from the KMS.

Parameters

p	The received packet.
from	The address of the KMS.
socket	The connected socket.

Definition at line 1519 of file qkd-app-014.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CopyData(), ns3::Packet::CreateFragment(), ns3::HTTPMessage::GetSize(), ns3::Packet::GetSize(), ns3::HTTPMessage::GetStatusMessage(), ns3::Packet::GetUid(), ns3::HTTPMessage::IsFragmented(), m_buffer_kms, m_rxKmsTrace, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HTTPMessageParser::Parse(), ProcessResponseFromKMS(), ns3::Packet::RemoveAtStart(), ns3::HTTPMessage::ToString(), and ns3::Packet::ToString().

Referenced by HandleReadFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareSendSocketToApp()

void ns3::QKDApp014::PrepareSendSocketToApp ( )

Prepare the send socket to communicate with the peer QKD Application.

Definition at line 404 of file qkd-app-014.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ConnectionSignalingToAppFailed(), ConnectionSignalingToAppSucceeded(), ConnectionToAppFailed(), ConnectionToAppSucceeded(), ns3::Socket::CreateSocket(), ns3::Application::GetNode(), ns3::TcpSocketFactory::GetTypeId(), ns3::UdpSocketFactory::GetTypeId(), m_peer, m_peerSignaling, m_sendDataSocketApp, m_sendSignalingSocketApp, m_socketType, ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetConnectCallback().

Referenced by AppTransitionTree(), ExchangeInfoMessages(), and SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareSendSocketToKMS()

void ns3::QKDApp014::PrepareSendSocketToKMS ( )

Prepare the send socket to communicate with the KMS Application.

Definition at line 378 of file qkd-app-014.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ConnectionToKMSFailed(), ConnectionToKMSSucceeded(), ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::CreateSocket(), DataToKMSSend(), ns3::Application::GetNode(), ns3::TcpSocketFactory::GetTypeId(), m_kms, m_sendSocketToKMS, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::Socket::SetConnectCallback(), ns3::Socket::SetDataSentCallback(), and ns3::Socket::ShutdownRecv().

Referenced by AppTransitionTree(), GetKeysFromKMS(), GetKeyWithKeyIDs(), and GetStatusFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareSinkSocketFromApp()

void ns3::QKDApp014::PrepareSinkSocketFromApp ( )

Prepare the sink socket to listen from the peer QKD Application.

Definition at line 446 of file qkd-app-014.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), GetId(), ns3::Application::GetNode(), ns3::TcpSocketFactory::GetTypeId(), ns3::UdpSocketFactory::GetTypeId(), HandleAcceptFromApp(), HandleAcceptSignalingFromApp(), HandlePeerCloseFromApp(), HandlePeerCloseSignalingFromApp(), HandlePeerErrorFromApp(), HandlePeerErrorSignalingFromApp(), HandleReadFromApp(), HandleReadSignalingFromApp(), ns3::Socket::Listen(), m_local, m_localSignaling, m_sinkDataSocketApp, m_sinkSignalingSocketApp, m_socketType, ns3::MakeCallback(), ns3::MakeNullCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Socket::SetAcceptCallback(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), and ns3::Socket::ShutdownSend().

Referenced by ExchangeInfoMessages(), and StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareSinkSocketFromKMS()

void ns3::QKDApp014::PrepareSinkSocketFromKMS ( )

Prepare the sink socket to listen from the KMS Application.

   SOCKET functions

Definition at line 340 of file qkd-app-014.cc.

References ns3::Socket::Bind(), ConnectionRequestedFromKMS(), ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::Application::GetNode(), ns3::TcpSocketFactory::GetTypeId(), HandleAcceptFromKMS(), HandlePeerCloseFromKMS(), HandlePeerErrorFromKMS(), HandleReadFromKMS(), ns3::Socket::Listen(), m_sinkSocketFromKMS, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Socket::SetAcceptCallback(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), and ns3::Socket::ShutdownSend().

Referenced by GetKeysFromKMS(), GetKeyWithKeyIDs(), and GetStatusFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrintAppBufferStatusInformation()

void ns3::QKDApp014::PrintAppBufferStatusInformation ( )

Print the status information on the application key buffer.

Definition at line 794 of file qkd-app-014.cc.

References ns3::QKDApp014::QKDApp014KeyBuffer::inboundKeyStore, m_appKeyBuffer, NS_LOG_FUNCTION, ns3::QKDApp014::QKDApp014KeyBuffer::outboundAuthKeyStore, and ns3::QKDApp014::QKDApp014KeyBuffer::outboundEncKeyStore.

Referenced by ProcessSignalingPacketFromApp().

Here is the caller graph for this function:

◆ PrintTemporaryKeyStoreContent()

void ns3::QKDApp014::PrintTemporaryKeyStoreContent ( )

Print the content of the temporary key store.

Definition at line 784 of file qkd-app-014.cc.

References m_appKeyBuffer, NS_LOG_FUNCTION, and ns3::QKDApp014::QKDApp014KeyBuffer::temporaryKeyStoreMaster.

Referenced by ProcessGetKeyResponse(), and ProcessSignalingPacketFromApp().

Here is the caller graph for this function:

◆ ProcessDataPacketFromApp()

void ns3::QKDApp014::ProcessDataPacketFromApp	(	QKDAppHeader	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

Process the data packets from the peer QKD application.

Parameters

header	The QKDApp014 packet header.
packet	The received packet.
socket	The receiving socket.

Definition at line 1171 of file qkd-app-014.cc.

References ns3::Packet::CopyData(), DECRYPT_DATA, ns3::QKDAppHeader::GetAuthenticated(), ns3::QKDAppHeader::GetAuthenticationKeyId(), GetAuthenticationKeySize(), ns3::QKDAppHeader::GetAuthTag(), ns3::QKDAppHeader::GetEncrypted(), ns3::QKDAppHeader::GetEncryptionKeyId(), GetKeyFromAppKeyBuffer(), ns3::Packet::GetSize(), m_authenticationTagLengthInBits, m_encryptor, m_master, m_packetSize, m_useCrypto, NS_FATAL_ERROR, NS_LOG_FUNCTION, ReadKeyIdField(), READY, SetEncryptionAndAuthenticationSettings(), and SwitchAppState().

Referenced by DataPacketReceivedFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessGetKeyResponse()

void ns3::QKDApp014::ProcessGetKeyResponse	(	HTTPMessage &	header,
		nlohmann::json	jGetKeyResponse
	)

Process the GET_KEY response from the KMS.

Parameters

header	The received HTTP message.
jGetKeyResponse	The JSON response payload.

Definition at line 1645 of file qkd-app-014.cc.

References ExchangeInfoMessages(), GetKeyType(), ns3::HTTPMessage::GetStatus(), m_aesLifetime, m_appKeyBuffer, m_encryptionType, m_encryptor, m_obtainedKeyMaterialTrace, m_packetSize, m_waitInsufficient, m_waitTransform, NS_FATAL_ERROR, NS_LOG_FUNCTION, PrintTemporaryKeyStoreContent(), RequestProcessedKMS(), ScheduleAction(), and ns3::QKDApp014::QKDApp014KeyBuffer::temporaryKeyStoreMaster.

Referenced by ProcessResponseFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessGetKeyWithKeyIDsResponse()

void ns3::QKDApp014::ProcessGetKeyWithKeyIDsResponse	(	HTTPMessage &	header,
		nlohmann::json	jGetKeyWithKeyIDsResponse
	)

Process the Get Key with Key IDs response from the KMS.

Parameters

header	The received HTTP message.
jGetKeyWithKeyIDsResponse	The JSON response payload.

Definition at line 1711 of file qkd-app-014.cc.

References AddKeyInInboundKeyStore(), ExchangeInfoMessages(), ns3::HTTPMessage::GetStatus(), m_aesLifetime, m_encryptor, m_obtainedKeyMaterialTrace, NS_FATAL_ERROR, NS_LOG_FUNCTION, and RequestProcessedKMS().

Referenced by ProcessResponseFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessResponseFromKMS()

void ns3::QKDApp014::ProcessResponseFromKMS	(	HTTPMessage &	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

Process the response from the KMS application.

Parameters

header	The received HTTP message.
packet	The received packet.
socket	The receiving socket.

Definition at line 1583 of file qkd-app-014.cc.

References GetETSIMethod(), ns3::HTTPMessage::GetMessageBodyString(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ProcessGetKeyResponse(), ProcessGetKeyWithKeyIDsResponse(), and ProcessStatusResponse().

Referenced by PacketReceivedFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSignalingPacketFromApp()

void ns3::QKDApp014::ProcessSignalingPacketFromApp	(	HTTPMessage &	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

Process the signaling packets received from the peer QKD application.

Parameters

header	The received HTTP message.
packet	The received packet.
socket	The receiving socket.

Definition at line 1823 of file qkd-app-014.cc.

References AddAuthKeyInKeyStore(), AddEncKeyInKeyStore(), CheckAppState(), GetKeysFromKMS(), GetKeyWithKeyIDs(), ns3::HTTPMessage::GetMessageBodyString(), ns3::Packet::GetSize(), ns3::HTTPMessage::GetStatus(), ns3::Packet::GetUid(), m_appKeyBuffer, m_httpRequestsApp, m_internalAppWait, m_keyIDs, m_master, NS_LOG_DEBUG, NS_LOG_FUNCTION, PrintAppBufferStatusInformation(), PrintTemporaryKeyStoreContent(), RemoveKeysFromTemporaryKeyStore(), RequestProcessedApp(), and ns3::QKDApp014::QKDApp014KeyBuffer::temporaryKeyStoreMaster.

Referenced by SignalingPacketReceivedFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessStatusResponse()

void ns3::QKDApp014::ProcessStatusResponse	(	HTTPMessage &	header,
		nlohmann::json	jstatusResponse
	)

Process the status response from the KMS.

Parameters

header	The received HTTP message.
jstatusResponse	The JSON response payload.

Definition at line 1618 of file qkd-app-014.cc.

References CheckAppBufferState(), ns3::HTTPMessage::GetStatus(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and RequestProcessedKMS().

Referenced by ProcessResponseFromKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadKeyIdField()

std::string ns3::QKDApp014::ReadKeyIdField ( std::string keyId )

private

Rebuild the key identifier for the QKDApp header.

Parameters

keyId The key identifier from the QKDApp header.

Returns: The key identifier in the UUID format.

Definition at line 2182 of file qkd-app-014.cc.

References NS_LOG_FUNCTION.

Referenced by ProcessDataPacketFromApp().

Here is the caller graph for this function:

◆ RemoveKeysFromTemporaryKeyStore()

void ns3::QKDApp014::RemoveKeysFromTemporaryKeyStore ( std::vector< std::string > keyIds )

Remove keys from the temporary key store.

Parameters

keyIds The key identifiers.

Definition at line 748 of file qkd-app-014.cc.

References m_appKeyBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::QKDApp014::QKDApp014KeyBuffer::temporaryKeyStoreMaster.

Referenced by ProcessSignalingPacketFromApp().

Here is the caller graph for this function:

◆ RequestProcessedApp()

void ns3::QKDApp014::RequestProcessedApp ( void )

private

Remove request from the HTTP requests store (once the response from the peer application has been processed).

Definition at line 927 of file qkd-app-014.cc.

References m_httpRequestsApp.

Referenced by ProcessSignalingPacketFromApp().

Here is the caller graph for this function:

◆ RequestProcessedKMS()

void ns3::QKDApp014::RequestProcessedKMS ( void )

private

Remove the request from the HTTP requests store (once the response from the KMS has been processed).

Definition at line 921 of file qkd-app-014.cc.

References m_httpRequestsKMS.

Referenced by ProcessGetKeyResponse(), ProcessGetKeyWithKeyIDsResponse(), and ProcessStatusResponse().

Here is the caller graph for this function:

◆ ScheduleAction()

uint32_t ns3::QKDApp014::ScheduleAction	(	Time	t,
		std::string	action
	)

Schedule the action.

Parameters

t	The time slot to perform action.
action	The action.

Returns: The identifier of the scheduled event/action.

Definition at line 296 of file qkd-app-014.cc.

References CheckAppBufferState(), m_internalAppWait, m_scheduledEvents, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by ProcessGetKeyResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleTx()

void ns3::QKDApp014::ScheduleTx ( void )

private

Schedule the time slot to send the data packets.

   SCHEDULE functions

Definition at line 279 of file qkd-app-014.cc.

References GetAppStateString(), ns3::DataRate::GetBitRate(), m_appState, m_dataRate, m_packetSize, m_sendEvent, NOT_STARTED, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), SendPacket(), and STOPPED.

Referenced by SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacket()

void ns3::QKDApp014::SendPacket ( void )

private

Send the application packet (includes the generation of a random message and optional encryption or/and authentication on the message).

Definition at line 1021 of file qkd-app-014.cc.

References ns3::Packet::AddHeader(), CheckAppBufferState(), CreateKeyIdField(), GetAppStateString(), GetAuthenticationKeySize(), GetKeyFromAppKeyBuffer(), GetPacketContent(), ns3::QKDAppHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::QKDApp014::QKDApp014Key::key, ns3::QKDApp014::QKDApp014Key::keyId, m_appState, m_authenticationTrace, m_authenticationType, m_dataSent, m_dstSaeId, m_encryptionType, m_encryptor, m_mxTrace, m_packetsSent, m_sendDataSocketApp, m_txTrace, m_useCrypto, NS_ASSERT, NS_LOG_FUNCTION, PrepareSendSocketToApp(), READY, ScheduleTx(), ns3::Socket::Send(), SEND_DATA, ns3::QKDAppHeader::SetAuthenticated(), ns3::QKDAppHeader::SetAuthenticationKeyId(), ns3::QKDAppHeader::SetAuthTag(), ns3::QKDAppHeader::SetEncrypted(), ns3::QKDAppHeader::SetEncryptionKeyId(), ns3::QKDAppHeader::SetLength(), ns3::UUID::string(), SwitchAppState(), and WAIT.

Referenced by AppTransitionTree(), and ScheduleTx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEncryptionAndAuthenticationSettings()

void ns3::QKDApp014::SetEncryptionAndAuthenticationSettings	(	uint32_t	encryptionType,
		uint32_t	authenticationType,
		uint32_t	authenticationTagLengthInBits
	)

Set the encryption and the authentication algorithms.

Parameters

ecryptionType	The encryption algorithm.
authenticationType	The authentication algorithm.
authenticationTagLengthInBits	The size of the authentication tag.

   ADDTIONAL functions

Definition at line 2098 of file qkd-app-014.cc.

References m_authenticationType, m_encryptionType, m_encryptor, NS_LOG_FUNCTION, ns3::QKDEncryptor::QKDCRYPTO_AES, ns3::QKDEncryptor::QKDCRYPTO_AUTH_MD5, ns3::QKDEncryptor::QKDCRYPTO_AUTH_SHA1, ns3::QKDEncryptor::QKDCRYPTO_AUTH_VMAC, ns3::QKDEncryptor::QKDCRYPTO_OTP, ns3::QKDEncryptor::UNAUTHENTICATED, and ns3::QKDEncryptor::UNENCRYPTED.

Referenced by ProcessDataPacketFromApp(), and StartApplication().

Here is the caller graph for this function:

◆ SetKsidAuthentication()

void ns3::QKDApp014::SetKsidAuthentication ( UUID val )

inline

Set the authentication identifier.

Parameters

val	The authentication identifier.

Definition at line 112 of file qkd-app-014.h.

References m_ksid_auth.

◆ SetKsidEncryption()

void ns3::QKDApp014::SetKsidEncryption ( UUID val )

inline

Set the encryption identifier.

Parameters

val	The encryption identifier.

Definition at line 104 of file qkd-app-014.h.

References m_ksid_enc.

◆ Setup() [1/2]

void ns3::QKDApp014::Setup	(	std::string	socketType,
		Address	src,
		Address	dst,
		Address	kms,
		UUID	dstSaeId,
		std::string	type
	)

Configure the application.

Parameters

socketType	The socket type.
src	The source application address.
dst	The destination application address.
kms	The local KMS address.
dstSaeId	The peer application identifier.
type	The application type, the sender or the receiver.

Definition at line 204 of file qkd-app-014.cc.

◆ Setup() [2/2]

void ns3::QKDApp014::Setup	(	std::string	socketType,
		Address	src,
		Address	dst,
		Address	kms,
		UUID	dstSaeId,
		uint32_t	packetSize,
		uint32_t	nPackets,
		DataRate	dataRate,
		std::string	type
	)

Configure the application.

Parameters

socketType	The socket type.
src	The source application address.
dst	The destination application address.
kms	The local KMS address.
dstSaeId	The peer application identifier.
packetSize	The size of the data packet.
nPackets	The number of data packets.
dataRate	The data rate.
type	The application type, the sender or the receiver.

Definition at line 226 of file qkd-app-014.cc.

References ns3::InetSocketAddress::ConvertFrom(), InitializeAppKeyBuffer(), INITIALIZED, m_applicationCounts, m_appState, m_dataRate, m_dstSaeId, m_internalAppWait, m_kms, m_local, m_localSignaling, m_master, m_packetSize, m_peer, m_peerSignaling, m_socketType, NS_LOG_FUNCTION, packetSize, and SwitchAppState().

Here is the call graph for this function:

◆ SignalingPacketReceivedFromApp()

void ns3::QKDApp014::SignalingPacketReceivedFromApp	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

Check for the TCP segmentation of the signaling packets received from the peer QKD application.

Parameters

p	The received signaling packet.
from	The address of the peer application.
socket	The connected socket.

Definition at line 1758 of file qkd-app-014.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CopyData(), ns3::Packet::CreateFragment(), ns3::HTTPMessage::GetSize(), ns3::Packet::GetSize(), ns3::HTTPMessage::GetStatusMessage(), ns3::Packet::GetUid(), ns3::HTTPMessage::IsFragmented(), m_buffer_kms, m_rxSigTrace, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HTTPMessageParser::Parse(), ProcessSignalingPacketFromApp(), ns3::Packet::RemoveAtStart(), ns3::HTTPMessage::ToString(), and ns3::Packet::ToString().

Referenced by HandleReadSignalingFromApp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartApplication()

void ns3::QKDApp014::StartApplication ( void )

privatevirtual

   APPLICATION functions

Reimplemented from ns3::Application.

Definition at line 953 of file qkd-app-014.cc.

References AppTransitionTree(), GetAppStateString(), INITIALIZED, m_aesLifetime, m_appState, m_authenticationTagLengthInBits, m_authenticationTypeInt, m_encryptionTypeInt, m_local, m_master, m_packetSize, m_packetsSent, m_peer, NS_FATAL_ERROR, NS_LOG_FUNCTION, PrepareSinkSocketFromApp(), and SetEncryptionAndAuthenticationSettings().

Here is the call graph for this function:

◆ StopApplication()

void ns3::QKDApp014::StopApplication ( void )

privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 992 of file qkd-app-014.cc.

References ns3::Simulator::Cancel(), ns3::Socket::Close(), InitializeAppKeyBuffer(), ns3::EventId::IsRunning(), m_sendDataSocketApp, m_sendEvent, m_sendSignalingSocketApp, m_sendSocketToKMS, m_sinkDataSocketApp, m_sinkSignalingSocketApp, m_sinkSocketFromKMS, NS_LOG_FUNCTION, STOPPED, and SwitchAppState().

Here is the call graph for this function:

◆ SwitchAppState()

void ns3::QKDApp014::SwitchAppState ( QKDApp014::QKDApp014State state )

Change the state of the application.

Parameters

state The new application state.

Definition at line 2062 of file qkd-app-014.cc.

References GetAppStateString(), m_appState, m_stateTransitionTrace, m_transitionMatrix, NS_FATAL_ERROR, and NS_LOG_DEBUG.

Referenced by AppTransitionTree(), CheckAppState(), ProcessDataPacketFromApp(), SendPacket(), Setup(), and StopApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_aesLifetime

uint64_t ns3::QKDApp014::m_aesLifetime

private

The AES key lifetime.

Definition at line 755 of file qkd-app-014.h.

Referenced by GetTypeId(), ProcessGetKeyResponse(), ProcessGetKeyWithKeyIDsResponse(), and StartApplication().

◆ m_appKeyBuffer

QKDApp014KeyBuffer ns3::QKDApp014::m_appKeyBuffer

private

The application key buffer.

Definition at line 732 of file qkd-app-014.h.

Referenced by AddAuthKeyInKeyStore(), AddEncKeyInKeyStore(), AddKeyInInboundKeyStore(), CheckAppBufferState(), CheckAppState(), GetKeyFromAppKeyBuffer(), InitializeAppKeyBuffer(), PrintAppBufferStatusInformation(), PrintTemporaryKeyStoreContent(), ProcessGetKeyResponse(), ProcessSignalingPacketFromApp(), and RemoveKeysFromTemporaryKeyStore().

◆ m_applicationCounts

uint32_t ns3::QKDApp014::m_applicationCounts = 0

staticprivate

The number of running applications.

Definition at line 745 of file qkd-app-014.h.

Referenced by QKDApp014(), and Setup().

◆ m_appState

QKDApp014State ns3::QKDApp014::m_appState

private

The application state.

Definition at line 766 of file qkd-app-014.h.

Referenced by AppTransitionTree(), CheckAppState(), DataPacketReceivedFromApp(), GetAppState(), GetAppStateString(), ScheduleTx(), SendPacket(), Setup(), StartApplication(), and SwitchAppState().

◆ m_authenticationTagLengthInBits

uint32_t ns3::QKDApp014::m_authenticationTagLengthInBits

private

The size of the authentication tag in bits (32 by default).

Definition at line 754 of file qkd-app-014.h.

Referenced by GetTypeId(), ProcessDataPacketFromApp(), and StartApplication().

◆ m_authenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDApp014::m_authenticationTrace

private

A trace callback for the authentication event.

Definition at line 758 of file qkd-app-014.h.

Referenced by GetTypeId(), and SendPacket().

◆ m_authenticationType

QKDEncryptor::AuthenticationType ns3::QKDApp014::m_authenticationType

private

The authentication algorithm.

Definition at line 761 of file qkd-app-014.h.

Referenced by GetAuthenticationKeySize(), SendPacket(), and SetEncryptionAndAuthenticationSettings().

◆ m_authenticationTypeInt

uint32_t ns3::QKDApp014::m_authenticationTypeInt

private

The authentication algorithm.

Definition at line 753 of file qkd-app-014.h.

Referenced by GetTypeId(), and StartApplication().

◆ m_buffer_kms

std::unordered_map<Address, Ptr<Packet>, AddressHash> ns3::QKDApp014::m_buffer_kms

private

The buffer for the received packets from the KMS (fragmentation).

Definition at line 768 of file qkd-app-014.h.

Referenced by PacketReceivedFromKMS(), and SignalingPacketReceivedFromApp().

◆ m_buffer_QKDApp014

std::unordered_map<Address, Ptr<Packet>, AddressHash> ns3::QKDApp014::m_buffer_QKDApp014

private

The buffer for received data packets (fragmentation).

Definition at line 770 of file qkd-app-014.h.

Referenced by DataPacketReceivedFromApp().

◆ m_buffer_sig

std::unordered_map<Address, Ptr<Packet>, AddressHash> ns3::QKDApp014::m_buffer_sig

private

The buffer for the received signaling packets (fragmentation).

Definition at line 769 of file qkd-app-014.h.

◆ m_dataRate

DataRate ns3::QKDApp014::m_dataRate

private

The application data rate.

Definition at line 720 of file qkd-app-014.h.

Referenced by ScheduleTx(), and Setup().

◆ m_dataSent

uint32_t ns3::QKDApp014::m_dataSent

private

The amount of the sent data.

Definition at line 723 of file qkd-app-014.h.

Referenced by ExchangeInfoMessages(), and SendPacket().

◆ m_deauthenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDApp014::m_deauthenticationTrace

private

A trace callback for the authentication check event.

Definition at line 759 of file qkd-app-014.h.

Referenced by GetTypeId().

◆ m_decryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDApp014::m_decryptionTrace

private

A trace callback for the decryption event.

Definition at line 757 of file qkd-app-014.h.

Referenced by GetTypeId().

◆ m_dstSaeId

UUID ns3::QKDApp014::m_dstSaeId

private

The peer application identifier.

Definition at line 740 of file qkd-app-014.h.

Referenced by DataPacketReceivedFromApp(), SendPacket(), and Setup().

◆ m_encryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDApp014::m_encryptionTrace

private

A trace callback for the encryption event.

Definition at line 756 of file qkd-app-014.h.

Referenced by GetTypeId().

◆ m_encryptionType

QKDEncryptor::EncryptionType ns3::QKDApp014::m_encryptionType

private

The encryption algorithm.

Definition at line 760 of file qkd-app-014.h.

Referenced by GetEncryptionKeySize(), ProcessGetKeyResponse(), SendPacket(), and SetEncryptionAndAuthenticationSettings().

◆ m_encryptionTypeInt

uint32_t ns3::QKDApp014::m_encryptionTypeInt

private

The encryption algorithm.

Definition at line 752 of file qkd-app-014.h.

Referenced by GetKeyFromAppKeyBuffer(), GetTypeId(), and StartApplication().

◆ m_encryptor

Ptr<QKDEncryptor> ns3::QKDApp014::m_encryptor

private

The QKD encryptor.

Definition at line 762 of file qkd-app-014.h.

Referenced by ProcessDataPacketFromApp(), ProcessGetKeyResponse(), ProcessGetKeyWithKeyIDsResponse(), SendPacket(), and SetEncryptionAndAuthenticationSettings().

◆ m_httpRequestsApp

std::vector<std::vector<std::string> > ns3::QKDApp014::m_httpRequestsApp

private

A vector of HTTP requests sent to the peer application.

Definition at line 737 of file qkd-app-014.h.

Referenced by MemoriesRequestApp(), ProcessSignalingPacketFromApp(), and RequestProcessedApp().

◆ m_httpRequestsKMS

std::vector<std::pair<uint32_t, uint32_t> > ns3::QKDApp014::m_httpRequestsKMS

private

A vector of HTTP requests set to the KMS.

Definition at line 736 of file qkd-app-014.h.

Referenced by GetETSIMethod(), GetKeyType(), MemoriesRequestKMS(), and RequestProcessedKMS().

◆ m_id

UUID ns3::QKDApp014::m_id

private

The application identifier.

Definition at line 739 of file qkd-app-014.h.

Referenced by QKDApp014(), and GetId().

◆ m_internalAppWait

bool ns3::QKDApp014::m_internalAppWait

private

The indicator for the longer wait (used after the GetKey error!).

Definition at line 772 of file qkd-app-014.h.

Referenced by CheckAppBufferState(), ProcessSignalingPacketFromApp(), ScheduleAction(), and Setup().

◆ m_keyIDs

nlohmann::json ns3::QKDApp014::m_keyIDs

private

The latest received key identifiers from the sender application.

Definition at line 733 of file qkd-app-014.h.

Referenced by GetKeyWithKeyIDs(), and ProcessSignalingPacketFromApp().

◆ m_kms

Address ns3::QKDApp014::m_kms

private

The local KMS address.

Definition at line 715 of file qkd-app-014.h.

Referenced by GetKeysFromKMS(), GetKeyWithKeyIDs(), GetStatusFromKMS(), PrepareSendSocketToKMS(), and Setup().

◆ m_ksid_auth

UUID ns3::QKDApp014::m_ksid_auth

private

The authentication key stream identifier.

Definition at line 743 of file qkd-app-014.h.

Referenced by GetKeysFromKMS(), GetStatusFromKMS(), and SetKsidAuthentication().

◆ m_ksid_enc

UUID ns3::QKDApp014::m_ksid_enc

private

The encryption key stream identifier.

Definition at line 742 of file qkd-app-014.h.

Referenced by GetKeysFromKMS(), GetStatusFromKMS(), and SetKsidEncryption().

◆ m_local

Address ns3::QKDApp014::m_local

private

The local address for the data transmission.

Definition at line 712 of file qkd-app-014.h.

Referenced by PrepareSinkSocketFromApp(), Setup(), and StartApplication().

◆ m_localSignaling

Address ns3::QKDApp014::m_localSignaling

private

The local address for the signaling data transmission.

Definition at line 713 of file qkd-app-014.h.

Referenced by PrepareSinkSocketFromApp(), and Setup().

◆ m_master

uint32_t ns3::QKDApp014::m_master

private

Is a master (sender/primary) application?

Definition at line 725 of file qkd-app-014.h.

Referenced by AppTransitionTree(), CheckAppBufferState(), DataPacketReceivedFromApp(), ExchangeInfoMessages(), GetKeysFromKMS(), GetKeyWithKeyIDs(), ProcessDataPacketFromApp(), ProcessSignalingPacketFromApp(), Setup(), and StartApplication().

◆ m_mxTrace

TracedCallback<Ptr<const Packet>, std::string > ns3::QKDApp014::m_mxTrace

A trace for the missed time slots to send data packets.

Definition at line 586 of file qkd-app-014.h.

Referenced by GetTypeId(), and SendPacket().

◆ m_numberOfKeysKMS

uint32_t ns3::QKDApp014::m_numberOfKeysKMS

private

The number of keys to fetch per request.

Definition at line 748 of file qkd-app-014.h.

Referenced by GetKeysFromKMS(), and GetTypeId().

◆ m_obtainedKeyMaterialTrace

TracedCallback<const uint32_t&> ns3::QKDApp014::m_obtainedKeyMaterialTrace

private

A trace callback for the obtained key material.

Definition at line 764 of file qkd-app-014.h.

Referenced by GetTypeId(), ProcessGetKeyResponse(), and ProcessGetKeyWithKeyIDsResponse().

◆ m_packetSize

uint32_t ns3::QKDApp014::m_packetSize

private

The data packet size.

Definition at line 719 of file qkd-app-014.h.

Referenced by GetEncryptionKeySize(), GetKeyFromAppKeyBuffer(), GetPacketContent(), ProcessDataPacketFromApp(), ProcessGetKeyResponse(), ScheduleTx(), Setup(), and StartApplication().

◆ m_packetsSent

uint32_t ns3::QKDApp014::m_packetsSent

private

The number of sent data packets.

Definition at line 722 of file qkd-app-014.h.

Referenced by ExchangeInfoMessages(), SendPacket(), and StartApplication().

◆ m_peer

Address ns3::QKDApp014::m_peer

private

The address of the peer for the data transmission.

Definition at line 709 of file qkd-app-014.h.

Referenced by PrepareSendSocketToApp(), Setup(), and StartApplication().

◆ m_peerSignaling

Address ns3::QKDApp014::m_peerSignaling

private

The address of the peer for the signaling data transmission.

Definition at line 710 of file qkd-app-014.h.

Referenced by PrepareSendSocketToApp(), and Setup().

◆ m_random

Ptr<UniformRandomVariable> ns3::QKDApp014::m_random

private

The uniform random variable.

Definition at line 730 of file qkd-app-014.h.

Referenced by QKDApp014(), and GetPacketContent().

◆ m_rxKmsTrace

TracedCallback<Ptr<const Packet> > ns3::QKDApp014::m_rxKmsTrace

A trace for received packets from the KMS.

Definition at line 584 of file qkd-app-014.h.

Referenced by GetTypeId(), and PacketReceivedFromKMS().

◆ m_rxSigTrace

TracedCallback<Ptr<const Packet> > ns3::QKDApp014::m_rxSigTrace

A trace for received signaling packets.

Definition at line 583 of file qkd-app-014.h.

Referenced by GetTypeId(), and SignalingPacketReceivedFromApp().

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, std::string > ns3::QKDApp014::m_rxTrace

A trace for received data packets.

Definition at line 582 of file qkd-app-014.h.

Referenced by DataPacketReceivedFromApp(), and GetTypeId().

◆ m_scheduledEvents

std::map<uint32_t, EventId > ns3::QKDApp014::m_scheduledEvents

private

The map of scheduled events.

Definition at line 773 of file qkd-app-014.h.

Referenced by CancelScheduledAction(), and ScheduleAction().

◆ m_sendDataSocketApp

Ptr<Socket> ns3::QKDApp014::m_sendDataSocketApp

private

The sending socket for the data.

Definition at line 703 of file qkd-app-014.h.

Referenced by ~QKDApp014(), PrepareSendSocketToApp(), SendPacket(), and StopApplication().

◆ m_sendEvent

EventId ns3::QKDApp014::m_sendEvent

private

The data transmission event.

Definition at line 721 of file qkd-app-014.h.

Referenced by ScheduleTx(), and StopApplication().

◆ m_sendSignalingSocketApp

Ptr<Socket> ns3::QKDApp014::m_sendSignalingSocketApp

private

The sending socket for the signaling messages.

Definition at line 701 of file qkd-app-014.h.

Referenced by ~QKDApp014(), ExchangeInfoMessages(), PrepareSendSocketToApp(), and StopApplication().

◆ m_sendSocketToKMS

Ptr<Socket> ns3::QKDApp014::m_sendSocketToKMS

private

The sending socket to the KMS.

Definition at line 706 of file qkd-app-014.h.

Referenced by ~QKDApp014(), GetKeysFromKMS(), GetKeyWithKeyIDs(), GetStatusFromKMS(), PrepareSendSocketToKMS(), and StopApplication().

◆ m_sinkDataSocketApp

Ptr<Socket> ns3::QKDApp014::m_sinkDataSocketApp

private

The receiving socket for the data.

Definition at line 704 of file qkd-app-014.h.

Referenced by ~QKDApp014(), PrepareSinkSocketFromApp(), and StopApplication().

◆ m_sinkSignalingSocketApp

Ptr<Socket> ns3::QKDApp014::m_sinkSignalingSocketApp

private

The receiving socket for the signaling messages.

Definition at line 702 of file qkd-app-014.h.

Referenced by ~QKDApp014(), ExchangeInfoMessages(), PrepareSinkSocketFromApp(), and StopApplication().

◆ m_sinkSocketFromKMS

Ptr<Socket> ns3::QKDApp014::m_sinkSocketFromKMS

private

The receiving socket from the KMS.

Definition at line 707 of file qkd-app-014.h.

Referenced by ~QKDApp014(), GetKeysFromKMS(), GetKeyWithKeyIDs(), GetStatusFromKMS(), PrepareSinkSocketFromKMS(), and StopApplication().

◆ m_socketType

std::string ns3::QKDApp014::m_socketType

private

The sockets type.

Definition at line 717 of file qkd-app-014.h.

Referenced by PrepareSendSocketToApp(), PrepareSinkSocketFromApp(), and Setup().

◆ m_stateTransitionTrace

ns3::TracedCallback<const std::string &, const std::string &> ns3::QKDApp014::m_stateTransitionTrace

The posible application state transitions.

Definition at line 585 of file qkd-app-014.h.

Referenced by GetTypeId(), and SwitchAppState().

◆ m_tid

TypeId ns3::QKDApp014::m_tid

private

The type identifier.

Definition at line 724 of file qkd-app-014.h.

Referenced by GetTypeId().

◆ m_transitionMatrix

std::multimap<std::string, std::string> ns3::QKDApp014::m_transitionMatrix

private

The map of the possible state transitions.

Definition at line 774 of file qkd-app-014.h.

Referenced by QKDApp014(), and SwitchAppState().

◆ m_txKmsTrace

TracedCallback<Ptr<const Packet> > ns3::QKDApp014::m_txKmsTrace

A trace for transmitted packets to the KMS.

Definition at line 581 of file qkd-app-014.h.

Referenced by GetKeysFromKMS(), GetKeyWithKeyIDs(), GetStatusFromKMS(), and GetTypeId().

◆ m_txSigTrace

TracedCallback<Ptr<const Packet> > ns3::QKDApp014::m_txSigTrace

A trace for transmitted signaling packets.

Definition at line 580 of file qkd-app-014.h.

Referenced by ExchangeInfoMessages(), and GetTypeId().

◆ m_txTrace

TracedCallback<Ptr<const Packet>, std::string > ns3::QKDApp014::m_txTrace

A trace for transmitted data packets.

Definition at line 579 of file qkd-app-014.h.

Referenced by GetTypeId(), and SendPacket().

◆ m_useCrypto

uint32_t ns3::QKDApp014::m_useCrypto

private

Execute actual cryptographic algorithms?

Definition at line 751 of file qkd-app-014.h.

Referenced by GetTypeId(), ProcessDataPacketFromApp(), and SendPacket().

◆ m_waitInsufficient

Time ns3::QKDApp014::m_waitInsufficient

private

The amount of time spent waiting before issuing a new GET_KEY request when the previous one resulted in an error "inssuficient amount of keys".

Definition at line 727 of file qkd-app-014.h.

Referenced by GetTypeId(), and ProcessGetKeyResponse().

◆ m_waitTransform

Time ns3::QKDApp014::m_waitTransform

private

The amount of time spent waiting before issuing a new GET_KEY request when the previous one resulted in an error "keys are being transformed".

Definition at line 728 of file qkd-app-014.h.

Referenced by GetTypeId(), and ProcessGetKeyResponse().

The documentation for this class was generated from the following files:

src/applications/model/qkd-app-014.h
src/applications/model/qkd-app-014.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Application

TraceSources

Member Enumeration Documentation

◆ QKDApp014State

Constructor & Destructor Documentation

◆ QKDApp014()

◆ ~QKDApp014()

Member Function Documentation

◆ AddAuthKeyInKeyStore()

◆ AddEncKeyInKeyStore()

◆ AddKeyInInboundKeyStore()

◆ AppTransitionTree()

◆ CancelScheduledAction()

◆ CheckAppBufferState()

◆ CheckAppState()

◆ ConnectionRequestedFromKMS()

◆ ConnectionSignalingToAppFailed()

◆ ConnectionSignalingToAppSucceeded()

◆ ConnectionToAppFailed()

◆ ConnectionToAppSucceeded()

◆ ConnectionToKMSFailed()

◆ ConnectionToKMSSucceeded()

◆ CreateKeyIdField()

◆ DataPacketReceivedFromApp()

◆ DataToKMSSend()

◆ ExchangeInfoMessages()

◆ GetAppState()

◆ GetAppStateString() [1/2]

◆ GetAppStateString() [2/2]

◆ GetAuthenticationKeySize()

◆ GetEncryptionKeySize()

◆ GetETSIMethod()

◆ GetId()

◆ GetKeyFromAppKeyBuffer() [1/2]

◆ GetKeyFromAppKeyBuffer() [2/2]

◆ GetKeysFromKMS()

◆ GetKeyType()

◆ GetKeyWithKeyIDs()

◆ GetPacketContent()

◆ GetStatusFromKMS()

◆ GetTypeId()

◆ HandleAcceptFromApp()

◆ HandleAcceptFromKMS()

◆ HandleAcceptSignalingFromApp()

◆ HandlePeerCloseFromApp()

◆ HandlePeerCloseFromKMS()

◆ HandlePeerCloseSignalingFromApp()

◆ HandlePeerErrorFromApp()

◆ HandlePeerErrorFromKMS()

◆ HandlePeerErrorSignalingFromApp()

◆ HandleReadFromApp()

◆ HandleReadFromKMS()

◆ HandleReadSignalingFromApp()

◆ InitializeAppKeyBuffer()

◆ MemoriesRequestApp()

◆ MemoriesRequestKMS()

◆ PacketReceivedFromKMS()

◆ PrepareSendSocketToApp()

◆ PrepareSendSocketToKMS()

◆ PrepareSinkSocketFromApp()

◆ PrepareSinkSocketFromKMS()

◆ PrintAppBufferStatusInformation()

◆ PrintTemporaryKeyStoreContent()

◆ ProcessDataPacketFromApp()

◆ ProcessGetKeyResponse()

◆ ProcessGetKeyWithKeyIDsResponse()

◆ ProcessResponseFromKMS()

◆ ProcessSignalingPacketFromApp()
