#include "ss-scheduler.h"

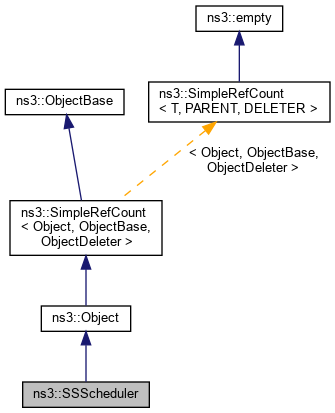

Inheritance diagram for ns3::SSScheduler:

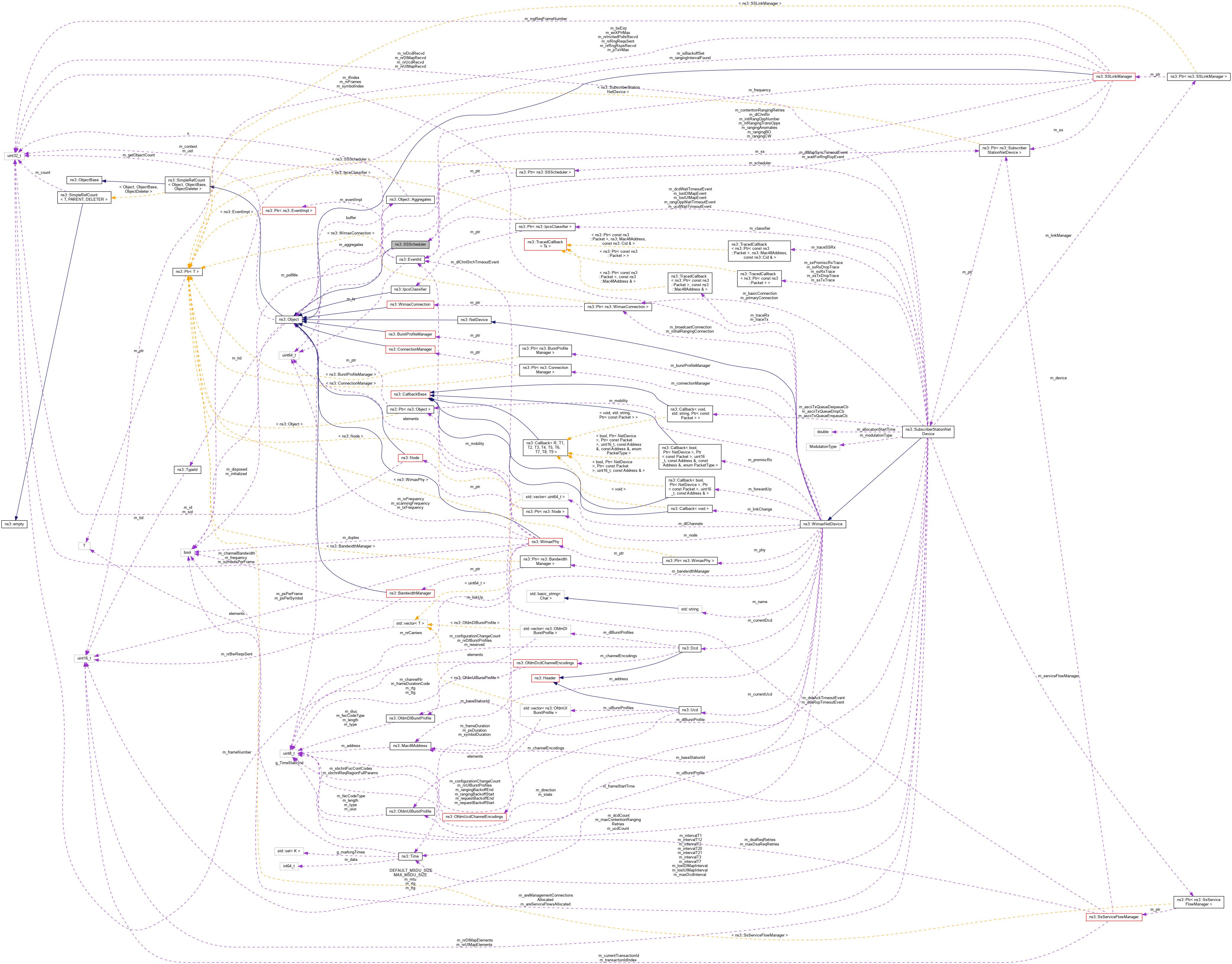

Collaboration diagram for ns3::SSScheduler:

Public Member Functions
	SSScheduler (Ptr< SubscriberStationNetDevice > ss)
	Constructor. More...

	~SSScheduler (void)

void	DoDispose (void)
	Destructor implementation. More...

bool	GetPollMe (void) const
	Get the poll me value. More...

Ptr< PacketBurst >	Schedule (uint16_t availableSymbols, WimaxPhy::ModulationType modulationType, MacHeaderType::HeaderType packetType, Ptr< WimaxConnection > &connection)

void	SetPollMe (bool pollMe)
	Set poll me value. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	SSScheduler (const SSScheduler &)
	type conversion operator More...

SSScheduler &	operator= (const SSScheduler &)
	assignment operator More...

Ptr< WimaxConnection >	SelectConnection (void)
	Select connection. More...

Private Attributes
bool	m_pollMe
	poll me flag More...

Ptr< SubscriberStationNetDevice >	m_ss
	the subscriber station More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Parameters

SSScheduler class

Config Paths

ns3::SSScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 41 of file ss-scheduler.h.

Constructor & Destructor Documentation

◆ SSScheduler() [1/2]

ns3::SSScheduler::SSScheduler ( Ptr< SubscriberStationNetDevice > ss )

Constructor.

Parameters

ss	subscriber station device

Definition at line 48 of file ss-scheduler.cc.

◆ ~SSScheduler()

ns3::SSScheduler::~SSScheduler ( void )

Definition at line 54 of file ss-scheduler.cc.

◆ SSScheduler() [2/2]

ns3::SSScheduler::SSScheduler ( const SSScheduler & )

private

type conversion operator

Member Function Documentation

◆ DoDispose()

void ns3::SSScheduler::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file ss-scheduler.cc.

References m_ss.

◆ GetPollMe()

bool ns3::SSScheduler::GetPollMe ( void ) const

Get the poll me value.

Returns: the poll me flag

Definition at line 71 of file ss-scheduler.cc.

References m_pollMe.

◆ GetTypeId()

TypeId ns3::SSScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file ss-scheduler.cc.

References ns3::TypeId::SetParent().

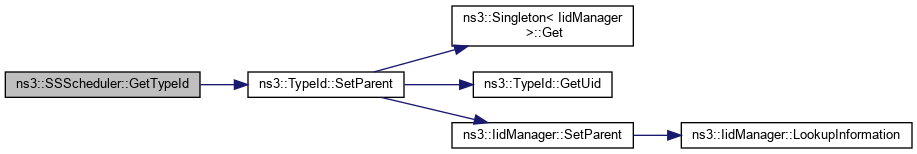

Here is the call graph for this function:

◆ operator=()

SSScheduler& ns3::SSScheduler::operator= ( const SSScheduler & )

private

assignment operator

Returns: the SS scheduler

◆ Schedule()

Ptr< PacketBurst > ns3::SSScheduler::Schedule	(	uint16_t	availableSymbols,
		WimaxPhy::ModulationType	modulationType,
		MacHeaderType::HeaderType	packetType,
		Ptr< WimaxConnection > &	connection
	)

Returns: a list of packet to be sent in the next opportunity

Parameters

availableSymbols	the available resources in symbols
modulationType	the used modulation
packetType	the type of packets to select from
connection	the connection from which packets will be selected

Definition at line 77 of file ss-scheduler.cc.

References ns3::Packet::GetSize(), m_ss, NS_ASSERT_MSG, NS_LOG_INFO, SelectConnection(), and ns3::Cid::TRANSPORT.

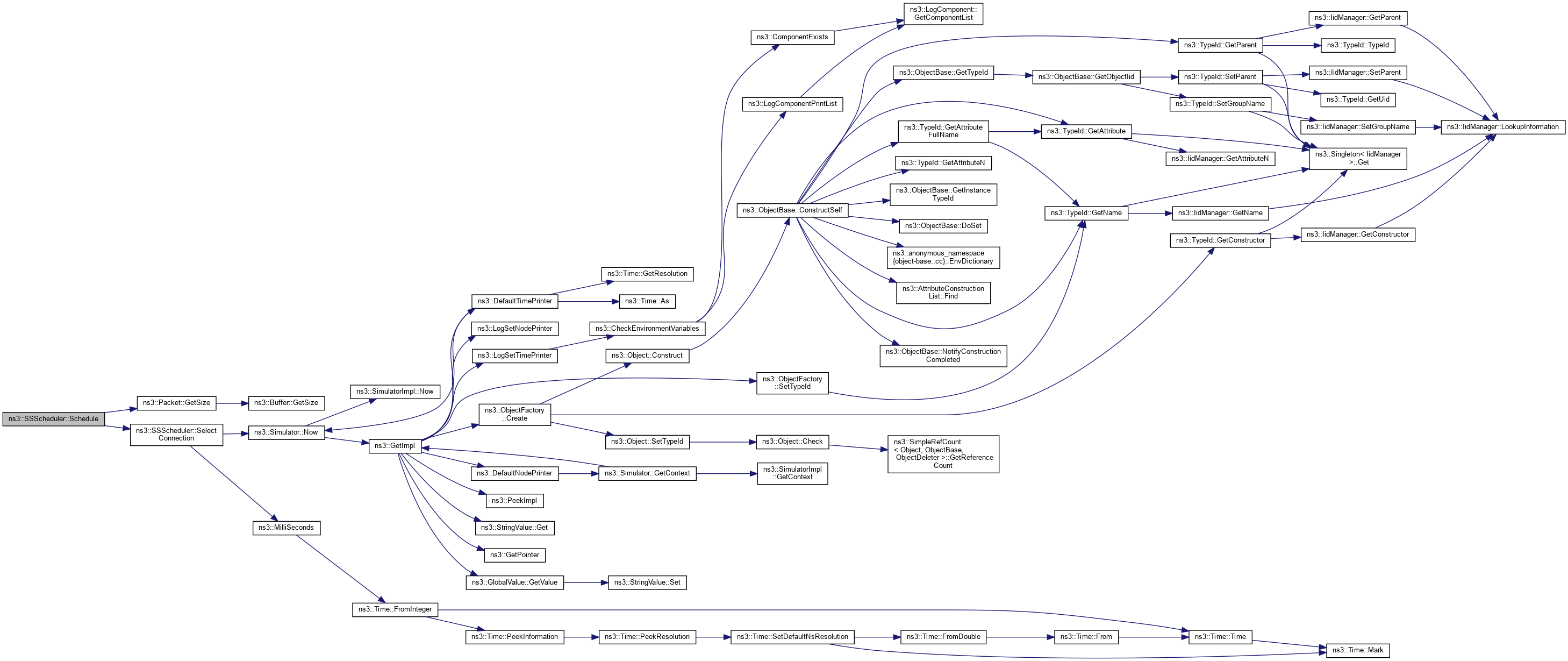

Here is the call graph for this function:

◆ SelectConnection()

Ptr< WimaxConnection > ns3::SSScheduler::SelectConnection ( void )

private

Select connection.

Returns: pointer to the wimax connection

Definition at line 167 of file ss-scheduler.cc.

References ns3::MacHeaderType::HEADER_TYPE_GENERIC, m_ss, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_LOG_INFO, ns3::ServiceFlow::SF_TYPE_BE, ns3::ServiceFlow::SF_TYPE_NRTPS, ns3::ServiceFlow::SF_TYPE_RTPS, and ns3::ServiceFlow::SF_TYPE_UGS.

Referenced by Schedule().

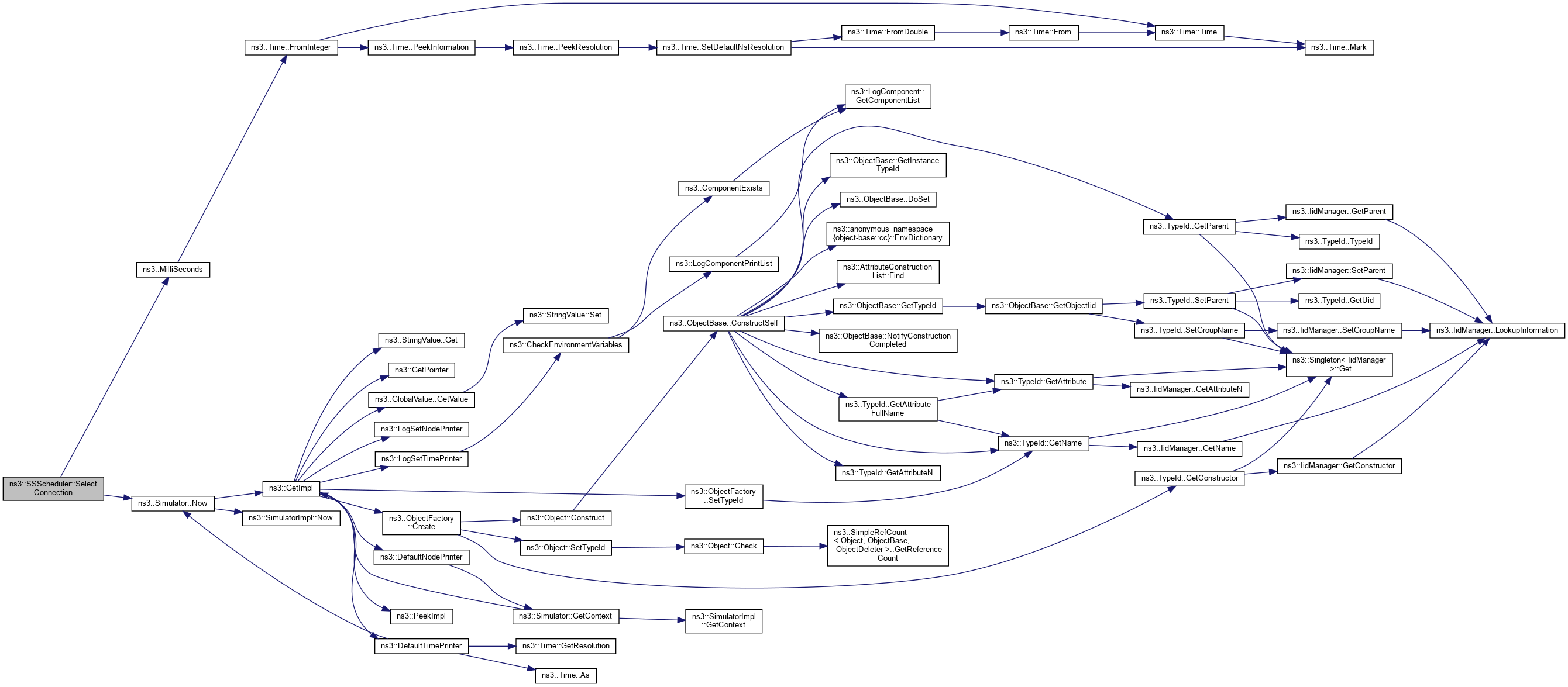

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPollMe()

void ns3::SSScheduler::SetPollMe ( bool pollMe )

Set poll me value.

Parameters

pollMe the poll me flag

Definition at line 65 of file ss-scheduler.cc.

References m_pollMe.

Member Data Documentation

◆ m_pollMe

bool ns3::SSScheduler::m_pollMe

private

poll me flag

Definition at line 97 of file ss-scheduler.h.

Referenced by GetPollMe(), and SetPollMe().

◆ m_ss

Ptr<SubscriberStationNetDevice> ns3::SSScheduler::m_ss

private

the subscriber station

Definition at line 96 of file ss-scheduler.h.

Referenced by DoDispose(), Schedule(), and SelectConnection().

The documentation for this class was generated from the following files:

src/wimax/model/ss-scheduler.h
src/wimax/model/ss-scheduler.cc
