Class to represent WiMAX connections. More...

#include "wimax-connection.h"

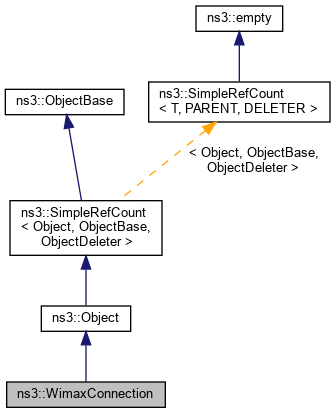

Inheritance diagram for ns3::WimaxConnection:

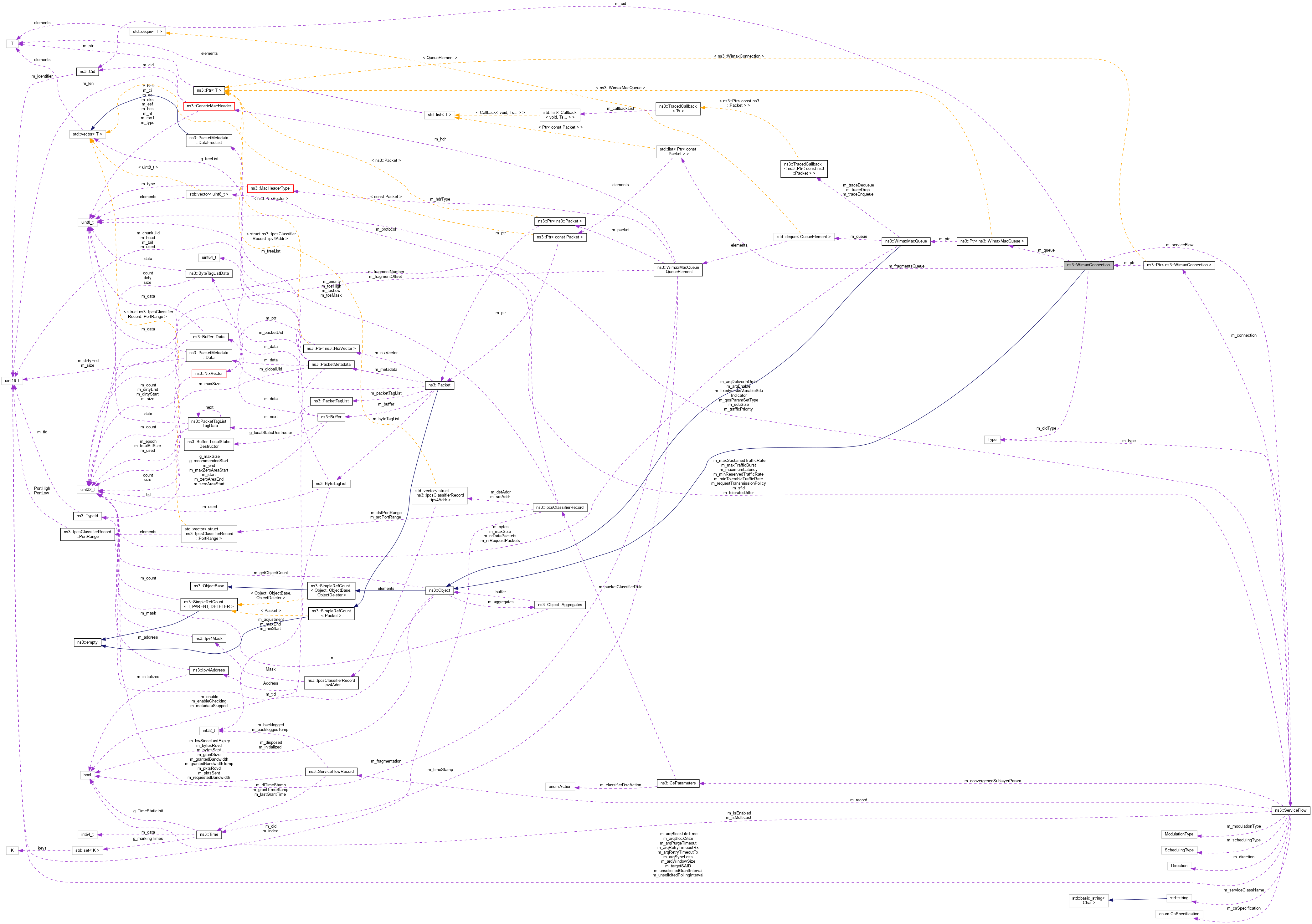

Collaboration diagram for ns3::WimaxConnection:

Public Types
typedef std::list< Ptr< const Packet > >	FragmentsQueue
	Definition of Fragments Queue data type. More...

Public Member Functions
	WimaxConnection (Cid cid, enum Cid::Type type)
	Constructor. More...

	~WimaxConnection (void)

void	ClearFragmentsQueue (void)
	delete all enqueued fragments More...

Ptr< Packet >	Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte)
	dequeue a packet from the queue of the connection Dequeue the first packet in the queue if its size is lower than availableByte, the first availableByte of the first packet otherwise More...

Ptr< Packet >	Dequeue (MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC)
	dequeue a packet from the queue of the connection More...

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr)
	enqueue a packet in the queue of the connection More...

void	FragmentEnqueue (Ptr< const Packet > fragment)
	enqueue a received packet (that is a fragment) into the fragments queue More...

Cid	GetCid (void) const
	Get CID function. More...

const FragmentsQueue	GetFragmentsQueue (void) const
	get a queue of received fragments More...

Ptr< WimaxMacQueue >	GetQueue (void) const

uint8_t	GetSchedulingType (void) const

ServiceFlow *	GetServiceFlow (void) const

enum Cid::Type	GetType (void) const
	Get type function. More...

std::string	GetTypeStr (void) const
	Get type string. More...

bool	HasPackets (MacHeaderType::HeaderType packetType) const

bool	HasPackets (void) const

void	SetServiceFlow (ServiceFlow *serviceFlow)
	set the service flow associated to this connection More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Private Attributes
Cid	m_cid
	CID. More...

enum Cid::Type	m_cidType
	CID type. More...

FragmentsQueue	m_fragmentsQueue
	fragments queue More...

Ptr< WimaxMacQueue >	m_queue
	queue More...

ServiceFlow *	m_serviceFlow
	service flow More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Class to represent WiMAX connections.

Config Paths

ns3::WimaxConnection is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection"

Attributes

Type: Connection type
- Set with class: ns3::EnumValue
- Underlying type:
- Flags: read
TxQueue: Transmit queue
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxMacQueue>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 42 of file wimax-connection.h.

Member Typedef Documentation

◆ FragmentsQueue

typedef std::list<Ptr<const Packet> > ns3::WimaxConnection::FragmentsQueue

Definition of Fragments Queue data type.

Definition at line 132 of file wimax-connection.h.

Constructor & Destructor Documentation

◆ WimaxConnection()

ns3::WimaxConnection::WimaxConnection	(	Cid	cid,
		enum Cid::Type	type
	)

Constructor.

Parameters

cid	connection ID
type	CID type

Definition at line 67 of file wimax-connection.cc.

◆ ~WimaxConnection()

ns3::WimaxConnection::~WimaxConnection ( void )

Definition at line 75 of file wimax-connection.cc.

Member Function Documentation

◆ ClearFragmentsQueue()

void ns3::WimaxConnection::ClearFragmentsQueue ( void )

delete all enqueued fragments

Definition at line 197 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ Dequeue() [1/2]

Ptr< Packet > ns3::WimaxConnection::Dequeue	(	MacHeaderType::HeaderType	packetType,
		uint32_t	availableByte
	)

dequeue a packet from the queue of the connection Dequeue the first packet in the queue if its size is lower than availableByte, the first availableByte of the first packet otherwise

Parameters

packetType	the type of the packet to dequeue
availableByte	the number of available bytes

Returns: packet dequeued

Definition at line 136 of file wimax-connection.cc.

References m_queue.

◆ Dequeue() [2/2]

Ptr< Packet > ns3::WimaxConnection::Dequeue ( MacHeaderType::HeaderType packetType = MacHeaderType::HEADER_TYPE_GENERIC )

dequeue a packet from the queue of the connection

Parameters

packetType the type of the packet to dequeue

Returns: packet dequeued

Definition at line 130 of file wimax-connection.cc.

References m_queue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WimaxConnection::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 80 of file wimax-connection.cc.

References m_queue.

◆ Enqueue()

bool ns3::WimaxConnection::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		const GenericMacHeader &	hdr
	)

enqueue a packet in the queue of the connection

Parameters

packet	the packet to be enqueued
hdrType	the header type of the packet
hdr	the header of the packet

Returns: true if successful

Definition at line 123 of file wimax-connection.cc.

References m_queue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ FragmentEnqueue()

void ns3::WimaxConnection::FragmentEnqueue ( Ptr< const Packet > fragment )

enqueue a received packet (that is a fragment) into the fragments queue

Parameters

fragment received fragment

Definition at line 191 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ GetCid()

Cid ns3::WimaxConnection::GetCid ( void ) const

Get CID function.

Returns: the CID

Definition at line 87 of file wimax-connection.cc.

References m_cid.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ GetFragmentsQueue()

const WimaxConnection::FragmentsQueue ns3::WimaxConnection::GetFragmentsQueue ( void ) const

get a queue of received fragments

Returns: the fragments queue

Definition at line 185 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

◆ GetQueue()

Ptr< WimaxMacQueue > ns3::WimaxConnection::GetQueue ( void ) const

Returns: the queue of the connection

Definition at line 99 of file wimax-connection.cc.

References m_queue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun(), and GetTypeId().

Here is the caller graph for this function:

◆ GetSchedulingType()

uint8_t ns3::WimaxConnection::GetSchedulingType ( void ) const

Returns: the scheduling type of this connection

Definition at line 117 of file wimax-connection.cc.

References ns3::ServiceFlow::GetSchedulingType(), and m_serviceFlow.

Here is the call graph for this function:

◆ GetServiceFlow()

ServiceFlow * ns3::WimaxConnection::GetServiceFlow ( void ) const

Returns: the service flow associated to this connection

Definition at line 111 of file wimax-connection.cc.

References m_serviceFlow.

◆ GetType()

enum Cid::Type ns3::WimaxConnection::GetType ( void ) const

Get type function.

Returns: the type

Definition at line 87 of file wimax-connection.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WimaxConnection::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file wimax-connection.cc.

References ns3::Cid::BASIC, ns3::Cid::BROADCAST, GetQueue(), GetType(), ns3::Cid::INITIAL_RANGING, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakePointerAccessor(), ns3::Cid::MULTICAST, ns3::Cid::PADDING, ns3::Cid::PRIMARY, ns3::TypeId::SetParent(), and ns3::Cid::TRANSPORT.

Here is the call graph for this function:

◆ GetTypeStr()

std::string ns3::WimaxConnection::GetTypeStr ( void ) const

Get type string.

Returns: the type string

Definition at line 154 of file wimax-connection.cc.

References ns3::Cid::BASIC, ns3::Cid::BROADCAST, ns3::Cid::INITIAL_RANGING, m_cidType, ns3::Cid::MULTICAST, NS_FATAL_ERROR, ns3::Cid::PRIMARY, and ns3::Cid::TRANSPORT.

◆ HasPackets() [1/2]

bool ns3::WimaxConnection::HasPackets ( MacHeaderType::HeaderType packetType ) const

Returns: true if the connection has at least one packet of type packetType in its queue, false otherwise

Parameters

packetType type of packet to check in the queue

Returns: true if packets available

Definition at line 148 of file wimax-connection.cc.

References m_queue.

◆ HasPackets() [2/2]

bool ns3::WimaxConnection::HasPackets ( void ) const

Returns: true if the connection has at least one packet in its queue, false otherwise

Definition at line 142 of file wimax-connection.cc.

References m_queue.

◆ SetServiceFlow()

void ns3::WimaxConnection::SetServiceFlow ( ServiceFlow * serviceFlow )

set the service flow associated to this connection

Parameters

serviceFlow The service flow to be associated to this connection

Definition at line 105 of file wimax-connection.cc.

References m_serviceFlow.

Member Data Documentation

◆ m_cid

Cid ns3::WimaxConnection::m_cid

private

CID.

Definition at line 151 of file wimax-connection.h.

Referenced by GetCid().

◆ m_cidType

enum Cid::Type ns3::WimaxConnection::m_cidType

private

CID type.

Definition at line 151 of file wimax-connection.h.

Referenced by GetTypeStr().

◆ m_fragmentsQueue

FragmentsQueue ns3::WimaxConnection::m_fragmentsQueue

private

fragments queue

Definition at line 157 of file wimax-connection.h.

Referenced by ClearFragmentsQueue(), FragmentEnqueue(), and GetFragmentsQueue().

◆ m_queue

Ptr<WimaxMacQueue> ns3::WimaxConnection::m_queue

private

queue

Definition at line 153 of file wimax-connection.h.

Referenced by Dequeue(), DoDispose(), Enqueue(), GetQueue(), and HasPackets().

◆ m_serviceFlow

ServiceFlow* ns3::WimaxConnection::m_serviceFlow

private

service flow

Definition at line 154 of file wimax-connection.h.

Referenced by GetSchedulingType(), GetServiceFlow(), and SetServiceFlow().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-connection.h
src/wimax/model/wimax-connection.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Member Typedef Documentation

◆ FragmentsQueue

Constructor & Destructor Documentation

◆ WimaxConnection()

◆ ~WimaxConnection()

Member Function Documentation

◆ ClearFragmentsQueue()

◆ Dequeue() [1/2]

◆ Dequeue() [2/2]

◆ DoDispose()

◆ Enqueue()

◆ FragmentEnqueue()

◆ GetCid()

◆ GetFragmentsQueue()

◆ GetQueue()

◆ GetSchedulingType()

◆ GetServiceFlow()

◆ GetType()

◆ GetTypeId()

◆ GetTypeStr()

◆ HasPackets() [1/2]

◆ HasPackets() [2/2]

◆ SetServiceFlow()

Member Data Documentation

◆ m_cid

◆ m_cidType

◆ m_fragmentsQueue

◆ m_queue

◆ m_serviceFlow
