Channel Matrix Generation following 3GPP TR 38.901. More...

#include "three-gpp-channel-model.h"

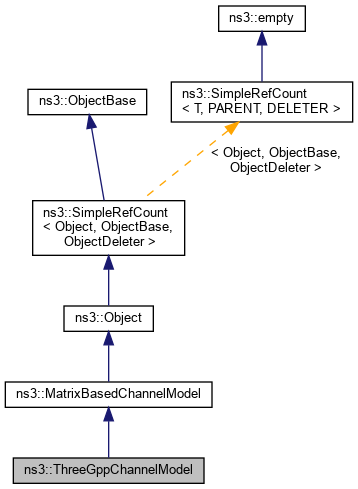

Inheritance diagram for ns3::ThreeGppChannelModel:

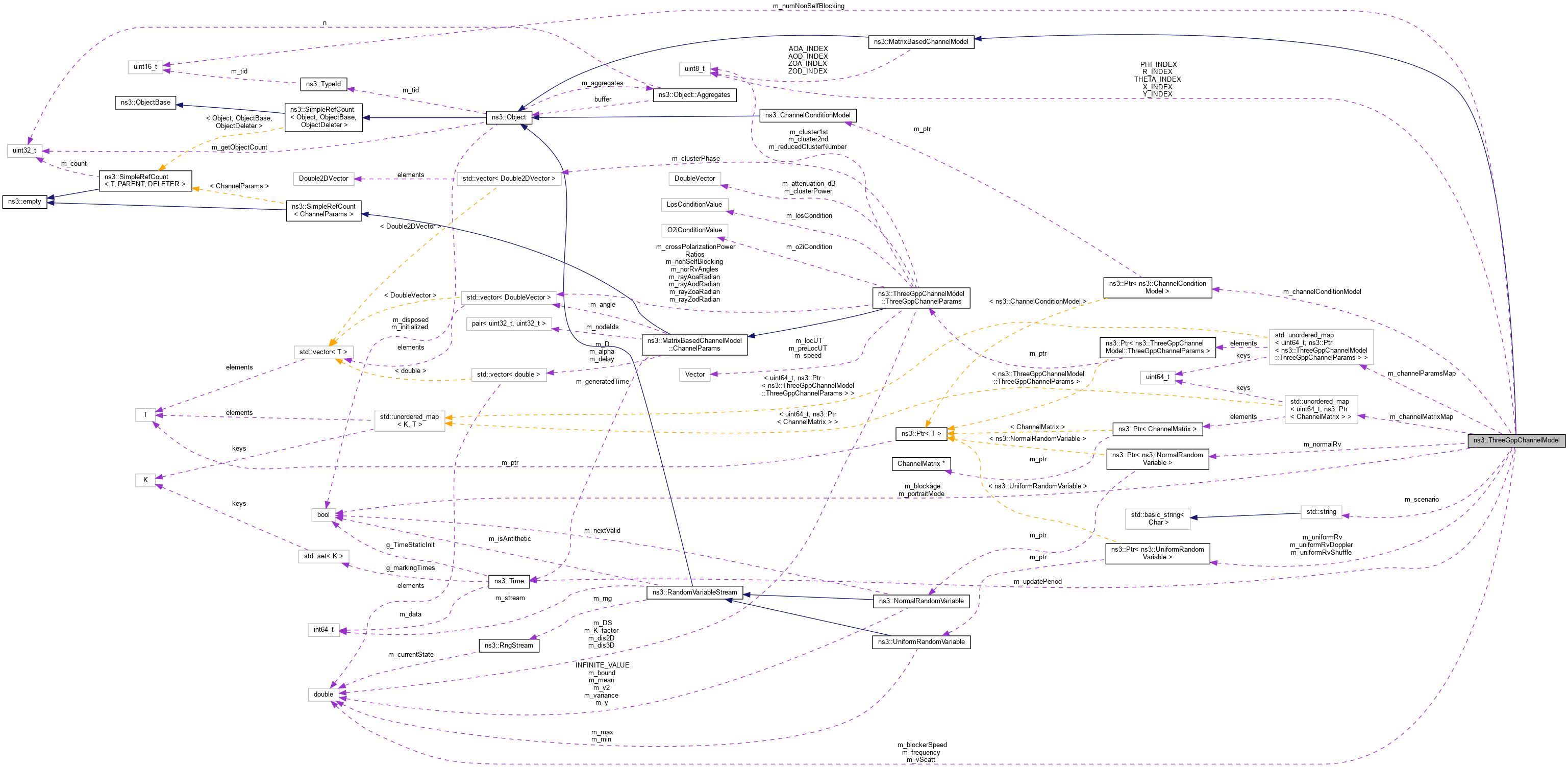

Collaboration diagram for ns3::ThreeGppChannelModel:

Classes
struct	ParamsTable
	Data structure that stores the parameters of 3GPP TR 38.901, Table 7.5-6, for a certain scenario. More...

struct	ThreeGppChannelParams
	Extends the struct ChannelParams by including information that is used within the ThreeGppChannelModel class. More...

Public Member Functions
	ThreeGppChannelModel ()
	Constructor. More...

	~ThreeGppChannelModel ()
	Destructor. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoDispose () override
	Destructor implementation. More...

Ptr< const ChannelMatrix >	GetChannel (Ptr< const MobilityModel > aMob, Ptr< const MobilityModel > bMob, Ptr< const PhasedArrayModel > aAntenna, Ptr< const PhasedArrayModel > bAntenna) override
	Looks for the channel matrix associated to the aMob and bMob pair in m_channelMatrixMap. More...

Ptr< ChannelConditionModel >	GetChannelConditionModel () const
	Get the associated channel condition model. More...

double	GetFrequency (void) const
	Returns the center frequency. More...

Ptr< const ChannelParams >	GetParams (Ptr< const MobilityModel > aMob, Ptr< const MobilityModel > bMob) const override
	Looks for the channel params associated to the aMob and bMob pair in m_channelParamsMap. More...

std::string	GetScenario (void) const
	Returns the propagation scenario. More...

void	SetChannelConditionModel (Ptr< ChannelConditionModel > model)
	Set the channel condition model. More...

void	SetFrequency (double f)
	Sets the center frequency of the model. More...

void	SetScenario (const std::string &scenario)
	Sets the propagation scenario. More...

Public Member Functions inherited from ns3::MatrixBasedChannelModel
virtual	~MatrixBasedChannelModel ()
	Destructor for MatrixBasedChannelModel. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MatrixBasedChannelModel
static uint64_t	GetKey (uint32_t a, uint32_t b)
	Generate a unique value for the pair of unsigned integer of 32 bits, where the order does not matter, i.e., the same value will be returned for (a,b) and (b,a). More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
DoubleVector	CalcAttenuationOfBlockage (const Ptr< ThreeGppChannelModel::ThreeGppChannelParams > channelParams, const DoubleVector &clusterAOA, const DoubleVector &clusterZOA) const
	Applies the blockage model A described in 3GPP TR 38.901. More...

bool	ChannelMatrixNeedsUpdate (Ptr< const ThreeGppChannelParams > channelParams, Ptr< const ChannelMatrix > channelMatrix)
	Check if the channel matrix has to be updated (it needs update when the channel params generation time is more recent than channel matrix generation time. More...

bool	ChannelParamsNeedsUpdate (Ptr< const ThreeGppChannelParams > channelParams, Ptr< const ChannelCondition > channelCondition) const
	Check if the channel params has to be updated. More...

Ptr< ThreeGppChannelParams >	GenerateChannelParameters (const Ptr< const ChannelCondition > channelCondition, const Ptr< const ParamsTable > table3gpp, const Ptr< const MobilityModel > aMob, const Ptr< const MobilityModel > bMob) const
	Prepare 3gpp channel parameters among the nodes a and b. More...

virtual Ptr< ChannelMatrix >	GetNewChannel (Ptr< const ThreeGppChannelParams > channelParams, Ptr< const ParamsTable > table3gpp, const Ptr< const MobilityModel > sMob, const Ptr< const MobilityModel > uMob, Ptr< const PhasedArrayModel > sAntenna, Ptr< const PhasedArrayModel > uAntenna) const
	Compute the channel matrix between two nodes a and b, and their antenna arrays aAntenna and bAntenna using the procedure described in 3GPP TR 38.901. More...

virtual Ptr< const ParamsTable >	GetThreeGppTable (Ptr< const ChannelCondition > channelCondition, double hBS, double hUT, double distance2D) const
	Get the parameters needed to apply the channel generation procedure. More...

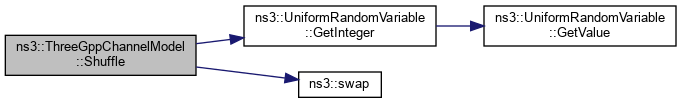

void	Shuffle (double first, double last) const
	Shuffle the elements of a simple sequence container of type double. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Static Protected Member Functions
static std::pair< double, double >	WrapAngles (double azimuthRad, double inclinationRad)
	Wrap an (azimuth, inclination) angle pair in a valid range. More...

Protected Attributes
bool	m_blockage
	enables the blockage model A More...

double	m_blockerSpeed
	the blocker speed More...

Ptr< ChannelConditionModel >	m_channelConditionModel
	the channel condition model More...

std::unordered_map< uint64_t, Ptr< ChannelMatrix > >	m_channelMatrixMap
	map containing the channel realizations per pair of PhasedAntennaArray instances, the key of this map is reciprocal uniquely identifies a pair of PhasedAntennaArrays More...

std::unordered_map< uint64_t, Ptr< ThreeGppChannelParams > >	m_channelParamsMap
	map containing the common channel parameters per pair of nodes, the key of this map is reciprocal and uniquely identifies a pair of nodes More...

double	m_frequency
	the operating frequency More...

Ptr< NormalRandomVariable >	m_normalRv
	normal random variable More...

uint16_t	m_numNonSelfBlocking
	number of non-self-blocking regions More...

bool	m_portraitMode
	true if potrait mode, false if landscape More...

std::string	m_scenario
	the 3GPP scenario More...

Ptr< UniformRandomVariable >	m_uniformRv
	uniform random variable More...

Ptr< UniformRandomVariable >	m_uniformRvDoppler
	uniform random variable, used to compute the additional Doppler contribution More...

Ptr< UniformRandomVariable >	m_uniformRvShuffle
	uniform random variable used to shuffle array in GetNewChannel More...

Time	m_updatePeriod
	the channel update period More...

double	m_vScatt
	value used to compute the additional Doppler contribution for the delayed paths More...

Static Protected Attributes
static const uint8_t	PHI_INDEX = 0
	index of the PHI value in the m_nonSelfBlocking array More...

static const uint8_t	R_INDEX = 4
	index of the R value in the m_nonSelfBlocking array More...

static const uint8_t	THETA_INDEX = 2
	index of the THETA value in the m_nonSelfBlocking array More...

static const uint8_t	X_INDEX = 1
	index of the X value in the m_nonSelfBlocking array More...

static const uint8_t	Y_INDEX = 3
	index of the Y value in the m_nonSelfBlocking array More...

Additional Inherited Members
Public Types inherited from ns3::MatrixBasedChannelModel
typedef std::vector< PhasedArrayModel::ComplexVector >	Complex2DVector
	type definition for complex matrices More...

typedef std::vector< Complex2DVector >	Complex3DVector
	type definition for complex 3D matrices More...

typedef std::vector< DoubleVector >	Double2DVector
	type definition for matrices of doubles More...

typedef std::vector< Double2DVector >	Double3DVector
	type definition for 3D matrices of doubles More...

typedef std::vector< double >	DoubleVector
	type definition for vectors of doubles More...

Static Public Attributes inherited from ns3::MatrixBasedChannelModel
static const uint8_t	AOA_INDEX = 0
	index of the AOA value in the m_angle array More...

static const uint8_t	AOD_INDEX = 2
	index of the AOD value in the m_angle array More...

static const uint8_t	ZOA_INDEX = 1
	index of the ZOA value in the m_angle array More...

static const uint8_t	ZOD_INDEX = 3
	index of the ZOD value in the m_angle array More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Channel Matrix Generation following 3GPP TR 38.901.

Introspection did not find any typical Config paths.

The class implements the channel matrix generation procedure described in 3GPP TR 38.901.

See also: GetChannel

Attributes

Frequency: The operating Frequency in Hz
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5e+08
- Flags: construct write read
Scenario: The 3GPP scenario (RMa, UMa, UMi-StreetCanyon, InH-OfficeOpen, InH-OfficeMixed)
- Set with class: StringValue
- Underlying type:
- Initial value: UMa
- Flags: construct write read
ChannelConditionModel: Pointer to the channel condition model
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ChannelConditionModel>
- Initial value: 0
- Flags: construct write read
UpdatePeriod: Specify the channel coherence time
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
Blockage: Enable blockage model A (sec 7.6.4.1)
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
NumNonselfBlocking: number of non-self-blocking regions
- Set with class: ns3::IntegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 4
- Flags: construct write read
PortraitMode: true for portrait mode, false for landscape mode
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
BlockerSpeed: The speed of moving blockers, the unit is m/s
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
vScatt: Maximum speed of the vehicle in the layout (see 3GPP TR 37.885 v15.3.0, Sec. 6.2.3).Used to compute the additional contribution for the Doppler ofdelayed (reflected) paths
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 256 bytes (on a 64-bit architecture).

Definition at line 48 of file three-gpp-channel-model.h.

Constructor & Destructor Documentation

◆ ThreeGppChannelModel()

ns3::ThreeGppChannelModel::ThreeGppChannelModel ( )

Constructor.

Definition at line 244 of file three-gpp-channel-model.cc.

References m_normalRv, m_uniformRv, m_uniformRvDoppler, m_uniformRvShuffle, and NS_LOG_FUNCTION.

◆ ~ThreeGppChannelModel()

ns3::ThreeGppChannelModel::~ThreeGppChannelModel ( )

Destructor.

Definition at line 256 of file three-gpp-channel-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ThreeGppChannelModel::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 2265 of file three-gpp-channel-model.cc.

References m_normalRv, m_uniformRv, m_uniformRvDoppler, m_uniformRvShuffle, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

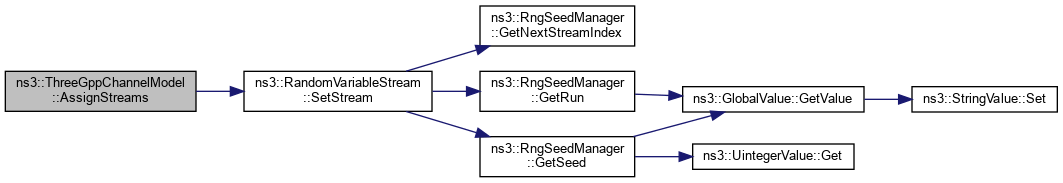

Here is the call graph for this function:

◆ CalcAttenuationOfBlockage()

MatrixBasedChannelModel::DoubleVector ns3::ThreeGppChannelModel::CalcAttenuationOfBlockage	(	const Ptr< ThreeGppChannelModel::ThreeGppChannelParams >	channelParams,
		const DoubleVector &	clusterAOA,
		const DoubleVector &	clusterZOA
	)		const

protected

Applies the blockage model A described in 3GPP TR 38.901.

Parameters

channelParams	the channel parameters structure
clusterAOA	vector containing the azimuth angle of arrival for each cluster
clusterZOA	vector containing the zenith angle of arrival for each cluster

Returns: vector containing the power attenuation for each cluster

Definition at line 2037 of file three-gpp-channel-model.cc.

References ns3::DegreesToRadians(), ns3::UniformRandomVariable::GetValue(), m_blockerSpeed, m_frequency, m_normalRv, m_numNonSelfBlocking, m_portraitMode, m_scenario, m_uniformRv, ns3::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::ChannelCondition::O2I, PHI_INDEX, R_INDEX, THETA_INDEX, X_INDEX, and Y_INDEX.

Referenced by GenerateChannelParameters().

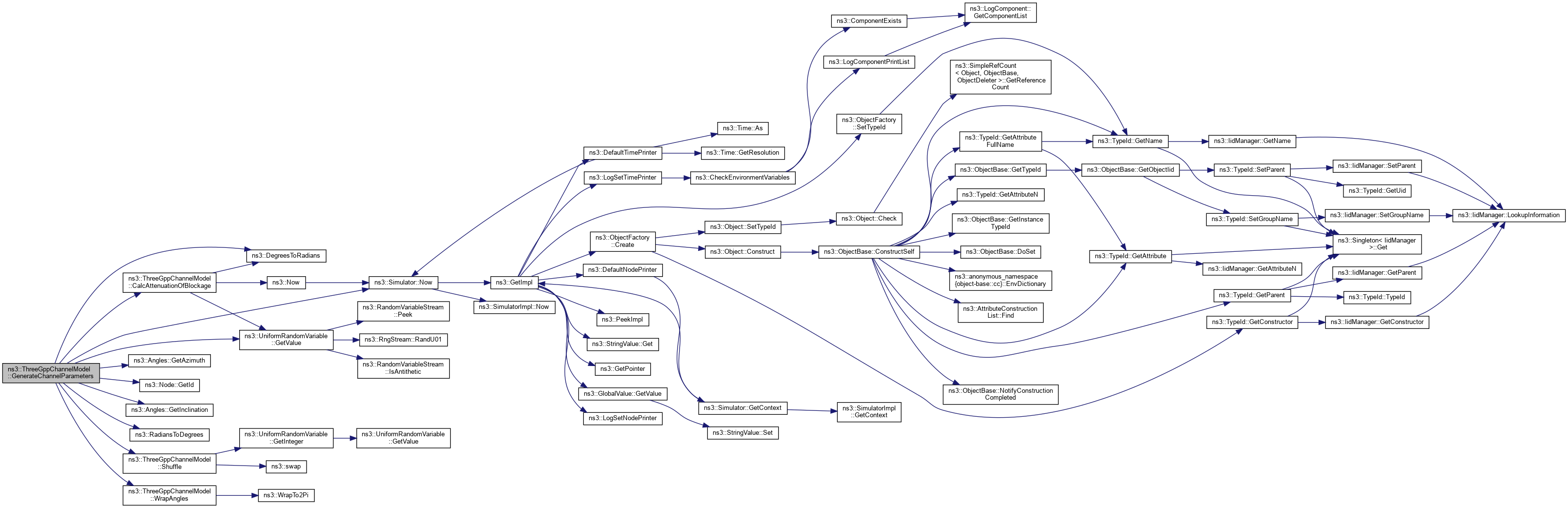

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ChannelMatrixNeedsUpdate()

bool ns3::ThreeGppChannelModel::ChannelMatrixNeedsUpdate	(	Ptr< const ThreeGppChannelParams >	channelParams,
		Ptr< const ChannelMatrix >	channelMatrix
	)

protected

Check if the channel matrix has to be updated (it needs update when the channel params generation time is more recent than channel matrix generation time.

Parameters

channelParams	channel params structure
channelMatrix	channel matrix structure

Returns: true if the channel matrix has to be updated, false otherwise

Definition at line 1068 of file three-gpp-channel-model.cc.

Referenced by GetChannel().

Here is the caller graph for this function:

◆ ChannelParamsNeedsUpdate()

bool ns3::ThreeGppChannelModel::ChannelParamsNeedsUpdate	(	Ptr< const ThreeGppChannelParams >	channelParams,
		Ptr< const ChannelCondition >	channelCondition
	)		const

protected

Check if the channel params has to be updated.

Parameters

channelParams	channel params
channelCondition	the channel condition

Returns: true if the channel params has to be updated, false otherwise

Definition at line 1042 of file three-gpp-channel-model.cc.

References ns3::Time::IsZero(), m_updatePeriod, ns3::Now(), ns3::Simulator::Now(), ns3::Time::NS, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GetChannel().

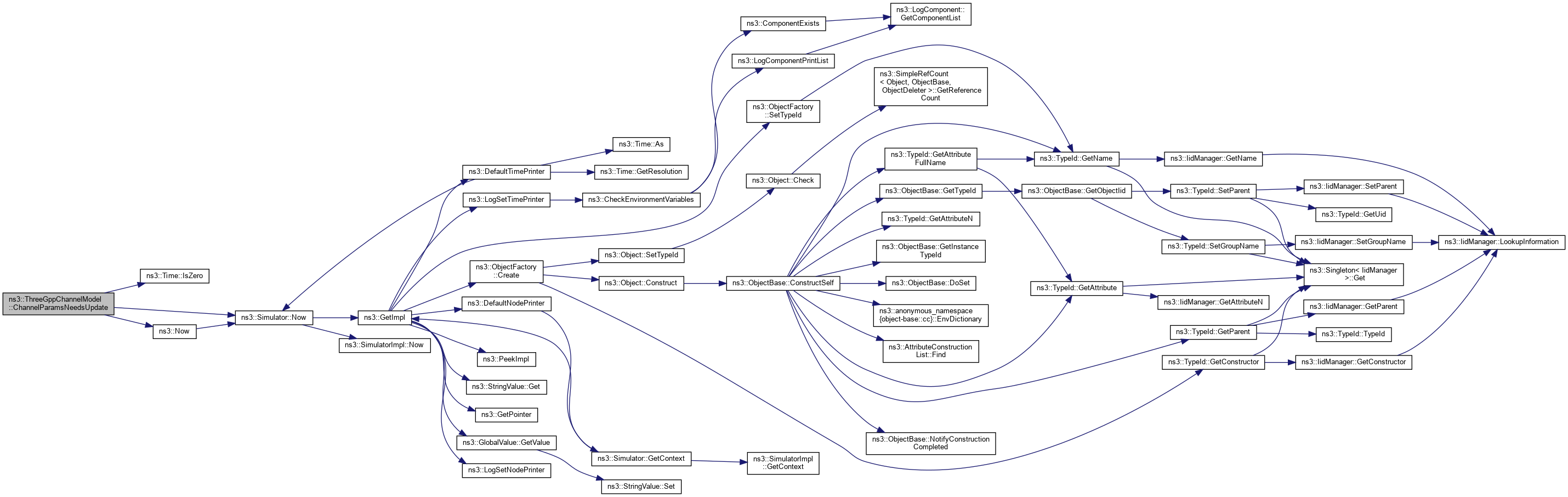

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ThreeGppChannelModel::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 262 of file three-gpp-channel-model.cc.

References m_channelConditionModel, m_channelMatrixMap, m_channelParamsMap, and NS_LOG_FUNCTION.

◆ GenerateChannelParameters()

Ptr< ThreeGppChannelModel::ThreeGppChannelParams > ns3::ThreeGppChannelModel::GenerateChannelParameters	(	const Ptr< const ChannelCondition >	channelCondition,
		const Ptr< const ParamsTable >	table3gpp,
		const Ptr< const MobilityModel >	aMob,
		const Ptr< const MobilityModel >	bMob
	)		const

protected

Prepare 3gpp channel parameters among the nodes a and b.

The function does the followin steps described in 3GPP 38.901:

Step 4: Generate large scale parameters. All LSPS are uncorrelated. Step 5: Generate Delays. Step 6: Generate cluster powers. Step 7: Generate arrival and departure angles for both azimuth and elevation. Step 8: Coupling of rays within a cluster for both azimuth and elevation shuffle all the arrays to perform random coupling Step 9: Generate the cross polarization power ratios Step 10: Draw initial phases

All relevant generated parameters are added then to ThreeGppChannelParams which is the return value of this function.

Parameters

channelCondition	the channel condition
table3gpp	the 3gpp parameters from the table
aMob	the a node mobility model
bMob	the b node mobility model

Returns: ThreeGppChannelParams structure with all the channel parameters generated according 38.901 steps from 4 to 10.

Definition at line 1196 of file three-gpp-channel-model.cc.

References sample-rng-plot::alpha, CalcAttenuationOfBlockage(), ns3::DegreesToRadians(), ns3::Angles::GetAzimuth(), ns3::Node::GetId(), ns3::Angles::GetInclination(), ns3::UniformRandomVariable::GetValue(), ns3::ChannelCondition::LOS, m_blockage, m_normalRv, m_uniformRv, m_uniformRvDoppler, m_vScatt, max, min, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::offSetAlpha, ns3::RadiansToDegrees(), Shuffle(), and WrapAngles().

Referenced by GetChannel().

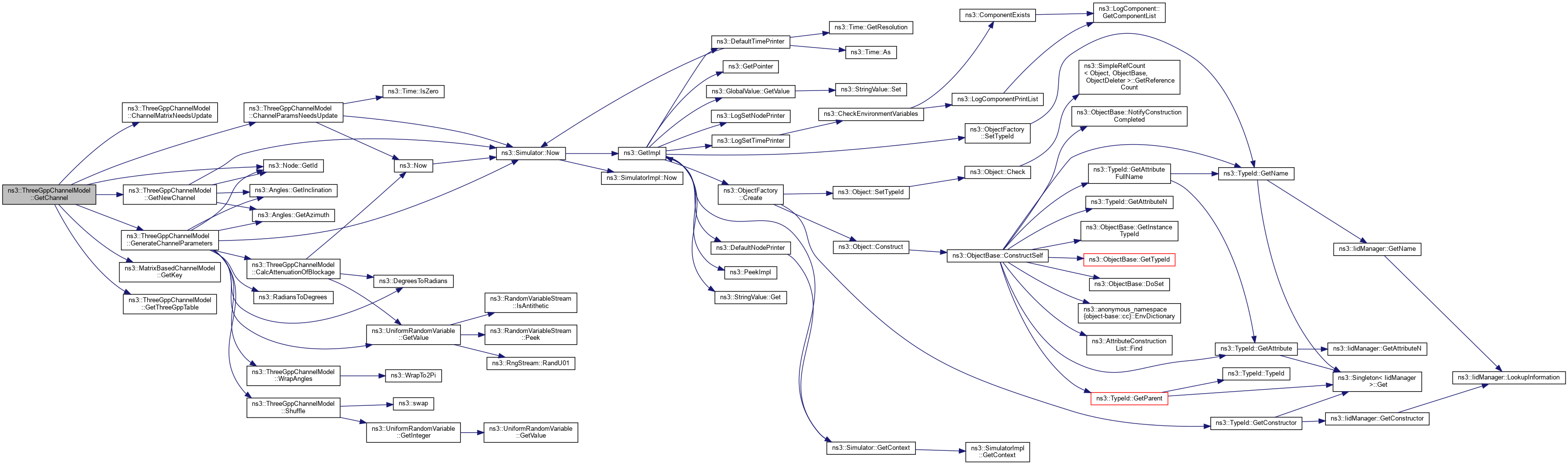

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannel()

Ptr< const MatrixBasedChannelModel::ChannelMatrix > ns3::ThreeGppChannelModel::GetChannel	(	Ptr< const MobilityModel >	aMob,
		Ptr< const MobilityModel >	bMob,
		Ptr< const PhasedArrayModel >	aAntenna,
		Ptr< const PhasedArrayModel >	bAntenna
	)

overridevirtual

Looks for the channel matrix associated to the aMob and bMob pair in m_channelMatrixMap.

If found, it checks if it has to be updated. If not found or if it has to be updated, it generates a new uncorrelated channel matrix using the method GetNewChannel and updates m_channelMap.

Parameters

aMob	mobility model of the a device
bMob	mobility model of the b device
aAntenna	antenna of the a device
bAntenna	antenna of the b device

Returns: the channel matrix

Implements ns3::MatrixBasedChannelModel.

Definition at line 1082 of file three-gpp-channel-model.cc.

References ChannelMatrixNeedsUpdate(), ChannelParamsNeedsUpdate(), GenerateChannelParameters(), ns3::Node::GetId(), ns3::MatrixBasedChannelModel::GetKey(), GetNewChannel(), GetThreeGppTable(), ns3::MatrixBasedChannelModel::ChannelMatrix::m_antennaPair, m_channelConditionModel, m_channelMatrixMap, m_channelParamsMap, max, min, NS_LOG_DEBUG, NS_LOG_FUNCTION, and sample-rng-plot::x.

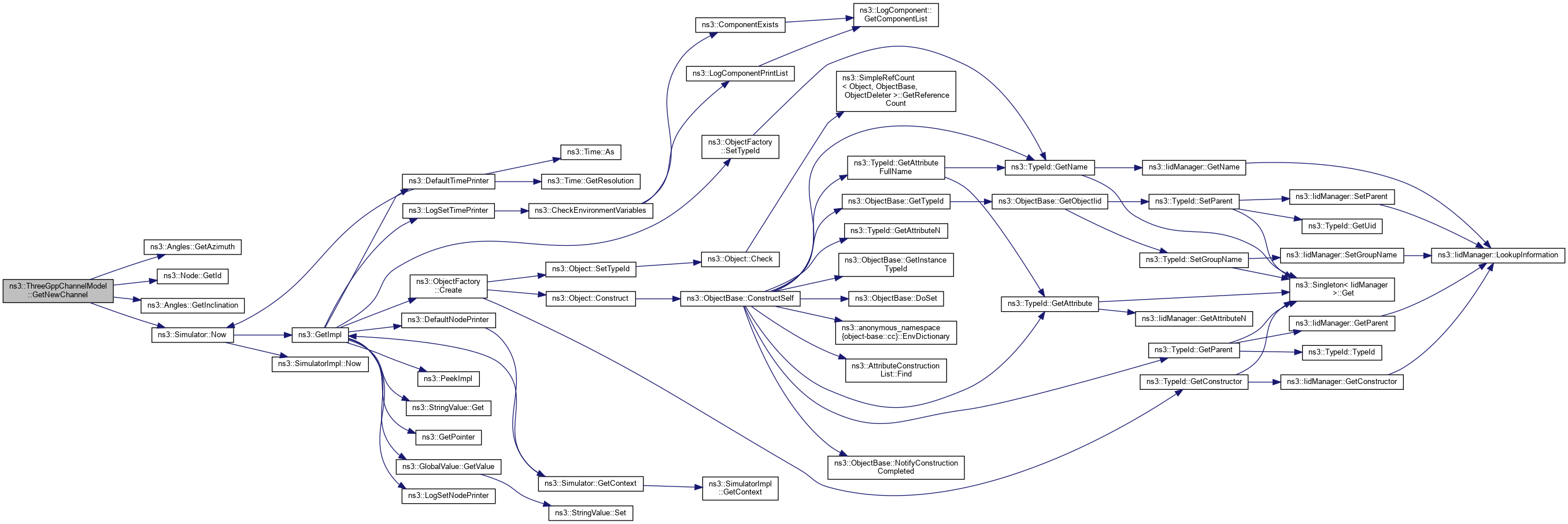

Here is the call graph for this function:

◆ GetChannelConditionModel()

Ptr< ChannelConditionModel > ns3::ThreeGppChannelModel::GetChannelConditionModel ( void ) const

Get the associated channel condition model.

Returns: a pointer to the ChannelConditionModel object

Definition at line 345 of file three-gpp-channel-model.cc.

References m_channelConditionModel, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetFrequency()

double ns3::ThreeGppChannelModel::GetFrequency ( void ) const

Returns the center frequency.

Returns: the center frequency in Hz

Definition at line 360 of file three-gpp-channel-model.cc.

References m_frequency, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNewChannel()

Ptr< MatrixBasedChannelModel::ChannelMatrix > ns3::ThreeGppChannelModel::GetNewChannel	(	Ptr< const ThreeGppChannelParams >	channelParams,
		Ptr< const ParamsTable >	table3gpp,
		const Ptr< const MobilityModel >	sMob,
		const Ptr< const MobilityModel >	uMob,
		Ptr< const PhasedArrayModel >	sAntenna,
		Ptr< const PhasedArrayModel >	uAntenna
	)		const

protectedvirtual

Compute the channel matrix between two nodes a and b, and their antenna arrays aAntenna and bAntenna using the procedure described in 3GPP TR 38.901.

Parameters

channelParams	the channel parameters previously generated for the pair of nodes a and b
table3gpp	the 3gpp parameters table
sMob	the mobility model of node s
uMob	the mobility model of node u
sAntenna	the antenna array of node s
uAntenna	the antenna array of node u

Returns: the channel realization

Definition at line 1768 of file three-gpp-channel-model.cc.

References ns3::Angles::GetAzimuth(), ns3::Node::GetId(), ns3::Angles::GetInclination(), bianchi11ax::k, ns3::ChannelCondition::LOS, ns3::MatrixBasedChannelModel::ChannelMatrix::m_channel, m_frequency, ns3::MatrixBasedChannelModel::ChannelMatrix::m_generatedTime, ns3::MatrixBasedChannelModel::ChannelMatrix::m_nodeIds, max, min, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, and sample-rng-plot::x.

Referenced by GetChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetParams()

Ptr< const MatrixBasedChannelModel::ChannelParams > ns3::ThreeGppChannelModel::GetParams	(	Ptr< const MobilityModel >	aMob,
		Ptr< const MobilityModel >	bMob
	)		const

overridevirtual

Looks for the channel params associated to the aMob and bMob pair in m_channelParamsMap.

If not found it will return a nullptr.

Parameters

aMob	mobility model of the a device
bMob	mobility model of the b device

Returns: the channel params

Implements ns3::MatrixBasedChannelModel.

Definition at line 1175 of file three-gpp-channel-model.cc.

References ns3::Node::GetId(), ns3::MatrixBasedChannelModel::GetKey(), m_channelParamsMap, NS_LOG_FUNCTION, and NS_LOG_WARN.

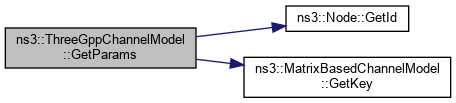

Here is the call graph for this function:

◆ GetScenario()

std::string ns3::ThreeGppChannelModel::GetScenario ( void ) const

Returns the propagation scenario.

Returns: the propagation scenario

Definition at line 379 of file three-gpp-channel-model.cc.

References m_scenario, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetThreeGppTable()

Ptr< const ThreeGppChannelModel::ParamsTable > ns3::ThreeGppChannelModel::GetThreeGppTable	(	Ptr< const ChannelCondition >	channelCondition,
		double	hBS,
		double	hUT,
		double	distance2D
	)		const

protectedvirtual

Get the parameters needed to apply the channel generation procedure.

Parameters

channelCondition	the channel condition
hBS	the height of the BS
hUT	the height of the UT
distance2D	the 2D distance between tx and rx

Returns: the parameters table

Definition at line 386 of file three-gpp-channel-model.cc.

References m_frequency, m_scenario, max, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::sqrtC_office_LOS, ns3::sqrtC_office_NLOS, ns3::sqrtC_RMa_LOS, ns3::sqrtC_RMa_NLOS, ns3::sqrtC_RMa_O2I, ns3::sqrtC_UMa_LOS, ns3::sqrtC_UMa_NLOS, ns3::sqrtC_UMa_O2I, ns3::sqrtC_UMi_LOS, ns3::sqrtC_UMi_NLOS, and ns3::sqrtC_UMi_O2I.

Referenced by GetChannel().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ThreeGppChannelModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 275 of file three-gpp-channel-model.cc.

References GetChannelConditionModel(), GetFrequency(), GetScenario(), m_blockage, m_blockerSpeed, m_numNonSelfBlocking, m_portraitMode, m_updatePeriod, m_vScatt, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakeIntegerAccessor(), ns3::MakePointerAccessor(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MilliSeconds(), SetChannelConditionModel(), SetFrequency(), ns3::TypeId::SetGroupName(), ns3::TypeId::SetParent(), and SetScenario().

Here is the call graph for this function:

◆ SetChannelConditionModel()

void ns3::ThreeGppChannelModel::SetChannelConditionModel ( Ptr< ChannelConditionModel > model )

Set the channel condition model.

Parameters

model a pointer to the ChannelConditionModel object

Definition at line 338 of file three-gpp-channel-model.cc.

References m_channelConditionModel, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetFrequency()

void ns3::ThreeGppChannelModel::SetFrequency ( double f )

Sets the center frequency of the model.

Parameters

f	the center frequency in Hz

Definition at line 352 of file three-gpp-channel-model.cc.

References f(), m_frequency, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetScenario()

void ns3::ThreeGppChannelModel::SetScenario ( const std::string & scenario )

Sets the propagation scenario.

Parameters

scenario the propagation scenario

Definition at line 367 of file three-gpp-channel-model.cc.

References m_scenario, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ Shuffle()

void ns3::ThreeGppChannelModel::Shuffle	(	double *	first,
		double *	last
	)		const

protected

Shuffle the elements of a simple sequence container of type double.

Parameters

first	Pointer to the first element among the elements to be shuffled
last	Pointer to the last element among the elements to be shuffled

Definition at line 2256 of file three-gpp-channel-model.cc.

References ns3::UniformRandomVariable::GetInteger(), m_uniformRvShuffle, and ns3::swap().

Referenced by GenerateChannelParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WrapAngles()

std::pair< double, double > ns3::ThreeGppChannelModel::WrapAngles	(	double	azimuthRad,
		double	inclinationRad
	)

staticprotected

Wrap an (azimuth, inclination) angle pair in a valid range.

Specifically, inclination must be in [0, M_PI] and azimuth in [0, 2*M_PI). If the inclination angle is outside of its range, the azimuth angle is rotated by M_PI. This methods aims specifically at solving the problem of generating angles at the boundaries of the angle domain, specifically, generating angle distributions close to inclinationRad=0 and inclinationRad=M_PI.

Parameters

azimuthRad	the azimuth angle in radians
inclinationRad	the inclination angle in radians

Returns: the wrapped (azimuth, inclination) angle pair in radians

Definition at line 2016 of file three-gpp-channel-model.cc.

References NS_ASSERT_MSG, and ns3::WrapTo2Pi().

Referenced by GenerateChannelParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_blockage

bool ns3::ThreeGppChannelModel::m_blockage

protected

enables the blockage model A

Definition at line 331 of file three-gpp-channel-model.h.

Referenced by GenerateChannelParameters(), and GetTypeId().

◆ m_blockerSpeed

double ns3::ThreeGppChannelModel::m_blockerSpeed

protected

the blocker speed

Definition at line 334 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage(), and GetTypeId().

◆ m_channelConditionModel

Ptr<ChannelConditionModel> ns3::ThreeGppChannelModel::m_channelConditionModel

protected

the channel condition model

Definition at line 320 of file three-gpp-channel-model.h.

Referenced by DoDispose(), GetChannel(), GetChannelConditionModel(), and SetChannelConditionModel().

◆ m_channelMatrixMap

std::unordered_map<uint64_t, Ptr<ChannelMatrix> > ns3::ThreeGppChannelModel::m_channelMatrixMap

protected

map containing the channel realizations per pair of PhasedAntennaArray instances, the key of this map is reciprocal uniquely identifies a pair of PhasedAntennaArrays

Definition at line 315 of file three-gpp-channel-model.h.

Referenced by DoDispose(), and GetChannel().

◆ m_channelParamsMap

std::unordered_map<uint64_t, Ptr<ThreeGppChannelParams> > ns3::ThreeGppChannelModel::m_channelParamsMap

protected

map containing the common channel parameters per pair of nodes, the key of this map is reciprocal and uniquely identifies a pair of nodes

Definition at line 316 of file three-gpp-channel-model.h.

Referenced by DoDispose(), GetChannel(), and GetParams().

◆ m_frequency

double ns3::ThreeGppChannelModel::m_frequency

protected

the operating frequency

Definition at line 318 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage(), GetFrequency(), GetNewChannel(), GetThreeGppTable(), and SetFrequency().

◆ m_normalRv

Ptr<NormalRandomVariable> ns3::ThreeGppChannelModel::m_normalRv

protected

normal random variable

Definition at line 322 of file three-gpp-channel-model.h.

Referenced by ThreeGppChannelModel(), AssignStreams(), CalcAttenuationOfBlockage(), and GenerateChannelParameters().

◆ m_numNonSelfBlocking

uint16_t ns3::ThreeGppChannelModel::m_numNonSelfBlocking

protected

number of non-self-blocking regions

Definition at line 332 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage(), and GetTypeId().

◆ m_portraitMode

bool ns3::ThreeGppChannelModel::m_portraitMode

protected

true if potrait mode, false if landscape

Definition at line 333 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage(), and GetTypeId().

◆ m_scenario

std::string ns3::ThreeGppChannelModel::m_scenario

protected

the 3GPP scenario

Definition at line 319 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage(), GetScenario(), GetThreeGppTable(), and SetScenario().

◆ m_uniformRv

Ptr<UniformRandomVariable> ns3::ThreeGppChannelModel::m_uniformRv

protected

uniform random variable

Definition at line 321 of file three-gpp-channel-model.h.

Referenced by ThreeGppChannelModel(), AssignStreams(), CalcAttenuationOfBlockage(), and GenerateChannelParameters().

◆ m_uniformRvDoppler

Ptr<UniformRandomVariable> ns3::ThreeGppChannelModel::m_uniformRvDoppler

protected

uniform random variable, used to compute the additional Doppler contribution

Definition at line 328 of file three-gpp-channel-model.h.

Referenced by ThreeGppChannelModel(), AssignStreams(), and GenerateChannelParameters().

◆ m_uniformRvShuffle

Ptr<UniformRandomVariable> ns3::ThreeGppChannelModel::m_uniformRvShuffle

protected

uniform random variable used to shuffle array in GetNewChannel

Definition at line 323 of file three-gpp-channel-model.h.

Referenced by ThreeGppChannelModel(), AssignStreams(), and Shuffle().

◆ m_updatePeriod

Time ns3::ThreeGppChannelModel::m_updatePeriod

protected

the channel update period

Definition at line 317 of file three-gpp-channel-model.h.

Referenced by ChannelParamsNeedsUpdate(), and GetTypeId().

◆ m_vScatt

double ns3::ThreeGppChannelModel::m_vScatt

protected

value used to compute the additional Doppler contribution for the delayed paths

Definition at line 327 of file three-gpp-channel-model.h.

Referenced by GenerateChannelParameters(), and GetTypeId().

◆ PHI_INDEX

const uint8_t ns3::ThreeGppChannelModel::PHI_INDEX = 0

staticprotected

index of the PHI value in the m_nonSelfBlocking array

Definition at line 336 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage().

◆ R_INDEX

const uint8_t ns3::ThreeGppChannelModel::R_INDEX = 4

staticprotected

index of the R value in the m_nonSelfBlocking array

Definition at line 340 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage().

◆ THETA_INDEX

const uint8_t ns3::ThreeGppChannelModel::THETA_INDEX = 2

staticprotected

index of the THETA value in the m_nonSelfBlocking array

Definition at line 338 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage().

◆ X_INDEX

const uint8_t ns3::ThreeGppChannelModel::X_INDEX = 1

staticprotected

index of the X value in the m_nonSelfBlocking array

Definition at line 337 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage().

◆ Y_INDEX

const uint8_t ns3::ThreeGppChannelModel::Y_INDEX = 3

staticprotected

index of the Y value in the m_nonSelfBlocking array

Definition at line 339 of file three-gpp-channel-model.h.

Referenced by CalcAttenuationOfBlockage().

The documentation for this class was generated from the following files:

src/spectrum/model/three-gpp-channel-model.h
src/spectrum/model/three-gpp-channel-model.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

◆ ThreeGppChannelModel()

◆ ~ThreeGppChannelModel()

Member Function Documentation

◆ AssignStreams()

◆ CalcAttenuationOfBlockage()

◆ ChannelMatrixNeedsUpdate()

◆ ChannelParamsNeedsUpdate()

◆ DoDispose()

◆ GenerateChannelParameters()

◆ GetChannel()

◆ GetChannelConditionModel()

◆ GetFrequency()

◆ GetNewChannel()

◆ GetParams()

◆ GetScenario()

◆ GetThreeGppTable()

◆ GetTypeId()

◆ SetChannelConditionModel()

◆ SetFrequency()

◆ SetScenario()

◆ Shuffle()

◆ WrapAngles()

Member Data Documentation

◆ m_blockage

◆ m_blockerSpeed

◆ m_channelConditionModel

◆ m_channelMatrixMap

◆ m_channelParamsMap

◆ m_frequency

◆ m_normalRv

◆ m_numNonSelfBlocking

◆ m_portraitMode

◆ m_scenario

◆ m_uniformRv

◆ m_uniformRvDoppler

◆ m_uniformRvShuffle

◆ m_updatePeriod

◆ m_vScatt

◆ PHI_INDEX

◆ R_INDEX

◆ THETA_INDEX

◆ X_INDEX

◆ Y_INDEX
