ns3::TriangularRandomVariable Class Reference
Core » Random Variables

The triangular distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...

#include "random-variable-stream.h"

+ Inheritance diagram for ns3::TriangularRandomVariable:
+ Collaboration diagram for ns3::TriangularRandomVariable:

Public Member Functions

 TriangularRandomVariable ()
 Creates a triangular distribution RNG with the default values for the mean, lower bound, and upper bound. More...

uint32_t GetInteger (uint32_t mean, uint32_t min, uint32_t max)
 Returns a random unsigned integer from a triangular distribution with the specified mean, min, and max. More...

virtual uint32_t GetInteger (void)
 Returns a random unsigned integer from a triangular distribution with the current mean, min, and max. More...

double GetMax (void) const
 Returns the upper bound on values that can be returned by this RNG stream. More...

double GetMean (void) const
 Returns the mean value for the triangular distribution returned by this RNG stream. More...

double GetMin (void) const
 Returns the lower bound for the triangular distribution returned by this RNG stream. More...

double GetValue (double mean, double min, double max)
 Returns a random double from a triangular distribution with the specified mean, min, and max. More...

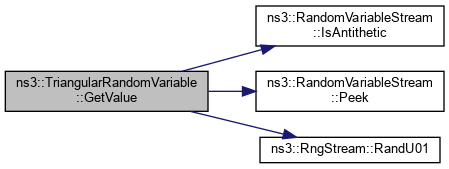

virtual double GetValue (void)
 Returns a random double from a triangular distribution with the current mean, min, and max. More...

- Public Member Functions inherited from ns3::RandomVariableStream
 RandomVariableStream ()
 Default constructor. More...

virtual ~RandomVariableStream ()
 Destructor. More...

int64_t GetStream (void) const
 Returns the stream number for the RngStream. More...

bool IsAntithetic (void) const
 Check if antithetic values will be generated. More...

void SetAntithetic (bool isAntithetic)
 Specify whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for the RngStream. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< Object > GetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object > GetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

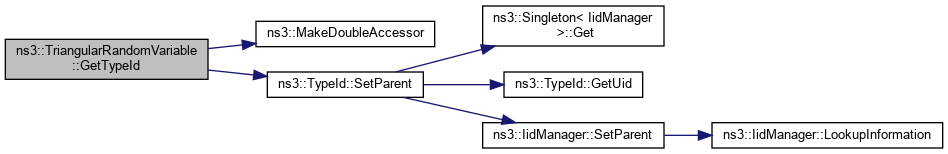

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

double m_max
 The upper bound on values that can be returned by this RNG stream. More...

double m_mean
 The mean value for the triangular distribution returned by this RNG stream. More...

double m_min
 The lower bound on values that can be returned by this RNG stream. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::RandomVariableStream
RngStream * Peek (void) const
 Get the pointer to the underlying RngStream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

The triangular distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically.

This class supports the creation of objects that return random numbers from a fixed triangular distribution. It also supports the generation of single random numbers from various triangular distributions.

This distribution is a triangular distribution. The probability density is in the shape of a triangle.

Here is an example of how to use this class:

double mean = 5.0;
double min = 2.0;
double max = 10.0;
Ptr<TriangularRandomVariable> x = CreateObject<TriangularRandomVariable> ();
x->SetAttribute ("Mean", DoubleValue (mean));
x->SetAttribute ("Min", DoubleValue (min));
x->SetAttribute ("Max", DoubleValue (max));
// The expected value for the mean of the values returned by a
// triangularly distributed random variable is equal to mean.
double value = x->GetValue ();
min
#define min(a, b)
Definition: 80211b.c:42
max
#define max(a, b)
Definition: 80211b.c:43
nlohmann::detail::parse_event_t::value
@ value
the parser finished reading a JSON value
sample-rng-plot.x
list x
Random number samples.
Definition: sample-rng-plot.py:37

Config Paths

ns3::TriangularRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/ForwardingDelay/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SixLowPanNetDevice/MeshUnderJitter/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Direction/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Speed/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::TriangularRandomVariable"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::TriangularRandomVariable"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::TriangularRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::TriangularRandomVariable"

Attributes

  • Mean: The mean value for the triangular distribution returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read
  • Min: The lower bound on the values returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: construct write read
  • Max: The upper bound on the values returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read

Attributes defined in parent class ns3::RandomVariableStream

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 1831 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ TriangularRandomVariable()

ns3::TriangularRandomVariable::TriangularRandomVariable ( )

Creates a triangular distribution RNG with the default values for the mean, lower bound, and upper bound.

Definition at line 1201 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetInteger() [1/2]

uint32_t ns3::TriangularRandomVariable::GetInteger ( uint32_t  mean,
uint32_t  min,
uint32_t  max
)

Returns a random unsigned integer from a triangular distribution with the specified mean, min, and max.

Parameters
[in]meanMean value for the triangular distribution.
[in]minLow end of the range.
[in]maxHigh end of the range.
Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = \left\{ \begin{array}{rl} min + \sqrt{u * (max - min) * (mode - min)} &\mbox{ if $u <= (mode - min)/(max - min)$} \\ max - \sqrt{ (1 - u) * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

is a value that would be returned normally, where the mode or peak of the triangle is calculated as

\[ mode = 3.0 * mean - min - max . \]

Then, $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = \left\{ \begin{array}{rl} min + \sqrt{(1 - u) * (max - min) * (mode - min)} &\mbox{ if $(1 - u) <= (mode - min)/(max - min)$} \\ max - \sqrt{ u * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

which now involves the distance $u$ is from the 1.

Definition at line 1253 of file random-variable-stream.cc.

References GetValue(), max, min, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetInteger() [2/2]

uint32_t ns3::TriangularRandomVariable::GetInteger ( void  )
virtual

Returns a random unsigned integer from a triangular distribution with the current mean, min, and max.

Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = \left\{ \begin{array}{rl} min + \sqrt{u * (max - min) * (mode - min)} &\mbox{ if $u <= (mode - min)/(max - min)$} \\ max - \sqrt{ (1 - u) * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

is a value that would be returned normally, where the mode or peak of the triangle is calculated as

\[ mode = 3.0 * mean - min - max . \]

Then, $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = \left\{ \begin{array}{rl} min + \sqrt{(1 - u) * (max - min) * (mode - min)} &\mbox{ if $(1 - u) <= (mode - min)/(max - min)$} \\ max - \sqrt{ u * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

which now involves the distance $u$ is from the 1.

Implements ns3::RandomVariableStream.

Definition at line 1266 of file random-variable-stream.cc.

References GetValue(), m_max, m_mean, m_min, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetMax()

double ns3::TriangularRandomVariable::GetMax ( void  ) const

Returns the upper bound on values that can be returned by this RNG stream.

Returns
The upper bound on values that can be returned by this RNG stream.

Definition at line 1221 of file random-variable-stream.cc.

References m_max, and NS_LOG_FUNCTION.

◆ GetMean()

double ns3::TriangularRandomVariable::GetMean ( void  ) const

Returns the mean value for the triangular distribution returned by this RNG stream.

Returns
The mean value for the triangular distribution returned by this RNG stream.

Definition at line 1209 of file random-variable-stream.cc.

References m_mean, and NS_LOG_FUNCTION.

◆ GetMin()

double ns3::TriangularRandomVariable::GetMin ( void  ) const

Returns the lower bound for the triangular distribution returned by this RNG stream.

Returns
The lower bound for the triangular distribution returned by this RNG stream.

Definition at line 1215 of file random-variable-stream.cc.

References m_min, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::TriangularRandomVariable::GetTypeId ( void  )
static

Register this type.

Returns
The object TypeId.

Definition at line 1180 of file random-variable-stream.cc.

References m_max, m_mean, m_min, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ GetValue() [1/2]

double ns3::TriangularRandomVariable::GetValue ( double  mean,
double  min,
double  max
)

Returns a random double from a triangular distribution with the specified mean, min, and max.

Parameters
[in]meanMean value for the triangular distribution.
[in]minLow end of the range.
[in]maxHigh end of the range.
Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = \left\{ \begin{array}{rl} min + \sqrt{u * (max - min) * (mode - min)} &\mbox{ if $u <= (mode - min)/(max - min)$} \\ max - \sqrt{ (1 - u) * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

is a value that would be returned normally, where the mode or peak of the triangle is calculated as

\[ mode = 3.0 * mean - min - max . \]

Then, $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = \left\{ \begin{array}{rl} min + \sqrt{(1 - u) * (max - min) * (mode - min)} &\mbox{ if $(1 - u) <= (mode - min)/(max - min)$} \\ max - \sqrt{ u * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

which now involves the distance $u$ is from the 1.

Definition at line 1228 of file random-variable-stream.cc.

References ns3::RandomVariableStream::IsAntithetic(), max, min, NS_LOG_FUNCTION, ns3::RandomVariableStream::Peek(), and ns3::RngStream::RandU01().

+ Here is the call graph for this function:

◆ GetValue() [2/2]

double ns3::TriangularRandomVariable::GetValue ( void  )
virtual

Returns a random double from a triangular distribution with the current mean, min, and max.

Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = \left\{ \begin{array}{rl} min + \sqrt{u * (max - min) * (mode - min)} &\mbox{ if $u <= (mode - min)/(max - min)$} \\ max - \sqrt{ (1 - u) * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

is a value that would be returned normally, where the mode or peak of the triangle is calculated as

\[ mode = 3.0 * mean - min - max . \]

Then, $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = \left\{ \begin{array}{rl} min + \sqrt{(1 - u) * (max - min) * (mode - min)} &\mbox{ if $(1 - u) <= (mode - min)/(max - min)$} \\ max - \sqrt{ u * (max - min) * (max - mode) } &\mbox{ otherwise} \end{array} \right. \]

which now involves the distance $u$ is from the 1.

Note that we have to re-implement this method here because the method is overloaded above for the three-argument variant and the c++ name resolution rules don't work well with overloads split between parent and child classes.

Implements ns3::RandomVariableStream.

Definition at line 1260 of file random-variable-stream.cc.

References m_max, m_mean, m_min, and NS_LOG_FUNCTION.

Referenced by GetInteger().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_max

double ns3::TriangularRandomVariable::m_max
private

The upper bound on values that can be returned by this RNG stream.

Definition at line 2031 of file random-variable-stream.h.

Referenced by GetInteger(), GetMax(), GetTypeId(), and GetValue().

◆ m_mean

double ns3::TriangularRandomVariable::m_mean
private

The mean value for the triangular distribution returned by this RNG stream.

Definition at line 2025 of file random-variable-stream.h.

Referenced by GetInteger(), GetMean(), GetTypeId(), and GetValue().

◆ m_min

double ns3::TriangularRandomVariable::m_min
private

The lower bound on values that can be returned by this RNG stream.

Definition at line 2028 of file random-variable-stream.h.

Referenced by GetInteger(), GetMin(), GetTypeId(), and GetValue().

The documentation for this class was generated from the following files:
