ns3::dot11s::Dot11sMeshCapability Class Reference

A set of values indicating whether a mesh STA is a possible candidate for mesh peering establishment (Section 8.4.2.100.8 of IEEE 802.11-2012) More...

#include "ie-dot11s-configuration.h"

Collaboration diagram for ns3::dot11s::Dot11sMeshCapability:

Public Member Functions
	Dot11sMeshCapability ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize from a buffer. More...
uint8_t	GetSerializedSize () const
	Size of the field in bytes when serialized. More...
uint8_t	GetUint8 () const
	The Mesh Capability is expressed in terms of 8 single bit fields. More...
bool	Is (uint8_t cap, uint8_t n) const
	This is a utility function to test if the bit at position n is true. More...
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize to a buffer. More...

Public Attributes
bool	acceptPeerLinks
	accept peer links More...
bool	beaconTimingReport
	beacon timing report More...
bool	forwarding
	forwarding? More...
bool	MCCAEnabled
	MCCA enabled. More...
bool	MCCASupported
	MCCA supported. More...
bool	powerSaveLevel
	power save level More...
bool	TBTTAdjustment
	TBTT adjustment. More...

Friends
bool	operator== (const Dot11sMeshCapability &a, const Dot11sMeshCapability &b)
	equality operator More...

Detailed Description

A set of values indicating whether a mesh STA is a possible candidate for mesh peering establishment (Section 8.4.2.100.8 of IEEE 802.11-2012)

Definition at line 71 of file ie-dot11s-configuration.h.

Constructor & Destructor Documentation

Dot11sMeshCapability()

ns3::dot11s::Dot11sMeshCapability::Dot11sMeshCapability

(

)

Definition at line 27 of file ie-dot11s-configuration.cc.

Member Function Documentation

Deserialize()

Buffer::Iterator ns3::dot11s::Dot11sMeshCapability::Deserialize

(

Buffer::Iterator

i

)

Deserialize from a buffer.

Parameters

i	the iterator from which to deserialize

Returns

new value of the iterator

Definition at line 78 of file ie-dot11s-configuration.cc.

References acceptPeerLinks, beaconTimingReport, forwarding, Is(), MCCAEnabled, MCCASupported, powerSaveLevel, ns3::Buffer::Iterator::ReadU8(), and TBTTAdjustment.

Referenced by ns3::dot11s::IeConfiguration::DeserializeInformationField().

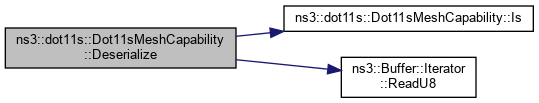

Here is the call graph for this function:

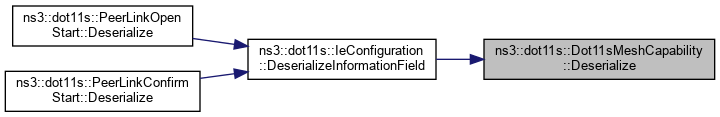

Here is the caller graph for this function:

GetSerializedSize()

uint8_t ns3::dot11s::Dot11sMeshCapability::GetSerializedSize

(

void

)

const

Size of the field in bytes when serialized.

Returns

the serialized size in bytes

Definition at line 33 of file ie-dot11s-configuration.cc.

Referenced by ns3::dot11s::IeConfiguration::GetInformationFieldSize().

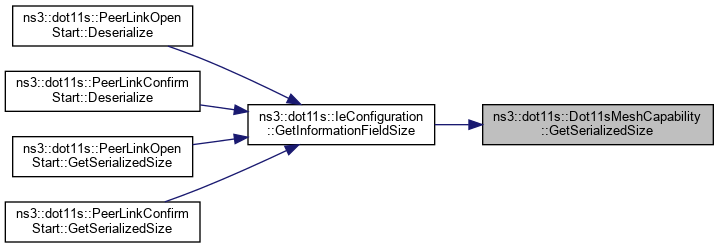

Here is the caller graph for this function:

GetUint8()

uint8_t ns3::dot11s::Dot11sMeshCapability::GetUint8

(

)

const

The Mesh Capability is expressed in terms of 8 single bit fields.

This method returns the whole byte.

Returns

the Mesh Capability byte

Definition at line 38 of file ie-dot11s-configuration.cc.

References acceptPeerLinks, beaconTimingReport, forwarding, MCCAEnabled, MCCASupported, powerSaveLevel, test-ns3::result, and TBTTAdjustment.

Referenced by ns3::dot11s::IeConfiguration::Print(), and Serialize().

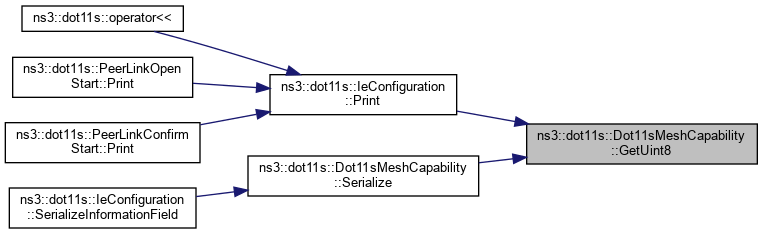

Here is the caller graph for this function:

Is()

bool ns3::dot11s::Dot11sMeshCapability::Is	(	uint8_t	cap,
		uint8_t	n
	)		const

This is a utility function to test if the bit at position n is true.

Parameters

cap	byte to test
n	bit number to mask

Returns

true if bit n is set in cap

Definition at line 91 of file ie-dot11s-configuration.cc.

Referenced by Deserialize().

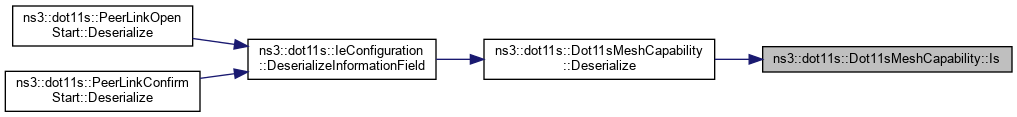

Here is the caller graph for this function:

Serialize()

Buffer::Iterator ns3::dot11s::Dot11sMeshCapability::Serialize

(

Buffer::Iterator

i

)

const

Serialize to a buffer.

Parameters

i	the iterator of the buffer to serialize to

Returns

new value of the iterator

Definition at line 72 of file ie-dot11s-configuration.cc.

References GetUint8(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::dot11s::IeConfiguration::SerializeInformationField().

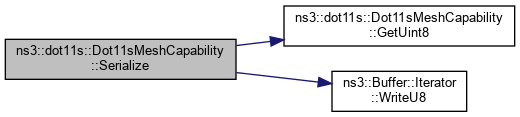

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

operator==

bool operator== ( const Dot11sMeshCapability &  a, const Dot11sMeshCapability &  b  )

friend

equality operator

Parameters

a	lhs
b	rhs

Returns

true if equal

Definition at line 199 of file ie-dot11s-configuration.cc.

Member Data Documentation

acceptPeerLinks

bool ns3::dot11s::Dot11sMeshCapability::acceptPeerLinks

accept peer links

Definition at line 98 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

beaconTimingReport

bool ns3::dot11s::Dot11sMeshCapability::beaconTimingReport

beacon timing report

Definition at line 102 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

forwarding

bool ns3::dot11s::Dot11sMeshCapability::forwarding

forwarding?

Definition at line 101 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

MCCAEnabled

bool ns3::dot11s::Dot11sMeshCapability::MCCAEnabled

MCCA enabled.

Definition at line 100 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

MCCASupported

bool ns3::dot11s::Dot11sMeshCapability::MCCASupported

MCCA supported.

Definition at line 99 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

powerSaveLevel

bool ns3::dot11s::Dot11sMeshCapability::powerSaveLevel

power save level

Definition at line 104 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

TBTTAdjustment

bool ns3::dot11s::Dot11sMeshCapability::TBTTAdjustment

TBTT adjustment.

Definition at line 103 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), and GetUint8().

---

The documentation for this class was generated from the following files:

• src/mesh/model/dot11s/ie-dot11s-configuration.h
• src/mesh/model/dot11s/ie-dot11s-configuration.cc
