a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0 More...

#include "ie-dot11s-metric-report.h"

Inheritance diagram for ns3::dot11s::IeLinkMetricReport:

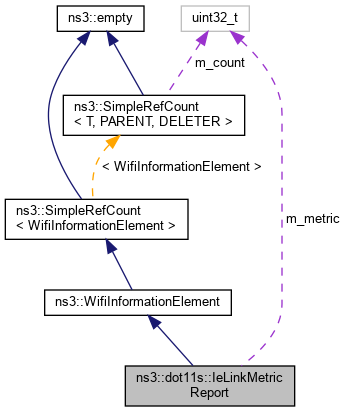

Collaboration diagram for ns3::dot11s::IeLinkMetricReport:

Public Member Functions
	IeLinkMetricReport ()

	IeLinkMetricReport (uint32_t metric)
	Constructor. More...

virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId	ElementId () const

virtual uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint32_t	GetMetric ()
	Get metric value. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetMetric (uint32_t metric)
	Set metric value. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

virtual uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint32_t	m_metric
	metric More...

Friends
bool	operator< (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
	less than operator More...

bool	operator== (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
	equality operator More...

bool	operator> (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
	greater than operator More...

Detailed Description

a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0

Definition at line 34 of file ie-dot11s-metric-report.h.

Constructor & Destructor Documentation

◆ IeLinkMetricReport() [1/2]

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( )

Definition at line 26 of file ie-dot11s-metric-report.cc.

◆ IeLinkMetricReport() [2/2]

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( uint32_t metric )

Constructor.

Parameters

metric the metric

Definition at line 30 of file ie-dot11s-metric-report.cc.

References m_metric.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::dot11s::IeLinkMetricReport::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 60 of file ie-dot11s-metric-report.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_metric, ns3::Buffer::Iterator::ReadLsbtohU32(), and visualizer.core::start().

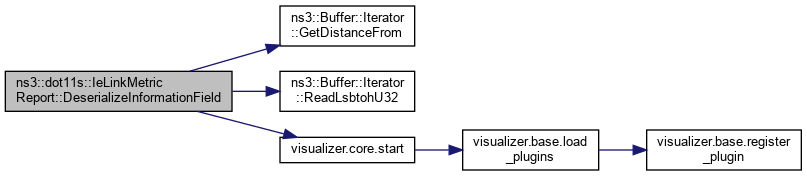

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IeLinkMetricReport::ElementId ( ) const

virtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 35 of file ie-dot11s-metric-report.cc.

References IE_MESH_LINK_METRIC_REPORT.

◆ GetInformationFieldSize()

uint8_t ns3::dot11s::IeLinkMetricReport::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 40 of file ie-dot11s-metric-report.cc.

◆ GetMetric()

uint32_t ns3::dot11s::IeLinkMetricReport::GetMetric ( void )

Get metric value.

Returns: the metric

Definition at line 45 of file ie-dot11s-metric-report.cc.

References m_metric.

◆ Print()

void ns3::dot11s::IeLinkMetricReport::Print ( std::ostream & os ) const

virtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 67 of file ie-dot11s-metric-report.cc.

References m_metric.

Referenced by ns3::dot11s::operator<<().

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::dot11s::IeLinkMetricReport::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 55 of file ie-dot11s-metric-report.cc.

References m_metric, and ns3::Buffer::Iterator::WriteHtolsbU32().

Here is the call graph for this function:

◆ SetMetric()

void ns3::dot11s::IeLinkMetricReport::SetMetric ( uint32_t metric )

Set metric value.

Parameters

metric the metric

Definition at line 50 of file ie-dot11s-metric-report.cc.

References m_metric.

Friends And Related Function Documentation

◆ operator<

bool operator<	(	const IeLinkMetricReport &	a,
		const IeLinkMetricReport &	b
	)

friend

less than operator

Parameters

a	lhs
b	lhs

Returns: true if equal

Definition at line 76 of file ie-dot11s-metric-report.cc.

◆ operator==

bool operator==	(	const IeLinkMetricReport &	a,
		const IeLinkMetricReport &	b
	)

friend

equality operator

Parameters

a	lhs
b	lhs

Returns: true if equal

Definition at line 72 of file ie-dot11s-metric-report.cc.

◆ operator>

bool operator>	(	const IeLinkMetricReport &	a,
		const IeLinkMetricReport &	b
	)

friend

greater than operator

Parameters

a	lhs
b	lhs

Returns: true if equal

Definition at line 82 of file ie-dot11s-metric-report.cc.

Member Data Documentation

◆ m_metric

uint32_t ns3::dot11s::IeLinkMetricReport::m_metric

private

metric

Definition at line 63 of file ie-dot11s-metric-report.h.

Referenced by IeLinkMetricReport(), DeserializeInformationField(), GetMetric(), Print(), SerializeInformationField(), and SetMetric().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-metric-report.h
src/mesh/model/dot11s/ie-dot11s-metric-report.cc
