ns3::dot11s::IePeeringProtocol Class Reference

Mesh Peering Protocol Identifier information element Note that it does not permit to set any value besides zero (corresponding to mesh peering management protocol) More...

#include "ie-dot11s-peering-protocol.h"

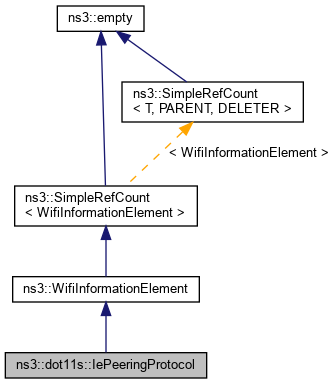

Inheritance diagram for ns3::dot11s::IePeeringProtocol:

Collaboration diagram for ns3::dot11s::IePeeringProtocol:

Public Member Functions
	IePeeringProtocol ()
virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...
virtual WifiInformationElementId	ElementId () const
virtual uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...
virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...
virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...
virtual WifiInformationElementId	ElementIdExt () const
virtual uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...
virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...
virtual Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_protocol
	the protocol More...

Detailed Description

Mesh Peering Protocol Identifier information element Note that it does not permit to set any value besides zero (corresponding to mesh peering management protocol)

Definition at line 38 of file ie-dot11s-peering-protocol.h.

Constructor & Destructor Documentation

IePeeringProtocol()

ns3::dot11s::IePeeringProtocol::IePeeringProtocol

(

)

Definition at line 29 of file ie-dot11s-peering-protocol.cc.

Member Function Documentation

DeserializeInformationField()

uint8_t ns3::dot11s::IePeeringProtocol::DeserializeInformationField ( Buffer::Iterator  start, uint8_t  length  )

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns

the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 44 of file ie-dot11s-peering-protocol.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_protocol, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

ElementId()

WifiInformationElementId ns3::dot11s::IePeeringProtocol::ElementId ( ) const

virtual

Returns

Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 34 of file ie-dot11s-peering-protocol.cc.

References IE11S_MESH_PEERING_PROTOCOL_VERSION.

GetInformationFieldSize()

uint8_t ns3::dot11s::IePeeringProtocol::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns

the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 25 of file ie-dot11s-peering-protocol.cc.

Print()

void ns3::dot11s::IePeeringProtocol::Print ( std::ostream &  os ) const

virtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 51 of file ie-dot11s-peering-protocol.cc.

References m_protocol.

Referenced by ns3::dot11s::operator<<().

Here is the caller graph for this function:

SerializeInformationField()

void ns3::dot11s::IePeeringProtocol::SerializeInformationField ( Buffer::Iterator  start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start

an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 39 of file ie-dot11s-peering-protocol.cc.

References m_protocol, and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

Member Data Documentation

m_protocol

uint8_t ns3::dot11s::IePeeringProtocol::m_protocol

private

the protocol

Definition at line 51 of file ie-dot11s-peering-protocol.h.

Referenced by DeserializeInformationField(), Print(), and SerializeInformationField().

---

The documentation for this class was generated from the following files:

• src/mesh/model/dot11s/ie-dot11s-peering-protocol.h
• src/mesh/model/dot11s/ie-dot11s-peering-protocol.cc
