See 7.3.2.98 of 802.11s draft 2.07. More...

#include "ie-dot11s-perr.h"

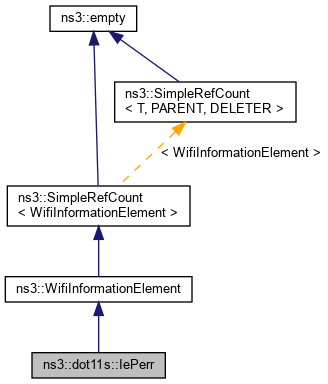

Inheritance diagram for ns3::dot11s::IePerr:

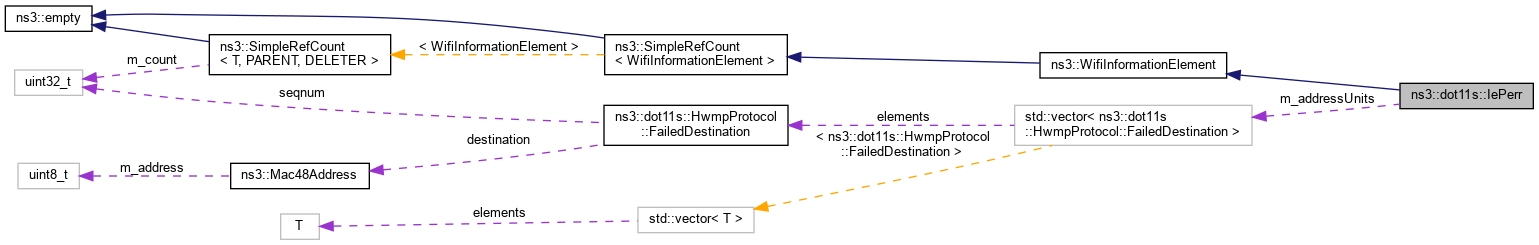

Collaboration diagram for ns3::dot11s::IePerr:

Public Member Functions
	IePerr ()

	~IePerr ()

void	AddAddressUnit (HwmpProtocol::FailedDestination unit)
	Add address unit function. More...

void	DeleteAddressUnit (Mac48Address address)
	Delete address unit function. More...

virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId	ElementId () const

std::vector< HwmpProtocol::FailedDestination >	GetAddressUnitVector () const
	Get address unit vector function. More...

virtual uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetNumOfDest () const
	Get number of destination function. More...

bool	IsFull () const
	Is full function. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

void	ResetPerr ()
	Reset PERR. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

virtual uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::vector< HwmpProtocol::FailedDestination >	m_addressUnits
	address units More...

Friends
bool	operator== (const IePerr &a, const IePerr &b)
	equality operator More...

Detailed Description

See 7.3.2.98 of 802.11s draft 2.07.

Definition at line 34 of file ie-dot11s-perr.h.

Constructor & Destructor Documentation

◆ IePerr()

ns3::dot11s::IePerr::IePerr ( )

Definition at line 26 of file ie-dot11s-perr.cc.

◆ ~IePerr()

ns3::dot11s::IePerr::~IePerr ( )

Definition at line 29 of file ie-dot11s-perr.cc.

Member Function Documentation

◆ AddAddressUnit()

void ns3::dot11s::IePerr::AddAddressUnit ( HwmpProtocol::FailedDestination unit )

Add address unit function.

Parameters

unit	the address of the failed destination

Definition at line 99 of file ie-dot11s-perr.cc.

References ns3::dot11s::HwmpProtocol::FailedDestination::destination, and m_addressUnits.

◆ DeleteAddressUnit()

void ns3::dot11s::IePerr::DeleteAddressUnit ( Mac48Address address )

Delete address unit function.

Parameters

address the MAC address of the deleted unit

Definition at line 130 of file ie-dot11s-perr.cc.

References first::address, and m_addressUnits.

◆ DeserializeInformationField()

uint8_t ns3::dot11s::IePerr::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 68 of file ie-dot11s-perr.cc.

References ns3::dot11s::HwmpProtocol::FailedDestination::destination, ns3::Buffer::Iterator::GetDistanceFrom(), m_addressUnits, ns3::Buffer::Iterator::Next(), NS_ABORT_UNLESS, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::dot11s::HwmpProtocol::FailedDestination::seqnum, and visualizer.core::start().

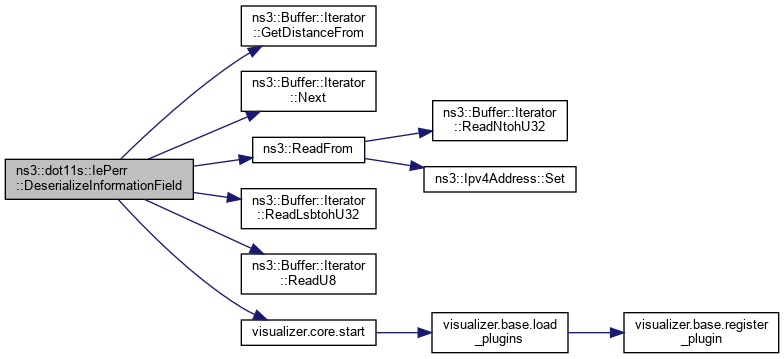

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IePerr::ElementId ( ) const

virtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 33 of file ie-dot11s-perr.cc.

References IE_PERR.

◆ GetAddressUnitVector()

std::vector< HwmpProtocol::FailedDestination > ns3::dot11s::IePerr::GetAddressUnitVector ( ) const

Get address unit vector function.

Returns: the list of failed destinations

Definition at line 125 of file ie-dot11s-perr.cc.

References m_addressUnits.

◆ GetInformationFieldSize()

uint8_t ns3::dot11s::IePerr::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 88 of file ie-dot11s-perr.cc.

References m_addressUnits.

Referenced by IsFull().

Here is the caller graph for this function:

◆ GetNumOfDest()

uint8_t ns3::dot11s::IePerr::GetNumOfDest ( ) const

Get number of destination function.

Returns: the number of destinations

Definition at line 49 of file ie-dot11s-perr.cc.

References m_addressUnits.

◆ IsFull()

bool ns3::dot11s::IePerr::IsFull ( ) const

Is full function.

Returns: true if full

Definition at line 115 of file ie-dot11s-perr.cc.

References GetInformationFieldSize().

Here is the call graph for this function:

◆ Print()

void ns3::dot11s::IePerr::Print ( std::ostream & os ) const

virtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 38 of file ie-dot11s-perr.cc.

References m_addressUnits.

Referenced by ns3::dot11s::operator<<().

Here is the caller graph for this function:

◆ ResetPerr()

void ns3::dot11s::IePerr::ResetPerr ( )

Reset PERR.

Definition at line 143 of file ie-dot11s-perr.cc.

References m_addressUnits.

◆ SerializeInformationField()

void ns3::dot11s::IePerr::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 54 of file ie-dot11s-perr.cc.

References m_addressUnits, ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

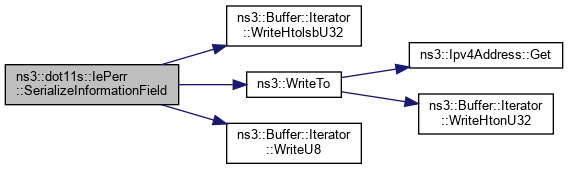

Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const IePerr &	a,
		const IePerr &	b
	)

friend

equality operator

Parameters

a	lhs
b	rhs

Returns: true if equal

Definition at line 148 of file ie-dot11s-perr.cc.

Member Data Documentation

◆ m_addressUnits

std::vector<HwmpProtocol::FailedDestination> ns3::dot11s::IePerr::m_addressUnits

private

address units

Definition at line 75 of file ie-dot11s-perr.h.

Referenced by AddAddressUnit(), DeleteAddressUnit(), DeserializeInformationField(), GetAddressUnitVector(), GetInformationFieldSize(), GetNumOfDest(), Print(), ResetPerr(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-perr.h
src/mesh/model/dot11s/ie-dot11s-perr.cc
