Flame header. More...

#include "flame-header.h"

Inheritance diagram for ns3::flame::FlameHeader:

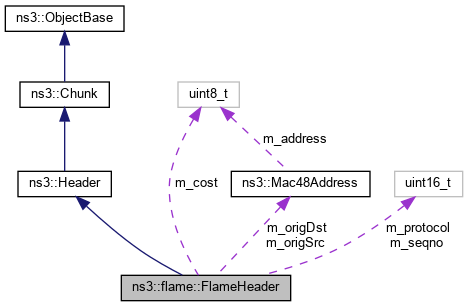

Collaboration diagram for ns3::flame::FlameHeader:

Public Member Functions
	FlameHeader ()

	~FlameHeader ()

void	AddCost (uint8_t cost)
	Add cost value. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint8_t	GetCost () const
	Get cost value. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

Mac48Address	GetOrigDst () const
	Get origin destination address. More...

Mac48Address	GetOrigSrc () const
	Get origin source address. More...

uint16_t	GetProtocol () const
	Get protocol value. More...

uint16_t	GetSeqno () const
	Get sequence number value. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetOrigDst (Mac48Address dst)
	Set origin destination address. More...

void	SetOrigSrc (Mac48Address OrigSrc)
	Set origin source function. More...

void	SetProtocol (uint16_t protocol)
	Set protocol value. More...

void	SetSeqno (uint16_t seqno)
	Set sequence number value. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_cost
	cost More...

Mac48Address	m_origDst
	origin destination More...

Mac48Address	m_origSrc
	origin source More...

uint16_t	m_protocol
	protocol More...

uint16_t	m_seqno
	sequence number More...

Friends
bool	operator== (const FlameHeader &a, const FlameHeader &b)
	equality operator More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Flame header.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 37 of file flame-header.h.

Constructor & Destructor Documentation

◆ FlameHeader()

ns3::flame::FlameHeader::FlameHeader ( )

Definition at line 31 of file flame-header.cc.

◆ ~FlameHeader()

ns3::flame::FlameHeader::~FlameHeader ( )

Definition at line 35 of file flame-header.cc.

Member Function Documentation

◆ AddCost()

void ns3::flame::FlameHeader::AddCost ( uint8_t cost )

Add cost value.

Parameters

cost the cost

Definition at line 93 of file flame-header.cc.

References m_cost.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::flame::FlameHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 81 of file flame-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, ns3::Buffer::Iterator::Next(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

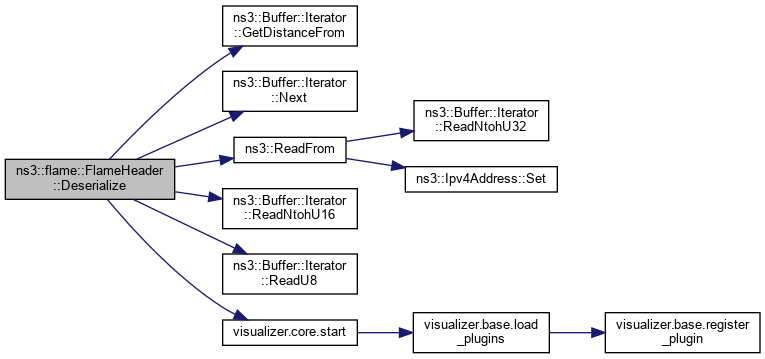

Here is the call graph for this function:

◆ GetCost()

uint8_t ns3::flame::FlameHeader::GetCost ( ) const

Get cost value.

Returns: the cost

Definition at line 98 of file flame-header.cc.

References m_cost.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame().

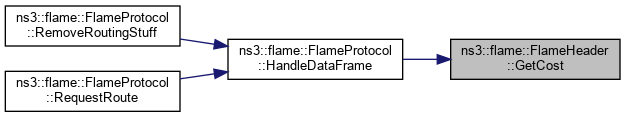

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::flame::FlameHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 48 of file flame-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetOrigDst()

Mac48Address ns3::flame::FlameHeader::GetOrigDst ( ) const

Get origin destination address.

Returns: the MAC address of the destination

Definition at line 118 of file flame-header.cc.

References m_origDst.

◆ GetOrigSrc()

Mac48Address ns3::flame::FlameHeader::GetOrigSrc ( ) const

Get origin source address.

Returns: the MAC address of the origin source

Definition at line 128 of file flame-header.cc.

References m_origSrc.

◆ GetProtocol()

uint16_t ns3::flame::FlameHeader::GetProtocol ( void ) const

Get protocol value.

Returns: the protocol

Definition at line 138 of file flame-header.cc.

References m_protocol.

Referenced by ns3::flame::FlameProtocol::RemoveRoutingStuff().

Here is the caller graph for this function:

◆ GetSeqno()

uint16_t ns3::flame::FlameHeader::GetSeqno ( ) const

Get sequence number value.

Returns: the sequence number

Definition at line 108 of file flame-header.cc.

References m_seqno.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), and ns3::flame::FlameProtocol::RequestRoute().

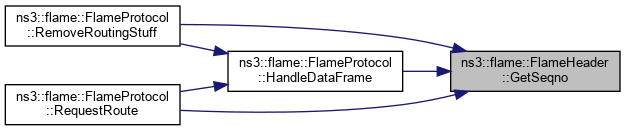

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::flame::FlameHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 59 of file flame-header.cc.

◆ GetTypeId()

TypeId ns3::flame::FlameHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 39 of file flame-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

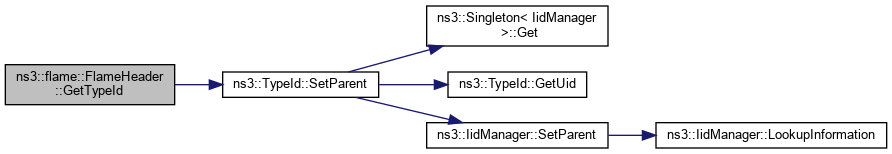

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::flame::FlameHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 53 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, and m_seqno.

◆ Serialize()

void ns3::flame::FlameHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 70 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

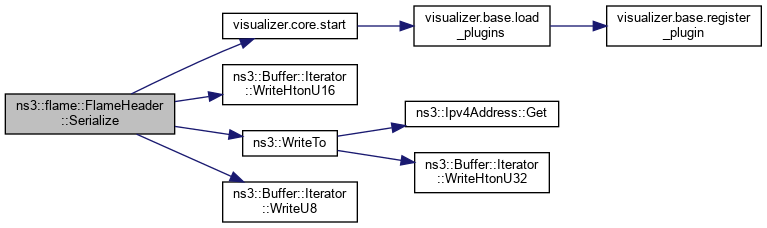

Here is the call graph for this function:

◆ SetOrigDst()

void ns3::flame::FlameHeader::SetOrigDst ( Mac48Address dst )

Set origin destination address.

Parameters

dst	the MAC address of the destination

Definition at line 113 of file flame-header.cc.

References m_origDst.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

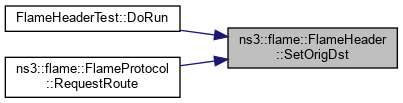

Here is the caller graph for this function:

◆ SetOrigSrc()

void ns3::flame::FlameHeader::SetOrigSrc ( Mac48Address OrigSrc )

Set origin source function.

Parameters

OrigSrc the MAC address of the origina source

Definition at line 123 of file flame-header.cc.

References m_origSrc.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::flame::FlameHeader::SetProtocol ( uint16_t protocol )

Set protocol value.

Parameters

protocol the protocol

Definition at line 133 of file flame-header.cc.

References m_protocol.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

◆ SetSeqno()

void ns3::flame::FlameHeader::SetSeqno ( uint16_t seqno )

Set sequence number value.

Parameters

seqno the sequence number

Definition at line 103 of file flame-header.cc.

References m_seqno.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

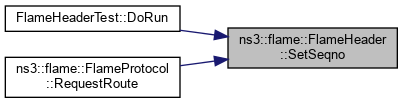

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const FlameHeader &	a,
		const FlameHeader &	b
	)

friend

equality operator

Parameters

a	lhs
b	rhs

Returns: true if equal

Definition at line 143 of file flame-header.cc.

Member Data Documentation

◆ m_cost

uint8_t ns3::flame::FlameHeader::m_cost

private

cost

Definition at line 109 of file flame-header.h.

Referenced by AddCost(), Deserialize(), GetCost(), Print(), and Serialize().

◆ m_origDst

Mac48Address ns3::flame::FlameHeader::m_origDst

private

origin destination

Definition at line 111 of file flame-header.h.

Referenced by Deserialize(), GetOrigDst(), Print(), Serialize(), and SetOrigDst().

◆ m_origSrc

Mac48Address ns3::flame::FlameHeader::m_origSrc

private

origin source

Definition at line 112 of file flame-header.h.

Referenced by Deserialize(), GetOrigSrc(), Print(), Serialize(), and SetOrigSrc().

◆ m_protocol

uint16_t ns3::flame::FlameHeader::m_protocol

private

protocol

Definition at line 113 of file flame-header.h.

Referenced by Deserialize(), GetProtocol(), Serialize(), and SetProtocol().

◆ m_seqno

uint16_t ns3::flame::FlameHeader::m_seqno

private

sequence number

Definition at line 110 of file flame-header.h.

Referenced by Deserialize(), GetSeqno(), Print(), Serialize(), and SetSeqno().

The documentation for this class was generated from the following files:

src/mesh/model/flame/flame-header.h
src/mesh/model/flame/flame-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FlameHeader()

◆ ~FlameHeader()

Member Function Documentation

◆ AddCost()

◆ Deserialize()

◆ GetCost()

◆ GetInstanceTypeId()

◆ GetOrigDst()

◆ GetOrigSrc()

◆ GetProtocol()

◆ GetSeqno()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetOrigDst()

◆ SetOrigSrc()

◆ SetProtocol()

◆ SetSeqno()

Friends And Related Function Documentation

◆ operator==

Member Data Documentation

◆ m_cost

◆ m_origDst

◆ m_origSrc

◆ m_protocol

◆ m_seqno
