Interface MAC plugin for FLAME routing protocol. More...

#include "flame-protocol-mac.h"

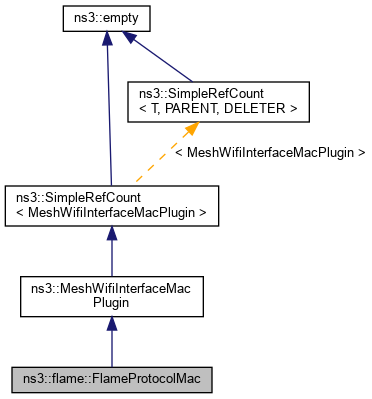

Inheritance diagram for ns3::flame::FlameProtocolMac:

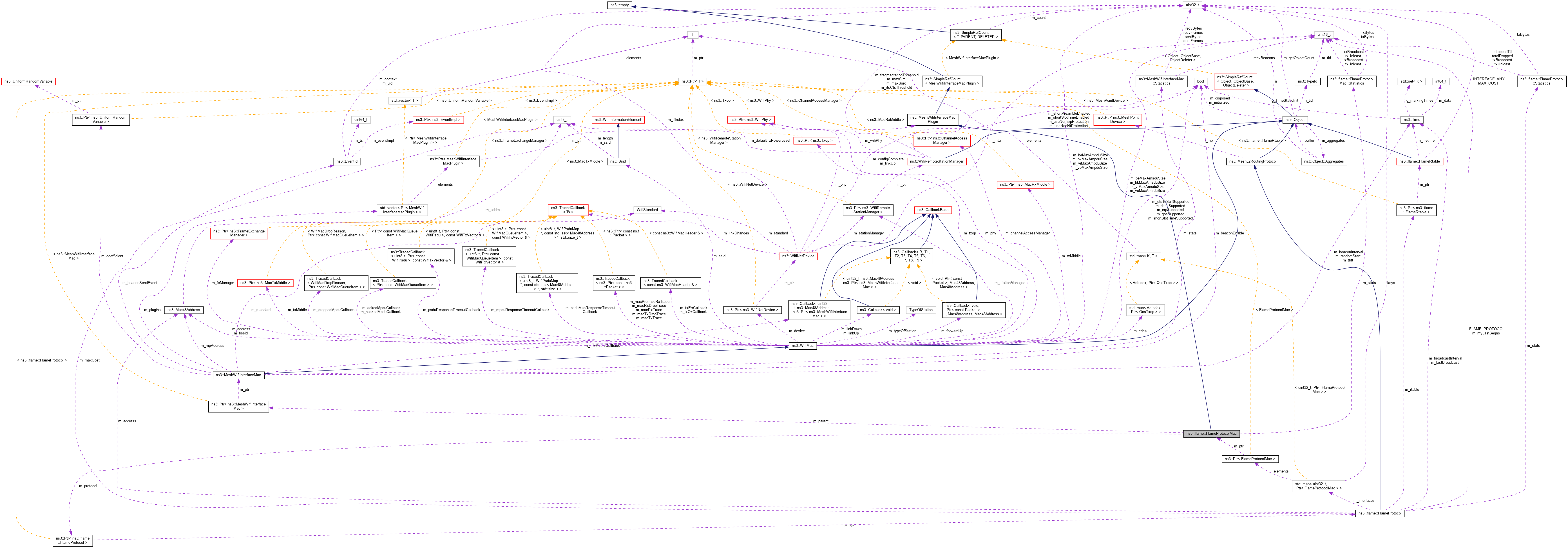

Collaboration diagram for ns3::flame::FlameProtocolMac:

Classes
struct	Statistics
	Statistics structure. More...

Public Member Functions
	FlameProtocolMac (Ptr< FlameProtocol > protocol)
	Constructor. More...

	~FlameProtocolMac ()

int64_t	AssignStreams (int64_t stream)
	AssignStreams is empty, because this model doesn't use random variables. More...

uint16_t	GetChannelId () const
	Get channel ID function. More...

bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Receive and process a packet; packets are given a FlameTag packet tag. More...

void	Report (std::ostream &os) const
	Report statistics. More...

void	ResetStats ()
	Reset statistics function. More...

void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Set parent of this instance. More...

void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon is empty, because FLAME does not know anything about beacons. More...

bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Process an outgoing frame. More...

Public Member Functions inherited from ns3::MeshWifiInterfaceMacPlugin
virtual	~MeshWifiInterfaceMacPlugin ()
	This is for subclasses. More...

Public Member Functions inherited from ns3::SimpleRefCount< MeshWifiInterfaceMacPlugin >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Ptr< MeshWifiInterfaceMac >	m_parent
	parent More...

Ptr< FlameProtocol >	m_protocol
	protocol More...

Statistics	m_stats
	statistics More...

Detailed Description

Interface MAC plugin for FLAME routing protocol.

Definition at line 34 of file flame-protocol-mac.h.

Constructor & Destructor Documentation

◆ FlameProtocolMac()

ns3::flame::FlameProtocolMac::FlameProtocolMac ( Ptr< FlameProtocol > protocol )

Constructor.

Parameters

protocol flame protocol object

Definition at line 33 of file flame-protocol-mac.cc.

◆ ~FlameProtocolMac()

ns3::flame::FlameProtocolMac::~FlameProtocolMac ( )

Definition at line 37 of file flame-protocol-mac.cc.

References m_parent, and m_protocol.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::flame::FlameProtocolMac::AssignStreams ( int64_t stream )

inlinevirtual

AssignStreams is empty, because this model doesn't use random variables.

Parameters

stream

Returns: 0 (no streams used)

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 78 of file flame-protocol-mac.h.

◆ GetChannelId()

uint16_t ns3::flame::FlameProtocolMac::GetChannelId ( ) const

Get channel ID function.

Returns: the channel

Definition at line 100 of file flame-protocol-mac.cc.

References m_parent.

◆ Receive()

bool ns3::flame::FlameProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)

virtual

Receive and process a packet; packets are given a FlameTag packet tag.

Parameters

packet	the packet received
header	the header

Returns: true if successful

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 49 of file flame-protocol-mac.cc.

References ns3::Packet::AddPacketTag(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::WifiMacHeader::IsData(), m_stats, NS_FATAL_ERROR, ns3::Packet::PeekPacketTag(), ns3::flame::FlameTag::receiver, ns3::flame::FlameProtocolMac::Statistics::rxBroadcast, ns3::flame::FlameProtocolMac::Statistics::rxBytes, ns3::flame::FlameProtocolMac::Statistics::rxUnicast, and ns3::flame::FlameTag::transmitter.

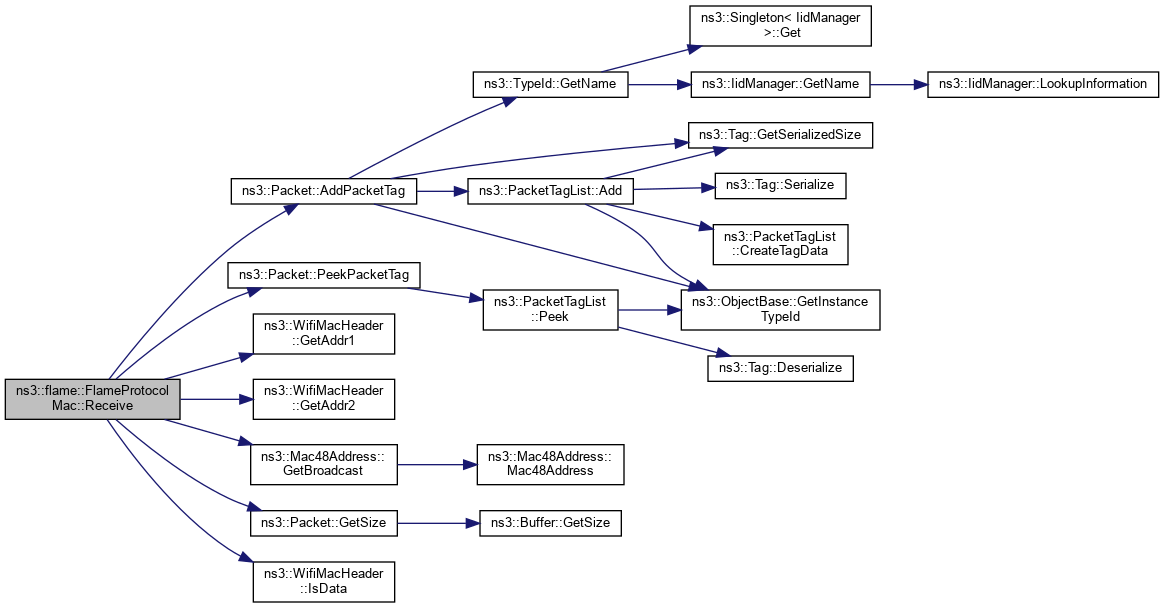

Here is the call graph for this function:

◆ Report()

void ns3::flame::FlameProtocolMac::Report ( std::ostream & os ) const

Report statistics.

Parameters

os	the output stream

Definition at line 120 of file flame-protocol-mac.cc.

References m_parent, m_stats, and ns3::flame::FlameProtocolMac::Statistics::Print().

Here is the call graph for this function:

◆ ResetStats()

void ns3::flame::FlameProtocolMac::ResetStats ( )

Reset statistics function.

Definition at line 129 of file flame-protocol-mac.cc.

References m_stats.

◆ SetParent()

void ns3::flame::FlameProtocolMac::SetParent ( Ptr< MeshWifiInterfaceMac > parent )

virtual

Set parent of this instance.

Parameters

parent pointer to the parent MeshWifiInterfaceMac

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 43 of file flame-protocol-mac.cc.

References m_parent.

◆ UpdateBeacon()

void ns3::flame::FlameProtocolMac::UpdateBeacon ( MeshWifiBeacon & beacon ) const

inlinevirtual

Update beacon is empty, because FLAME does not know anything about beacons.

Parameters

beacon the beacon

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 72 of file flame-protocol-mac.h.

◆ UpdateOutcomingFrame()

bool ns3::flame::FlameProtocolMac::UpdateOutcomingFrame	(	Ptr< Packet >	packet,
		WifiMacHeader &	header,
		Mac48Address	from,
		Mac48Address	to
	)

virtual

Process an outgoing frame.

Remove the FlameTag and increment stats counters.

Parameters

packet	the packet received
header	the header
from	the MAC address of the sender
to	the MAC address of the receiver

Returns: true if successful

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 75 of file flame-protocol-mac.cc.

References ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::WifiMacHeader::IsData(), m_stats, NS_FATAL_ERROR, ns3::flame::FlameTag::receiver, ns3::Packet::RemovePacketTag(), ns3::WifiMacHeader::SetAddr1(), ns3::flame::FlameProtocolMac::Statistics::txBroadcast, ns3::flame::FlameProtocolMac::Statistics::txBytes, and ns3::flame::FlameProtocolMac::Statistics::txUnicast.

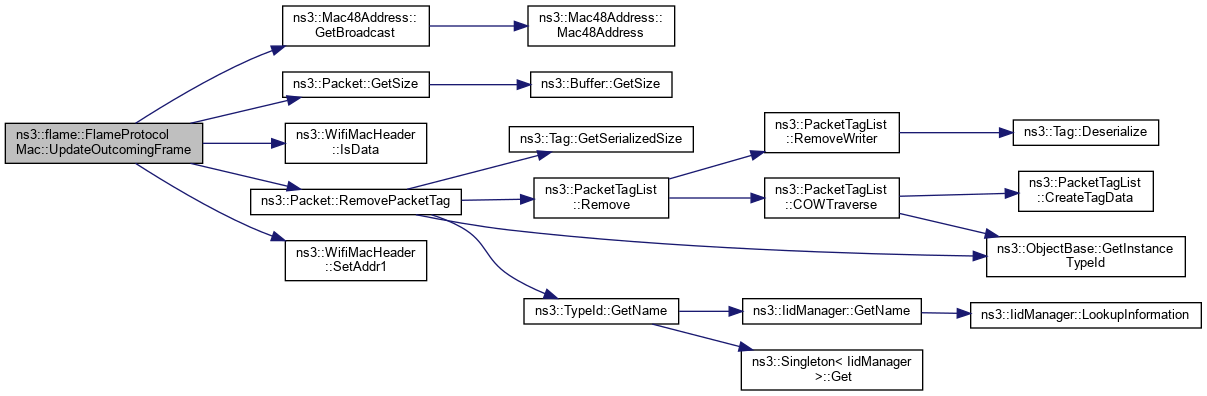

Here is the call graph for this function:

Member Data Documentation

◆ m_parent

Ptr<MeshWifiInterfaceMac> ns3::flame::FlameProtocolMac::m_parent

private

parent

Definition at line 97 of file flame-protocol-mac.h.

Referenced by ~FlameProtocolMac(), GetChannelId(), Report(), and SetParent().

◆ m_protocol

Ptr<FlameProtocol> ns3::flame::FlameProtocolMac::m_protocol

private

protocol

Definition at line 96 of file flame-protocol-mac.h.

Referenced by ~FlameProtocolMac().

◆ m_stats

Statistics ns3::flame::FlameProtocolMac::m_stats

private

statistics

Definition at line 116 of file flame-protocol-mac.h.

Referenced by Receive(), Report(), ResetStats(), and UpdateOutcomingFrame().

The documentation for this class was generated from the following files:

src/mesh/model/flame/flame-protocol-mac.h
src/mesh/model/flame/flame-protocol-mac.cc
