This class encapsulates all data structures needed for maintaining internal state of an OLSR node. More...

#include "olsr-state.h"

Collaboration diagram for ns3::olsr::OlsrState:

Public Member Functions
	OlsrState ()

void	EraseAssociation (const Association &tuple)
	Erases an association. More...

void	EraseAssociationTuple (const AssociationTuple &tuple)
	Erases a known association tuple. More...

void	EraseDuplicateTuple (const DuplicateTuple &tuple)
	Erases a duplicate tuple. More...

void	EraseIfaceAssocTuple (const IfaceAssocTuple &tuple)
	Erases a interface association tuple. More...

void	EraseLinkTuple (const LinkTuple &tuple)
	Erases a link tuple. More...

void	EraseMprSelectorTuple (const MprSelectorTuple &tuple)
	Erases a MPR selector tuple. More...

void	EraseMprSelectorTuples (const Ipv4Address &mainAddr)
	Erases all MPR selector tuples belonging to the same address. More...

void	EraseNeighborTuple (const Ipv4Address &mainAddr)
	Erases a neighbor tuple. More...

void	EraseNeighborTuple (const NeighborTuple &neighborTuple)
	Erases a neighbor tuple. More...

void	EraseOlderTopologyTuples (const Ipv4Address &lastAddr, uint16_t ansn)
	Erases a topology tuple. More...

void	EraseTopologyTuple (const TopologyTuple &tuple)
	Erases a topology tuple. More...

void	EraseTwoHopNeighborTuple (const TwoHopNeighborTuple &tuple)
	Erases a 2-hop neighbor tuple. More...

void	EraseTwoHopNeighborTuples (const Ipv4Address &neighbor)
	Erases the 2-hop neighbor tuples with the same 1-hop neighbor. More...

void	EraseTwoHopNeighborTuples (const Ipv4Address &neighbor, const Ipv4Address &twoHopNeighbor)
	Erases the 2-hop neighbor tuples with matching predicates. More...

AssociationTuple *	FindAssociationTuple (const Ipv4Address &gatewayAddr, const Ipv4Address &networkAddr, const Ipv4Mask &netmask)
	Finds an association tuple. More...

DuplicateTuple *	FindDuplicateTuple (const Ipv4Address &address, uint16_t sequenceNumber)
	Finds a duplicate tuple. More...

IfaceAssocTuple *	FindIfaceAssocTuple (const Ipv4Address &ifaceAddr)
	Finds a interface association tuple. More...

const IfaceAssocTuple *	FindIfaceAssocTuple (const Ipv4Address &ifaceAddr) const
	Finds a interface association tuple. More...

LinkTuple *	FindLinkTuple (const Ipv4Address &ifaceAddr)
	Finds a link tuple. More...

bool	FindMprAddress (const Ipv4Address &address)
	Checks if there's an MPR with a specific address. More...

MprSelectorTuple *	FindMprSelectorTuple (const Ipv4Address &mainAddr)
	Finds a MPR selector tuple. More...

std::vector< Ipv4Address >	FindNeighborInterfaces (const Ipv4Address &neighborMainAddr) const
	Returns a vector of all interfaces of a given neighbor, with the exception of the "main" one. More...

NeighborTuple *	FindNeighborTuple (const Ipv4Address &mainAddr)
	Finds a neighbor tuple. More...

NeighborTuple *	FindNeighborTuple (const Ipv4Address &mainAddr, uint8_t willingness)
	Finds a neighbor tuple. More...

TopologyTuple *	FindNewerTopologyTuple (const Ipv4Address &lastAddr, uint16_t ansn)
	Finds a topology tuple. More...

LinkTuple *	FindSymLinkTuple (const Ipv4Address &ifaceAddr, Time time)
	Finds a symmetrical link tuple. More...

const NeighborTuple *	FindSymNeighborTuple (const Ipv4Address &mainAddr) const
	Finds a symmetrical neighbor tuple. More...

TopologyTuple *	FindTopologyTuple (const Ipv4Address &destAddr, const Ipv4Address &lastAddr)
	Finds a topology tuple. More...

TwoHopNeighborTuple *	FindTwoHopNeighborTuple (const Ipv4Address &neighbor, const Ipv4Address &twoHopNeighbor)
	Finds a 2-hop neighbor tuple. More...

const Associations &	GetAssociations () const
	Gets the association set the node has. More...

const AssociationSet &	GetAssociationSet () const
	Gets the association set known to the node. More...

const IfaceAssocSet &	GetIfaceAssocSet () const
	Gets the interface association set. More...

IfaceAssocSet &	GetIfaceAssocSetMutable ()
	Gets a mutable reference to the interface association set. More...

const LinkSet &	GetLinks () const
	Gets the Link set. More...

const MprSelectorSet &	GetMprSelectors () const
	Gets the MPR selectors. More...

MprSet	GetMprSet () const
	Gets the MPR set. More...

NeighborSet &	GetNeighbors ()
	Gets the neighbor set. More...

const NeighborSet &	GetNeighbors () const
	Gets the neighbor set. More...

const TopologySet &	GetTopologySet () const
	Gets the topology set. More...

TwoHopNeighborSet &	GetTwoHopNeighbors ()
	Gets the 2-hop neighbor set. More...

const TwoHopNeighborSet &	GetTwoHopNeighbors () const
	Gets the 2-hop neighbor set. More...

void	InsertAssociation (const Association &tuple)
	Inserts an association tuple. More...

void	InsertAssociationTuple (const AssociationTuple &tuple)
	Inserts a known association tuple. More...

void	InsertDuplicateTuple (const DuplicateTuple &tuple)
	Inserts a duplicate tuple. More...

void	InsertIfaceAssocTuple (const IfaceAssocTuple &tuple)
	Inserts a interface association tuple. More...

LinkTuple &	InsertLinkTuple (const LinkTuple &tuple)
	Inserts a link tuple. More...

void	InsertMprSelectorTuple (const MprSelectorTuple &tuple)
	Inserts a MPR selector tuple. More...

void	InsertNeighborTuple (const NeighborTuple &tuple)
	Inserts a neighbor tuple. More...

void	InsertTopologyTuple (const TopologyTuple &tuple)
	Inserts a topology tuple. More...

void	InsertTwoHopNeighborTuple (const TwoHopNeighborTuple &tuple)
	Inserts a 2-hop neighbor tuple. More...

std::string	PrintMprSelectorSet () const
	Prints the MPR selector sets. More...

void	SetMprSet (MprSet mprSet)
	Sets the MPR set to the one specified. More...

Protected Attributes
Associations	m_associations
	The node's local Host Network Associations that will be advertised using HNA messages. More...

AssociationSet	m_associationSet
	Association Set (RFC 3626, section12.2). More...

DuplicateSet	m_duplicateSet
	Duplicate Set (RFC 3626, section 3.4). More...

IfaceAssocSet	m_ifaceAssocSet
	Interface Association Set (RFC 3626, section 4.1). More...

LinkSet	m_linkSet
	Link Set (RFC 3626, section 4.2.1). More...

MprSelectorSet	m_mprSelectorSet
	MPR Selector Set (RFC 3626, section 4.3.4). More...

MprSet	m_mprSet
	MPR Set (RFC 3626, section 4.3.3). More...

NeighborSet	m_neighborSet
	Neighbor Set (RFC 3626, section 4.3.1). More...

TopologySet	m_topologySet
	Topology Set (RFC 3626, section 4.4). More...

TwoHopNeighborSet	m_twoHopNeighborSet
	2-hop Neighbor Set (RFC 3626, section 4.3.2). More...

Detailed Description

This class encapsulates all data structures needed for maintaining internal state of an OLSR node.

Definition at line 34 of file olsr-state.h.

Constructor & Destructor Documentation

◆ OlsrState()

ns3::olsr::OlsrState::OlsrState ( )

inline

Definition at line 51 of file olsr-state.h.

Member Function Documentation

◆ EraseAssociation()

void ns3::olsr::OlsrState::EraseAssociation ( const Association & tuple )

Erases an association.

Parameters

tuple The tuple to erase.

Definition at line 555 of file olsr-state.cc.

References m_associations.

Referenced by ns3::olsr::RoutingProtocol::RemoveHostNetworkAssociation().

Here is the caller graph for this function:

◆ EraseAssociationTuple()

void ns3::olsr::OlsrState::EraseAssociationTuple ( const AssociationTuple & tuple )

Erases a known association tuple.

Parameters

tuple The tuple to erase.

Definition at line 535 of file olsr-state.cc.

References m_associationSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveAssociationTuple().

Here is the caller graph for this function:

◆ EraseDuplicateTuple()

void ns3::olsr::OlsrState::EraseDuplicateTuple ( const DuplicateTuple & tuple )

Erases a duplicate tuple.

Parameters

tuple The tuple to erase.

Definition at line 308 of file olsr-state.cc.

References m_duplicateSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveDuplicateTuple().

Here is the caller graph for this function:

◆ EraseIfaceAssocTuple()

void ns3::olsr::OlsrState::EraseIfaceAssocTuple ( const IfaceAssocTuple & tuple )

Erases a interface association tuple.

Parameters

tuple The tuple to erase.

Definition at line 484 of file olsr-state.cc.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveIfaceAssocTuple().

Here is the caller graph for this function:

◆ EraseLinkTuple()

void ns3::olsr::OlsrState::EraseLinkTuple ( const LinkTuple & tuple )

Erases a link tuple.

Parameters

tuple The tuple to erase.

Definition at line 365 of file olsr-state.cc.

References m_linkSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveLinkTuple().

Here is the caller graph for this function:

◆ EraseMprSelectorTuple()

void ns3::olsr::OlsrState::EraseMprSelectorTuple ( const MprSelectorTuple & tuple )

Erases a MPR selector tuple.

Parameters

tuple The MPR selector tuple.

Definition at line 52 of file olsr-state.cc.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveMprSelectorTuple().

Here is the caller graph for this function:

◆ EraseMprSelectorTuples()

void ns3::olsr::OlsrState::EraseMprSelectorTuples ( const Ipv4Address & mainAddr )

Erases all MPR selector tuples belonging to the same address.

Parameters

mainAddr The MPR selector main address.

Definition at line 66 of file olsr-state.cc.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::NeighborLoss().

Here is the caller graph for this function:

◆ EraseNeighborTuple() [1/2]

void ns3::olsr::OlsrState::EraseNeighborTuple ( const Ipv4Address & mainAddr )

Erases a neighbor tuple.

Parameters

mainAddr The neighbor tuple main address.

Definition at line 168 of file olsr-state.cc.

References m_neighborSet.

◆ EraseNeighborTuple() [2/2]

void ns3::olsr::OlsrState::EraseNeighborTuple ( const NeighborTuple & neighborTuple )

Erases a neighbor tuple.

Parameters

neighborTuple The neighbor tuple.

Definition at line 154 of file olsr-state.cc.

References m_neighborSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveLinkTuple(), and ns3::olsr::RoutingProtocol::RemoveNeighborTuple().

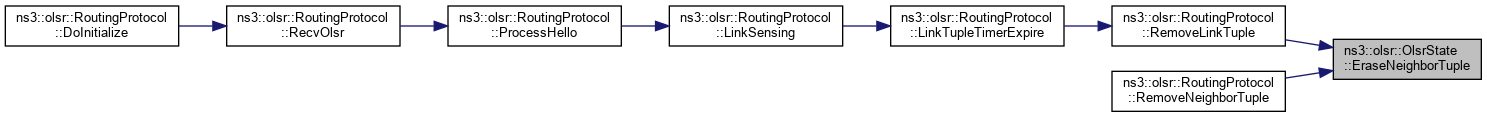

Here is the caller graph for this function:

◆ EraseOlderTopologyTuples()

void ns3::olsr::OlsrState::EraseOlderTopologyTuples	(	const Ipv4Address &	lastAddr,
		uint16_t	ansn
	)

Erases a topology tuple.

Parameters

lastAddr	The address of the node previous to the destination.
ansn	The Advertised Neighbor Sequence Number.

Definition at line 431 of file olsr-state.cc.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::ProcessTc().

Here is the caller graph for this function:

◆ EraseTopologyTuple()

void ns3::olsr::OlsrState::EraseTopologyTuple ( const TopologyTuple & tuple )

Erases a topology tuple.

Parameters

tuple The tuple to erase.

Definition at line 417 of file olsr-state.cc.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::RemoveTopologyTuple().

Here is the caller graph for this function:

◆ EraseTwoHopNeighborTuple()

void ns3::olsr::OlsrState::EraseTwoHopNeighborTuple ( const TwoHopNeighborTuple & tuple )

Erases a 2-hop neighbor tuple.

Parameters

tuple The 2-hop neighbor tuple.

Definition at line 216 of file olsr-state.cc.

References m_twoHopNeighborSet.

Referenced by ns3::olsr::RoutingProtocol::RemoveTwoHopNeighborTuple().

Here is the caller graph for this function:

◆ EraseTwoHopNeighborTuples() [1/2]

void ns3::olsr::OlsrState::EraseTwoHopNeighborTuples ( const Ipv4Address & neighbor )

Erases the 2-hop neighbor tuples with the same 1-hop neighbor.

Parameters

neighbor The neighbor address.

Definition at line 249 of file olsr-state.cc.

References m_twoHopNeighborSet.

Referenced by ns3::olsr::RoutingProtocol::NeighborLoss(), and ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet().

Here is the caller graph for this function:

◆ EraseTwoHopNeighborTuples() [2/2]

void ns3::olsr::OlsrState::EraseTwoHopNeighborTuples	(	const Ipv4Address &	neighbor,
		const Ipv4Address &	twoHopNeighbor
	)

Erases the 2-hop neighbor tuples with matching predicates.

Parameters

neighbor	The neighbor address.
twoHopNeighbor	The 2-hop neighbor main address.

Definition at line 230 of file olsr-state.cc.

References m_twoHopNeighborSet.

◆ FindAssociationTuple()

AssociationTuple * ns3::olsr::OlsrState::FindAssociationTuple	(	const Ipv4Address &	gatewayAddr,
		const Ipv4Address &	networkAddr,
		const Ipv4Mask &	netmask
	)

Finds an association tuple.

Parameters

gatewayAddr	The gateway address.
networkAddr	The network address.
netmask	The network mask.

Returns: The association tuple, or a null pointer if no match.

Definition at line 521 of file olsr-state.cc.

References m_associationSet.

Referenced by ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire(), and ns3::olsr::RoutingProtocol::ProcessHna().

Here is the caller graph for this function:

◆ FindDuplicateTuple()

DuplicateTuple * ns3::olsr::OlsrState::FindDuplicateTuple	(	const Ipv4Address &	address,
		uint16_t	sequenceNumber
	)

Finds a duplicate tuple.

Parameters

address	The duplicate tuple address.
sequenceNumber	The duplicate tuple sequence number.

Returns: The duplicate tuple, or a null pointer if no match.

Definition at line 294 of file olsr-state.cc.

References m_duplicateSet.

Referenced by ns3::olsr::RoutingProtocol::DupTupleTimerExpire(), and ns3::olsr::RoutingProtocol::RecvOlsr().

Here is the caller graph for this function:

◆ FindIfaceAssocTuple() [1/2]

IfaceAssocTuple * ns3::olsr::OlsrState::FindIfaceAssocTuple ( const Ipv4Address & ifaceAddr )

Finds a interface association tuple.

Parameters

ifaceAddr The interface address.

Returns: The interface association tuple, or a null pointer if no match.

Definition at line 456 of file olsr-state.cc.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::GetMainAddress(), and ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire().

Here is the caller graph for this function:

◆ FindIfaceAssocTuple() [2/2]

const IfaceAssocTuple * ns3::olsr::OlsrState::FindIfaceAssocTuple ( const Ipv4Address & ifaceAddr ) const

Finds a interface association tuple.

Parameters

ifaceAddr The interface address.

Returns: The interface association tuple, or a null pointer if no match.

Definition at line 470 of file olsr-state.cc.

References m_ifaceAssocSet.

◆ FindLinkTuple()

LinkTuple * ns3::olsr::OlsrState::FindLinkTuple ( const Ipv4Address & ifaceAddr )

Finds a link tuple.

Parameters

ifaceAddr The interface address of the link.

Returns: The link tuple, or a null pointer if no match.

Definition at line 330 of file olsr-state.cc.

References m_linkSet.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), and ns3::olsr::RoutingProtocol::LinkTupleTimerExpire().

Here is the caller graph for this function:

◆ FindMprAddress()

bool ns3::olsr::OlsrState::FindMprAddress ( const Ipv4Address & address )

Checks if there's an MPR with a specific address.

Parameters

address The address to test.

Returns: True if a MPR with the specified address exists.

Definition at line 274 of file olsr-state.cc.

References m_mprSet.

Referenced by ns3::olsr::RoutingProtocol::SendHello().

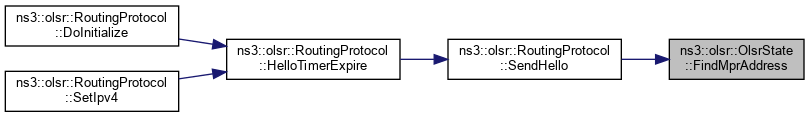

Here is the caller graph for this function:

◆ FindMprSelectorTuple()

MprSelectorTuple * ns3::olsr::OlsrState::FindMprSelectorTuple ( const Ipv4Address & mainAddr )

Finds a MPR selector tuple.

Parameters

mainAddr The MPR selector main address.

Returns: The MPR selector, if found. Else it returns a null pointer.

Definition at line 38 of file olsr-state.cc.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire(), and ns3::olsr::RoutingProtocol::PopulateMprSelectorSet().

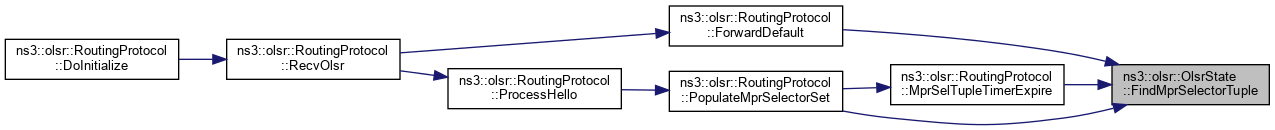

Here is the caller graph for this function:

◆ FindNeighborInterfaces()

std::vector< Ipv4Address > ns3::olsr::OlsrState::FindNeighborInterfaces ( const Ipv4Address & neighborMainAddr ) const

Returns a vector of all interfaces of a given neighbor, with the exception of the "main" one.

Parameters

neighborMainAddr The neighbor main address

Returns: A container of the neighbor addresses (excluding the main one).

Definition at line 504 of file olsr-state.cc.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::SendHello().

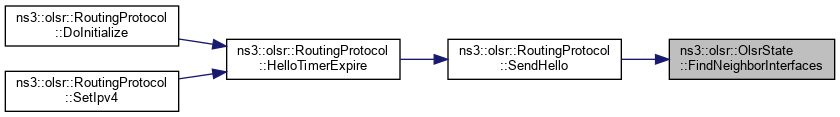

Here is the caller graph for this function:

◆ FindNeighborTuple() [1/2]

NeighborTuple * ns3::olsr::OlsrState::FindNeighborTuple ( const Ipv4Address & mainAddr )

Finds a neighbor tuple.

Parameters

mainAddr The neighbor tuple main address.

Returns: The neighbor tuple, if found. Else it returns a null pointer.

Definition at line 112 of file olsr-state.cc.

References m_neighborSet.

Referenced by ns3::olsr::RoutingProtocol::Degree(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), and ns3::olsr::RoutingProtocol::PopulateNeighborSet().

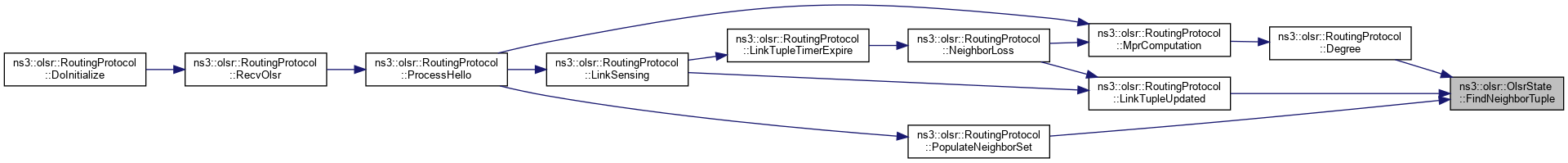

Here is the caller graph for this function:

◆ FindNeighborTuple() [2/2]

NeighborTuple * ns3::olsr::OlsrState::FindNeighborTuple	(	const Ipv4Address &	mainAddr,
		uint8_t	willingness
	)

Finds a neighbor tuple.

Parameters

mainAddr	The neighbor tuple main address.
willingness	The neighbor willingness.

Returns: The neighbor tuple, if found. Else it returns a null pointer.

Definition at line 140 of file olsr-state.cc.

References m_neighborSet.

◆ FindNewerTopologyTuple()

TopologyTuple * ns3::olsr::OlsrState::FindNewerTopologyTuple	(	const Ipv4Address &	lastAddr,
		uint16_t	ansn
	)

Finds a topology tuple.

Parameters

lastAddr	The address of the node previous to the destination.
ansn	The Advertised Neighbor Sequence Number.

Returns: The topology tuple, or a null pointer if no match.

Definition at line 403 of file olsr-state.cc.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::ProcessTc().

Here is the caller graph for this function:

◆ FindSymLinkTuple()

LinkTuple * ns3::olsr::OlsrState::FindSymLinkTuple	(	const Ipv4Address &	ifaceAddr,
		Time	time
	)

Finds a symmetrical link tuple.

Parameters

ifaceAddr	The interface address of the link.
time	The time at which the link should be considered symmetrical.

Returns: The link tuple, or a null pointer if no match.

Definition at line 344 of file olsr-state.cc.

References m_linkSet.

Referenced by ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::ProcessTc().

Here is the caller graph for this function:

◆ FindSymNeighborTuple()

const NeighborTuple * ns3::olsr::OlsrState::FindSymNeighborTuple ( const Ipv4Address & mainAddr ) const

Finds a symmetrical neighbor tuple.

Parameters

mainAddr The neighbor tuple main address.

Returns: The neighbor tuple, if found. Else it returns a null pointer.

Definition at line 126 of file olsr-state.cc.

References m_neighborSet, and ns3::olsr::NeighborTuple::STATUS_SYM.

Referenced by ns3::olsr::RoutingProtocol::RoutingTableComputation().

Here is the caller graph for this function:

◆ FindTopologyTuple()

TopologyTuple * ns3::olsr::OlsrState::FindTopologyTuple	(	const Ipv4Address &	destAddr,
		const Ipv4Address &	lastAddr
	)

Finds a topology tuple.

Parameters

destAddr	The destination address.
lastAddr	The address of the node previous to the destination.

Returns: The topology tuple, or a null pointer if no match.

Definition at line 388 of file olsr-state.cc.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire().

Here is the caller graph for this function:

◆ FindTwoHopNeighborTuple()

TwoHopNeighborTuple * ns3::olsr::OlsrState::FindTwoHopNeighborTuple	(	const Ipv4Address &	neighbor,
		const Ipv4Address &	twoHopNeighbor
	)

Finds a 2-hop neighbor tuple.

Parameters

neighbor	The neighbor main address.
twoHopNeighbor	The 2-hop neighbor main address.

Returns: The 2-hop neighbor tuple, if found. Else it returns a null pointer.

Definition at line 200 of file olsr-state.cc.

References m_twoHopNeighborSet.

Referenced by ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire(), and ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet().

Here is the caller graph for this function:

◆ GetAssociations()

const Associations& ns3::olsr::OlsrState::GetAssociations ( ) const

inline

Gets the association set the node has.

Returns: The association set the node has.

Definition at line 385 of file olsr-state.h.

References m_associations.

Referenced by ns3::olsr::RoutingProtocol::AddHostNetworkAssociation(), ns3::olsr::RoutingProtocol::HnaTimerExpire(), ns3::olsr::RoutingProtocol::RoutingTableComputation(), ns3::olsr::RoutingProtocol::SendHna(), and ns3::olsr::RoutingProtocol::SetRoutingTableAssociation().

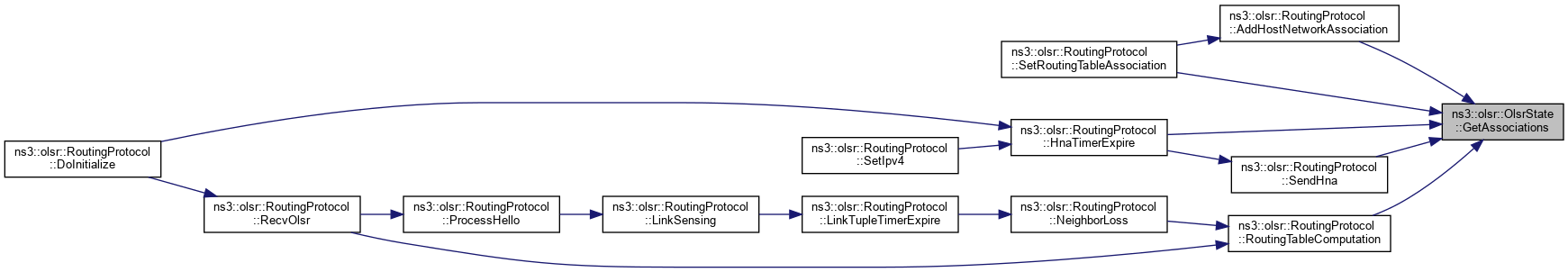

Here is the caller graph for this function:

◆ GetAssociationSet()

const AssociationSet& ns3::olsr::OlsrState::GetAssociationSet ( ) const

inline

Gets the association set known to the node.

Returns: The association set known to the node.

Definition at line 376 of file olsr-state.h.

References m_associationSet.

Referenced by ns3::olsr::RoutingProtocol::RoutingTableComputation().

Here is the caller graph for this function:

◆ GetIfaceAssocSet()

const IfaceAssocSet& ns3::olsr::OlsrState::GetIfaceAssocSet ( ) const

inline

Gets the interface association set.

Returns: The interface association set.

Definition at line 335 of file olsr-state.h.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::RoutingTableComputation().

Here is the caller graph for this function:

◆ GetIfaceAssocSetMutable()

IfaceAssocSet& ns3::olsr::OlsrState::GetIfaceAssocSetMutable ( )

inline

Gets a mutable reference to the interface association set.

Returns: The interface association set.

Definition at line 343 of file olsr-state.h.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::ProcessMid().

Here is the caller graph for this function:

◆ GetLinks()

const LinkSet& ns3::olsr::OlsrState::GetLinks ( ) const

inline

Gets the Link set.

Returns: The Link set.

Definition at line 256 of file olsr-state.h.

References m_linkSet.

Referenced by ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::olsr::RoutingProtocol::ProcessHello(), ns3::olsr::RoutingProtocol::RoutingTableComputation(), and ns3::olsr::RoutingProtocol::SendHello().

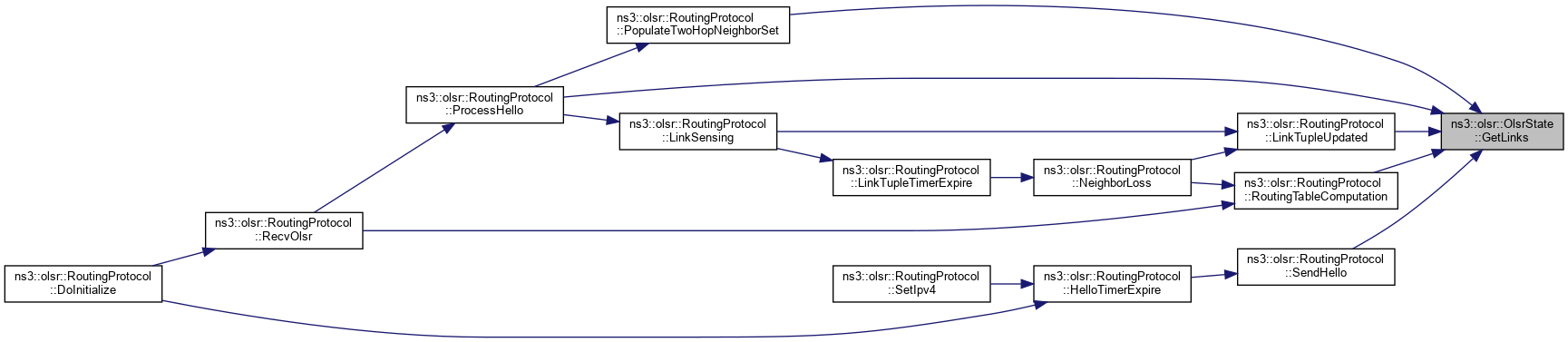

Here is the caller graph for this function:

◆ GetMprSelectors()

const MprSelectorSet& ns3::olsr::OlsrState::GetMprSelectors ( void ) const

inline

Gets the MPR selectors.

Returns: The MPR selectors.

Definition at line 61 of file olsr-state.h.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::GetMprSelectors(), ns3::olsr::RoutingProtocol::SendTc(), and ns3::olsr::RoutingProtocol::TcTimerExpire().

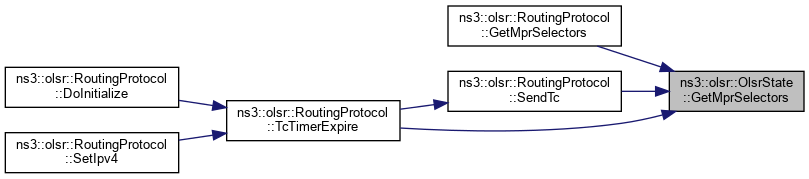

Here is the caller graph for this function:

◆ GetMprSet()

MprSet ns3::olsr::OlsrState::GetMprSet ( void ) const

Gets the MPR set.

Returns: The MPR set.

Definition at line 286 of file olsr-state.cc.

References m_mprSet.

Referenced by ns3::olsr::RoutingProtocol::GetMprSet().

Here is the caller graph for this function:

◆ GetNeighbors() [1/2]

NeighborSet& ns3::olsr::OlsrState::GetNeighbors ( void )

inline

Gets the neighbor set.

Returns: The neighbor set.

Definition at line 111 of file olsr-state.h.

References m_neighborSet.

◆ GetNeighbors() [2/2]

const NeighborSet& ns3::olsr::OlsrState::GetNeighbors ( void ) const

inline

Gets the neighbor set.

Returns: The neighbor set.

Definition at line 103 of file olsr-state.h.

References m_neighborSet.

Referenced by ns3::olsr::RoutingProtocol::Dump(), ns3::olsr::RoutingProtocol::GetNeighbors(), ns3::olsr::RoutingProtocol::MprComputation(), ns3::olsr::RoutingProtocol::ProcessHello(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::olsr::RoutingProtocol::RoutingTableComputation(), and ns3::olsr::RoutingProtocol::SendHello().

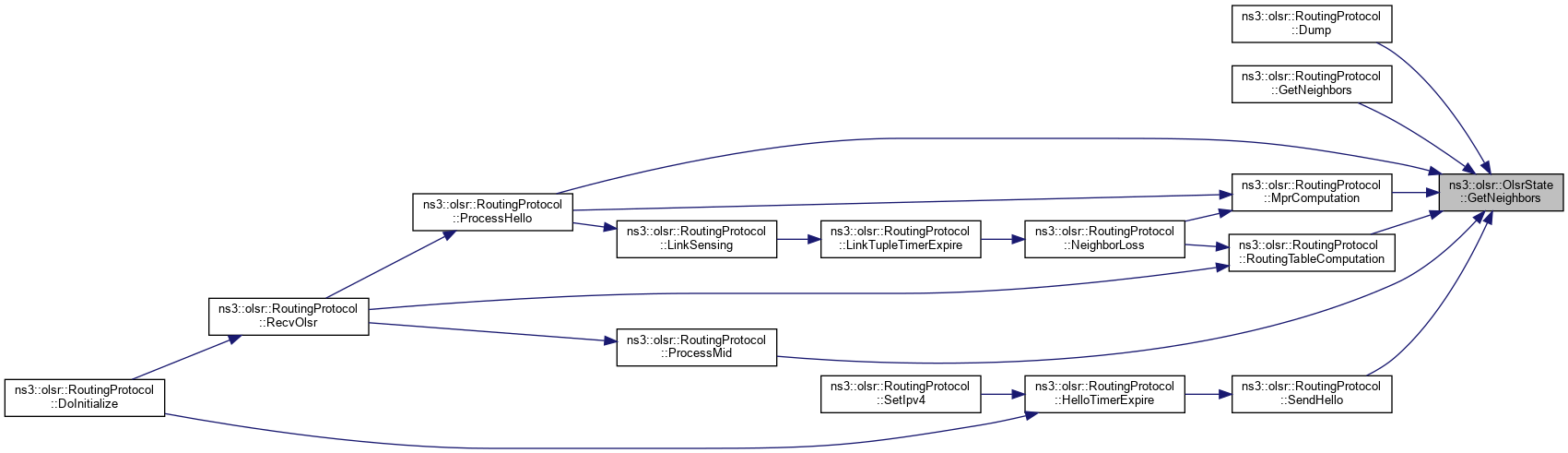

Here is the caller graph for this function:

◆ GetTopologySet()

const TopologySet& ns3::olsr::OlsrState::GetTopologySet ( void ) const

inline

Gets the topology set.

Returns: The topology set.

Definition at line 291 of file olsr-state.h.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::GetTopologySet(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

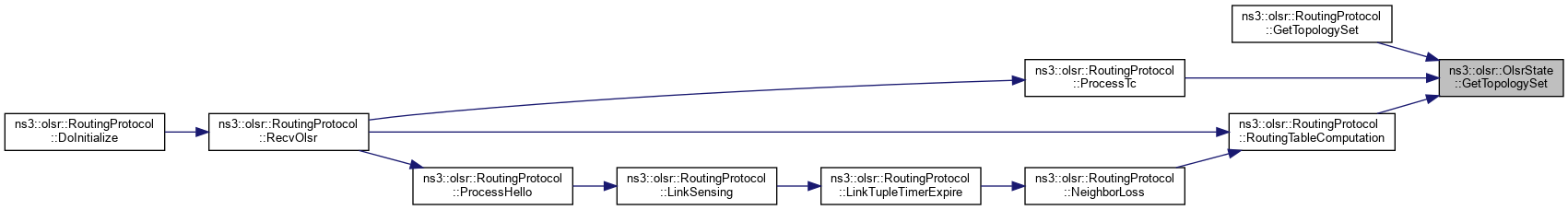

Here is the caller graph for this function:

◆ GetTwoHopNeighbors() [1/2]

TwoHopNeighborSet& ns3::olsr::OlsrState::GetTwoHopNeighbors ( void )

inline

Gets the 2-hop neighbor set.

Returns: The 2-hop neighbor set.

Definition at line 170 of file olsr-state.h.

References m_twoHopNeighborSet.

◆ GetTwoHopNeighbors() [2/2]

const TwoHopNeighborSet& ns3::olsr::OlsrState::GetTwoHopNeighbors ( void ) const

inline

Gets the 2-hop neighbor set.

Returns: The 2-hop neighbor set.

Definition at line 162 of file olsr-state.h.

References m_twoHopNeighborSet.

Referenced by ns3::olsr::RoutingProtocol::Degree(), ns3::olsr::RoutingProtocol::Dump(), ns3::olsr::RoutingProtocol::GetTwoHopNeighbors(), ns3::olsr::RoutingProtocol::MprComputation(), ns3::olsr::RoutingProtocol::ProcessHello(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

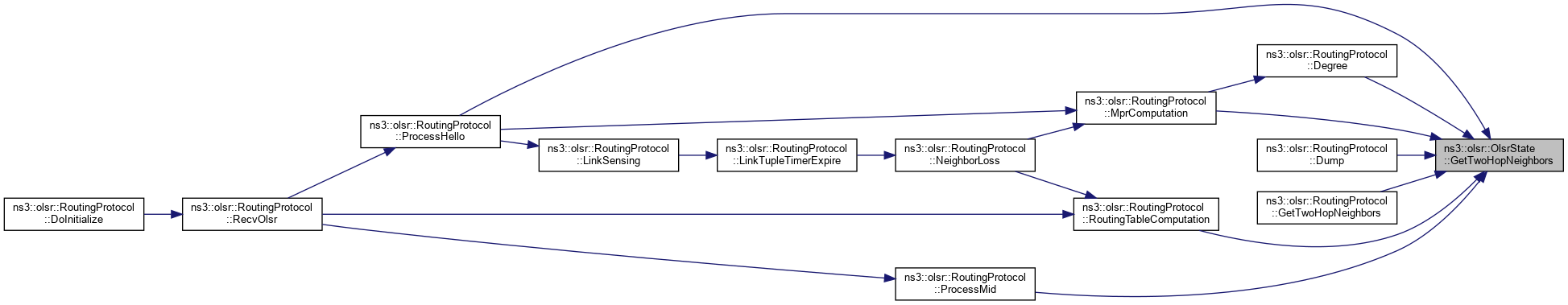

Here is the caller graph for this function:

◆ InsertAssociation()

void ns3::olsr::OlsrState::InsertAssociation ( const Association & tuple )

Inserts an association tuple.

Parameters

tuple The tuple to insert.

Definition at line 569 of file olsr-state.cc.

References m_associations.

Referenced by ns3::olsr::RoutingProtocol::AddHostNetworkAssociation().

Here is the caller graph for this function:

◆ InsertAssociationTuple()

void ns3::olsr::OlsrState::InsertAssociationTuple ( const AssociationTuple & tuple )

Inserts a known association tuple.

Parameters

tuple The tuple to insert.

Definition at line 549 of file olsr-state.cc.

References m_associationSet.

Referenced by ns3::olsr::RoutingProtocol::AddAssociationTuple().

Here is the caller graph for this function:

◆ InsertDuplicateTuple()

void ns3::olsr::OlsrState::InsertDuplicateTuple ( const DuplicateTuple & tuple )

Inserts a duplicate tuple.

Parameters

tuple The tuple to insert.

Definition at line 322 of file olsr-state.cc.

References m_duplicateSet.

Referenced by ns3::olsr::RoutingProtocol::AddDuplicateTuple().

Here is the caller graph for this function:

◆ InsertIfaceAssocTuple()

void ns3::olsr::OlsrState::InsertIfaceAssocTuple ( const IfaceAssocTuple & tuple )

Inserts a interface association tuple.

Parameters

tuple The tuple to insert.

Definition at line 498 of file olsr-state.cc.

References m_ifaceAssocSet.

Referenced by ns3::olsr::RoutingProtocol::AddIfaceAssocTuple().

Here is the caller graph for this function:

◆ InsertLinkTuple()

LinkTuple & ns3::olsr::OlsrState::InsertLinkTuple ( const LinkTuple & tuple )

Inserts a link tuple.

Parameters

tuple The tuple to insert.

Returns: A reference to the inserted tuple.

Definition at line 379 of file olsr-state.cc.

References m_linkSet.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing().

Here is the caller graph for this function:

◆ InsertMprSelectorTuple()

void ns3::olsr::OlsrState::InsertMprSelectorTuple ( const MprSelectorTuple & tuple )

Inserts a MPR selector tuple.

Parameters

tuple The MPR selector tuple.

Definition at line 83 of file olsr-state.cc.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::AddMprSelectorTuple().

Here is the caller graph for this function:

◆ InsertNeighborTuple()

void ns3::olsr::OlsrState::InsertNeighborTuple ( const NeighborTuple & tuple )

Inserts a neighbor tuple.

Parameters

tuple The neighbor tuple.

Definition at line 182 of file olsr-state.cc.

References m_neighborSet, and ns3::olsr::NeighborTuple::neighborMainAddr.

Referenced by ns3::olsr::RoutingProtocol::AddNeighborTuple().

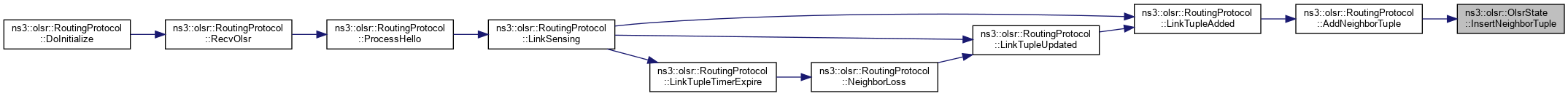

Here is the caller graph for this function:

◆ InsertTopologyTuple()

void ns3::olsr::OlsrState::InsertTopologyTuple ( const TopologyTuple & tuple )

Inserts a topology tuple.

Parameters

tuple The tuple to insert.

Definition at line 448 of file olsr-state.cc.

References m_topologySet.

Referenced by ns3::olsr::RoutingProtocol::AddTopologyTuple().

Here is the caller graph for this function:

◆ InsertTwoHopNeighborTuple()

void ns3::olsr::OlsrState::InsertTwoHopNeighborTuple ( const TwoHopNeighborTuple & tuple )

Inserts a 2-hop neighbor tuple.

Parameters

tuple The 2-hop neighbor tuple.

Definition at line 266 of file olsr-state.cc.

References m_twoHopNeighborSet.

Referenced by ns3::olsr::RoutingProtocol::AddTwoHopNeighborTuple().

Here is the caller graph for this function:

◆ PrintMprSelectorSet()

std::string ns3::olsr::OlsrState::PrintMprSelectorSet ( ) const

Prints the MPR selector sets.

Returns: a string with the output data.

Definition at line 89 of file olsr-state.cc.

References m_mprSelectorSet.

Referenced by ns3::olsr::RoutingProtocol::PopulateMprSelectorSet().

Here is the caller graph for this function:

◆ SetMprSet()

void ns3::olsr::OlsrState::SetMprSet ( MprSet mprSet )

Sets the MPR set to the one specified.

Parameters

mprSet The new MPR set.

Definition at line 281 of file olsr-state.cc.

References m_mprSet.

Referenced by ns3::olsr::RoutingProtocol::MprComputation().

Here is the caller graph for this function:

Member Data Documentation

◆ m_associations

Associations ns3::olsr::OlsrState::m_associations

protected

The node's local Host Network Associations that will be advertised using HNA messages.

Definition at line 48 of file olsr-state.h.

Referenced by EraseAssociation(), GetAssociations(), and InsertAssociation().

◆ m_associationSet

AssociationSet ns3::olsr::OlsrState::m_associationSet

protected

Association Set (RFC 3626, section12.2).

Associations obtained from HNA messages generated by other nodes.

Definition at line 47 of file olsr-state.h.

Referenced by EraseAssociationTuple(), FindAssociationTuple(), GetAssociationSet(), and InsertAssociationTuple().

◆ m_duplicateSet

DuplicateSet ns3::olsr::OlsrState::m_duplicateSet

protected

Duplicate Set (RFC 3626, section 3.4).

Definition at line 45 of file olsr-state.h.

Referenced by EraseDuplicateTuple(), FindDuplicateTuple(), and InsertDuplicateTuple().

◆ m_ifaceAssocSet

IfaceAssocSet ns3::olsr::OlsrState::m_ifaceAssocSet

protected

Interface Association Set (RFC 3626, section 4.1).

Definition at line 46 of file olsr-state.h.

Referenced by EraseIfaceAssocTuple(), FindIfaceAssocTuple(), FindNeighborInterfaces(), GetIfaceAssocSet(), GetIfaceAssocSetMutable(), and InsertIfaceAssocTuple().

◆ m_linkSet

LinkSet ns3::olsr::OlsrState::m_linkSet

protected

Link Set (RFC 3626, section 4.2.1).

Definition at line 39 of file olsr-state.h.

Referenced by EraseLinkTuple(), FindLinkTuple(), FindSymLinkTuple(), GetLinks(), and InsertLinkTuple().

◆ m_mprSelectorSet

MprSelectorSet ns3::olsr::OlsrState::m_mprSelectorSet

protected

MPR Selector Set (RFC 3626, section 4.3.4).

Definition at line 44 of file olsr-state.h.

Referenced by EraseMprSelectorTuple(), EraseMprSelectorTuples(), FindMprSelectorTuple(), GetMprSelectors(), InsertMprSelectorTuple(), and PrintMprSelectorSet().

◆ m_mprSet

MprSet ns3::olsr::OlsrState::m_mprSet

protected

MPR Set (RFC 3626, section 4.3.3).

Definition at line 43 of file olsr-state.h.

Referenced by FindMprAddress(), GetMprSet(), and SetMprSet().

◆ m_neighborSet

NeighborSet ns3::olsr::OlsrState::m_neighborSet

protected

Neighbor Set (RFC 3626, section 4.3.1).

Definition at line 40 of file olsr-state.h.

Referenced by EraseNeighborTuple(), FindNeighborTuple(), FindSymNeighborTuple(), GetNeighbors(), and InsertNeighborTuple().

◆ m_topologySet

TopologySet ns3::olsr::OlsrState::m_topologySet

protected

Topology Set (RFC 3626, section 4.4).

Definition at line 42 of file olsr-state.h.

Referenced by EraseOlderTopologyTuples(), EraseTopologyTuple(), FindNewerTopologyTuple(), FindTopologyTuple(), GetTopologySet(), and InsertTopologyTuple().

◆ m_twoHopNeighborSet

TwoHopNeighborSet ns3::olsr::OlsrState::m_twoHopNeighborSet

protected

2-hop Neighbor Set (RFC 3626, section 4.3.2).

Definition at line 41 of file olsr-state.h.

Referenced by EraseTwoHopNeighborTuple(), EraseTwoHopNeighborTuples(), FindTwoHopNeighborTuple(), GetTwoHopNeighbors(), and InsertTwoHopNeighborTuple().

The documentation for this class was generated from the following files:

src/olsr/model/olsr-state.h
src/olsr/model/olsr-state.cc

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ OlsrState()

Member Function Documentation

◆ EraseAssociation()

◆ EraseAssociationTuple()

◆ EraseDuplicateTuple()

◆ EraseIfaceAssocTuple()

◆ EraseLinkTuple()

◆ EraseMprSelectorTuple()

◆ EraseMprSelectorTuples()

◆ EraseNeighborTuple() [1/2]

◆ EraseNeighborTuple() [2/2]

◆ EraseOlderTopologyTuples()

◆ EraseTopologyTuple()

◆ EraseTwoHopNeighborTuple()

◆ EraseTwoHopNeighborTuples() [1/2]

◆ EraseTwoHopNeighborTuples() [2/2]

◆ FindAssociationTuple()

◆ FindDuplicateTuple()

◆ FindIfaceAssocTuple() [1/2]

◆ FindIfaceAssocTuple() [2/2]

◆ FindLinkTuple()

◆ FindMprAddress()

◆ FindMprSelectorTuple()

◆ FindNeighborInterfaces()

◆ FindNeighborTuple() [1/2]

◆ FindNeighborTuple() [2/2]

◆ FindNewerTopologyTuple()

◆ FindSymLinkTuple()

◆ FindSymNeighborTuple()

◆ FindTopologyTuple()

◆ FindTwoHopNeighborTuple()

◆ GetAssociations()

◆ GetAssociationSet()

◆ GetIfaceAssocSet()

◆ GetIfaceAssocSetMutable()

◆ GetLinks()

◆ GetMprSelectors()

◆ GetMprSet()

◆ GetNeighbors() [1/2]

◆ GetNeighbors() [2/2]

◆ GetTopologySet()

◆ GetTwoHopNeighbors() [1/2]

◆ GetTwoHopNeighbors() [2/2]

◆ InsertAssociation()

◆ InsertAssociationTuple()

◆ InsertDuplicateTuple()

◆ InsertIfaceAssocTuple()

◆ InsertLinkTuple()

◆ InsertMprSelectorTuple()

◆ InsertNeighborTuple()

◆ InsertTopologyTuple()

◆ InsertTwoHopNeighborTuple()

◆ PrintMprSelectorSet()

◆ SetMprSet()

Member Data Documentation

◆ m_associations

◆ m_associationSet

◆ m_duplicateSet

◆ m_ifaceAssocSet

◆ m_linkSet

◆ m_mprSelectorSet

◆ m_mprSet

◆ m_neighborSet

◆ m_topologySet

◆ m_twoHopNeighborSet
