#include <iostream>
#include <sstream>
#include <fstream>
#include "ns3/core-module.h"
#include "ns3/internet-module.h"
#include "ns3/network-module.h"
#include "ns3/applications-module.h"
#include "ns3/mesh-module.h"
#include "ns3/mobility-module.h"
#include "ns3/mesh-helper.h"
#include "ns3/yans-wifi-helper.h"

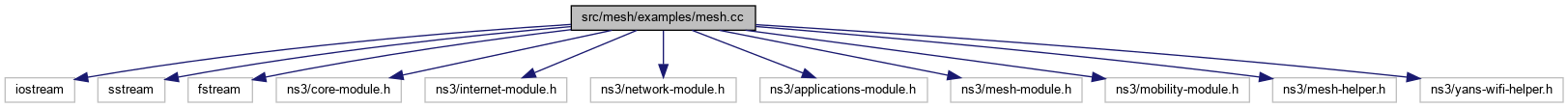

Include dependency graph for mesh.cc:

Classes
class	MeshTest
	MeshTest class. More...

Functions
void	RxTrace (Ptr< const Packet > p)

void	TxTrace (Ptr< const Packet > p)

Variables
uint32_t	g_udpRxCount = 0

uint32_t	g_udpTxCount = 0

Detailed Description

Usage

$ ./ns3 run "mesh [Program Options]"

Program Options

–x-size: Number of nodes in a row grid [3]
–y-size: Number of rows in a grid [3]
–step: Size of edge in our grid (meters) [50]
–start: Maximum random start delay for beacon jitter (sec) [0.1]
–time: Simulation time (sec) [100]
–packet-interval: Interval between packets in UDP ping (sec) [1]
–packet-size: Size of packets in UDP ping (bytes) [1024]
–interfaces: Number of radio interfaces used by each mesh point [1]
–channels: Use different frequency channels for different interfaces [true]
–pcap: Enable PCAP traces on interfaces [false]
–ascii: Enable Ascii traces on interfaces [false]
–stack: Type of protocol stack. ns3::Dot11sStack by default [ns3::Dot11sStack]
–root: Mac address of root mesh point in HWMP [ff:ff:ff:ff:ff:ff]
