ns3::McpsDataRequestParams Struct Reference

MCPS-DATA.request params. More...

#include "lr-wpan-mac.h"

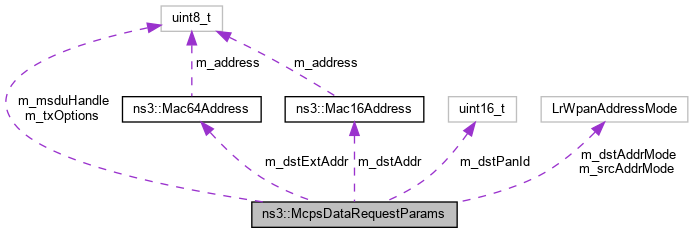

Collaboration diagram for ns3::McpsDataRequestParams:

Public Member Functions
	McpsDataRequestParams ()

Public Attributes
Mac16Address	m_dstAddr
	Destination address. More...
LrWpanAddressMode	m_dstAddrMode
	Destination address mode. More...
Mac64Address	m_dstExtAddr
	Destination extended address. More...
uint16_t	m_dstPanId
	Destination PAN identifier. More...
uint8_t	m_msduHandle
	MSDU handle. More...
LrWpanAddressMode	m_srcAddrMode
	Source address mode. More...
uint8_t	m_txOptions
	Tx Options (bitfield) More...

Detailed Description

MCPS-DATA.request params.

See 7.1.1.1

Definition at line 236 of file lr-wpan-mac.h.

Constructor & Destructor Documentation

McpsDataRequestParams()

ns3::McpsDataRequestParams::McpsDataRequestParams ( )

inline

Definition at line 238 of file lr-wpan-mac.h.

Member Data Documentation

m_dstAddr

Mac16Address ns3::McpsDataRequestParams::m_dstAddr

Destination address.

Definition at line 249 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

m_dstAddrMode

LrWpanAddressMode ns3::McpsDataRequestParams::m_dstAddrMode

Destination address mode.

Definition at line 247 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

m_dstExtAddr

Mac64Address ns3::McpsDataRequestParams::m_dstExtAddr

Destination extended address.

Definition at line 250 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanAckTestCase::DoRun(), and ns3::LrWpanMac::McpsDataRequest().

m_dstPanId

uint16_t ns3::McpsDataRequestParams::m_dstPanId

Destination PAN identifier.

Definition at line 248 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

m_msduHandle

uint8_t ns3::McpsDataRequestParams::m_msduHandle

MSDU handle.

Definition at line 251 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

m_srcAddrMode

LrWpanAddressMode ns3::McpsDataRequestParams::m_srcAddrMode

Source address mode.

Definition at line 246 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

m_txOptions

uint8_t ns3::McpsDataRequestParams::m_txOptions

Tx Options (bitfield)

Definition at line 252 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanNetDevice::Send().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
