An ARP cache. More...

#include "arp-cache.h"

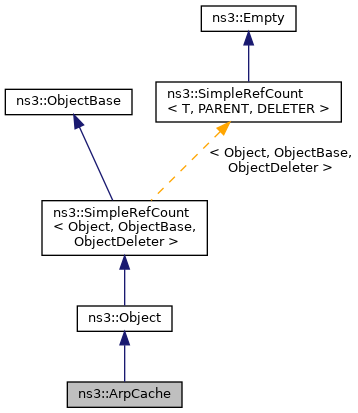

Inheritance diagram for ns3::ArpCache:

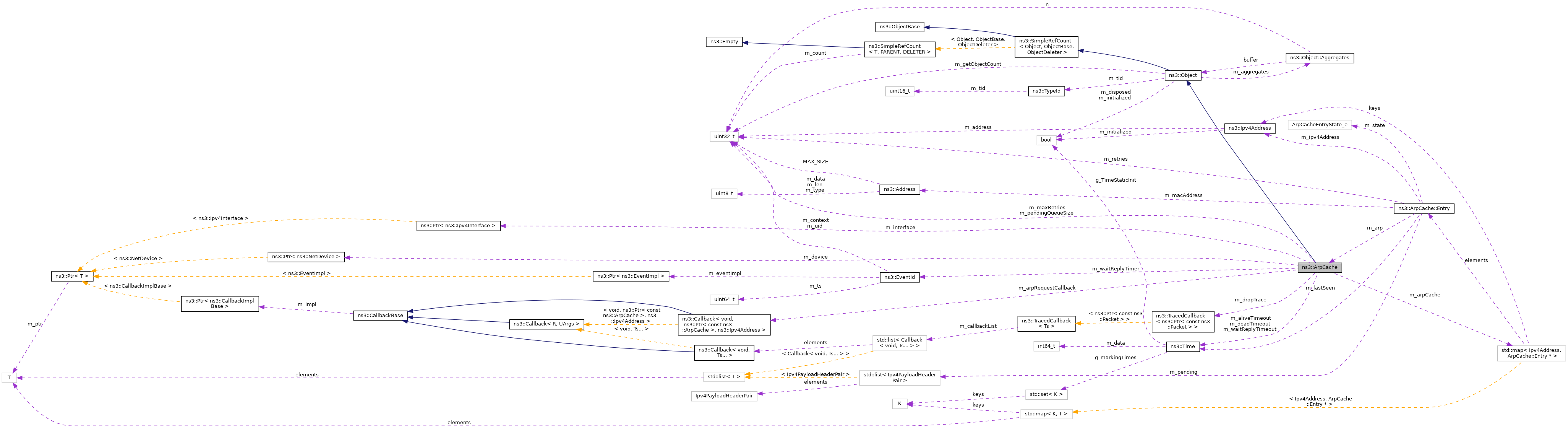

Collaboration diagram for ns3::ArpCache:

Classes
class	Entry
	A record that that holds information about an ArpCache entry. More...

Public Types
typedef std::pair< Ptr< Packet >, Ipv4Header >	Ipv4PayloadHeaderPair
	Pair of a packet and an Ipv4 header. More...

Public Member Functions
	ArpCache ()

	ArpCache (const ArpCache &)=delete

	~ArpCache () override

ArpCache::Entry *	Add (Ipv4Address to)
	Add an Ipv4Address to this ARP cache. More...

void	Flush ()
	Clear the ArpCache of all entries. More...

Time	GetAliveTimeout () const
	Get the time the entry will be in ALIVE state (unless refreshed) More...

Time	GetDeadTimeout () const
	Get the time the entry will be in DEAD state before being removed. More...

Ptr< NetDevice >	GetDevice () const
	Returns the NetDevice that this ARP cache is associated with. More...

Ptr< Ipv4Interface >	GetInterface () const
	Returns the Ipv4Interface that this ARP cache is associated with. More...

Time	GetWaitReplyTimeout () const
	Get the time the entry will be in WAIT_REPLY state. More...

ArpCache::Entry *	Lookup (Ipv4Address destination)
	Do lookup in the ARP cache against an IP address. More...

std::list< ArpCache::Entry * >	LookupInverse (Address destination)
	Do lookup in the ARP cache against a MAC address. More...

ArpCache &	operator= (const ArpCache &)=delete

void	PrintArpCache (Ptr< OutputStreamWrapper > stream)
	Print the ARP cache entries. More...

void	Remove (ArpCache::Entry *entry)
	Remove an entry. More...

void	RemoveAutoGeneratedEntries ()
	Clear the ArpCache of all Auto-Generated entries. More...

void	SetAliveTimeout (Time aliveTimeout)
	Set the time the entry will be in ALIVE state (unless refreshed) More...

void	SetArpRequestCallback (Callback< void, Ptr< const ArpCache >, Ipv4Address > arpRequestCallback)
	This callback is set when the ArpCache is set up and allows the cache to generate an Arp request when the WaitReply time expires and a retransmission must be sent. More...

void	SetDeadTimeout (Time deadTimeout)
	Set the time the entry will be in DEAD state before being removed. More...

void	SetDevice (Ptr< NetDevice > device, Ptr< Ipv4Interface > interface)
	Set the NetDevice and Ipv4Interface associated with the ArpCache. More...

void	SetWaitReplyTimeout (Time waitReplyTimeout)
	Set the time the entry will be in WAIT_REPLY state. More...

void	StartWaitReplyTimer ()
	This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
typedef std::map< Ipv4Address, ArpCache::Entry * >	Cache
	ARP Cache container. More...

typedef std::map< Ipv4Address, ArpCache::Entry * >::iterator	CacheI
	ARP Cache container iterator. More...

Private Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	HandleWaitReplyTimeout ()
	This function is an event handler for the event that the ArpCache wants to check whether it must retry any Arp requests. More...

Private Attributes
Time	m_aliveTimeout
	cache alive state timeout More...

Cache	m_arpCache
	the ARP cache More...

Callback< void, Ptr< const ArpCache >, Ipv4Address >	m_arpRequestCallback
	reply timeout callback More...

Time	m_deadTimeout
	cache dead state timeout More...

Ptr< NetDevice >	m_device
	NetDevice associated with the cache. More...

TracedCallback< Ptr< const Packet > >	m_dropTrace
	trace for packets dropped by the ARP cache queue More...

Ptr< Ipv4Interface >	m_interface
	Ipv4Interface associated with the cache. More...

uint32_t	m_maxRetries
	max retries for a resolution More...

uint32_t	m_pendingQueueSize
	number of packets waiting for a resolution More...

Time	m_waitReplyTimeout
	cache reply state timeout More...

EventId	m_waitReplyTimer
	cache alive state timer More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An ARP cache.

A cached lookup table for translating layer 3 addresses to layer 2. This implementation does lookups from IPv4 to a MAC address

Definition at line 52 of file arp-cache.h.

Member Typedef Documentation

◆ Cache

typedef std::map<Ipv4Address, ArpCache::Entry*> ns3::ArpCache::Cache

private

ARP Cache container.

Definition at line 324 of file arp-cache.h.

◆ CacheI

typedef std::map<Ipv4Address, ArpCache::Entry*>::iterator ns3::ArpCache::CacheI

private

ARP Cache container iterator.

Definition at line 328 of file arp-cache.h.

◆ Ipv4PayloadHeaderPair

typedef std::pair<Ptr<Packet>, Ipv4Header> ns3::ArpCache::Ipv4PayloadHeaderPair

Pair of a packet and an Ipv4 header.

Definition at line 178 of file arp-cache.h.

Constructor & Destructor Documentation

◆ ArpCache() [1/2]

ns3::ArpCache::ArpCache ( )

Definition at line 86 of file arp-cache.cc.

References NS_LOG_FUNCTION.

◆ ~ArpCache()

ns3::ArpCache::~ArpCache ( )

override

Definition at line 93 of file arp-cache.cc.

References NS_LOG_FUNCTION.

◆ ArpCache() [2/2]

ns3::ArpCache::ArpCache ( const ArpCache & )

delete

Member Function Documentation

◆ Add()

ArpCache::Entry * ns3::ArpCache::Add ( Ipv4Address to )

Add an Ipv4Address to this ARP cache.

Parameters

to	the destination address of the ARP entry.

Returns: A pointer to a new ARP Entry.

Definition at line 352 of file arp-cache.cc.

References m_arpCache, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::AddEntry(), FlushTest::DoRun(), EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Lookup().

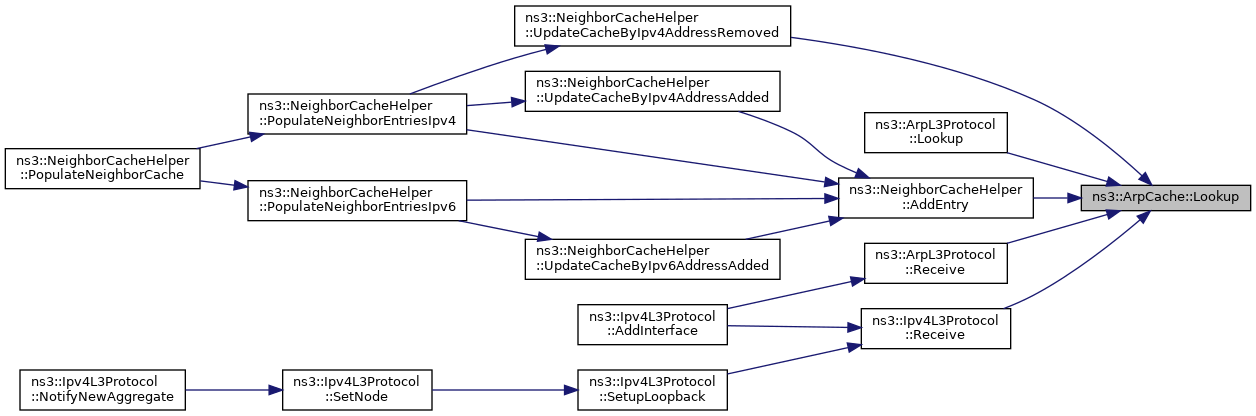

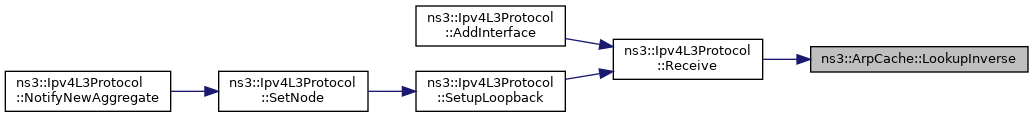

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ArpCache::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 99 of file arp-cache.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), Flush(), ns3::EventId::IsRunning(), m_device, m_interface, m_waitReplyTimer, and NS_LOG_FUNCTION.

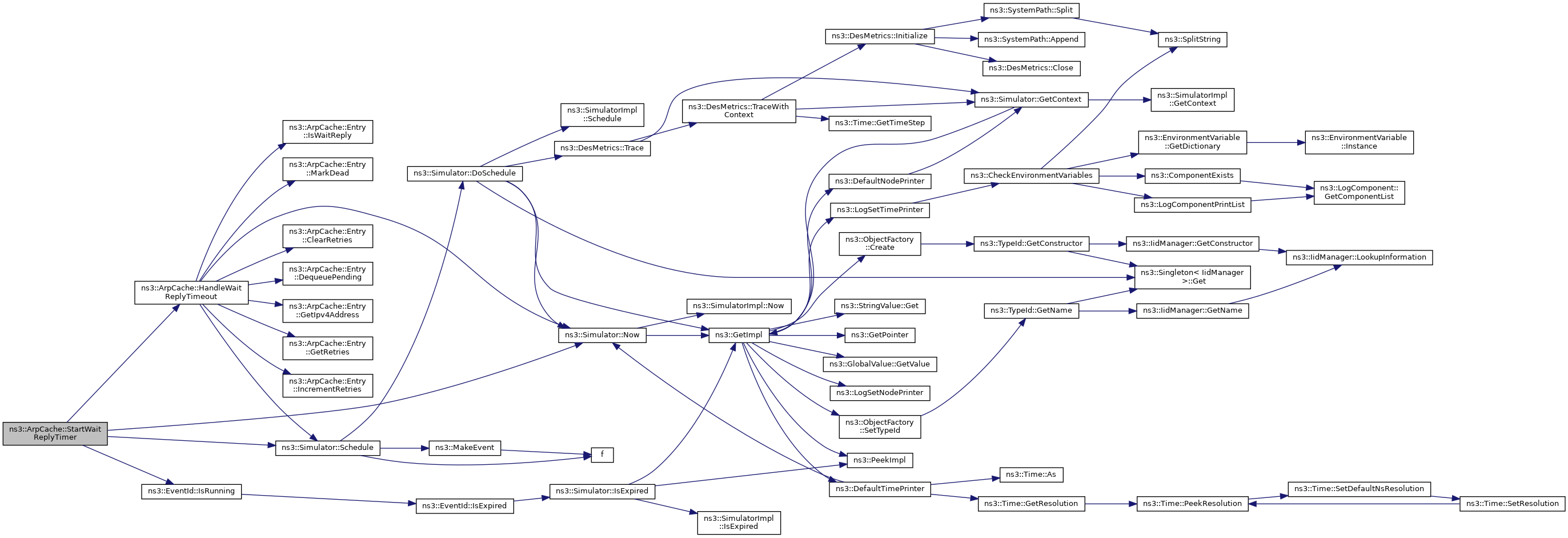

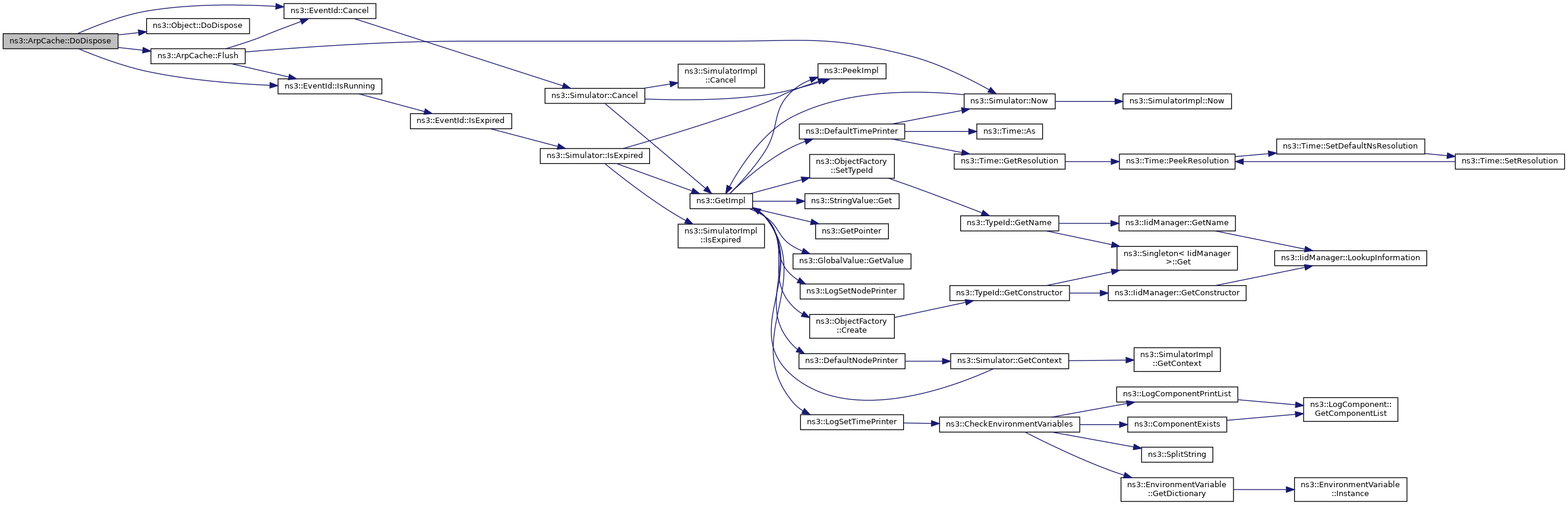

Here is the call graph for this function:

◆ Flush()

void ns3::ArpCache::Flush ( )

Clear the ArpCache of all entries.

Definition at line 245 of file arp-cache.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_arpCache, m_waitReplyTimer, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::ArpL3Protocol::CreateCache(), and DoDispose().

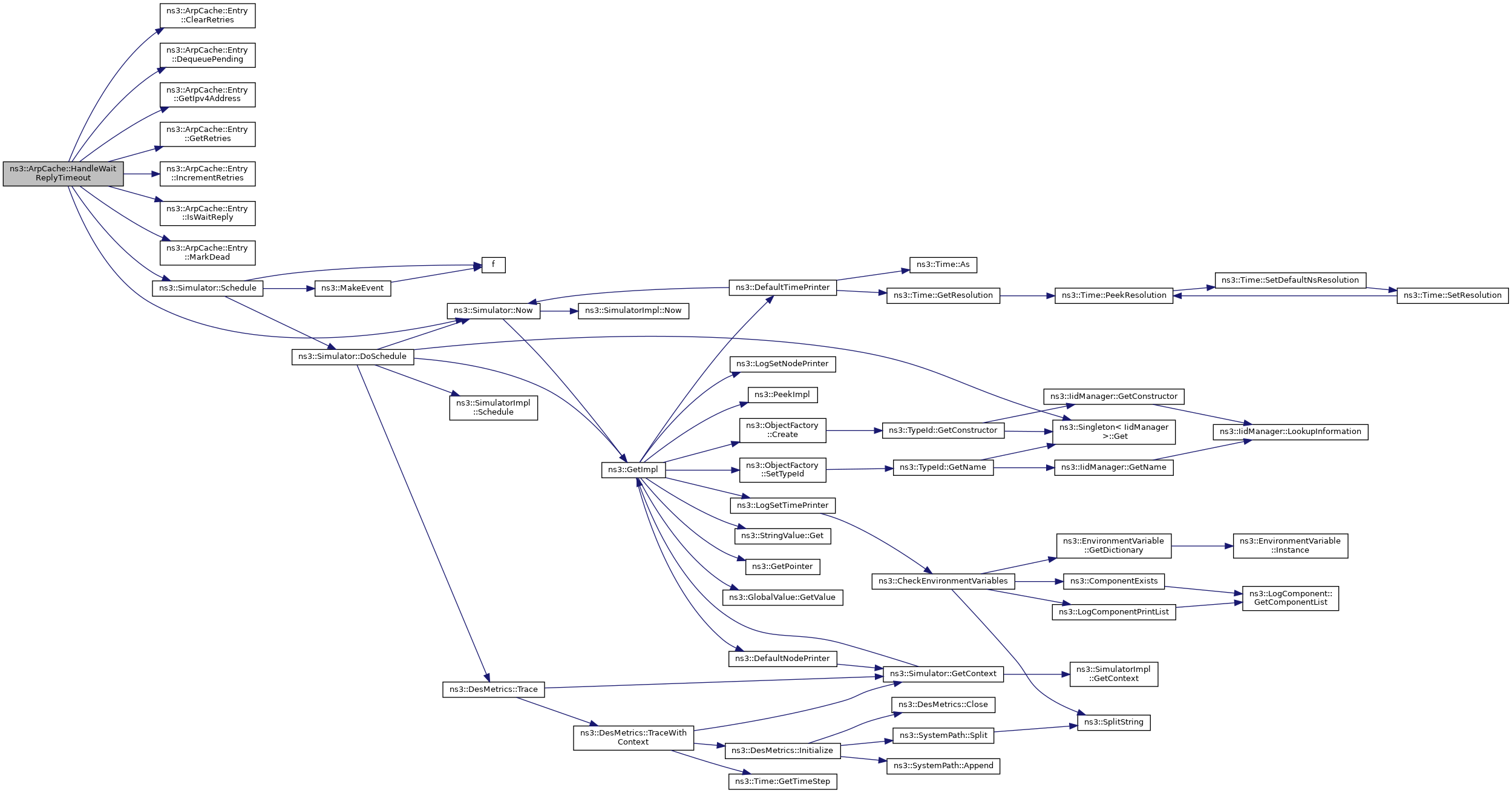

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAliveTimeout()

Time ns3::ArpCache::GetAliveTimeout ( ) const

Get the time the entry will be in ALIVE state (unless refreshed)

Returns: the Alive state timeout

Definition at line 156 of file arp-cache.cc.

References m_aliveTimeout, and NS_LOG_FUNCTION.

◆ GetDeadTimeout()

Time ns3::ArpCache::GetDeadTimeout ( ) const

Get the time the entry will be in DEAD state before being removed.

Returns: the Dead state timeout

Definition at line 163 of file arp-cache.cc.

References m_deadTimeout, and NS_LOG_FUNCTION.

◆ GetDevice()

Ptr< NetDevice > ns3::ArpCache::GetDevice ( ) const

Returns the NetDevice that this ARP cache is associated with.

Returns: The NetDevice that this ARP cache is associated with

Definition at line 121 of file arp-cache.cc.

References m_device, and NS_LOG_FUNCTION.

◆ GetInterface()

Ptr< Ipv4Interface > ns3::ArpCache::GetInterface ( ) const

Returns the Ipv4Interface that this ARP cache is associated with.

Returns: the Ipv4Interface that this ARP cache is associated with

Definition at line 128 of file arp-cache.cc.

References m_interface, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ArpCache::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 41 of file arp-cache.cc.

References m_aliveTimeout, m_deadTimeout, m_dropTrace, m_maxRetries, m_pendingQueueSize, m_waitReplyTimeout, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

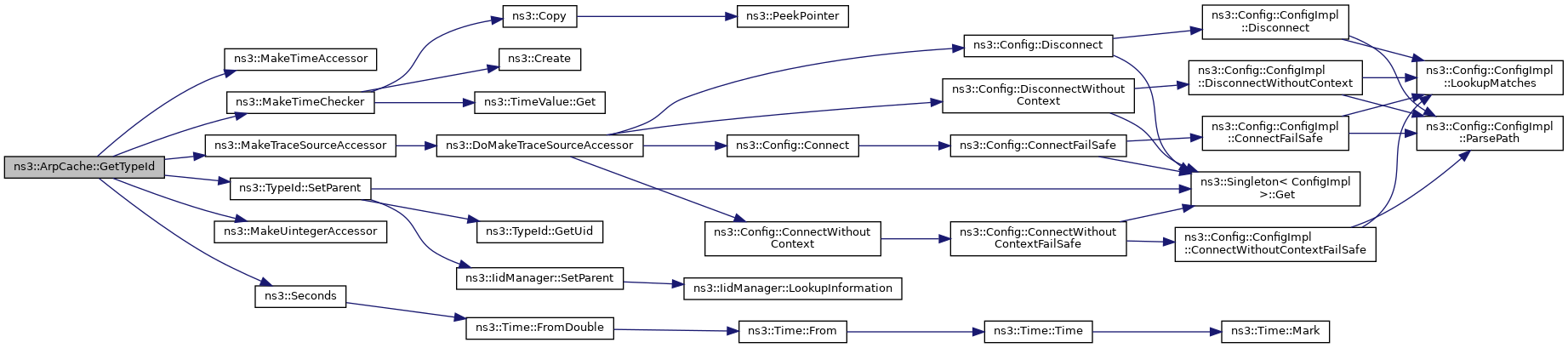

Here is the call graph for this function:

◆ GetWaitReplyTimeout()

Time ns3::ArpCache::GetWaitReplyTimeout ( ) const

Get the time the entry will be in WAIT_REPLY state.

Returns: the WAIT_REPLY state timeout

Definition at line 170 of file arp-cache.cc.

References m_waitReplyTimeout, and NS_LOG_FUNCTION.

◆ HandleWaitReplyTimeout()

void ns3::ArpCache::HandleWaitReplyTimeout ( )

private

This function is an event handler for the event that the ArpCache wants to check whether it must retry any Arp requests.

If there are no Arp requests pending, this event is not scheduled.

Definition at line 197 of file arp-cache.cc.

References ns3::ArpCache::Entry::ClearRetries(), ns3::ArpCache::Entry::DequeuePending(), ns3::ArpCache::Entry::GetIpv4Address(), ns3::ArpCache::Entry::GetRetries(), ns3::ArpCache::Entry::IncrementRetries(), ns3::ArpCache::Entry::IsWaitReply(), m_arpCache, m_arpRequestCallback, m_device, m_dropTrace, m_maxRetries, m_waitReplyTimeout, m_waitReplyTimer, ns3::ArpCache::Entry::MarkDead(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by StartWaitReplyTimer().

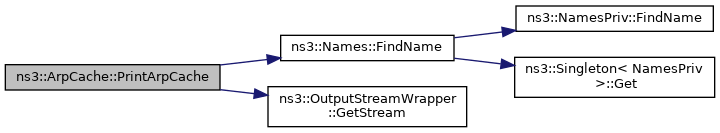

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Lookup()

ArpCache::Entry * ns3::ArpCache::Lookup ( Ipv4Address destination )

Do lookup in the ARP cache against an IP address.

Parameters

destination The destination IPv4 address to lookup the MAC address of

Returns: An ArpCache::Entry with info about layer 2

Definition at line 340 of file arp-cache.cc.

References m_arpCache, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::AddEntry(), ns3::ArpL3Protocol::Lookup(), ns3::ArpL3Protocol::Receive(), ns3::Ipv4L3Protocol::Receive(), and ns3::NeighborCacheHelper::UpdateCacheByIpv4AddressRemoved().

Here is the caller graph for this function:

◆ LookupInverse()

std::list< ArpCache::Entry * > ns3::ArpCache::LookupInverse ( Address destination )

Do lookup in the ARP cache against a MAC address.

Parameters

destination The destination MAC address to lookup of

Returns: A std::list of ArpCache::Entry with info about layer 2

Definition at line 323 of file arp-cache.cc.

References ns3::ArpCache::Entry::GetMacAddress(), m_arpCache, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

ArpCache& ns3::ArpCache::operator= ( const ArpCache & )

delete

◆ PrintArpCache()

void ns3::ArpCache::PrintArpCache ( Ptr< OutputStreamWrapper > stream )

Print the ARP cache entries.

Parameters

stream the ostream the ARP cache entries is printed to

Definition at line 262 of file arp-cache.cc.

References ns3::Names::FindName(), ns3::OutputStreamWrapper::GetStream(), m_arpCache, m_device, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RoutingHelper::PrintArpCache(), and ns3::Ipv4RoutingHelper::PrintArpCacheEvery().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Remove()

void ns3::ArpCache::Remove ( ArpCache::Entry * entry )

Remove an entry.

Parameters

entry pointer to delete it from the list

Definition at line 364 of file arp-cache.cc.

References ns3::ArpCache::Entry::ClearPendingPacket(), m_arpCache, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::NeighborCacheHelper::UpdateCacheByIpv4AddressRemoved().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveAutoGeneratedEntries()

void ns3::ArpCache::RemoveAutoGeneratedEntries ( )

Clear the ArpCache of all Auto-Generated entries.

Definition at line 306 of file arp-cache.cc.

References m_arpCache, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::FlushAutoGenerated().

Here is the caller graph for this function:

◆ SetAliveTimeout()

void ns3::ArpCache::SetAliveTimeout ( Time aliveTimeout )

Set the time the entry will be in ALIVE state (unless refreshed)

Parameters

aliveTimeout the Alive state timeout

Definition at line 135 of file arp-cache.cc.

References m_aliveTimeout, and NS_LOG_FUNCTION.

Referenced by EpcS1uUlTestCase::DoRun().

Here is the caller graph for this function:

◆ SetArpRequestCallback()

void ns3::ArpCache::SetArpRequestCallback ( Callback< void, Ptr< const ArpCache >, Ipv4Address > arpRequestCallback )

This callback is set when the ArpCache is set up and allows the cache to generate an Arp request when the WaitReply time expires and a retransmission must be sent.

Parameters

arpRequestCallback Callback for transmitting an Arp request.

Definition at line 177 of file arp-cache.cc.

References m_arpRequestCallback, and NS_LOG_FUNCTION.

◆ SetDeadTimeout()

void ns3::ArpCache::SetDeadTimeout ( Time deadTimeout )

Set the time the entry will be in DEAD state before being removed.

Parameters

deadTimeout the Dead state timeout

Definition at line 142 of file arp-cache.cc.

References m_deadTimeout, and NS_LOG_FUNCTION.

◆ SetDevice()

void ns3::ArpCache::SetDevice	(	Ptr< NetDevice >	device,
		Ptr< Ipv4Interface >	interface
	)

Set the NetDevice and Ipv4Interface associated with the ArpCache.

Parameters

device	The hardware NetDevice associated with this ARP cache
interface	the Ipv4Interface associated with this ARP cache

Definition at line 113 of file arp-cache.cc.

References m_device, m_interface, and NS_LOG_FUNCTION.

◆ SetWaitReplyTimeout()

void ns3::ArpCache::SetWaitReplyTimeout ( Time waitReplyTimeout )

Set the time the entry will be in WAIT_REPLY state.

Parameters

waitReplyTimeout the WAIT_REPLY state timeout

Definition at line 149 of file arp-cache.cc.

References m_waitReplyTimeout, and NS_LOG_FUNCTION.

◆ StartWaitReplyTimer()

void ns3::ArpCache::StartWaitReplyTimer ( )

This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing.

Definition at line 184 of file arp-cache.cc.

References HandleWaitReplyTimeout(), ns3::EventId::IsRunning(), m_waitReplyTimeout, m_waitReplyTimer, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Here is the call graph for this function:

Member Data Documentation

◆ m_aliveTimeout

Time ns3::ArpCache::m_aliveTimeout

private

cache alive state timeout

Definition at line 334 of file arp-cache.h.

Referenced by GetAliveTimeout(), GetTypeId(), and SetAliveTimeout().

◆ m_arpCache

Cache ns3::ArpCache::m_arpCache

private

the ARP cache

Definition at line 349 of file arp-cache.h.

Referenced by Add(), Flush(), HandleWaitReplyTimeout(), Lookup(), LookupInverse(), PrintArpCache(), Remove(), and RemoveAutoGeneratedEntries().

◆ m_arpRequestCallback

Callback<void, Ptr<const ArpCache>, Ipv4Address> ns3::ArpCache::m_arpRequestCallback

private

reply timeout callback

Definition at line 339 of file arp-cache.h.

Referenced by HandleWaitReplyTimeout(), and SetArpRequestCallback().

◆ m_deadTimeout

Time ns3::ArpCache::m_deadTimeout

private

cache dead state timeout

Definition at line 335 of file arp-cache.h.

Referenced by GetDeadTimeout(), GetTypeId(), and SetDeadTimeout().

◆ m_device

Ptr<NetDevice> ns3::ArpCache::m_device

private

NetDevice associated with the cache.

Definition at line 332 of file arp-cache.h.

Referenced by DoDispose(), GetDevice(), HandleWaitReplyTimeout(), PrintArpCache(), and SetDevice().

◆ m_dropTrace

TracedCallback<Ptr<const Packet> > ns3::ArpCache::m_dropTrace

private

trace for packets dropped by the ARP cache queue

Definition at line 351 of file arp-cache.h.

Referenced by GetTypeId(), and HandleWaitReplyTimeout().

◆ m_interface

Ptr<Ipv4Interface> ns3::ArpCache::m_interface

private

Ipv4Interface associated with the cache.

Definition at line 333 of file arp-cache.h.

Referenced by DoDispose(), GetInterface(), and SetDevice().

◆ m_maxRetries

uint32_t ns3::ArpCache::m_maxRetries

private

max retries for a resolution

Definition at line 340 of file arp-cache.h.

Referenced by GetTypeId(), and HandleWaitReplyTimeout().

◆ m_pendingQueueSize

uint32_t ns3::ArpCache::m_pendingQueueSize

private

number of packets waiting for a resolution

Definition at line 348 of file arp-cache.h.

Referenced by GetTypeId().

◆ m_waitReplyTimeout

Time ns3::ArpCache::m_waitReplyTimeout

private

cache reply state timeout

Definition at line 336 of file arp-cache.h.

Referenced by GetTypeId(), GetWaitReplyTimeout(), HandleWaitReplyTimeout(), SetWaitReplyTimeout(), and StartWaitReplyTimer().

◆ m_waitReplyTimer

EventId ns3::ArpCache::m_waitReplyTimer

private

cache alive state timer

Definition at line 337 of file arp-cache.h.

Referenced by DoDispose(), Flush(), HandleWaitReplyTimeout(), and StartWaitReplyTimer().

The documentation for this class was generated from the following files:

src/internet/model/arp-cache.h
src/internet/model/arp-cache.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Cache

◆ CacheI

◆ Ipv4PayloadHeaderPair

Constructor & Destructor Documentation

◆ ArpCache() [1/2]

◆ ~ArpCache()

◆ ArpCache() [2/2]

Member Function Documentation

◆ Add()

◆ DoDispose()

◆ Flush()

◆ GetAliveTimeout()

◆ GetDeadTimeout()

◆ GetDevice()

◆ GetInterface()

◆ GetTypeId()

◆ GetWaitReplyTimeout()

◆ HandleWaitReplyTimeout()

◆ Lookup()

◆ LookupInverse()

◆ operator=()

◆ PrintArpCache()

◆ Remove()

◆ RemoveAutoGeneratedEntries()

◆ SetAliveTimeout()

◆ SetArpRequestCallback()

◆ SetDeadTimeout()

◆ SetDevice()

◆ SetWaitReplyTimeout()

◆ StartWaitReplyTimer()

Member Data Documentation

◆ m_aliveTimeout

◆ m_arpCache

◆ m_arpRequestCallback

◆ m_deadTimeout

◆ m_device

◆ m_dropTrace

◆ m_interface

◆ m_maxRetries

◆ m_pendingQueueSize

◆ m_waitReplyTimeout

◆ m_waitReplyTimer
