An interface aggregated to a node to provide global routing info. More...

#include "global-router-interface.h"

Inheritance diagram for ns3::GlobalRouter:

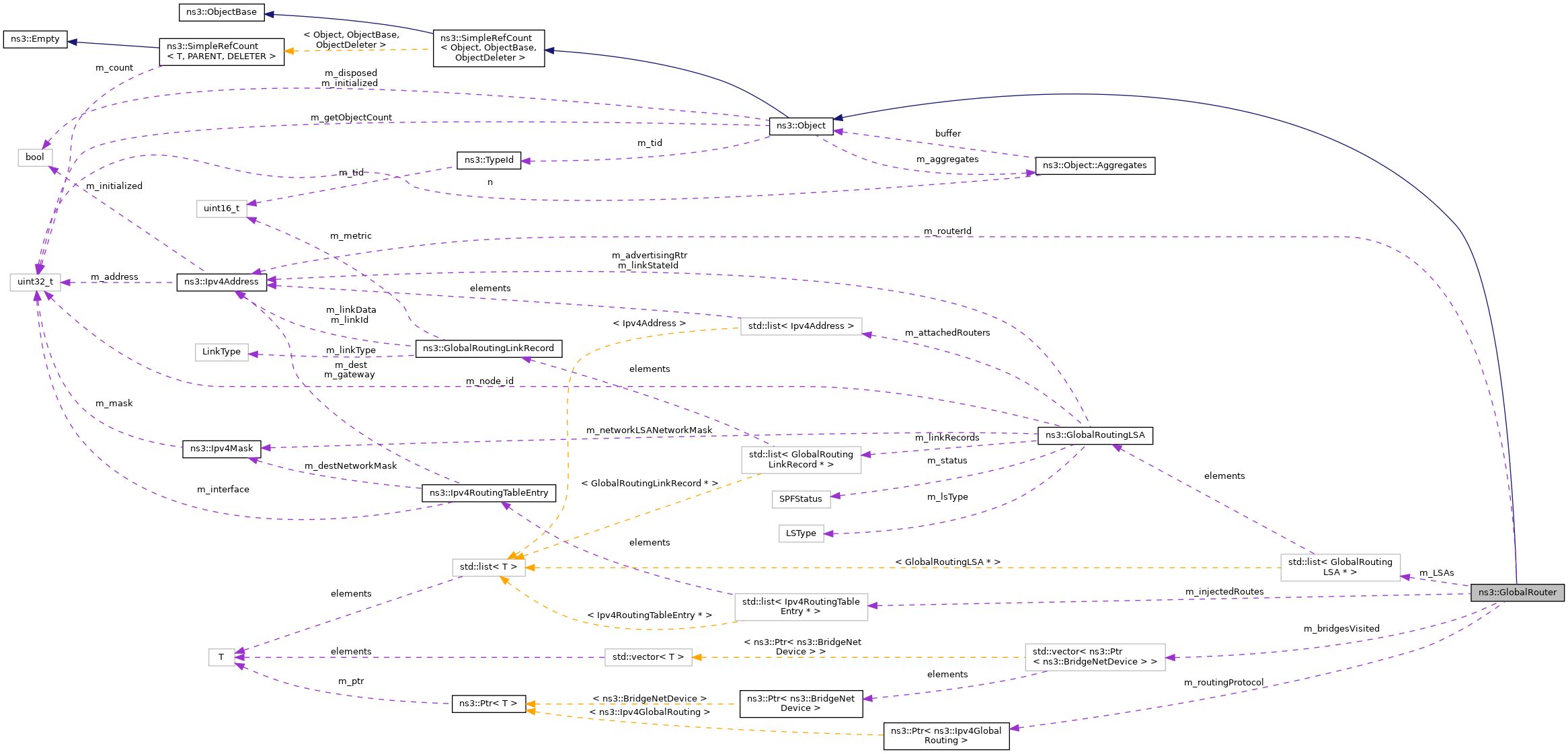

Collaboration diagram for ns3::GlobalRouter:

Public Member Functions
	GlobalRouter ()
	Create a Global Router class. More...

	GlobalRouter (const GlobalRouter &)=delete

uint32_t	DiscoverLSAs ()
	Walk the connected channels, discover the adjacent routers and build the associated number of Global Routing Link State Advertisements that this router can export. More...

Ipv4RoutingTableEntry *	GetInjectedRoute (uint32_t i)
	Return the injected route indexed by i. More...

bool	GetLSA (uint32_t n, GlobalRoutingLSA &lsa) const
	Get a Global Routing Link State Advertisements that this router has said that it can export. More...

uint32_t	GetNInjectedRoutes ()
	Get the number of injected routes that have been added to the routing table. More...

uint32_t	GetNumLSAs () const
	Get the Number of Global Routing Link State Advertisements that this router can export. More...

Ipv4Address	GetRouterId () const
	Get the Router ID associated with this Global Router. More...

Ptr< Ipv4GlobalRouting >	GetRoutingProtocol ()
	Get the specific Global Routing Protocol used. More...

void	InjectRoute (Ipv4Address network, Ipv4Mask networkMask)
	Inject a route to be circulated to other routers as an external route. More...

GlobalRouter &	operator= (const GlobalRouter &)=delete

void	RemoveInjectedRoute (uint32_t i)
	Withdraw a route from the global unicast routing table. More...

void	SetRoutingProtocol (Ptr< Ipv4GlobalRouting > routing)
	Set the specific Global Routing Protocol to be used. More...

bool	WithdrawRoute (Ipv4Address network, Ipv4Mask networkMask)
	Withdraw a route from the global unicast routing table. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
typedef std::list< Ipv4RoutingTableEntry * >	InjectedRoutes
	container of Ipv4RoutingTableEntry More...

typedef std::list< Ipv4RoutingTableEntry * >::const_iterator	InjectedRoutesCI
	Const Iterator to container of Ipv4RoutingTableEntry. More...

typedef std::list< Ipv4RoutingTableEntry * >::iterator	InjectedRoutesI
	Iterator to container of Ipv4RoutingTableEntry. More...

typedef std::list< GlobalRoutingLSA * >	ListOfLSAs_t
	container for the GlobalRoutingLSAs More...

Private Member Functions
	~GlobalRouter () override

bool	AnotherRouterOnLink (Ptr< NetDevice > nd) const
	Checks for the presence of another router on the NetDevice. More...

bool	BridgeHasAlreadyBeenVisited (Ptr< BridgeNetDevice > device) const
	When recursively checking for devices on the link, check whether a given device has already been visited. More...

void	BuildNetworkLSAs (NetDeviceContainer c)
	Build one NetworkLSA for each net device talking to a network that we are the designated router for. More...

void	ClearBridgesVisited () const
	Clear the list of bridges visited on the link. More...

void	ClearLSAs ()
	Clear list of LSAs. More...

void	DoDispose () override
	Destructor implementation. More...

NetDeviceContainer	FindAllNonBridgedDevicesOnLink (Ptr< Channel > ch) const
	Return a container of all non-bridged NetDevices on a link. More...

Ipv4Address	FindDesignatedRouterForLink (Ptr< NetDevice > ndLocal) const
	Finds a designated router. More...

Ptr< NetDevice >	GetAdjacent (Ptr< NetDevice > nd, Ptr< Channel > ch) const
	Link through the given channel and find the net device that's on the other end. More...

void	MarkBridgeAsVisited (Ptr< BridgeNetDevice > device) const
	When recursively checking for devices on the link, mark a given device as having been visited. More...

Ptr< BridgeNetDevice >	NetDeviceIsBridged (Ptr< NetDevice > nd) const
	Decide whether or not a given net device is being bridged by a BridgeNetDevice. More...

void	ProcessBridgedBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a bridged broadcast link. More...

void	ProcessBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a generic broadcast link. More...

void	ProcessPointToPointLink (Ptr< NetDevice > ndLocal, GlobalRoutingLSA *pLSA)
	Process a point to point link. More...

void	ProcessSingleBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a single broadcast link. More...

Private Attributes
std::vector< Ptr< BridgeNetDevice > >	m_bridgesVisited
	Container of bridges visited. More...

InjectedRoutes	m_injectedRoutes
	Routes we are exporting. More...

ListOfLSAs_t	m_LSAs
	database of GlobalRoutingLSAs More...

Ipv4Address	m_routerId
	router ID (its IPv4 address) More...

Ptr< Ipv4GlobalRouting >	m_routingProtocol
	the Ipv4GlobalRouting in use More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An interface aggregated to a node to provide global routing info.

An interface aggregated to a node that provides global routing information to a global route manager. The presence of the interface indicates that the node is a router. The interface is the mechanism by which the router advertises its connections to neighboring routers. We're basically allowing the route manager to query for link state advertisements.

Definition at line 595 of file global-router-interface.h.

Member Typedef Documentation

◆ InjectedRoutes

typedef std::list<Ipv4RoutingTableEntry*> ns3::GlobalRouter::InjectedRoutes

private

container of Ipv4RoutingTableEntry

Definition at line 862 of file global-router-interface.h.

◆ InjectedRoutesCI

typedef std::list<Ipv4RoutingTableEntry*>::const_iterator ns3::GlobalRouter::InjectedRoutesCI

private

Const Iterator to container of Ipv4RoutingTableEntry.

Definition at line 864 of file global-router-interface.h.

◆ InjectedRoutesI

typedef std::list<Ipv4RoutingTableEntry*>::iterator ns3::GlobalRouter::InjectedRoutesI

private

Iterator to container of Ipv4RoutingTableEntry.

Definition at line 866 of file global-router-interface.h.

◆ ListOfLSAs_t

typedef std::list<GlobalRoutingLSA*> ns3::GlobalRouter::ListOfLSAs_t

private

container for the GlobalRoutingLSAs

Definition at line 855 of file global-router-interface.h.

Constructor & Destructor Documentation

◆ GlobalRouter() [1/2]

ns3::GlobalRouter::GlobalRouter ( )

Create a Global Router class.

Definition at line 507 of file global-router-interface.cc.

References ns3::GlobalRouteManager::AllocateRouterId(), m_routerId, NS_LOG_FUNCTION, and ns3::Ipv4Address::Set().

Here is the call graph for this function:

◆ GlobalRouter() [2/2]

ns3::GlobalRouter::GlobalRouter ( const GlobalRouter & )

delete

◆ ~GlobalRouter()

ns3::GlobalRouter::~GlobalRouter ( )

overrideprivate

Definition at line 514 of file global-router-interface.cc.

References ClearLSAs(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ AnotherRouterOnLink()

bool ns3::GlobalRouter::AnotherRouterOnLink ( Ptr< NetDevice > nd ) const

private

Checks for the presence of another router on the NetDevice.

Given a node and an attached net device, take a look off in the channel to which the net device is attached and look for a node on the other side that has a GlobalRouter interface aggregated.

Parameters

nd	NetDevice to scan

Returns: true if a router is found

Definition at line 1476 of file global-router-interface.cc.

References BridgeHasAlreadyBeenVisited(), ns3::Channel::GetDevice(), ns3::Channel::GetNDevices(), ns3::Object::GetObject(), MarkBridgeAsVisited(), NetDeviceIsBridged(), NS_ABORT_MSG, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BridgeHasAlreadyBeenVisited()

bool ns3::GlobalRouter::BridgeHasAlreadyBeenVisited ( Ptr< BridgeNetDevice > device ) const

private

When recursively checking for devices on the link, check whether a given device has already been visited.

Parameters

device the bridge device to check

Returns: true if bridge has already been visited

Definition at line 1783 of file global-router-interface.cc.

References m_bridgesVisited, and NS_LOG_LOGIC.

Referenced by AnotherRouterOnLink(), FindAllNonBridgedDevicesOnLink(), and FindDesignatedRouterForLink().

Here is the caller graph for this function:

◆ BuildNetworkLSAs()

void ns3::GlobalRouter::BuildNetworkLSAs ( NetDeviceContainer c )

private

Build one NetworkLSA for each net device talking to a network that we are the designated router for.

Parameters

c	the devices.

Definition at line 1154 of file global-router-interface.cc.

References ClearBridgesVisited(), FindAllNonBridgedDevicesOnLink(), ns3::NetDeviceContainer::Get(), ns3::Node::GetId(), ns3::NetDeviceContainer::GetN(), ns3::Channel::GetNDevices(), ns3::Object::GetObject(), ns3::GlobalRoutingLSA::LSA_SPF_NOT_EXPLORED, m_LSAs, m_routerId, ns3::GlobalRoutingLSA::NetworkLSA, NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by DiscoverLSAs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClearBridgesVisited()

void ns3::GlobalRouter::ClearBridgesVisited ( ) const

private

Clear the list of bridges visited on the link.

Definition at line 1774 of file global-router-interface.cc.

References m_bridgesVisited.

Referenced by BuildNetworkLSAs(), ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

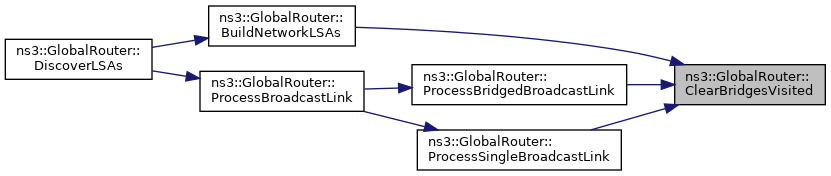

Here is the caller graph for this function:

◆ ClearLSAs()

void ns3::GlobalRouter::ClearLSAs ( )

private

Clear list of LSAs.

Definition at line 548 of file global-router-interface.cc.

References m_LSAs, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ~GlobalRouter(), and DiscoverLSAs().

Here is the caller graph for this function:

◆ DiscoverLSAs()

uint32_t ns3::GlobalRouter::DiscoverLSAs ( )

Walk the connected channels, discover the adjacent routers and build the associated number of Global Routing Link State Advertisements that this router can export.

This is a fairly expensive operation in that every time it is called the current list of LSAs is built by walking connected point-to-point channels and peeking into adjacent IPV4 stacks to get address information. This is done to allow for limited dynamics of the Global Routing environment. By that we mean that you can discover new link state advertisements after a network topology change by calling DiscoverLSAs and then by reading those advertisements.

See also: GlobalRoutingLSA; GlobalRouter::GetLSA ()

Returns: The number of Global Routing Link State Advertisements.

Definition at line 579 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::ASExternalLSAs, BuildNetworkLSAs(), ClearLSAs(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::NetDeviceContainer::GetN(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), ns3::GlobalRoutingLSA::LSA_SPF_NOT_EXPLORED, m_injectedRoutes, m_LSAs, m_routerId, NetDeviceIsBridged(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ProcessBroadcastLink(), ProcessPointToPointLink(), ns3::GlobalRoutingLSA::RouterLSA, and ns3::GlobalRoutingLSA::SetLSType().

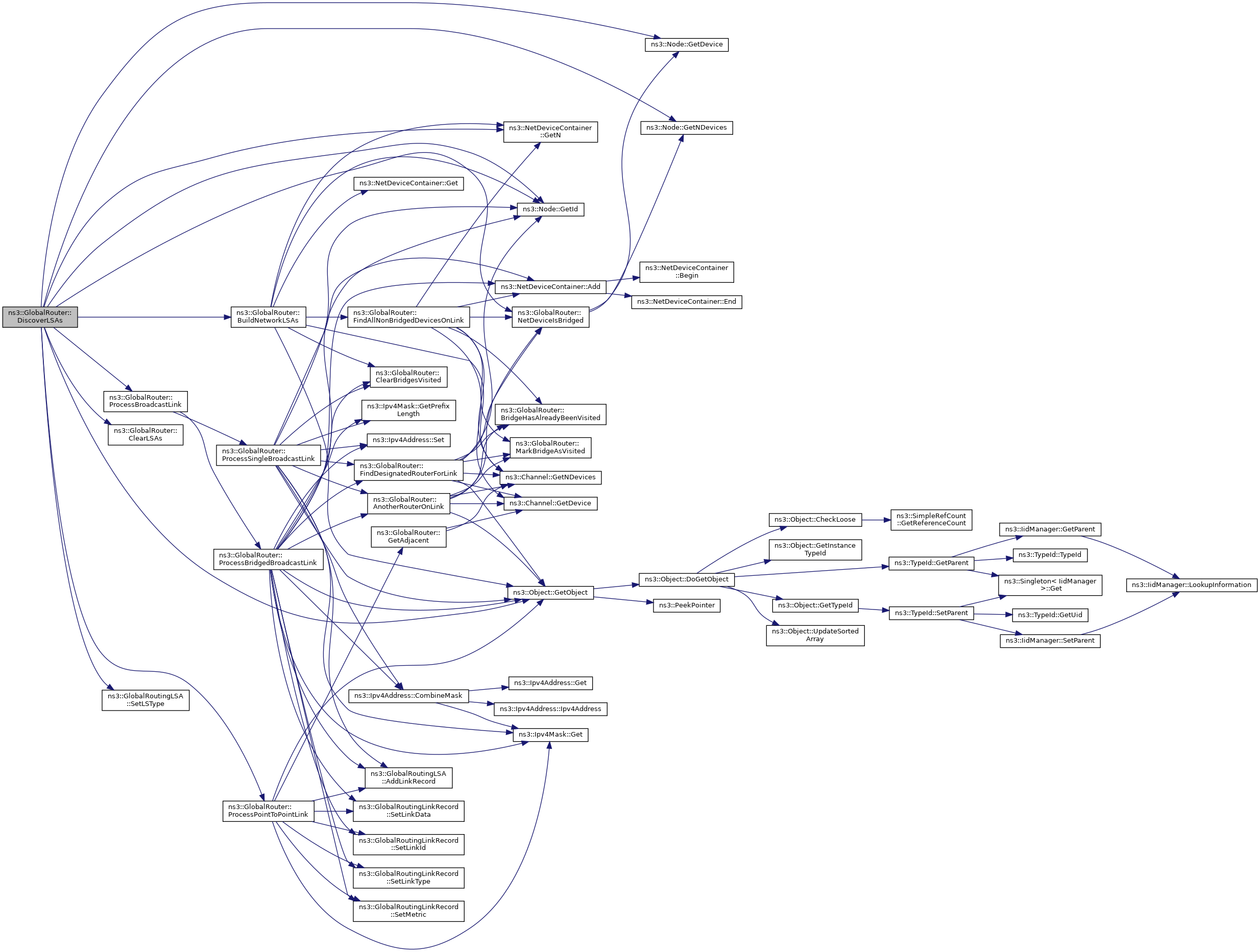

Here is the call graph for this function:

◆ DoDispose()

void ns3::GlobalRouter::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 535 of file global-router-interface.cc.

References ns3::Object::DoDispose(), two-ray-to-three-gpp-ch-calibration::k, m_injectedRoutes, m_routingProtocol, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ FindAllNonBridgedDevicesOnLink()

NetDeviceContainer ns3::GlobalRouter::FindAllNonBridgedDevicesOnLink ( Ptr< Channel > ch ) const

private

Return a container of all non-bridged NetDevices on a link.

This method will recursively find all of the 'edge' devices in an L2 broadcast domain. If there are no bridged devices, then the container returned is simply the set of devices on the channel passed in as an argument. If the link has bridges on it (and therefore multiple ns3::Channel objects interconnected by bridges), the method will find all of the non-bridged devices in the L2 broadcast domain.

Parameters

ch	a channel from the link

Returns: the NetDeviceContainer.

Definition at line 1274 of file global-router-interface.cc.

References ns3::NetDeviceContainer::Add(), BridgeHasAlreadyBeenVisited(), ns3::Channel::GetDevice(), ns3::NetDeviceContainer::GetN(), ns3::Channel::GetNDevices(), MarkBridgeAsVisited(), NetDeviceIsBridged(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by BuildNetworkLSAs().

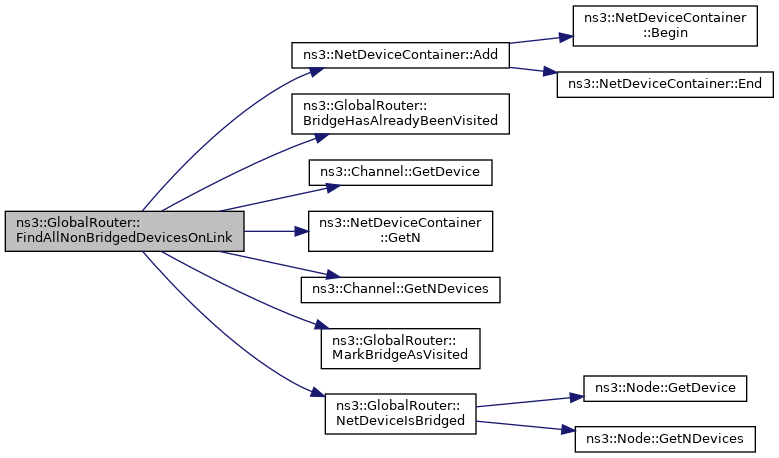

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindDesignatedRouterForLink()

Ipv4Address ns3::GlobalRouter::FindDesignatedRouterForLink ( Ptr< NetDevice > ndLocal ) const

private

Finds a designated router.

Given a local net device, we need to walk the channel to which the net device is attached and look for nodes with GlobalRouter interfaces on them (one of them will be us). Of these, the router with the lowest IP address on the net device connecting to the channel becomes the designated router for the link.

Parameters

ndLocal local NetDevice to scan

Returns: the IP address of the designated router

Definition at line 1320 of file global-router-interface.cc.

References BridgeHasAlreadyBeenVisited(), ns3::Channel::GetDevice(), ns3::Node::GetId(), ns3::Channel::GetNDevices(), ns3::Object::GetObject(), nsclick-simple-lan::ipv4, MarkBridgeAsVisited(), NetDeviceIsBridged(), NS_ABORT_MSG, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAdjacent()

Ptr< NetDevice > ns3::GlobalRouter::GetAdjacent	(	Ptr< NetDevice >	nd,
		Ptr< Channel >	ch
	)		const

private

Link through the given channel and find the net device that's on the other end.

This only makes sense with a point-to-point channel.

Parameters

nd	outgoing NetDevice
ch	channel

Returns: the NetDevice on the other end

Definition at line 1695 of file global-router-interface.cc.

References ns3::Channel::GetDevice(), ns3::Channel::GetNDevices(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ProcessPointToPointLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInjectedRoute()

Ipv4RoutingTableEntry * ns3::GlobalRouter::GetInjectedRoute ( uint32_t i )

Return the injected route indexed by i.

Parameters

i	the index of the route

Returns: a pointer to that Ipv4RoutingTableEntry is returned

Definition at line 1627 of file global-router-interface.cc.

References m_injectedRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

◆ GetLSA()

bool ns3::GlobalRouter::GetLSA	(	uint32_t	n,
		GlobalRoutingLSA &	lsa
	)		const

Get a Global Routing Link State Advertisements that this router has said that it can export.

This is a fairly inexpensive expensive operation in that the hard work was done in GetNumLSAs. We just copy the indicated Global Routing Link State Advertisement into the requested GlobalRoutingLSA object.

You must call GlobalRouter::GetNumLSAs before calling this method in order to discover the adjacent routers and build the advertisements. GetNumLSAs will return the number of LSAs this router advertises. The parameter n (requested LSA number) must be in the range 0 to GetNumLSAs() - 1.

See also: GlobalRoutingLSA; GlobalRouting::GetNumLSAs ()

Parameters

n	The index number of the LSA you want to read.
lsa	The GlobalRoutingLSA class to receive the LSA information.

Returns: The number of Global Router Link State Advertisements.

Definition at line 1589 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::IsEmpty(), m_LSAs, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNInjectedRoutes()

uint32_t ns3::GlobalRouter::GetNInjectedRoutes ( )

Get the number of injected routes that have been added to the routing table.

Returns: number of injected routes

Definition at line 1648 of file global-router-interface.cc.

References m_injectedRoutes, and NS_LOG_FUNCTION.

◆ GetNumLSAs()

uint32_t ns3::GlobalRouter::GetNumLSAs ( ) const

Get the Number of Global Routing Link State Advertisements that this router can export.

To get meaningful information you must have previously called DiscoverLSAs. After you know how many LSAs are present in the router, you may call GetLSA () to retrieve the actual advertisement.

See also: GlobalRouterLSA; GlobalRouting::DiscoverLSAs (); GlobalRouting::GetLSA ()

Returns: The number of Global Routing Link State Advertisements.

Definition at line 1579 of file global-router-interface.cc.

References m_LSAs, and NS_LOG_FUNCTION.

◆ GetRouterId()

Ipv4Address ns3::GlobalRouter::GetRouterId ( ) const

Get the Router ID associated with this Global Router.

The Router IDs are allocated in the RoutingEnvironment – one per Router, starting at 0.0.0.1 and incrementing with each instantiation of a router.

See also: RoutingEnvironment::AllocateRouterId ()

Returns: The Router ID associated with the Global Router.

Definition at line 566 of file global-router-interface.cc.

References m_routerId, and NS_LOG_FUNCTION.

◆ GetRoutingProtocol()

Ptr< Ipv4GlobalRouting > ns3::GlobalRouter::GetRoutingProtocol ( )

Get the specific Global Routing Protocol used.

Returns: the routing protocol

Definition at line 528 of file global-router-interface.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::GlobalRouter::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 501 of file global-router-interface.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ InjectRoute()

void ns3::GlobalRouter::InjectRoute	(	Ipv4Address	network,
		Ipv4Mask	networkMask
	)

Inject a route to be circulated to other routers as an external route.

Parameters

network	The Network to inject
networkMask	The Network Mask to inject

Definition at line 1615 of file global-router-interface.cc.

References ns3::Ipv4RoutingTableEntry::CreateNetworkRouteTo(), m_injectedRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ MarkBridgeAsVisited()

void ns3::GlobalRouter::MarkBridgeAsVisited ( Ptr< BridgeNetDevice > device ) const

private

When recursively checking for devices on the link, mark a given device as having been visited.

Parameters

device the bridge device to mark

Definition at line 1800 of file global-router-interface.cc.

References m_bridgesVisited, and NS_LOG_FUNCTION.

Referenced by AnotherRouterOnLink(), FindAllNonBridgedDevicesOnLink(), and FindDesignatedRouterForLink().

Here is the caller graph for this function:

◆ NetDeviceIsBridged()

Ptr< BridgeNetDevice > ns3::GlobalRouter::NetDeviceIsBridged ( Ptr< NetDevice > nd ) const

private

Decide whether or not a given net device is being bridged by a BridgeNetDevice.

Parameters

nd	the NetDevice

Returns: the BridgeNetDevice smart pointer or null if not found

Definition at line 1729 of file global-router-interface.cc.

References ns3::Node::GetDevice(), ns3::Node::GetNDevices(), NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by AnotherRouterOnLink(), DiscoverLSAs(), FindAllNonBridgedDevicesOnLink(), and FindDesignatedRouterForLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

GlobalRouter& ns3::GlobalRouter::operator= ( const GlobalRouter & )

delete

◆ ProcessBridgedBroadcastLink()

void ns3::GlobalRouter::ProcessBridgedBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a bridged broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 860 of file global-router-interface.cc.

References ns3::NetDeviceContainer::Add(), ns3::GlobalRoutingLSA::AddLinkRecord(), AnotherRouterOnLink(), ClearBridgesVisited(), ns3::Ipv4Address::CombineMask(), FindDesignatedRouterForLink(), ns3::Ipv4Mask::Get(), ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4Mask::GetPrefixLength(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Ipv4Address::Set(), ns3::GlobalRoutingLinkRecord::SetLinkData(), ns3::GlobalRoutingLinkRecord::SetLinkId(), ns3::GlobalRoutingLinkRecord::SetLinkType(), ns3::GlobalRoutingLinkRecord::SetMetric(), ns3::GlobalRoutingLinkRecord::StubNetwork, and ns3::GlobalRoutingLinkRecord::TransitNetwork.

Referenced by ProcessBroadcastLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessBroadcastLink()

void ns3::GlobalRouter::ProcessBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a generic broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 725 of file global-router-interface.cc.

References NS_LOG_FUNCTION, ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

Referenced by DiscoverLSAs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessPointToPointLink()

void ns3::GlobalRouter::ProcessPointToPointLink	(	Ptr< NetDevice >	ndLocal,
		GlobalRoutingLSA *	pLSA
	)

private

Process a point to point link.

Parameters

ndLocal	the NetDevice
pLSA	the Global LSA

Definition at line 1026 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::AddLinkRecord(), ns3::Ipv4Mask::Get(), GetAdjacent(), ns3::Object::GetObject(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::GlobalRoutingLinkRecord::PointToPoint, ns3::GlobalRoutingLinkRecord::SetLinkData(), ns3::GlobalRoutingLinkRecord::SetLinkId(), ns3::GlobalRoutingLinkRecord::SetLinkType(), ns3::GlobalRoutingLinkRecord::SetMetric(), and ns3::GlobalRoutingLinkRecord::StubNetwork.

Referenced by DiscoverLSAs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSingleBroadcastLink()

void ns3::GlobalRouter::ProcessSingleBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a single broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 740 of file global-router-interface.cc.

References ns3::NetDeviceContainer::Add(), ns3::GlobalRoutingLSA::AddLinkRecord(), AnotherRouterOnLink(), ClearBridgesVisited(), ns3::Ipv4Address::CombineMask(), FindDesignatedRouterForLink(), ns3::Ipv4Mask::Get(), ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4Mask::GetPrefixLength(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Ipv4Address::Set(), ns3::GlobalRoutingLinkRecord::StubNetwork, and ns3::GlobalRoutingLinkRecord::TransitNetwork.

Referenced by ProcessBroadcastLink().

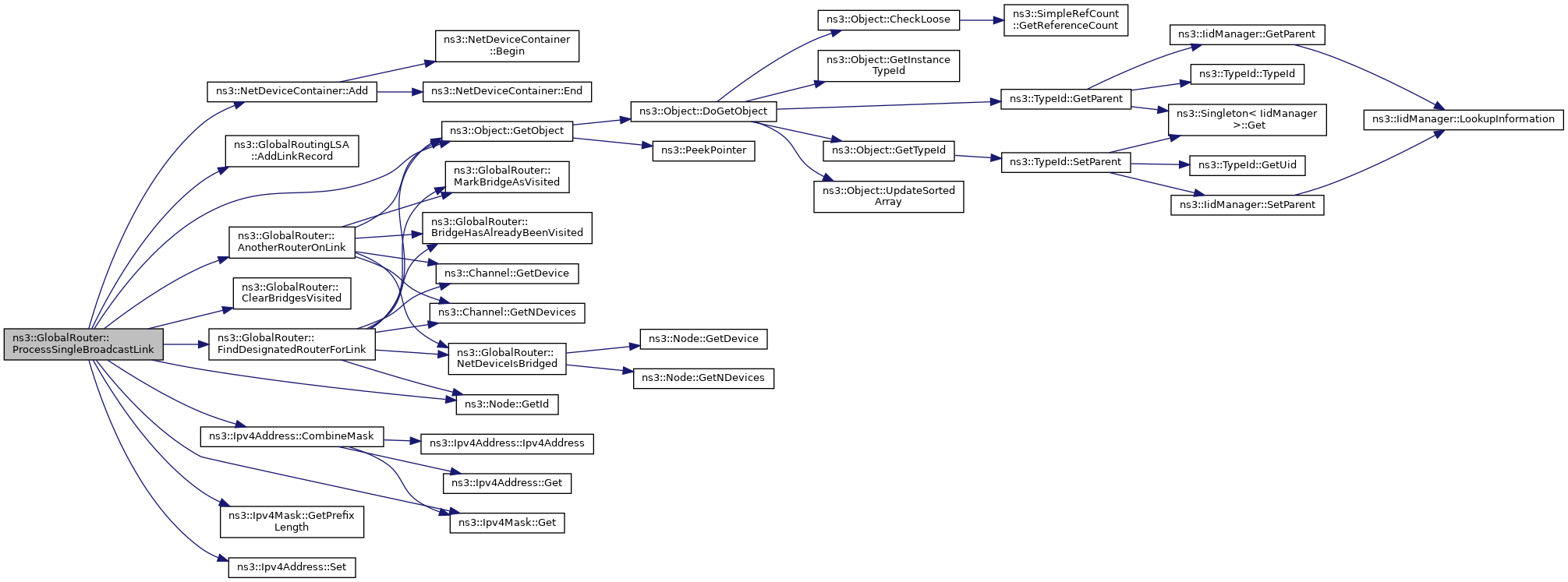

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveInjectedRoute()

void ns3::GlobalRouter::RemoveInjectedRoute ( uint32_t i )

Withdraw a route from the global unicast routing table.

Calling this function will cause all indexed routes numbered above index i to have their index decremented. For instance, it is possible to remove N injected routes by calling RemoveInjectedRoute (0) N times.

Parameters

i	The index (into the injected routing list) of the route to remove.

See also: GlobalRouter::WithdrawRoute ()

Definition at line 1655 of file global-router-interface.cc.

References m_injectedRoutes, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ SetRoutingProtocol()

void ns3::GlobalRouter::SetRoutingProtocol ( Ptr< Ipv4GlobalRouting > routing )

Set the specific Global Routing Protocol to be used.

Parameters

routing the routing protocol

Definition at line 521 of file global-router-interface.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

◆ WithdrawRoute()

bool ns3::GlobalRouter::WithdrawRoute	(	Ipv4Address	network,
		Ipv4Mask	networkMask
	)

Withdraw a route from the global unicast routing table.

Parameters

network	The Network to withdraw
networkMask	The Network Mask to withdraw

Returns: whether the operation succeeded (will return false if no such route)

See also: GlobalRouter::RemoveInjectedRoute ()

Definition at line 1674 of file global-router-interface.cc.

References m_injectedRoutes, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Member Data Documentation

◆ m_bridgesVisited

std::vector<Ptr<BridgeNetDevice> > ns3::GlobalRouter::m_bridgesVisited

mutableprivate

Container of bridges visited.

Definition at line 874 of file global-router-interface.h.

Referenced by BridgeHasAlreadyBeenVisited(), ClearBridgesVisited(), and MarkBridgeAsVisited().

◆ m_injectedRoutes

InjectedRoutes ns3::GlobalRouter::m_injectedRoutes

private

Routes we are exporting.

Definition at line 867 of file global-router-interface.h.

Referenced by DiscoverLSAs(), DoDispose(), GetInjectedRoute(), GetNInjectedRoutes(), InjectRoute(), RemoveInjectedRoute(), and WithdrawRoute().

◆ m_LSAs

ListOfLSAs_t ns3::GlobalRouter::m_LSAs

private

database of GlobalRoutingLSAs

Definition at line 856 of file global-router-interface.h.

Referenced by BuildNetworkLSAs(), ClearLSAs(), DiscoverLSAs(), GetLSA(), and GetNumLSAs().

◆ m_routerId

Ipv4Address ns3::GlobalRouter::m_routerId

private

router ID (its IPv4 address)

Definition at line 858 of file global-router-interface.h.

Referenced by GlobalRouter(), BuildNetworkLSAs(), DiscoverLSAs(), and GetRouterId().

◆ m_routingProtocol

Ptr<Ipv4GlobalRouting> ns3::GlobalRouter::m_routingProtocol

private

the Ipv4GlobalRouting in use

Definition at line 859 of file global-router-interface.h.

Referenced by DoDispose(), GetRoutingProtocol(), and SetRoutingProtocol().

The documentation for this class was generated from the following files:

src/internet/model/global-router-interface.h
src/internet/model/global-router-interface.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ InjectedRoutes

◆ InjectedRoutesCI

◆ InjectedRoutesI

◆ ListOfLSAs_t

Constructor & Destructor Documentation

◆ GlobalRouter() [1/2]

◆ GlobalRouter() [2/2]

◆ ~GlobalRouter()

Member Function Documentation

◆ AnotherRouterOnLink()

◆ BridgeHasAlreadyBeenVisited()

◆ BuildNetworkLSAs()

◆ ClearBridgesVisited()

◆ ClearLSAs()

◆ DiscoverLSAs()

◆ DoDispose()

◆ FindAllNonBridgedDevicesOnLink()

◆ FindDesignatedRouterForLink()

◆ GetAdjacent()

◆ GetInjectedRoute()

◆ GetLSA()

◆ GetNInjectedRoutes()

◆ GetNumLSAs()

◆ GetRouterId()

◆ GetRoutingProtocol()

◆ GetTypeId()

◆ InjectRoute()

◆ MarkBridgeAsVisited()

◆ NetDeviceIsBridged()

◆ operator=()

◆ ProcessBridgedBroadcastLink()

◆ ProcessBroadcastLink()

◆ ProcessPointToPointLink()

◆ ProcessSingleBroadcastLink()

◆ RemoveInjectedRoute()

◆ SetRoutingProtocol()

◆ WithdrawRoute()

Member Data Documentation

◆ m_bridgesVisited

◆ m_injectedRoutes

◆ m_LSAs

◆ m_routerId

◆ m_routingProtocol
