ns3::SimpleNetDeviceHelper Class Reference

build a set of SimpleNetDevice objects More...

#include "simple-net-device-helper.h"

Collaboration diagram for ns3::SimpleNetDeviceHelper:

Public Member Functions
	SimpleNetDeviceHelper ()
	Construct a SimpleNetDeviceHelper. More...
virtual	~SimpleNetDeviceHelper ()
void	DisableFlowControl ()
	Disable flow control only if you know what you are doing. More...
NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute. More...
NetDeviceContainer	Install (const NodeContainer &c, Ptr< SimpleChannel > channel) const
	For each Ptr<node> in the provided container, this method creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device. More...
NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute, an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device. More...
NetDeviceContainer	Install (Ptr< Node > node, Ptr< SimpleChannel > channel) const
	This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...
template<typename... Ts>
void	SetChannel (std::string type, Ts &&... args)
	Each net device must have a channel to pass packets through. More...
void	SetChannelAttribute (std::string n1, const AttributeValue &v1)
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
void	SetNetDevicePointToPointMode (bool pointToPointMode)
	SimpleNetDevice is Broadcast capable and ARP needing. More...
template<typename... Ts>
void	SetQueue (std::string type, Ts &&... args)
	Each net device must have a queue to pass packets through. More...

Private Member Functions
Ptr< NetDevice >	InstallPriv (Ptr< Node > node, Ptr< SimpleChannel > channel) const
	This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

Private Attributes
ObjectFactory	m_channelFactory
	Channel factory. More...
ObjectFactory	m_deviceFactory
	NetDevice factory. More...
bool	m_enableFlowControl
	whether to enable flow control More...
bool	m_pointToPointMode
	Install PointToPoint SimpleNetDevice or Broadcast ones. More...
ObjectFactory	m_queueFactory
	Queue factory. More...

Detailed Description

build a set of SimpleNetDevice objects

Definition at line 38 of file simple-net-device-helper.h.

Constructor & Destructor Documentation

SimpleNetDeviceHelper()

ns3::SimpleNetDeviceHelper::SimpleNetDeviceHelper

(

)

Construct a SimpleNetDeviceHelper.

Definition at line 43 of file simple-net-device-helper.cc.

References m_channelFactory, m_deviceFactory, m_enableFlowControl, m_pointToPointMode, m_queueFactory, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

~SimpleNetDeviceHelper()

virtual ns3::SimpleNetDeviceHelper::~SimpleNetDeviceHelper ( )

inlinevirtual

Definition at line 46 of file simple-net-device-helper.h.

Member Function Documentation

DisableFlowControl()

void ns3::SimpleNetDeviceHelper::DisableFlowControl

(

)

Disable flow control only if you know what you are doing.

By disabling flow control, this NetDevice will be sent packets even if there is no room for them (such packets will be likely dropped by this NetDevice). Also, any queue disc installed on this NetDevice will have no effect, as every packet enqueued to the traffic control layer queue disc will be immediately dequeued.

Definition at line 71 of file simple-net-device-helper.cc.

References m_enableFlowControl.

Install() [1/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install

(

const NodeContainer &

c

)

const

This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute.

For each Ptr<node> in the provided container: it creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.

Returns

A container holding the added net devices.

Definition at line 90 of file simple-net-device-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), Install(), and m_channelFactory.

Here is the call graph for this function:

Install() [2/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install	(	const NodeContainer &	c,
		Ptr< SimpleChannel >	channel
	)		const

For each Ptr<node> in the provided container, this method creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.
channel	The channel to attach to the devices.

Returns

A container holding the added net devices.

Definition at line 98 of file simple-net-device-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), third::channel, ns3::NodeContainer::End(), and InstallPriv().

Here is the call graph for this function:

Install() [3/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install

(

Ptr< Node >

node

)

const

This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute, an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters

node	The node to install the device in

Returns

A container holding the added net device.

Definition at line 77 of file simple-net-device-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), and m_channelFactory.

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), BulkSendBasicTestCase::DoRun(), BulkSendSeqTsSizeTestCase::DoRun(), DhcpTestCase::DoRun(), RadvdTestCase::DoRun(), IcmpTimeExceedTestCase::DoRun(), IcmpV6TimeExceedTestCase::DoRun(), Ipv4DeduplicationTest::DoRun(), Ipv4DeduplicationPerformanceTest::DoRun(), Ipv4FragmentationTest::DoRun(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), Ipv4GlobalRoutingSlash32TestCase::DoRun(), Ipv4PacketInfoTagTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv4StaticRoutingSlash32TestCase::DoRun(), Ipv6DadTest::DoRun(), Ipv6ForwardingTest::DoRun(), Ipv6PacketInfoTagTest::DoRun(), Ipv6RawSocketImplTest::DoRun(), ChannelTest::DoRun(), NetDeviceContainerTest::DoRun(), InterfaceContainerTest::DoRun(), FlushTest::DoRun(), DuplicateTest::DoRun(), DynamicPartialTest::DoRun(), ns3::TcpGeneralTest::DoRun(), UdpSocketImplTest::DoRun(), Udp6SocketImplTest::DoRun(), NixVectorRoutingTest::DoRun(), TcFlowControlTestCase::DoRun(), PingTestCase::DoSetup(), LinkTest::DoSetup(), LanTest::DoSetup(), TwoLinkTest::DoSetup(), TwoLanTest::DoSetup(), BridgeTest::DoSetup(), TwoBridgeTest::DoSetup(), and Install().

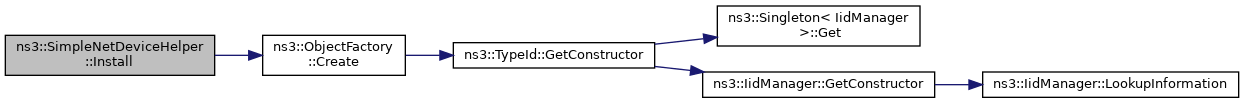

Here is the call graph for this function:

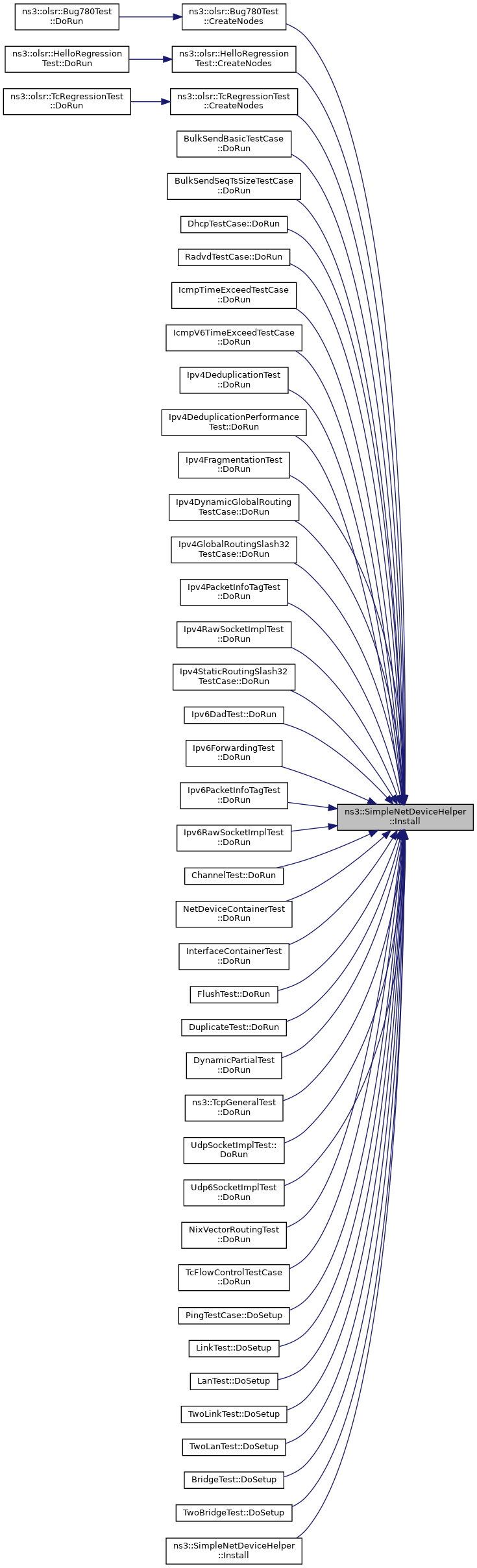

Here is the caller graph for this function:

Install() [4/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install	(	Ptr< Node >	node,
		Ptr< SimpleChannel >	channel
	)		const

This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channel	The channel to attach to the device.

Returns

A container holding the added net device.

Definition at line 84 of file simple-net-device-helper.cc.

References third::channel, and InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< NetDevice > ns3::SimpleNetDeviceHelper::InstallPriv ( Ptr< Node >  node, Ptr< SimpleChannel >  channel  ) const

private

This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channel	The channel to attach to the device.

Returns

The new net device.

Definition at line 111 of file simple-net-device-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), third::channel, ns3::ObjectFactory::Create(), m_deviceFactory, m_enableFlowControl, m_pointToPointMode, m_queueFactory, and NS_ASSERT_MSG.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

SetChannel()

template<typename... Ts>

void ns3::SimpleNetDeviceHelper::SetChannel	(	std::string	type,
		Ts &&...	args
	)

Each net device must have a channel to pass packets through.

This method allows one to set the type of the channel that is automatically created when the device is created and attached to a node.

Template Parameters

Ts	[deduced] Argument types

Parameters

	type	the type of channel
[in]	args	Name and AttributeValue pairs to set.

Set the type of channel to create and associated to each SimpleNetDevice created through SimpleNetDeviceHelper::Install.

Definition at line 200 of file simple-net-device-helper.h.

References check-style-clang-format::args, m_channelFactory, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by PingTestCase::DoSetup().

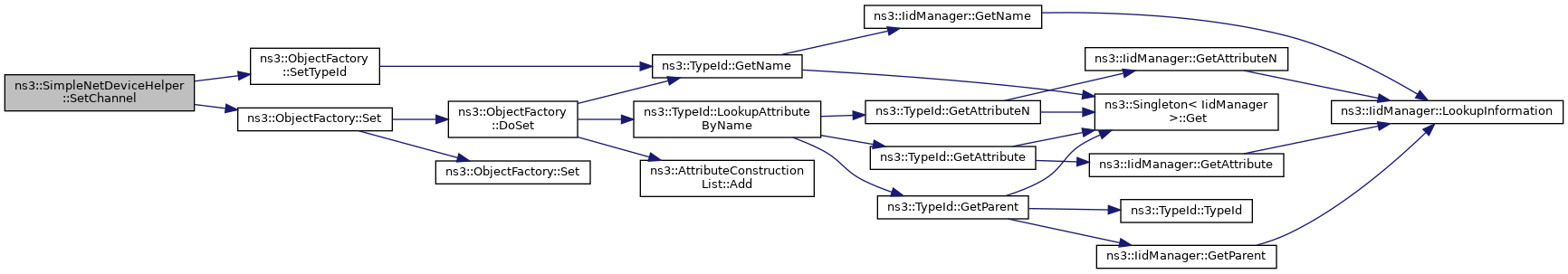

Here is the call graph for this function:

Here is the caller graph for this function:

SetChannelAttribute()

void ns3::SimpleNetDeviceHelper::SetChannelAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each ns3::CsmaChannel created by SimpleNetDeviceHelper::Install

Definition at line 59 of file simple-net-device-helper.cc.

References m_channelFactory, and ns3::ObjectFactory::Set().

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), BulkSendBasicTestCase::DoRun(), BulkSendSeqTsSizeTestCase::DoRun(), DhcpTestCase::DoRun(), and RadvdTestCase::DoRun().

Here is the call graph for this function:

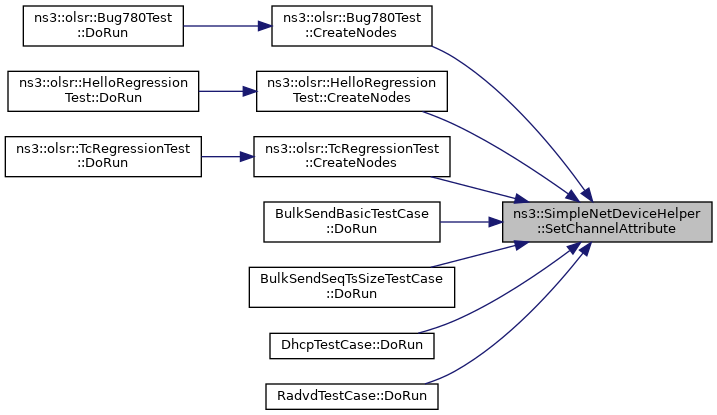

Here is the caller graph for this function:

SetDeviceAttribute()

void ns3::SimpleNetDeviceHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each ns3::SimpleNetDevice created by SimpleNetDeviceHelper::Install

Definition at line 53 of file simple-net-device-helper.cc.

References m_deviceFactory, and ns3::ObjectFactory::Set().

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), BulkSendBasicTestCase::DoRun(), BulkSendSeqTsSizeTestCase::DoRun(), DhcpTestCase::DoRun(), RadvdTestCase::DoRun(), TcFlowControlTestCase::DoRun(), and PingTestCase::DoSetup().

Here is the call graph for this function:

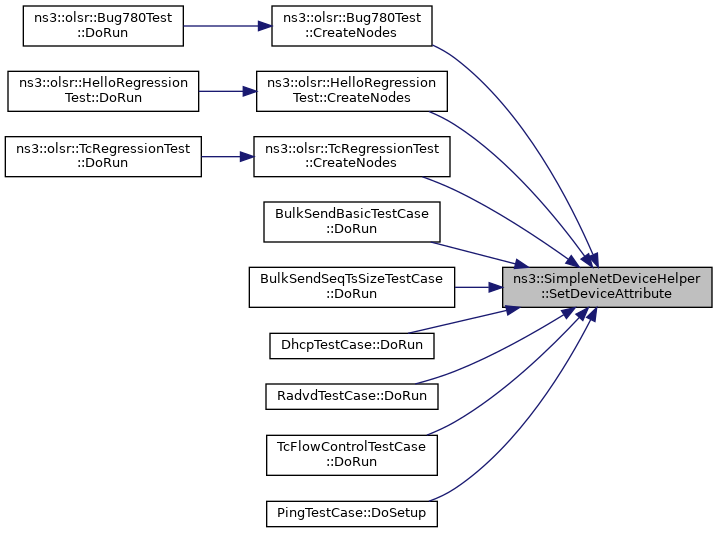

Here is the caller graph for this function:

SetNetDevicePointToPointMode()

void ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode

(

bool

pointToPointMode

)

SimpleNetDevice is Broadcast capable and ARP needing.

This function limits the number of SimpleNetDevices on one channel to two, disables Broadcast and ARP and enables PointToPoint mode.

Warning

It must be used before installing a NetDevice on a node.

Parameters

pointToPointMode

True for PointToPoint SimpleNetDevice

Definition at line 65 of file simple-net-device-helper.cc.

References m_pointToPointMode.

Referenced by IcmpTimeExceedTestCase::DoRun(), IcmpV6TimeExceedTestCase::DoRun(), Ipv4FragmentationTest::DoRun(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv6DadTest::DoRun(), Ipv6ForwardingTest::DoRun(), Ipv6RawSocketImplTest::DoRun(), ns3::TcpGeneralTest::DoRun(), UdpSocketImplTest::DoRun(), Udp6SocketImplTest::DoRun(), NixVectorRoutingTest::DoRun(), PingTestCase::DoSetup(), LinkTest::DoSetup(), and TwoLinkTest::DoSetup().

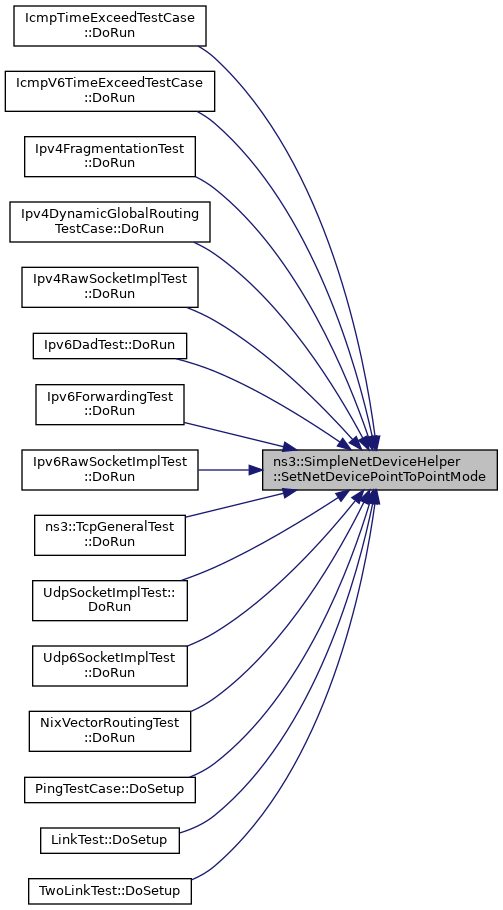

Here is the caller graph for this function:

SetQueue()

template<typename... Ts>

void ns3::SimpleNetDeviceHelper::SetQueue	(	std::string	type,
		Ts &&...	args
	)

Each net device must have a queue to pass packets through.

This method allows one to set the type of the queue that is automatically created when the device is created and attached to a node.

Template Parameters

Ts	[deduced] Argument types

Parameters

	type	the type of queue
[in]	args	Name and AttributeValue pairs to set.

Set the type of queue to create and associated to each SimpleNetDevice created through SimpleNetDeviceHelper::Install.

Definition at line 190 of file simple-net-device-helper.h.

References ns3::QueueBase::AppendItemTypeIfNotPresent(), check-style-clang-format::args, m_queueFactory, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by TcFlowControlTestCase::DoRun().

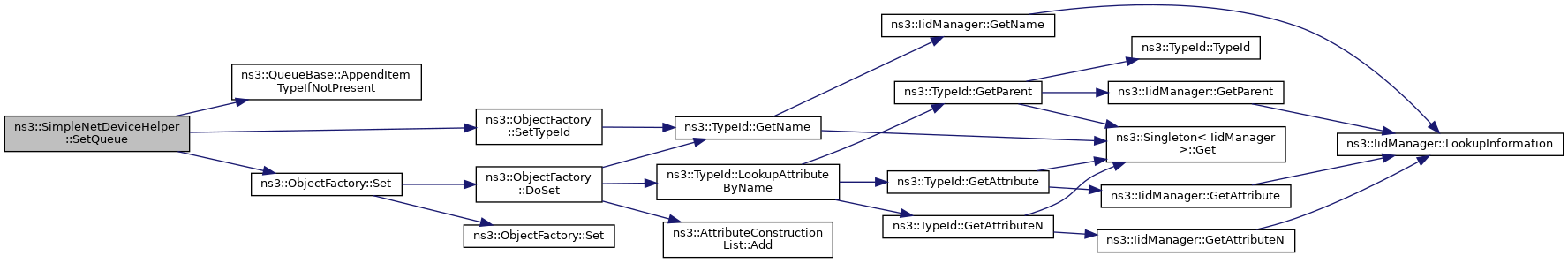

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_channelFactory

ObjectFactory ns3::SimpleNetDeviceHelper::m_channelFactory

private

Channel factory.

Definition at line 179 of file simple-net-device-helper.h.

Referenced by SimpleNetDeviceHelper(), Install(), SetChannel(), and SetChannelAttribute().

m_deviceFactory

ObjectFactory ns3::SimpleNetDeviceHelper::m_deviceFactory

private

NetDevice factory.

Definition at line 178 of file simple-net-device-helper.h.

Referenced by SimpleNetDeviceHelper(), InstallPriv(), and SetDeviceAttribute().

m_enableFlowControl

bool ns3::SimpleNetDeviceHelper::m_enableFlowControl

private

whether to enable flow control

Definition at line 181 of file simple-net-device-helper.h.

Referenced by SimpleNetDeviceHelper(), DisableFlowControl(), and InstallPriv().

m_pointToPointMode

bool ns3::SimpleNetDeviceHelper::m_pointToPointMode

private

Install PointToPoint SimpleNetDevice or Broadcast ones.

Definition at line 180 of file simple-net-device-helper.h.

Referenced by SimpleNetDeviceHelper(), InstallPriv(), and SetNetDevicePointToPointMode().

m_queueFactory

ObjectFactory ns3::SimpleNetDeviceHelper::m_queueFactory

private

Queue factory.

Definition at line 177 of file simple-net-device-helper.h.

Referenced by SimpleNetDeviceHelper(), InstallPriv(), and SetQueue().

---

The documentation for this class was generated from the following files:

• src/network/helper/simple-net-device-helper.h
• src/network/helper/simple-net-device-helper.cc
