aggregate Click/IP/TCP/UDP functionality to existing Nodes. More...

#include "click-internet-stack-helper.h"

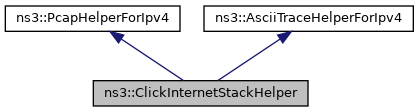

Inheritance diagram for ns3::ClickInternetStackHelper:

Collaboration diagram for ns3::ClickInternetStackHelper:

Public Member Functions
	ClickInternetStackHelper ()
	Create a new ClickInternetStackHelper which uses Ipv4ClickRouting for routing. More...

	ClickInternetStackHelper (const ClickInternetStackHelper &o)
	Copy constructor. More...

	~ClickInternetStackHelper () override
	Destroy the ClickInternetStackHelper. More...

void	Install (NodeContainer c) const
	For each node in the input container, aggregate implementations of the ns3::Ipv4L3ClickProtocol, ns3::ArpL3Protocol, ns3::Udp, and, ns3::Tcp classes. More...

void	Install (Ptr< Node > node) const
	Aggregate implementations of the ns3::Ipv4L3ClickProtocol, ns3::ArpL3Protocol, ns3::Udp, and ns3::Tcp classes onto the provided node. More...

void	Install (std::string nodeName) const
	Aggregate implementations of the ns3::Ipv4L3ClickProtocol, ns3::ArpL3Protocol, ns3::Udp, and ns3::Tcp classes onto the provided node. More...

void	InstallAll () const
	Aggregate IPv4, UDP, and TCP stacks to all nodes in the simulation. More...

ClickInternetStackHelper &	operator= (const ClickInternetStackHelper &o)
	Assignment operator. More...

void	Reset ()
	Return helper internal state to that of a newly constructed one. More...

void	SetClickFile (NodeContainer c, std::string clickfile)
	Set a Click file to be used for a group of nodes. More...

void	SetClickFile (Ptr< Node > node, std::string clickfile)
	Set a Click file to be used for a node. More...

void	SetDefines (NodeContainer c, std::map< std::string, std::string > defines)
	Set defines to be used for a group of nodes. More...

void	SetDefines (Ptr< Node > node, std::map< std::string, std::string > defines)
	Set defines to be used for a node. More...

void	SetRoutingTableElement (NodeContainer c, std::string rt)
	Set a Click routing table element for a group of nodes. More...

void	SetRoutingTableElement (Ptr< Node > node, std::string rt)
	Set a Click routing table element for a node. More...

Public Member Functions inherited from ns3::PcapHelperForIpv4
	PcapHelperForIpv4 ()
	Construct a PcapHelperForIpv4. More...

virtual	~PcapHelperForIpv4 ()
	Destroy a PcapHelperForIpv4. More...

void	EnablePcapIpv4 (std::string prefix, Ipv4InterfaceContainer c)
	Enable pcap output on each Ipv4 and interface pair in the container. More...

void	EnablePcapIpv4 (std::string prefix, NodeContainer n)
	Enable pcap output on all Ipv4 and interface pairs existing in the nodes provided in the container. More...

void	EnablePcapIpv4 (std::string prefix, Ptr< Ipv4 > ipv4, uint32_t interface, bool explicitFilename=false)
	Enable pcap output the indicated Ipv4 and interface pair. More...

void	EnablePcapIpv4 (std::string prefix, std::string ipv4Name, uint32_t interface, bool explicitFilename=false)
	Enable pcap output the indicated Ipv4 and interface pair using a Ptr<Ipv4> previously named using the ns-3 object name service. More...

void	EnablePcapIpv4 (std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
	Enable pcap output on the Ipv4 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnablePcapIpv4All (std::string prefix)
	Enable pcap output on all Ipv4 and interface pairs existing in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForIpv4
	AsciiTraceHelperForIpv4 ()
	Construct an AsciiTraceHelperForIpv4. More...

virtual	~AsciiTraceHelperForIpv4 ()
	Destroy an AsciiTraceHelperForIpv4. More...

void	EnableAsciiIpv4 (Ptr< OutputStreamWrapper > stream, Ipv4InterfaceContainer c)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAsciiIpv4 (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on all Ipv4 and interface pairs existing in the nodes provided in the container. More...

void	EnableAsciiIpv4 (Ptr< OutputStreamWrapper > stream, Ptr< Ipv4 > ipv4, uint32_t interface)
	Enable ascii trace output on the indicated Ipv4 and interface pair. More...

void	EnableAsciiIpv4 (Ptr< OutputStreamWrapper > stream, std::string ipv4Name, uint32_t interface)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAsciiIpv4 (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t interface, bool explicitFilename)
	Enable ascii trace output on the Ipv4 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv4 (std::string prefix, Ipv4InterfaceContainer c)
	Enable ascii trace output on each Ipv4 and interface pair in the container. More...

void	EnableAsciiIpv4 (std::string prefix, NodeContainer n)
	Enable ascii trace output on all Ipv4 and interface pairs existing in the nodes provided in the container. More...

void	EnableAsciiIpv4 (std::string prefix, Ptr< Ipv4 > ipv4, uint32_t interface, bool explicitFilename=false)
	Enable ascii trace output on the indicated Ipv4 and interface pair. More...

void	EnableAsciiIpv4 (std::string prefix, std::string ipv4Name, uint32_t interface, bool explicitFilename=false)
	Enable ascii trace output the indicated Ipv4 and interface pair using an Ipv4 previously named using the ns-3 object name service. More...

void	EnableAsciiIpv4 (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the Ipv4 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv4All (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiIpv4All (std::string prefix)
	Enable ascii trace output on all Ipv4 and interface pairs existing in the set of all nodes created in the simulation. More...

Private Member Functions
bool	AsciiHooked (Ptr< Ipv4 > ipv4)
	Check if ASCII is hooked. More...

void	EnableAsciiIpv4Internal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< Ipv4 > ipv4, uint32_t interface, bool explicitFilename) override
	Enable ascii trace output on the indicated Ipv4 and interface pair. More...

void	EnablePcapIpv4Internal (std::string prefix, Ptr< Ipv4 > ipv4, uint32_t interface, bool explicitFilename) override
	Enable pcap output the indicated Ipv4 and interface pair. More...

void	Initialize ()
	Initialize stack helper. More...

bool	PcapHooked (Ptr< Ipv4 > ipv4)
	Check if PCAP is hooked. More...

Static Private Member Functions
static void	CreateAndAggregateObjectFromTypeId (Ptr< Node > node, const std::string typeId)
	Create and aggregate object from type ID. More...

Private Attributes
bool	m_ipv4Enabled
	IPv4 install state (enabled/disabled) ? More...

std::map< Ptr< Node >, std::string >	m_nodeToClickFileMap
	Node to Click file mapping. More...

std::map< Ptr< Node >, std::map< std::string, std::string > >	m_nodeToDefinesMap
	Node to Click defines mapping. More...

std::map< Ptr< Node >, std::string >	m_nodeToRoutingTableElementMap
	Node to Routing Table Element mapping. More...

Detailed Description

aggregate Click/IP/TCP/UDP functionality to existing Nodes.

This helper has been adapted from the InternetStackHelper class and nodes will not be able to use Ipv6 functionalities.

Definition at line 48 of file click-internet-stack-helper.h.

Constructor & Destructor Documentation

◆ ClickInternetStackHelper() [1/2]

ns3::ClickInternetStackHelper::ClickInternetStackHelper ( )

Create a new ClickInternetStackHelper which uses Ipv4ClickRouting for routing.

Definition at line 170 of file click-internet-stack-helper.cc.

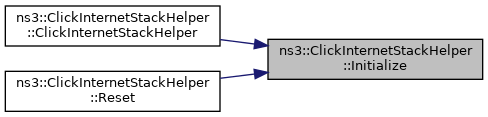

References Initialize().

Here is the call graph for this function:

◆ ~ClickInternetStackHelper()

ns3::ClickInternetStackHelper::~ClickInternetStackHelper ( )

override

Destroy the ClickInternetStackHelper.

Definition at line 181 of file click-internet-stack-helper.cc.

◆ ClickInternetStackHelper() [2/2]

ns3::ClickInternetStackHelper::ClickInternetStackHelper ( const ClickInternetStackHelper & o )

Copy constructor.

Parameters

o	Object to copy from.

Definition at line 185 of file click-internet-stack-helper.cc.

References m_ipv4Enabled.

Member Function Documentation

◆ AsciiHooked()

bool ns3::ClickInternetStackHelper::AsciiHooked ( Ptr< Ipv4 > ipv4 )

private

Check if ASCII is hooked.

Parameters

ipv4	IPv4 stack.

Returns: True if ASCII is hooked.

Definition at line 406 of file click-internet-stack-helper.cc.

References ns3::g_interfaceStreamMapIpv4, and nsclick-simple-lan::ipv4.

Referenced by EnableAsciiIpv4Internal().

Here is the caller graph for this function:

◆ CreateAndAggregateObjectFromTypeId()

void ns3::ClickInternetStackHelper::CreateAndAggregateObjectFromTypeId	(	Ptr< Node >	node,
		const std::string	typeId
	)

staticprivate

Create and aggregate object from type ID.

Parameters

node	Node.
typeId	Type ID.

Definition at line 268 of file click-internet-stack-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and ns3::ObjectFactory::SetTypeId().

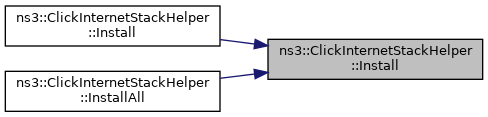

Referenced by Install().

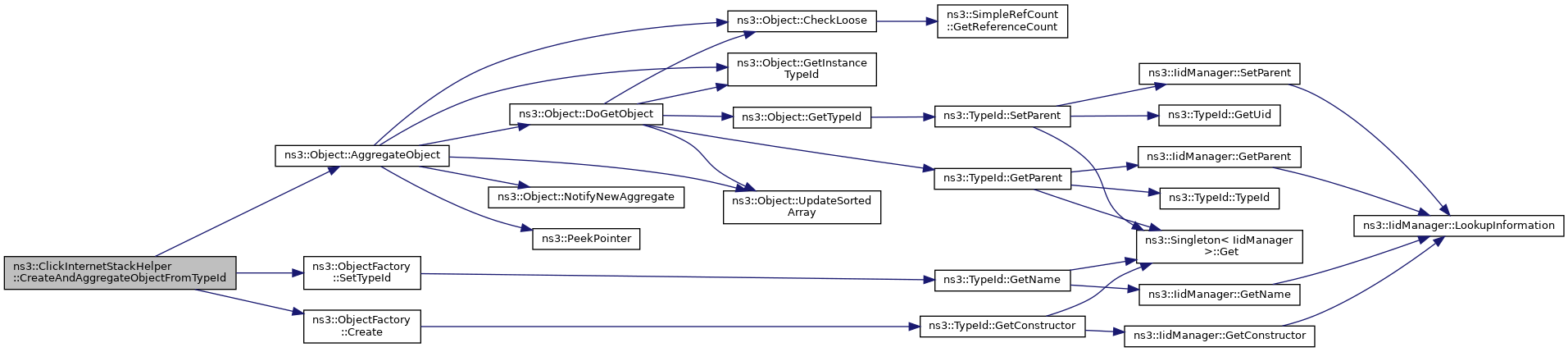

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableAsciiIpv4Internal()

void ns3::ClickInternetStackHelper::EnableAsciiIpv4Internal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interface,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable ascii trace output on the indicated Ipv4 and interface pair.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use for ascii trace files.
ipv4	Ptr to the Ipv4 interface on which you want to enable tracing.
interface	Interface ID on the Ipv4 on which you want to enable tracing.
explicitFilename	Whether the filename is explicit or not.

Implements ns3::AsciiTraceHelperForIpv4.

Definition at line 419 of file click-internet-stack-helper.cc.

References AsciiHooked(), ns3::Config::Connect(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::AsciiTraceHelper::DefaultDropSinkWithContext(), ns3::Packet::EnablePrinting(), ns3::g_interfaceStreamMapIpv4, ns3::AsciiTraceHelper::GetFilenameFromInterfacePair(), ns3::Node::GetId(), ns3::AsciiTraceHelper::HookDefaultDropSinkWithoutContext(), nsclick-simple-lan::ipv4, ns3::Ipv4L3ProtocolDropSinkWithContext(), ns3::Ipv4L3ProtocolDropSinkWithoutContext(), m_ipv4Enabled, ns3::MakeBoundCallback(), NS_ASSERT_MSG, NS_LOG_INFO, and ns3::ObjectBase::TraceConnectWithoutContext().

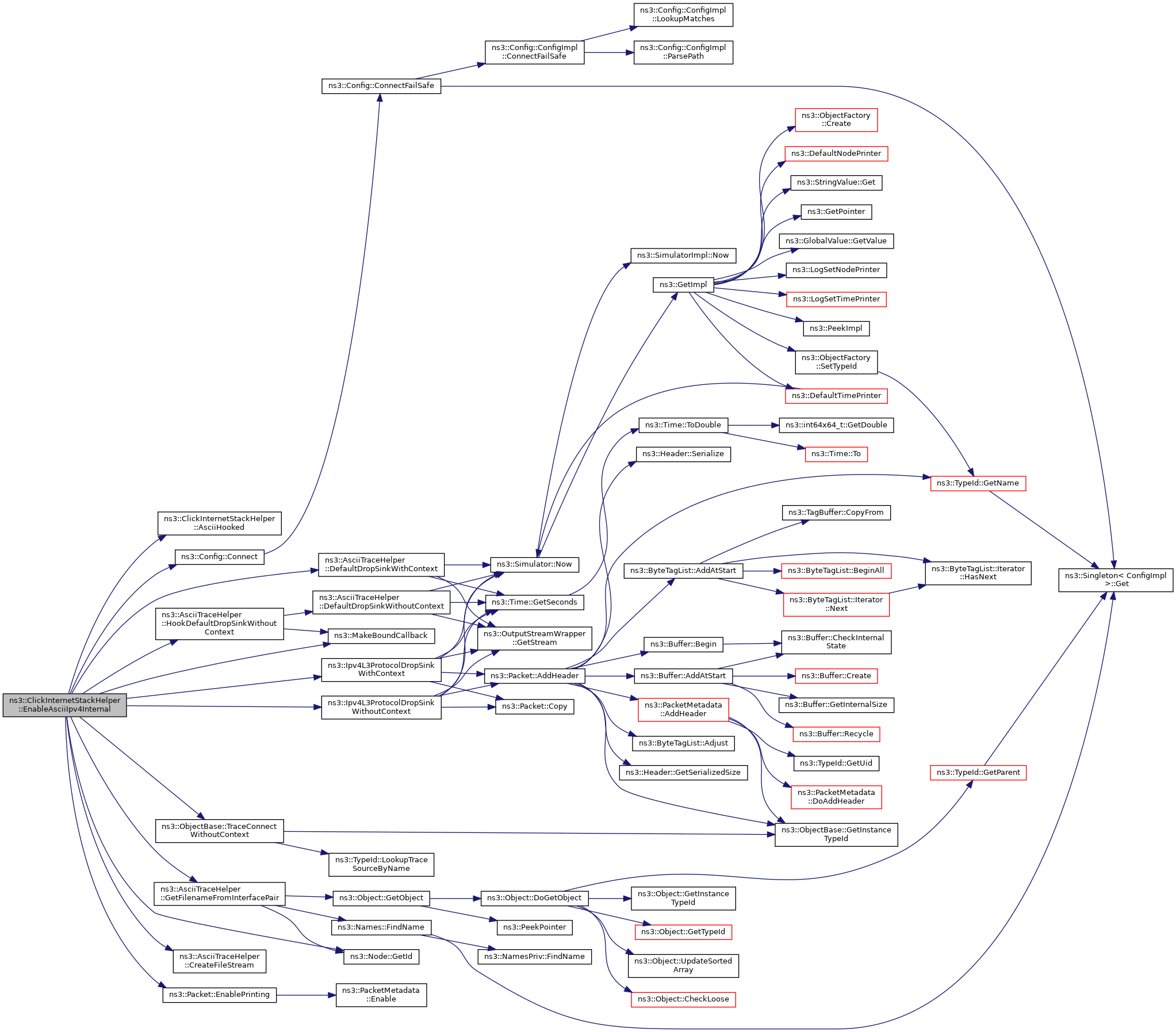

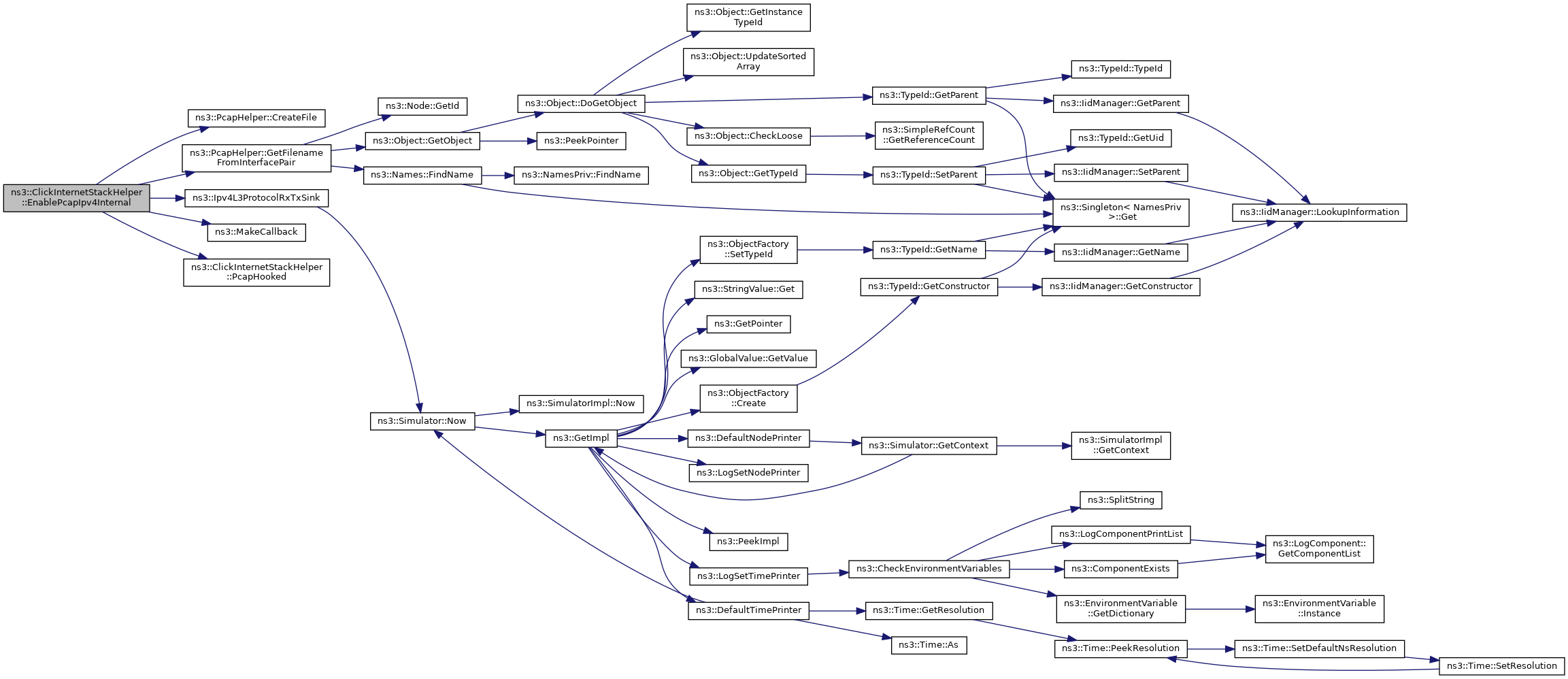

Here is the call graph for this function:

◆ EnablePcapIpv4Internal()

void ns3::ClickInternetStackHelper::EnablePcapIpv4Internal	(	std::string	prefix,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interface,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable pcap output the indicated Ipv4 and interface pair.

Parameters

prefix	Filename prefix to use for pcap files.
ipv4	Ptr to the Ipv4 interface on which you want to enable tracing.
interface	Interface ID on the Ipv4 on which you want to enable tracing.
explicitFilename	Whether the filename is explicit or not.
