Implement the Ipv4 layer specifically for Click nodes to allow a clean integration of Click. More...

#include "ipv4-l3-click-protocol.h"

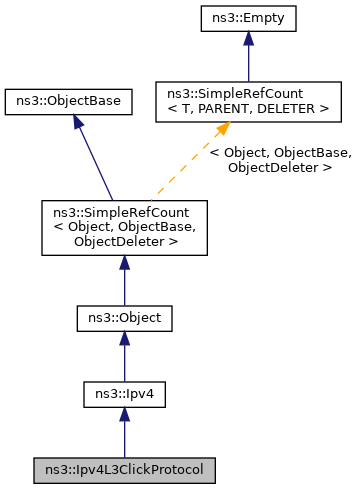

Inheritance diagram for ns3::Ipv4L3ClickProtocol:

Collaboration diagram for ns3::Ipv4L3ClickProtocol:

Public Member Functions
	Ipv4L3ClickProtocol ()

	~Ipv4L3ClickProtocol () override

bool	AddAddress (uint32_t i, Ipv4InterfaceAddress address) override

uint32_t	AddInterface (Ptr< NetDevice > device) override

uint32_t	AddIpv4Interface (Ptr< Ipv4Interface > interface)
	Adds an Ipv4Interface to the interfaces list. More...

Ptr< Socket >	CreateRawSocket () override
	Creates a raw-socket. More...

void	DeleteRawSocket (Ptr< Socket > socket) override
	Deletes a particular raw socket. More...

Ipv4InterfaceAddress	GetAddress (uint32_t interfaceIndex, uint32_t addressIndex) const override
	Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method. More...

Ptr< Icmpv4L4Protocol >	GetIcmp () const
	Returns the Icmpv4L4Protocol for the node. More...

Ptr< Ipv4Interface >	GetInterface (uint32_t i) const
	Get a pointer to the i'th Ipv4Interface. More...

int32_t	GetInterfaceForAddress (Ipv4Address addr) const override
	Return the interface number of the interface that has been assigned the specified IP address. More...

int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const override

int32_t	GetInterfaceForPrefix (Ipv4Address addr, Ipv4Mask mask) const override
	Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters. More...

uint16_t	GetMetric (uint32_t i) const override

uint16_t	GetMtu (uint32_t i) const override

uint32_t	GetNAddresses (uint32_t interface) const override

Ptr< NetDevice >	GetNetDevice (uint32_t i) override

uint32_t	GetNInterfaces () const override

Ptr< IpL4Protocol >	GetProtocol (int protocolNumber) const override

Ptr< IpL4Protocol >	GetProtocol (int protocolNumber, int32_t interfaceIndex) const override
	Get L4 protocol by protocol number for the specified interface. More...

Ptr< Ipv4RoutingProtocol >	GetRoutingProtocol () const override
	Get the routing protocol to be used by this Ipv4 stack. More...

void	Insert (Ptr< IpL4Protocol > protocol) override

void	Insert (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex) override
	Add a L4 protocol to a specific interface. More...

bool	IsDestinationAddress (Ipv4Address address, uint32_t iif) const override
	Determine whether address and interface corresponding to received packet can be accepted for local delivery. More...

bool	IsForwarding (uint32_t i) const override

bool	IsUp (uint32_t i) const override

void	LocalDeliver (Ptr< const Packet > p, const Ipv4Header &ip, uint32_t iif)
	Ipv4ClickRouting calls this to locally deliver a packet. More...

void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Lower layer calls this method to send a packet to Click. More...

void	Remove (Ptr< IpL4Protocol > protocol) override

void	Remove (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex) override
	Remove a L4 protocol from a specific interface. More...

bool	RemoveAddress (uint32_t interfaceIndex, Ipv4Address address) override
	Remove the given address on named Ipv4 interface. More...

bool	RemoveAddress (uint32_t interfaceIndex, uint32_t addressIndex) override
	Remove the address at addressIndex on named interface. More...

Ipv4Address	SelectSourceAddress (Ptr< const NetDevice > device, Ipv4Address dst, Ipv4InterfaceAddress::InterfaceAddressScope_e scope) override
	Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device. More...

void	Send (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol, Ptr< Ipv4Route > route) override

void	SendDown (Ptr< Packet > packet, int ifid)

void	SendWithHeader (Ptr< Packet > packet, Ipv4Header ipHeader, Ptr< Ipv4Route > route) override

void	SetDefaultTtl (uint8_t ttl)

void	SetDown (uint32_t i) override

void	SetForwarding (uint32_t i, bool val) override

void	SetMetric (uint32_t i, uint16_t metric) override

void	SetNode (Ptr< Node > node)
	Calls m_node = node and sets up Loopback if needed. More...

void	SetPromisc (uint32_t i)
	Sets an interface to run on promiscuous mode. More...

void	SetRoutingProtocol (Ptr< Ipv4RoutingProtocol > routingProtocol) override
	Register a new routing protocol to be used by this Ipv4 stack. More...

void	SetUp (uint32_t i) override

void	SetupLoopback ()
	Sets up a Loopback device. More...

Ipv4Address	SourceAddressSelection (uint32_t interface, Ipv4Address dest) override
	Choose the source address to use with destination address. More...

Public Member Functions inherited from ns3::Ipv4
	Ipv4 ()

	~Ipv4 () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get Type ID. More...

Static Public Member Functions inherited from ns3::Ipv4
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Attributes
static const uint16_t	PROT_NUMBER = 0x0800
	Protocol number for Ipv4 L3 (0x0800). More...

Static Public Attributes inherited from ns3::Ipv4
static const uint32_t	IF_ANY = 0xffffffff
	interface wildcard, meaning any interface More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	NotifyNewAggregate () override
	This function will notify other components connected to the node that a new stack member is now connected This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::vector< Ptr< Ipv4Interface > >	Ipv4InterfaceList
	List of IPv4 interfaces. More...

typedef std::map< Ptr< const NetDevice >, uint32_t >	Ipv4InterfaceReverseContainer
	Container of NetDevices registered to IPv4 and their interface indexes. More...

typedef std::map< L4ListKey_t, Ptr< IpL4Protocol > >	L4List_t
	Container of the IPv4 L4 instances. More...

typedef std::pair< int, int32_t >	L4ListKey_t
	Container of the IPv4 L4 keys: protocol number, interface index. More...

typedef std::list< Ptr< Ipv4RawSocketImpl > >	SocketList
	List of sockets. More...

Private Member Functions
Ipv4Header	BuildHeader (Ipv4Address source, Ipv4Address destination, uint8_t protocol, uint16_t payloadSize, uint8_t ttl, bool mayFragment)
	Build IPv4 header. More...

bool	GetIpForward () const override
	Get the IP forwarding state. More...

bool	GetStrongEndSystemModel () const override
	Get the Strong End System Model status. More...

bool	GetWeakEsModel () const override
	Get the Weak Es Model status. More...

void	SetIpForward (bool forward) override
	Set or unset the IP forwarding state. More...

void	SetStrongEndSystemModel (bool model) override
	Set or unset the Strong End System Model. More...

void	SetWeakEsModel (bool model) override
	Set or unset the Weak Es Model. More...

Private Attributes
uint8_t	m_defaultTtl
	Default TTL. More...

uint16_t	m_identification
	Identification. More...

Ipv4InterfaceList	m_interfaces
	List of interfaces. More...

bool	m_ipForward
	Whether IP forwarding is enabled. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_localDeliverTrace

Ptr< Node >	m_node
	Node. More...

std::vector< bool >	m_promiscDeviceList
	List of promiscuous devices. More...

L4List_t	m_protocols
	List of IPv4 L4 protocols. More...

Ipv4InterfaceReverseContainer	m_reverseInterfacesContainer
	Container of NetDevice / Interface index associations. More...

Ptr< Ipv4RoutingProtocol >	m_routingProtocol
	IPv4 routing protocol. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_sendOutgoingTrace

SocketList	m_sockets
	List of sockets. More...

bool	m_strongEndSystemModel
	Whether to use Strong End System Model. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_unicastForwardTrace

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the Ipv4 layer specifically for Click nodes to allow a clean integration of Click.

This is code is mostly repeated from the Ipv4L3Protocol implementation. Changes include:

A stripped down version of Send().
A stripped down version of Receive().
A public version of LocalDeliver().
Modifications to AddInterface().

Definition at line 62 of file ipv4-l3-click-protocol.h.

Member Typedef Documentation

◆ Ipv4InterfaceList

typedef std::vector<Ptr<Ipv4Interface> > ns3::Ipv4L3ClickProtocol::Ipv4InterfaceList

private

List of IPv4 interfaces.

Definition at line 282 of file ipv4-l3-click-protocol.h.

◆ Ipv4InterfaceReverseContainer

typedef std::map<Ptr<const NetDevice>, uint32_t> ns3::Ipv4L3ClickProtocol::Ipv4InterfaceReverseContainer

private

Container of NetDevices registered to IPv4 and their interface indexes.

Definition at line 287 of file ipv4-l3-click-protocol.h.

◆ L4List_t

typedef std::map<L4ListKey_t, Ptr<IpL4Protocol> > ns3::Ipv4L3ClickProtocol::L4List_t

private

Container of the IPv4 L4 instances.

Definition at line 302 of file ipv4-l3-click-protocol.h.

◆ L4ListKey_t

typedef std::pair<int, int32_t> ns3::Ipv4L3ClickProtocol::L4ListKey_t

private

Container of the IPv4 L4 keys: protocol number, interface index.

Definition at line 297 of file ipv4-l3-click-protocol.h.

◆ SocketList

typedef std::list<Ptr<Ipv4RawSocketImpl> > ns3::Ipv4L3ClickProtocol::SocketList

private

List of sockets.

Definition at line 292 of file ipv4-l3-click-protocol.h.

Constructor & Destructor Documentation

◆ Ipv4L3ClickProtocol()

ns3::Ipv4L3ClickProtocol::Ipv4L3ClickProtocol ( )

Definition at line 69 of file ipv4-l3-click-protocol.cc.

◆ ~Ipv4L3ClickProtocol()

ns3::Ipv4L3ClickProtocol::~Ipv4L3ClickProtocol ( )

override

Definition at line 74 of file ipv4-l3-click-protocol.cc.

Member Function Documentation

◆ AddAddress()

bool ns3::Ipv4L3ClickProtocol::AddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	Interface number of an Ipv4 interface
address	Ipv4InterfaceAddress address to associate with the underlying Ipv4 interface

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 395 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::AddAddress(), first::address, m_routingProtocol, and NS_LOG_FUNCTION.

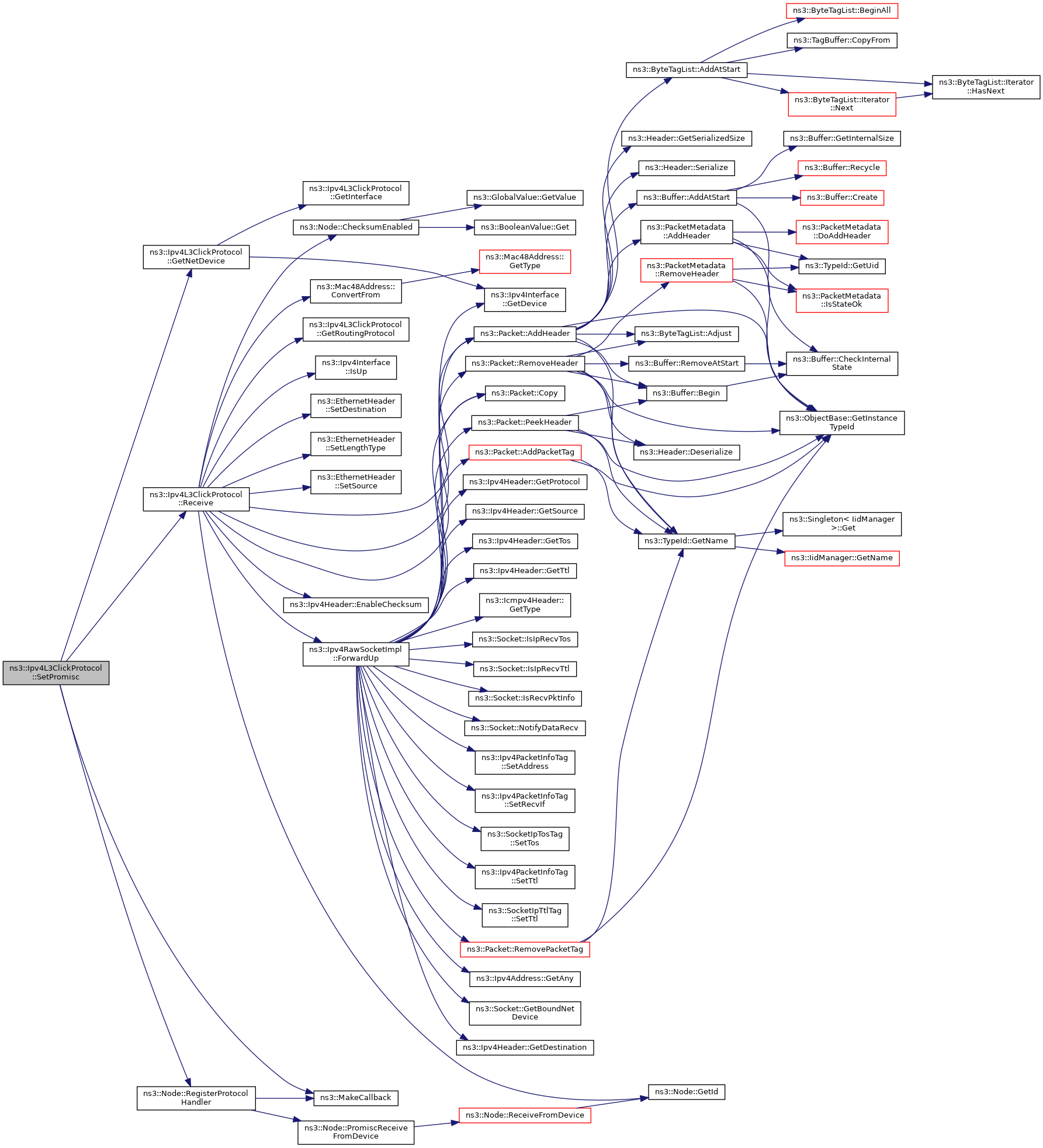

Here is the call graph for this function:

◆ AddInterface()

uint32_t ns3::Ipv4L3ClickProtocol::AddInterface ( Ptr< NetDevice > device )

overridevirtual

Parameters

device device to add to the list of Ipv4 interfaces which can be used as output interfaces during packet forwarding.

Returns: the index of the Ipv4 interface added.

Once a device has been added, it can never be removed: if you want to disable it, you can invoke Ipv4::SetDown which will make sure that it is never used during packet forwarding.

Implements ns3::Ipv4.

Definition at line 642 of file ipv4-l3-click-protocol.cc.

References AddIpv4Interface(), ns3::CreateObject(), m_ipForward, m_node, ns3::MakeCallback(), NS_LOG_FUNCTION, PROT_NUMBER, ns3::ArpL3Protocol::PROT_NUMBER, Receive(), ns3::Node::RegisterProtocolHandler(), and ns3::Ipv4Interface::SetNode().

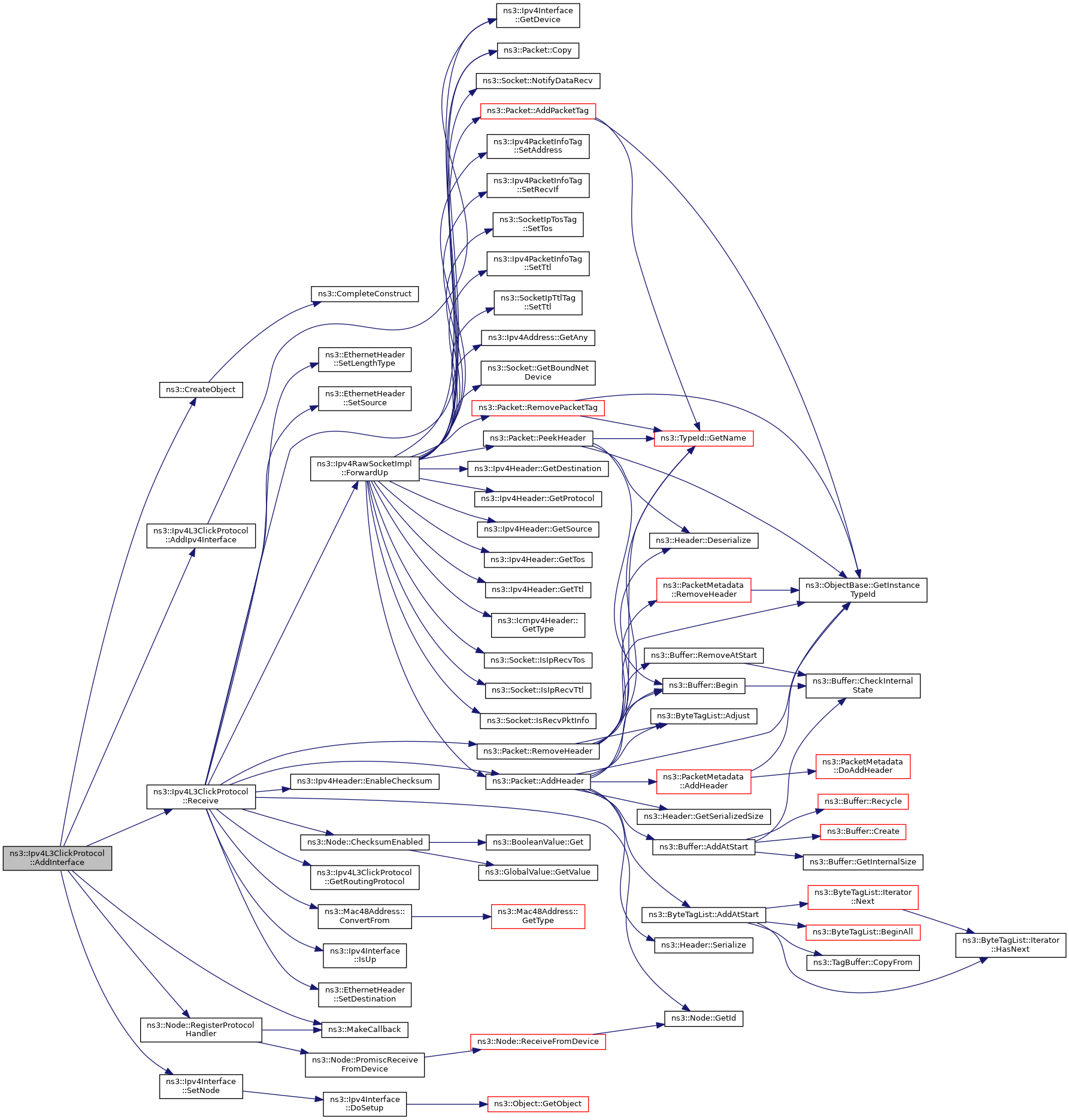

Here is the call graph for this function:

◆ AddIpv4Interface()

uint32_t ns3::Ipv4L3ClickProtocol::AddIpv4Interface ( Ptr< Ipv4Interface > interface )

Adds an Ipv4Interface to the interfaces list.

Parameters

interface Pointer to the Ipv4Interface to be added

Returns: Index of the device which was added

Definition at line 661 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), m_interfaces, m_reverseInterfacesContainer, and NS_LOG_FUNCTION.

Referenced by AddInterface(), and SetupLoopback().

Here is the call graph for this function:

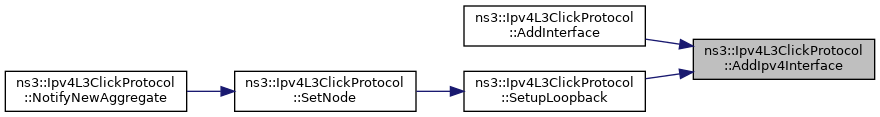

Here is the caller graph for this function:

◆ BuildHeader()

Ipv4Header ns3::Ipv4L3ClickProtocol::BuildHeader	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		uint16_t	payloadSize,
		uint8_t	ttl,
		bool	mayFragment
	)

private

Build IPv4 header.

Parameters

source	IPv4 source address.
destination	IPv4 destination address.
protocol	Protocol.
payloadSize	Payload size.
ttl	Time To Live (TTL).
mayFragment	Whether the packet can be fragmented or not.

Returns: The IPv4 header.

Todo:: when should we set ip_id? check whether we are incrementing m_identification on packets that may later be dropped in this stack and whether that deviates from Linux

Definition at line 674 of file ipv4-l3-click-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Ipv4Header::EnableChecksum(), m_identification, NS_LOG_FUNCTION_NOARGS, ns3::Ipv4Header::SetDestination(), ns3::Ipv4Header::SetDontFragment(), ns3::Ipv4Header::SetIdentification(), ns3::Ipv4Header::SetMayFragment(), ns3::Ipv4Header::SetPayloadSize(), ns3::Ipv4Header::SetProtocol(), ns3::Ipv4Header::SetSource(), and ns3::Ipv4Header::SetTtl().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateRawSocket()

Ptr< Socket > ns3::Ipv4L3ClickProtocol::CreateRawSocket ( )

overridevirtual

Creates a raw-socket.

Returns: Pointer to the created socket

Implements ns3::Ipv4.

Definition at line 363 of file ipv4-l3-click-protocol.cc.

References m_node, m_sockets, NS_LOG_FUNCTION, and ns3::Ipv4RawSocketImpl::SetNode().

Here is the call graph for this function:

◆ DeleteRawSocket()

void ns3::Ipv4L3ClickProtocol::DeleteRawSocket ( Ptr< Socket > socket )

overridevirtual

Deletes a particular raw socket.

Parameters

socket Pointer of socket to be deleted

Implements ns3::Ipv4.

Definition at line 373 of file ipv4-l3-click-protocol.cc.

References m_sockets, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::Ipv4L3ClickProtocol::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 79 of file ipv4-l3-click-protocol.cc.

References ns3::Object::DoDispose(), m_interfaces, m_node, m_protocols, m_reverseInterfacesContainer, m_routingProtocol, m_sockets, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetAddress()

Ipv4InterfaceAddress ns3::Ipv4L3ClickProtocol::GetAddress	(	uint32_t	interface,
		uint32_t	addressIndex
	)		const

overridevirtual

Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress

Returns: the Ipv4InterfaceAddress associated to the interface and addressIndex

Implements ns3::Ipv4.

Definition at line 408 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::GetAddress(), and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress(), LocalDeliver(), SelectSourceAddress(), and SourceAddressSelection().

Here is the call graph for this function:

Here is the caller graph for this function:

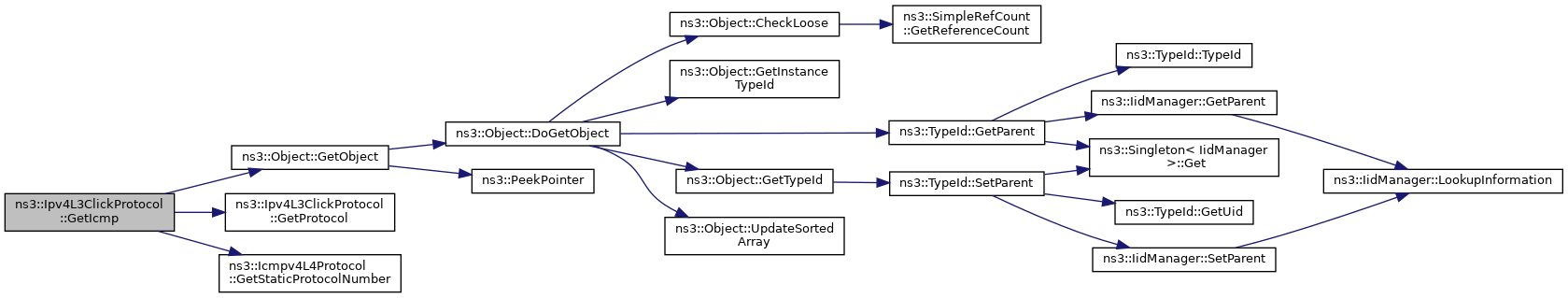

◆ GetIcmp()

Ptr< Icmpv4L4Protocol > ns3::Ipv4L3ClickProtocol::GetIcmp ( ) const

Returns the Icmpv4L4Protocol for the node.

Returns: Icmpv4L4Protocol instance of the node

Definition at line 890 of file ipv4-l3-click-protocol.cc.

References ns3::Object::GetObject(), GetProtocol(), and ns3::Icmpv4L4Protocol::GetStaticProtocolNumber().

Referenced by LocalDeliver().

Here is the call graph for this function:

Here is the caller graph for this function:

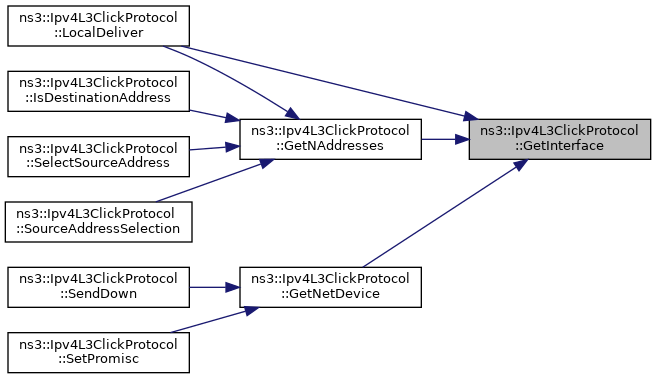

◆ GetInterface()

Ptr< Ipv4Interface > ns3::Ipv4L3ClickProtocol::GetInterface ( uint32_t i ) const

Get a pointer to the i'th Ipv4Interface.

Parameters

i	index of interface, pointer to which is to be returned

Returns: Pointer to the i'th Ipv4Interface if any.

Definition at line 132 of file ipv4-l3-click-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION.

Referenced by GetNAddresses(), GetNetDevice(), and LocalDeliver().

Here is the caller graph for this function:

◆ GetInterfaceForAddress()

int32_t ns3::Ipv4L3ClickProtocol::GetInterfaceForAddress ( Ipv4Address address ) const

overridevirtual

Return the interface number of the interface that has been assigned the specified IP address.

Parameters

address The IP address being searched for

Returns: The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for one that holds a particular address. This call takes an IP address as a parameter and returns the interface number of the first interface that has been assigned that address, or -1 if not found. There must be an exact match; this method will not match broadcast or multicast addresses.

Implements ns3::Ipv4.

Definition at line 150 of file ipv4-l3-click-protocol.cc.

References first::address, m_interfaces, and NS_LOG_FUNCTION.

◆ GetInterfaceForDevice()

int32_t ns3::Ipv4L3ClickProtocol::GetInterfaceForDevice ( Ptr< const NetDevice > device ) const

overridevirtual

Parameters

device The NetDevice for an Ipv4Interface

Returns: The interface number of an Ipv4 interface or -1 if not found.

Implements ns3::Ipv4.

Definition at line 190 of file ipv4-l3-click-protocol.cc.

References ns3::NetDevice::GetIfIndex(), m_reverseInterfacesContainer, and NS_LOG_FUNCTION.

Referenced by SelectSourceAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInterfaceForPrefix()

int32_t ns3::Ipv4L3ClickProtocol::GetInterfaceForPrefix	(	Ipv4Address	address,
		Ipv4Mask	mask
	)		const

overridevirtual

Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters.

Parameters

address	The IP address assigned to the interface of interest.
mask	The IP prefix to use in the mask

Returns: The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for the first one found that holds an address that is included within the prefix formed by the input address and mask parameters. The value -1 is returned if no match is found.

Implements ns3::Ipv4.

Definition at line 170 of file ipv4-l3-click-protocol.cc.

References first::address, m_interfaces, and NS_LOG_FUNCTION.

◆ GetIpForward()

bool ns3::Ipv4L3ClickProtocol::GetIpForward ( ) const

overrideprivatevirtual

Get the IP forwarding state.

Returns: true if IP is in forwarding state

Implements ns3::Ipv4.

Definition at line 282 of file ipv4-l3-click-protocol.cc.

References m_ipForward.

◆ GetMetric()

uint16_t ns3::Ipv4L3ClickProtocol::GetMetric ( uint32_t interface ) const

overridevirtual

Parameters

interface The interface number of an Ipv4 interface

Returns: routing metric (cost) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 561 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::GetMetric(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetMtu()

uint16_t ns3::Ipv4L3ClickProtocol::GetMtu ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: the Maximum Transmission Unit (in bytes) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 569 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNAddresses()

uint32_t ns3::Ipv4L3ClickProtocol::GetNAddresses ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of an Ipv4 interface

Returns: the number of Ipv4InterfaceAddress entries for the interface.

Implements ns3::Ipv4.

Definition at line 416 of file ipv4-l3-click-protocol.cc.

References GetInterface(), ns3::Ipv4Interface::GetNAddresses(), and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress(), LocalDeliver(), SelectSourceAddress(), and SourceAddressSelection().

Here is the call graph for this function:

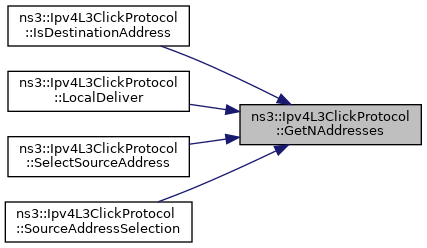

Here is the caller graph for this function:

◆ GetNetDevice()

Ptr< NetDevice > ns3::Ipv4L3ClickProtocol::GetNetDevice ( uint32_t interface )

overridevirtual

Parameters

interface The interface number of an Ipv4 interface.

Returns: The NetDevice associated with the Ipv4 interface number.

Implements ns3::Ipv4.

Definition at line 312 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), GetInterface(), and NS_LOG_FUNCTION.

Referenced by SendDown(), and SetPromisc().

Here is the call graph for this function:

Here is the caller graph for this function:

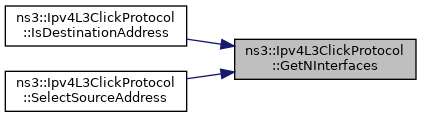

◆ GetNInterfaces()

uint32_t ns3::Ipv4L3ClickProtocol::GetNInterfaces ( ) const

overridevirtual

Returns: the number of interfaces added by the user.

Implements ns3::Ipv4.

Definition at line 143 of file ipv4-l3-click-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION_NOARGS.

Referenced by IsDestinationAddress(), and SelectSourceAddress().

Here is the caller graph for this function:

◆ GetProtocol() [1/2]

Ptr< IpL4Protocol > ns3::Ipv4L3ClickProtocol::GetProtocol ( int protocolNumber ) const

overridevirtual

Parameters

protocolNumber number of protocol to lookup in this L4 Demux

Returns: a matching L4 Protocol

This method is typically called by lower layers to forward packets up the stack to the right protocol.

Implements ns3::Ipv4.

Definition at line 967 of file ipv4-l3-click-protocol.cc.

References NS_LOG_FUNCTION.

Referenced by GetIcmp(), and LocalDeliver().

Here is the caller graph for this function:

◆ GetProtocol() [2/2]

Ptr< IpL4Protocol > ns3::Ipv4L3ClickProtocol::GetProtocol	(	int	protocolNumber,
		int32_t	interfaceIndex
	)		const

overridevirtual

Get L4 protocol by protocol number for the specified interface.

Parameters

protocolNumber	protocol number
interfaceIndex	interface index, -1 means "any" interface.

Returns: corresponding IpL4Protocol or 0 if not found

Implements ns3::Ipv4.

Definition at line 975 of file ipv4-l3-click-protocol.cc.

References m_protocols, and NS_LOG_FUNCTION.

◆ GetRoutingProtocol()

Ptr< Ipv4RoutingProtocol > ns3::Ipv4L3ClickProtocol::GetRoutingProtocol ( ) const

overridevirtual

Get the routing protocol to be used by this Ipv4 stack.

Returns: smart pointer to Ipv4RoutingProtocol object, or null pointer if none

Implements ns3::Ipv4.

Definition at line 126 of file ipv4-l3-click-protocol.cc.

References m_routingProtocol.

Referenced by Receive().

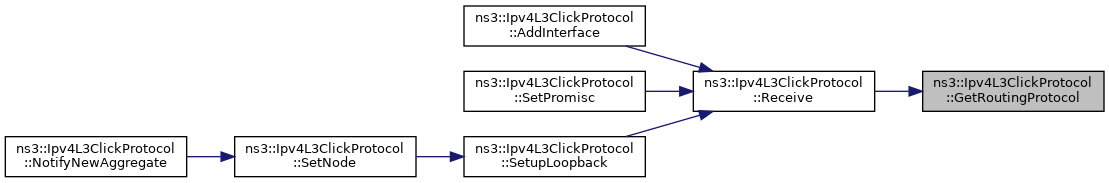

Here is the caller graph for this function:

◆ GetStrongEndSystemModel()

bool ns3::Ipv4L3ClickProtocol::GetStrongEndSystemModel ( ) const

overrideprivatevirtual

Get the Strong End System Model status.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Returns: true for Strong End System Model activated

Implements ns3::Ipv4.

Definition at line 306 of file ipv4-l3-click-protocol.cc.

References m_strongEndSystemModel.

Referenced by IsDestinationAddress().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4L3ClickProtocol::GetTypeId ( void )

static

Get Type ID.

Returns: The type ID.

Definition at line 48 of file ipv4-l3-click-protocol.cc.

References m_defaultTtl, m_interfaces, ns3::MakeObjectVectorAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

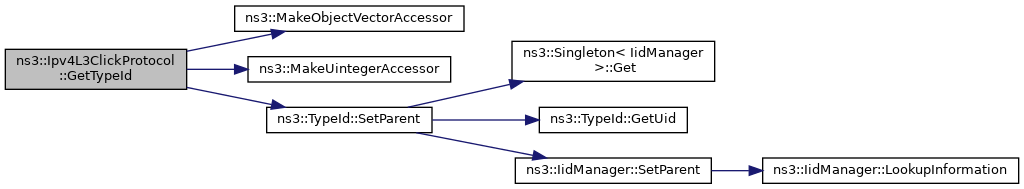

Here is the call graph for this function:

◆ GetWeakEsModel()

bool ns3::Ipv4L3ClickProtocol::GetWeakEsModel ( ) const

overrideprivatevirtual

Get the Weak Es Model status.

RFC1122 term for whether host accepts datagram with a dest. address on another interface

Returns: true for Weak Es Model activated

Deprecated:: Deprecated since ns-3.41. Use SetStrongEndSystemModel instead.

Implements ns3::Ipv4.

Definition at line 294 of file ipv4-l3-click-protocol.cc.

References m_strongEndSystemModel.

◆ Insert() [1/2]

void ns3::Ipv4L3ClickProtocol::Insert ( Ptr< IpL4Protocol > protocol )

overridevirtual

Parameters

protocol a template for the protocol to add to this L4 Demux.

Invoke Copy on the input template to get a copy of the input protocol which can be used on the Node on which this L4 Demux is running. The new L4Protocol is registered internally as a working L4 Protocol and returned from this method. The caller does not get ownership of the returned pointer.

Implements ns3::Ipv4.

Definition at line 904 of file ipv4-l3-click-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ Insert() [2/2]

void ns3::Ipv4L3ClickProtocol::Insert	(	Ptr< IpL4Protocol >	protocol,
		uint32_t	interfaceIndex
	)

overridevirtual

Add a L4 protocol to a specific interface.

This may be called multiple times for multiple interfaces for the same protocol. To insert for all interfaces, use the separate Insert (Ptr<IpL4Protocol> protocol) method.

Setting a protocol on a specific interface will overwrite the previously bound protocol.

Parameters

protocol	L4 protocol.
interfaceIndex	interface index.

Implements ns3::Ipv4.

Definition at line 916 of file ipv4-l3-click-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ IsDestinationAddress()

bool ns3::Ipv4L3ClickProtocol::IsDestinationAddress	(	Ipv4Address	address,
		uint32_t	iif
	)		const

overridevirtual

Determine whether address and interface corresponding to received packet can be accepted for local delivery.

Parameters

address	The IP address being considered
iif	The incoming Ipv4 interface index

Returns: true if the address is associated with the interface index

This method can be used to determine whether a received packet has an acceptable address for local delivery on the host. The address may be a unicast, multicast, or broadcast address. This method will return true if address is an exact match of a unicast address on one of the host's interfaces (see below), if address corresponds to a multicast group that the host has joined (and the incoming device is acceptable), or if address corresponds to a broadcast address.

If the Ipv4 attribute StrongEndSystemModel is true, the address must match one assigned to the incoming device. If the attribute is false, the unicast address may match any of the Ipv4 addresses on any interface.

Implements ns3::Ipv4.

Definition at line 204 of file ipv4-l3-click-protocol.cc.

References first::address, GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), GetNAddresses(), GetNInterfaces(), GetStrongEndSystemModel(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ IsForwarding()

bool ns3::Ipv4L3ClickProtocol::IsForwarding ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: true if IP forwarding enabled for input datagrams on this device

Implements ns3::Ipv4.

Definition at line 611 of file ipv4-l3-click-protocol.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ IsUp()

bool ns3::Ipv4L3ClickProtocol::IsUp ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: true if the underlying interface is in the "up" state, false otherwise.

Implements ns3::Ipv4.

Definition at line 577 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Interface::IsUp(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ LocalDeliver()

void ns3::Ipv4L3ClickProtocol::LocalDeliver	(	Ptr< const Packet >	p,
		const Ipv4Header &	ip,
		uint32_t	iif
	)

Ipv4ClickRouting calls this to locally deliver a packet.

Parameters

p	the packet
ip	The Ipv4Header of the packet
iif	The interface on which the packet was received

Definition at line 842 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Address::CombineMask(), ns3::Packet::Copy(), GetAddress(), ns3::Ipv4Header::GetDestination(), GetIcmp(), GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), GetNAddresses(), ns3::Ipv4Header::GetProtocol(), GetProtocol(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), m_localDeliverTrace, NS_LOG_FUNCTION, ns3::IpL4Protocol::Receive(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_CLOSED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, and ns3::IpL4Protocol::RX_OK.

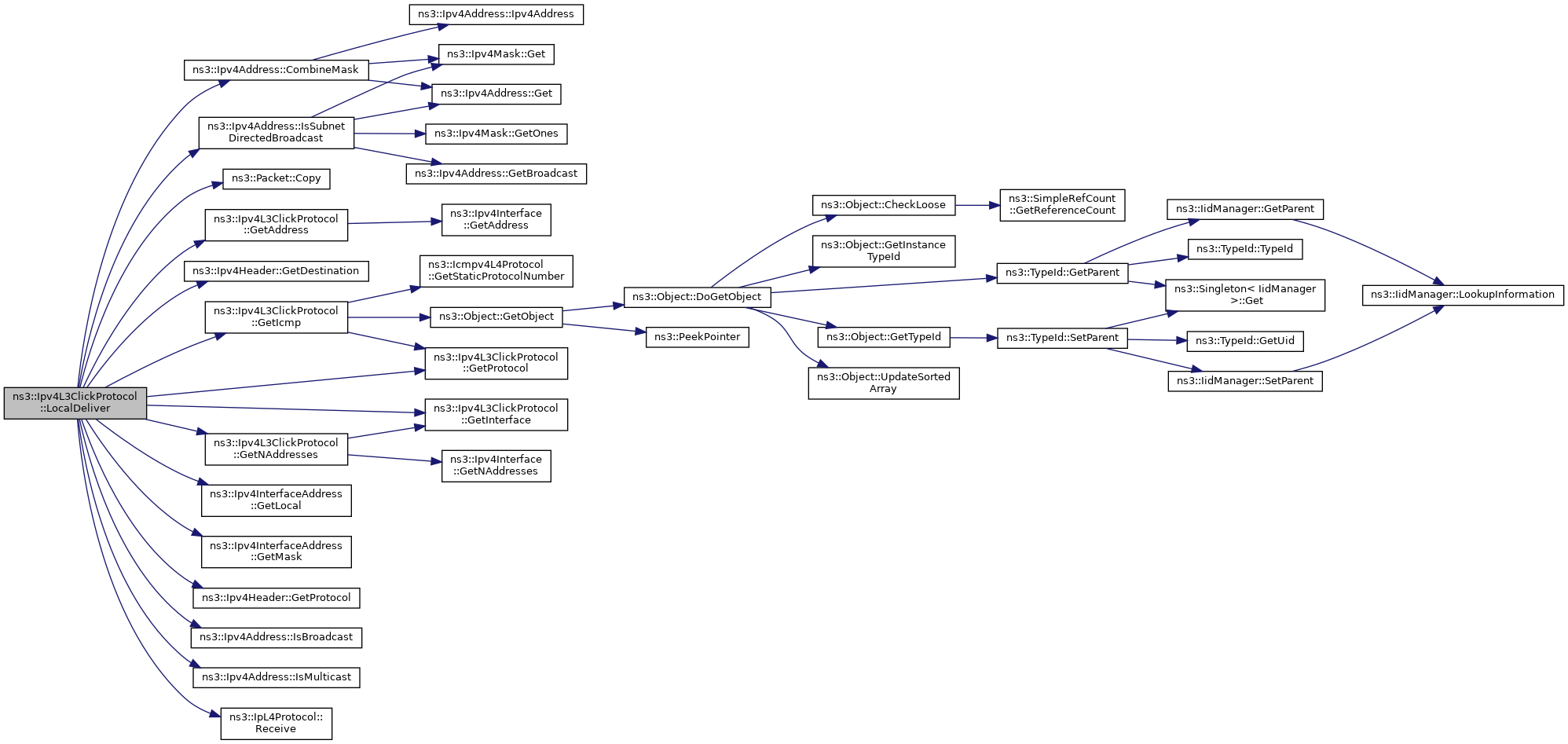

Here is the call graph for this function:

◆ NotifyNewAggregate()

void ns3::Ipv4L3ClickProtocol::NotifyNewAggregate ( )

overrideprotectedvirtual

This function will notify other components connected to the node that a new stack member is now connected This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together.

Reimplemented from ns3::Object.

Definition at line 102 of file ipv4-l3-click-protocol.cc.

References m_node, ns3::Object::NotifyNewAggregate(), and SetNode().

Here is the call graph for this function:

◆ Receive()

void ns3::Ipv4L3ClickProtocol::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

Lower layer calls this method to send a packet to Click.

Parameters

device	network device
p	the packet
protocol	protocol value
from	address of the correspondent
to	address of the destination
packetType	type of the packet

Definition at line 785 of file ipv4-l3-click-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::Mac48Address::ConvertFrom(), ns3::Packet::Copy(), ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Node::GetId(), GetRoutingProtocol(), ns3::Ipv4Interface::IsUp(), m_interfaces, m_node, m_sockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, PROT_NUMBER, ns3::Packet::RemoveHeader(), ns3::EthernetHeader::SetDestination(), ns3::EthernetHeader::SetLengthType(), and ns3::EthernetHeader::SetSource().

Referenced by AddInterface(), SetPromisc(), and SetupLoopback().

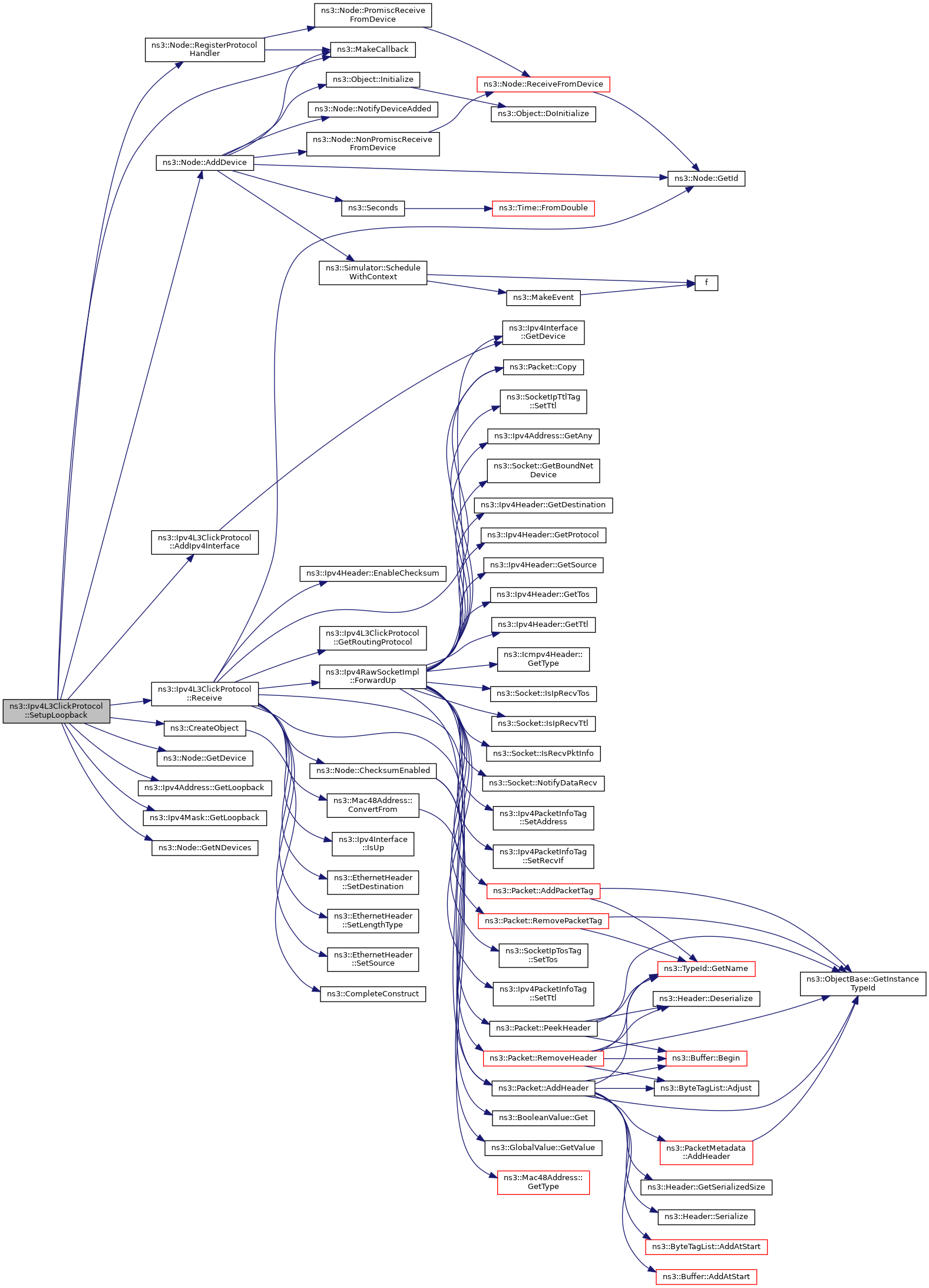

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Remove() [1/2]

void ns3::Ipv4L3ClickProtocol::Remove ( Ptr< IpL4Protocol > protocol )

overridevirtual

Parameters

protocol protocol to remove from this demux.

The input value to this method should be the value returned from the Ipv4L4Protocol::Insert method.

Implements ns3::Ipv4.

Definition at line 930 of file ipv4-l3-click-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ Remove() [2/2]

void ns3::Ipv4L3ClickProtocol::Remove	(	Ptr< IpL4Protocol >	protocol,
		uint32_t	interfaceIndex
	)

overridevirtual

Remove a L4 protocol from a specific interface.

Parameters

protocol	L4 protocol to remove.
interfaceIndex	interface index.

Implements ns3::Ipv4.

Definition at line 948 of file ipv4-l3-click-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ RemoveAddress() [1/2]

bool ns3::Ipv4L3ClickProtocol::RemoveAddress	(	uint32_t	interface,
		Ipv4Address	address
	)

overridevirtual

Remove the given address on named Ipv4 interface.

Parameters

interface	Interface number of an Ipv4 interface
address	The address to remove

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 441 of file ipv4-l3-click-protocol.cc.

References first::address, ns3::Ipv4Address::GetLoopback(), m_routingProtocol, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ RemoveAddress() [2/2]

bool ns3::Ipv4L3ClickProtocol::RemoveAddress	(	uint32_t	interface,
		uint32_t	addressIndex
	)

overridevirtual

Remove the address at addressIndex on named interface.

The addressIndex for all higher indices will decrement by one after this method is called; so, for example, to remove 5 addresses from an interface i, one could call RemoveAddress (i, 0); 5 times.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress to remove

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 424 of file ipv4-l3-click-protocol.cc.

References first::address, m_routingProtocol, and NS_LOG_FUNCTION.

◆ SelectSourceAddress()

Ipv4Address ns3::Ipv4L3ClickProtocol::SelectSourceAddress	(	Ptr< const NetDevice >	device,
		Ipv4Address	dst,
		Ipv4InterfaceAddress::InterfaceAddressScope_e	scope
	)

overridevirtual

Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device.

This method mirrors the behavior of Linux inet_select_addr() and is provided because interfaces may have multiple IP addresses configured on them with different scopes, and with a primary and secondary status. Secondary addresses are never returned.

See also: Ipv4InterfaceAddress

If a non-zero device pointer is provided, the method first tries to return a primary address that is configured on that device, and whose subnet matches that of dst and whose scope is less than or equal to the requested scope. If a primary address does not match the subnet of dst but otherwise matches the scope, it is returned. If no such address on the device is found, the other devices are searched in order of their interface index, but not considering dst as a factor in the search. Because a loopback interface is typically the first one configured on a node, it will be the first alternate device to be tried. Addresses scoped at LINK scope are not returned in this phase.

If no device pointer is provided, the same logic as above applies, only that there is no preferred device that is consulted first. This means that if the device pointer is null, input parameter dst will be ignored.

If there are no possible addresses to return, a warning log message is issued and the all-zeroes address is returned.

Parameters

device	output NetDevice (optionally provided, only to constrain the search)
dst	Destination address to match, if device is provided
scope	Scope of returned address must be less than or equal to this

Returns: the first primary Ipv4Address that meets the search criteria

Implements ns3::Ipv4.

Definition at line 491 of file ipv4-l3-click-protocol.cc.

References ns3::Ipv4Address::CombineMask(), GetAddress(), GetInterfaceForDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), GetNAddresses(), GetNInterfaces(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Ipv4InterfaceAddress::IsSecondary(), ns3::Ipv4InterfaceAddress::LINK, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_WARN.

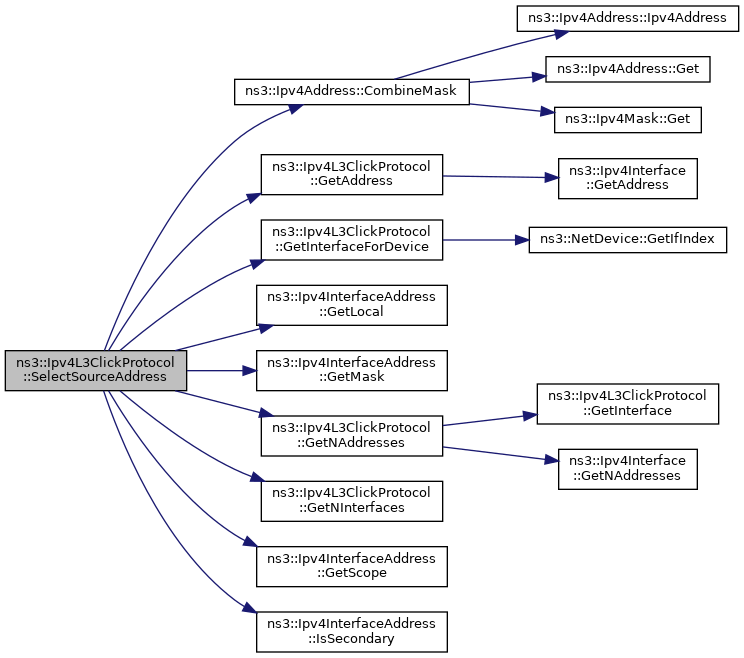

Here is the call graph for this function:

◆ Send()

void ns3::Ipv4L3ClickProtocol::Send	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

overridevirtual

Parameters

packet	packet to send
source	source address of packet
destination	address of packet
protocol	number of packet
route	route entry

Higher-level layers call this method to send a packet to Click

Implements ns3::Ipv4.

Definition at line 709 of file ipv4-l3-click-protocol.cc.

References ns3::Packet::AddHeader(), BuildHeader(), ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::Ipv4Header::EnableChecksum(), ns3::Packet::GetSize(), ns3::SocketIpTtlTag::GetTtl(), m_defaultTtl, m_routingProtocol, NS_LOG_FUNCTION, and ns3::Packet::RemovePacketTag().

Here is the call graph for this function:

◆ SendDown()

void ns3::Ipv4L3ClickProtocol::SendDown	(	Ptr< Packet >	packet,
		int	ifid
	)

Parameters

packet	packet to send down the stack
ifid	interface to be used for sending down packet

Ipv4ClickRouting calls this method to send a packet further down the stack

Definition at line 752 of file ipv4-l3-click-protocol.cc.

References ns3::EthernetHeader::GetDestination(), ns3::EthernetHeader::GetLengthType(), GetNetDevice(), ns3::LlcSnapHeader::GetType(), and ns3::Packet::RemoveHeader().

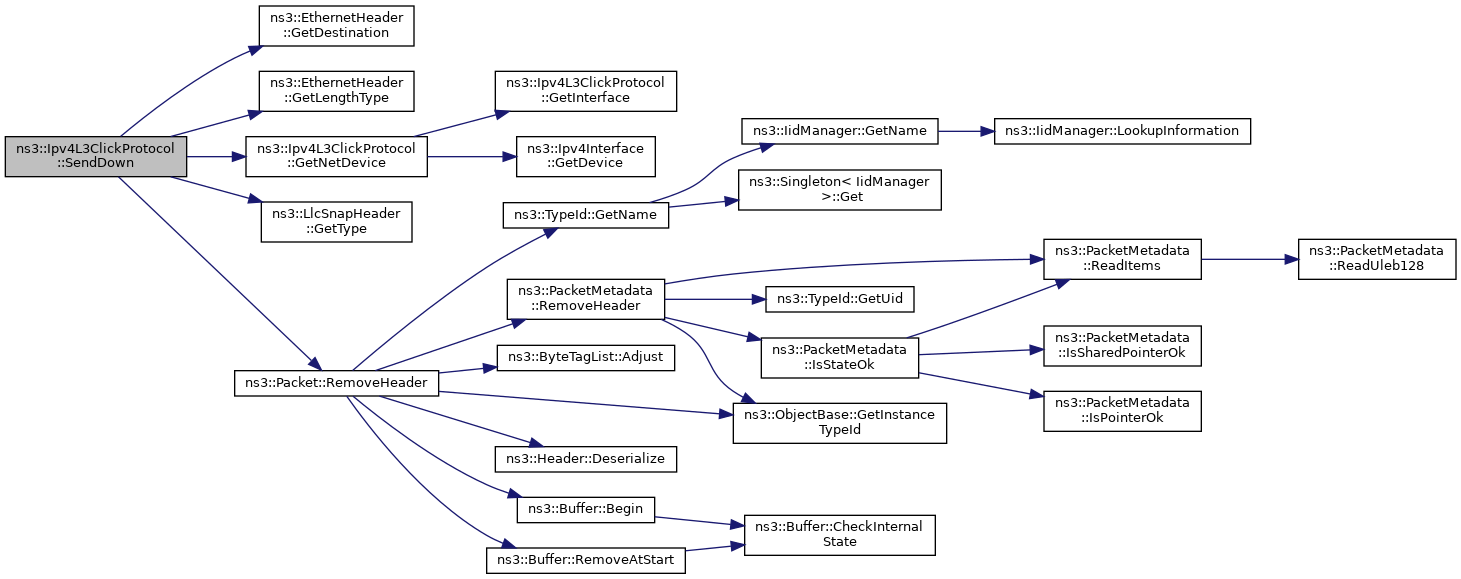

Here is the call graph for this function:

◆ SendWithHeader()

void ns3::Ipv4L3ClickProtocol::SendWithHeader	(	Ptr< Packet >	packet,
		Ipv4Header	ipHeader,
		Ptr< Ipv4Route >	route
	)

overridevirtual

Parameters

packet	packet to send
ipHeader	IP Header
route	route entry

Higher-level layers call this method to send a packet with IPv4 Header (Intend to be used with IpHeaderInclude attribute.)

Implements ns3::Ipv4.

Definition at line 738 of file ipv4-l3-click-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), m_routingProtocol, and NS_LOG_FUNCTION.

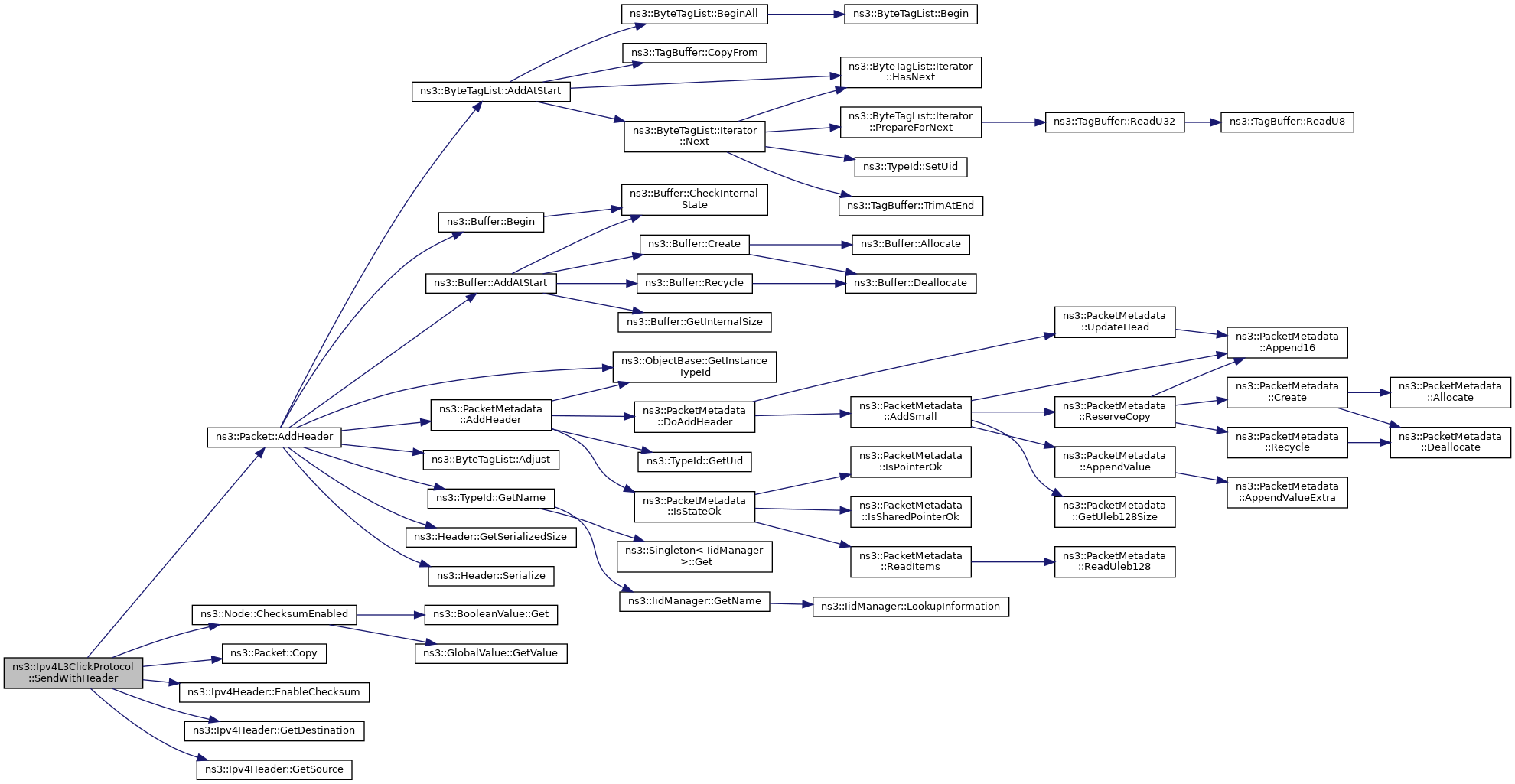

Here is the call graph for this function:

◆ SetDefaultTtl()

void ns3::Ipv4L3ClickProtocol::SetDefaultTtl ( uint8_t ttl )

Parameters

ttl	default ttl to use

When we need to send an ipv4 packet, we use this default ttl value.

Definition at line 319 of file ipv4-l3-click-protocol.cc.

References m_defaultTtl, and NS_LOG_FUNCTION_NOARGS.

◆ SetDown()

void ns3::Ipv4L3ClickProtocol::SetDown ( uint32_t interface )

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Set the interface into the "down" state. In this state, it is ignored during Ipv4 forwarding.

Implements ns3::Ipv4.

Definition at line 598 of file ipv4-l3-click-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetDown().

Here is the call graph for this function:

◆ SetForwarding()

void ns3::Ipv4L3ClickProtocol::SetForwarding	(	uint32_t	interface,
		bool	val
	)

overridevirtual

Parameters

interface	Interface number of Ipv4 interface
val	Value to set the forwarding flag

If set to true, IP forwarding is enabled for input datagrams on this device

Implements ns3::Ipv4.

Definition at line 620 of file ipv4-l3-click-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetForwarding().

Here is the call graph for this function:

◆ SetIpForward()

void ns3::Ipv4L3ClickProtocol::SetIpForward ( bool forward )

overrideprivatevirtual

Set or unset the IP forwarding state.

Parameters

forward the forwarding state

Implements ns3::Ipv4.

Definition at line 271 of file ipv4-l3-click-protocol.cc.

References m_interfaces, m_ipForward, and NS_LOG_FUNCTION.

◆ SetMetric()

void ns3::Ipv4L3ClickProtocol::SetMetric	(	uint32_t	interface,
		uint16_t	metric
	)

overridevirtual

Parameters

interface	The interface number of an Ipv4 interface
metric	routing metric (cost) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 553 of file ipv4-l3-click-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetMetric().

Here is the call graph for this function:

◆ SetNode()

void ns3::Ipv4L3ClickProtocol::SetNode ( Ptr< Node > node )

Calls m_node = node and sets up Loopback if needed.

Parameters

node	Pointer to the node

Definition at line 387 of file ipv4-l3-click-protocol.cc.

References m_node, and SetupLoopback().

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPromisc()

void ns3::Ipv4L3ClickProtocol::SetPromisc ( uint32_t i )

Sets an interface to run on promiscuous mode.

Parameters

i	Interface ID.

Definition at line 628 of file ipv4-l3-click-protocol.cc.

References GetNetDevice(), ns3::MakeCallback(), NS_ASSERT, Receive(), and ns3::Node::RegisterProtocolHandler().

Here is the call graph for this function:

◆ SetRoutingProtocol()

void ns3::Ipv4L3ClickProtocol::SetRoutingProtocol ( Ptr< Ipv4RoutingProtocol > routingProtocol )

overridevirtual

Register a new routing protocol to be used by this Ipv4 stack.

This call will replace any routing protocol that has been previously registered. If you want to add multiple routing protocols, you must add them to a Ipv4ListRoutingProtocol directly.

Parameters

routingProtocol smart pointer to Ipv4RoutingProtocol object

Implements ns3::Ipv4.

Definition at line 118 of file ipv4-l3-click-protocol.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

◆ SetStrongEndSystemModel()

void ns3::Ipv4L3ClickProtocol::SetStrongEndSystemModel ( bool model )

overrideprivatevirtual

Set or unset the Strong End System Model.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Parameters

model true for Strong End System Model

Implements ns3::Ipv4.

Definition at line 300 of file ipv4-l3-click-protocol.cc.

References m_strongEndSystemModel.

◆ SetUp()

void ns3::Ipv4L3ClickProtocol::SetUp ( uint32_t interface )

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Set the interface into the "up" state. In this state, it is considered valid during Ipv4 forwarding.

Implements ns3::Ipv4.

Definition at line 585 of file ipv4-l3-click-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetUp().

Here is the call graph for this function:

◆ SetupLoopback()

void ns3::Ipv4L3ClickProtocol::SetupLoopback ( )

Sets up a Loopback device.

Definition at line 326 of file ipv4-l3-click-protocol.cc.

References ns3::Node::AddDevice(), AddIpv4Interface(), ns3::CreateObject(), ns3::Node::GetDevice(), ns3::Ipv4Address::GetLoopback(), ns3::Ipv4Mask::GetLoopback(), ns3::Node::GetNDevices(), m_node, m_routingProtocol, ns3::MakeCallback(), NS_LOG_FUNCTION_NOARGS, PROT_NUMBER, Receive(), and ns3::Node::RegisterProtocolHandler().

Referenced by SetNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWeakEsModel()

void ns3::Ipv4L3ClickProtocol::SetWeakEsModel ( bool model )

overrideprivatevirtual

Set or unset the Weak Es Model.

RFC1122 term for whether host accepts datagram with a dest. address on another interface

Parameters

model true for Weak Es Model

Deprecated:: Deprecated since ns-3.41. Use SetStrongEndSystemModel instead.

Implements ns3::Ipv4.

Definition at line 288 of file ipv4-l3-click-protocol.cc.

References m_strongEndSystemModel.

◆ SourceAddressSelection()

Ipv4Address ns3::Ipv4L3ClickProtocol::SourceAddressSelection	(	uint32_t	interface,
		Ipv4Address	dest
	)

overridevirtual

Choose the source address to use with destination address.

Parameters

interface	interface index
dest	IPv4 destination address

Returns: IPv4 source address to use

Implements ns3::Ipv4.

Definition at line 464 of file ipv4-l3-click-protocol.cc.

References GetAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), GetNAddresses(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

◆ m_defaultTtl

uint8_t ns3::Ipv4L3ClickProtocol::m_defaultTtl

private

Default TTL.

Definition at line 311 of file ipv4-l3-click-protocol.h.

Referenced by GetTypeId(), Send(), and SetDefaultTtl().

◆ m_identification

uint16_t ns3::Ipv4L3ClickProtocol::m_identification

private

Identification.

Definition at line 312 of file ipv4-l3-click-protocol.h.

Referenced by BuildHeader().

◆ m_interfaces

Ipv4InterfaceList ns3::Ipv4L3ClickProtocol::m_interfaces

private

List of interfaces.

Definition at line 308 of file ipv4-l3-click-protocol.h.

Referenced by AddIpv4Interface(), DoDispose(), GetInterface(), GetInterfaceForAddress(), GetInterfaceForPrefix(), GetNInterfaces(), GetTypeId(), Receive(), and SetIpForward().

◆ m_ipForward

bool ns3::Ipv4L3ClickProtocol::m_ipForward

private

Whether IP forwarding is enabled.

Definition at line 305 of file ipv4-l3-click-protocol.h.

Referenced by AddInterface(), GetIpForward(), and SetIpForward().

◆ m_localDeliverTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3ClickProtocol::m_localDeliverTrace

private

Todo:: This TracedCallback is invoked but not accessible.

Definition at line 321 of file ipv4-l3-click-protocol.h.

Referenced by LocalDeliver().

◆ m_node

Ptr<Node> ns3::Ipv4L3ClickProtocol::m_node

private

Node.

Definition at line 314 of file ipv4-l3-click-protocol.h.

Referenced by AddInterface(), CreateRawSocket(), DoDispose(), NotifyNewAggregate(), Receive(), SetNode(), and SetupLoopback().

◆ m_promiscDeviceList

std::vector<bool> ns3::Ipv4L3ClickProtocol::m_promiscDeviceList

private

List of promiscuous devices.

Definition at line 325 of file ipv4-l3-click-protocol.h.

◆ m_protocols

L4List_t ns3::Ipv4L3ClickProtocol::m_protocols

private

List of IPv4 L4 protocols.

Definition at line 307 of file ipv4-l3-click-protocol.h.

Referenced by DoDispose(), GetProtocol(), Insert(), and Remove().

◆ m_reverseInterfacesContainer

Ipv4InterfaceReverseContainer ns3::Ipv4L3ClickProtocol::m_reverseInterfacesContainer

private

Container of NetDevice / Interface index associations.

Definition at line 310 of file ipv4-l3-click-protocol.h.

Referenced by AddIpv4Interface(), DoDispose(), and GetInterfaceForDevice().

◆ m_routingProtocol

Ptr<Ipv4RoutingProtocol> ns3::Ipv4L3ClickProtocol::m_routingProtocol

private

IPv4 routing protocol.

Definition at line 304 of file ipv4-l3-click-protocol.h.

Referenced by AddAddress(), DoDispose(), GetRoutingProtocol(), RemoveAddress(), Send(), SendWithHeader(), SetDown(), SetRoutingProtocol(), SetUp(), and SetupLoopback().

◆ m_sendOutgoingTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3ClickProtocol::m_sendOutgoingTrace

private

Todo:: Remove; this TracedCallback is never invoked.

Definition at line 317 of file ipv4-l3-click-protocol.h.

◆ m_sockets

SocketList ns3::Ipv4L3ClickProtocol::m_sockets

private

List of sockets.

Definition at line 323 of file ipv4-l3-click-protocol.h.

Referenced by CreateRawSocket(), DeleteRawSocket(), DoDispose(), and Receive().

◆ m_strongEndSystemModel

bool ns3::Ipv4L3ClickProtocol::m_strongEndSystemModel

private

Whether to use Strong End System Model.

Definition at line 306 of file ipv4-l3-click-protocol.h.

Referenced by GetStrongEndSystemModel(), GetWeakEsModel(), SetStrongEndSystemModel(), and SetWeakEsModel().

◆ m_unicastForwardTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3ClickProtocol::m_unicastForwardTrace

private

Todo:: Remove: this TracedCallback is never invoked.

Definition at line 319 of file ipv4-l3-click-protocol.h.

◆ PROT_NUMBER

const uint16_t ns3::Ipv4L3ClickProtocol::PROT_NUMBER = 0x0800

static

Protocol number for Ipv4 L3 (0x0800).

Definition at line 75 of file ipv4-l3-click-protocol.h.

Referenced by AddInterface(), Receive(), and SetupLoopback().

The documentation for this class was generated from the following files:

src/click/model/ipv4-l3-click-protocol.h
src/click/model/ipv4-l3-click-protocol.cc

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ipv4InterfaceList

◆ Ipv4InterfaceReverseContainer

◆ L4List_t

◆ L4ListKey_t

◆ SocketList

Constructor & Destructor Documentation

◆ Ipv4L3ClickProtocol()

◆ ~Ipv4L3ClickProtocol()

Member Function Documentation

◆ AddAddress()

◆ AddInterface()

◆ AddIpv4Interface()

◆ BuildHeader()

◆ CreateRawSocket()

◆ DeleteRawSocket()

◆ DoDispose()

◆ GetAddress()

◆ GetIcmp()

◆ GetInterface()

◆ GetInterfaceForAddress()

◆ GetInterfaceForDevice()

◆ GetInterfaceForPrefix()

◆ GetIpForward()

◆ GetMetric()

◆ GetMtu()

◆ GetNAddresses()

◆ GetNetDevice()

◆ GetNInterfaces()

◆ GetProtocol() [1/2]

◆ GetProtocol() [2/2]

◆ GetRoutingProtocol()

◆ GetStrongEndSystemModel()

◆ GetTypeId()

◆ GetWeakEsModel()

◆ Insert() [1/2]

◆ Insert() [2/2]

◆ IsDestinationAddress()

◆ IsForwarding()

◆ IsUp()

◆ LocalDeliver()

◆ NotifyNewAggregate()

◆ Receive()

◆ Remove() [1/2]

◆ Remove() [2/2]

◆ RemoveAddress() [1/2]

◆ RemoveAddress() [2/2]

◆ SelectSourceAddress()

◆ Send()

◆ SendDown()

◆ SendWithHeader()

◆ SetDefaultTtl()

◆ SetDown()

◆ SetForwarding()

◆ SetIpForward()

◆ SetMetric()

◆ SetNode()

◆ SetPromisc()

◆ SetRoutingProtocol()

◆ SetStrongEndSystemModel()

◆ SetUp()

◆ SetupLoopback()

◆ SetWeakEsModel()

◆ SourceAddressSelection()

Member Data Documentation

◆ m_defaultTtl

◆ m_identification

◆ m_interfaces

◆ m_ipForward

◆ m_localDeliverTrace

◆ m_node
