#include "qkd-sdn-controller.h"

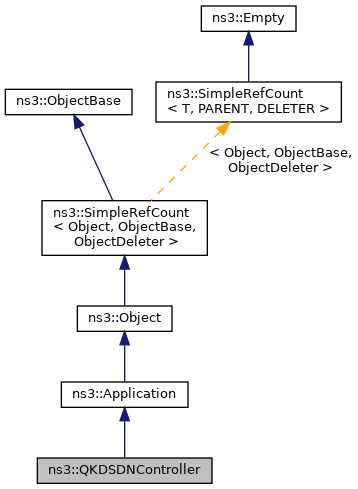

Inheritance diagram for ns3::QKDSDNController:

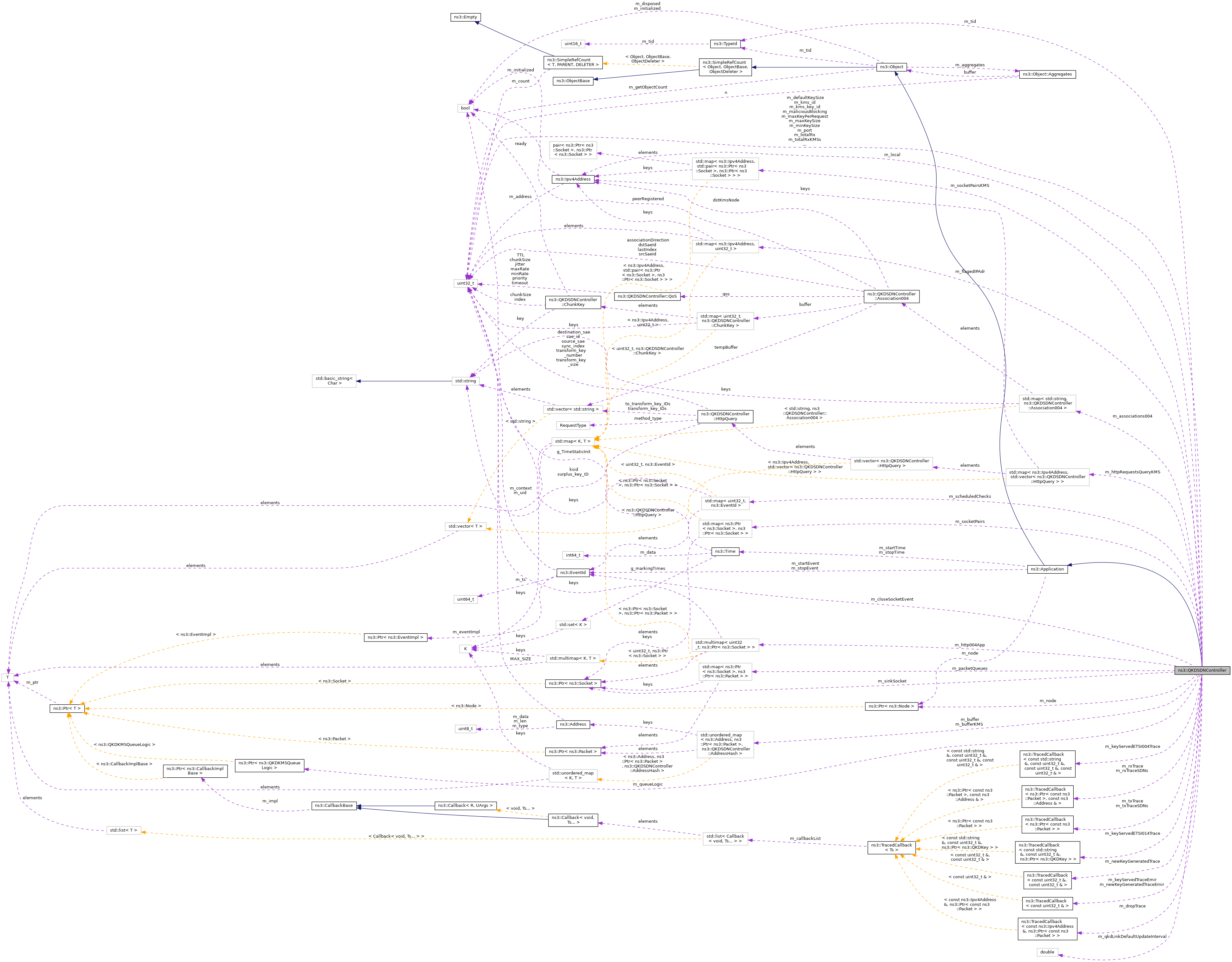

Collaboration diagram for ns3::QKDSDNController:

Classes
struct	AddressHash
	Hashing for the Address class. More...

struct	Association004

struct	ChunkKey

struct	HttpQuery

struct	QoS

Public Types
enum	RequestType { NONE = 50 , GET_ROUTE = 12 , REGISTER_SAE_LINK = 13 , REGISTER_QKD_LINK = 14 , KEY_ASSOCIATION_STATUS = 15 , ETSI_QKD_014_GET_STATUS = 0 , ETSI_QKD_014_GET_KEY = 1 , ETSI_QKD_014_GET_KEY_WITH_KEY_IDS = 2 , ETSI_QKD_004_OPEN_CONNECT = 3 , ETSI_QKD_004_GET_KEY = 4 , ETSI_QKD_004_CLOSE = 5 , NEW_APP = 6 , REGISTER = 7 , FILL = 8 , STORE_PP_KEYS = 9 , TRANSFORM_KEYS = 10 , ETSI_QKD_004_KMS_CLOSE = 11 }
	Request types. More...

Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Public Member Functions
	QKDSDNController ()
	QKDSDNController constructor. More...

virtual	~QKDSDNController ()
	QKDSDNController destructor. More...

void	AddNewLink (uint32_t srcSaeId, uint32_t dstSaeId, Ipv4Address kmsDstAddress, Ptr< QKDBuffer > srcBuffer)
	Inform KMS about the new QKD connection/link. More...

std::map< Ptr< Socket >, Ptr< Socket > >	GetAcceptedSockets (void) const
	Get list of all accepted sockets. More...

Ipv4Address	GetAddress ()
	Get local address. More...

uint32_t	GetId ()
	Get key menager system ID. More...

uint32_t	GetMaxKeyPerRequest ()
	Get maximum number of keys per request (ETSI QKD 014) More...

Ptr< Node >	GetNode ()
	Get node. More...

uint32_t	GetPort ()
	Get local port. More...

Ptr< Socket >	GetSocket (void) const
	Get sink socket. More...

uint32_t	GetTotalRx () const
	Get the total amount of bytes received. More...

void	RegisterSaePair (Ptr< Node > srcNode, Ptr< Node > dstNode, uint32_t srcSaeId, uint32_t dstSaeId, std::string type)
	Inform KMS about the SAE connection. More...

void	SetAddress (Ipv4Address address)
	Set local address. More...

void	SetNode (Ptr< Node > n)
	Set node. More...

void	SetPort (uint32_t port)
	Set local port. More...

void	SetSocket (std::string type, Ptr< Socket > socket)
	Set sink socket. More...

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	@toDo More...

Protected Member Functions inherited from ns3::Application
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
std::string	Base64Decode (std::string input)
	Base64 decoder. More...

std::string	Base64Encode (std::string input)
	Base64 encoder. More...

void	CheckSocketsKMS (Ipv4Address dstSaeId)
	Prepare send socket to communicate with peer KMS Application. More...

void	ConnectionFailed (Ptr< Socket > socket)

void	ConnectionFailedKMSs (Ptr< Socket > socket)

void	ConnectionSucceeded (Ptr< Socket > socket)
	@toDo:following functions More...

void	ConnectionSucceededKMSs (Ptr< Socket > socket)

nlohmann::json	CreateKeyContainer (std::vector< Ptr< QKDKey >> keys)
	Check the correctness of QKD application request and ability of KMS to fullfil correct request. More...

std::string	CreateNew004Association (uint32_t srcSaeId, uint32_t dstSaeId, QKDSDNController::QoS inQos, Ipv4Address dstKms, std::string ksid)
	Create a new assocation. More...

void	DataSend (Ptr< Socket >, uint32_t)

void	DataSendKMSs (Ptr< Socket >, uint32_t)

QKDSDNController::RequestType	FetchRequestType (std::string s)
	Get request type. More...

Ipv4Address	GetDestinationKmsAddress (Ptr< Socket > socket)

Ptr< Socket >	GetSendSocketKMS (Ipv4Address kmsDstAddress)
	Obtain send socket. More...

Ptr< Socket >	GetSocketFromHttp004AppQuery (uint32_t saeId)

void	HandleAccept (Ptr< Socket > s, const Address &from)
	Handle an incoming connection. More...

void	HandlePeerClose (Ptr< Socket > socket)
	Handle an connection close. More...

void	HandlePeerError (Ptr< Socket > socket)
	Handle an connection error. More...

void	HandleRead (Ptr< Socket > socket)
	Handle a packet received by the KMS application. More...

void	Http004AppQuery (uint32_t saeId, Ptr< Socket > socket)

void	Http004AppQueryComplete (uint32_t saeId)

void	HttpKMSAddQuery (Ipv4Address dstKms, HttpQuery request)
	remember HTTP request made to peer KMS More...

void	HttpKMSCompleteQuery (Ipv4Address dstKms)
	remove mapped HTTP response from query More...

RequestType	HttpQueryMethod (Ipv4Address dstKms)
	obtain method_type to map the HTTP response More...

void	PacketReceived (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Assemble byte stream to extract HTTPMessage. More...

std::string	PacketToString (Ptr< Packet > packet)
	Convert packet to string. More...

void	PrepareSinkSocket ()

void	ProcessAddKeysRequest (HTTPMessage h, Ptr< Socket > socket, std::string ksid)
	Process FILL request. More...

void	ProcessAddKeysResponse (HTTPMessage header, Ptr< Socket > socket)
	Process FILL response. More...

void	ProcessCloseRequest (std::string ksid, HTTPMessage header, Ptr< Socket > socket)

void	ProcessGetKey004Request (std::string ksid, HTTPMessage header, Ptr< Socket > socket)

void	ProcessNewAppRequest (HTTPMessage header, Ptr< Socket > socket)

void	ProcessNewAppResponse (HTTPMessage header, Ptr< Socket > socket)

void	ProcessOpenConnectRequest (HTTPMessage header, Ptr< Socket > socket)

void	ProcessRegisterRequest (HTTPMessage header, std::string ksid, Ptr< Socket > socket)

void	ProcessRegisterResponse (HTTPMessage header, Ptr< Socket > socket)

void	ProcessRequest (HTTPMessage header, Ptr< Packet > packet, Ptr< Socket > socket)
	QKD key manager system application process the request from QKDApp, and complete certain actions to respond on received request. More...

void	ReadJsonQos (QKDSDNController::QoS &inQos, nlohmann::json jOpenConnectRequest)
	Read the parameters from the JSON OPEN_CONNECT structure! More...

void	RegisterRequest (std::string ksid)

void	ReleaseAssociation (std::string ksid, std::string surplusKeyId, uint32_t syncIndex)
	release key stream association More...

void	SendToSocketPair (Ptr< Socket > socket, Ptr< Packet > packet)
	Send packet to the pair socket. More...

void	SendToSocketPairKMS (Ptr< Socket > socket, Ptr< Packet > packet)
	Send packet to the pair socket. More...

void	StartApplication (void)
	Start KMS Application. More...

void	StopApplication (void)
	Stop KMS Application. More...

Private Attributes
std::map< std::string, Association004 >	m_associations004

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_buffer
	Buffer for received packets (TCP segmentation) More...

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_bufferKMS
	Buffer for received packets (TCP segmentation) More...

EventId	m_closeSocketEvent

uint32_t	m_defaultKeySize

TracedCallback< const Ipv4Address &, Ptr< const Packet > >	m_dropTrace
	Traced callback: fired when a packet is dropped. More...

std::map< Ipv4Address, uint32_t >	m_flagedIPAdr

std::multimap< uint32_t, Ptr< Socket > >	m_http004App

std::map< Ipv4Address, std::vector< HttpQuery > >	m_httpRequestsQueryKMS

TracedCallback< const std::string &, const uint32_t &, const uint32_t &, const uint32_t & >	m_keyServedETSI004Trace

TracedCallback< const std::string &, const uint32_t &, Ptr< QKDKey > >	m_keyServedETSI014Trace

TracedCallback< const uint32_t & >	m_keyServedTraceEmir

uint32_t	m_kms_id

uint32_t	m_kms_key_id

Ipv4Address	m_local
	Local address to bind to. More...

uint32_t	m_maliciousBlocking

uint32_t	m_maxKeyPerRequest

uint32_t	m_maxKeySize

uint32_t	m_minKeySize

TracedCallback< const uint32_t &, const uint32_t & >	m_newKeyGeneratedTrace

TracedCallback< const uint32_t & >	m_newKeyGeneratedTraceEmir

Ptr< Node >	m_node

std::map< Ptr< Socket >, Ptr< Packet > >	m_packetQueues
	Buffering unsend messages due to connection problems. More...

uint32_t	m_port
	Local port to bind to. More...

double	m_qkdLinkDefaultUpdateInterval
	Default update interval of QKD link status (seconds) More...

Ptr< QKDKMSQueueLogic >	m_queueLogic
	KMS Queue Logic for ETSI 004 QoS handling. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced Callback: received packets, source address. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTraceSDNs

std::map< uint32_t, EventId >	m_scheduledChecks

Ptr< Socket >	m_sinkSocket

std::map< Ptr< Socket >, Ptr< Socket > >	m_socketPairs
	the accepted sockets More...

std::map< Ipv4Address, std::pair< Ptr< Socket >, Ptr< Socket > > >	m_socketPairsKMS
	the accepted sockets for communication between KMSs More...

TypeId	m_tid

uint32_t	m_totalRx
	Total bytes received More...

uint32_t	m_totalRxKMSs
	Total bytes received between KMSs. More...

TracedCallback< Ptr< const Packet > >	m_txTrace

TracedCallback< Ptr< const Packet > >	m_txTraceSDNs

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 66 of file qkd-sdn-controller.h.

Member Enumeration Documentation

◆ RequestType

enum ns3::QKDSDNController::RequestType

Request types.

Enumerator
NONE
GET_ROUTE
REGISTER_SAE_LINK
REGISTER_QKD_LINK
KEY_ASSOCIATION_STATUS
ETSI_QKD_014_GET_STATUS	Integer equivalent = 0.
ETSI_QKD_014_GET_KEY	Integer equivalent = 1.
ETSI_QKD_014_GET_KEY_WITH_KEY_IDS	Integer equivalent = 2.
ETSI_QKD_004_OPEN_CONNECT
ETSI_QKD_004_GET_KEY
ETSI_QKD_004_CLOSE
NEW_APP
REGISTER
FILL
STORE_PP_KEYS
TRANSFORM_KEYS
ETSI_QKD_004_KMS_CLOSE

Definition at line 73 of file qkd-sdn-controller.h.

Constructor & Destructor Documentation

◆ QKDSDNController()

ns3::QKDSDNController::QKDSDNController ( )

QKDSDNController constructor.

Definition at line 135 of file qkd-sdn-controller.cc.

References m_totalRx, and NS_LOG_FUNCTION.

◆ ~QKDSDNController()

ns3::QKDSDNController::~QKDSDNController ( )

virtual

QKDSDNController destructor.

Definition at line 142 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddNewLink()

void ns3::QKDSDNController::AddNewLink	(	uint32_t	srcSaeId,
		uint32_t	dstSaeId,
		Ipv4Address	kmsDstAddress,
		Ptr< QKDBuffer >	srcBuffer
	)

Inform KMS about the new QKD connection/link.

Parameters

uint32_t	master SAE ID
uint32_t	slave SAE ID
Ipv4Address	slave KMS address
Ptr<QKDBuffer>	srcQKDBuffer

Definition at line 816 of file qkd-sdn-controller.cc.

References GetNode(), ns3::Object::GetObject(), m_local, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Base64Decode()

std::string ns3::QKDSDNController::Base64Decode ( std::string input )

private

Base64 decoder.

Parameters

input input data

Returns: string decoded input

Definition at line 919 of file qkd-sdn-controller.cc.

◆ Base64Encode()

std::string ns3::QKDSDNController::Base64Encode ( std::string input )

private

Base64 encoder.

Parameters

input input data

Returns: string base64 encoded input

Definition at line 907 of file qkd-sdn-controller.cc.

◆ CheckSocketsKMS()

void ns3::QKDSDNController::CheckSocketsKMS ( Ipv4Address dstSaeId )

private

Prepare send socket to communicate with peer KMS Application.

Parameters

uint32_t destination SAE ID

◆ ConnectionFailed()

void ns3::QKDSDNController::ConnectionFailed ( Ptr< Socket > socket )

private

Definition at line 261 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleAccept().

Here is the caller graph for this function:

◆ ConnectionFailedKMSs()

void ns3::QKDSDNController::ConnectionFailedKMSs ( Ptr< Socket > socket )

private

◆ ConnectionSucceeded()

void ns3::QKDSDNController::ConnectionSucceeded ( Ptr< Socket > socket )

private

@toDo:following functions

Definition at line 243 of file qkd-sdn-controller.cc.

References m_packetQueues, m_txTrace, and NS_LOG_FUNCTION.

Referenced by HandleAccept().

Here is the caller graph for this function:

◆ ConnectionSucceededKMSs()

void ns3::QKDSDNController::ConnectionSucceededKMSs ( Ptr< Socket > socket )

private

◆ CreateKeyContainer()

nlohmann::json ns3::QKDSDNController::CreateKeyContainer ( std::vector< Ptr< QKDKey >> keys )

private

Check the correctness of QKD application request and ability of KMS to fullfil correct request.

Parameters

request	json structure of application request
conn	connection details

Returns: json error structure defined by ETSI014 document

Create key container data structure described in ETSI014 document.

Parameters

keys	vector of pointers on the QKD key

Returns: json data structure for key container

◆ CreateNew004Association()

std::string ns3::QKDSDNController::CreateNew004Association	(	uint32_t	srcSaeId,
		uint32_t	dstSaeId,
		QKDSDNController::QoS	inQos,
		Ipv4Address	dstKms,
		std::string	ksid
	)

private

Create a new assocation.

Parameters

srcSaeId	source secure application entity
dstSaeId	destination secure application entity
inQos	Quality of Service
dstKms	destination KMS address
ksid	Unique identifier of the association

Returns: string Unique identifier of the association

Input ksid can be empty if it is not predefined. In that case new ksid is generated for this new association and return from the function.

◆ DataSend()

void ns3::QKDSDNController::DataSend	(	Ptr< Socket >	,
		uint32_t
	)

private

Definition at line 268 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleAccept().

Here is the caller graph for this function:

◆ DataSendKMSs()

void ns3::QKDSDNController::DataSendKMSs	(	Ptr< Socket >	,
		uint32_t
	)

private

◆ DoDispose()

void ns3::QKDSDNController::DoDispose ( void )

protectedvirtual

@toDo

Reimplemented from ns3::Object.

Definition at line 191 of file qkd-sdn-controller.cc.

References ns3::Application::DoDispose(), m_sinkSocket, m_socketPairs, and NS_LOG_FUNCTION.

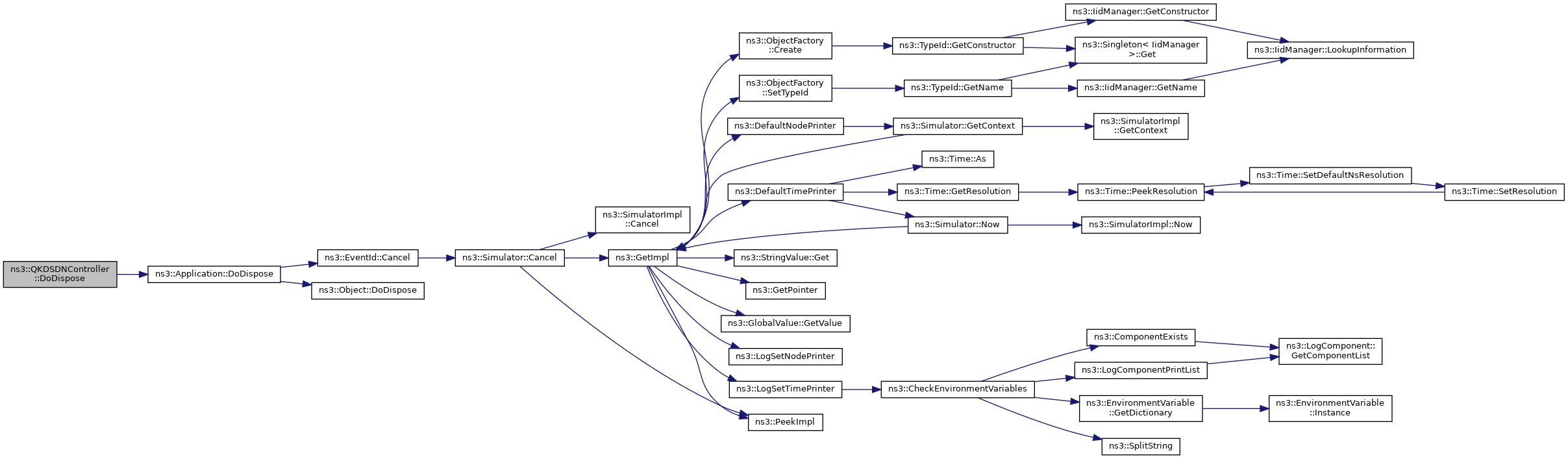

Here is the call graph for this function:

◆ FetchRequestType()

QKDSDNController::RequestType ns3::QKDSDNController::FetchRequestType ( std::string s )

private

Get request type.

Parameters

s	string from HTTP URI

Returns: request type

Definition at line 740 of file qkd-sdn-controller.cc.

References ETSI_QKD_004_CLOSE, ETSI_QKD_004_GET_KEY, ETSI_QKD_004_KMS_CLOSE, ETSI_QKD_004_OPEN_CONNECT, ETSI_QKD_014_GET_KEY, ETSI_QKD_014_GET_KEY_WITH_KEY_IDS, ETSI_QKD_014_GET_STATUS, FILL, KEY_ASSOCIATION_STATUS, NEW_APP, NS_FATAL_ERROR, NS_LOG_FUNCTION, REGISTER, REGISTER_QKD_LINK, REGISTER_SAE_LINK, STORE_PP_KEYS, and TRANSFORM_KEYS.

Referenced by ProcessRequest().

Here is the caller graph for this function:

◆ GetAcceptedSockets()

std::map< Ptr< Socket >, Ptr< Socket > > ns3::QKDSDNController::GetAcceptedSockets ( void ) const

Get list of all accepted sockets.

Returns: list of pointers to accepted sockets

Definition at line 160 of file qkd-sdn-controller.cc.

References m_socketPairs, and NS_LOG_FUNCTION.

◆ GetAddress()

Ipv4Address ns3::QKDSDNController::GetAddress ( )

inline

Get local address.

Returns: return local address

Definition at line 205 of file qkd-sdn-controller.h.

References m_local.

◆ GetDestinationKmsAddress()

Ipv4Address ns3::QKDSDNController::GetDestinationKmsAddress ( Ptr< Socket > socket )

private

◆ GetId()

uint32_t ns3::QKDSDNController::GetId ( void )

Get key menager system ID.

Returns: uint32_t key manager system ID

Definition at line 148 of file qkd-sdn-controller.cc.

References m_kms_id.

◆ GetMaxKeyPerRequest()

uint32_t ns3::QKDSDNController::GetMaxKeyPerRequest ( )

Get maximum number of keys per request (ETSI QKD 014)

Returns: uint32_t maximum number of keys per request

Definition at line 735 of file qkd-sdn-controller.cc.

References m_maxKeyPerRequest.

◆ GetNode()

Ptr< Node > ns3::QKDSDNController::GetNode ( )

Get node.

Returns: pointer to node

Definition at line 901 of file qkd-sdn-controller.cc.

References m_node.

Referenced by AddNewLink(), HandleAccept(), PrepareSinkSocket(), ProcessRequest(), and RegisterSaePair().

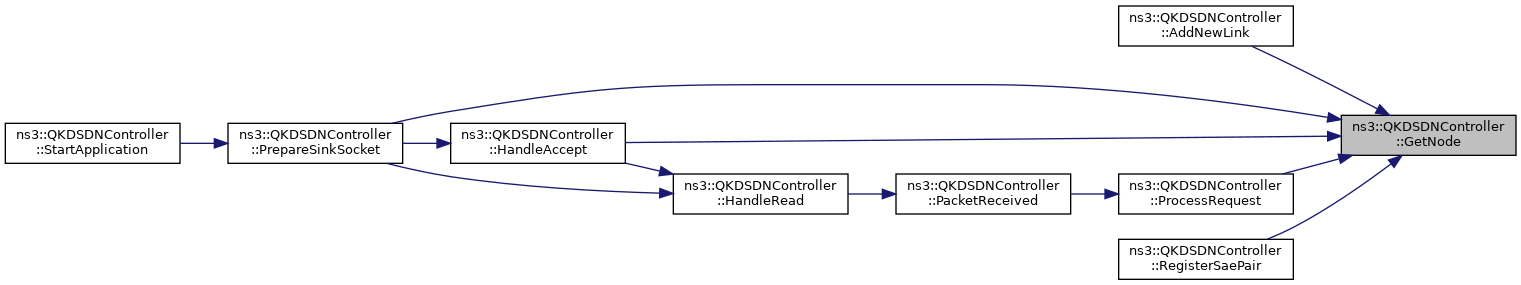

Here is the caller graph for this function:

◆ GetPort()

uint32_t ns3::QKDSDNController::GetPort ( )

inline

Get local port.

Returns: return local port

Definition at line 221 of file qkd-sdn-controller.h.

References m_port.

◆ GetSendSocketKMS()

Ptr<Socket> ns3::QKDSDNController::GetSendSocketKMS ( Ipv4Address kmsDstAddress )

private

Obtain send socket.

Parameters

kmsDstAddress Address of the destination KMS

Returns: Socket send socket

◆ GetSocket()

Ptr< Socket > ns3::QKDSDNController::GetSocket ( void ) const

Get sink socket.

Returns: pointer to the sink socket

   SOCKET functions

Definition at line 177 of file qkd-sdn-controller.cc.

References m_sinkSocket, and NS_LOG_FUNCTION.

◆ GetSocketFromHttp004AppQuery()

Ptr<Socket> ns3::QKDSDNController::GetSocketFromHttp004AppQuery ( uint32_t saeId )

private

◆ GetTotalRx()

uint32_t ns3::QKDSDNController::GetTotalRx ( ) const

Get the total amount of bytes received.

Returns: the total bytes received in this sink app

Definition at line 153 of file qkd-sdn-controller.cc.

References m_totalRx, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::QKDSDNController::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 49 of file qkd-sdn-controller.cc.

References ns3::TcpSocketFactory::GetTypeId(), m_defaultKeySize, m_dropTrace, m_keyServedETSI004Trace, m_keyServedETSI014Trace, m_keyServedTraceEmir, m_local, m_maliciousBlocking, m_maxKeyPerRequest, m_maxKeySize, m_minKeySize, m_newKeyGeneratedTrace, m_newKeyGeneratedTraceEmir, m_qkdLinkDefaultUpdateInterval, m_rxTrace, m_rxTraceSDNs, m_tid, m_txTrace, m_txTraceSDNs, ns3::MakeDoubleAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeTypeIdAccessor(), ns3::MakeTypeIdChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleAccept()

void ns3::QKDSDNController::HandleAccept	(	Ptr< Socket >	s,
		const Address &	from
	)

private

Handle an incoming connection.

Parameters

s	the incoming connection socket
from	the address the connection is from

Definition at line 200 of file qkd-sdn-controller.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ConnectionFailed(), ConnectionSucceeded(), ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::CreateSocket(), DataSend(), GetNode(), ns3::Socket::GetSocketType(), ns3::TcpSocketFactory::GetTypeId(), ns3::UdpSocketFactory::GetTypeId(), HandleRead(), m_socketPairs, ns3::MakeCallback(), ns3::Socket::NS3_SOCK_SEQPACKET, ns3::Socket::NS3_SOCK_STREAM, NS_LOG_FUNCTION, ns3::Socket::SetConnectCallback(), ns3::Socket::SetDataSentCallback(), ns3::Socket::SetRecvCallback(), and ns3::Socket::ShutdownRecv().

Referenced by PrepareSinkSocket().

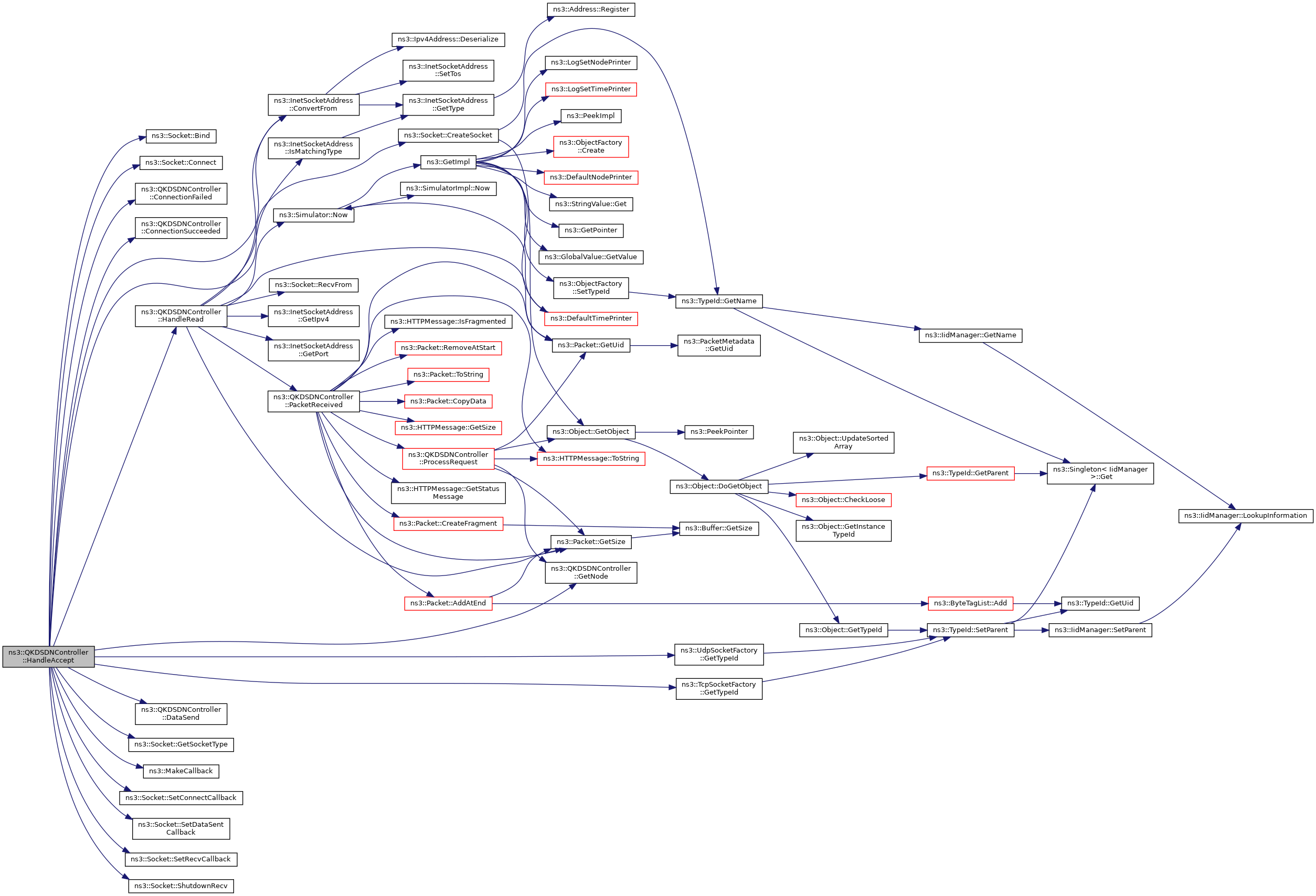

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandlePeerClose()

void ns3::QKDSDNController::HandlePeerClose ( Ptr< Socket > socket )

private

Handle an connection close.

Parameters

socket the connected socket

Definition at line 274 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocket().

Here is the caller graph for this function:

◆ HandlePeerError()

void ns3::QKDSDNController::HandlePeerError ( Ptr< Socket > socket )

private

Handle an connection error.

Parameters

socket the connected socket

Definition at line 280 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocket().

Here is the caller graph for this function:

◆ HandleRead()

void ns3::QKDSDNController::HandleRead ( Ptr< Socket > socket )

private

Handle a packet received by the KMS application.

Parameters

socket the receiving socket

Definition at line 313 of file qkd-sdn-controller.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::InetSocketAddress::IsMatchingType(), m_rxTrace, m_totalRx, ns3::Simulator::Now(), NS_LOG_FUNCTION, PacketReceived(), and ns3::Socket::RecvFrom().

Referenced by HandleAccept(), and PrepareSinkSocket().

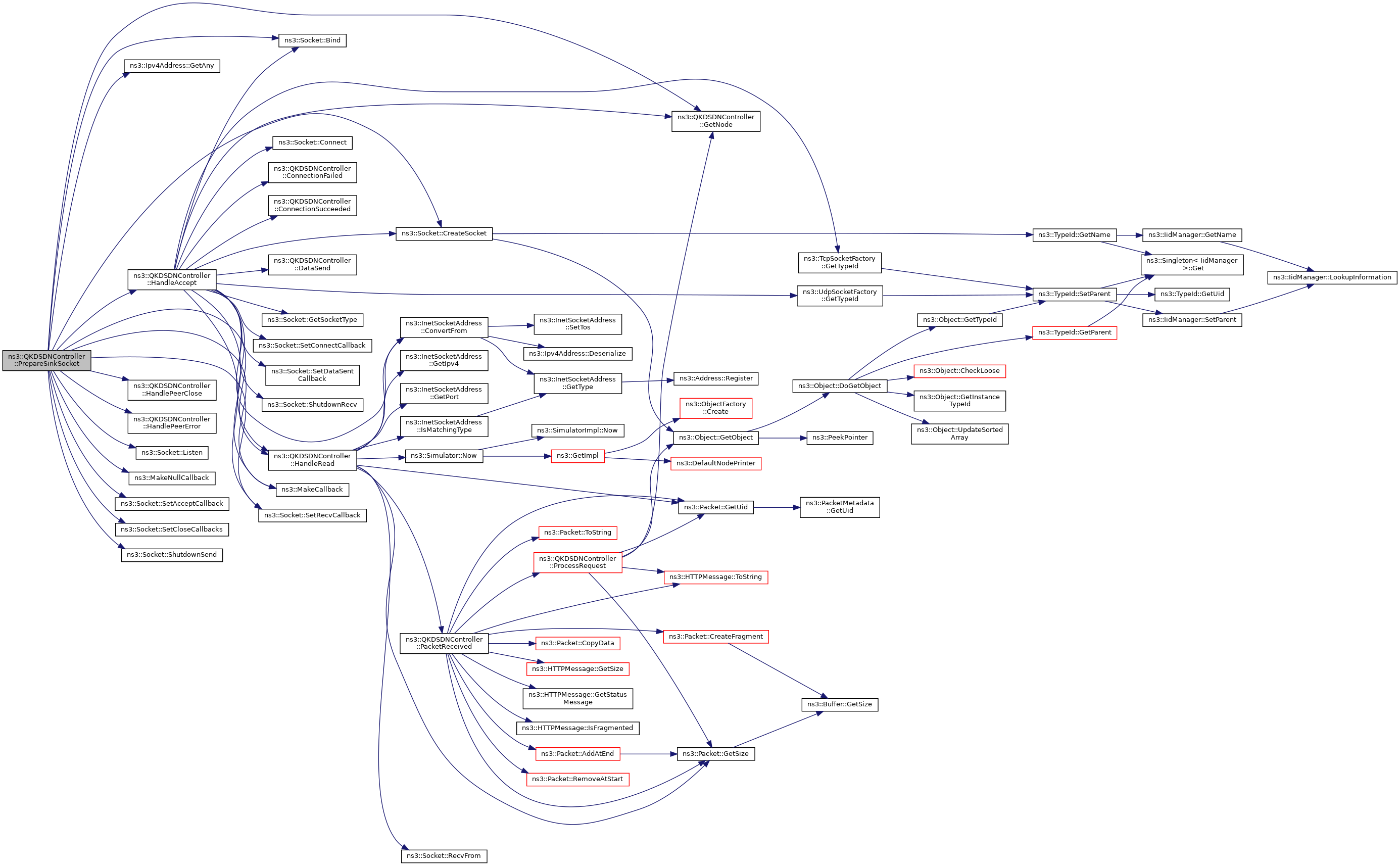

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Http004AppQuery()

void ns3::QKDSDNController::Http004AppQuery	(	uint32_t	saeId,
		Ptr< Socket >	socket
	)

private

◆ Http004AppQueryComplete()

void ns3::QKDSDNController::Http004AppQueryComplete ( uint32_t saeId )

private

◆ HttpKMSAddQuery()

void ns3::QKDSDNController::HttpKMSAddQuery	(	Ipv4Address	dstKms,
		HttpQuery	request
	)

private

remember HTTP request made to peer KMS

Parameters

dstKms	destination kms IP address
request	request parameters

◆ HttpKMSCompleteQuery()

void ns3::QKDSDNController::HttpKMSCompleteQuery ( Ipv4Address dstKms )

private

remove mapped HTTP response from query

Parameters

dstKms destination kms IP address

◆ HttpQueryMethod()

RequestType ns3::QKDSDNController::HttpQueryMethod ( Ipv4Address dstKms )

private

obtain method_type to map the HTTP response

Parameters

dstKms destination KMS IP address

Returns: RequestType method function

◆ PacketReceived()

void ns3::QKDSDNController::PacketReceived	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

private

Assemble byte stream to extract HTTPMessage.

Parameters

p	received packet
from	from address

The method assembles a received byte stream and extracts HTTPMessage instances from the stream to export in a trace source.

Definition at line 347 of file qkd-sdn-controller.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CopyData(), ns3::Packet::CreateFragment(), ns3::HTTPMessage::GetSize(), ns3::Packet::GetSize(), ns3::HTTPMessage::GetStatusMessage(), ns3::Packet::GetUid(), ns3::HTTPMessage::IsFragmented(), m_buffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, check-style-clang-format::parser, ProcessRequest(), ns3::Packet::RemoveAtStart(), ns3::HTTPMessage::ToString(), and ns3::Packet::ToString().

Referenced by HandleRead().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PacketToString()

std::string ns3::QKDSDNController::PacketToString ( Ptr< Packet > packet )

private

Convert packet to string.

Parameters

packet the packet

Returns: string packet

◆ PrepareSinkSocket()

void ns3::QKDSDNController::PrepareSinkSocket ( void )

private

Definition at line 425 of file qkd-sdn-controller.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), GetNode(), HandleAccept(), HandlePeerClose(), HandlePeerError(), HandleRead(), ns3::Socket::Listen(), m_local, m_port, m_sinkSocket, m_tid, ns3::MakeCallback(), ns3::MakeNullCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Socket::SetAcceptCallback(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), and ns3::Socket::ShutdownSend().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessAddKeysRequest()

void ns3::QKDSDNController::ProcessAddKeysRequest	(	HTTPMessage	h,
		Ptr< Socket >	socket,
		std::string	ksid
	)

private

Process FILL request.

Parameters

header	received request
socket	receiving socket
ksid	Unique identifier of the association

Process the proposal of keys to fill the dedicated key store reserved for association identified with KSID.

◆ ProcessAddKeysResponse()

void ns3::QKDSDNController::ProcessAddKeysResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Process FILL response.

Parameters

header	received http header
socket	receiving socket

Process the response on the FILL method where the primary KMS (the initiator) will obtain and store QKD keys that are accepted by the replica KMS for this association.

◆ ProcessCloseRequest()

void ns3::QKDSDNController::ProcessCloseRequest	(	std::string	ksid,
		HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessGetKey004Request()

void ns3::QKDSDNController::ProcessGetKey004Request	(	std::string	ksid,
		HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessNewAppRequest()

void ns3::QKDSDNController::ProcessNewAppRequest	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessNewAppResponse()

void ns3::QKDSDNController::ProcessNewAppResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessOpenConnectRequest()

void ns3::QKDSDNController::ProcessOpenConnectRequest	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessRegisterRequest()

void ns3::QKDSDNController::ProcessRegisterRequest	(	HTTPMessage	header,
		std::string	ksid,
		Ptr< Socket >	socket
	)

private

◆ ProcessRegisterResponse()

void ns3::QKDSDNController::ProcessRegisterResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

◆ ProcessRequest()

void ns3::QKDSDNController::ProcessRequest	(	HTTPMessage	headerIn,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

private

QKD key manager system application process the request from QKDApp, and complete certain actions to respond on received request.

Parameters

header	received HTTP header
packet	received packet
socket	the receiving socket

Data structure of key managment respond is described in ETSI014 document.

   Southbound interface functions (ETSI 014 & ETSI 004)

Definition at line 490 of file qkd-sdn-controller.cc.

References ns3::HTTPMessage::CreateResponse(), FetchRequestType(), ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetMethod(), GetNode(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::HTTPMessage::GetUri(), KEY_ASSOCIATION_STATUS, m_qkdLinkDefaultUpdateInterval, NONE, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, REGISTER_QKD_LINK, REGISTER_SAE_LINK, SendToSocketPair(), ns3::QKDKeyAssociationLinkEntry::SetEffectiveSKR(), ns3::QKDKeyAssociationLinkEntry::SetExpectedConsumption(), ns3::QKDKeyAssociationLinkEntry::SetId(), ns3::QKDKeyAssociationLinkEntry::SetSKR(), ns3::QKDKeyAssociationLinkEntry::SetUpdateStatusInterval(), and ns3::HTTPMessage::ToString().

Referenced by PacketReceived().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadJsonQos()

void ns3::QKDSDNController::ReadJsonQos	(	QKDSDNController::QoS &	inQos,
		nlohmann::json	jOpenConnectRequest
	)

private

Read the parameters from the JSON OPEN_CONNECT structure!

Parameters

&dstSaeId	destination secure application entity
&srcSaeId	source secure application entity
&inQos	requested QoS
&ksid	Unique identifier of the association
jOpenConncetRequest	JSON structure of the OPEN_CONNECT call

◆ RegisterRequest()

void ns3::QKDSDNController::RegisterRequest ( std::string ksid )

private

◆ RegisterSaePair()

void ns3::QKDSDNController::RegisterSaePair	(	Ptr< Node >	srcNode,
		Ptr< Node >	dstNode,
		uint32_t	srcSaeId,
		uint32_t	dstSaeId,
		std::string	type
	)

Inform KMS about the SAE connection.

This function register the pair of QKDApps (srcSaeId, dstSaeId) to use keys that are produced by the QKD systems on nodes srcNode and dstNode via this KMS.

Parameters

Ptr<Node>	source
Ptr<Node>	destination
uint32_t	source SAE_ID
uint32_t	destination SAE_ID
std::string	type

Definition at line 849 of file qkd-sdn-controller.cc.

References GetNode(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ReleaseAssociation()

void ns3::QKDSDNController::ReleaseAssociation	(	std::string	ksid,
		std::string	surplusKeyId,
		uint32_t	syncIndex
	)

private

release key stream association

Parameters

ksid	unique key stream identifier
surplusKeyId	unique key identifier for surplus key material in dedicated association buffer
syncIndex	unique key index in dedicated association buffer for synchronisation

◆ SendToSocketPair()

void ns3::QKDSDNController::SendToSocketPair	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet
	)

private

Send packet to the pair socket.

Parameters

socket	receiving socket
packet	packet to send

Definition at line 286 of file qkd-sdn-controller.cc.

References ns3::Socket::GetPeerName(), ns3::Packet::GetUid(), m_packetQueues, m_socketPairs, m_txTrace, NS_LOG_FUNCTION, and ns3::Socket::Send().

Referenced by ProcessRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToSocketPairKMS()

void ns3::QKDSDNController::SendToSocketPairKMS	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet
	)

private

Send packet to the pair socket.

Parameters

socket	receiving socket
packet	packet to send

◆ SetAddress()

void ns3::QKDSDNController::SetAddress ( Ipv4Address address )

inline

Set local address.

Parameters

Ipv4Address address

Definition at line 197 of file qkd-sdn-controller.h.

References first::address, and m_local.

◆ SetNode()

void ns3::QKDSDNController::SetNode ( Ptr< Node > n )

Set node.

Parameters

n	node to be set

Definition at line 896 of file qkd-sdn-controller.cc.

References m_node.

◆ SetPort()

void ns3::QKDSDNController::SetPort ( uint32_t port )

inline

Set local port.

Parameters

uint32_t port

Definition at line 213 of file qkd-sdn-controller.h.

References m_port, and port.

◆ SetSocket()

void ns3::QKDSDNController::SetSocket	(	std::string	type,
		Ptr< Socket >	socket
	)

Set sink socket.

Parameters

type	socket type
socket	pointer to socket to be set

Definition at line 184 of file qkd-sdn-controller.cc.

References m_sinkSocket, NS_LOG_FUNCTION, and check-style-clang-format::type.

◆ StartApplication()

void ns3::QKDSDNController::StartApplication ( void )

privatevirtual

Start KMS Application.

   APPLICATION functions

Reimplemented from ns3::Application.

Definition at line 418 of file qkd-sdn-controller.cc.

References NS_LOG_FUNCTION, and PrepareSinkSocket().

Here is the call graph for this function:

◆ StopApplication()

void ns3::QKDSDNController::StopApplication ( void )

privatevirtual

Stop KMS Application.

Reimplemented from ns3::Application.

Definition at line 457 of file qkd-sdn-controller.cc.

References ns3::Socket::Close(), m_sinkSocket, m_socketPairs, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

◆ m_http004App

std::multimap<uint32_t, Ptr<Socket> > ns3::QKDSDNController::m_http004App

private

Definition at line 580 of file qkd-sdn-controller.h.

◆ m_httpRequestsQueryKMS

std::map<Ipv4Address, std::vector<HttpQuery> > ns3::QKDSDNController::m_httpRequestsQueryKMS

private

HTTP handling

Each application can open only one connection with its local KMS (current socket). Each KMS can have only one connection with arbitrary KMS (current socket).

Definition at line 579 of file qkd-sdn-controller.h.

◆ m_keyServedETSI004Trace

TracedCallback<const std::string &, const uint32_t&, const uint32_t&, const uint32_t& > ns3::QKDSDNController::m_keyServedETSI004Trace

private

Definition at line 539 of file qkd-sdn-controller.h.

Referenced by GetTypeId().

◆ m_packetQueues

std::map<Ptr<Socket>, Ptr<Packet> > ns3::QKDSDNController::m_packetQueues

private

Buffering unsend messages due to connection problems.

Definition at line 556 of file qkd-sdn-controller.h.

Referenced by ConnectionSucceeded(), and SendToSocketPair().

◆ m_port

uint32_t ns3::QKDSDNController::m_port

private

Local port to bind to.

Definition at line 506 of file qkd-sdn-controller.h.

Referenced by GetPort(), PrepareSinkSocket(), and SetPort().

◆ m_qkdLinkDefaultUpdateInterval

double ns3::QKDSDNController::m_qkdLinkDefaultUpdateInterval

private

Default update interval of QKD link status (seconds)

Definition at line 498 of file qkd-sdn-controller.h.

Referenced by GetTypeId(), and ProcessRequest().

◆ m_queueLogic

Ptr<QKDKMSQueueLogic> ns3::QKDSDNController::m_queueLogic

private

KMS Queue Logic for ETSI 004 QoS handling.

Definition at line 558 of file qkd-sdn-controller.h.

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, const Address &> ns3::QKDSDNController::m_rxTrace

private

Traced Callback: received packets, source address.

Definition at line 526 of file qkd-sdn-controller.h.

Referenced by GetTypeId(), and HandleRead().

◆ m_rxTraceSDNs

TracedCallback<Ptr<const Packet>, const Address &> ns3::QKDSDNController::m_rxTraceSDNs

private

Definition at line 528 of file qkd-sdn-controller.h.

Referenced by GetTypeId().

◆ m_scheduledChecks

std::map<uint32_t, EventId > ns3::QKDSDNController::m_scheduledChecks

private

Definition at line 520 of file qkd-sdn-controller.h.

◆ m_sinkSocket

Ptr<Socket> ns3::QKDSDNController::m_sinkSocket

private

Definition at line 502 of file qkd-sdn-controller.h.

Referenced by DoDispose(), GetSocket(), PrepareSinkSocket(), SetSocket(), and StopApplication().

◆ m_socketPairs

std::map<Ptr<Socket>, Ptr<Socket> > ns3::QKDSDNController::m_socketPairs

private

the accepted sockets

Definition at line 551 of file qkd-sdn-controller.h.

Referenced by DoDispose(), GetAcceptedSockets(), HandleAccept(), SendToSocketPair(), and StopApplication().

◆ m_socketPairsKMS

std::map<Ipv4Address, std::pair<Ptr<Socket>, Ptr<Socket> > > ns3::QKDSDNController::m_socketPairsKMS

private

the accepted sockets for communication between KMSs

Definition at line 553 of file qkd-sdn-controller.h.

◆ m_tid

TypeId ns3::QKDSDNController::m_tid

private

Definition at line 512 of file qkd-sdn-controller.h.

Referenced by GetTypeId(), and PrepareSinkSocket().

◆ m_totalRx

uint32_t ns3::QKDSDNController::m_totalRx

private

Total bytes received

Definition at line 508 of file qkd-sdn-controller.h.

Referenced by QKDSDNController(), GetTotalRx(), and HandleRead().

◆ m_totalRxKMSs

uint32_t ns3::QKDSDNController::m_totalRxKMSs

private

Total bytes received between KMSs.

Definition at line 510 of file qkd-sdn-controller.h.

◆ m_txTrace

TracedCallback<Ptr<const Packet> > ns3::QKDSDNController::m_txTrace

private

Definition at line 527 of file qkd-sdn-controller.h.

Referenced by ConnectionSucceeded(), GetTypeId(), and SendToSocketPair().

◆ m_txTraceSDNs

TracedCallback<Ptr<const Packet> > ns3::QKDSDNController::m_txTraceSDNs

private

Definition at line 529 of file qkd-sdn-controller.h.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

src/applications/model/qkd-sdn-controller.h
src/applications/model/qkd-sdn-controller.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ RequestType

Constructor & Destructor Documentation

◆ QKDSDNController()

◆ ~QKDSDNController()

Member Function Documentation

◆ AddNewLink()

◆ Base64Decode()

◆ Base64Encode()

◆ CheckSocketsKMS()

◆ ConnectionFailed()

◆ ConnectionFailedKMSs()

◆ ConnectionSucceeded()

◆ ConnectionSucceededKMSs()

◆ CreateKeyContainer()

◆ CreateNew004Association()

◆ DataSend()

◆ DataSendKMSs()

◆ DoDispose()

◆ FetchRequestType()

◆ GetAcceptedSockets()

◆ GetAddress()

◆ GetDestinationKmsAddress()

◆ GetId()

◆ GetMaxKeyPerRequest()

◆ GetNode()

◆ GetPort()

◆ GetSendSocketKMS()

◆ GetSocket()

◆ GetSocketFromHttp004AppQuery()

◆ GetTotalRx()

◆ GetTypeId()

◆ HandleAccept()

◆ HandlePeerClose()

◆ HandlePeerError()

◆ HandleRead()

◆ Http004AppQuery()

◆ Http004AppQueryComplete()

◆ HttpKMSAddQuery()

◆ HttpKMSCompleteQuery()

◆ HttpQueryMethod()

◆ PacketReceived()

◆ PacketToString()

◆ PrepareSinkSocket()

◆ ProcessAddKeysRequest()

◆ ProcessAddKeysResponse()

◆ ProcessCloseRequest()

◆ ProcessGetKey004Request()

◆ ProcessNewAppRequest()

◆ ProcessNewAppResponse()

◆ ProcessOpenConnectRequest()

◆ ProcessRegisterRequest()

◆ ProcessRegisterResponse()

◆ ProcessRequest()

◆ ReadJsonQos()

◆ RegisterRequest()

◆ RegisterSaePair()

◆ ReleaseAssociation()

◆ SendToSocketPair()

◆ SendToSocketPairKMS()

◆ SetAddress()

◆ SetNode()

◆ SetPort()

◆ SetSocket()

◆ StartApplication()

◆ StopApplication()

Member Data Documentation

◆ m_associations004

◆ m_buffer

◆ m_bufferKMS

◆ m_closeSocketEvent
