Test OFDMA acknowledgment sequences. More...

Inheritance diagram for OfdmaAckSequenceTest:

Collaboration diagram for OfdmaAckSequenceTest:

Classes
struct	FrameInfo
	Information about transmitted frames. More...

struct	MuEdcaParameterSet
	MU EDCA Parameter Set. More...

Public Member Functions
	OfdmaAckSequenceTest (uint16_t width, WifiAcknowledgment::Method dlType, uint32_t maxAmpduSize, uint16_t txopLimit, uint16_t nPktsPerSta, MuEdcaParameterSet muEdcaParameterSet, WifiOfdmaScenario scenario)
	Constructor. More...

	~OfdmaAckSequenceTest () override

void	CheckResults (Time sifs, Time slotTime, uint8_t aifsn)
	Check correctness of transmitted frames. More...

void	L7Receive (std::string context, Ptr< const Packet > p, const Address &addr)
	Function to trace packets received by the server application. More...

void	TraceCw (uint32_t staIndex, uint32_t cw, uint8_t)
	Function to trace CW value used by the given station after the MU exchange. More...

void	Transmit (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when FrameExchangeManager passes PSDUs to the PHY. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Private Attributes
Ptr< WifiNetDevice >	m_apDevice
	AP's device. More...

uint16_t	m_channelWidth
	PHY channel bandwidth in MHz. More...

std::vector< uint32_t >	m_cwValues
	CW used by stations after MU exchange. More...

WifiAcknowledgment::Method	m_dlMuAckType
	DL MU ack sequence type. More...

WifiPreamble	m_dlMuPreamble
	expected preamble type for DL MU PPDUs More...

Time	m_edcaDisabledStartTime
	time when disabling EDCA started More...

uint16_t	m_flushed
	number of DL packets flushed after DL MU PPDU More...

uint32_t	m_maxAmpduSize
	maximum A-MPDU size in bytes More...

MuEdcaParameterSet	m_muEdcaParameterSet
	MU EDCA Parameter Set. More...

uint8_t	m_muRtsRuAllocation
	B7-B1 of RU Allocation subfield of MU-RTS. More...

uint16_t	m_nPktsPerSta
	number of packets to send to each station More...

uint16_t	m_nStations
	number of stations More...

uint16_t	m_received
	number of packets received by the stations More...

WifiOfdmaScenario	m_scenario
	OFDMA scenario to test. More...

std::vector< PacketSocketAddress >	m_sockets
	packet socket addresses for STAs More...

NetDeviceContainer	m_staDevices
	stations' devices More...

WifiPreamble	m_tbPreamble
	expected preamble type for TB PPDUs More...

uint16_t	m_txopLimit
	TXOP limit in microseconds. More...

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs More...

bool	m_ulPktsGenerated
	whether UL packets for HE TB PPDUs have been generated More...

Static Private Attributes
static constexpr uint16_t	m_muTimerRes = 8192
	MU timer resolution in usec. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test OFDMA acknowledgment sequences.

Run this test with:

NS_LOG="WifiMacOfdmaTestSuite=info|prefix_time|prefix_node" ./ns3 run "test-runner --suite=wifi-mac-ofdma"

to print the list of transmitted frames only, along with the TX time and the node prefix. Replace 'info' with 'debug' if you want to print the debug messages from the test multi-user scheduler only. Replace 'info' with 'level_debug' if you want to print both the transmitted frames and the debug messages.

Definition at line 396 of file wifi-mac-ofdma-test.cc.

Constructor & Destructor Documentation

◆ OfdmaAckSequenceTest()

OfdmaAckSequenceTest::OfdmaAckSequenceTest	(	uint16_t	width,
		WifiAcknowledgment::Method	dlType,
		uint32_t	maxAmpduSize,
		uint16_t	txopLimit,
		uint16_t	nPktsPerSta,
		MuEdcaParameterSet	muEdcaParameterSet,
		WifiOfdmaScenario	scenario
	)

Constructor.

Parameters

width	the PHY channel bandwidth in MHz
dlType	the DL MU ack sequence type
maxAmpduSize	the maximum A-MPDU size in bytes
txopLimit	the TXOP limit in microseconds
nPktsPerSta	number of packets to send to/receive from each station
muEdcaParameterSet	the MU EDCA Parameter Set
scenario	the OFDMA scenario to test

Definition at line 497 of file wifi-mac-ofdma-test.cc.

References EHT, HE, HE_EHT, m_channelWidth, m_dlMuPreamble, m_muRtsRuAllocation, m_scenario, m_tbPreamble, m_txPsdus, NS_ABORT_MSG, ns3::WIFI_PREAMBLE_EHT_MU, ns3::WIFI_PREAMBLE_EHT_TB, ns3::WIFI_PREAMBLE_HE_MU, and ns3::WIFI_PREAMBLE_HE_TB.

◆ ~OfdmaAckSequenceTest()

OfdmaAckSequenceTest::~OfdmaAckSequenceTest ( )

override

Definition at line 554 of file wifi-mac-ofdma-test.cc.

Member Function Documentation

◆ CheckResults()

void OfdmaAckSequenceTest::CheckResults	(	Time	sifs,
		Time	slotTime,
		uint8_t	aifsn
	)

Check correctness of transmitted frames.

Parameters

sifs	the SIFS duration
slotTime	a slot duration
aifsn	the AIFSN

Definition at line 711 of file wifi-mac-ofdma-test.cc.

References ns3::NetDeviceContainer::Get(), ns3::CtrlBAckResponseHeader::GetAckType(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiNetDevice::GetAddress(), ns3::Time::GetMicroSeconds(), ns3::CtrlBAckResponseHeader::GetNPerAidTidInfoSubfields(), ns3::CtrlTriggerHeader::GetNUserInfoFields(), ns3::GetPpduMaxTime(), ns3::WifiMacHeader::GetQosTid(), ns3::CtrlBAckResponseHeader::GetTidInfo(), ns3::WifiMacHeader::GetType(), ns3::CtrlTriggerHeader::IsBasic(), ns3::CtrlTriggerHeader::IsBsrp(), ns3::CtrlBAckResponseHeader::IsMultiSta(), ns3::CtrlTriggerHeader::IsMuRts(), m_apDevice, m_channelWidth, m_cwValues, m_dlMuAckType, m_dlMuPreamble, m_edcaDisabledStartTime, m_flushed, m_maxAmpduSize, m_muEdcaParameterSet, m_muRtsRuAllocation, m_muTimerRes, m_nPktsPerSta, m_nStations, m_received, m_staDevices, m_tbPreamble, m_txopLimit, m_txPsdus, OfdmaAckSequenceTest::MuEdcaParameterSet::muAifsn, OfdmaAckSequenceTest::MuEdcaParameterSet::muCwMin, OfdmaAckSequenceTest::MuEdcaParameterSet::muTimer, ns3::NanoSeconds(), NS_TEST_ASSERT_MSG_GT_OR_EQ, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_GT_OR_EQ, NS_TEST_EXPECT_MSG_LT, NS_TEST_EXPECT_MSG_LT_OR_EQ, NS_TEST_EXPECT_MSG_NE, prev, ns3::SU_STA_ID, ns3::WIFI_MAC_CTL_CTS, ns3::WIFI_MAC_QOSDATA_NULL, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by DoRun().

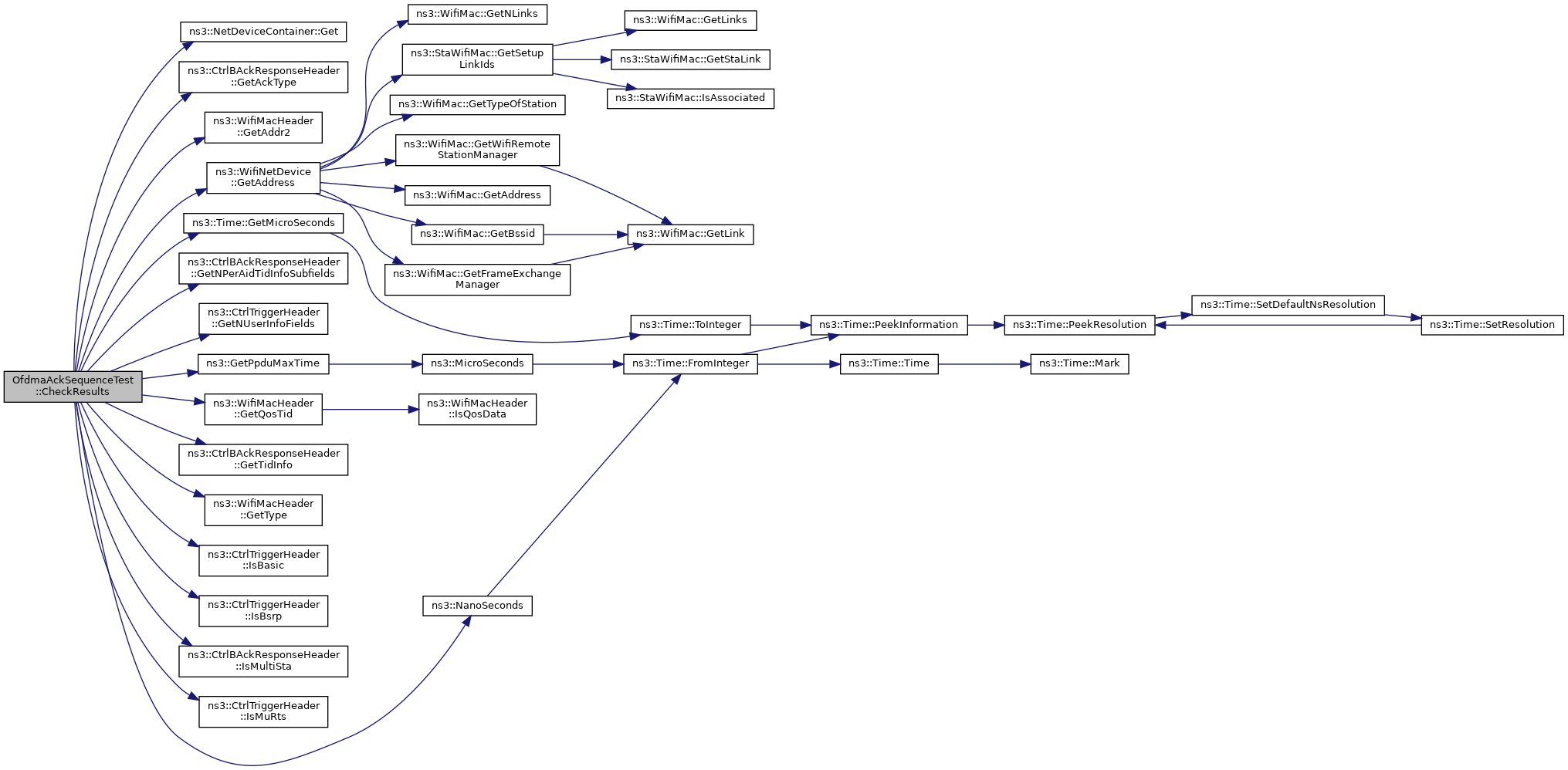

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void OfdmaAckSequenceTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1975 of file wifi-mac-ofdma-test.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, CheckResults(), ns3::Config::Connect(), ns3::NodeContainer::Create(), EHT, ns3::NetDeviceContainer::Get(), ns3::WifiNetDevice::GetAddress(), ns3::WifiNetDevice::GetIfIndex(), ns3::WifiNetDevice::GetMac(), ns3::NetDeviceContainer::GetN(), ns3::WifiMac::GetQosTxop(), ns3::WifiPhy::GetSifs(), ns3::WifiPhy::GetSlot(), ns3::WifiMac::GetWifiPhy(), HE, ns3::PacketSocketHelper::Install(), L7Receive(), m_apDevice, m_channelWidth, m_dlMuAckType, m_maxAmpduSize, m_muEdcaParameterSet, m_muTimerRes, m_nPktsPerSta, m_nStations, m_scenario, m_sockets, m_staDevices, m_txopLimit, third::mac, ns3::MakeCallback(), ns3::MicroSeconds(), ns3::MilliSeconds(), third::mobility, OfdmaAckSequenceTest::MuEdcaParameterSet::muAifsn, OfdmaAckSequenceTest::MuEdcaParameterSet::muCwMax, OfdmaAckSequenceTest::MuEdcaParameterSet::muCwMin, OfdmaAckSequenceTest::MuEdcaParameterSet::muTimer, NS_ABORT_MSG, third::phy, ns3::Seconds(), brite-generic-example::server, ns3::Config::SetDefault(), ns3::Config::SetGlobal(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), third::ssid, Transmit(), third::wifi, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax, ns3::WIFI_STANDARD_80211be, third::wifiApNode, and third::wifiStaNodes.

Here is the call graph for this function:

◆ L7Receive()

void OfdmaAckSequenceTest::L7Receive	(	std::string	context,
		Ptr< const Packet >	p,
		const Address &	addr
	)

Function to trace packets received by the server application.

Parameters

context	the context
p	the packet
addr	the address

Definition at line 559 of file wifi-mac-ofdma-test.cc.

References ns3::Packet::GetSize(), m_received, ns3::Now(), and ns3::Seconds().

Referenced by DoRun().

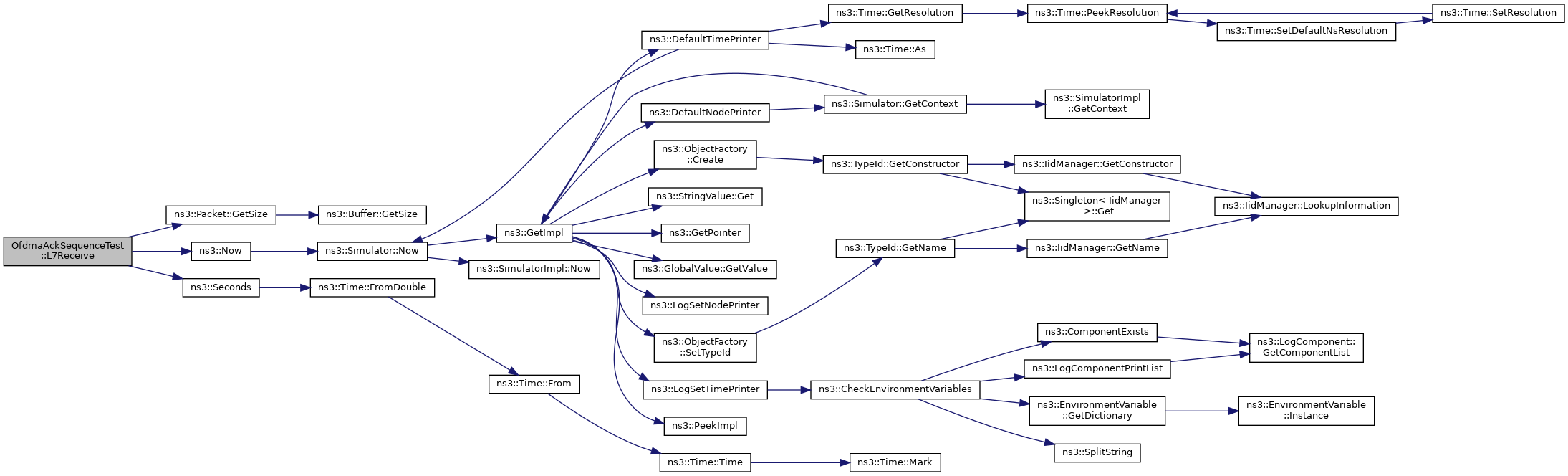

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TraceCw()

void OfdmaAckSequenceTest::TraceCw	(	uint32_t	staIndex,
		uint32_t	cw,
		uint8_t
	)

Function to trace CW value used by the given station after the MU exchange.

Parameters

staIndex	the index of the given station
cw	the current Contention Window value

Definition at line 568 of file wifi-mac-ofdma-test.cc.

References m_cwValues.

Referenced by Transmit().

Here is the caller graph for this function:

◆ Transmit()

void OfdmaAckSequenceTest::Transmit	(	std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

Callback invoked when FrameExchangeManager passes PSDUs to the PHY.

Parameters

context	the context
psduMap	the PSDU map
txVector	the TX vector
txPowerW	the tx power in Watts

Definition at line 579 of file wifi-mac-ofdma-test.cc.

References ns3::CtrlTriggerHeader::begin(), brite-generic-example::client, ns3::NetDeviceContainer::Get(), ns3::WifiNetDevice::GetAddress(), ns3::WifiNetDevice::GetMac(), ns3::NetDeviceContainer::GetN(), ns3::WifiTxVector::GetPreambleType(), ns3::WifiMac::GetQosTxop(), ns3::Txop::GetWifiMacQueue(), ns3::CtrlTriggerHeader::IsBasic(), ns3::WifiTxVector::IsMu(), ns3::CtrlBAckResponseHeader::IsMultiSta(), m_apDevice, m_dlMuPreamble, m_edcaDisabledStartTime, m_flushed, m_muEdcaParameterSet, m_nPktsPerSta, m_nStations, m_sockets, m_staDevices, m_tbPreamble, m_txPsdus, m_ulPktsGenerated, ns3::MakeCallback(), ns3::MicroSeconds(), OfdmaAckSequenceTest::MuEdcaParameterSet::muAifsn, OfdmaAckSequenceTest::MuEdcaParameterSet::muTimer, ns3::Now(), NS_LOG_INFO, ns3::Seconds(), nlohmann::to_string(), ns3::ObjectBase::TraceConnectWithoutContext(), TraceCw(), and ns3::WIFI_PHY_BAND_5GHZ.

Referenced by DoRun().

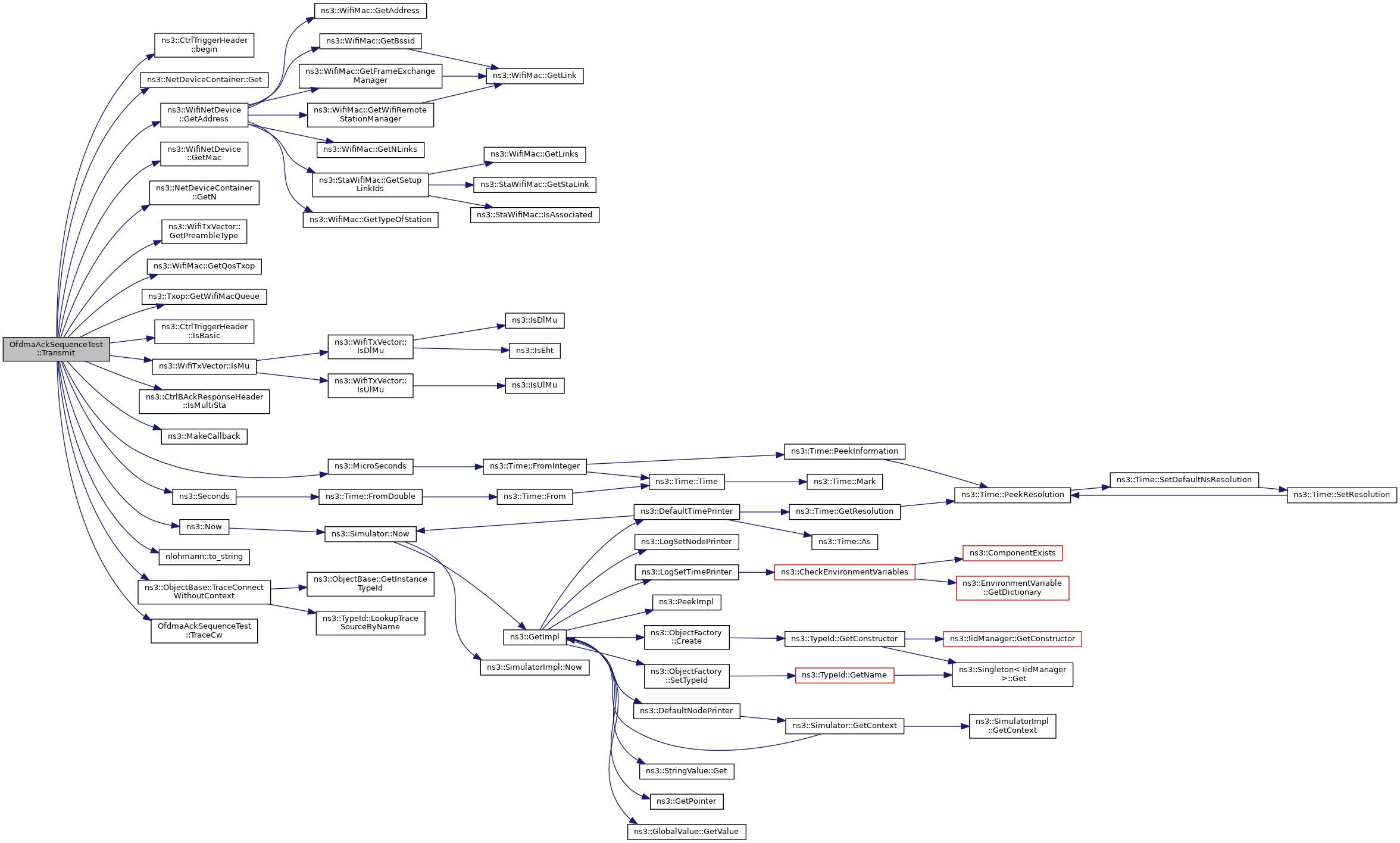

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_apDevice

Ptr<WifiNetDevice> OfdmaAckSequenceTest::m_apDevice

private

AP's device.

Definition at line 477 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), DoRun(), and Transmit().

◆ m_channelWidth

uint16_t OfdmaAckSequenceTest::m_channelWidth

private

PHY channel bandwidth in MHz.

Definition at line 479 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), CheckResults(), and DoRun().

◆ m_cwValues

std::vector<uint32_t> OfdmaAckSequenceTest::m_cwValues

private

CW used by stations after MU exchange.

Definition at line 494 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and TraceCw().

◆ m_dlMuAckType

WifiAcknowledgment::Method OfdmaAckSequenceTest::m_dlMuAckType

private

DL MU ack sequence type.

Definition at line 482 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and DoRun().

◆ m_dlMuPreamble

WifiPreamble OfdmaAckSequenceTest::m_dlMuPreamble

private

expected preamble type for DL MU PPDUs

Definition at line 488 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), CheckResults(), and Transmit().

◆ m_edcaDisabledStartTime

Time OfdmaAckSequenceTest::m_edcaDisabledStartTime

private

time when disabling EDCA started

Definition at line 493 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and Transmit().

◆ m_flushed

uint16_t OfdmaAckSequenceTest::m_flushed

private

number of DL packets flushed after DL MU PPDU

Definition at line 492 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and Transmit().

◆ m_maxAmpduSize

uint32_t OfdmaAckSequenceTest::m_maxAmpduSize

private

maximum A-MPDU size in bytes

Definition at line 483 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and DoRun().

◆ m_muEdcaParameterSet

MuEdcaParameterSet OfdmaAckSequenceTest::m_muEdcaParameterSet

private

MU EDCA Parameter Set.

Definition at line 486 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), DoRun(), and Transmit().

◆ m_muRtsRuAllocation

uint8_t OfdmaAckSequenceTest::m_muRtsRuAllocation

private

B7-B1 of RU Allocation subfield of MU-RTS.

Definition at line 480 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), and CheckResults().

◆ m_muTimerRes

constexpr uint16_t OfdmaAckSequenceTest::m_muTimerRes = 8192

staticconstexprprivate

MU timer resolution in usec.

Definition at line 464 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and DoRun().

◆ m_nPktsPerSta

uint16_t OfdmaAckSequenceTest::m_nPktsPerSta

private

number of packets to send to each station

Definition at line 485 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), DoRun(), and Transmit().

◆ m_nStations

uint16_t OfdmaAckSequenceTest::m_nStations

private

number of stations

Definition at line 475 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), DoRun(), and Transmit().

◆ m_received

uint16_t OfdmaAckSequenceTest::m_received

private

number of packets received by the stations

Definition at line 491 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and L7Receive().

◆ m_scenario

WifiOfdmaScenario OfdmaAckSequenceTest::m_scenario

private

OFDMA scenario to test.

Definition at line 487 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), and DoRun().

◆ m_sockets

std::vector<PacketSocketAddress> OfdmaAckSequenceTest::m_sockets

private

packet socket addresses for STAs

Definition at line 478 of file wifi-mac-ofdma-test.cc.

Referenced by DoRun(), and Transmit().

◆ m_staDevices

NetDeviceContainer OfdmaAckSequenceTest::m_staDevices

private

stations' devices

Definition at line 476 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), DoRun(), and Transmit().

◆ m_tbPreamble

WifiPreamble OfdmaAckSequenceTest::m_tbPreamble

private

expected preamble type for TB PPDUs

Definition at line 489 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), CheckResults(), and Transmit().

◆ m_txopLimit

uint16_t OfdmaAckSequenceTest::m_txopLimit

private

TXOP limit in microseconds.

Definition at line 484 of file wifi-mac-ofdma-test.cc.

Referenced by CheckResults(), and DoRun().

◆ m_txPsdus

std::vector<FrameInfo> OfdmaAckSequenceTest::m_txPsdus

private

transmitted PSDUs

Definition at line 481 of file wifi-mac-ofdma-test.cc.

Referenced by OfdmaAckSequenceTest(), CheckResults(), and Transmit().

◆ m_ulPktsGenerated

bool OfdmaAckSequenceTest::m_ulPktsGenerated

private

whether UL packets for HE TB PPDUs have been generated

Definition at line 490 of file wifi-mac-ofdma-test.cc.

Referenced by Transmit().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-mac-ofdma-test.cc

Classes

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OfdmaAckSequenceTest()

◆ ~OfdmaAckSequenceTest()

Member Function Documentation

◆ CheckResults()

◆ DoRun()

◆ L7Receive()

◆ TraceCw()

◆ Transmit()

Member Data Documentation

◆ m_apDevice

◆ m_channelWidth

◆ m_cwValues

◆ m_dlMuAckType

◆ m_dlMuPreamble

◆ m_edcaDisabledStartTime

◆ m_flushed

◆ m_maxAmpduSize

◆ m_muEdcaParameterSet

◆ m_muRtsRuAllocation

◆ m_muTimerRes

◆ m_nPktsPerSta

◆ m_nStations

◆ m_received

◆ m_scenario

◆ m_sockets

◆ m_staDevices

◆ m_tbPreamble

◆ m_txopLimit

◆ m_txPsdus

◆ m_ulPktsGenerated
