#include "dsdv-packet-queue.h"

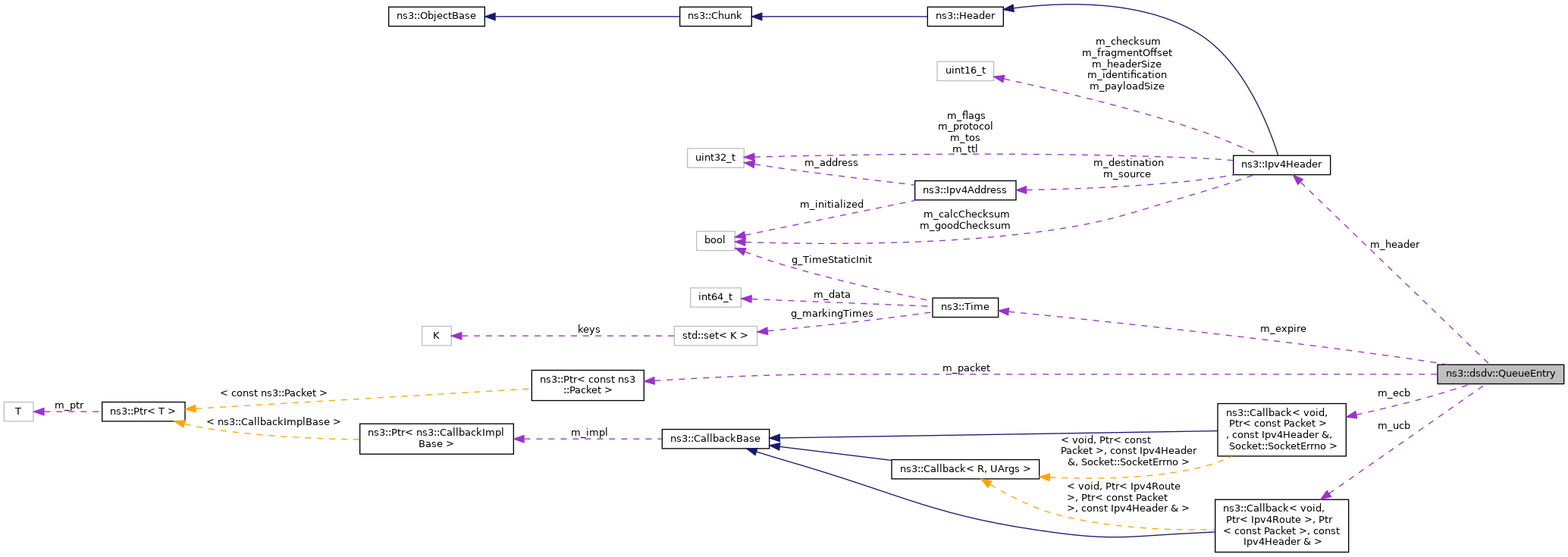

Collaboration diagram for ns3::dsdv::QueueEntry:

Public Types
typedef Ipv4RoutingProtocol::ErrorCallback	ErrorCallback
	Error callback function typedef. More...

typedef Ipv4RoutingProtocol::UnicastForwardCallback	UnicastForwardCallback
	Unicast forward call back function typedef. More...

Public Member Functions
	QueueEntry (Ptr< const Packet > pa=nullptr, const Ipv4Header &h=Ipv4Header(), UnicastForwardCallback ucb=UnicastForwardCallback(), ErrorCallback ecb=ErrorCallback())
	c-tor More...

ErrorCallback	GetErrorCallback () const
	Get error callback function. More...

Time	GetExpireTime () const
	Get expire time. More...

Ipv4Header	GetIpv4Header () const
	Get IP header. More...

Ptr< const Packet >	GetPacket () const
	Get packet. More...

UnicastForwardCallback	GetUnicastForwardCallback () const
	Get unicast forward callback function. More...

bool	operator== (const QueueEntry &o) const
	Compare queue entries. More...

void	SetErrorCallback (ErrorCallback ecb)
	Set error callback function. More...

void	SetExpireTime (Time exp)
	Set expire time. More...

void	SetIpv4Header (Ipv4Header h)
	Set IP header. More...

void	SetPacket (Ptr< const Packet > p)
	Set packet. More...

void	SetUnicastForwardCallback (UnicastForwardCallback ucb)
	Set unicast forward callback function. More...

Private Attributes
ErrorCallback	m_ecb
	Error callback. More...

Time	m_expire
	Expire time for queue entry. More...

Ipv4Header	m_header
	IP header. More...

Ptr< const Packet >	m_packet
	Data packet. More...

UnicastForwardCallback	m_ucb
	Unicast forward callback. More...

Detailed Description

DSDV Queue Entry.

Definition at line 47 of file dsdv-packet-queue.h.

Member Typedef Documentation

◆ ErrorCallback

typedef Ipv4RoutingProtocol::ErrorCallback ns3::dsdv::QueueEntry::ErrorCallback

Error callback function typedef.

Definition at line 53 of file dsdv-packet-queue.h.

◆ UnicastForwardCallback

typedef Ipv4RoutingProtocol::UnicastForwardCallback ns3::dsdv::QueueEntry::UnicastForwardCallback

Unicast forward call back function typedef.

Definition at line 51 of file dsdv-packet-queue.h.

Constructor & Destructor Documentation

◆ QueueEntry()

ns3::dsdv::QueueEntry::QueueEntry	(	Ptr< const Packet >	pa = `nullptr`,
		const Ipv4Header &	h = `Ipv4Header()`,
		UnicastForwardCallback	ucb = `UnicastForwardCallback()`,
		ErrorCallback	ecb = `ErrorCallback()`
	)

inline

c-tor

Parameters

pa	the packet to create the entry
h	the Ipv4Header
ucb	the UnicastForwardCallback function
ecb	the ErrorCallback function

Definition at line 63 of file dsdv-packet-queue.h.

Member Function Documentation

◆ GetErrorCallback()

ErrorCallback ns3::dsdv::QueueEntry::GetErrorCallback ( ) const

inline

Get error callback function.

Returns: the error callback

Definition at line 110 of file dsdv-packet-queue.h.

References m_ecb.

◆ GetExpireTime()

Time ns3::dsdv::QueueEntry::GetExpireTime ( ) const

inline

Get expire time.

Returns: the expire time

Definition at line 173 of file dsdv-packet-queue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsdv::IsExpired::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4Header()

Ipv4Header ns3::dsdv::QueueEntry::GetIpv4Header ( ) const

inline

Get IP header.

Returns: the IPv4 header

Definition at line 146 of file dsdv-packet-queue.h.

References m_header.

Referenced by ns3::dsdv::PacketQueue::Drop(), ns3::dsdv::PacketQueue::Enqueue(), and ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetPacket()

Ptr<const Packet> ns3::dsdv::QueueEntry::GetPacket ( ) const

inline

Get packet.

Returns: the current packet

Definition at line 128 of file dsdv-packet-queue.h.

References m_packet.

Referenced by ns3::dsdv::PacketQueue::Drop(), ns3::dsdv::PacketQueue::Enqueue(), and ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetUnicastForwardCallback()

UnicastForwardCallback ns3::dsdv::QueueEntry::GetUnicastForwardCallback ( ) const

inline

Get unicast forward callback function.

Returns: the unicast forward callback

Definition at line 92 of file dsdv-packet-queue.h.

References m_ucb.

Referenced by ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ operator==()

bool ns3::dsdv::QueueEntry::operator== ( const QueueEntry & o ) const

inline

Compare queue entries.

Parameters

o	QueueEntry to compare

Returns: true if equal

Definition at line 80 of file dsdv-packet-queue.h.

References ns3::Ipv4Header::GetDestination(), m_expire, m_header, and m_packet.

Here is the call graph for this function:

◆ SetErrorCallback()

void ns3::dsdv::QueueEntry::SetErrorCallback ( ErrorCallback ecb )

inline

Set error callback function.

Parameters

ecb	the error callback

Definition at line 119 of file dsdv-packet-queue.h.

References m_ecb.

◆ SetExpireTime()

void ns3::dsdv::QueueEntry::SetExpireTime ( Time exp )

inline

Set expire time.

Parameters

exp

Definition at line 164 of file dsdv-packet-queue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsdv::PacketQueue::Enqueue().

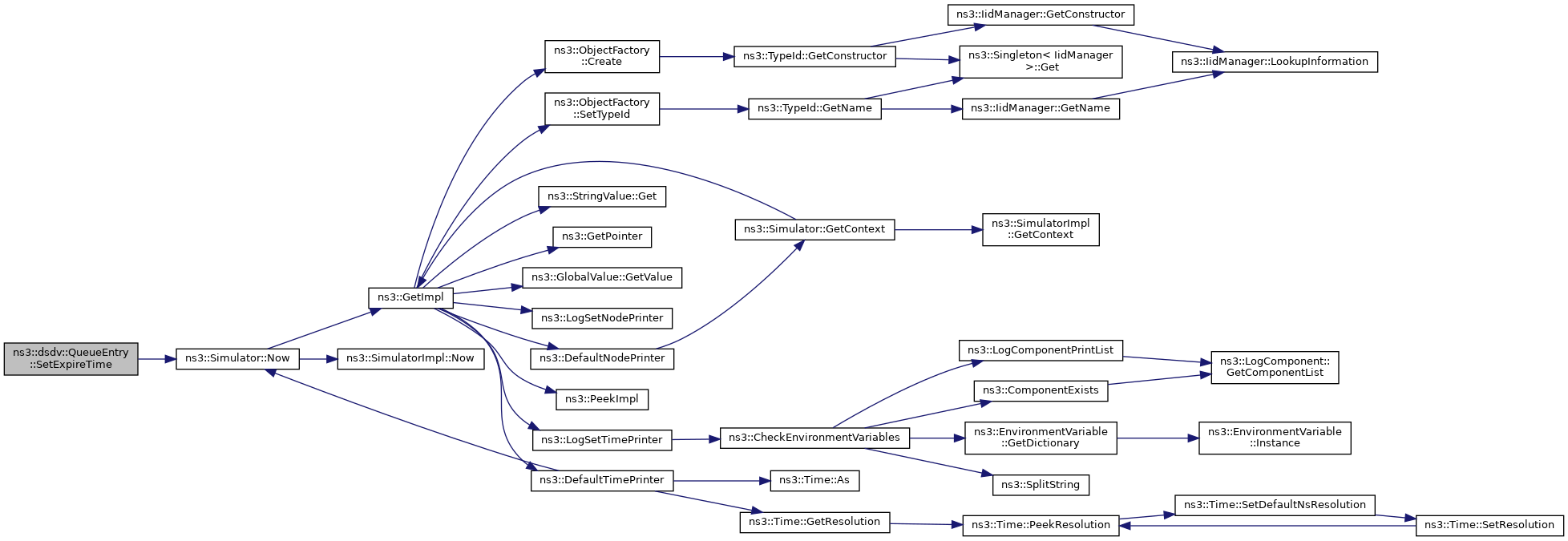

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIpv4Header()

void ns3::dsdv::QueueEntry::SetIpv4Header ( Ipv4Header h )

inline

Set IP header.

Parameters

h	The IPv4 header

Definition at line 155 of file dsdv-packet-queue.h.

References m_header.

◆ SetPacket()

void ns3::dsdv::QueueEntry::SetPacket ( Ptr< const Packet > p )

inline

Set packet.

Parameters

p	The current packet

Definition at line 137 of file dsdv-packet-queue.h.

References m_packet.

◆ SetUnicastForwardCallback()

void ns3::dsdv::QueueEntry::SetUnicastForwardCallback ( UnicastForwardCallback ucb )

inline

Set unicast forward callback function.

Parameters

ucb	the unicast forward callback

Definition at line 101 of file dsdv-packet-queue.h.

References m_ucb.

Member Data Documentation

◆ m_ecb

ErrorCallback ns3::dsdv::QueueEntry::m_ecb

private

Error callback.

Definition at line 186 of file dsdv-packet-queue.h.

Referenced by GetErrorCallback(), and SetErrorCallback().

◆ m_expire

Time ns3::dsdv::QueueEntry::m_expire

private

Expire time for queue entry.

Definition at line 188 of file dsdv-packet-queue.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

◆ m_header

Ipv4Header ns3::dsdv::QueueEntry::m_header

private

IP header.

Definition at line 182 of file dsdv-packet-queue.h.

Referenced by GetIpv4Header(), operator==(), and SetIpv4Header().

◆ m_packet

Ptr<const Packet> ns3::dsdv::QueueEntry::m_packet

private

Data packet.

Definition at line 180 of file dsdv-packet-queue.h.

Referenced by GetPacket(), operator==(), and SetPacket().

◆ m_ucb

UnicastForwardCallback ns3::dsdv::QueueEntry::m_ucb

private

Unicast forward callback.

Definition at line 184 of file dsdv-packet-queue.h.

Referenced by GetUnicastForwardCallback(), and SetUnicastForwardCallback().

The documentation for this class was generated from the following file:

src/dsdv/model/dsdv-packet-queue.h
