ns-3: ns3::aodv::QueueEntry Class Reference

A Discrete-Event Network Simulator

API

AODV Queue Entry. More...

#include "aodv-rqueue.h"

Collaboration diagram for ns3::aodv::QueueEntry:

Public Types
typedef Ipv4RoutingProtocol::ErrorCallback	ErrorCallback
	IPv4 routing error callback typedef. More...

typedef Ipv4RoutingProtocol::UnicastForwardCallback	UnicastForwardCallback
	IPv4 routing unicast forward callback typedef. More...

Public Member Functions
	QueueEntry (Ptr< const Packet > pa=nullptr, const Ipv4Header &h=Ipv4Header(), UnicastForwardCallback ucb=UnicastForwardCallback(), ErrorCallback ecb=ErrorCallback(), Time exp=Simulator::Now())
	constructor More...

ErrorCallback	GetErrorCallback () const
	Get error callback. More...

Time	GetExpireTime () const
	Get expire time. More...

Ipv4Header	GetIpv4Header () const
	Get IPv4 header. More...

Ptr< const Packet >	GetPacket () const
	Get packet from entry. More...

UnicastForwardCallback	GetUnicastForwardCallback () const
	Get unicast forward callback. More...

bool	operator== (const QueueEntry &o) const
	Compare queue entries. More...

void	SetErrorCallback (ErrorCallback ecb)
	Set error callback. More...

void	SetExpireTime (Time exp)
	Set expire time. More...

void	SetIpv4Header (Ipv4Header h)
	Set IPv4 header. More...

void	SetPacket (Ptr< const Packet > p)
	Set packet in entry. More...

void	SetUnicastForwardCallback (UnicastForwardCallback ucb)
	Set unicast forward callback. More...

Private Attributes
ErrorCallback	m_ecb
	Error callback. More...

Time	m_expire
	Expire time for queue entry. More...

Ipv4Header	m_header
	IP header. More...

Ptr< const Packet >	m_packet
	Data packet. More...

UnicastForwardCallback	m_ucb
	Unicast forward callback. More...

Detailed Description

AODV Queue Entry.

Definition at line 44 of file aodv-rqueue.h.

Member Typedef Documentation

◆ ErrorCallback

typedef Ipv4RoutingProtocol::ErrorCallback ns3::aodv::QueueEntry::ErrorCallback

IPv4 routing error callback typedef.

Definition at line 50 of file aodv-rqueue.h.

◆ UnicastForwardCallback

typedef Ipv4RoutingProtocol::UnicastForwardCallback ns3::aodv::QueueEntry::UnicastForwardCallback

IPv4 routing unicast forward callback typedef.

Definition at line 48 of file aodv-rqueue.h.

Constructor & Destructor Documentation

◆ QueueEntry()

ns3::aodv::QueueEntry::QueueEntry	(	Ptr< const Packet >	pa = `nullptr`,
		const Ipv4Header &	h = `Ipv4Header()`,
		UnicastForwardCallback	ucb = `UnicastForwardCallback()`,
		ErrorCallback	ecb = `ErrorCallback()`,
		Time	exp = `Simulator::Now()`
	)

inline

constructor

Parameters

pa	the packet to add to the queue
h	the Ipv4Header
ucb	the UnicastForwardCallback function
ecb	the ErrorCallback function
exp	the expiration time

Definition at line 61 of file aodv-rqueue.h.

Member Function Documentation

◆ GetErrorCallback()

ErrorCallback ns3::aodv::QueueEntry::GetErrorCallback ( ) const

inline

Get error callback.

Returns: the error callback

Definition at line 109 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Drop().

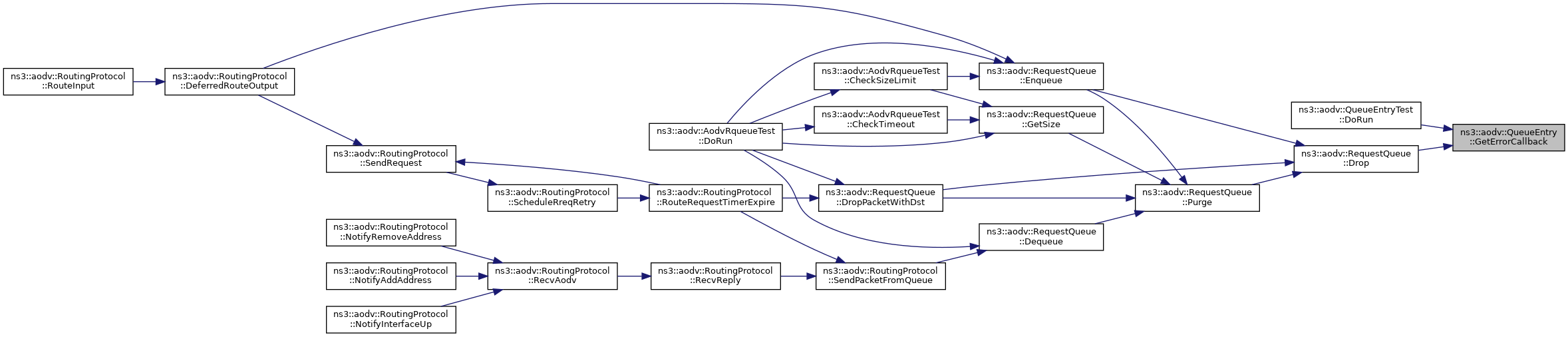

Here is the caller graph for this function:

◆ GetExpireTime()

Time ns3::aodv::QueueEntry::GetExpireTime ( ) const

inline

Get expire time.

Returns: the expiration time

Definition at line 172 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::IsExpired::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4Header()

Ipv4Header ns3::aodv::QueueEntry::GetIpv4Header ( ) const

inline

Get IPv4 header.

Returns: the IPv4 header

Definition at line 145 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

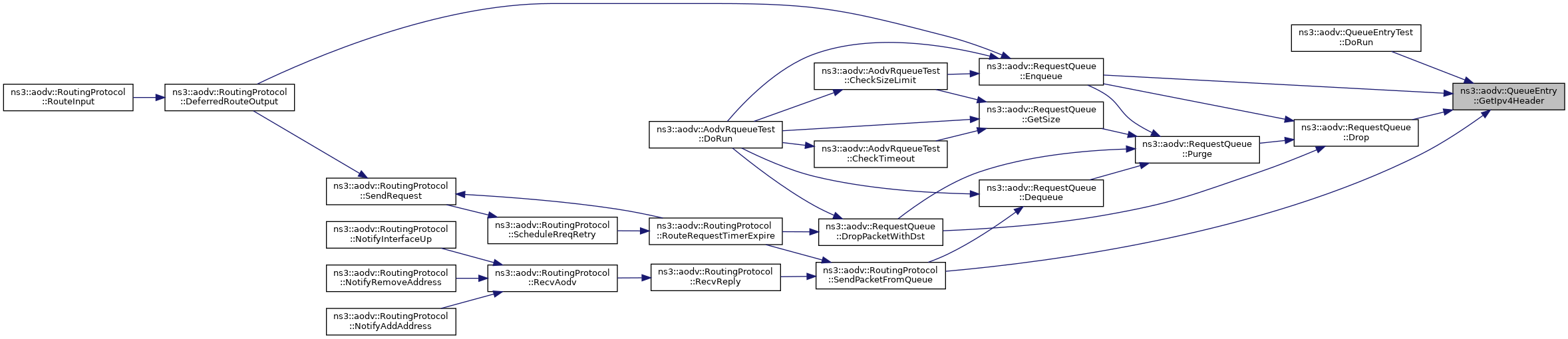

Here is the caller graph for this function:

◆ GetPacket()

Ptr<const Packet> ns3::aodv::QueueEntry::GetPacket ( ) const

inline

Get packet from entry.

Returns: the packet

Definition at line 127 of file aodv-rqueue.h.

References m_packet.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetUnicastForwardCallback()

UnicastForwardCallback ns3::aodv::QueueEntry::GetUnicastForwardCallback ( ) const

inline

Get unicast forward callback.

Returns: unicast callback

Definition at line 91 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ operator==()

bool ns3::aodv::QueueEntry::operator== ( const QueueEntry & o ) const

inline

Compare queue entries.

Parameters

o	QueueEntry to compare

Returns: true if equal

Definition at line 79 of file aodv-rqueue.h.

References ns3::Ipv4Header::GetDestination(), m_expire, m_header, and m_packet.

Here is the call graph for this function:

◆ SetErrorCallback()

void ns3::aodv::QueueEntry::SetErrorCallback ( ErrorCallback ecb )

inline

Set error callback.

Parameters

ecb	The error callback

Definition at line 118 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

◆ SetExpireTime()

void ns3::aodv::QueueEntry::SetExpireTime ( Time exp )

inline

Set expire time.

Parameters

exp	The expiration time

Definition at line 163 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIpv4Header()

void ns3::aodv::QueueEntry::SetIpv4Header ( Ipv4Header h )

inline

Set IPv4 header.

Parameters

h	the IPv4 header

Definition at line 154 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

◆ SetPacket()

void ns3::aodv::QueueEntry::SetPacket ( Ptr< const Packet > p )

inline

Set packet in entry.

Parameters

p	The packet

Definition at line 136 of file aodv-rqueue.h.

References m_packet.

◆ SetUnicastForwardCallback()

void ns3::aodv::QueueEntry::SetUnicastForwardCallback ( UnicastForwardCallback ucb )

inline

Set unicast forward callback.

Parameters

ucb	The unicast callback

Definition at line 100 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ecb

ErrorCallback ns3::aodv::QueueEntry::m_ecb

private

Error callback.

Definition at line 185 of file aodv-rqueue.h.

Referenced by GetErrorCallback(), and SetErrorCallback().

◆ m_expire

Time ns3::aodv::QueueEntry::m_expire

private

Expire time for queue entry.

Definition at line 187 of file aodv-rqueue.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

◆ m_header

Ipv4Header ns3::aodv::QueueEntry::m_header

private

IP header.

Definition at line 181 of file aodv-rqueue.h.

Referenced by GetIpv4Header(), operator==(), and SetIpv4Header().

◆ m_packet

Ptr<const Packet> ns3::aodv::QueueEntry::m_packet

private

Data packet.

Definition at line 179 of file aodv-rqueue.h.

Referenced by GetPacket(), operator==(), and SetPacket().

◆ m_ucb

UnicastForwardCallback ns3::aodv::QueueEntry::m_ucb

private

Unicast forward callback.

Definition at line 183 of file aodv-rqueue.h.

Referenced by GetUnicastForwardCallback(), and SetUnicastForwardCallback().

The documentation for this class was generated from the following file:

src/aodv/model/aodv-rqueue.h
