Model application which simulates the traffic of a web server. More...

#include "three-gpp-http-server.h"

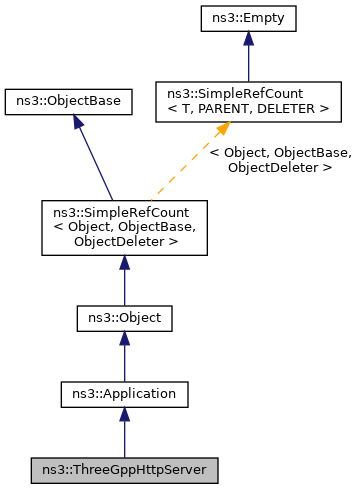

Inheritance diagram for ns3::ThreeGppHttpServer:

Collaboration diagram for ns3::ThreeGppHttpServer:

Public Types
typedef void(*	ConnectionEstablishedCallback) (Ptr< const ThreeGppHttpServer > httpServer, Ptr< Socket > socket)
	Callback signature for `ConnectionEstablished` trace source. More...

enum	State_t { NOT_STARTED = 0 , STARTED , STOPPED }
	The possible states of the application. More...

typedef void(*	ThreeGppHttpObjectCallback) (uint32_t size)
	Common callback signature for `MainObject` and `EmbeddedObject` trace sources. More...

Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Public Member Functions
	ThreeGppHttpServer ()
	Creates a new instance of HTTP server application. More...

Ptr< Socket >	GetSocket () const
	Returns a pointer to the listening socket. More...

State_t	GetState () const
	Returns the current state of the application. More...

std::string	GetStateString () const
	Returns the current state of the application in string format. More...

void	SetMtuSize (uint32_t mtuSize)
	Sets the maximum transmission unit (MTU) size used by the application. More...

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static std::string	GetStateString (State_t state)
	Returns the given state in string format. More...

static TypeId	GetTypeId ()
	Returns the object TypeId. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	StartApplication () override
	Application specific startup code. More...

void	StopApplication () override
	Application specific shutdown code. More...

Protected Member Functions inherited from ns3::Application
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
bool	ConnectionRequestCallback (Ptr< Socket > socket, const Address &address)
	Invoked when m_initialSocket receives a connection request. More...

void	ErrorCloseCallback (Ptr< Socket > socket)
	Invoked when a connection with a web client is terminated. More...

void	NewConnectionCreatedCallback (Ptr< Socket > socket, const Address &address)
	Invoked when a new connection has been established. More...

void	NormalCloseCallback (Ptr< Socket > socket)
	Invoked when a connection with a web client is terminated. More...

void	ReceivedDataCallback (Ptr< Socket > socket)
	Invoked when m_initialSocket receives some packet data. More...

void	SendCallback (Ptr< Socket > socket, uint32_t availableBufferSize)
	Invoked when more buffer space for transmission is added to a socket. More...

uint32_t	ServeFromTxBuffer (Ptr< Socket > socket)
	Creates a packet out of a pending object in the Tx buffer send it over the given socket. More...

void	ServeNewEmbeddedObject (Ptr< Socket > socket)
	Generates a new embedded object and push it into the Tx buffer. More...

void	ServeNewMainObject (Ptr< Socket > socket)
	Generates a new main object and push it into the Tx buffer. More...

void	SwitchToState (State_t state)
	Change the state of the server. More...

Private Attributes
TracedCallback< Ptr< const ThreeGppHttpServer >, Ptr< Socket > >	m_connectionEstablishedTrace
	The `ConnectionEstablished` trace source. More...

TracedCallback< uint32_t >	m_embeddedObjectTrace
	The `EmbeddedObject` trace source. More...

Ptr< ThreeGppHttpVariables >	m_httpVariables
	The `Variables` attribute. More...

Ptr< Socket >	m_initialSocket
	The listening socket, for receiving connection requests from clients. More...

Address	m_localAddress
	The `LocalAddress` attribute. More...

uint16_t	m_localPort
	The `LocalPort` attribute. More...

TracedCallback< uint32_t >	m_mainObjectTrace
	The `MainObject` trace source. More...

uint32_t	m_mtuSize
	The `Mtu` attribute. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	The `RxDelay` trace source. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	The `Rx` trace source. More...

State_t	m_state
	The current state of the client application. Begins with NOT_STARTED. More...

TracedCallback< const std::string &, const std::string & >	m_stateTransitionTrace
	The `StateTransition` trace source. More...

Ptr< ThreeGppHttpServerTxBuffer >	m_txBuffer
	Pointer to the transmission buffer. More...

TracedCallback< Ptr< const Packet > >	m_txTrace
	The `Tx` trace source. More...

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Model application which simulates the traffic of a web server.

This application works in conjunction with ThreeGppHttpClient applications.

The application works by responding to requests. Each request is a small packet of data which contains ThreeGppHttpHeader. The value of the content type field of the header determines the type of object that the client is requesting. The possible type is either a main object or an embedded object.

The application is responsible to generate the right type of object and send it back to the client. The size of each object to be sent is randomly determined (see ThreeGppHttpVariables). Each object may be sent as multiple packets due to limited socket buffer space.

To assist with the transmission, the application maintains several instances of ThreeGppHttpServerTxBuffer. Each instance keeps track of the object type to be served and the number of bytes left to be sent.

The application accepts connection request from clients. Every connection is kept open until the client disconnects.

Definition at line 68 of file three-gpp-http-server.h.

Member Typedef Documentation

◆ ConnectionEstablishedCallback

typedef void(* ns3::ThreeGppHttpServer::ConnectionEstablishedCallback) (Ptr< const ThreeGppHttpServer > httpServer, Ptr< Socket > socket)

Callback signature for ConnectionEstablished trace source.

Parameters

httpServer	Pointer to this instance of ThreeGppHttpServer, which is where the trace originated.
socket	Pointer to the socket where the connection is established.

Definition at line 147 of file three-gpp-http-server.h.

◆ ThreeGppHttpObjectCallback

typedef void(* ns3::ThreeGppHttpServer::ThreeGppHttpObjectCallback) (uint32_t size)

Common callback signature for MainObject and EmbeddedObject trace sources.

Parameters

size	Size of the generated object in bytes.

Definition at line 139 of file three-gpp-http-server.h.

Member Enumeration Documentation

◆ State_t

enum ns3::ThreeGppHttpServer::State_t

The possible states of the application.

Enumerator
NOT_STARTED	Before StartApplication() is invoked.
STARTED	Passively listening and responding to requests.
STOPPED	After StopApplication() is invoked.

Definition at line 108 of file three-gpp-http-server.h.

Constructor & Destructor Documentation

◆ ThreeGppHttpServer()

ns3::ThreeGppHttpServer::ThreeGppHttpServer ( )

Creates a new instance of HTTP server application.

After creation, the application must be further configured through attributes. To avoid having to do this process manually, please use ThreeGppHttpServerHelper.

Upon creation, the application randomly determines the MTU size that it will use (either 536 or 1460 bytes). The chosen size will be used while creating the listener socket.

Definition at line 47 of file three-gpp-http-server.cc.

References m_httpVariables, m_mtuSize, NS_LOG_FUNCTION, and NS_LOG_INFO.

Member Function Documentation

◆ ConnectionRequestCallback()

bool ns3::ThreeGppHttpServer::ConnectionRequestCallback	(	Ptr< Socket >	socket,
		const Address &	address
	)

private

Invoked when m_initialSocket receives a connection request.

Parameters

socket	Pointer to the socket where the event originates from.
address	The address of the remote client where the connection request comes from.

Returns: Always true, to indicate to the other end that the connection request is accepted.

Definition at line 279 of file three-gpp-http-server.cc.

References first::address, and NS_LOG_FUNCTION.

Referenced by StartApplication().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ThreeGppHttpServer::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 170 of file three-gpp-http-server.cc.

References ns3::Application::DoDispose(), ns3::Simulator::IsFinished(), NS_LOG_FUNCTION, and StopApplication().

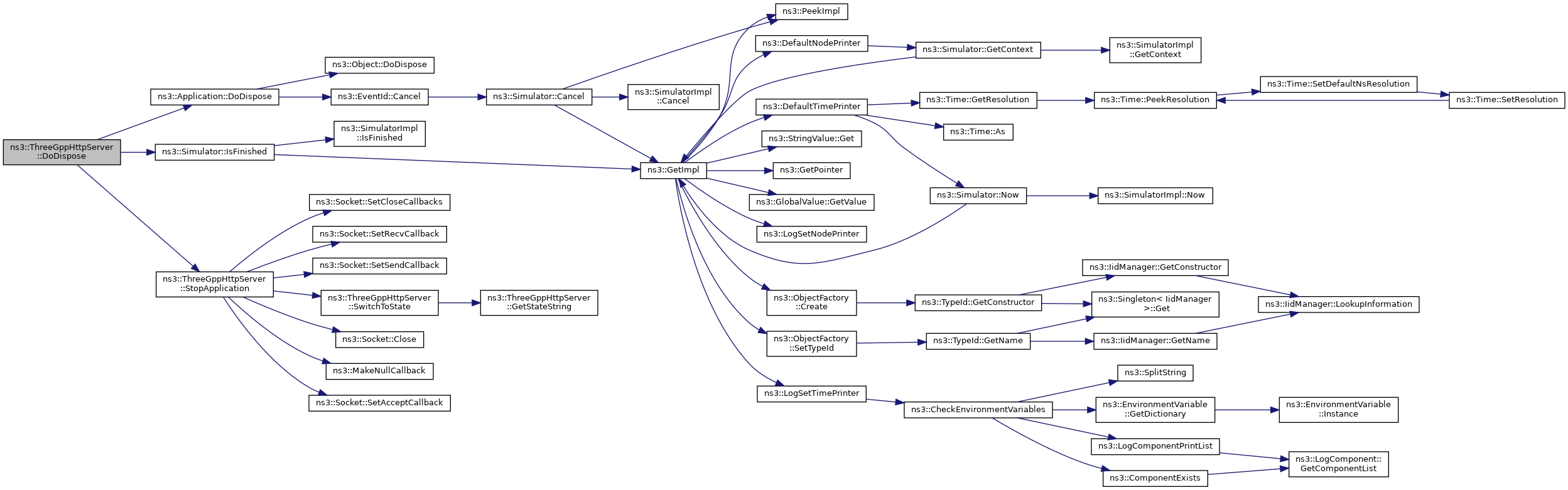

Here is the call graph for this function:

◆ ErrorCloseCallback()

void ns3::ThreeGppHttpServer::ErrorCloseCallback ( Ptr< Socket > socket )

private

Invoked when a connection with a web client is terminated.

The corresponding socket will be removed from Tx buffer.

Parameters

socket Pointer to the socket where the event originates from.

Definition at line 348 of file three-gpp-http-server.cc.

References m_initialSocket, m_state, m_txBuffer, NS_FATAL_ERROR, NS_LOG_FUNCTION, and STARTED.

Referenced by NewConnectionCreatedCallback(), and StartApplication().

Here is the caller graph for this function:

◆ GetSocket()

Ptr< Socket > ns3::ThreeGppHttpServer::GetSocket ( void ) const

Returns a pointer to the listening socket.

Returns: Pointer to the listening socket

Definition at line 134 of file three-gpp-http-server.cc.

References m_initialSocket.

◆ GetState()

ThreeGppHttpServer::State_t ns3::ThreeGppHttpServer::GetState ( ) const

Returns the current state of the application.

Returns: The current state of the application.

Definition at line 140 of file three-gpp-http-server.cc.

References m_state.

◆ GetStateString() [1/2]

std::string ns3::ThreeGppHttpServer::GetStateString ( ) const

Returns the current state of the application in string format.

Returns: The current state of the application in string format.

Definition at line 146 of file three-gpp-http-server.cc.

References m_state.

Referenced by StartApplication(), and SwitchToState().

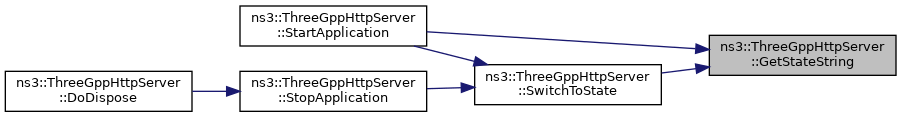

Here is the caller graph for this function:

◆ GetStateString() [2/2]

std::string ns3::ThreeGppHttpServer::GetStateString ( ThreeGppHttpServer::State_t state )

static

Returns the given state in string format.

Parameters

state An arbitrary state of an application.

Returns: The given state equivalently expressed in string format.

Definition at line 153 of file three-gpp-http-server.cc.

References NOT_STARTED, NS_FATAL_ERROR, STARTED, and STOPPED.

◆ GetTypeId()

TypeId ns3::ThreeGppHttpServer::GetTypeId ( void )

static

Returns the object TypeId.

Returns: The object TypeId.

Definition at line 61 of file three-gpp-http-server.cc.

References ns3::TypeId::ATTR_GET, m_connectionEstablishedTrace, m_embeddedObjectTrace, m_httpVariables, m_localAddress, m_localPort, m_mainObjectTrace, m_mtuSize, m_rxDelayTrace, m_rxTrace, m_stateTransitionTrace, m_txTrace, ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

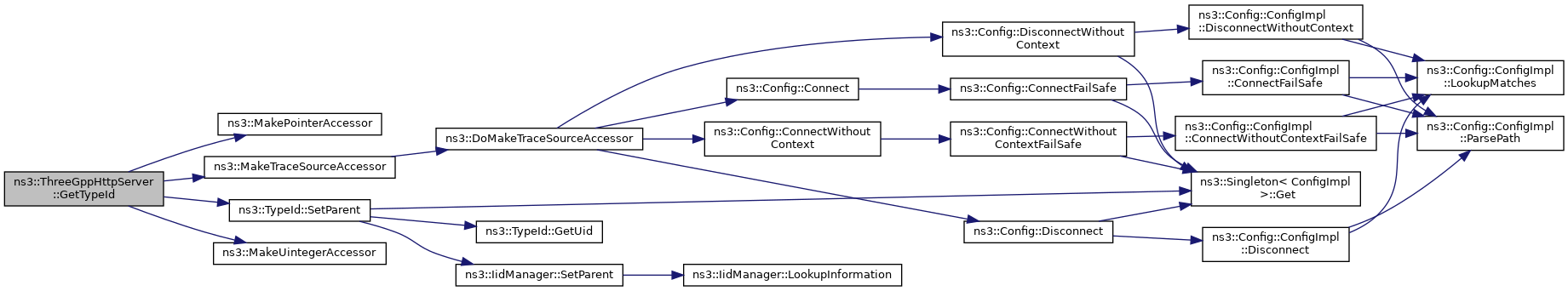

Here is the call graph for this function:

◆ NewConnectionCreatedCallback()

void ns3::ThreeGppHttpServer::NewConnectionCreatedCallback	(	Ptr< Socket >	socket,
		const Address &	address
	)

private

Invoked when a new connection has been established.

Parameters

socket	Pointer to the socket that maintains the connection to the remote client. This socket will be saved to the Tx buffer.
address	The address the connection is incoming from.

Definition at line 286 of file three-gpp-http-server.cc.

References first::address, ErrorCloseCallback(), m_connectionEstablishedTrace, m_txBuffer, ns3::MakeCallback(), NormalCloseCallback(), NS_LOG_FUNCTION, ReceivedDataCallback(), SendCallback(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), and ns3::Socket::SetSendCallback().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NormalCloseCallback()

void ns3::ThreeGppHttpServer::NormalCloseCallback ( Ptr< Socket > socket )

private

Invoked when a connection with a web client is terminated.

The corresponding socket will be removed from Tx buffer.

Parameters

socket Pointer to the socket where the event originates from.

Definition at line 312 of file three-gpp-http-server.cc.

References m_initialSocket, m_state, m_txBuffer, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Socket::ShutdownSend(), and STARTED.

Referenced by NewConnectionCreatedCallback(), and StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceivedDataCallback()

void ns3::ThreeGppHttpServer::ReceivedDataCallback ( Ptr< Socket > socket )

private

Invoked when m_initialSocket receives some packet data.

It will check the packet for ThreeGppHttpHeader. It also fires the Rx trace source.

Depending on the type of object requested, the method will trigger ServeMainObject() or ServeEmbeddedObject() after some delays.

Parameters

socket Pointer to the socket where the event originates from.

Definition at line 367 of file three-gpp-http-server.cc.

References ns3::Time::As(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), ns3::ThreeGppHttpHeader::EMBEDDED_OBJECT, ns3::ThreeGppHttpHeader::GetClientTs(), ns3::ThreeGppHttpHeader::GetContentType(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_httpVariables, m_rxDelayTrace, m_rxTrace, m_txBuffer, ns3::ThreeGppHttpHeader::MAIN_OBJECT, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Packet::PeekHeader(), ns3::Socket::RecvFrom(), ns3::Time::S, ns3::Simulator::Schedule(), ServeNewEmbeddedObject(), and ServeNewMainObject().

Referenced by NewConnectionCreatedCallback(), and StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCallback()

void ns3::ThreeGppHttpServer::SendCallback	(	Ptr< Socket >	socket,
		uint32_t	availableBufferSize
	)

private

Invoked when more buffer space for transmission is added to a socket.

The method will invoke ServeFromTxBuffer() to start some transmission using the socket.

Parameters

socket	Pointer to the socket where the event originates from.
availableBufferSize	The number of bytes available in the socket's transmission buffer.

Definition at line 445 of file three-gpp-http-server.cc.

References ns3::ThreeGppHttpHeader::EMBEDDED_OBJECT, m_txBuffer, ns3::ThreeGppHttpHeader::MAIN_OBJECT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and ServeFromTxBuffer().

Referenced by NewConnectionCreatedCallback(), and StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ServeFromTxBuffer()

uint32_t ns3::ThreeGppHttpServer::ServeFromTxBuffer ( Ptr< Socket > socket )

private

Creates a packet out of a pending object in the Tx buffer send it over the given socket.

If the socket capacity is smaller than the object size, then the method only convert a part of the object into a packet.

ThreeGppHttpHeader will be attached in the beginning of each application layer packet - if a packet is split, then then the following parts will not have the header. The method fires the Tx trace source after sending the packet to the socket.

This method is invoked when a new object is generated by ServeNewMainObject() or ServeNewEmbeddedObject(). It's also invoked when the socket informs (through SendCallback()) that more buffer space for transmission has become available.

Parameters

socket Pointer to the socket which is associated with the destination client.

Returns: Size of the packet sent (in bytes).

Definition at line 539 of file three-gpp-http-server.cc.

References ns3::Packet::AddHeader(), ns3::ThreeGppHttpHeader::GetClientTs(), ns3::Socket::GetErrno(), ns3::ThreeGppHttpHeader::GetSerializedSize(), ns3::Socket::GetTxAvailable(), m_txBuffer, m_txTrace, min, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, packetSize, ns3::Time::S, ns3::Socket::Send(), ns3::ThreeGppHttpHeader::SetClientTs(), ns3::ThreeGppHttpHeader::SetContentLength(), ns3::ThreeGppHttpHeader::SetContentType(), and ns3::ThreeGppHttpHeader::SetServerTs().

Referenced by SendCallback(), ServeNewEmbeddedObject(), and ServeNewMainObject().

Here is the call graph for this function:

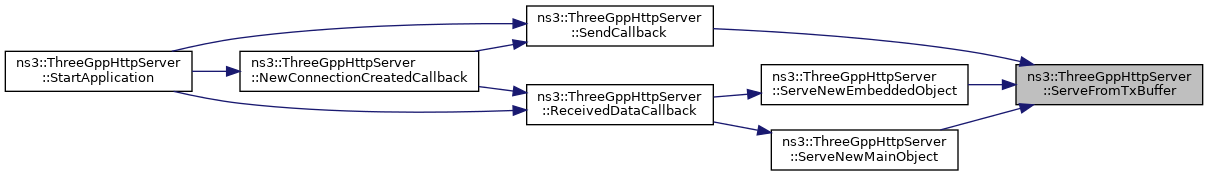

Here is the caller graph for this function:

◆ ServeNewEmbeddedObject()

void ns3::ThreeGppHttpServer::ServeNewEmbeddedObject ( Ptr< Socket > socket )

private

Generates a new embedded object and push it into the Tx buffer.

The size of the object is randomly determined by ThreeGppHttpVariables. Fires the EmbeddedObject trace source. It then immediately triggers ServeFromTxBuffer() to send the object.

Parameters

socket Pointer to the socket which is associated with the destination client.

Definition at line 517 of file three-gpp-http-server.cc.

References ns3::ThreeGppHttpHeader::EMBEDDED_OBJECT, m_embeddedObjectTrace, m_httpVariables, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, and ServeFromTxBuffer().

Referenced by ReceivedDataCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ServeNewMainObject()

void ns3::ThreeGppHttpServer::ServeNewMainObject ( Ptr< Socket > socket )

private

Generates a new main object and push it into the Tx buffer.

The size of the object is randomly determined by ThreeGppHttpVariables. Fires the MainObject trace source. It then immediately triggers ServeFromTxBuffer() to send the object.

Parameters

socket Pointer to the socket which is associated with the destination client.

Definition at line 495 of file three-gpp-http-server.cc.

References m_httpVariables, m_mainObjectTrace, m_txBuffer, ns3::ThreeGppHttpHeader::MAIN_OBJECT, NS_LOG_FUNCTION, NS_LOG_INFO, and ServeFromTxBuffer().

Referenced by ReceivedDataCallback().

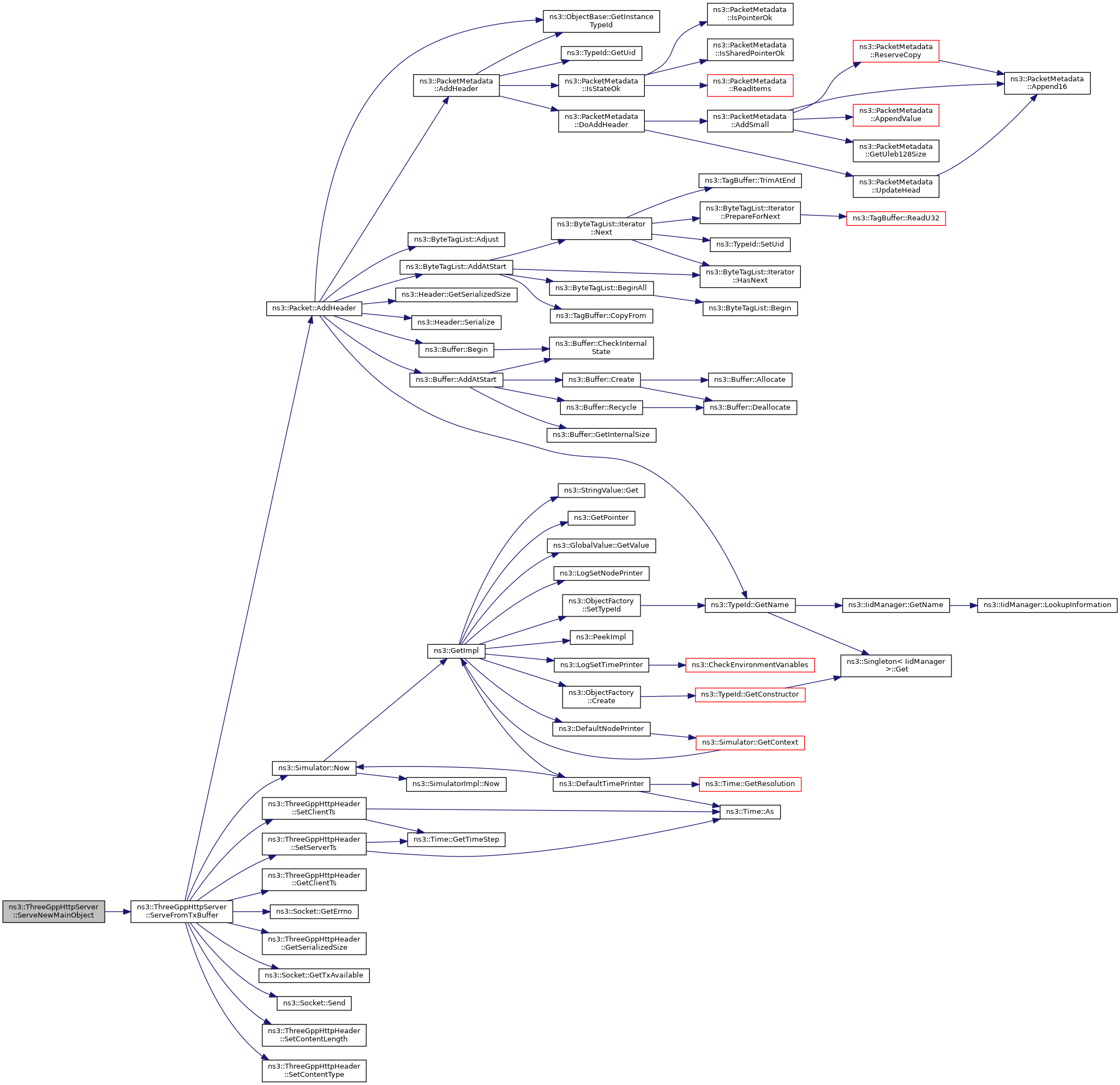

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMtuSize()

void ns3::ThreeGppHttpServer::SetMtuSize ( uint32_t mtuSize )

Sets the maximum transmission unit (MTU) size used by the application.

This overrides the MTU size which is randomly determined once the application is created. Values other than the standard 536 and 1460 bytes can be set using this method.

Parameters

mtuSize MTU size in bytes.

Definition at line 127 of file three-gpp-http-server.cc.

References m_mtuSize, and NS_LOG_FUNCTION.

◆ StartApplication()

void ns3::ThreeGppHttpServer::StartApplication ( void )

overrideprotectedvirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 183 of file three-gpp-http-server.cc.

References ns3::Socket::Bind(), ConnectionRequestCallback(), ns3::Ipv4Address::ConvertFrom(), ns3::Ipv6Address::ConvertFrom(), ns3::Socket::CreateSocket(), ErrorCloseCallback(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::Socket::GetErrno(), ns3::Application::GetNode(), GetStateString(), ns3::TcpSocketFactory::GetTypeId(), ns3::TcpSocket::GetTypeId(), ns3::TypeId::AttributeInformation::initialValue, nsclick-simple-lan::ipv4, ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), ns3::Socket::Listen(), m_httpVariables, m_initialSocket, m_localAddress, m_localPort, m_mtuSize, m_state, ns3::MakeCallback(), ns3::TypeId::AttributeInformation::name, NewConnectionCreatedCallback(), NormalCloseCallback(), NOT_STARTED, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ReceivedDataCallback(), SendCallback(), ns3::Socket::SetAcceptCallback(), ns3::ObjectBase::SetAttribute(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetSendCallback(), STARTED, and SwitchToState().

Here is the call graph for this function:

◆ StopApplication()

void ns3::ThreeGppHttpServer::StopApplication ( void )

overrideprotectedvirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 256 of file three-gpp-http-server.cc.

References ns3::Socket::Close(), m_initialSocket, m_txBuffer, ns3::MakeNullCallback(), NS_LOG_FUNCTION, ns3::Socket::SetAcceptCallback(), ns3::Socket::SetCloseCallbacks(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetSendCallback(), STOPPED, and SwitchToState().

Referenced by DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SwitchToState()

void ns3::ThreeGppHttpServer::SwitchToState ( ThreeGppHttpServer::State_t state )

private

Change the state of the server.

Fires the StateTransition trace source.

Parameters

state The new state.

Definition at line 616 of file three-gpp-http-server.cc.

References GetStateString(), m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by StartApplication(), and StopApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_connectionEstablishedTrace

TracedCallback<Ptr<const ThreeGppHttpServer>, Ptr<Socket> > ns3::ThreeGppHttpServer::m_connectionEstablishedTrace

private

The ConnectionEstablished trace source.

Definition at line 281 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and NewConnectionCreatedCallback().

◆ m_embeddedObjectTrace

TracedCallback<uint32_t> ns3::ThreeGppHttpServer::m_embeddedObjectTrace

private

The EmbeddedObject trace source.

Definition at line 285 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and ServeNewEmbeddedObject().

◆ m_httpVariables

Ptr<ThreeGppHttpVariables> ns3::ThreeGppHttpServer::m_httpVariables

private

The Variables attribute.

Definition at line 270 of file three-gpp-http-server.h.

Referenced by ThreeGppHttpServer(), GetTypeId(), ReceivedDataCallback(), ServeNewEmbeddedObject(), ServeNewMainObject(), and StartApplication().

◆ m_initialSocket

Ptr<Socket> ns3::ThreeGppHttpServer::m_initialSocket

private

The listening socket, for receiving connection requests from clients.

Definition at line 263 of file three-gpp-http-server.h.

Referenced by ErrorCloseCallback(), GetSocket(), NormalCloseCallback(), StartApplication(), and StopApplication().

◆ m_localAddress

Address ns3::ThreeGppHttpServer::m_localAddress

private

The LocalAddress attribute.

Definition at line 272 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and StartApplication().

◆ m_localPort

uint16_t ns3::ThreeGppHttpServer::m_localPort

private

The LocalPort attribute.

Definition at line 274 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and StartApplication().

◆ m_mainObjectTrace

TracedCallback<uint32_t> ns3::ThreeGppHttpServer::m_mainObjectTrace

private

The MainObject trace source.

Definition at line 283 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and ServeNewMainObject().

◆ m_mtuSize

uint32_t ns3::ThreeGppHttpServer::m_mtuSize

private

The Mtu attribute.

Definition at line 276 of file three-gpp-http-server.h.

Referenced by ThreeGppHttpServer(), GetTypeId(), SetMtuSize(), and StartApplication().

◆ m_rxDelayTrace

TracedCallback<const Time&, const Address&> ns3::ThreeGppHttpServer::m_rxDelayTrace

private

The RxDelay trace source.

Definition at line 291 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and ReceivedDataCallback().

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::ThreeGppHttpServer::m_rxTrace

private

The Rx trace source.

Definition at line 289 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and ReceivedDataCallback().

◆ m_state

State_t ns3::ThreeGppHttpServer::m_state

private

The current state of the client application. Begins with NOT_STARTED.

Definition at line 261 of file three-gpp-http-server.h.

Referenced by ErrorCloseCallback(), GetState(), GetStateString(), NormalCloseCallback(), StartApplication(), and SwitchToState().

◆ m_stateTransitionTrace

TracedCallback<const std::string&, const std::string&> ns3::ThreeGppHttpServer::m_stateTransitionTrace

private

The StateTransition trace source.

Definition at line 293 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and SwitchToState().

◆ m_txBuffer

Ptr<ThreeGppHttpServerTxBuffer> ns3::ThreeGppHttpServer::m_txBuffer

private

Pointer to the transmission buffer.

Definition at line 265 of file three-gpp-http-server.h.

Referenced by ErrorCloseCallback(), NewConnectionCreatedCallback(), NormalCloseCallback(), ReceivedDataCallback(), SendCallback(), ServeFromTxBuffer(), ServeNewEmbeddedObject(), ServeNewMainObject(), and StopApplication().

◆ m_txTrace

TracedCallback<Ptr<const Packet> > ns3::ThreeGppHttpServer::m_txTrace

private

The Tx trace source.

Definition at line 287 of file three-gpp-http-server.h.

Referenced by GetTypeId(), and ServeFromTxBuffer().

The documentation for this class was generated from the following files:

src/applications/model/three-gpp-http-server.h
src/applications/model/three-gpp-http-server.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConnectionEstablishedCallback

◆ ThreeGppHttpObjectCallback

Member Enumeration Documentation

◆ State_t

Constructor & Destructor Documentation

◆ ThreeGppHttpServer()

Member Function Documentation

◆ ConnectionRequestCallback()

◆ DoDispose()

◆ ErrorCloseCallback()

◆ GetSocket()

◆ GetState()

◆ GetStateString() [1/2]

◆ GetStateString() [2/2]

◆ GetTypeId()

◆ NewConnectionCreatedCallback()

◆ NormalCloseCallback()

◆ ReceivedDataCallback()

◆ SendCallback()

◆ ServeFromTxBuffer()

◆ ServeNewEmbeddedObject()

◆ ServeNewMainObject()

◆ SetMtuSize()

◆ StartApplication()

◆ StopApplication()

◆ SwitchToState()

Member Data Documentation

◆ m_connectionEstablishedTrace

◆ m_embeddedObjectTrace

◆ m_httpVariables

◆ m_initialSocket

◆ m_localAddress

◆ m_localPort

◆ m_mainObjectTrace

◆ m_mtuSize

◆ m_rxDelayTrace

◆ m_rxTrace

◆ m_state

◆ m_stateTransitionTrace

◆ m_txBuffer

◆ m_txTrace
