create the AlohaNoackNetDevice More...

#include "adhoc-aloha-noack-ideal-phy-helper.h"

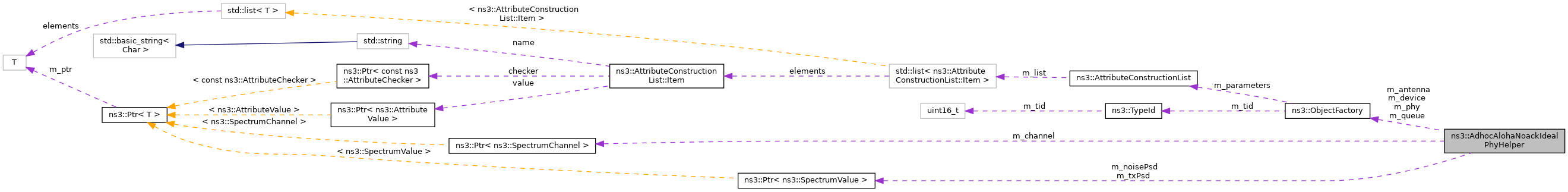

Collaboration diagram for ns3::AdhocAlohaNoackIdealPhyHelper:

Public Member Functions
	AdhocAlohaNoackIdealPhyHelper ()

	~AdhocAlohaNoackIdealPhyHelper ()

NetDeviceContainer	Install (NodeContainer c) const

NetDeviceContainer	Install (Ptr< Node > node) const

NetDeviceContainer	Install (std::string nodeName) const

template<typename... Ts>
void	SetAntenna (std::string type, Ts &&... args)

void	SetChannel (Ptr< SpectrumChannel > channel)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...

void	SetChannel (std::string channelName)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)

void	SetNoisePowerSpectralDensity (Ptr< SpectrumValue > noisePsd)

void	SetPhyAttribute (std::string name, const AttributeValue &v)

void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)

Protected Attributes
ObjectFactory	m_antenna
	Object factory for the Antenna objects. More...

Ptr< SpectrumChannel >	m_channel
	Channel. More...

ObjectFactory	m_device
	Object factory for the NetDevice objects. More...

Ptr< SpectrumValue >	m_noisePsd
	Noise power spectral density. More...

ObjectFactory	m_phy
	Object factory for the phy objects. More...

ObjectFactory	m_queue
	Object factory for the Queue objects. More...

Ptr< SpectrumValue >	m_txPsd
	Tx power spectral density. More...

Detailed Description

create the AlohaNoackNetDevice

Definition at line 41 of file adhoc-aloha-noack-ideal-phy-helper.h.

Constructor & Destructor Documentation

◆ AdhocAlohaNoackIdealPhyHelper()

ns3::AdhocAlohaNoackIdealPhyHelper::AdhocAlohaNoackIdealPhyHelper ( )

Definition at line 39 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_antenna, m_device, m_phy, m_queue, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ ~AdhocAlohaNoackIdealPhyHelper()

ns3::AdhocAlohaNoackIdealPhyHelper::~AdhocAlohaNoackIdealPhyHelper ( )

Definition at line 47 of file adhoc-aloha-noack-ideal-phy-helper.cc.

Member Function Documentation

◆ Install() [1/3]

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install ( NodeContainer c ) const

Parameters

c	the set of nodes on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 91 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), first::devices, ns3::NodeContainer::End(), ns3::Object::GetObject(), m_antenna, m_channel, m_device, m_noisePsd, m_phy, m_queue, m_txPsd, ns3::MakeCallback(), ns3::AlohaNoackNetDevice::NotifyReceptionEndOk(), ns3::AlohaNoackNetDevice::NotifyReceptionStart(), ns3::AlohaNoackNetDevice::NotifyTransmissionEnd(), NS_ASSERT, NS_ASSERT_MSG, third::phy, and ns3::HalfDuplexIdealPhy::StartTx().

Referenced by SpectrumIdealPhyTestCase::DoRun(), and Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/3]

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install ( Ptr< Node > node ) const

Parameters

node	the node on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 153 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References Install().

Here is the call graph for this function:

◆ Install() [3/3]

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install ( std::string nodeName ) const

Parameters

nodeName the name of node on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 159 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References Install().

Here is the call graph for this function:

◆ SetAntenna()

template<typename... Ts>

void ns3::AdhocAlohaNoackIdealPhyHelper::SetAntenna	(	std::string	type,
		Ts &&...	args
	)

Template Parameters

Ts	[deduced] Argument types

Parameters

	type	the type of the model to set
[in]	args	Name and AttributeValue pairs to set.

Configure the AntennaModel instance for each new device to be created

Definition at line 133 of file adhoc-aloha-noack-ideal-phy-helper.h.

References check-style-clang-format::args, and m_antenna.

◆ SetChannel() [1/2]

void ns3::AdhocAlohaNoackIdealPhyHelper::SetChannel ( Ptr< SpectrumChannel > channel )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channel

Definition at line 52 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References third::channel, and m_channel.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

◆ SetChannel() [2/2]

void ns3::AdhocAlohaNoackIdealPhyHelper::SetChannel ( std::string channelName )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channelName

Definition at line 58 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References third::channel, and m_channel.

◆ SetDeviceAttribute()

void ns3::AdhocAlohaNoackIdealPhyHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

Definition at line 85 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_device, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetNoisePowerSpectralDensity()

void ns3::AdhocAlohaNoackIdealPhyHelper::SetNoisePowerSpectralDensity ( Ptr< SpectrumValue > noisePsd )

Parameters

noisePsd the Power Spectral Density to be used for transmission by all created PHY instances

Definition at line 72 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_noisePsd, and NS_LOG_FUNCTION.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

◆ SetPhyAttribute()

void ns3::AdhocAlohaNoackIdealPhyHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

Definition at line 79 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxPowerSpectralDensity()

void ns3::AdhocAlohaNoackIdealPhyHelper::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

Parameters

txPsd the Power Spectral Density to be used for transmission by all created PHY instances

Definition at line 65 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_txPsd, and NS_LOG_FUNCTION.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_antenna

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_antenna

protected

Object factory for the Antenna objects.

Definition at line 121 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetAntenna().

◆ m_channel

Ptr<SpectrumChannel> ns3::AdhocAlohaNoackIdealPhyHelper::m_channel

protected

Definition at line 122 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetChannel().

◆ m_device

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_device

protected

Object factory for the NetDevice objects.

Definition at line 119 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetDeviceAttribute().

◆ m_noisePsd

Ptr<SpectrumValue> ns3::AdhocAlohaNoackIdealPhyHelper::m_noisePsd

protected

Noise power spectral density.

Definition at line 124 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetNoisePowerSpectralDensity().

◆ m_phy

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_phy

protected

Object factory for the phy objects.

Definition at line 118 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetPhyAttribute().

◆ m_queue

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_queue

protected

Object factory for the Queue objects.

Definition at line 120 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), and Install().

◆ m_txPsd

Ptr<SpectrumValue> ns3::AdhocAlohaNoackIdealPhyHelper::m_txPsd

protected

Tx power spectral density.

Definition at line 123 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetTxPowerSpectralDensity().

The documentation for this class was generated from the following files:

src/spectrum/helper/adhoc-aloha-noack-ideal-phy-helper.h
src/spectrum/helper/adhoc-aloha-noack-ideal-phy-helper.cc
