ns3::WifiMacHelper Class Reference

create MAC layers for a ns3::WifiNetDevice. More...

#include "wifi-mac-helper.h"

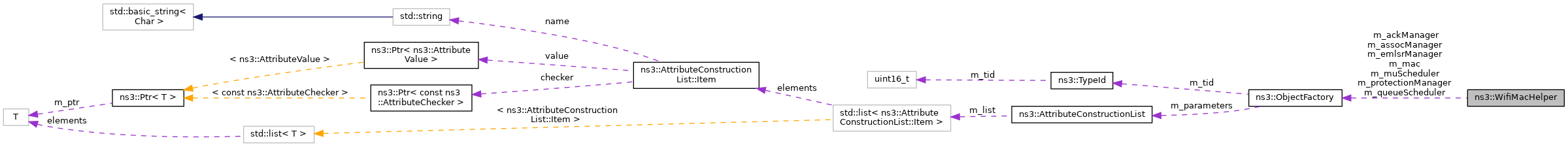

+ Collaboration diagram for ns3::WifiMacHelper:

Public Member Functions

 WifiMacHelper ()
 Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers. More...

virtual ~WifiMacHelper ()
 Destroy a WifiMacHelper. More...

virtual Ptr< WifiMac > Create (Ptr< WifiNetDevice > device, WifiStandard standard) const

template<typename... Args>
void SetAckManager (std::string type, Args &&... args)
 Helper function used to set the Acknowledgment Manager. More...

template<typename... Args>
void SetAssocManager (std::string type, Args &&... args)
 Helper function used to set the Association Manager. More...

template<typename... Args>
void SetEmlsrManager (std::string type, Args &&... args)
 Helper function used to set the EMLSR Manager that can be installed on an EHT non-AP MLD. More...

template<typename... Args>
void SetMacQueueScheduler (std::string type, Args &&... args)
 Helper function used to set the MAC queue scheduler. More...

template<typename... Args>
void SetMultiUserScheduler (std::string type, Args &&... args)
 Helper function used to set the Multi User Scheduler that can be aggregated to an HE AP's MAC. More...

template<typename... Args>
void SetProtectionManager (std::string type, Args &&... args)
 Helper function used to set the Protection Manager. More...

template<typename... Args>
void SetType (std::string type, Args &&... args)


Protected Attributes

ObjectFactory m_ackManager
 Factory to create an acknowledgment manager. More...

ObjectFactory m_assocManager
 Association Manager. More...

ObjectFactory m_emlsrManager
 EMLSR Manager object factory. More...

ObjectFactory m_mac
 MAC object factory. More...

ObjectFactory m_muScheduler
 Multi-user Scheduler object factory. More...

ObjectFactory m_protectionManager
 Factory to create a protection manager. More...

ObjectFactory m_queueScheduler
 MAC queue scheduler. More...


Detailed Description

create MAC layers for a ns3::WifiNetDevice.

This class can create MACs of type ns3::ApWifiMac, ns3::StaWifiMac and ns3::AdhocWifiMac. Its purpose is to allow a WifiHelper to configure and install WifiMac objects on a collection of nodes. The WifiMac objects themselves are mainly composed of TxMiddle, RxMiddle, ChannelAccessManager, FrameExchangeManager, WifiRemoteStationManager, MpduAggregator and MsduAggregartor objects, so this helper offers the opportunity to configure attribute values away from their default values, on a per-NodeContainer basis. By default, it creates an Adhoc MAC layer without QoS. Typically, it is used to set type and attribute values, then hand this object over to the WifiHelper that finishes the job of installing.

This class may be further subclassed (WaveMacHelper is an example of this).

Definition at line 47 of file wifi-mac-helper.h.

Constructor & Destructor Documentation

◆ WifiMacHelper()

ns3::WifiMacHelper::WifiMacHelper ( )

Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers.

Definition at line 36 of file wifi-mac-helper.cc.

References m_ackManager, m_assocManager, m_emlsrManager, m_protectionManager, m_queueScheduler, SetType(), and ns3::ObjectFactory::SetTypeId().

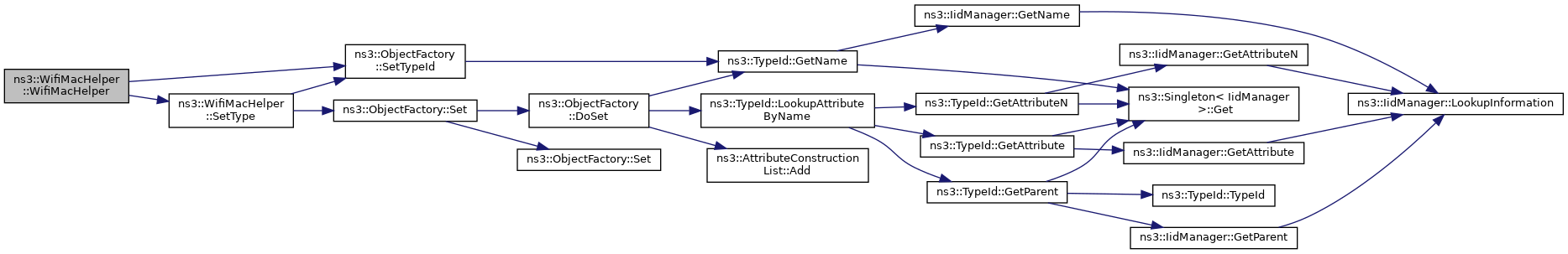

+ Here is the call graph for this function:

◆ ~WifiMacHelper()

ns3::WifiMacHelper::~WifiMacHelper ( )
virtual

Destroy a WifiMacHelper.

Definition at line 48 of file wifi-mac-helper.cc.

Member Function Documentation

◆ Create()

Ptr< WifiMac > ns3::WifiMacHelper::Create ( Ptr< WifiNetDevice >  device,
WifiStandard  standard
) const
virtual
Parameters
devicethe device within which the MAC object will reside
standardthe standard to configure during installation
Returns
a new MAC object.

This allows the ns3::WifiHelper class to create MAC objects from ns3::WifiHelper::Install.

Definition at line 53 of file wifi-mac-helper.cc.

References ns3::Object::AggregateObject(), ns3::Mac48Address::Allocate(), ns3::ObjectFactory::Create(), ns3::WifiNetDevice::GetEhtConfiguration(), ns3::WifiNetDevice::GetNPhys(), ns3::ObjectFactory::IsTypeIdSet(), m_ackManager, m_assocManager, m_emlsrManager, m_mac, m_muScheduler, m_protectionManager, m_queueScheduler, third::mac, NS_ABORT_MSG_IF, ns3::ObjectFactory::Set(), ns3::WifiNetDevice::SetMac(), ns3::WIFI_STANDARD_80211ax, ns3::WIFI_STANDARD_80211be, ns3::WIFI_STANDARD_80211n, and ns3::WIFI_STANDARD_UNSPECIFIED.

Referenced by ns3::WifiHelper::Install().

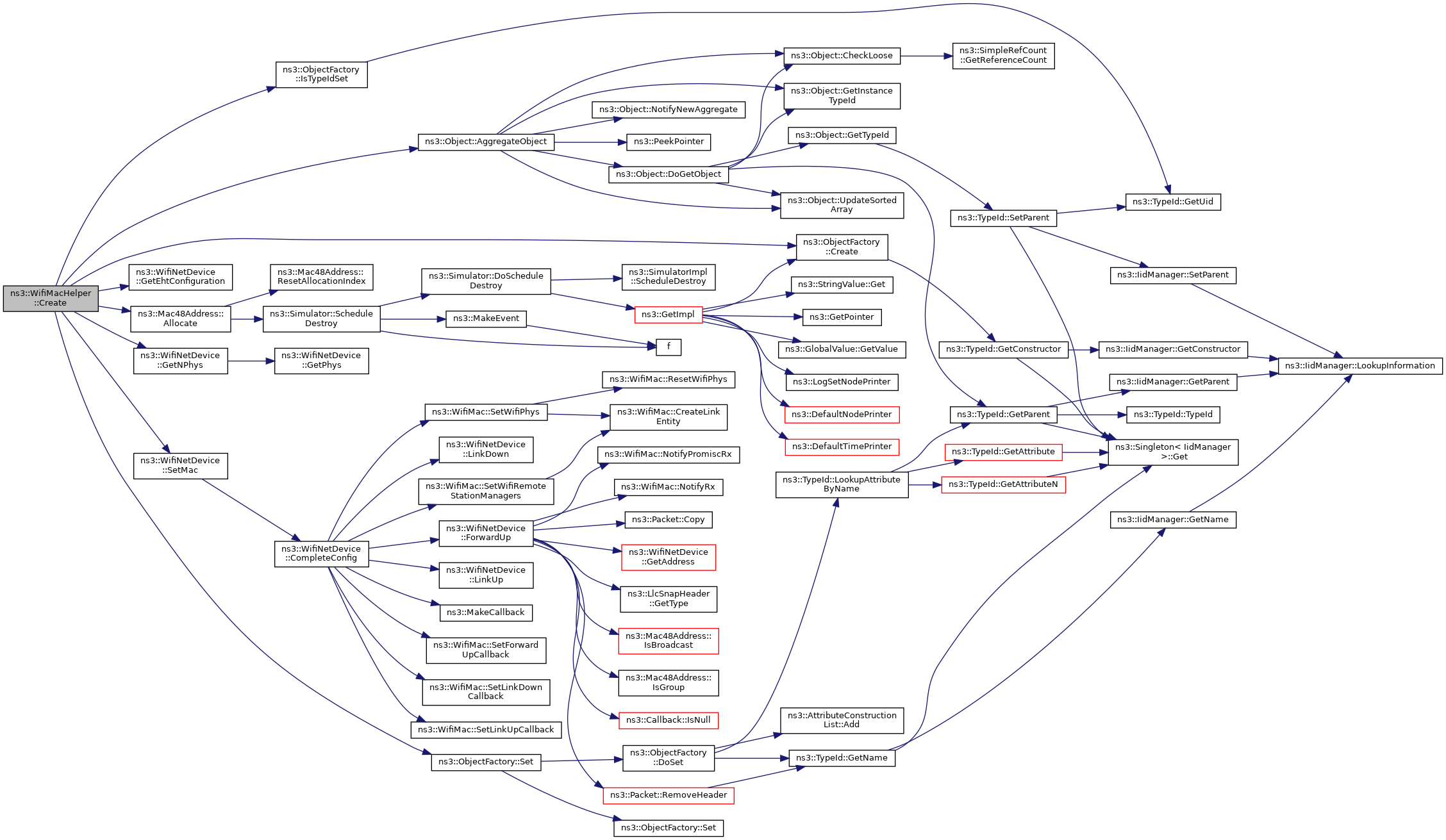

+ Here is the call graph for this function:

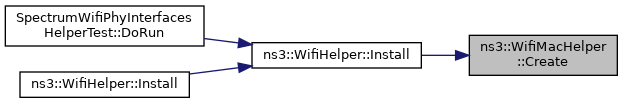

+ Here is the caller graph for this function:

◆ SetAckManager()

template<typename... Args>
void ns3::WifiMacHelper::SetAckManager ( std::string  type,
Args &&...  args
)

Helper function used to set the Acknowledgment Manager.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of Acknowledgment Manager
argsA sequence of name-value pairs of the attributes to set.

Definition at line 194 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_ackManager, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

+ Here is the call graph for this function:

◆ SetAssocManager()

template<typename... Args>
void ns3::WifiMacHelper::SetAssocManager ( std::string  type,
Args &&...  args
)

Helper function used to set the Association Manager.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of Association Manager
argsA sequence of name-value pairs of the attributes to set.

Definition at line 170 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_assocManager, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

+ Here is the call graph for this function:

◆ SetEmlsrManager()

template<typename... Args>
void ns3::WifiMacHelper::SetEmlsrManager ( std::string  type,
Args &&...  args
)

Helper function used to set the EMLSR Manager that can be installed on an EHT non-AP MLD.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of EMLSR Manager
argsA sequence of name-value pairs of the attributes to set.

Definition at line 210 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_emlsrManager, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

+ Here is the call graph for this function:

◆ SetMacQueueScheduler()

template<typename... Args>
void ns3::WifiMacHelper::SetMacQueueScheduler ( std::string  type,
Args &&...  args
)

Helper function used to set the MAC queue scheduler.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of MAC queue scheduler
argsA sequence of name-value pairs of the attributes to set.

Definition at line 178 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_queueScheduler, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

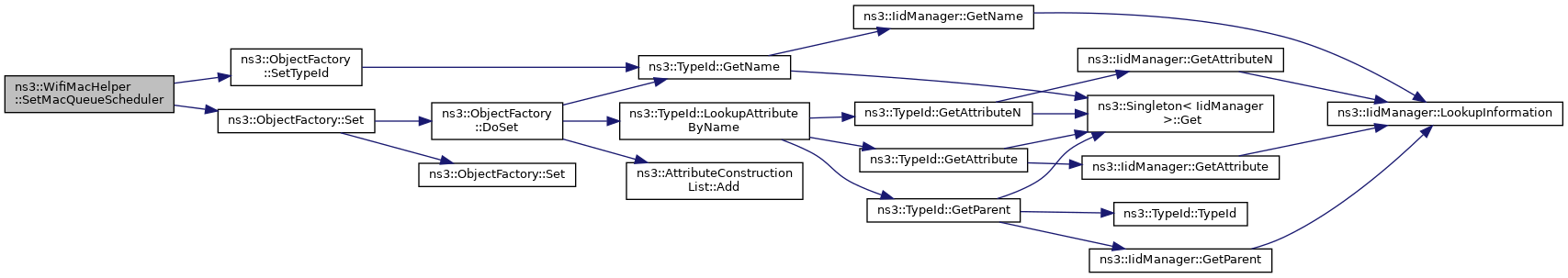

+ Here is the call graph for this function:

◆ SetMultiUserScheduler()

template<typename... Args>
void ns3::WifiMacHelper::SetMultiUserScheduler ( std::string  type,
Args &&...  args
)

Helper function used to set the Multi User Scheduler that can be aggregated to an HE AP's MAC.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of Multi User Scheduler
argsA sequence of name-value pairs of the attributes to set.

Definition at line 202 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_muScheduler, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

+ Here is the call graph for this function:

◆ SetProtectionManager()

template<typename... Args>
void ns3::WifiMacHelper::SetProtectionManager ( std::string  type,
Args &&...  args
)

Helper function used to set the Protection Manager.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of Protection Manager
argsA sequence of name-value pairs of the attributes to set.

Definition at line 186 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_protectionManager, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

+ Here is the call graph for this function:

◆ SetType()

template<typename... Args>
void ns3::WifiMacHelper::SetType ( std::string  type,
Args &&...  args
)
Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of ns3::WifiMac to create.
argsA sequence of name-value pairs of the attributes to set.

All the attributes specified in this method should exist in the requested MAC.

Definition at line 162 of file wifi-mac-helper.h.

References check-style-clang-format::args, m_mac, ns3::ObjectFactory::Set(), ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by WifiMacHelper(), BatteryLifetimeTest::ConstantLoadTest(), AodvExample::CreateDevices(), ChainRegressionTest::CreateDevices(), Bug772ChainTest::CreateDevices(), TracerouteExample::CreateDevices(), DsdvManetExample::CreateDevices(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::aodv::LoopbackTestCase::DoRun(), WifiAcMappingTest::DoRun(), WifiMsduAggregatorThroughputTest::DoRun(), WifiUseAvailBwTest::DoRun(), SetChannelFrequencyTest::DoRun(), experiment(), RoutingExperiment::Run(), and BatteryLifetimeTest::VariableLoadTest().

+ Here is the call graph for this function:

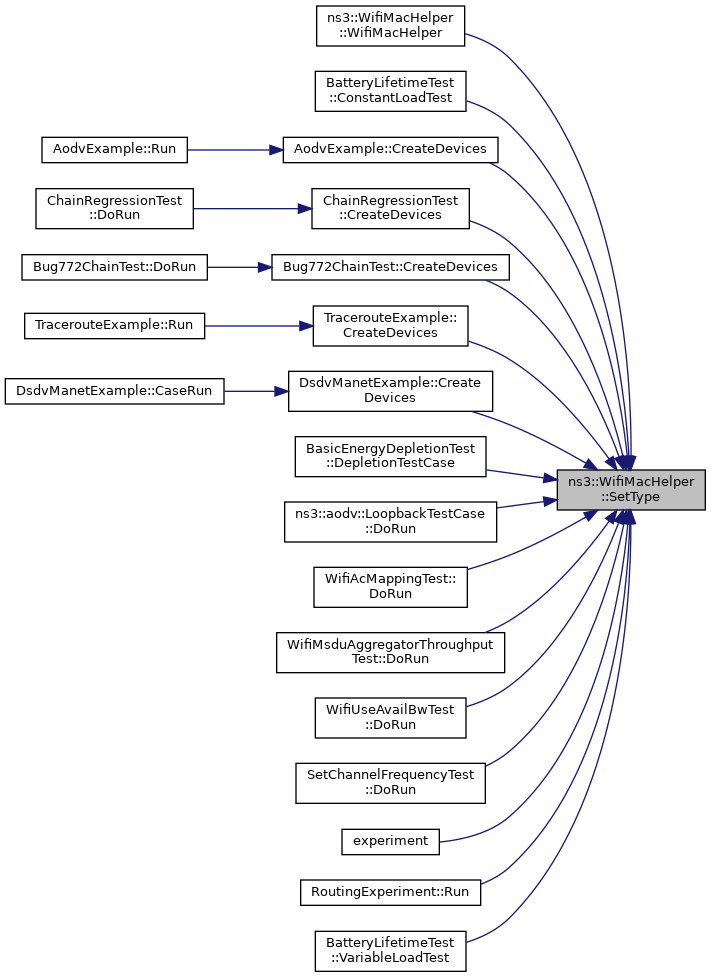

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ackManager

ObjectFactory ns3::WifiMacHelper::m_ackManager
protected

Factory to create an acknowledgment manager.

Definition at line 146 of file wifi-mac-helper.h.

Referenced by WifiMacHelper(), Create(), and SetAckManager().

◆ m_assocManager

ObjectFactory ns3::WifiMacHelper::m_assocManager
protected

Association Manager.

Definition at line 143 of file wifi-mac-helper.h.

Referenced by WifiMacHelper(), Create(), and SetAssocManager().

◆ m_emlsrManager

ObjectFactory ns3::WifiMacHelper::m_emlsrManager
protected

EMLSR Manager object factory.

Definition at line 148 of file wifi-mac-helper.h.

Referenced by WifiMacHelper(), Create(), and SetEmlsrManager().

◆ m_mac

ObjectFactory ns3::WifiMacHelper::m_mac
protected

MAC object factory.

Definition at line 142 of file wifi-mac-helper.h.

Referenced by Create(), and SetType().

◆ m_muScheduler

ObjectFactory ns3::WifiMacHelper::m_muScheduler
protected

Multi-user Scheduler object factory.

Definition at line 147 of file wifi-mac-helper.h.

Referenced by Create(), and SetMultiUserScheduler().

◆ m_protectionManager

ObjectFactory ns3::WifiMacHelper::m_protectionManager
protected

Factory to create a protection manager.

Definition at line 145 of file wifi-mac-helper.h.

Referenced by WifiMacHelper(), Create(), and SetProtectionManager().

◆ m_queueScheduler

ObjectFactory ns3::WifiMacHelper::m_queueScheduler
protected

MAC queue scheduler.

Definition at line 144 of file wifi-mac-helper.h.

Referenced by WifiMacHelper(), Create(), and SetMacQueueScheduler().

The documentation for this class was generated from the following files:
