ns3::RrComponentCarrierManager Class Reference

Component carrier manager implementation that splits traffic equally among carriers. More...

#include "no-op-component-carrier-manager.h"

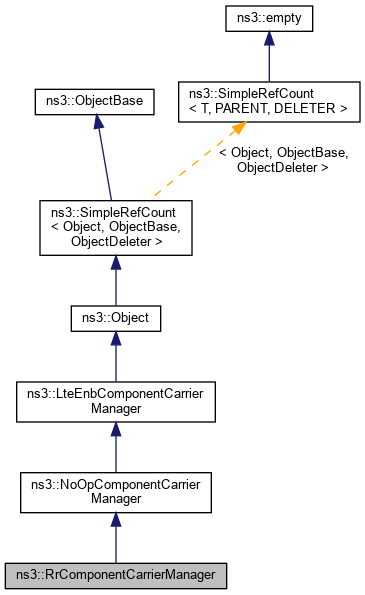

+ Inheritance diagram for ns3::RrComponentCarrierManager:
+ Collaboration diagram for ns3::RrComponentCarrierManager:

Public Member Functions

 RrComponentCarrierManager ()

virtual ~RrComponentCarrierManager () override

- Public Member Functions inherited from ns3::NoOpComponentCarrierManager
 NoOpComponentCarrierManager ()

virtual ~NoOpComponentCarrierManager ()

- Public Member Functions inherited from ns3::LteEnbComponentCarrierManager
 LteEnbComponentCarrierManager ()

virtual ~LteEnbComponentCarrierManager ()

virtual LteCcmMacSapUserGetLteCcmMacSapUser ()
 This function returns a pointer to the LteCcmMacSapUser interface, which is used by MAC to communicate to CCM when e.g. More...

virtual LteCcmRrcSapProviderGetLteCcmRrcSapProvider ()
 Export the "provider" part of the ComponentCarrier Management SAP interface. More...

virtual LteMacSapProviderGetLteMacSapProvider ()
 Returns the pointer to the LteMacSapProvider interface, the provider of MAC, which is this new architecture served by LteEnbComponentCarrierManager object which will behave as a proxy, and will forward calls between to MAC objects of component carriers based on the logic implemented in the specific component carrier manager. More...

virtual bool SetCcmMacSapProviders (uint8_t componentCarrierId, LteCcmMacSapProvider *sap)
 Set LteCcmMacSapProvider interface for the MAC object of the specified component carrier. More...

virtual void SetLteCcmRrcSapUser (LteCcmRrcSapUser *s)
 Set the "user" part of the ComponentCarrier Management SAP interface that this ComponentCarrier algorithm instance will interact with. More...

virtual bool SetMacSapProvider (uint8_t componentCarrierId, LteMacSapProvider *sap)
 Set LteMacSapProvider interface for the MAC object of the specified component carrier. More...

virtual void SetNumberOfComponentCarriers (uint16_t noOfComponentCarriers)
 Sets the total number of component carriers. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::NoOpComponentCarrierManager
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::LteEnbComponentCarrierManager
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params) override
 Report buffer status. More...

virtual void DoUlReceiveMacCe (MacCeListElement_s bsr, uint8_t componentCarrierId) override
 Forwards uplink BSR to CCM, called by MAC through CCM SAP interface. More...

virtual void DoUlReceiveSr (uint16_t rnti, uint8_t componentCarrierId) override
 Forward uplink SR to CCM, called by MAC through CCM SAP interface. More...

- Protected Member Functions inherited from ns3::NoOpComponentCarrierManager
virtual void DoAddLc (LteEnbCmacSapProvider::LcInfo lcInfo, LteMacSapUser *msu)
 Add LC. More...

virtual void DoAddUe (uint16_t rnti, uint8_t state)
 Add UE. More...

virtual LteMacSapUserDoConfigureSignalBearer (LteEnbCmacSapProvider::LcInfo lcinfo, LteMacSapUser *msu)
 Configure the signal bearer. More...

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

virtual void DoNotifyHarqDeliveryFailure ()
 Notify HARQ delivery failure. More...

virtual void DoNotifyPrbOccupancy (double prbOccupancy, uint8_t componentCarrierId)
 Function implements the function of the SAP interface of CCM instance which is used by MAC to notify the PRB occupancy reported by scheduler. More...

virtual void DoNotifyTxOpportunity (LteMacSapUser::TxOpportunityParameters txOpParams)
 Notify transmit opportunity. More...

virtual void DoReceivePdu (LteMacSapUser::ReceivePduParameters rxPduParams)
 Receive PDU. More...

virtual std::vector< uint8_t > DoReleaseDataRadioBearer (uint16_t rnti, uint8_t lcid)
 Release data radio bearer. More...

virtual void DoRemoveUe (uint16_t rnti)
 Remove UE. More...

virtual void DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
 Implementation of ReportUeMeas. More...

virtual std::vector< LteCcmRrcSapProvider::LcsConfigDoSetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint16_t rnti, uint8_t lcid, uint8_t lcGroup, LteMacSapUser *msu)
 Setup data radio bearer. More...

virtual void DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)
 Transmit PDU. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Attributes

uint8_t m_lastCcIdForSr {0}
 Last CCID to which a SR was routed. More...


Additional Inherited Members

- Protected Attributes inherited from ns3::NoOpComponentCarrierManager
std::map< uint8_t, double > m_ccPrbOccupancy
 The physical resource block occupancy per carrier. More...

- Protected Attributes inherited from ns3::LteEnbComponentCarrierManager
std::map< uint8_t, LteCcmMacSapProvider * > m_ccmMacSapProviderMap
 A map of pointers to the SAP interfaces of CCM instance that provides the CCM specific functionalities to MAC, i.e. More...

LteCcmMacSapUserm_ccmMacSapUser
 LteCcmMacSapUser is extended version of LteMacSapUser interface. More...

LteCcmRrcSapProviderm_ccmRrcSapProvider
 A pointer to the SAP interface of the CCM instance to receive API calls from the eNodeB RRC instance. More...

LteCcmRrcSapUserm_ccmRrcSapUser
 A pointer to SAP interface of RRC instance, i.e. More...

LteMacSapProviderm_macSapProvider
 A pointer to main SAP interface of the MAC instance, which is in this case handled by CCM. More...

std::map< uint8_t, LteMacSapProvider * > m_macSapProvidersMap
 A map of pointers to real SAP interfaces of MAC instances. More...

uint16_t m_noOfComponentCarriers
 The number component of carriers that are supported by this eNb. More...

Ptr< LteEnbRrcm_rrc
 A pointer to the RRC instance of this eNb. More...

std::map< uint16_t, UeInfom_ueInfo
 The map from RNTI to UE information. More...


Detailed Description

Component carrier manager implementation that splits traffic equally among carriers.

Config Paths

ns3::RrComponentCarrierManager is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager/$ns3::NoOpComponentCarrierManager/$ns3::RrComponentCarrierManager"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager/$ns3::RrComponentCarrierManager"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager/$ns3::NoOpComponentCarrierManager/$ns3::RrComponentCarrierManager"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbComponentCarrierManager/$ns3::RrComponentCarrierManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 280 bytes (on a 64-bit architecture).

Definition at line 165 of file no-op-component-carrier-manager.h.

Constructor & Destructor Documentation

◆ RrComponentCarrierManager()

ns3::RrComponentCarrierManager::RrComponentCarrierManager ( )

Definition at line 364 of file no-op-component-carrier-manager.cc.

References NS_LOG_FUNCTION.

◆ ~RrComponentCarrierManager()

ns3::RrComponentCarrierManager::~RrComponentCarrierManager ( )
overridevirtual

Definition at line 370 of file no-op-component-carrier-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoReportBufferStatus()

◆ DoUlReceiveMacCe()

void ns3::RrComponentCarrierManager::DoUlReceiveMacCe ( MacCeListElement_s  bsr,
uint8_t  componentCarrierId
)
overrideprotectedvirtual

◆ DoUlReceiveSr()

void ns3::RrComponentCarrierManager::DoUlReceiveSr ( uint16_t  rnti,
uint8_t  componentCarrierId
)
overrideprotectedvirtual

Forward uplink SR to CCM, called by MAC through CCM SAP interface.

Parameters
rntiRNTI of the UE that requested SR
componentCarrierIdthe component carrier ID that forwarded the SR

Reimplemented from ns3::NoOpComponentCarrierManager.

Definition at line 462 of file no-op-component-carrier-manager.cc.

References ns3::LteEnbComponentCarrierManager::m_ccmMacSapProviderMap, m_lastCcIdForSr, ns3::LteEnbComponentCarrierManager::m_ueInfo, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::RrComponentCarrierManager::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 376 of file no-op-component-carrier-manager.cc.

References ns3::TypeId::SetParent().

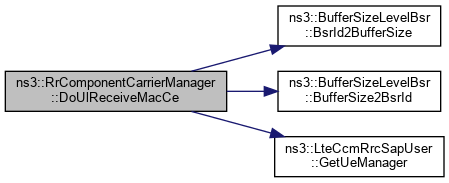

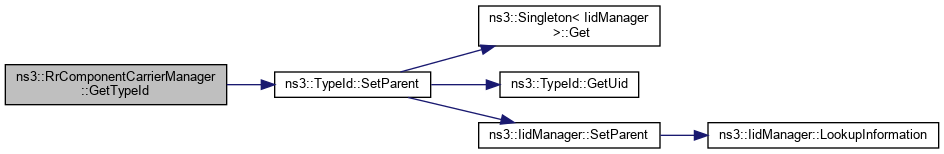

+ Here is the call graph for this function:

Member Data Documentation

◆ m_lastCcIdForSr

uint8_t ns3::RrComponentCarrierManager::m_lastCcIdForSr {0}
private

Last CCID to which a SR was routed.

Definition at line 185 of file no-op-component-carrier-manager.h.

Referenced by DoUlReceiveSr().


The documentation for this class was generated from the following files:
