#include "ns3/buildings-module.h"
#include "ns3/mobility-module.h"
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include <fstream>
#include "ns3/three-gpp-antenna-array-model.h"
#include "ns3/three-gpp-spectrum-propagation-loss-model.h"
#include "ns3/three-gpp-v2v-propagation-loss-model.h"
#include "ns3/three-gpp-channel-model.h"

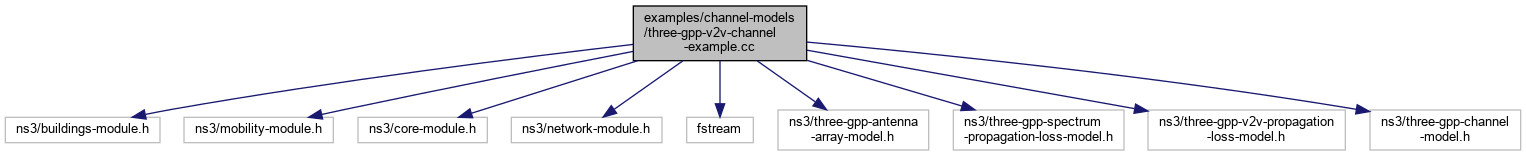

Include dependency graph for three-gpp-v2v-channel-example.cc:

Functions
static void	ComputeSnr (Ptr< MobilityModel > txMob, Ptr< MobilityModel > rxMob, Ptr< const SpectrumValue > txPsd, double noiseFigure)
	Compute the average SNR. More...

static void	DoBeamforming (Ptr< NetDevice > thisDevice, Ptr< ThreeGppAntennaArrayModel > thisAntenna, Ptr< NetDevice > otherDevice)
	Perform the beamforming using the DFT beamforming method. More...

void	PrintGnuplottableBuildingListToFile (std::string filename)
	Generates a GNU-plottable file representig the buildings deployed in the scenario. More...

Variables
static Ptr< ChannelConditionModel >	m_condModel
	the ChannelConditionModel object More...

static Ptr< ThreeGppPropagationLossModel >	m_propagationLossModel
	the PropagationLossModel object More...

static Ptr< ThreeGppSpectrumPropagationLossModel >	m_spectrumLossModel
	the SpectrumPropagationLossModel object More...

Function Documentation

◆ ComputeSnr()

static void ComputeSnr	(	Ptr< MobilityModel >	txMob,
		Ptr< MobilityModel >	rxMob,
		Ptr< const SpectrumValue >	txPsd,
		double	noiseFigure
	)

static

Compute the average SNR.

Parameters

txMob	the tx mobility model
rxMob	the rx mobility model
txPsd	the PSD of the transmitting signal
noiseFigure	the noise figure in dB

Definition at line 110 of file three-gpp-v2v-channel-example.cc.

References ns3::PropagationLossModel::CalcRxPower(), ns3::PhasedArraySpectrumPropagationLossModel::CalcRxPowerSpectralDensity(), f(), ns3::MobilityModel::GetPosition(), ns3::Time::GetSeconds(), m_condModel, m_propagationLossModel, m_spectrumLossModel, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Sum().

Here is the call graph for this function:

◆ DoBeamforming()

static void DoBeamforming	(	Ptr< NetDevice >	thisDevice,
		Ptr< ThreeGppAntennaArrayModel >	thisAntenna,
		Ptr< NetDevice >	otherDevice
	)

static

Perform the beamforming using the DFT beamforming method.

Parameters

thisDevice	the device performing the beamforming
thisAntenna	the antenna object associated to thisDevice
otherDevice	the device towards which point the beam

Definition at line 64 of file three-gpp-v2v-channel-example.cc.

References ns3::NetDevice::GetNode(), ns3::Object::GetObject(), and GetPosition().

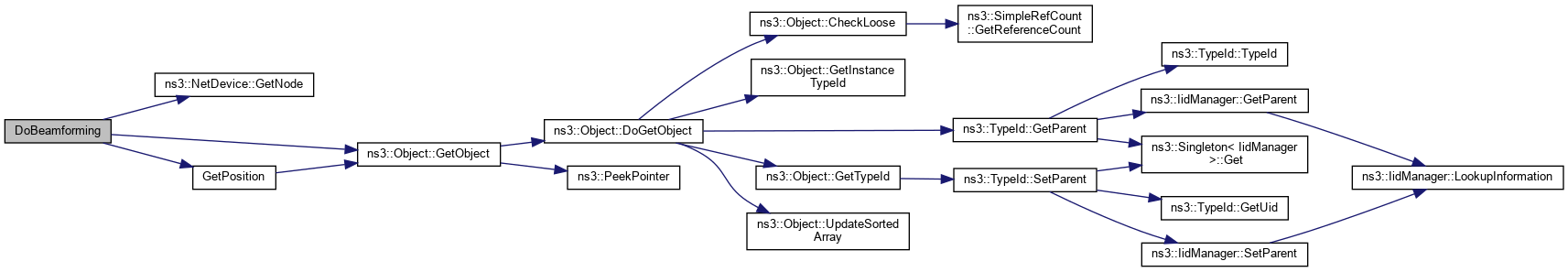

Here is the call graph for this function:
