Make sure that the ADDBA handshake process is protected. More...

Inheritance diagram for Bug2470TestCase:

Collaboration diagram for Bug2470TestCase:

Public Member Functions
	Bug2470TestCase ()

	~Bug2470TestCase () override

void	DoRun () override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	AddbaStateChangedCallback (std::string context, Time t, Mac48Address recipient, uint8_t tid, OriginatorBlockAckAgreement::State state)
	Callback when ADDBA state changed. More...

void	RunSubtest (TypeOfStation rcvErrorType)
	Run subtest for this test suite. More...

void	RxCallback (std::string context, Ptr< const Packet > p, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)
	Callback when packet is received. More...

void	RxErrorCallback (std::string context, Ptr< const Packet > p, double snr)
	Callback when packet is dropped. More...

void	SendPacketBurst (uint32_t numPackets, Ptr< NetDevice > sourceDevice, Address &destination) const
	Triggers the arrival of a burst of 1000 Byte-long packets in the source device. More...

void	TxCallback (Ptr< ListErrorModel > rxErrorModel, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback when a frame is transmitted. More...

Private Attributes
uint16_t	m_addbaEstablishedCount
	Count number of times ADDBA state machine is in established state. More...

uint16_t	m_addbaNoReplyCount
	Count number of times ADDBA state machine is in no_reply state. More...

uint16_t	m_addbaPendingCount
	Count number of times ADDBA state machine is in pending state. More...

uint16_t	m_addbaRejectedCount
	Count number of times ADDBA state machine is in rejected state. More...

uint16_t	m_addbaResetCount
	Count number of times ADDBA state machine is in reset state. More...

uint16_t	m_failedActionCount
	Count failed ADDBA request/response. More...

uint16_t	m_receivedAmpduCount
	Count received A-MPDU packets on STA. More...

uint16_t	m_receivedNormalMpduCount
	Count received normal MPDU packets on STA. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that the ADDBA handshake process is protected.

The scenario considers an access point and a station. It utilizes ReceiveListErrorModel to drop by force ADDBA request on STA or ADDBA response on AP. The AP sends 5 packets of each 1000 bytes (thus generating BA agreement), 2 times during the test at 0.5s and 0.8s. We only drop the first ADDBA request/response of the first BA negotiation. Therefore, we expect that the packets still in queue after the failed BA agreement will be sent with normal MPDU, and packets queued after that should be sent with A-MPDU.

This test consider 2 cases:

ADDBA request packets are blocked on receive at STA, triggering transmission failure at AP
ADDBA response packets are blocked on receive at AP, STA stops retransmission of ADDBA response

See Bug 2470

Definition at line 2143 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Bug2470TestCase()

Bug2470TestCase::Bug2470TestCase ( )

Definition at line 2230 of file wifi-test.cc.

◆ ~Bug2470TestCase()

Bug2470TestCase::~Bug2470TestCase ( )

override

Definition at line 2243 of file wifi-test.cc.

Member Function Documentation

◆ AddbaStateChangedCallback()

void Bug2470TestCase::AddbaStateChangedCallback	(	std::string	context,
		Time	t,
		Mac48Address	recipient,
		uint8_t	tid,
		OriginatorBlockAckAgreement::State	state
	)

private

Callback when ADDBA state changed.

Parameters

context	node context
t	the time the state changed
recipient	the MAC address of the recipient
tid	the TID
state	the state

Definition at line 2248 of file wifi-test.cc.

References m_addbaEstablishedCount, m_addbaNoReplyCount, m_addbaPendingCount, m_addbaRejectedCount, and m_addbaResetCount.

Referenced by RunSubtest().

Here is the caller graph for this function:

◆ DoRun()

void Bug2470TestCase::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2448 of file wifi-test.cc.

References ns3::AP, m_addbaEstablishedCount, m_addbaNoReplyCount, m_addbaPendingCount, m_addbaRejectedCount, m_addbaResetCount, m_failedActionCount, m_receivedAmpduCount, m_receivedNormalMpduCount, NS_TEST_ASSERT_MSG_EQ, RunSubtest(), and ns3::STA.

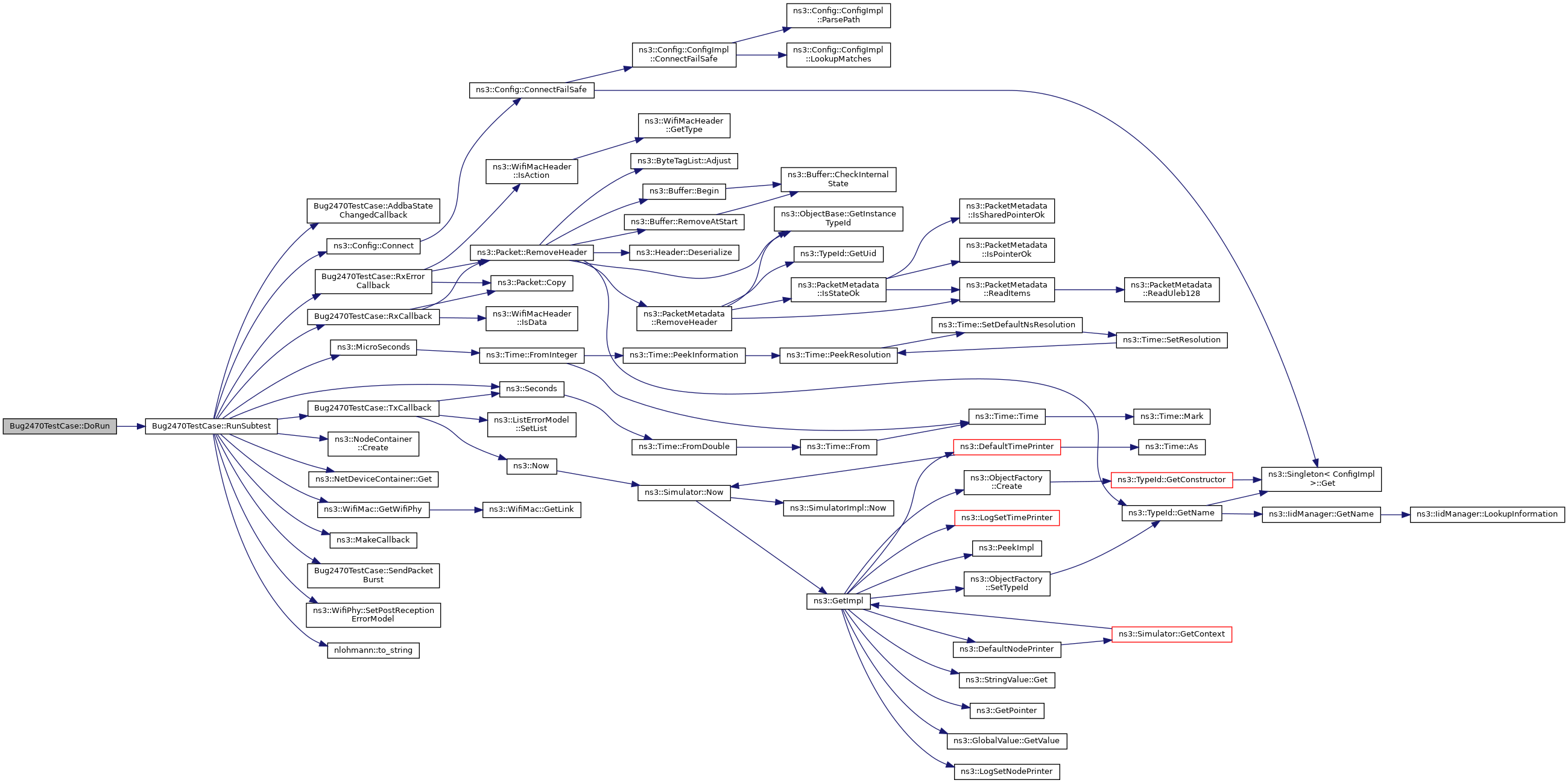

Here is the call graph for this function:

◆ RunSubtest()

void Bug2470TestCase::RunSubtest ( TypeOfStation rcvErrorType )

private

Run subtest for this test suite.

Parameters

rcvErrorType type of station (STA or AP) to install the post reception error model on

Definition at line 2343 of file wifi-test.cc.

References AddbaStateChangedCallback(), ns3::AP, third::channel, ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::WifiMac::GetWifiPhy(), third::mac, ns3::MakeCallback(), ns3::MicroSeconds(), third::mobility, NS_ABORT_MSG, third::phy, RxCallback(), RxErrorCallback(), ns3::Seconds(), SendPacketBurst(), ns3::WifiPhy::SetPostReceptionErrorModel(), ns3::STA, nlohmann::to_string(), TxCallback(), third::wifi, ns3::WIFI_STANDARD_80211n, and third::wifiApNode.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxCallback()

void Bug2470TestCase::RxCallback	(	std::string	context,
		Ptr< const Packet >	p,
		uint16_t	channelFreqMhz,
		WifiTxVector	txVector,
		MpduInfo	aMpdu,
		SignalNoiseDbm	signalNoise,
		uint16_t	staId
	)

private

Callback when packet is received.

Parameters

context	node context
p	the received packet
channelFreqMhz	the channel frequency in MHz
txVector	the TX vector
aMpdu	the A-MPDU info
signalNoise	the signal noise in dBm
staId	the STA-ID

Definition at line 2294 of file wifi-test.cc.

References ns3::Packet::Copy(), ns3::WifiMacHeader::IsData(), m_receivedAmpduCount, m_receivedNormalMpduCount, ns3::NORMAL_MPDU, ns3::Packet::RemoveHeader(), and ns3::MpduInfo::type.

Referenced by RunSubtest().

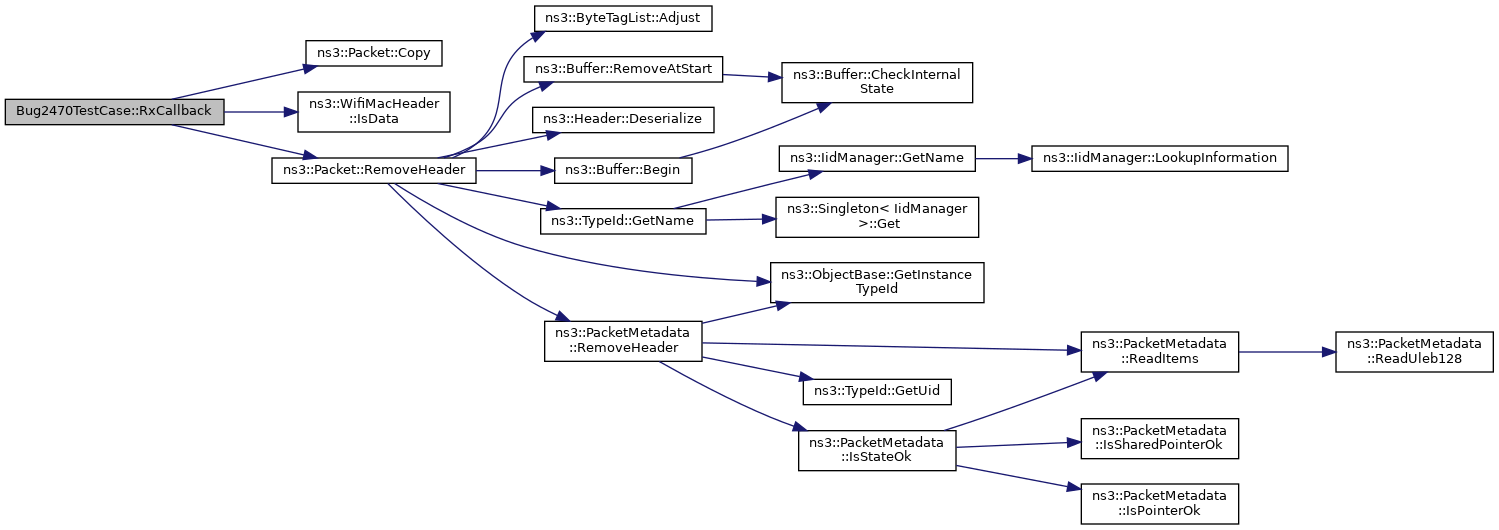

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxErrorCallback()

void Bug2470TestCase::RxErrorCallback	(	std::string	context,
		Ptr< const Packet >	p,
		double	snr
	)

private

Callback when packet is dropped.

Parameters

context	node context
p	the failed packet
snr	the SNR of the failed packet in linear scale

Definition at line 2319 of file wifi-test.cc.

References ns3::Packet::Copy(), ns3::WifiMacHeader::IsAction(), m_failedActionCount, and ns3::Packet::RemoveHeader().

Referenced by RunSubtest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacketBurst()

void Bug2470TestCase::SendPacketBurst	(	uint32_t	numPackets,
		Ptr< NetDevice >	sourceDevice,
		Address &	destination
	)		const

private

Triggers the arrival of a burst of 1000 Byte-long packets in the source device.

Parameters

numPackets	number of packets in burst
sourceDevice	pointer to the source NetDevice
destination	address of the destination device

Definition at line 2331 of file wifi-test.cc.

Referenced by RunSubtest().

Here is the caller graph for this function:

◆ TxCallback()

void Bug2470TestCase::TxCallback	(	Ptr< ListErrorModel >	rxErrorModel,
		std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

private

Callback when a frame is transmitted.

Parameters

rxErrorModel	the post reception error model on the receiver
context	the context
psduMap	the PSDU map
txVector	the TX vector
txPowerW	the tx power in Watts

Definition at line 2275 of file wifi-test.cc.

References ns3::Now(), ns3::Seconds(), ns3::ListErrorModel::SetList(), and ns3::WIFI_MAC_MGT_ACTION.

Referenced by RunSubtest().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_addbaEstablishedCount

uint16_t Bug2470TestCase::m_addbaEstablishedCount

private

Count number of times ADDBA state machine is in established state.

Definition at line 2220 of file wifi-test.cc.

Referenced by AddbaStateChangedCallback(), and DoRun().

◆ m_addbaNoReplyCount

uint16_t Bug2470TestCase::m_addbaNoReplyCount

private

Count number of times ADDBA state machine is in no_reply state.

Definition at line 2226 of file wifi-test.cc.

Referenced by AddbaStateChangedCallback(), and DoRun().

◆ m_addbaPendingCount

uint16_t Bug2470TestCase::m_addbaPendingCount

private

Count number of times ADDBA state machine is in pending state.

Definition at line 2222 of file wifi-test.cc.

Referenced by AddbaStateChangedCallback(), and DoRun().

◆ m_addbaRejectedCount

uint16_t Bug2470TestCase::m_addbaRejectedCount

private

Count number of times ADDBA state machine is in rejected state.

Definition at line 2224 of file wifi-test.cc.

Referenced by AddbaStateChangedCallback(), and DoRun().

◆ m_addbaResetCount

uint16_t Bug2470TestCase::m_addbaResetCount

private

Count number of times ADDBA state machine is in reset state.

Definition at line 2227 of file wifi-test.cc.

Referenced by AddbaStateChangedCallback(), and DoRun().

◆ m_failedActionCount

uint16_t Bug2470TestCase::m_failedActionCount

private

Count failed ADDBA request/response.

Definition at line 2219 of file wifi-test.cc.

Referenced by DoRun(), and RxErrorCallback().

◆ m_receivedAmpduCount

uint16_t Bug2470TestCase::m_receivedAmpduCount

private

Count received A-MPDU packets on STA.

Definition at line 2218 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

◆ m_receivedNormalMpduCount

uint16_t Bug2470TestCase::m_receivedNormalMpduCount

private

Count received normal MPDU packets on STA.

Definition at line 2217 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
