#include "bs-net-device.h"

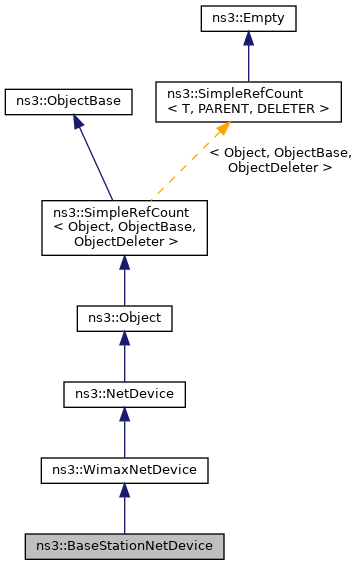

Inheritance diagram for ns3::BaseStationNetDevice:

Collaboration diagram for ns3::BaseStationNetDevice:

Public Types
enum	MacPreamble { SHORT_PREAMBLE = 1 , LONG_PREAMBLE }
	MacPreamble enumeration. More...

enum	State { BS_STATE_DL_SUB_FRAME , BS_STATE_UL_SUB_FRAME , BS_STATE_TTG , BS_STATE_RTG }
	State enumeration. More...

Public Types inherited from ns3::WimaxNetDevice
enum	Direction { DIRECTION_DOWNLINK , DIRECTION_UPLINK }
	Direction enumeration. More...

enum	RangingStatus { RANGING_STATUS_EXPIRED , RANGING_STATUS_CONTINUE , RANGING_STATUS_ABORT , RANGING_STATUS_SUCCESS }
	RangingStatus enumeration. More...

typedef void(*	TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)
	TracedCallback signature for packet and Mac48Address. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	BaseStationNetDevice ()

	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy)
	Constructor. More...

	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy, Ptr< UplinkScheduler > uplinkScheduler, Ptr< BSScheduler > bsScheduler)
	Constructor. More...

	~BaseStationNetDevice () override

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection) override
	Enqueue a packet into a connection queue. More...

Ptr< IpcsClassifier >	GetBsClassifier () const

Ptr< BSScheduler >	GetBSScheduler () const

uint8_t	GetBwReqOppSize () const

Ptr< WimaxConnection >	GetConnection (Cid cid)

Time	GetDcdInterval () const

Time	GetDlSubframeStartTime () const

Time	GetInitialRangingInterval () const

Time	GetIntervalT8 () const

Ptr< BSLinkManager >	GetLinkManager () const

uint8_t	GetMaxInvitedRangRetries () const

uint8_t	GetMaxRangingCorrectionRetries () const

uint32_t	GetNrDcdSent () const

uint32_t	GetNrDlSymbols () const

uint32_t	GetNrUcdSent () const

uint32_t	GetNrUlSymbols () const

Time	GetPsDuration () const

uint8_t	GetRangingOppNumber () const

uint8_t	GetRangReqOppSize () const

Ptr< BsServiceFlowManager >	GetServiceFlowManager () const

Ptr< SSManager >	GetSSManager () const

Time	GetSymbolDuration () const

Time	GetUcdInterval () const

Time	GetUlSubframeStartTime () const

Ptr< UplinkScheduler >	GetUplinkScheduler () const

void	InitBaseStationNetDevice ()
	initializes the BS net device and sets its parameters to the default values More...

void	MarkRangingOppStart (Time rangingOppStartTime)
	Mark ranging opp start. More...

void	MarkUplinkAllocations ()
	Mark uplink allocations. More...

void	SetBsClassifier (Ptr< IpcsClassifier > classifier)

void	SetBSScheduler (Ptr< BSScheduler > bsSchedule)

void	SetBwReqOppSize (uint8_t bwReqOppSize)

void	SetDcdInterval (Time dcdInterval)

void	SetInitialRangingInterval (Time initialRangInterval)

void	SetIntervalT8 (Time interval)

void	SetLinkManager (Ptr< BSLinkManager > linkManager)

void	SetMaxInvitedRangRetries (uint8_t maxInvitedRangRetries)

void	SetMaxRangingCorrectionRetries (uint8_t maxRangCorrectionRetries)

void	SetNrDlSymbols (uint32_t dlSymbols)

void	SetNrUlSymbols (uint32_t ulSymbols)

void	SetRangReqOppSize (uint8_t rangReqOppSize)

void	SetServiceFlowManager (Ptr< BsServiceFlowManager > sfm)
	Set service flow manager. More...

void	SetSSManager (Ptr< SSManager > ssManager)

void	SetUcdInterval (Time ucdInterval)

void	SetUplinkScheduler (Ptr< UplinkScheduler > ulScheduler)

void	Start () override
	Start device. More...

void	Stop () override
	Stop device. More...

Public Member Functions inherited from ns3::WimaxNetDevice
	WimaxNetDevice ()

	~WimaxNetDevice () override

void	AddLinkChangeCallback (Callback< void > callback) override
	Add link change callback function. More...

void	Attach (Ptr< WimaxChannel > channel)
	Attach device to channel. More...

void	CreateDefaultConnections ()
	Creates the initial ranging and broadcast connections. More...

void	DoDispose () override
	Destructor implementation. More...

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)
	Forward a packet down the stack. More...

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)
	Forward a packet to the next layer above the device. More...

Address	GetAddress () const override
	Get address of the device. More...

Ptr< BandwidthManager >	GetBandwidthManager () const
	Get the bandwidth manager on the device. More...

Address	GetBroadcast () const override
	Get broadcast address. More...

Ptr< WimaxConnection >	GetBroadcastConnection () const
	Get the broadcast connection. More...

Ptr< BurstProfileManager >	GetBurstProfileManager () const
	Get the burst profile manager. More...

Ptr< Channel >	GetChannel () const override
	Get the channel. More...

uint64_t	GetChannel (uint8_t index) const
	Get the channel object by index. More...

Ptr< ConnectionManager >	GetConnectionManager () const
	Get the connection manager of the device. More...

Dcd	GetCurrentDcd () const
	Get the current DCD. More...

Ucd	GetCurrentUcd () const
	Get the current UCD. More...

uint32_t	GetIfIndex () const override
	Get interface index. More...

Ptr< WimaxConnection >	GetInitialRangingConnection () const
	Get the initial ranging connection. More...

Mac48Address	GetMacAddress () const
	Get the MAC address. More...

uint16_t	GetMtu () const override
	Get MTU of the device. More...

virtual Address	GetMulticast () const
	Get multicast address. More...

Address	GetMulticast (Ipv4Address multicastGroup) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual std::string	GetName () const
	Get device name. More...

Ptr< Node >	GetNode () const override
	Get node pointer. More...

uint32_t	GetNrFrames () const
	Get the number of frames. More...

Ptr< WimaxPhy >	GetPhy () const
	Get the physical layer object. More...

virtual Ptr< Channel >	GetPhyChannel () const
	Get the channel (this method is redundant with GetChannel()) More...

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback ()
	Get promiscuous receive callback function. More...

uint16_t	GetRtg () const
	Get receive/transmit transition gap. More...

uint8_t	GetState () const
	Get the device state. More...

uint16_t	GetTtg () const
	Get transmission/receive transition gap. More...

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override
	Check if broadcast enabled. More...

bool	IsLinkUp () const override
	Check if link is up. More...

bool	IsMulticast () const override
	Check if multicast enabled. More...

bool	IsPointToPoint () const override
	Check if device is a point-to-point device. More...

bool	IsPromisc ()
	Check if device is promiscuous. More...

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const
	Make multicast address. More...

bool	NeedsArp () const override
	Check if device needs ARP. More...

void	NotifyPromiscTrace (Ptr< Packet > p)
	Notify promiscuous trace of a packet arrival. More...

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override
	Send function. More...

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override
	Send a packet. More...

void	SetAddress (Address address) override
	Set address of the device. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)
	Set the bandwidth manager on the device. More...

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)
	Set the burst profile manager. More...

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)
	Set the channel object. More...

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)
	Set the connection manager of the device. More...

void	SetCurrentDcd (Dcd dcd)
	Set the current DCD. More...

void	SetCurrentUcd (Ucd ucd)
	Set the current UCD. More...

void	SetIfIndex (const uint32_t index) override
	Set interface index. More...

virtual void	SetLinkChangeCallback (Callback< void > callback)
	Set link change callback function. More...

void	SetMacAddress (Mac48Address address)
	Set the MAC address. More...

bool	SetMtu (const uint16_t mtu) override
	Set MTU value for the device. More...

virtual void	SetName (const std::string name)
	Set device name. More...

void	SetNode (Ptr< Node > node) override
	Set node pointer. More...

void	SetNrFrames (uint32_t nrFrames)
	Set the number of frames. More...

void	SetPhy (Ptr< WimaxPhy > phy)
	Set the physical layer object. More...

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override
	Set promiscuous receive callback function. More...

void	SetReceiveCallback ()
	Set receive callback function. More...

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override
	Set receive callback function. More...

void	SetRtg (uint16_t rtg)
	Set receive/transmit transition gap. More...

void	SetState (uint8_t state)
	Set the device state. More...

void	SetTtg (uint16_t ttg)
	Set transmission/receive transition gap. More...

bool	SupportsSendFrom () const override
	Check if device supports the SendFrom method. More...

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WimaxNetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
Ptr< Packet >	CreateDcd ()
	Create DCD. More...

void	CreateDescriptorMessages (bool sendDcd, bool sendUcd)
	creates the channel descriptor MAC management messages DCD and UCD More...

Ptr< Packet >	CreateDlMap ()
	Create DL map. More...

void	CreateMapMessages ()
	creates the MAC management messages DL-MAP and UL-MAP More...

Ptr< Packet >	CreateUcd ()
	Create UCD. More...

Ptr< Packet >	CreateUlMap ()
	Create UL map. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoReceive (Ptr< Packet > packet) override
	Receive packet. More...

bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber) override
	Send packet. More...

void	EndDlSubFrame ()
	End DL subframe function. More...

void	EndFrame ()
	End frame function. More...

void	EndUlSubFrame ()
	End UL subframe function. More...

void	MarkUplinkAllocationEnd (Time allocationEndTime, Cid cid, uint8_t uiuc)
	Mark uplink allocation end. More...

void	MarkUplinkAllocationStart (Time allocationStartTime)
	Mark uplink allocation start. More...

void	RangingOppStart ()
	Ranging opp start. More...

void	SendBursts ()
	Send burst function. More...

void	SetDlBurstProfiles (Dcd *dcd)
	Send DL burst profiles. More...

void	SetUlBurstProfiles (Ucd *ucd)
	Send UL burst profiles. More...

void	StartDlSubFrame ()
	Start DL subframe function. More...

void	StartFrame ()
	Start frame function. More...

void	StartUlSubFrame ()
	Start UL subframe function. More...

void	UplinkAllocationEnd (Cid cid, uint8_t uiuc)
	Uplink allocation end. More...

void	UplinkAllocationStart ()
	Uplink allocation start. More...

Private Attributes
uint32_t	m_allocationStartTime
	allocation start time More...

Ptr< IpcsClassifier >	m_bsClassifier
	the base station classifier More...

TracedCallback< Ptr< const Packet > >	m_bsPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_bsRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_bsRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_bsTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > >	m_bsTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint8_t	m_bwReqOppSize
	in symbols More...

CidFactory *	m_cidFactory
	the CID factory More...

uint32_t	m_dcdConfigChangeCount
	DCD config change count. More...

Time	m_dcdInterval
	in seconds More...

Time	m_dlSubframeStartTime
	DL subframe start time. More...

uint32_t	m_framesSinceLastDcd
	frames since last DCD More...

uint32_t	m_framesSinceLastUcd
	frames since last UCD More...

Time	m_initialRangInterval
	in seconds More...

Time	m_intervalT8
	in milliseconds, wait for DSA/DSC Acknowledge timeout More...

Ptr< BSLinkManager >	m_linkManager
	the link manager More...

uint8_t	m_maxInvitedRangRetries
	maximum invited range retries More...

uint8_t	m_maxRangCorrectionRetries
	maximum range correction retries More...

uint32_t	m_nrDcdSent
	number DCD sent More...

uint16_t	m_nrDlAllocations
	number DL allocations More...

uint32_t	m_nrDlFrames
	number DL frames More...

uint32_t	m_nrDlMapSent
	number DL map sent More...

uint32_t	m_nrDlSymbols
	number of DL symbols More...

uint16_t	m_nrSsRegistered
	number SS registered More...

uint32_t	m_nrUcdSent
	number UCD sent More...

uint16_t	m_nrUlAllocations
	number UL allocations More...

uint32_t	m_nrUlFrames
	number UL frames More...

uint32_t	m_nrUlMapSent
	number UL map sent More...

uint32_t	m_nrUlSymbols
	number of UL symbols More...

Time	m_psDuration
	ps duration More...

uint8_t	m_rangingOppNumber
	current ranging TO number More...

uint8_t	m_rangReqOppSize
	in symbols More...

Ptr< BSScheduler >	m_scheduler
	the base station scheduler More...

Ptr< BsServiceFlowManager >	m_serviceFlowManager
	the service flow manager More...

Ptr< SSManager >	m_ssManager
	the SS manager More...

Time	m_symbolDuration
	symbol duration More...

TracedCallback< Ptr< const Packet >, Mac48Address, Cid >	m_traceBSRx
	the base station receive trace callback More...

uint32_t	m_ucdConfigChangeCount
	UCD config change count. More...

Time	m_ucdInterval
	in seconds More...

uint8_t	m_ulAllocationNumber
	to see UL burst number More...

Time	m_ulSubframeStartTime
	UL subframe start time. More...

Ptr< UplinkScheduler >	m_uplinkScheduler
	the uplink scheduler More...

Additional Inherited Members
Public Attributes inherited from ns3::WimaxNetDevice
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Static Public Attributes inherited from ns3::WimaxNetDevice
static uint8_t	m_direction = ~0
	downlink or uplink More...

static Time	m_frameStartTime = Seconds(0)
	temp, to determine the frame start time at SS side, shall actually be determined by frame start preamble More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

BaseStation NetDevice.

Definition at line 53 of file bs-net-device.h.

Member Enumeration Documentation

◆ MacPreamble

enum ns3::BaseStationNetDevice::MacPreamble

MacPreamble enumeration.

Enumerator
SHORT_PREAMBLE
LONG_PREAMBLE

Definition at line 66 of file bs-net-device.h.

◆ State

enum ns3::BaseStationNetDevice::State

State enumeration.

Enumerator
BS_STATE_DL_SUB_FRAME
BS_STATE_UL_SUB_FRAME
BS_STATE_TTG
BS_STATE_RTG

Definition at line 57 of file bs-net-device.h.

Constructor & Destructor Documentation

◆ BaseStationNetDevice() [1/3]

ns3::BaseStationNetDevice::BaseStationNetDevice ( )

Definition at line 203 of file bs-net-device.cc.

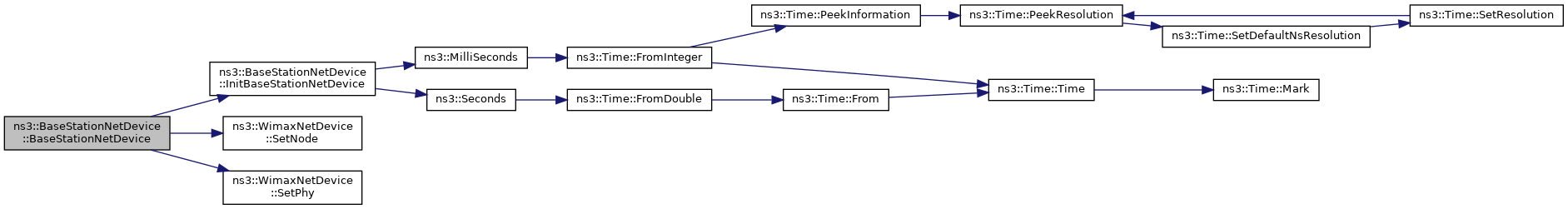

References InitBaseStationNetDevice().

Here is the call graph for this function:

◆ BaseStationNetDevice() [2/3]

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy
	)

Constructor.

Parameters

node	the node
phy	the wimax phy

Definition at line 249 of file bs-net-device.cc.

References InitBaseStationNetDevice(), ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

◆ BaseStationNetDevice() [3/3]

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy,
		Ptr< UplinkScheduler >	uplinkScheduler,
		Ptr< BSScheduler >	bsScheduler
	)

Constructor.

Parameters

node	the node
phy	the wimax phy
uplinkScheduler	uplink scheduler
bsScheduler	bs scheduler

Definition at line 256 of file bs-net-device.cc.

References InitBaseStationNetDevice(), m_scheduler, m_uplinkScheduler, ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

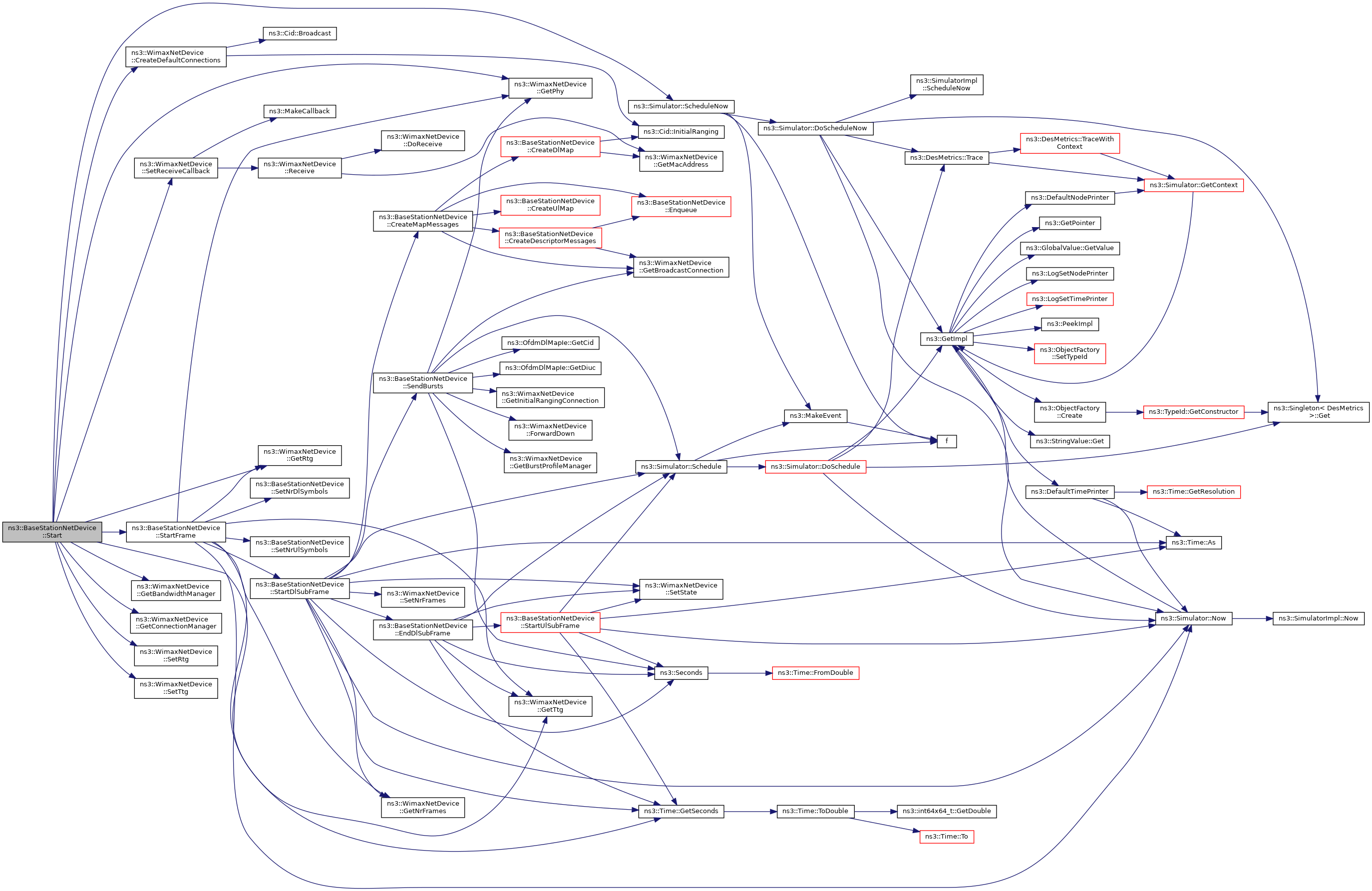

Here is the call graph for this function:

◆ ~BaseStationNetDevice()

ns3::BaseStationNetDevice::~BaseStationNetDevice ( )

override

Definition at line 268 of file bs-net-device.cc.

Member Function Documentation

◆ CreateDcd()

Ptr< Packet > ns3::BaseStationNetDevice::CreateDcd ( )

private

Create DCD.

Returns: packet

Definition at line 1054 of file bs-net-device.cc.

Referenced by CreateDescriptorMessages().

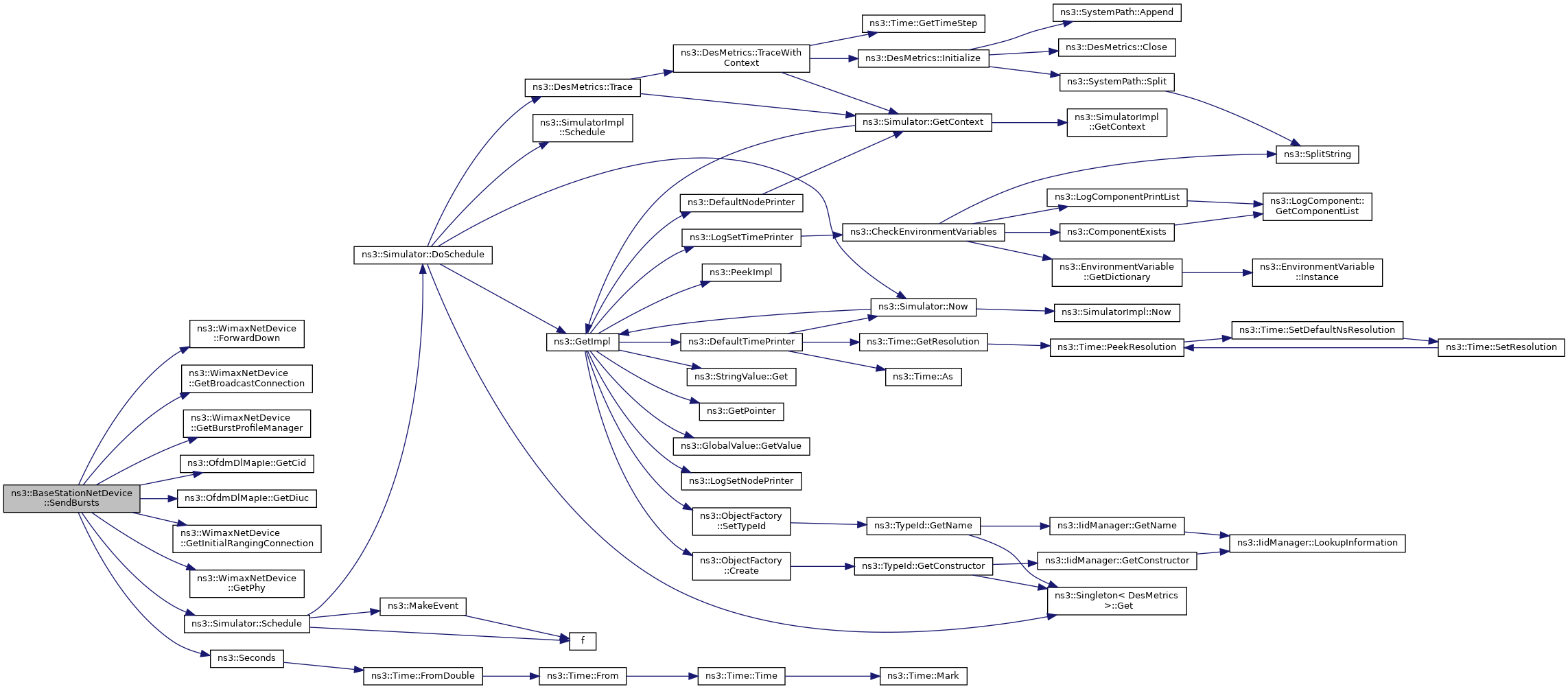

Here is the call graph for this function:

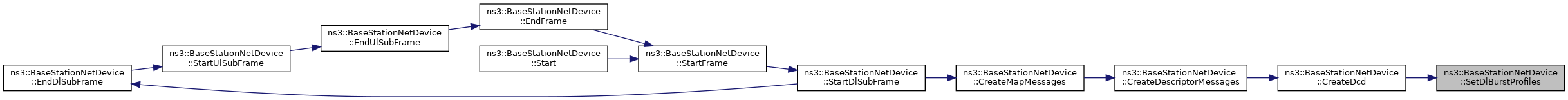

Here is the caller graph for this function:

◆ CreateDescriptorMessages()

void ns3::BaseStationNetDevice::CreateDescriptorMessages	(	bool	sendDcd,
		bool	sendUcd
	)

private

creates the channel descriptor MAC management messages DCD and UCD

Parameters

sendDcd	true if send DCD
sendUcd	true if send UCD

Definition at line 945 of file bs-net-device.cc.

References CreateDcd(), CreateUcd(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), m_framesSinceLastDcd, m_framesSinceLastUcd, m_nrDcdSent, and m_nrUcdSent.

Referenced by CreateMapMessages().

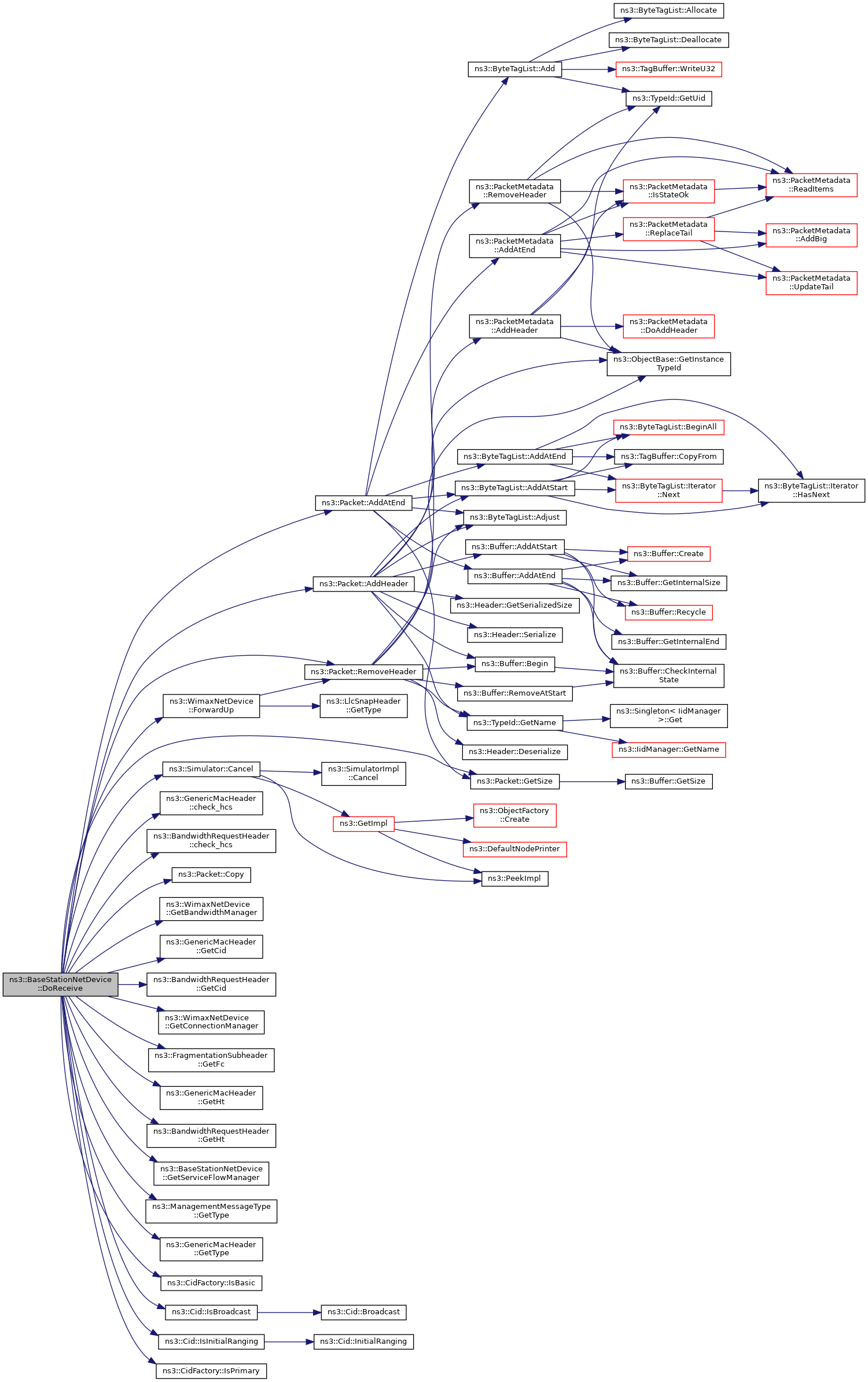

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDlMap()

Ptr< Packet > ns3::BaseStationNetDevice::CreateDlMap ( )

private

Create DL map.

Returns: packet

Definition at line 1019 of file bs-net-device.cc.

References ns3::DlMap::AddDlMapElement(), ns3::Packet::AddHeader(), ns3::OfdmDlBurstProfile::DIUC_END_OF_MAP, ns3::WimaxNetDevice::GetMacAddress(), ns3::Cid::InitialRanging(), m_dcdConfigChangeCount, m_nrDlAllocations, m_scheduler, ns3::ManagementMessageType::MESSAGE_TYPE_DL_MAP, ns3::DlMap::SetBaseStationId(), ns3::OfdmDlMapIe::SetCid(), ns3::DlMap::SetDcdCount(), ns3::OfdmDlMapIe::SetDiuc(), ns3::OfdmDlMapIe::SetPreamblePresent(), and ns3::OfdmDlMapIe::SetStartTime().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateMapMessages()

void ns3::BaseStationNetDevice::CreateMapMessages ( )

private

creates the MAC management messages DL-MAP and UL-MAP

Definition at line 897 of file bs-net-device.cc.

References CreateDescriptorMessages(), CreateDlMap(), CreateUlMap(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), m_dcdConfigChangeCount, m_nrDlMapSent, m_nrSsRegistered, m_nrUlMapSent, m_ssManager, m_ucdConfigChangeCount, and m_uplinkScheduler.

Referenced by StartDlSubFrame().

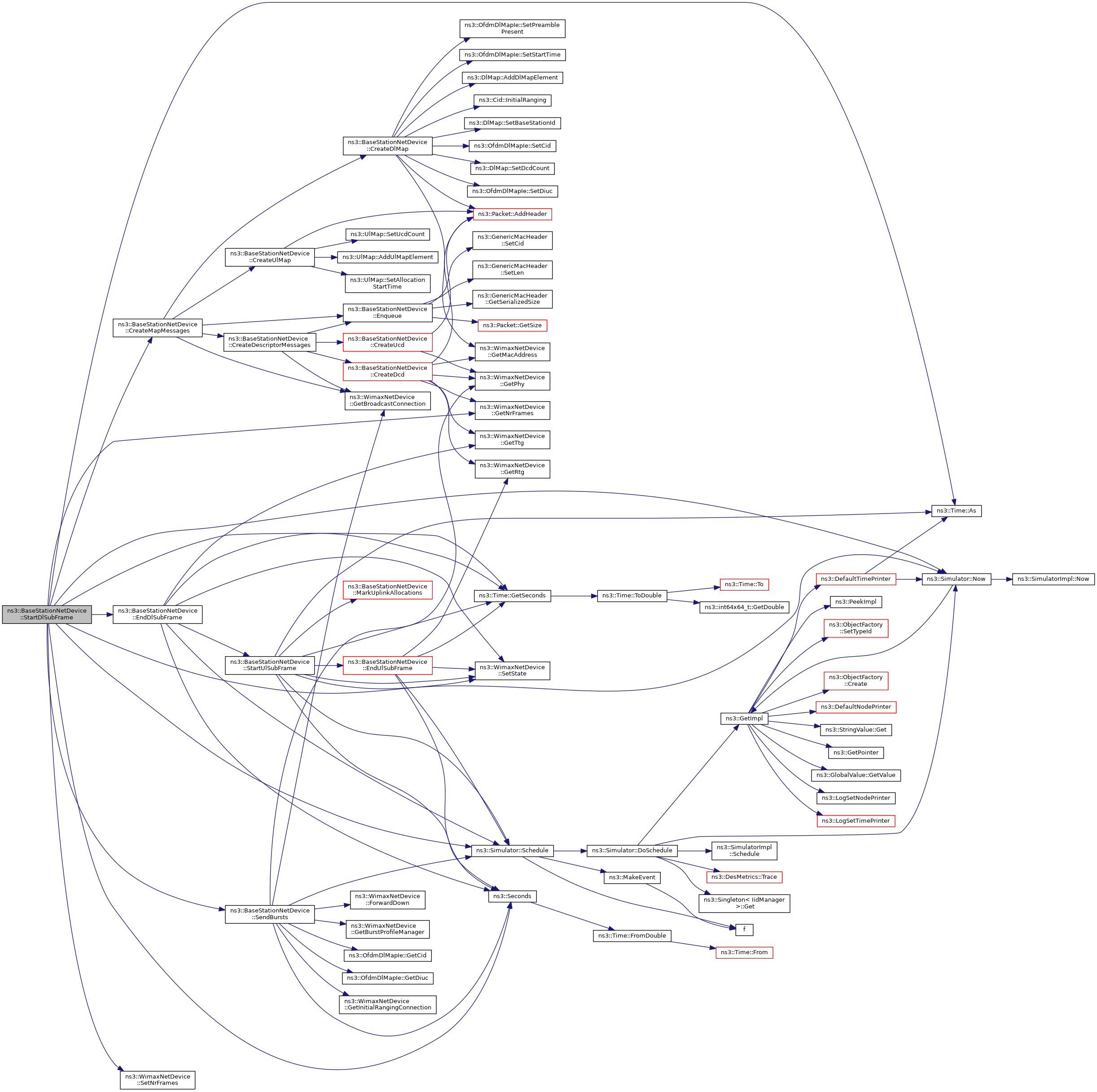

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateUcd()

Ptr< Packet > ns3::BaseStationNetDevice::CreateUcd ( )

private

Create UCD.

Returns: packet

Definition at line 1108 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::WimaxNetDevice::GetPhy(), m_bwReqOppSize, m_rangReqOppSize, m_ucdConfigChangeCount, ns3::ManagementMessageType::MESSAGE_TYPE_UCD, ns3::UcdChannelEncodings::SetBwReqOppSize(), ns3::Ucd::SetChannelEncodings(), ns3::Ucd::SetConfigurationChangeCount(), ns3::WimaxNetDevice::SetCurrentUcd(), ns3::UcdChannelEncodings::SetFrequency(), ns3::Ucd::SetRangingBackoffEnd(), ns3::Ucd::SetRangingBackoffStart(), ns3::UcdChannelEncodings::SetRangReqOppSize(), ns3::Ucd::SetRequestBackoffEnd(), ns3::Ucd::SetRequestBackoffStart(), ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes(), ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams(), and SetUlBurstProfiles().

Referenced by CreateDescriptorMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateUlMap()

Ptr< Packet > ns3::BaseStationNetDevice::CreateUlMap ( )

private

Create UL map.

Returns: packet

Definition at line 1082 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::UlMap::AddUlMapElement(), m_nrUlAllocations, m_rangingOppNumber, m_ucdConfigChangeCount, m_ulAllocationNumber, m_uplinkScheduler, ns3::ManagementMessageType::MESSAGE_TYPE_UL_MAP, ns3::UlMap::SetAllocationStartTime(), and ns3::UlMap::SetUcdCount().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::BaseStationNetDevice::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 273 of file bs-net-device.cc.

References ns3::WimaxNetDevice::DoDispose(), m_bsClassifier, m_cidFactory, m_linkManager, m_scheduler, m_serviceFlowManager, m_ssManager, and m_uplinkScheduler.

Here is the call graph for this function:

◆ DoReceive()

void ns3::BaseStationNetDevice::DoReceive ( Ptr< Packet > packet )

overrideprivatevirtual

Receive packet.

Parameters

packet to send

Implements ns3::WimaxNetDevice.

Definition at line 701 of file bs-net-device.cc.

Here is the call graph for this function:

◆ DoSend()

bool ns3::BaseStationNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

overrideprivatevirtual

Send packet.

Parameters

packet	to send
source	MAC address
dest	destination MAC address
protocolNumber	protocol number

Returns: true if successful

Implements ns3::WimaxNetDevice.

Definition at line 631 of file bs-net-device.cc.

References Enqueue(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::GetIsEnabled(), GetServiceFlowManager(), ns3::Packet::GetSize(), m_bsClassifier, m_bsTxDropTrace, m_bsTxTrace, NS_LOG_INFO, ns3::ServiceFlow::SF_DIRECTION_DOWN, and ns3::ServiceFlow::SF_TYPE_ALL.

Here is the call graph for this function:

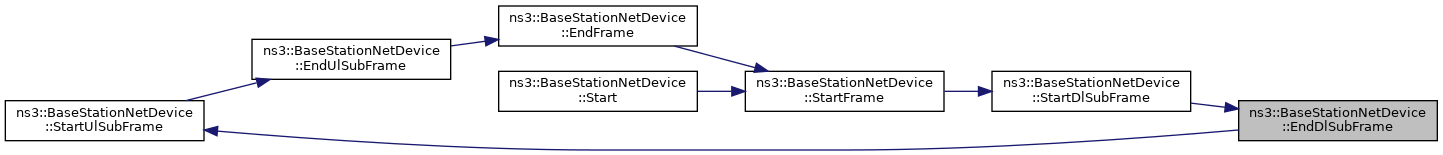

◆ EndDlSubFrame()

void ns3::BaseStationNetDevice::EndDlSubFrame ( )

private

End DL subframe function.

Definition at line 590 of file bs-net-device.cc.

References BS_STATE_TTG, ns3::Time::GetSeconds(), ns3::WimaxNetDevice::GetTtg(), m_nrDlFrames, m_psDuration, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::WimaxNetDevice::SetState(), and StartUlSubFrame().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndFrame()

void ns3::BaseStationNetDevice::EndFrame ( )

private

End frame function.

Definition at line 625 of file bs-net-device.cc.

References StartFrame().

Referenced by EndUlSubFrame().

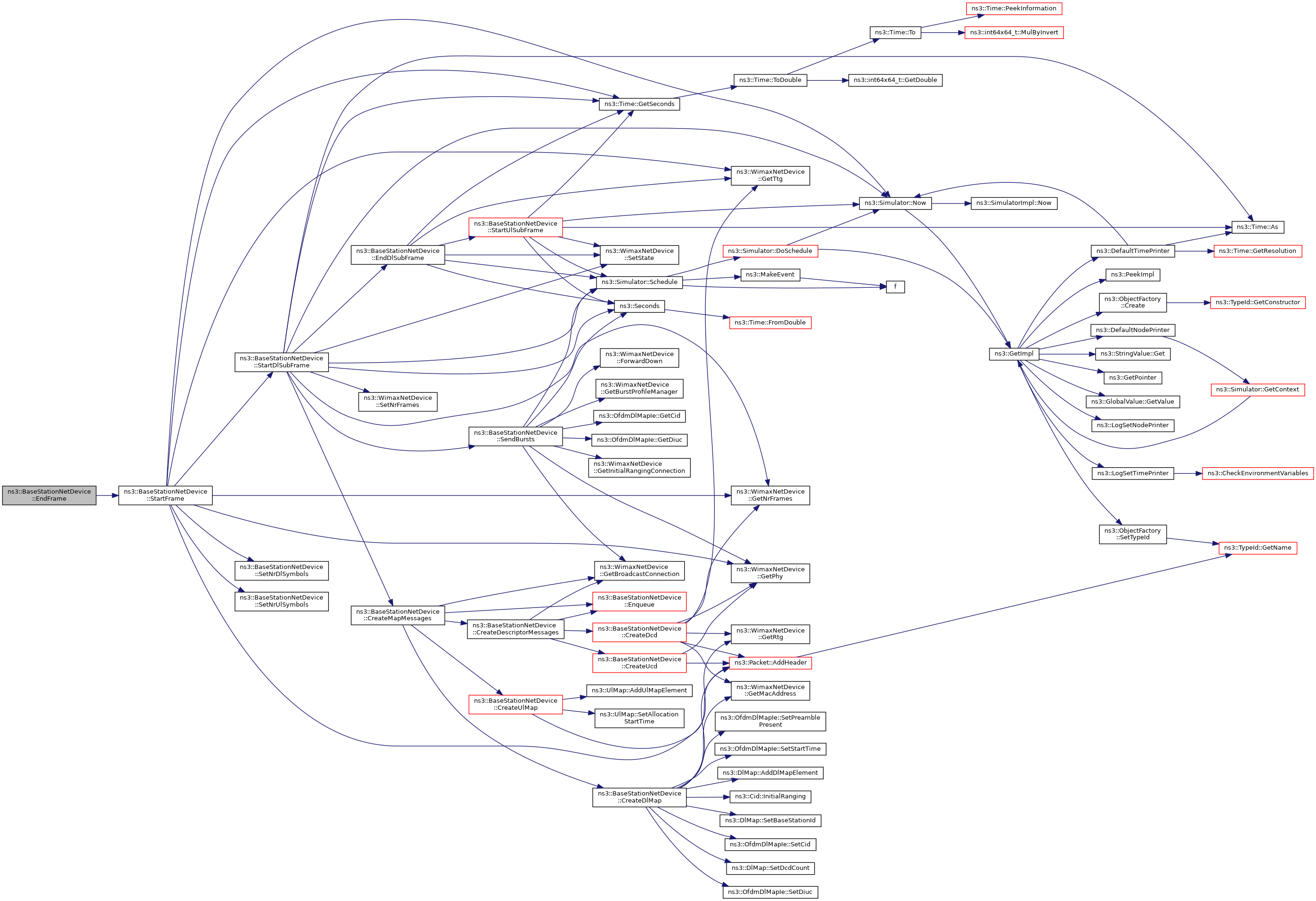

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndUlSubFrame()

void ns3::BaseStationNetDevice::EndUlSubFrame ( )

private

End UL subframe function.

Definition at line 615 of file bs-net-device.cc.

References BS_STATE_RTG, EndFrame(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), m_nrUlFrames, m_psDuration, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxNetDevice::SetState().

Referenced by StartUlSubFrame().

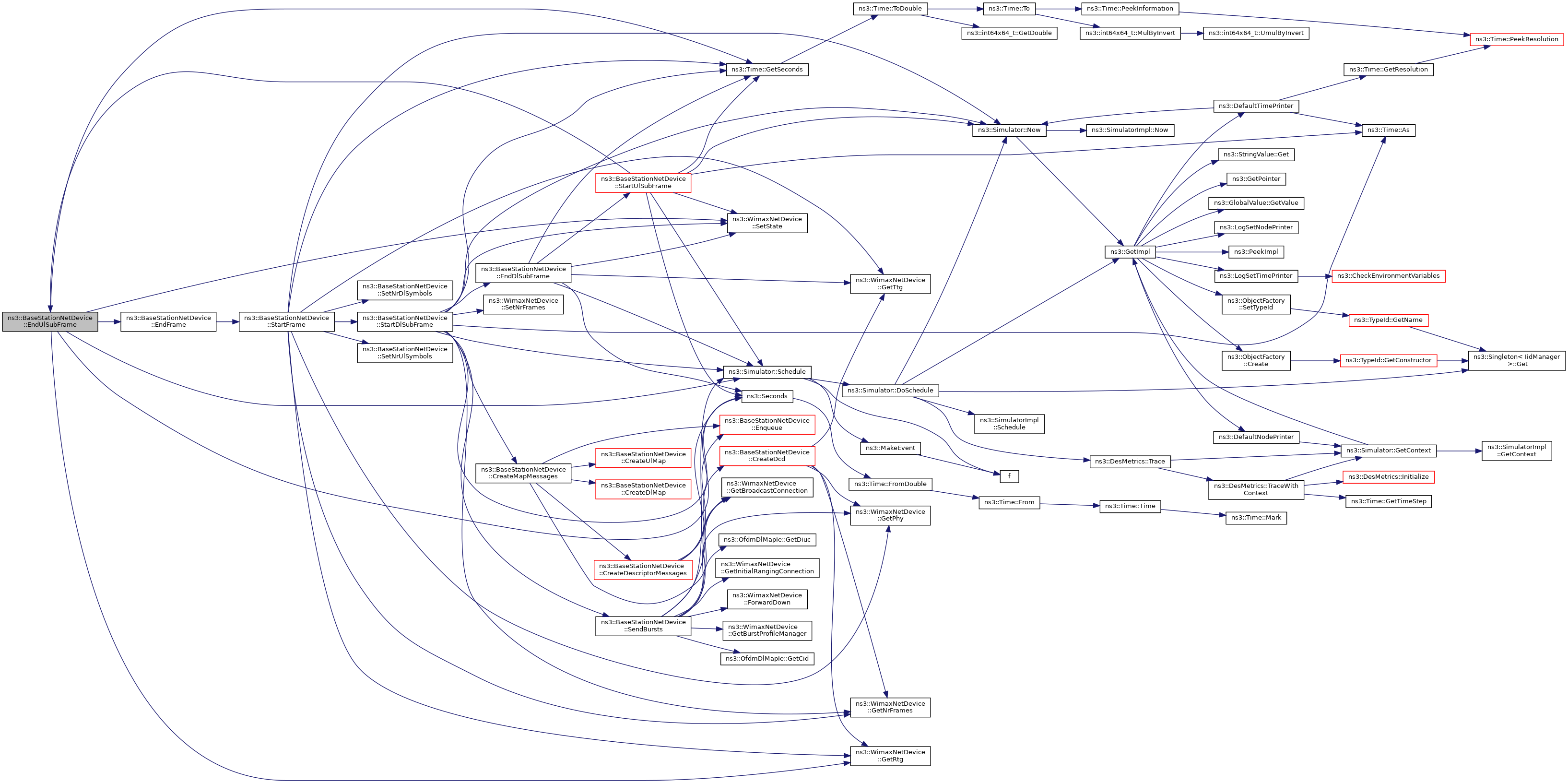

Here is the call graph for this function:

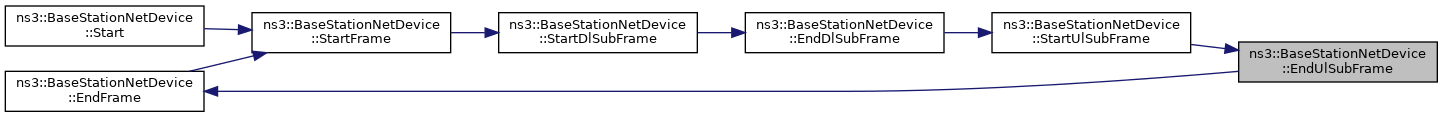

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::BaseStationNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

overridevirtual

Enqueue a packet into a connection queue.

Parameters

packet	the packet to be enqueued
hdrType	the mac header type to be appended to the packet
connection	the connection to be used

Returns: true if successful

Implements ns3::WimaxNetDevice.

Definition at line 684 of file bs-net-device.cc.

References ns3::GenericMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), NS_ASSERT_MSG, ns3::GenericMacHeader::SetCid(), and ns3::GenericMacHeader::SetLen().

Referenced by CreateDescriptorMessages(), CreateMapMessages(), and DoSend().

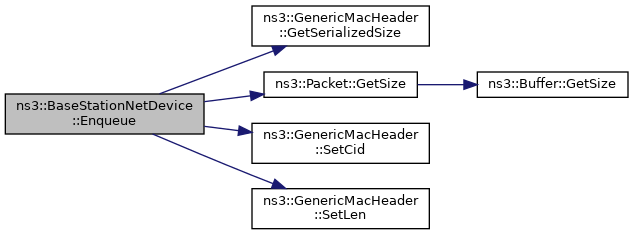

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBsClassifier()

Ptr< IpcsClassifier > ns3::BaseStationNetDevice::GetBsClassifier ( ) const

Returns: a pointer to the classifier installed on the BS

Definition at line 297 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetBSScheduler()

Ptr< BSScheduler > ns3::BaseStationNetDevice::GetBSScheduler ( ) const

Returns: The BS scheduler installed on the BS

Definition at line 507 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetBwReqOppSize()

uint8_t ns3::BaseStationNetDevice::GetBwReqOppSize ( ) const

Returns: The bandwidth request opportunity size in symbols

Definition at line 393 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

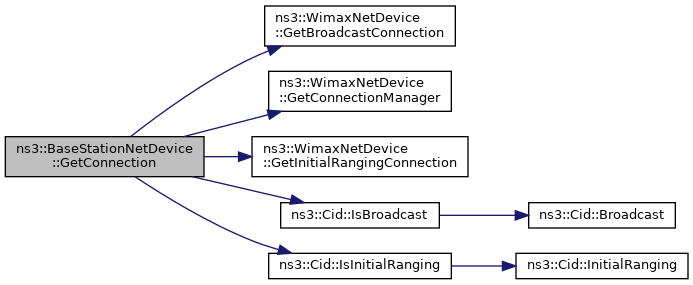

◆ GetConnection()

Ptr< WimaxConnection > ns3::BaseStationNetDevice::GetConnection ( Cid cid )

Parameters

cid	connection ID

Returns: a pointer to the connection

Definition at line 1168 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::WimaxNetDevice::GetConnectionManager(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::Cid::IsBroadcast(), ns3::Cid::IsInitialRanging(), and NS_ASSERT_MSG.

Here is the call graph for this function:

◆ GetDcdInterval()

Time ns3::BaseStationNetDevice::GetDcdInterval ( ) const

Returns: the Time between transmission of DCD messages

Definition at line 321 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetDlSubframeStartTime()

Time ns3::BaseStationNetDevice::GetDlSubframeStartTime ( ) const

Returns: the DL subframe start time

Definition at line 435 of file bs-net-device.cc.

References m_dlSubframeStartTime.

◆ GetInitialRangingInterval()

Time ns3::BaseStationNetDevice::GetInitialRangingInterval ( ) const

Returns: Time between initial ranging regions assigned by the BS

Definition at line 309 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetIntervalT8()

Time ns3::BaseStationNetDevice::GetIntervalT8 ( ) const

Returns: the Wait for DSA/DSC Acknowledge timeout

Definition at line 345 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetLinkManager()

Ptr< BSLinkManager > ns3::BaseStationNetDevice::GetLinkManager ( ) const

Returns: a pointer to the link manager installed on the BS

Definition at line 489 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMaxInvitedRangRetries()

uint8_t ns3::BaseStationNetDevice::GetMaxInvitedRangRetries ( ) const

Returns: the number of retries on contention Ranging

Definition at line 369 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

◆ GetMaxRangingCorrectionRetries()

uint8_t ns3::BaseStationNetDevice::GetMaxRangingCorrectionRetries ( ) const

Returns: the number of retries on contention Ranging Requests

Definition at line 357 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNrDcdSent()

uint32_t ns3::BaseStationNetDevice::GetNrDcdSent ( ) const

Returns: the number dcd messages already sent

Definition at line 423 of file bs-net-device.cc.

References m_nrDcdSent.

◆ GetNrDlSymbols()

uint32_t ns3::BaseStationNetDevice::GetNrDlSymbols ( ) const

Returns: the number of symbols in the downlink sub-frame

Definition at line 405 of file bs-net-device.cc.

References m_nrDlSymbols.

◆ GetNrUcdSent()

uint32_t ns3::BaseStationNetDevice::GetNrUcdSent ( ) const

Returns: the number ucd messages already sent

Definition at line 429 of file bs-net-device.cc.

References m_nrUcdSent.

◆ GetNrUlSymbols()

uint32_t ns3::BaseStationNetDevice::GetNrUlSymbols ( ) const

Returns: the number of symbols in the uplink sub-frame

Definition at line 417 of file bs-net-device.cc.

References m_nrUlSymbols.

◆ GetPsDuration()

Time ns3::BaseStationNetDevice::GetPsDuration ( ) const

Returns: PS duration

Definition at line 513 of file bs-net-device.cc.

References m_psDuration.

◆ GetRangingOppNumber()

uint8_t ns3::BaseStationNetDevice::GetRangingOppNumber ( ) const

Returns: the ranging opp number

Definition at line 447 of file bs-net-device.cc.

References m_rangingOppNumber.

◆ GetRangReqOppSize()

uint8_t ns3::BaseStationNetDevice::GetRangReqOppSize ( ) const

Returns: The ranging opportunity size in symbols

Definition at line 381 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetServiceFlowManager()

Ptr< BsServiceFlowManager > ns3::BaseStationNetDevice::GetServiceFlowManager ( ) const

Returns: service flow manager

Definition at line 465 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by DoReceive(), DoSend(), and GetTypeId().

Here is the caller graph for this function:

◆ GetSSManager()

Ptr< SSManager > ns3::BaseStationNetDevice::GetSSManager ( ) const

Returns: a pointer to the SS manager

Definition at line 453 of file bs-net-device.cc.

References m_ssManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetSymbolDuration()

Time ns3::BaseStationNetDevice::GetSymbolDuration ( ) const

Returns: symbol duration

Definition at line 519 of file bs-net-device.cc.

References m_symbolDuration.

◆ GetTypeId()

TypeId ns3::BaseStationNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 57 of file bs-net-device.cc.

References GetBsClassifier(), GetBSScheduler(), GetBwReqOppSize(), GetDcdInterval(), GetInitialRangingInterval(), GetIntervalT8(), GetLinkManager(), GetMaxRangingCorrectionRetries(), GetRangReqOppSize(), GetServiceFlowManager(), GetSSManager(), GetUcdInterval(), GetUplinkScheduler(), m_bsPromiscRxTrace, m_bsRxDropTrace, m_bsRxTrace, m_bsTxDropTrace, m_bsTxTrace, m_scheduler, ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::Seconds(), SetBsClassifier(), SetBSScheduler(), SetBwReqOppSize(), SetDcdInterval(), SetInitialRangingInterval(), SetIntervalT8(), SetLinkManager(), SetMaxRangingCorrectionRetries(), ns3::TypeId::SetParent(), SetRangReqOppSize(), SetServiceFlowManager(), SetSSManager(), SetUcdInterval(), and SetUplinkScheduler().

Here is the call graph for this function:

◆ GetUcdInterval()

Time ns3::BaseStationNetDevice::GetUcdInterval ( ) const

Returns: Time between transmission of UCD messages

Definition at line 333 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetUlSubframeStartTime()

Time ns3::BaseStationNetDevice::GetUlSubframeStartTime ( ) const

Returns: the UL subframe start time

Definition at line 441 of file bs-net-device.cc.

References m_ulSubframeStartTime.

◆ GetUplinkScheduler()

Ptr< UplinkScheduler > ns3::BaseStationNetDevice::GetUplinkScheduler ( ) const

Returns: a pointer to the uplink scheduler installed on the device

Definition at line 477 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

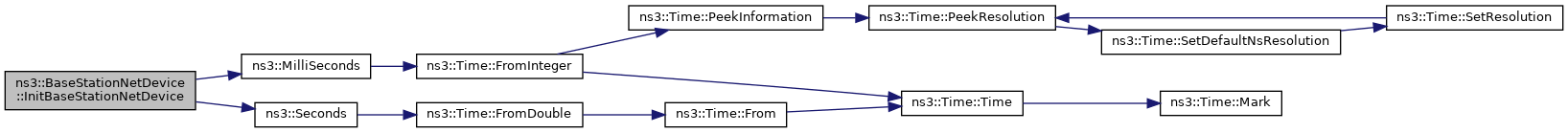

◆ InitBaseStationNetDevice()

void ns3::BaseStationNetDevice::InitBaseStationNetDevice ( )

initializes the BS net device and sets its parameters to the default values

Definition at line 209 of file bs-net-device.cc.

References m_allocationStartTime, m_bsClassifier, m_bwReqOppSize, m_cidFactory, m_dcdConfigChangeCount, m_dcdInterval, m_dlSubframeStartTime, m_framesSinceLastDcd, m_framesSinceLastUcd, m_initialRangInterval, m_intervalT8, m_linkManager, m_maxInvitedRangRetries, m_maxRangCorrectionRetries, m_nrDcdSent, m_nrDlAllocations, m_nrDlFrames, m_nrDlMapSent, m_nrDlSymbols, m_nrSsRegistered, m_nrUcdSent, m_nrUlAllocations, m_nrUlFrames, m_nrUlMapSent, m_nrUlSymbols, m_psDuration, m_rangingOppNumber, m_rangReqOppSize, m_serviceFlowManager, m_ssManager, m_symbolDuration, m_ucdConfigChangeCount, m_ucdInterval, m_ulAllocationNumber, m_ulSubframeStartTime, ns3::MilliSeconds(), and ns3::Seconds().

Referenced by BaseStationNetDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MarkRangingOppStart()

void ns3::BaseStationNetDevice::MarkRangingOppStart ( Time rangingOppStartTime )

Mark ranging opp start.

Parameters

rangingOppStartTime start time

Definition at line 1249 of file bs-net-device.cc.

References RangingOppStart(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

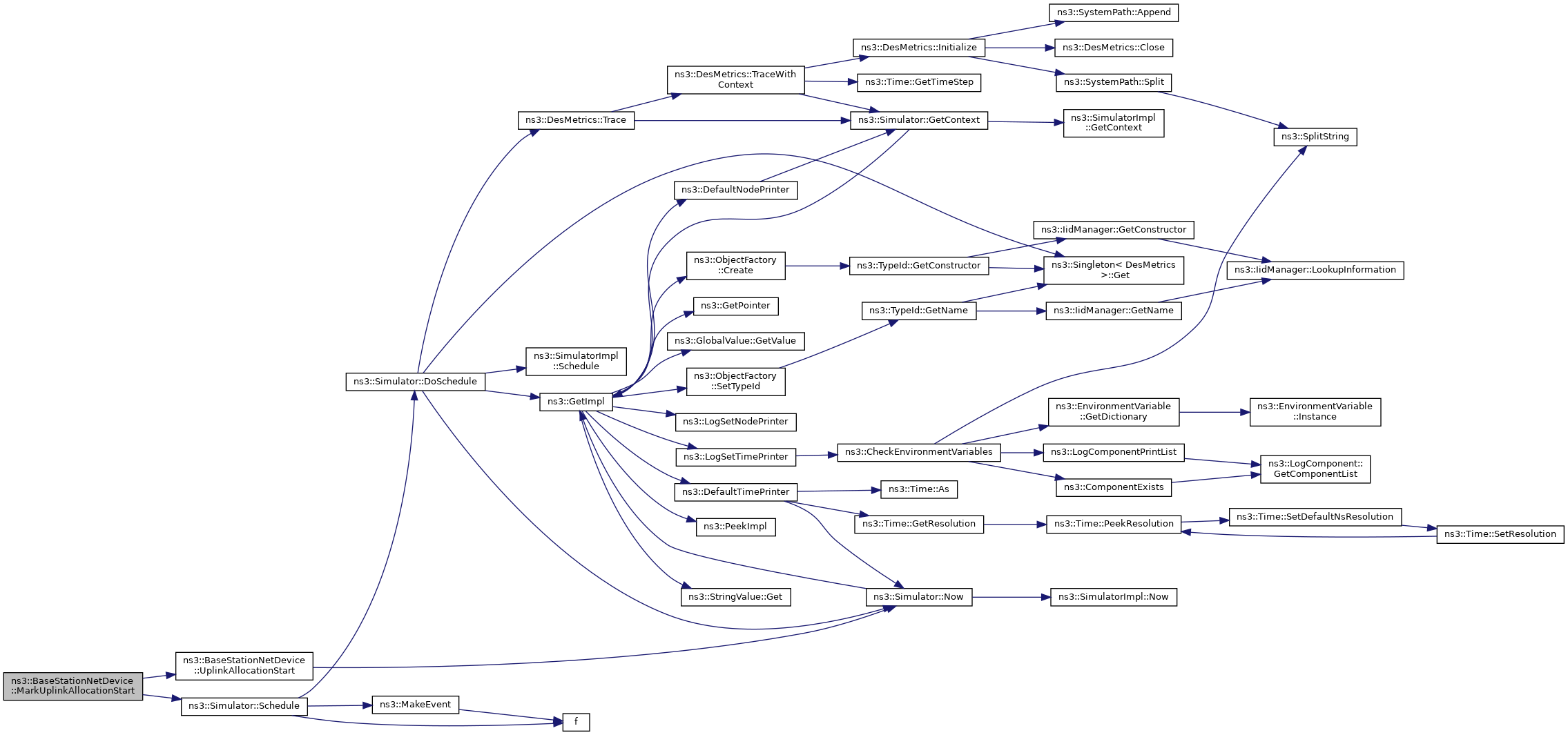

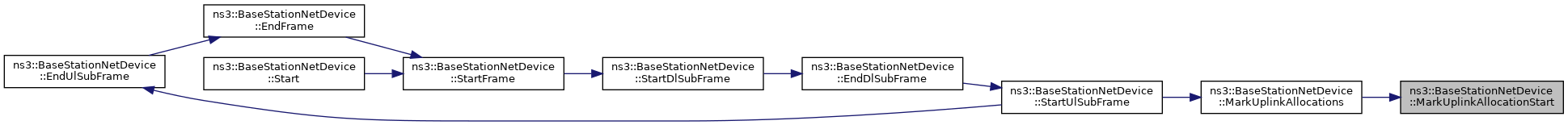

◆ MarkUplinkAllocationEnd()

void ns3::BaseStationNetDevice::MarkUplinkAllocationEnd	(	Time	allocationEndTime,
		Cid	cid,
		uint8_t	uiuc
	)

private

Mark uplink allocation end.

Parameters

allocationEndTime	allocation end time
cid	connection ID
uiuc

Definition at line 1218 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationEnd().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MarkUplinkAllocations()

void ns3::BaseStationNetDevice::MarkUplinkAllocations ( )

Mark uplink allocations.

Definition at line 1189 of file bs-net-device.cc.

References ns3::OfdmUlMapIe::GetCid(), ns3::OfdmUlMapIe::GetDuration(), ns3::OfdmUlMapIe::GetStartTime(), ns3::OfdmUlMapIe::GetUiuc(), m_symbolDuration, m_uplinkScheduler, MarkUplinkAllocationEnd(), MarkUplinkAllocationStart(), and ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP.

Referenced by StartUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MarkUplinkAllocationStart()

void ns3::BaseStationNetDevice::MarkUplinkAllocationStart ( Time allocationStartTime )

private

Mark uplink allocation start.

Parameters

allocationStartTime allocation start time

Definition at line 1212 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationStart().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RangingOppStart()

void ns3::BaseStationNetDevice::RangingOppStart ( )

private

Ranging opp start.

Definition at line 1255 of file bs-net-device.cc.

References m_rangingOppNumber, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by MarkRangingOppStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBursts()

void ns3::BaseStationNetDevice::SendBursts ( )

private

Send burst function.

Definition at line 980 of file bs-net-device.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, ns3::WimaxNetDevice::ForwardDown(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmDlMapIe::GetCid(), ns3::OfdmDlMapIe::GetDiuc(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::WimaxNetDevice::GetPhy(), m_scheduler, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBsClassifier()

void ns3::BaseStationNetDevice::SetBsClassifier ( Ptr< IpcsClassifier > classifier )

Parameters

classifier a classifier to be installed on the BS

Definition at line 291 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBSScheduler()

void ns3::BaseStationNetDevice::SetBSScheduler ( Ptr< BSScheduler > bsSchedule )

Parameters

bsSchedule the downlink scheduler to be installed on the BS

Definition at line 501 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBwReqOppSize()

void ns3::BaseStationNetDevice::SetBwReqOppSize ( uint8_t bwReqOppSize )

Parameters

bwReqOppSize The bandwidth request opportunity size in symbols

Definition at line 387 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetDcdInterval()

void ns3::BaseStationNetDevice::SetDcdInterval ( Time dcdInterval )

Parameters

dcdInterval Time between transmission of DCD messages

Definition at line 315 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetDlBurstProfiles()

void ns3::BaseStationNetDevice::SetDlBurstProfiles ( Dcd * dcd )

private

Send DL burst profiles.

Parameters

dcd	burst profile

Definition at line 1138 of file bs-net-device.cc.

References ns3::Dcd::AddDlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmDlBurstProfile::SetDiuc(), ns3::OfdmDlBurstProfile::SetFecCodeType(), ns3::OfdmDlBurstProfile::SetLength(), and ns3::OfdmDlBurstProfile::SetType().

Referenced by CreateDcd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetInitialRangingInterval()

void ns3::BaseStationNetDevice::SetInitialRangingInterval ( Time initialRangInterval )

Parameters

initialRangInterval Time between initial ranging regions assigned by the BS

Definition at line 303 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetIntervalT8()

void ns3::BaseStationNetDevice::SetIntervalT8 ( Time interval )

Parameters

interval the Wait for DSA/DSC Acknowledge timeout

Definition at line 339 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetLinkManager()

void ns3::BaseStationNetDevice::SetLinkManager ( Ptr< BSLinkManager > linkManager )

Parameters

linkManager The link manager installed on the BS

Definition at line 495 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetMaxInvitedRangRetries()

void ns3::BaseStationNetDevice::SetMaxInvitedRangRetries ( uint8_t maxInvitedRangRetries )

Parameters

maxInvitedRangRetries the number of retries on contention Ranging

Definition at line 363 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

◆ SetMaxRangingCorrectionRetries()

void ns3::BaseStationNetDevice::SetMaxRangingCorrectionRetries ( uint8_t maxRangCorrectionRetries )

Parameters

maxRangCorrectionRetries the number of retries on contention Ranging Requests

Definition at line 351 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNrDlSymbols()

void ns3::BaseStationNetDevice::SetNrDlSymbols ( uint32_t dlSymbols )

Parameters

dlSymbols the number of symbols in the downlink sub-frame

Definition at line 399 of file bs-net-device.cc.

References m_nrDlSymbols.

Referenced by StartFrame().

Here is the caller graph for this function:

◆ SetNrUlSymbols()

void ns3::BaseStationNetDevice::SetNrUlSymbols ( uint32_t ulSymbols )

Parameters

ulSymbols the number of symbols in the uplink sub-frame

Definition at line 411 of file bs-net-device.cc.

References m_nrUlSymbols.

Referenced by StartFrame().

Here is the caller graph for this function:

◆ SetRangReqOppSize()

void ns3::BaseStationNetDevice::SetRangReqOppSize ( uint8_t rangReqOppSize )

Parameters

rangReqOppSize The ranging opportunity size in symbols

Definition at line 375 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetServiceFlowManager()

void ns3::BaseStationNetDevice::SetServiceFlowManager ( Ptr< BsServiceFlowManager > sfm )

Set service flow manager.

Parameters

sfm	the service flow manager

Definition at line 471 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSSManager()

void ns3::BaseStationNetDevice::SetSSManager ( Ptr< SSManager > ssManager )

Parameters

ssManager the SS manager to be installed on the BS

Definition at line 459 of file bs-net-device.cc.

References m_ssManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetUcdInterval()

void ns3::BaseStationNetDevice::SetUcdInterval ( Time ucdInterval )

Parameters

ucdInterval the Time between transmission of UCD messages

Definition at line 327 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetUlBurstProfiles()

void ns3::BaseStationNetDevice::SetUlBurstProfiles ( Ucd * ucd )

private

Send UL burst profiles.

Parameters

ucd	burst profile

Definition at line 1152 of file bs-net-device.cc.

References ns3::Ucd::AddUlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmUlBurstProfile::SetFecCodeType(), ns3::OfdmUlBurstProfile::SetLength(), ns3::OfdmUlBurstProfile::SetType(), and ns3::OfdmUlBurstProfile::SetUiuc().

Referenced by CreateUcd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUplinkScheduler()

void ns3::BaseStationNetDevice::SetUplinkScheduler ( Ptr< UplinkScheduler > ulScheduler )

Parameters

ulScheduler the ulScheduler to be isnstalled on the BS

Definition at line 483 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ Start()

void ns3::BaseStationNetDevice::Start ( )

overridevirtual

Start device.

Implements ns3::WimaxNetDevice.

Definition at line 525 of file bs-net-device.cc.

References ns3::WimaxNetDevice::CreateDefaultConnections(), ns3::WimaxNetDevice::GetBandwidthManager(), ns3::WimaxNetDevice::GetConnectionManager(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxNetDevice::GetRtg(), ns3::WimaxNetDevice::GetTtg(), m_bwReqOppSize, m_cidFactory, m_linkManager, m_psDuration, m_symbolDuration, m_uplinkScheduler, ns3::Simulator::ScheduleNow(), ns3::WimaxNetDevice::SetReceiveCallback(), ns3::WimaxNetDevice::SetRtg(), ns3::WimaxNetDevice::SetTtg(), and StartFrame().

Here is the call graph for this function:

◆ StartDlSubFrame()

void ns3::BaseStationNetDevice::StartDlSubFrame ( )

private

Start DL subframe function.

Definition at line 571 of file bs-net-device.cc.

References ns3::Time::As(), BS_STATE_DL_SUB_FRAME, CreateMapMessages(), ns3::WimaxNetDevice::DIRECTION_DOWNLINK, EndDlSubFrame(), ns3::WimaxNetDevice::GetNrFrames(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_dlSubframeStartTime, ns3::WimaxNetDevice::m_frameStartTime, m_nrDlSymbols, m_scheduler, m_symbolDuration, m_uplinkScheduler, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Time::S, ns3::Simulator::Schedule(), ns3::Seconds(), SendBursts(), ns3::WimaxNetDevice::SetNrFrames(), and ns3::WimaxNetDevice::SetState().

Referenced by StartFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartFrame()

void ns3::BaseStationNetDevice::StartFrame ( )

private

Start frame function.

Definition at line 552 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetNrFrames(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::GetTtg(), ns3::WimaxNetDevice::m_frameStartTime, m_psDuration, m_symbolDuration, ns3::Simulator::Now(), NS_LOG_INFO, SetNrDlSymbols(), SetNrUlSymbols(), and StartDlSubFrame().

Referenced by EndFrame(), and Start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartUlSubFrame()

void ns3::BaseStationNetDevice::StartUlSubFrame ( )

private

Start UL subframe function.

Definition at line 600 of file bs-net-device.cc.

References ns3::Time::As(), BS_STATE_UL_SUB_FRAME, ns3::WimaxNetDevice::DIRECTION_UPLINK, EndUlSubFrame(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_nrUlSymbols, m_symbolDuration, m_ulSubframeStartTime, MarkUplinkAllocations(), ns3::Simulator::Now(), NS_LOG_INFO, ns3::Time::S, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxNetDevice::SetState().

Referenced by EndDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Stop()

void ns3::BaseStationNetDevice::Stop ( )

overridevirtual

Stop device.

Implements ns3::WimaxNetDevice.

Definition at line 547 of file bs-net-device.cc.

◆ UplinkAllocationEnd()

void ns3::BaseStationNetDevice::UplinkAllocationEnd	(	Cid	cid,
		uint8_t	uiuc
	)

private

Uplink allocation end.

Parameters

cid	connection ID
uiuc

Definition at line 1237 of file bs-net-device.cc.

References ns3::CidFactory::IsBasic(), m_cidFactory, m_linkManager, m_ulAllocationNumber, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by MarkUplinkAllocationEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UplinkAllocationStart()

void ns3::BaseStationNetDevice::UplinkAllocationStart ( )

private

Uplink allocation start.

Definition at line 1228 of file bs-net-device.cc.

References m_ulAllocationNumber, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by MarkUplinkAllocationStart().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_allocationStartTime

uint32_t ns3::BaseStationNetDevice::m_allocationStartTime

private

allocation start time

Definition at line 455 of file bs-net-device.h.

Referenced by InitBaseStationNetDevice().

◆ m_bsClassifier

Ptr<IpcsClassifier> ns3::BaseStationNetDevice::m_bsClassifier

private

the base station classifier

Definition at line 461 of file bs-net-device.h.

Referenced by DoDispose(), DoSend(), GetBsClassifier(), InitBaseStationNetDevice(), and SetBsClassifier().

◆ m_bsPromiscRxTrace

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource base station promiscuous receive trace Callbacks

Definition at line 495 of file bs-net-device.h.

Referenced by GetTypeId().

◆ m_bsRxDropTrace

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource base station receive drop trace Callbacks

Definition at line 512 of file bs-net-device.h.

Referenced by DoReceive(), and GetTypeId().

◆ m_bsRxTrace

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also: class CallBackTraceSource base station receive trace Callbacks

Definition at line 504 of file bs-net-device.h.

Referenced by DoReceive(), and GetTypeId().

◆ m_bsTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See also: class CallBackTraceSource base station transmit drop trace Callbacks

Definition at line 485 of file bs-net-device.h.

Referenced by DoSend(), and GetTypeId().

◆ m_bsTxTrace

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource the base station transmit trace Callbacks

Definition at line 476 of file bs-net-device.h.

Referenced by DoSend(), and GetTypeId().

◆ m_bwReqOppSize

uint8_t ns3::BaseStationNetDevice::m_bwReqOppSize

private

in symbols

Definition at line 419 of file bs-net-device.h.

Referenced by CreateUcd(), GetBwReqOppSize(), InitBaseStationNetDevice(), SetBwReqOppSize(), and Start().

◆ m_cidFactory

CidFactory* ns3::BaseStationNetDevice::m_cidFactory

private

the CID factory

Definition at line 453 of file bs-net-device.h.

Referenced by DoDispose(), DoReceive(), InitBaseStationNetDevice(), Start(), and UplinkAllocationEnd().

◆ m_dcdConfigChangeCount

uint32_t ns3::BaseStationNetDevice::m_dcdConfigChangeCount

private

DCD config change count.

Definition at line 431 of file bs-net-device.h.

Referenced by CreateDcd(), CreateDlMap(), CreateMapMessages(), and InitBaseStationNetDevice().

◆ m_dcdInterval

Time ns3::BaseStationNetDevice::m_dcdInterval

private

in seconds

Definition at line 412 of file bs-net-device.h.

Referenced by GetDcdInterval(), InitBaseStationNetDevice(), and SetDcdInterval().

◆ m_dlSubframeStartTime

Time ns3::BaseStationNetDevice::m_dlSubframeStartTime

private

DL subframe start time.

Definition at line 447 of file bs-net-device.h.

Referenced by GetDlSubframeStartTime(), InitBaseStationNetDevice(), and StartDlSubFrame().

◆ m_framesSinceLastDcd

uint32_t ns3::BaseStationNetDevice::m_framesSinceLastDcd

private

frames since last DCD

Definition at line 434 of file bs-net-device.h.

Referenced by CreateDescriptorMessages(), and InitBaseStationNetDevice().

◆ m_framesSinceLastUcd

uint32_t ns3::BaseStationNetDevice::m_framesSinceLastUcd

private

frames since last UCD

Definition at line 435 of file bs-net-device.h.

Referenced by CreateDescriptorMessages(), and InitBaseStationNetDevice().

◆ m_initialRangInterval

Time ns3::BaseStationNetDevice::m_initialRangInterval

private

in seconds

Definition at line 411 of file bs-net-device.h.

Referenced by GetInitialRangingInterval(), InitBaseStationNetDevice(), and SetInitialRangingInterval().

◆ m_intervalT8

Time ns3::BaseStationNetDevice::m_intervalT8

private

in milliseconds, wait for DSA/DSC Acknowledge timeout

Definition at line 414 of file bs-net-device.h.

Referenced by GetIntervalT8(), InitBaseStationNetDevice(), and SetIntervalT8().

◆ m_linkManager

Ptr<BSLinkManager> ns3::BaseStationNetDevice::m_linkManager

private

the link manager

Definition at line 460 of file bs-net-device.h.

Referenced by DoDispose(), DoReceive(), GetLinkManager(), InitBaseStationNetDevice(), SetLinkManager(), Start(), and UplinkAllocationEnd().

◆ m_maxInvitedRangRetries

uint8_t ns3::BaseStationNetDevice::m_maxInvitedRangRetries

private

maximum invited range retries

Definition at line 417 of file bs-net-device.h.

Referenced by GetMaxInvitedRangRetries(), InitBaseStationNetDevice(), and SetMaxInvitedRangRetries().

◆ m_maxRangCorrectionRetries

uint8_t ns3::BaseStationNetDevice::m_maxRangCorrectionRetries

private

maximum range correction retries

Definition at line 416 of file bs-net-device.h.

Referenced by GetMaxRangingCorrectionRetries(), InitBaseStationNetDevice(), and SetMaxRangingCorrectionRetries().

◆ m_nrDcdSent

uint32_t ns3::BaseStationNetDevice::m_nrDcdSent

private

number DCD sent

Definition at line 428 of file bs-net-device.h.

Referenced by CreateDescriptorMessages(), GetNrDcdSent(), and InitBaseStationNetDevice().

◆ m_nrDlAllocations

uint16_t ns3::BaseStationNetDevice::m_nrDlAllocations

private

number DL allocations

Definition at line 444 of file bs-net-device.h.

Referenced by CreateDlMap(), and InitBaseStationNetDevice().

◆ m_nrDlFrames

uint32_t ns3::BaseStationNetDevice::m_nrDlFrames

private

number DL frames

Definition at line 438 of file bs-net-device.h.

Referenced by EndDlSubFrame(), and InitBaseStationNetDevice().

◆ m_nrDlMapSent

uint32_t ns3::BaseStationNetDevice::m_nrDlMapSent

private

number DL map sent

Definition at line 425 of file bs-net-device.h.

Referenced by CreateMapMessages(), and InitBaseStationNetDevice().

◆ m_nrDlSymbols

uint32_t ns3::BaseStationNetDevice::m_nrDlSymbols

private

number of DL symbols

Definition at line 421 of file bs-net-device.h.

Referenced by GetNrDlSymbols(), InitBaseStationNetDevice(), SetNrDlSymbols(), and StartDlSubFrame().

◆ m_nrSsRegistered

uint16_t ns3::BaseStationNetDevice::m_nrSsRegistered

private

number SS registered

Definition at line 442 of file bs-net-device.h.

Referenced by CreateMapMessages(), and InitBaseStationNetDevice().

◆ m_nrUcdSent

uint32_t ns3::BaseStationNetDevice::m_nrUcdSent

private

number UCD sent

Definition at line 429 of file bs-net-device.h.

Referenced by CreateDescriptorMessages(), GetNrUcdSent(), and InitBaseStationNetDevice().

◆ m_nrUlAllocations

uint16_t ns3::BaseStationNetDevice::m_nrUlAllocations

private

number UL allocations

Definition at line 445 of file bs-net-device.h.

Referenced by CreateUlMap(), and InitBaseStationNetDevice().

◆ m_nrUlFrames

uint32_t ns3::BaseStationNetDevice::m_nrUlFrames

private

number UL frames

Definition at line 439 of file bs-net-device.h.

Referenced by EndUlSubFrame(), and InitBaseStationNetDevice().

◆ m_nrUlMapSent

uint32_t ns3::BaseStationNetDevice::m_nrUlMapSent

private

number UL map sent

Definition at line 426 of file bs-net-device.h.

Referenced by CreateMapMessages(), and InitBaseStationNetDevice().

◆ m_nrUlSymbols

uint32_t ns3::BaseStationNetDevice::m_nrUlSymbols

private

number of UL symbols

Definition at line 422 of file bs-net-device.h.

Referenced by GetNrUlSymbols(), InitBaseStationNetDevice(), SetNrUlSymbols(), and StartUlSubFrame().

◆ m_psDuration

Time ns3::BaseStationNetDevice::m_psDuration

private

ps duration

Definition at line 464 of file bs-net-device.h.

Referenced by EndDlSubFrame(), EndUlSubFrame(), GetPsDuration(), InitBaseStationNetDevice(), Start(), and StartFrame().

◆ m_rangingOppNumber

uint8_t ns3::BaseStationNetDevice::m_rangingOppNumber

private

current ranging TO number

Definition at line 451 of file bs-net-device.h.

Referenced by CreateUlMap(), GetRangingOppNumber(), InitBaseStationNetDevice(), and RangingOppStart().

◆ m_rangReqOppSize

uint8_t ns3::BaseStationNetDevice::m_rangReqOppSize

private

in symbols

Definition at line 418 of file bs-net-device.h.

Referenced by CreateUcd(), GetRangReqOppSize(), InitBaseStationNetDevice(), and SetRangReqOppSize().

◆ m_scheduler

Ptr<BSScheduler> ns3::BaseStationNetDevice::m_scheduler

private

the base station scheduler

Definition at line 459 of file bs-net-device.h.

Referenced by BaseStationNetDevice(), CreateDlMap(), DoDispose(), GetBSScheduler(), GetTypeId(), SendBursts(), SetBSScheduler(), and StartDlSubFrame().

◆ m_serviceFlowManager

Ptr<BsServiceFlowManager> ns3::BaseStationNetDevice::m_serviceFlowManager

private

the service flow manager

Definition at line 462 of file bs-net-device.h.

Referenced by DoDispose(), GetServiceFlowManager(), InitBaseStationNetDevice(), and SetServiceFlowManager().

◆ m_ssManager

Ptr<SSManager> ns3::BaseStationNetDevice::m_ssManager

private

the SS manager

Definition at line 457 of file bs-net-device.h.

Referenced by CreateMapMessages(), DoDispose(), DoReceive(), GetSSManager(), InitBaseStationNetDevice(), and SetSSManager().

◆ m_symbolDuration

Time ns3::BaseStationNetDevice::m_symbolDuration

private

symbol duration

Definition at line 465 of file bs-net-device.h.

Referenced by GetSymbolDuration(), InitBaseStationNetDevice(), MarkUplinkAllocations(), Start(), StartDlSubFrame(), StartFrame(), and StartUlSubFrame().

◆ m_traceBSRx

TracedCallback<Ptr<const Packet>, Mac48Address, Cid> ns3::BaseStationNetDevice::m_traceBSRx

private

the base station receive trace callback

Definition at line 468 of file bs-net-device.h.

Referenced by DoReceive().

◆ m_ucdConfigChangeCount

uint32_t ns3::BaseStationNetDevice::m_ucdConfigChangeCount

private

UCD config change count.

Definition at line 432 of file bs-net-device.h.

Referenced by CreateMapMessages(), CreateUcd(), CreateUlMap(), and InitBaseStationNetDevice().

◆ m_ucdInterval

Time ns3::BaseStationNetDevice::m_ucdInterval

private

in seconds

Definition at line 413 of file bs-net-device.h.

Referenced by GetUcdInterval(), InitBaseStationNetDevice(), and SetUcdInterval().

◆ m_ulAllocationNumber

uint8_t ns3::BaseStationNetDevice::m_ulAllocationNumber

private

to see UL burst number

Definition at line 450 of file bs-net-device.h.

Referenced by CreateUlMap(), InitBaseStationNetDevice(), UplinkAllocationEnd(), and UplinkAllocationStart().

◆ m_ulSubframeStartTime

Time ns3::BaseStationNetDevice::m_ulSubframeStartTime

private

UL subframe start time.

Definition at line 448 of file bs-net-device.h.

Referenced by GetUlSubframeStartTime(), InitBaseStationNetDevice(), and StartUlSubFrame().

◆ m_uplinkScheduler

Ptr<UplinkScheduler> ns3::BaseStationNetDevice::m_uplinkScheduler

private

the uplink scheduler

Definition at line 458 of file bs-net-device.h.

Referenced by BaseStationNetDevice(), CreateMapMessages(), CreateUlMap(), DoDispose(), GetUplinkScheduler(), MarkUplinkAllocations(), SetUplinkScheduler(), Start(), and StartDlSubFrame().

The documentation for this class was generated from the following files:

src/wimax/model/bs-net-device.h
src/wimax/model/bs-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ MacPreamble

◆ State

Constructor & Destructor Documentation

◆ BaseStationNetDevice() [1/3]

◆ BaseStationNetDevice() [2/3]

◆ BaseStationNetDevice() [3/3]

◆ ~BaseStationNetDevice()

Member Function Documentation

◆ CreateDcd()

◆ CreateDescriptorMessages()

◆ CreateDlMap()

◆ CreateMapMessages()

◆ CreateUcd()

◆ CreateUlMap()

◆ DoDispose()

◆ DoReceive()

◆ DoSend()

◆ EndDlSubFrame()

◆ EndFrame()

◆ EndUlSubFrame()

◆ Enqueue()

◆ GetBsClassifier()

◆ GetBSScheduler()

◆ GetBwReqOppSize()

◆ GetConnection()

◆ GetDcdInterval()

◆ GetDlSubframeStartTime()

◆ GetInitialRangingInterval()

◆ GetIntervalT8()

◆ GetLinkManager()

◆ GetMaxInvitedRangRetries()

◆ GetMaxRangingCorrectionRetries()

◆ GetNrDcdSent()

◆ GetNrDlSymbols()

◆ GetNrUcdSent()

◆ GetNrUlSymbols()

◆ GetPsDuration()

◆ GetRangingOppNumber()

◆ GetRangReqOppSize()

◆ GetServiceFlowManager()

◆ GetSSManager()

◆ GetSymbolDuration()

◆ GetTypeId()

◆ GetUcdInterval()

◆ GetUlSubframeStartTime()

◆ GetUplinkScheduler()

◆ InitBaseStationNetDevice()

◆ MarkRangingOppStart()

◆ MarkUplinkAllocationEnd()

◆ MarkUplinkAllocations()

◆ MarkUplinkAllocationStart()

◆ RangingOppStart()

◆ SendBursts()

◆ SetBsClassifier()

◆ SetBSScheduler()

◆ SetBwReqOppSize()

◆ SetDcdInterval()

◆ SetDlBurstProfiles()

◆ SetInitialRangingInterval()

◆ SetIntervalT8()

◆ SetLinkManager()

◆ SetMaxInvitedRangRetries()

◆ SetMaxRangingCorrectionRetries()

◆ SetNrDlSymbols()

◆ SetNrUlSymbols()

◆ SetRangReqOppSize()

◆ SetServiceFlowManager()

◆ SetSSManager()

◆ SetUcdInterval()

◆ SetUlBurstProfiles()

◆ SetUplinkScheduler()

◆ Start()
